Battery Making Machine 5 Litre Planetary Mixer for Battery Paste Mixing
Product Specification
1 This TOB-PVM-5L Planetary vacuum mixer machine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc
2 This lab planetary mixer Mixing motor adopts transmission frequency adjustment, can choose different rotational speed and torque according to different process, different viscosity.
3 The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and
ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
4. With heating function, up to 80 degrees, can pass cooling water, with a vacuum pump.
|
Model
|
Planetary Vacuum Mixer TOB-PVM-5L
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
3500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Rotation speed
|
0-1400 r/min, Through the inverter speed control
|
|
Revolution speed
|
0-70r/min
|
|
Effective volume
|
5L, 1-10 Liters Customized according request
|
|
Design volume
|
9L
|
|
Mixing barrel opening mode
|
Deceleration motor driven fill rises
|
|
Mixing barrel size
|
Φ260mm(Diameter)*180mm(Hight)
|
|
Mixing time set
|
0-99H can be set, auto stop when finish with vacuum
|
|
Weight
|
About 150kg
|
|
Dimension(H*L*W)
|
1300*1100*700mm, 51″*43″*27.5″
|
|
Advantage
|
5 liters 304 stainless steel container with high accuracy
Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to
24 hours.
Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation
Programmable controller to set time, speed, rotation direction.
With time and temperature setting function
Double blade design, make the material up and down around, mixing battery paste rapidly
|
Service:
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.

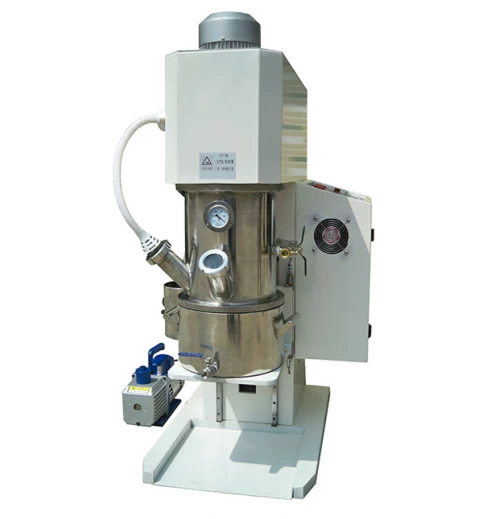

Product Image
Product Packing
