Battery Pack 6400Wh

Application: residential power backup, energy storage system component, off-grid work site



◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments

◆ Ultra-high performance in impact resistance and vibration resistance

◆ Parallel function can support up to 16 batteries, to form up a small scale ESS

◆ A built-in BMS that optimizes battery's charging and discharging progress

◆ Made with LFP cells that known for its high safety and long lifespan

◆ Equipped with a self heating system for better performance under cold condition

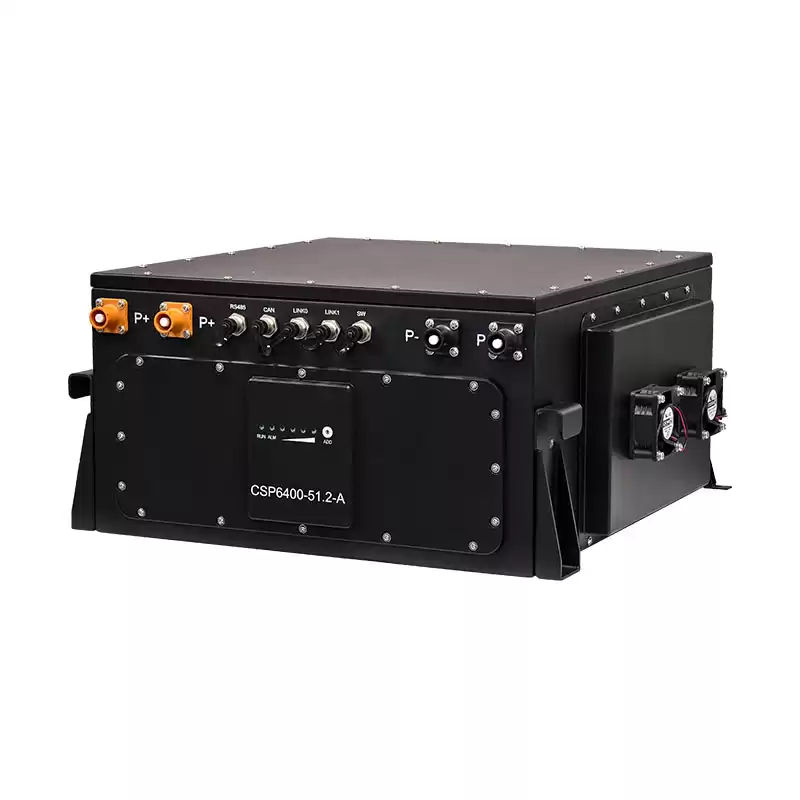

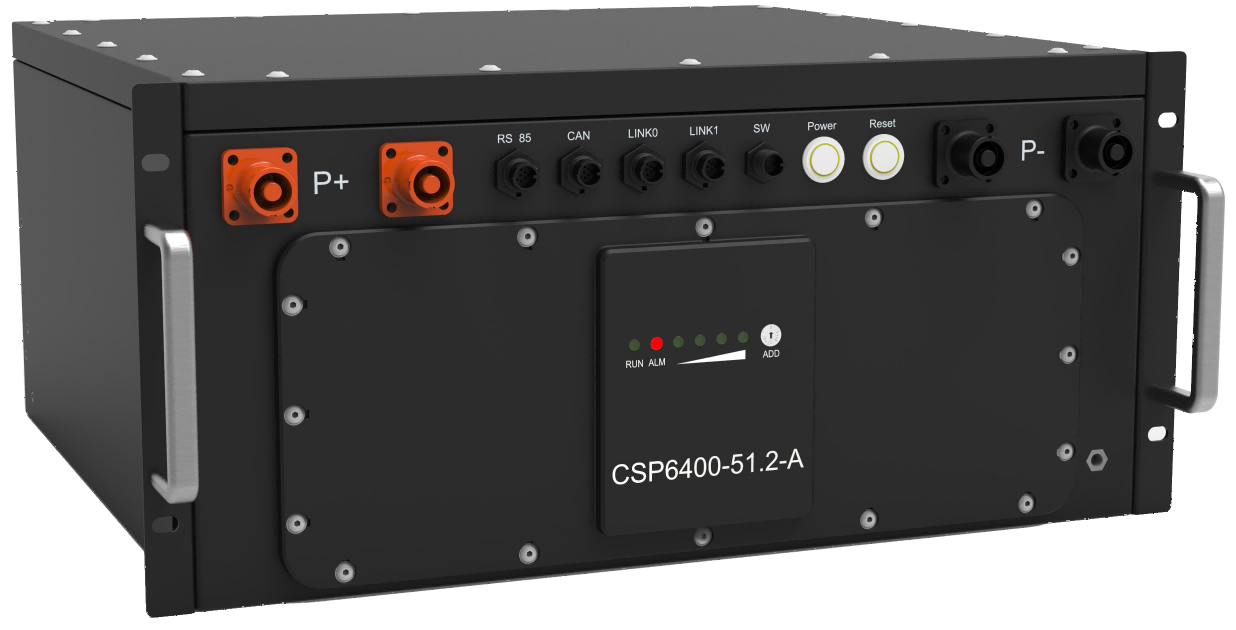

CSP-6400 battery pack is mainly developed as parts of ESS. It has IP65 dustproof and waterproof performance, and high impact and vibration resistance.

This battery pack doesn't have a built-in inverter, which means it can only operate when paired with a controller, or simply served as a module in energy storage system.



Rated capacity6400Wh

Power: 6400W

Overload power: 6400W

AC outlet: 100V grounded 2P x 2

DC outlet: USB-A x 1, USB-C x 1

AC charging time: 3 hours

Solar charging: up to 800W

Expansion 1: Use parallel cord to enable parallel operation with two units.

Expansion 2Using the expansion connector, parallel operation with 16 units is possible.

Cycle life: Capacity ≥80% after 4000 charge-discharge cycles (under the condition of 25℃ ambient temperature)

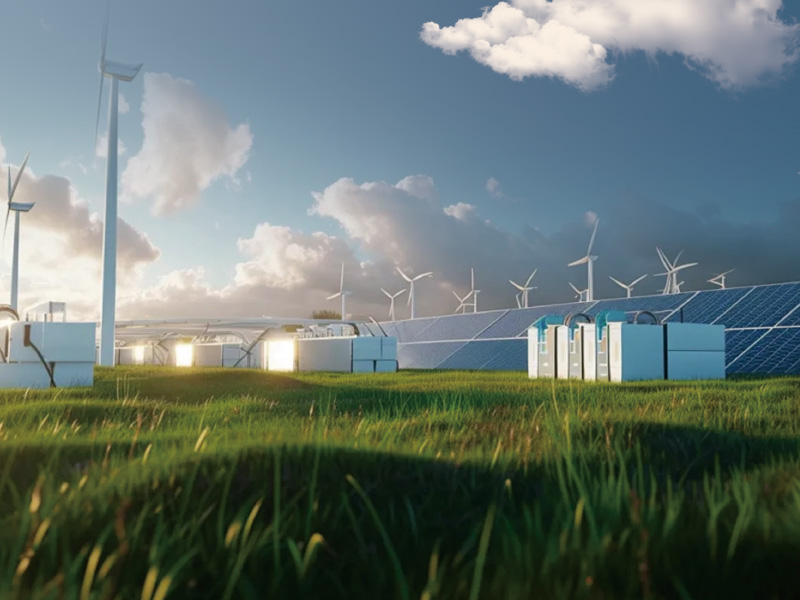

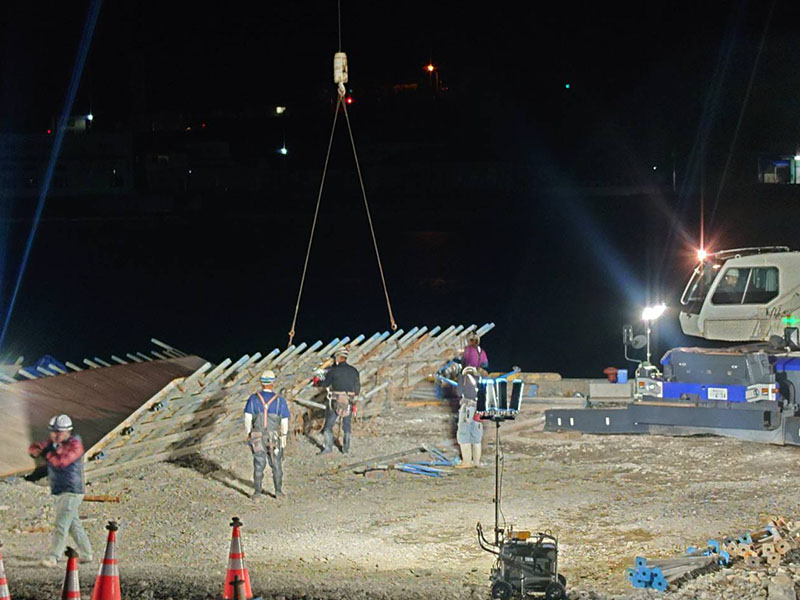

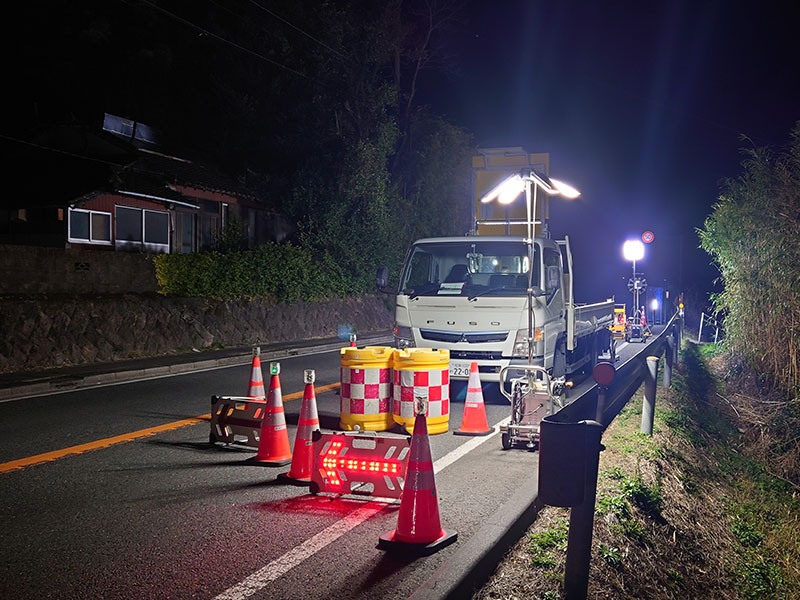

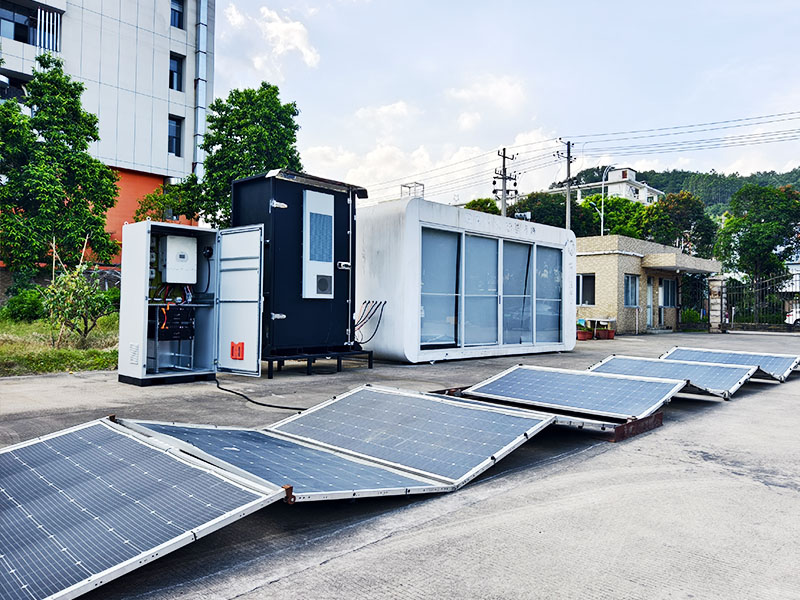

Application scenarios



Spec sheet

Model  CSP-6400
Rated capacity  6400 Wh
Rated power  6400 W
Charging time  ≈3 hours (under the condition of 25℃ ambient temperature)
Weight  ≈57kg
Dimension  L482 x W420 x H217 mm
Battery type  Lithium iron phosphate ion(LFP)
IP rating  IP65
IK rating  IK09
Rated voltage  51.2VAC ±4%
Rated current  125A
Frequency
Outlet type  125V・grounded 2P × 3 port
