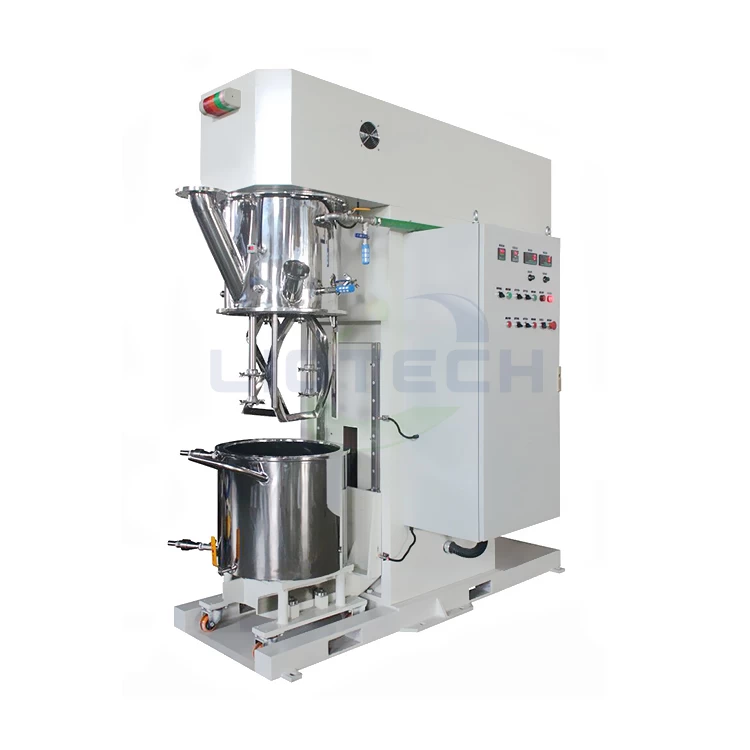

Modle

LIO-XFZH-100L

Lower barrel parts

Design total volume

140L

Effective volume

45-100L

Container inner diameter

596mm

Container inside depth

500mm

Container material

the parts in connect with materials is 304 stainless steel

Tempering jacket form

button and barrel body through circulating water for cooling, insulation and heating.

Tempering jacket port

G3/4",with quick opening movable joint,jacket withstand pressure≤0.4MPa

Tempering jacket circulation system

 prepared by customer,jacket water inlet temperature≤8℃,cooling water flow>40L/min

Discharge form

 bottom of a G1-1/2" three-piece discharge ball valve, equipped with 2"standard ISO quick connect clamp connector

Design environment temperature

-10~+120°C

Move mode

Casters move

Mixing parts

Working frequency

5-50hz

Mixing power

1.1kw one set

Mixing rotate speed

5-58pm cannot be adjustable

Mixing blade diameter

342mm

Mixing model

variable cross-section helical twist shape 90 °helix

Mixing plate material

304

Mixing line speed

0.1-1.0m/s

Mixing blade number

2pcs

Quantity of impellers

2

Distance between paddle and paddle

 5 ±1mm

Distance between paddle and bucket wall

 3 ±1mm

Distance between paddle and bucket bottom

 3 ±1mm

Dispersing parts

Working frequency

5-50hz

Dispersing power

15kw

 Dispersing rotate speed

380-3800rpm

 Dispersing plate diameter

125mm

 Dispersing model

Serrated

 Dispersing plate material

 304 stainless steel

Dispersing line speed

 2.3 -23m/s

 Dispersing number

 4pcs

Dispersing shaft number

 2pcs
