Battery PVC Heat Shrink Machine for Cylinderical Cell
Product Specification
TOB-BZJ--280 heat shrink machine is designed for cylindrical and combination battery heat shrinkable packaging process, using far infrared ray and cycle wind combination heating technology, ensure the battery plastic covers evenly heat shrinkage, famous and beautiful deformation, high consistency.
|
Model
|
Heat Shrink Machine TOB-BZJ--280
|
|
Source voltage
|
AC 380V, 50HZ
|
|
Power
|
10.5KW
|
|
Warranty
|
One year limited warranty and lifetime support
|
|
Heating mode
|
Far infrared ray heat combined with circulating hot air
|
|
Conveyor line specification
|
Length 2000mm, Width 280mm, The revolution combined with the rotation
|
|
Speed
|
0.1-6M/min, Infinitely adjustable-speed
|
|
Temperature range
|
RT-180℃， With 2℃ accuracy, PID Electronic temperature control
|
|
Battery out temperature
|
<600℃
|

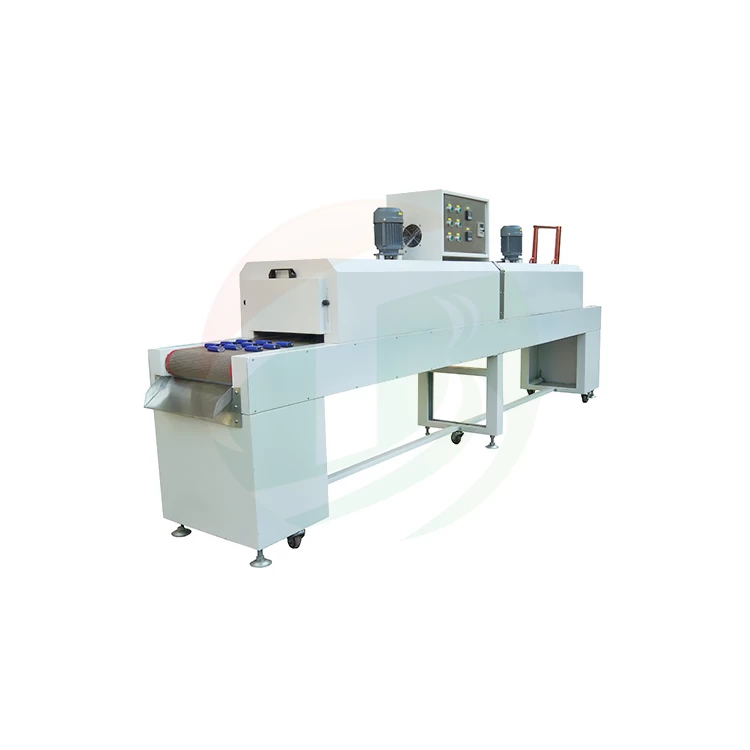

Product Images
Product Packing
