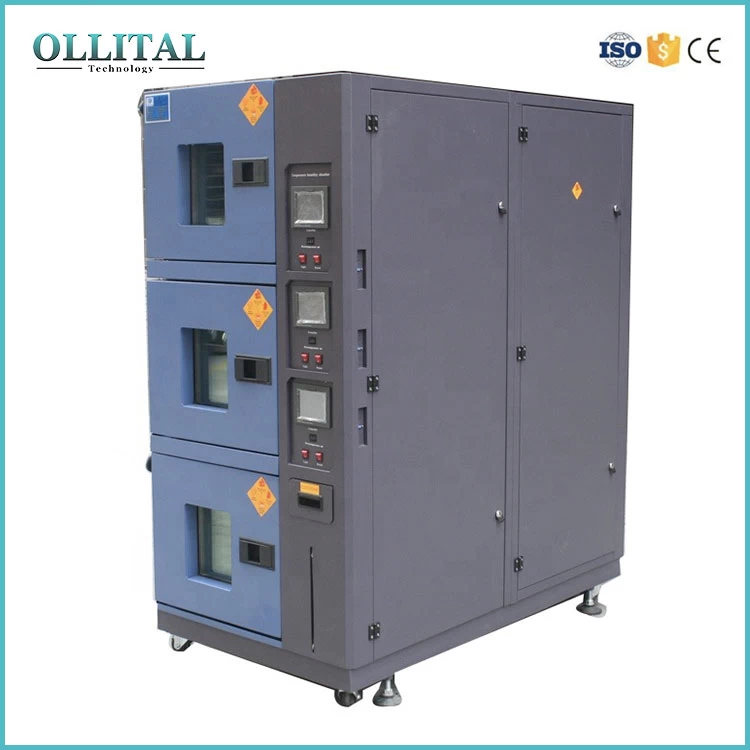

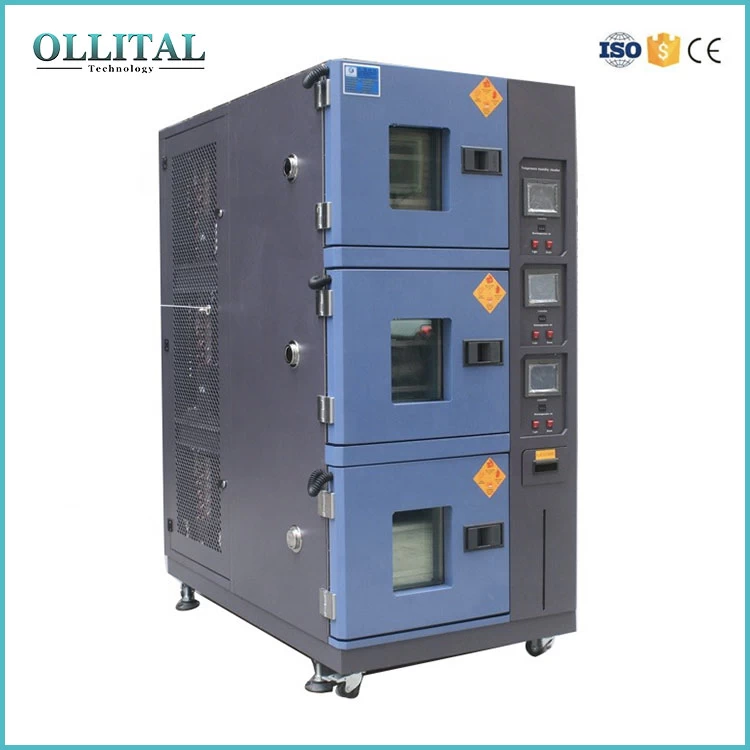

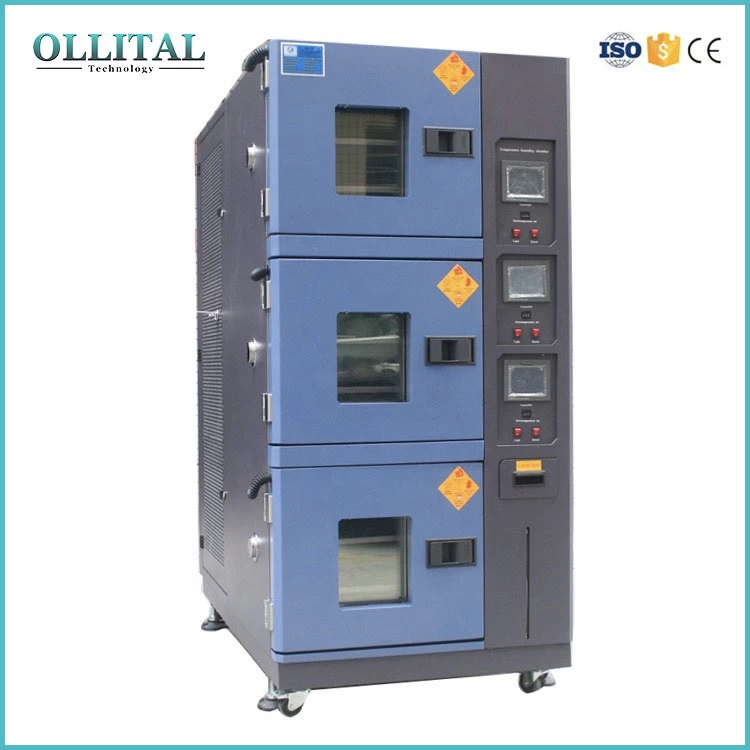

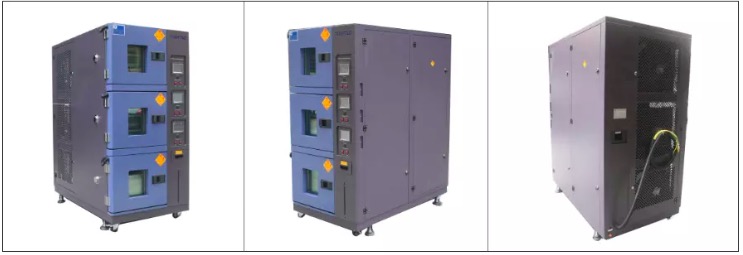

Environmental customized temperature & humidity test Chambers for battery are ideal for applications that require high temperature and high humidity. it has 3 layer climate compartmentalized chamber with individual temperature control chamber, customer can set different temperature humidity condition for product, which save much space.
Battery Climate Test Chambers are manufactured to thoroughly test battery cells and lithium-ion battery packs. Diverse battery test chamber sizes and configurations allow for a variety of battery types to be tested. Thermotron offers a variety of features to ensure the safety of the battery test chamber users while testing batteries. These features reduce the chance of an explosion and minimize the damaging effects of a spark-induced explosion.
|
Model
|
OLT-CC-162
|
Innerchamber size
W*H*D(mm)
|
600*450*600 for each layer
|
Exterior chamber size
W*H*D(mm)
|
900*1300*1500
|
|
Temperature Range
|
-40℃~+150℃
|
|
Humidity Range
|
20%-90%RH
|
|
Performance
|
|
Temp.&Humi.Fluctuation
|
±0.2℃,±0.5%RH
|
|
Temp.&Humi.Uniformity
|
±1.5℃,±2.5%RH(RH ≤75%),±4%RH(RH>75%),tested with the empry chamber
|
|
Temp.&Humi.Resolution
|
0.01℃,0.1%RH
|
|
Heat up time
|
30minutes
|
|
Cool down time
|
40minutes
|
|
Optional
|
-
Cable Port
-
Gas Detector and Monitor
-
Intrinsic Safety Isolation Barrier
-
Nitrogen Purge
-
Smoke detector
-
Fresh air system
-
CO2 fire extinguishing device
-
Water cooling system
|
Test Standards
-
IEC60068-2-1.1990 low-temperature testing method
-
IEC60068-2-2.1974 high-temperature testing method
-
GB/T 5170.2-1996 temperature test equipment
-
GB/T 5170.5-1996 damp heat test equipment (damp heat type only)
-
GB/T 2423.1-2001 Test A: Low temperature test method
-
GB/T 2423.2-2001 Test B: High temperature test method
-
GB/T 2423.3-1993 Test Ca: Constant damp heat test (damp heat only type)
-
GB/T 2423.4-1993 Test Cb: Alternating damp heat test (damp heat only type)
-
GJB 150.3-1986 High temperature test
-
GJB 150.4-1986 Low temperature test
-
GJB 150.9-1986 Damp heat test
1. Programmable Controller with RS232C conmunication, 5.7″ LCD touch panel control
2. 3 sets of independent control system
3. 2pcs stainless steel loading shelves free
4. Multiple viewing window with heater
5. 50 mm diameter feed-through port
Custom Services
|
1
|
Chamber volume
|
Our standard is 80L, 225L, 408L, 800L, 1000L, larger or non-standards customize
|
|
2
|
Temperature range
|
Our standard is -70℃,-60℃, -40℃,-20℃,0℃~150℃
-73℃~180℃, custom
|
|
3
|
Speed
|
Our standard is average 3℃/min for heating, 1℃/min for cooling.
Rapid rate 5℃/min, 8℃/min, 10℃/min, 15℃/min for linear or non-linear, custom
|
|
4
|

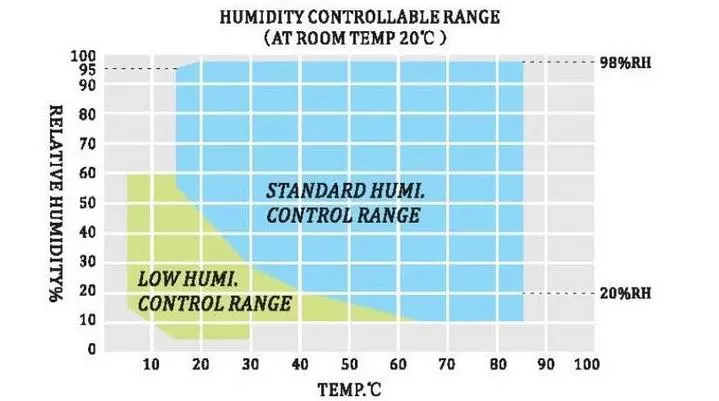

Humidity range
|
Our standard is 20%~98RH, low humidity test is available for custom
|
|
5
|
Temperature humidity resorder
|
|
|
6
|
Pure water treatment device
|
|
|
7
|
Vibration test system
|
Vibration combined climate test chamber
|
|
8
|
Low pressure system
|
High altitude low pressure test chamber
|
|
9
|
Fire and explosion protection system
|
|
