Product Name

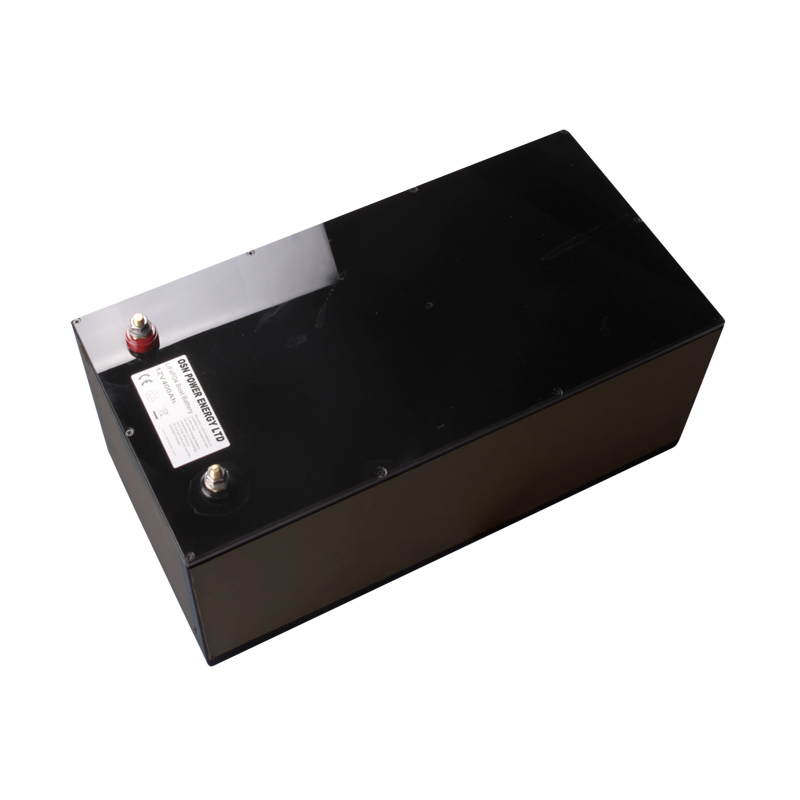

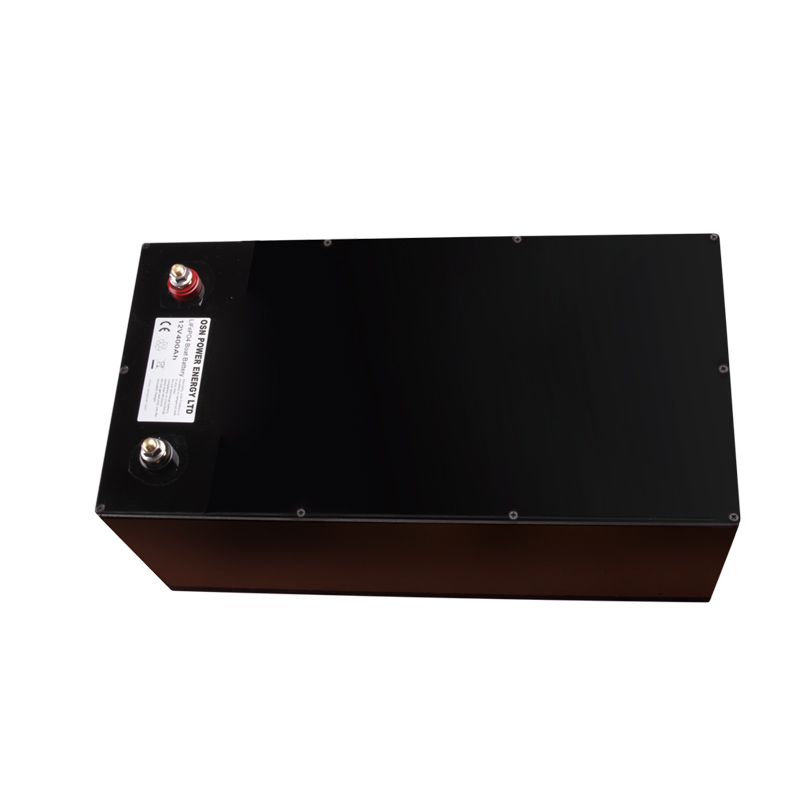

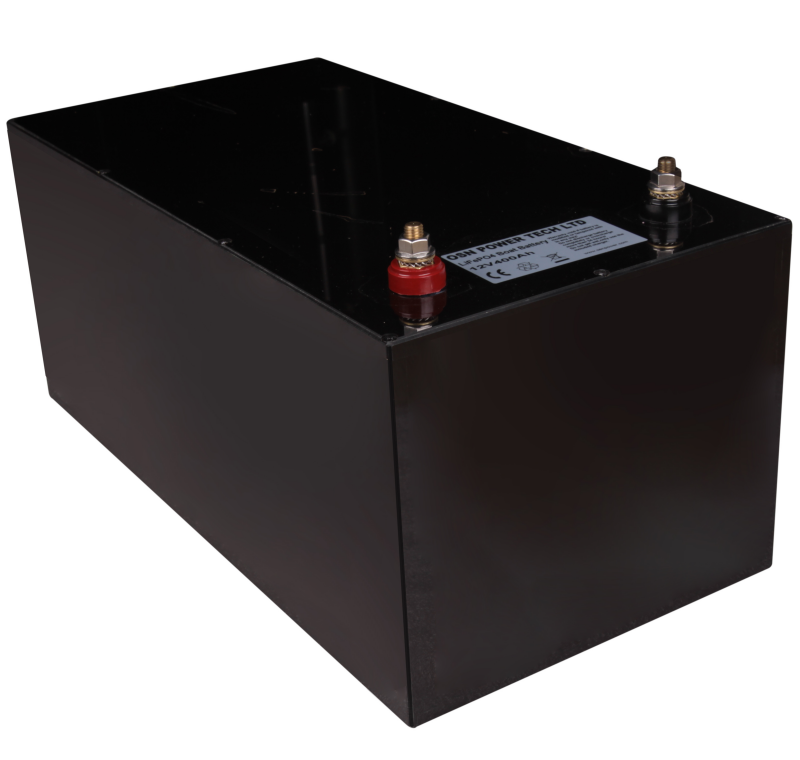

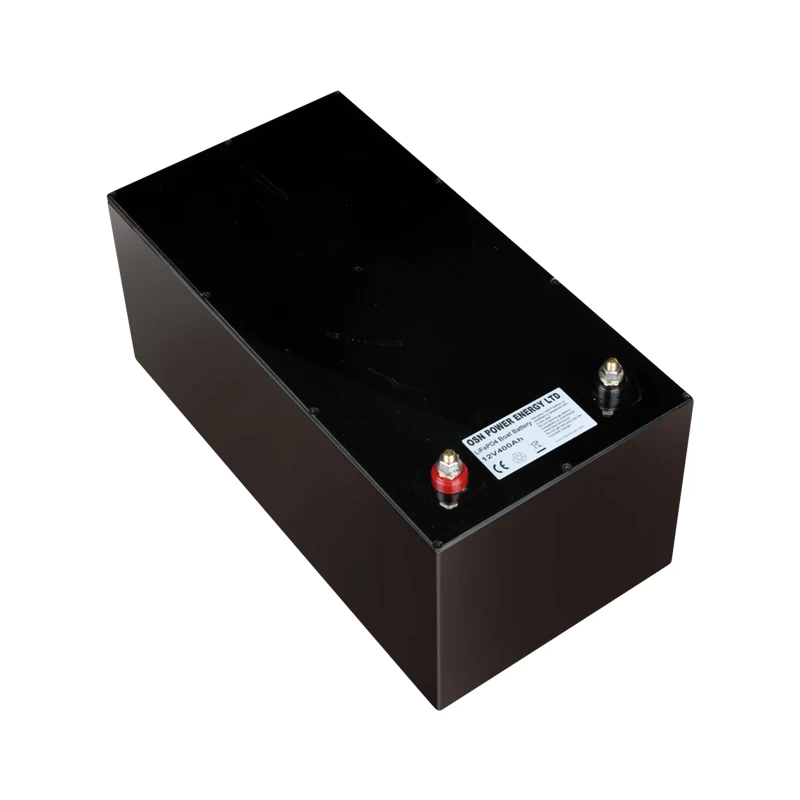

BCI Group 8D Replacement 12V 400AH Marine Battery
Highlights
-
High energy Density:More energy can be stored in the same space, which may be a good choice for small boat .
-
Super Long Cycle life: More than 3500 times cycle life with 80%DOD
-
Easy to connection: Can be replaced directly, all case made by BCI standard.
-
Waterproof: Can reach IP65
-
Super fixed: avoid the terminal loosening in the boat bumps
Specification for LiFePO4 12V 400AH Marine Battery
|
LITHIUM ION PHOSPHATE MARINE BATTERY
|
|
|
|
|
ELECTRICAL SPECIFICATIONS
|
TEMPERATURE SPECIFICATIONS
|
|
Nominal Voltage: 12.8 Volts
|
Discharge Temperature: 45-60 range C
|
|
Nominal Capacity: 400Ah
|
Charge Temperature: 45-60 range C
|
|
Capacity @ 25A: 960minutes(16hours)
|
Storage Temperature: 20-30 range C
|
|
Energy:4800Wh
|
BMS High Temperature Cut-Off: 85 range C
|
|
Resistance: =5mOhms @ 50%SOC
|
Reconnect Temperature: 75 range C
|
|
Discharge Efficiency: 99.5 %
|
|
|
Self Discharge: 0.04mV/h
|
|
|
Maximum Modules in Series: 4S
|
|
|
|
|
|
DISCHARGE SPECIFICATIONS
|
CHARGE SPECIFICATIONS
|
|
Maximum Continuous Discharge Current:200Amps
|
Recommended Current Charge:50Amps
|
|
Peak Discharge Current:400Amps
|
Maximum Current Charge: 150Amps
|
|
Recommended Low Voltage Disconnect:11 Volts
|
Recommended Charge Voltage:14.6Volts
|
|
BMS Discharge Voltage Cut-Off: 8Volts
|
BMS Charge Voltage Cut-Off: 15.6 Volts
|
|
Reconnect Voltage:8 Volts
|
Reconnect Voltage:14.6 Volts
|
|
Short Circuit Protection: Automatic load recovery
|
Balancing Voltage: 14.4Volts
|
|
after short circuit/overdischarge/overcurrent protection
|
|
|
|
|
|
MECHANICAL SPECIFICATIONS
|
|
|
Dimensions:(L x W x H):520 x 265 x 245 mm with M10 terminal
|
|
|
Weight: About 40 kg
|
|
|
Enclosure Protection: IP54
|
|
More Feature:
-
Warranty: Warranty for 3 years, can be extended to 5 years
-
Customized service: The battery pack can be customized according to the battery slot size.
-

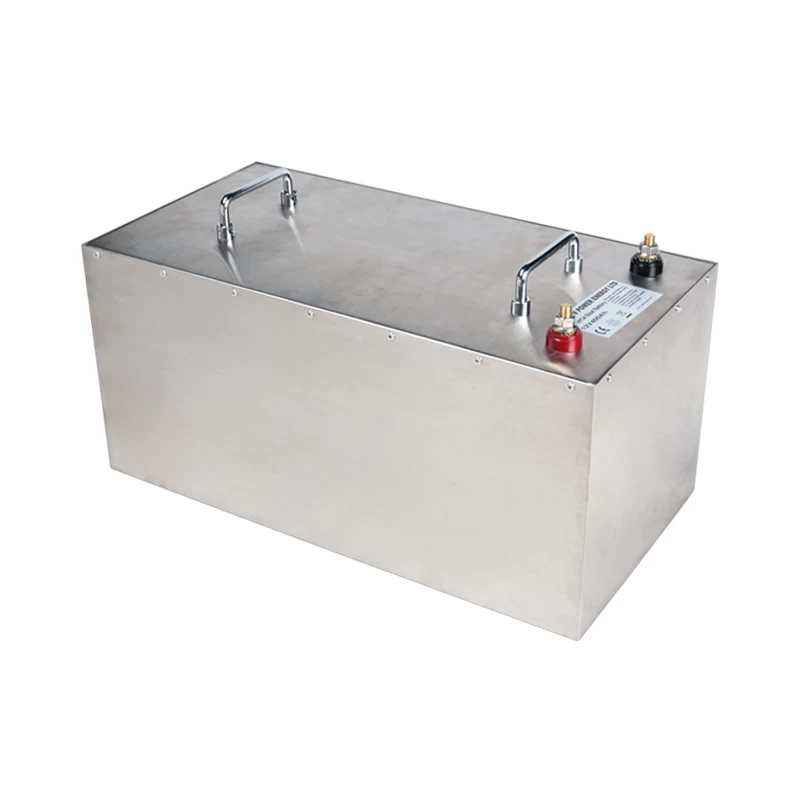

Battery pool shell selection: custom shells according to customer preferences: plastic lead acid instead of shell, stainless steel shell, acrylic shell
-
Can be connected in series and parallel according to customer needs
Application
Related Product:
Please contact us at service@osnpower.com or +86-18575517952 for most suitable 12V battery solution for your Marine battery.
