Bearing 4293424 for EX100-2

4293424 bearings are used in the Excavator Slewing Gearbox Bearing system of Hitachi heavy machinery equipment:



4293424 BRG.;SPH.ROL. Hitachi parts  EX100-2   EX100-3   EX100-3C   EX100-5   EX100-5 JPN   EX100M-2   EX100M-3   EX100M-5   EX100WD-3  EX100WD-3C   EX120-2   EX120-3   EX120-3C   EX120-5   EX120-5 JPN   EX120-5HG   EX120-5LV JPN   EX120-5X  EX120-5Z   EX120K-2   EX120K-3   EX120SS-5   EX125WD-5   EX130H-5   EX130H-5 JPN   EX130K-5   EX135UR  EX135UR-5   EX135US-5   EX135USR   EX135USRK   EX140US-5   ZX125W







HITACHI Excavator Bearing 4293424

P/N 4393424 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
 Cylindrical Roller Bearings

Product features:
1. Special bearing for excavator slewing gearbox
2. With high radial load capacity, it can also bear axial load in any direction.
3. High-strength high-quality steel
4. Long service life
5. Smooth rotation, low noise

Our advantage:
100% factory quality inspection
Respond to customer questions within one day;
Allow small orders;
Faster transportation efficiency
Good after-sales service.
Professional manufacturer of bearings for slewing gearboxes of excavators. Has many years of manufacturing experience

Production Process






Product Photos

4293424HITACHI 4293424Bearing 4293424

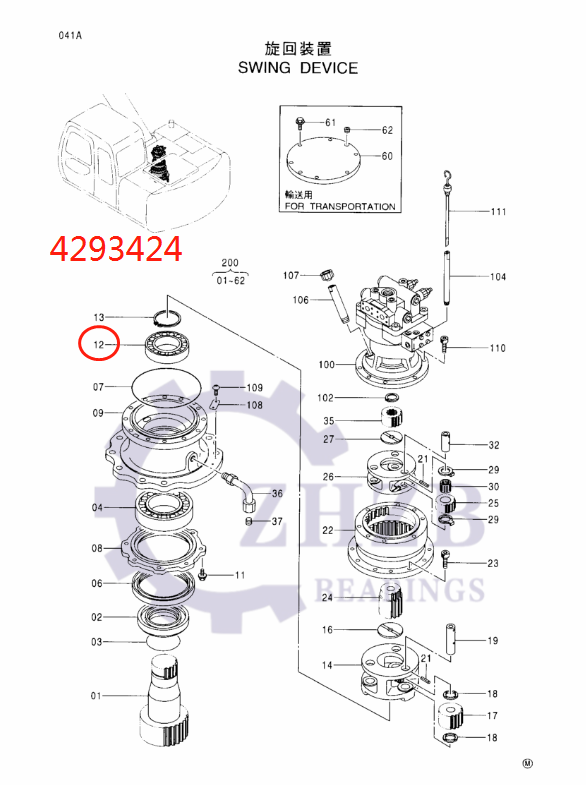

Any other parts for the slewing gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

HITACHI PARTS



Pos.

Part No

Qty

Parts name

Comments

01.

2028036

[1]

  SHAFT;PROP.



01.

2036830

[1]

  SHAFT;PROP.

Y 2028036

02.

4244693

[1]

  SLEEVE



03.

A811100

[1]

  O-RING



04.

4248609

[1]

  BRG.;SPH.ROL.



06.

4244691

[1]

  SEAL;OIL



07.

4247567

[1]

  O-RING



08.

3058620

[1]

  COVER



09.

1020380

[1]

  HOUSING



11.

J011035

[8]

  BOLT;SEMS



12.

4293424

[1]

  BRG.;SPH.ROL.



13.

991350

[1]

  RING;RETAINING



14.

2036804

[1]

  CARRIER



16.

4258089

[1]

  PLATE;THRUST



17.

9742788

[3]

  GEAR;PLANETARY



18.

4266255

[6]

  PLATE;THRUST



19.

4337638

[3]

  PIN



21.

4116308

[6]

  PIN;SPRING



22.

2036811

[1]

  GEAR;RING



23.

M341440

[12]

  BOLT;SOCKET



24.

3069697

[1]

  GEAR;SUN



25.

3069725

[3]

  GEAR;PLANETARY



26.

2036832

[1]

  CARRIER



27.

4176070

[1]

  PLATE;THRUST



29.

4269480

[6]

  PLATE;THRUST



30.

4330377

[3]

  BRG.;NEEDLE



32.

4337637

[3]

  PIN



35.

3069727

[1]

  GEAR;SUN



36.

8050210

[1]

  PIPE



37.

94-2012

[1]

  PLUG



60.

8065302

[1]

  COVER(for transportation)



61.

J011050

[8]

  BOLT;SEMS(for transportation)



62.

94-2011

[1]

  PLUG(for transportation)



100.

4330218

[1]

  MOTOR;OIL



102.

927488

[1]

  RING;RETAINING



104.

4264452

[1]

  PIPE



106.

4255227

[1]

  PIPE



107.

4298608

[1]

  CAP



108.

3053093

[1]

  NAME-PLATE



109.

M492564

[2]

  SCREW;DRIVE



110.

M341025

[7]

  BOLT;SOCKET



111.

3074223

[1]

  GAUGE;LEVEL



Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!





Packaging



Delivery:

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.



Why choose us?

  ✬1.Trusted Product


  ✬2.Advanced Technology


  ✬3.Reliable Service


  ✬4.Competitive price




FAQ

Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.

Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock





Contact Us

Guangzhou hongjue bearing machinery equipment co., ltd.
Phone: 18620194007  Kitty
Whatsapp : 18620194007   Kitty
Email: sales1_ZHZB@163.com



Product Tags 4293424          Slewing Bearing 4293424          Slewing Gearbox Bearing 4293424          Bearing for 4293424          HITACHI Bearing 4293424          Excavator bearing 4293424
