Bearing LV53D00005S025 for KOBELCO SK850

Kobelco excavator final drive bearing LV53D00005S025

LV53D00005S025 ROLLER BEARING Kobelco parts SK850



Kobelco excavator final drive bearing LV53D00005S025

P/N

LV53D00005S025

Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Angular contact bearing

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

LV53D00005S025KOBELCO LV53D00005S025Bearing LV53D00005S025

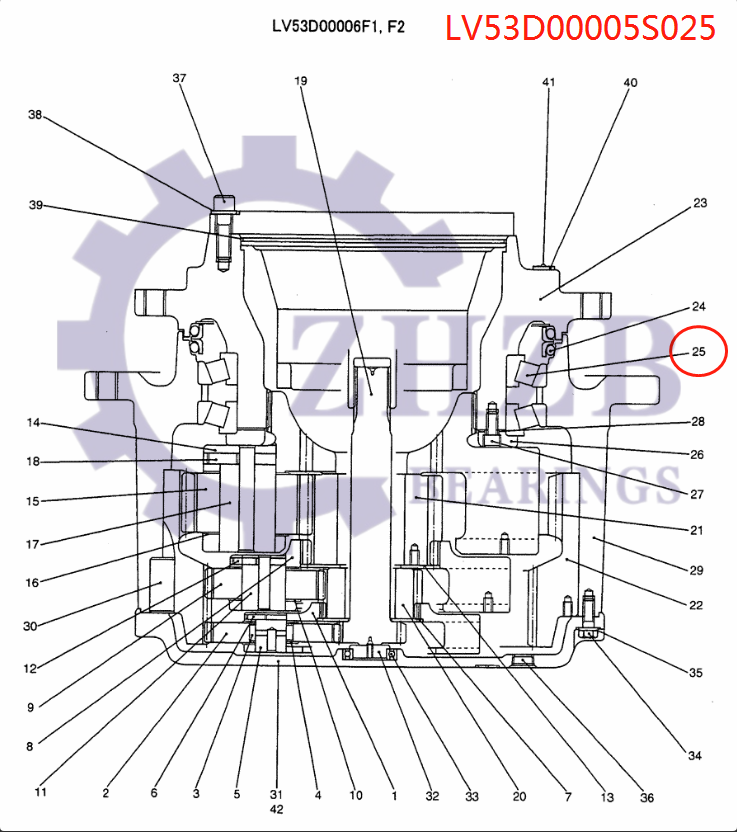

Any other parts for the final drive gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

KOBELCO PARTS



Pos.

Part No

Qty

Parts name

Comments

..

LV53D00006F1

[1]

  GEAR REDUCTION UNIT

Superseded by part number: LV53D00006F3

..

LV53D00006F2

[1]

  REDUCER

 Superseded by part number: LV53D00006F3

1.

LV53D00005S001

[1]

  CARRIER

  KOB

2.

LV53D00005S002

[3]

  GEAR

  KOB

3.

LV53D00005S003

[3]

  NEEDLE BEARING

  KOB

4.

LV53D00005S004

[6]

  WASHER

  KOB

5.

LV53D00005S005

[3]

  SHAFT

  KOB

6.

ZP26D05025

[3]

  ROLL PIN

  KOB OD 05 x 25mm Long

7.

LV53D00005S007

[1]

  WASHER

  KOB

8.

LV53D00006S008

[1]

  CARRIER

  KOB

9.

LV53D00005S009

[4]

  GEAR

  KOB

10.

LV53D00005S010

[8]

  WASHER

  KOB

11.

LV53D00005S011

[4]

  SHAFT

  KOB

12.

ZP26D08032

[4]

  PIN

  KOB Roll -- OD 08 x 32mm Long

13.

LV53D00005S013

[1]

  WASHER

  KOB

14.

LV53D00006S014

[1]

  CARRIER

  KOB

15.

LV53D00006S015

[4]

  GEAR

  KOB

16.

LV53D00005S016

[8]

  WASHER

  KOB

17.

LV53D00005S017

[4]

  SHAFT

  KOB

18.

LV53D00005S018

[4]

  PIN

  KOB Spring

19.

LV53D00005S019

[1]

  SUN GEAR

  KOB

20.

LV53D00005S020

[1]

  SUN GEAR

  KOB

21.

LV53D00006S021

[1]

  SUN GEAR

  KOB

22.

LV53D00006S022

[1]

  RING GEAR

  KOB

23.

LV53D00006S023

[1]

  CASE

  KOB

24.

LV53D00005S024

[2]

  SEAL

  KOB Floating

25.

LV53D00005S025

[2]

  ROLLER BEARING

  KOB

26.

LV53D00005S026

[1]

  PLATE

  KOB

27.

ZS23C14030

[18]

  SCREW,Hex Socket Head, M14 x 30mm

  KOB M14x2.0x30mm

28.

NSS

[1]

  NOT SOLD SEPARAT



29.

LV53D00006S029

[1]

  CASE

  KOB

30.

LV53D00005S030

[5]

  PIN

  KOB

31.

LV53D00005S031

[1]

  COVER

  Superseded by part number: LV53D00006S042

32.

LV53D00005S032

[1]

  PLATE

  KOB

33.

LV53D00005S033

[1]

  BALL BEARING

  KOB

34.

ZS18C14040

[20]

  SCREW,Hex, M14 x 40mm

  KOB M14x2.0x40mm

35.

LV53D00005S035

[20]

  SPRING WASHER

  KOB

36.

2453U517S12

[3]

  PLUG

  KOB

37.

ZS23C18055

[4]

  SCREW,Hex Socket Head, M18 x 55mm

  KOB M18x2.50x55mm

38.

LV53D00005S038

[4]

  WASHER

  KOB

39.

LV53D00005S039

[1]

  O-RING

  KOB

40.

LV53D00005S040

[1]

  DECAL

  KOB

41.

LV53D00005S041

[2]

  SCREW

  KOB

42.

LV53D00006S042

[1]

  COVER

  KOB (F2 Only)

. .

LV53D00005R100

[1]

  REPAIR KIT



. .

LV53D00006R110

[1]

  REPAIR KIT



. .

LV53D00006R120

[1]

  REPAIR KIT



. .

LV53D00005R130

[1]

  REPAIR KIT



. .

LV53D00005R140

[1]

  REPAIR KIT
