Bearings K9007403 for DX200A

K9007403 bearings are used in the final drive bearing system of Doosan Heavy Machinery Equipment:


K9007403 BEARING;ANGULAR BALL Doosan partsDX200ADX210 / DX225LCBDX220A / DX225LCADX220AFDX225LC-3DX225LC-3DX225LC-5DX230LCDX235LC-5DX235LCR-5DX255LC-3DX255LC-3DX260LCA





DOOSAN excavator final drive bearing K9007403

P/N

K9007403

Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Angular contact bearing

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

K9007403DOOSAN K9007403Bearing K9007403

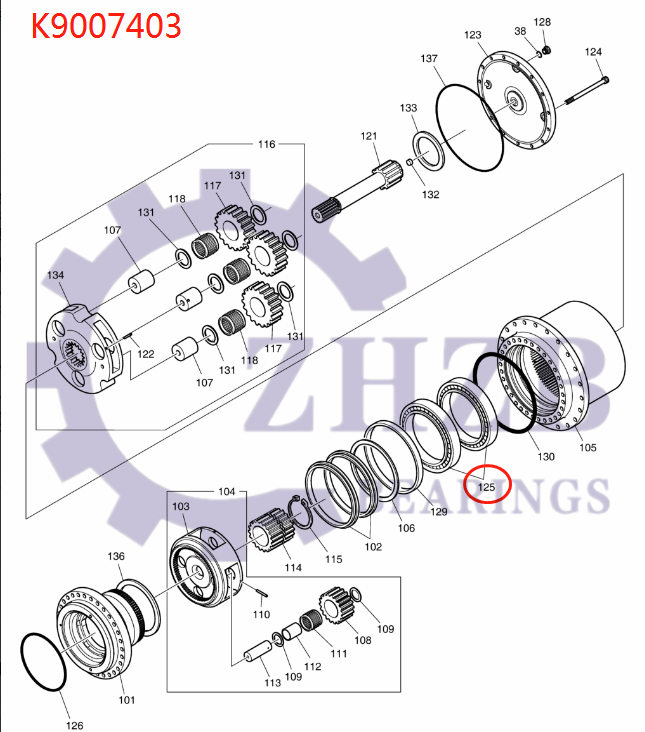

Any other parts for the final drive gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

DOOSAN PARTS



Pos.

Part No

Qty

Parts name

Comments

-.

K9007404

[1]

  REDUCTION GEAR

  170402-00028

-.

170402-00028

[1]





101.

K9007383

[1]

  SPINDLE

  K9007383A

101.

K9007383A

[1]





102.

1.180-00512

[1]

  SEAL;FLOATING



103.

*NA00325

[1]





104.

K9007412

[1]

  CARRIER NO 2 ASSY



105.

K9007384

[1]

  HUB



105.

900122-00079

[1]





106.

1.540-00003

[1]

  PIECE;DISTANCE



107.

K9007388

[3]

  BEARING;SHAFT



108.

K9007393

[4]

  GEAR;PLANETARY



109.

K9007394

[8]

  WASHER;THRUST



110.

S5740960

[4]

  PIN;SPRING



111.

K9007402

[4]

  BEARING;NEEDLE



112.

K9007396

[4]

  BUSH;FLOATING



113.

K9007392

[4]

  SHAFT



114.

K9007391

[1]

  GEAR;SUN



115.

S6500750

[1]

  RING;RETAINING



116.

K9007411

[1]

  CARRIER NO 1 ASSY



117.

K9007387

[3]

  GEAR;PLANETARY



118.

1.216-00017

[3]

  CAGE,NEEDLE



121.

K9007390

[1]

  GEAR;DRIVE



122.

S5740770

[3]

  PIN;SPRING



123.

K9007385

[1]

  COVER



123.

110508-09675

[1]





124.

S2212266

[16]

  BOLT



125.

K9007403

[2]

  BEARING;ANGULAR BALL



126.

S8012300

[1]

  O-RING



128.

2181-1890D4

[3]

  PLUG



129.

K9007386

[1]

  RING;SEAL

  K9007386A

129.

K9007386A

[1]





130.

1.180-00144

[1]

  O-RING



131.

K9007389

[6]

  WASHER;THRUST



132.

K9004304

[1]

  WASHER;THRUST



133.

1.412-00157

[1]

  PLATE;THRUST



134.

*NA00324

[1]





136.

K9007395

[2]

  PLATE;SHIM

  K9007395A

136.

K9007395A

[2]





137.

401002-00739

[1]





38.

S8000181

[3]

  O-RING





Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!





Packaging



Delivery:

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.



Why choose us?

  ✬1.Trusted Product


  ✬2.Advanced Technology


  ✬3.Reliable Service


  ✬4.Competitive price




FAQ

Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.

Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock





Contact Us

Guangzhou hongjue bearing machinery equipment co., ltd.
Phone: 18620194007  Kitty
Whatsapp : 18620194007   Kitty
Email: sales1_ZHZB@163.com



Product Tags K9007403          travel bearings K9009895          Doosan spare parts K9009895          Bearing for K9007403          Doosan Bearing K9009895          Excavator bearings K9009895
