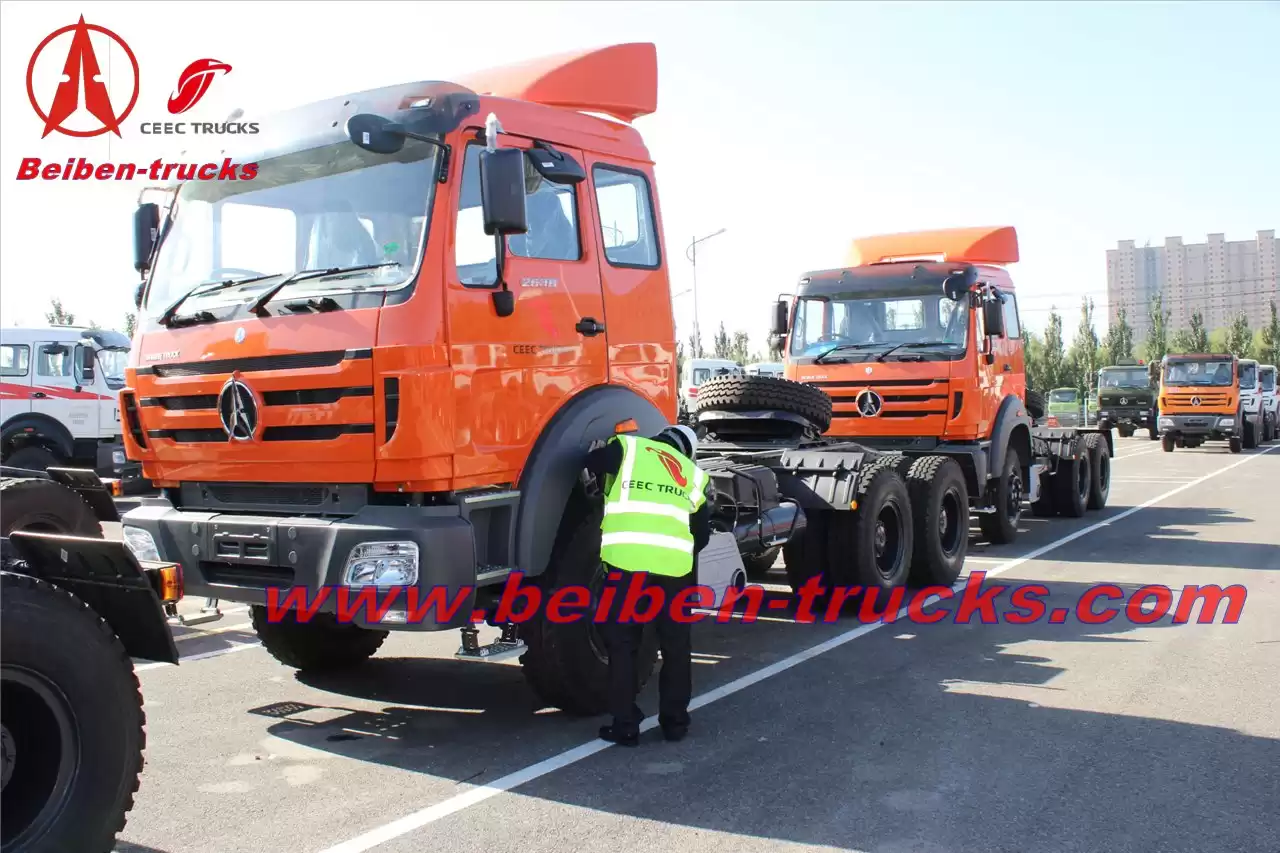

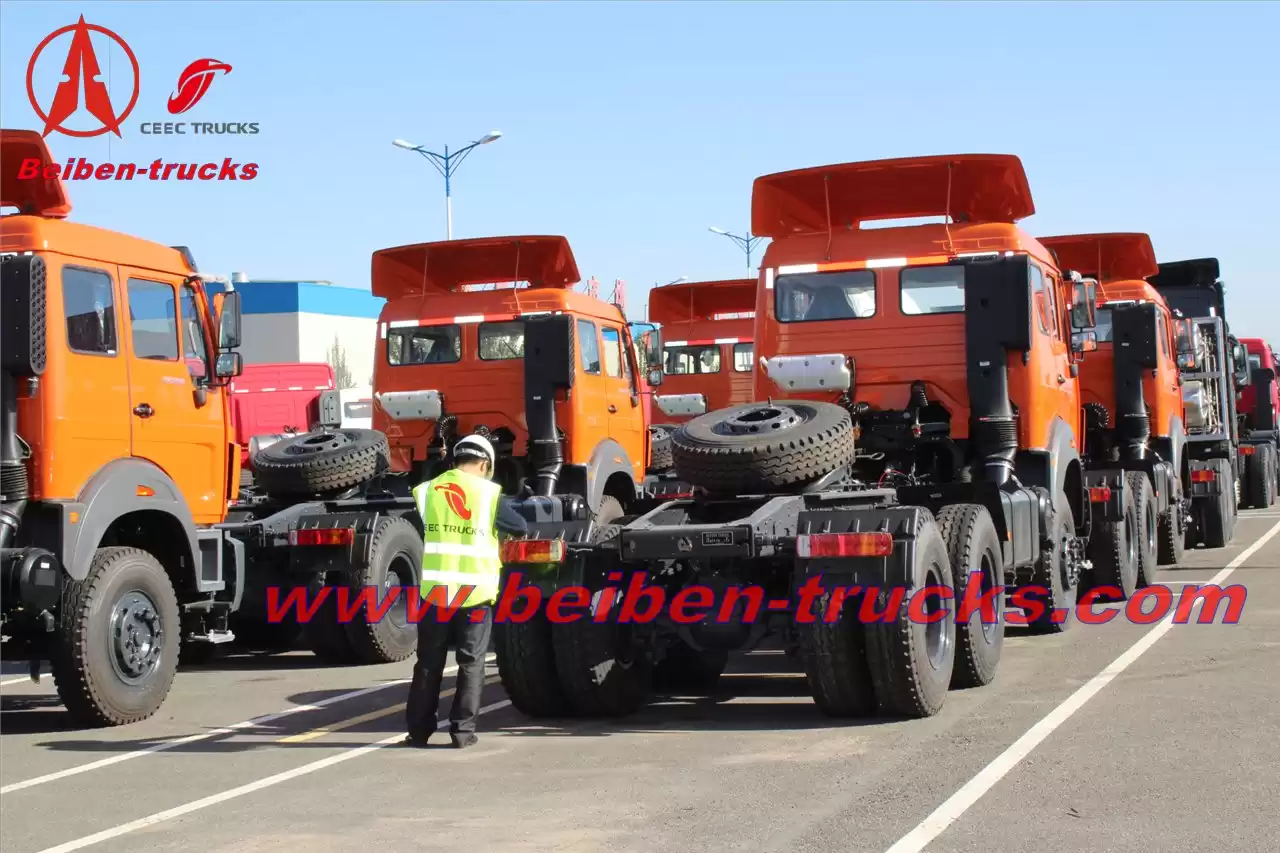

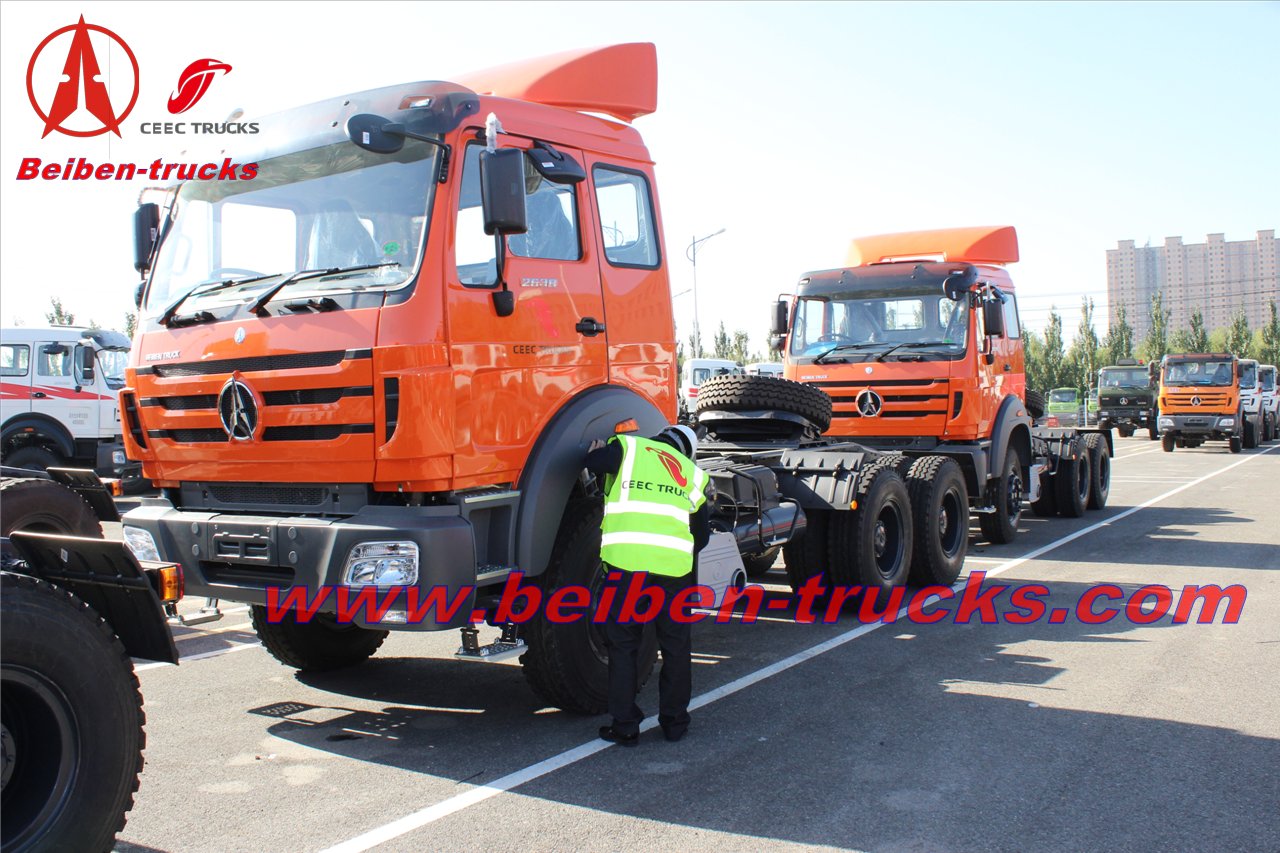

Beiben tractor truck 2642S with Benz technology for container trailer/lowbed trailer/dump trailer
| Wheel base (mm) |
3 8 50+1450 |
|
| Curb weight kg |
9300 |
|
| Engine |
Model |
WP12.420E32 (WeiChai Engine Based on Styre technology,
made in China),water-cooled,four strokes,6 cylinders straight in line,
turbocharged, directly injection
|
|
| Displacement L |
12/Diesel |
|
| Power, max kw/rpm |
308/2200 |
|
| Emission |
EURO3 |
|
| Fuel tanker capacity L |
300 |
|
| Clutch |
Model |
φ430, Single dry frictional disc,Hydraulic
boosting
|
|
| Gearbox |
Model |
12JS200T |
|
| Brake system |
Service brake |
Brake gap can be adjusted automatically,
double circulation air
brake system
|
|
| Assistant brake |
Engine exhaust brake |
|
| Park brake |
Potential springs pressing on middle and
rear wheels
|
|
| Steering system |
Model |
ZF8098 |
|
| Frame |
Fish belly shape, variable width, variable sections |
|
| Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
| Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor,
double reduction driving axle
|
|
| Tyre |
12.00R20 |
|
| Electrical system |
Battery |
2X12V/135Ah |
|
| Generator |
28V-35A |
|
| Starter |
5.4Kw/24V |
|
| Cab |
Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. |
|
| The Fifth wheel |
50/90 #single (JOST) |
