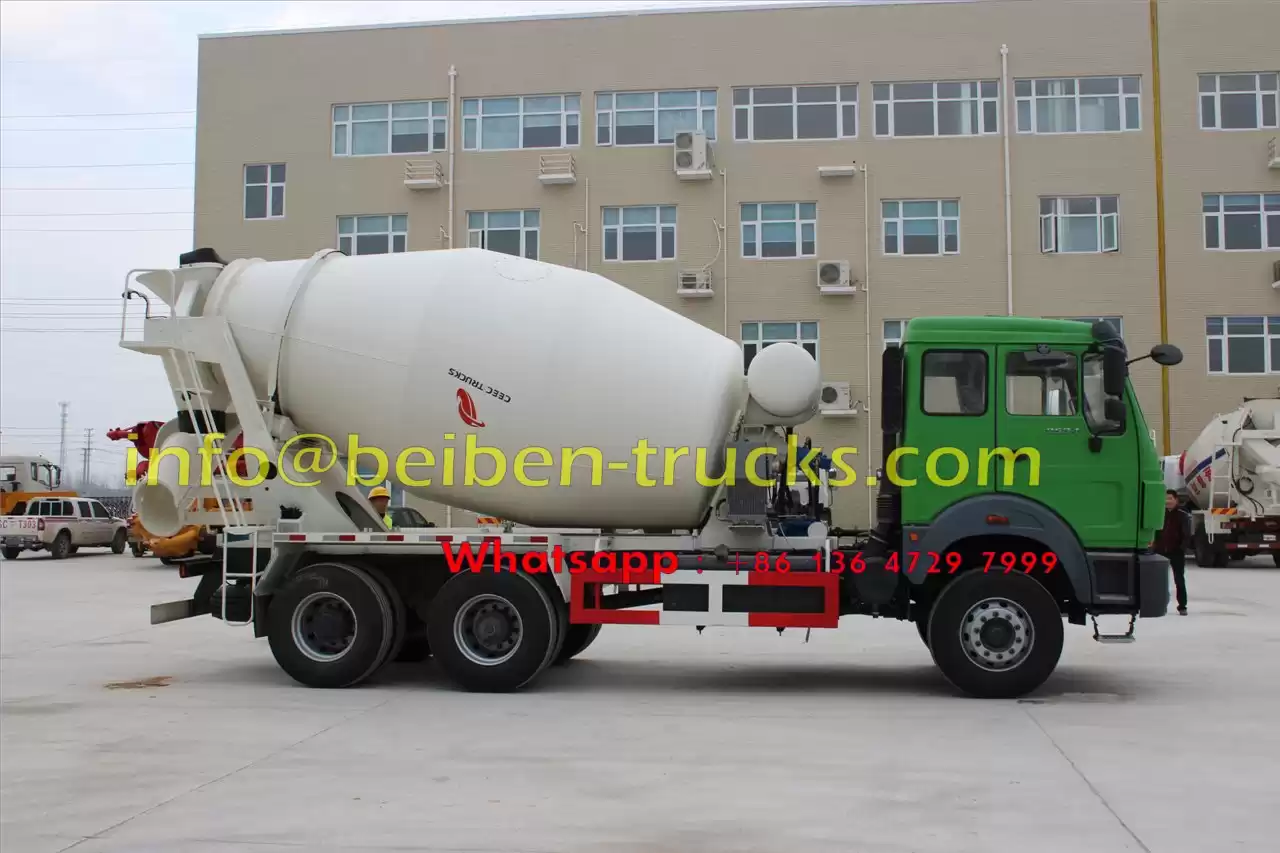

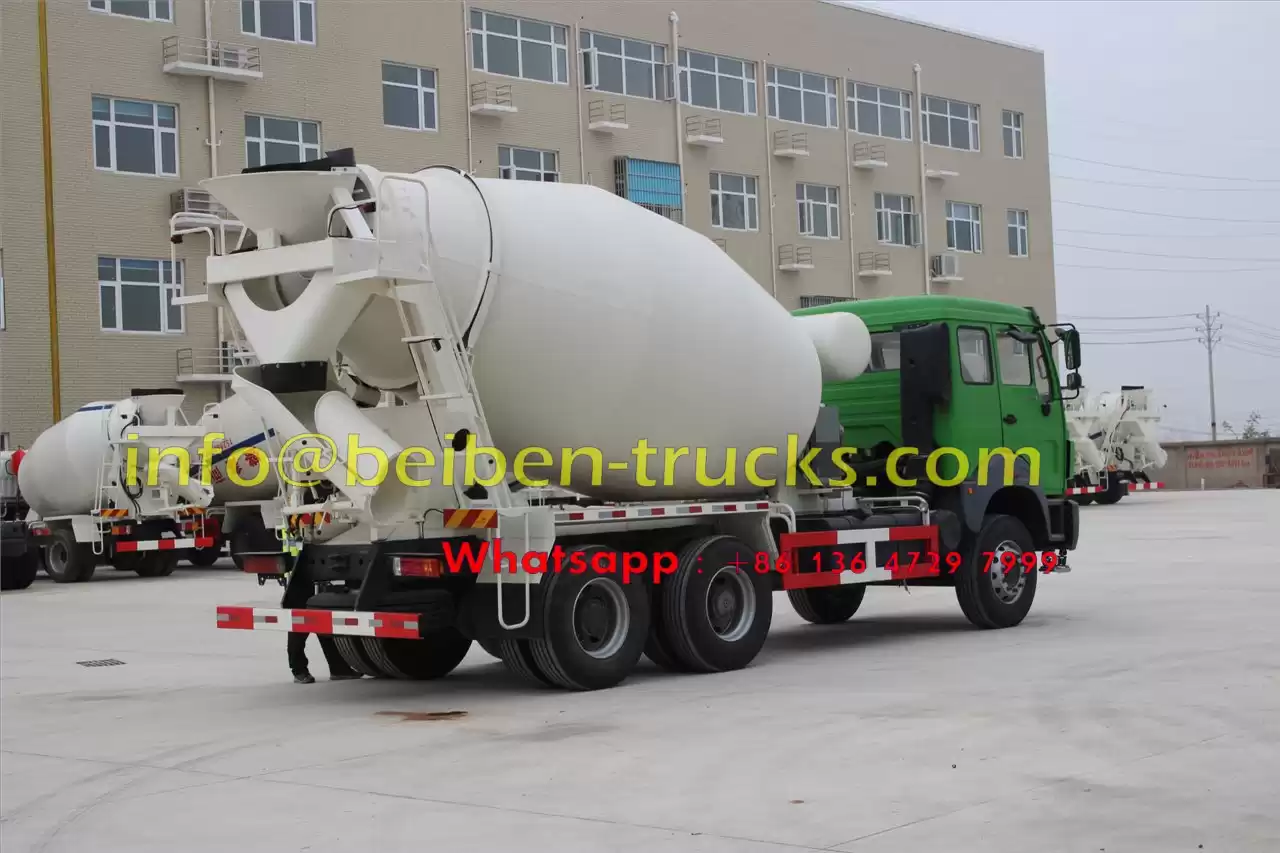

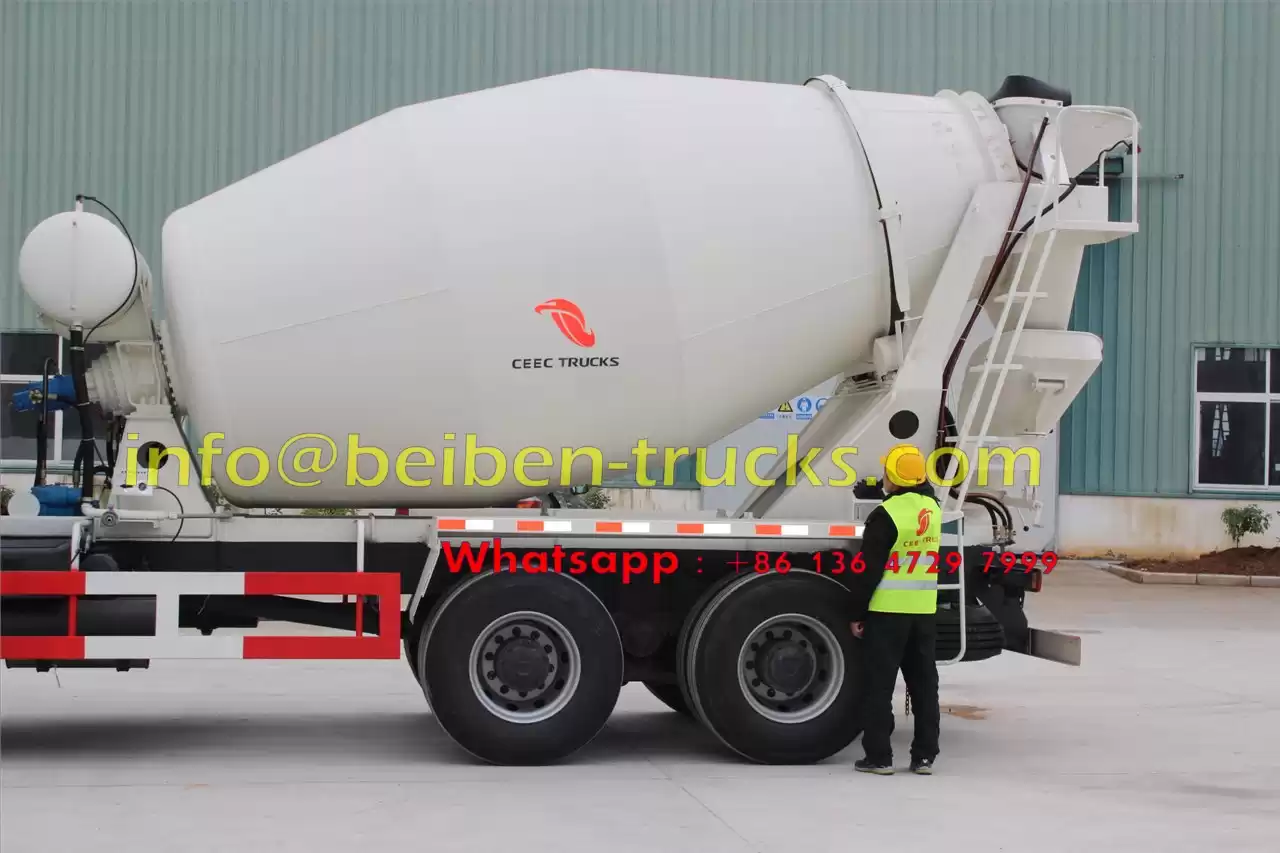

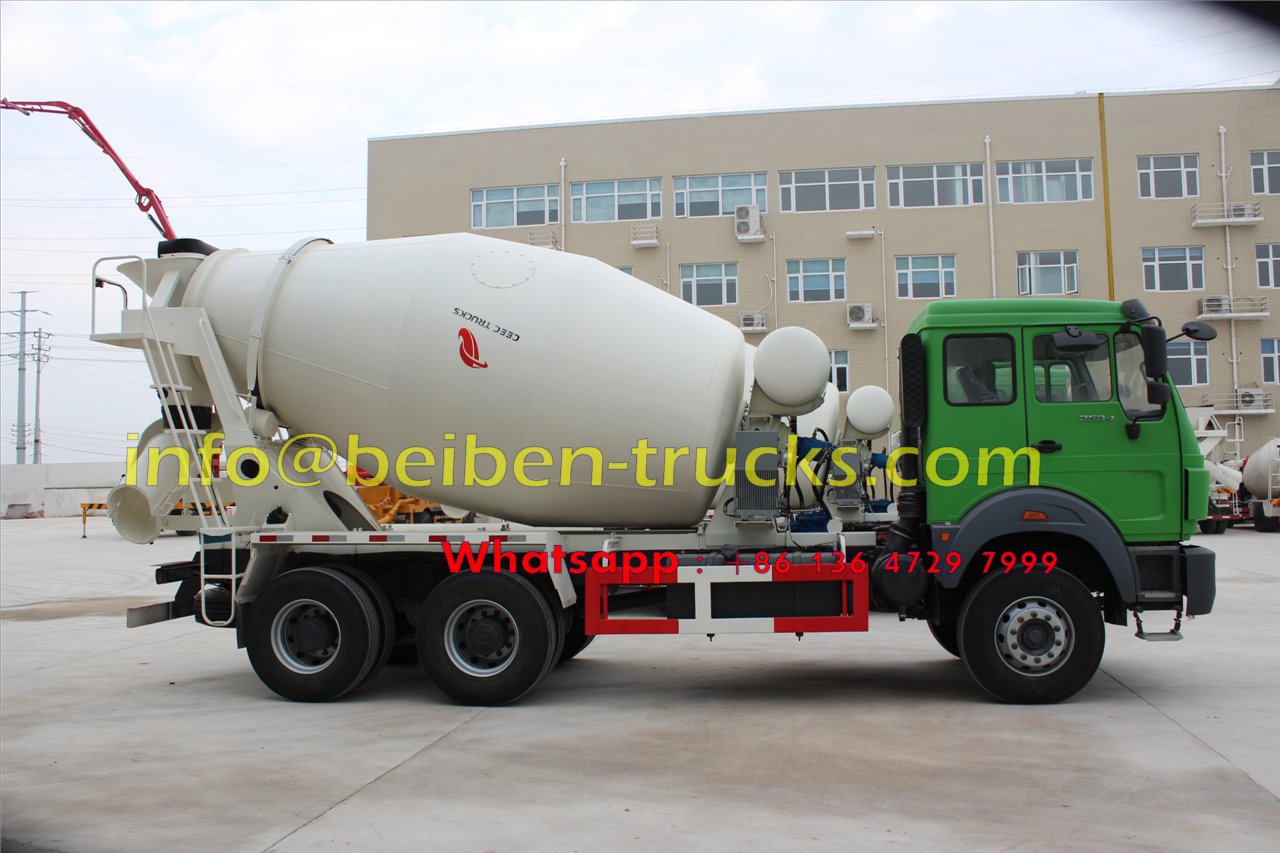

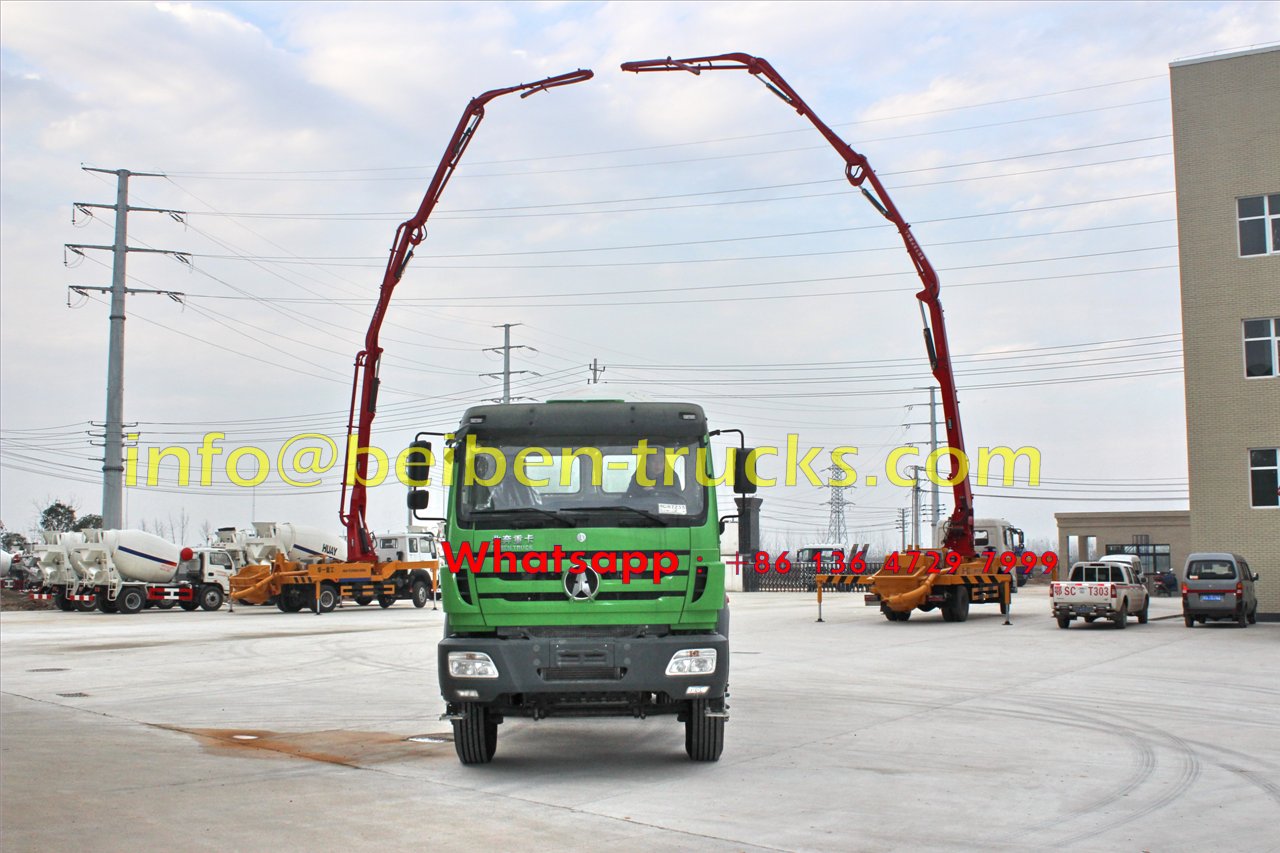

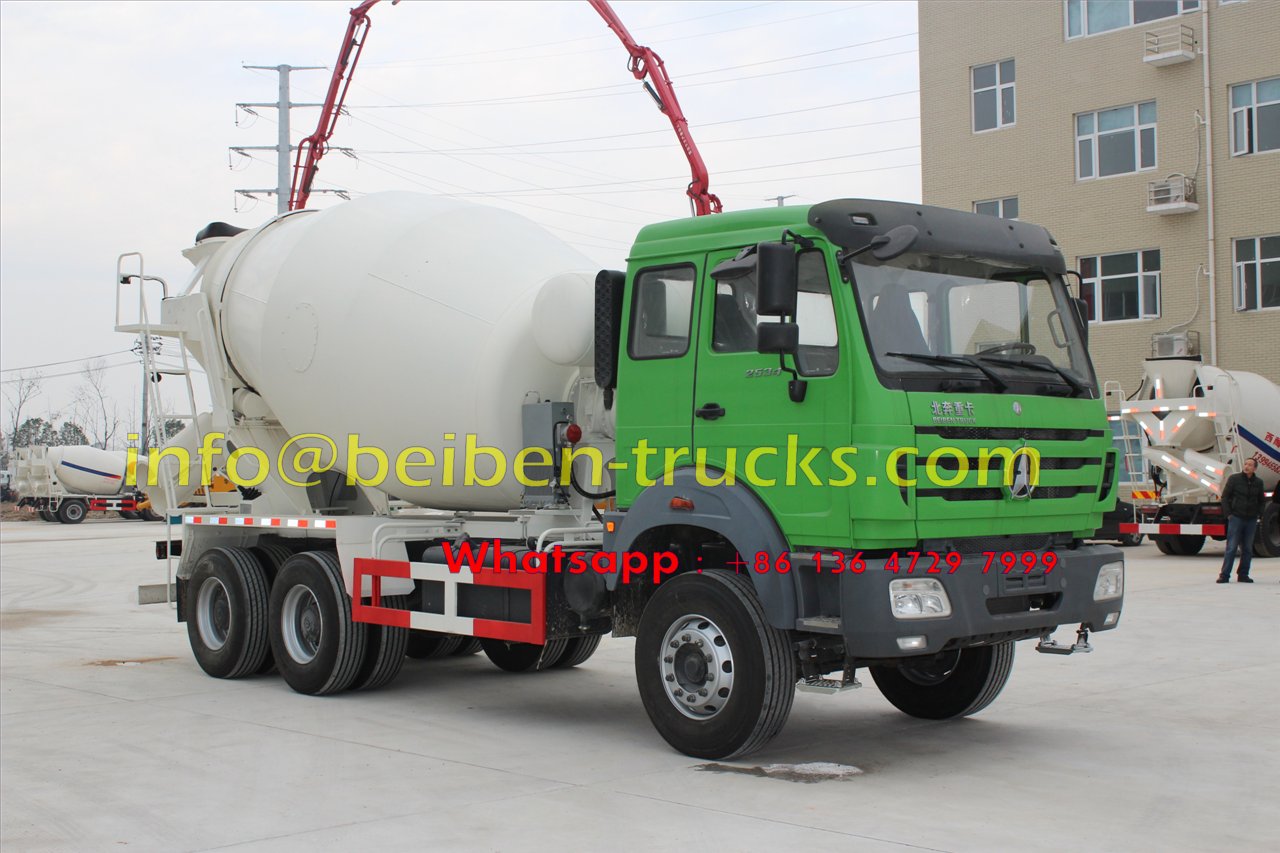

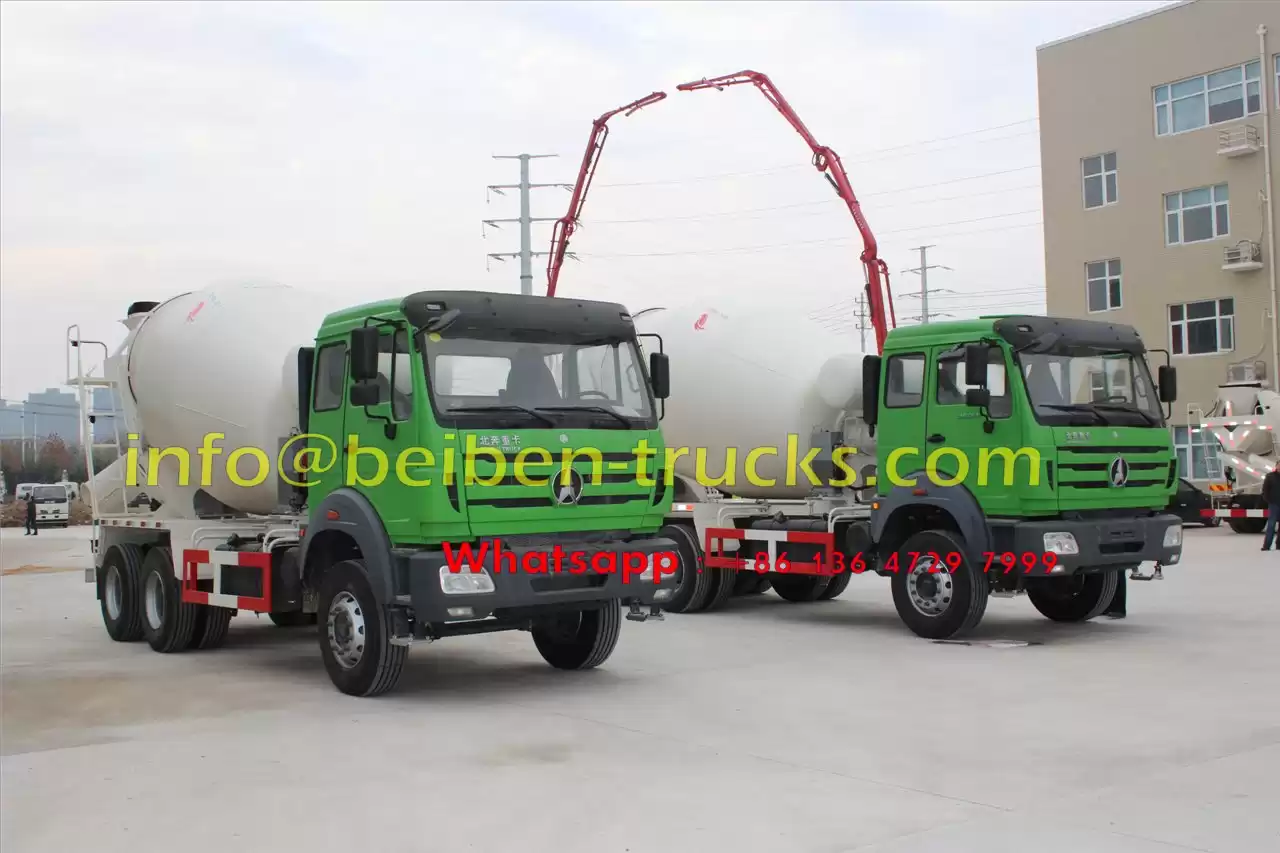

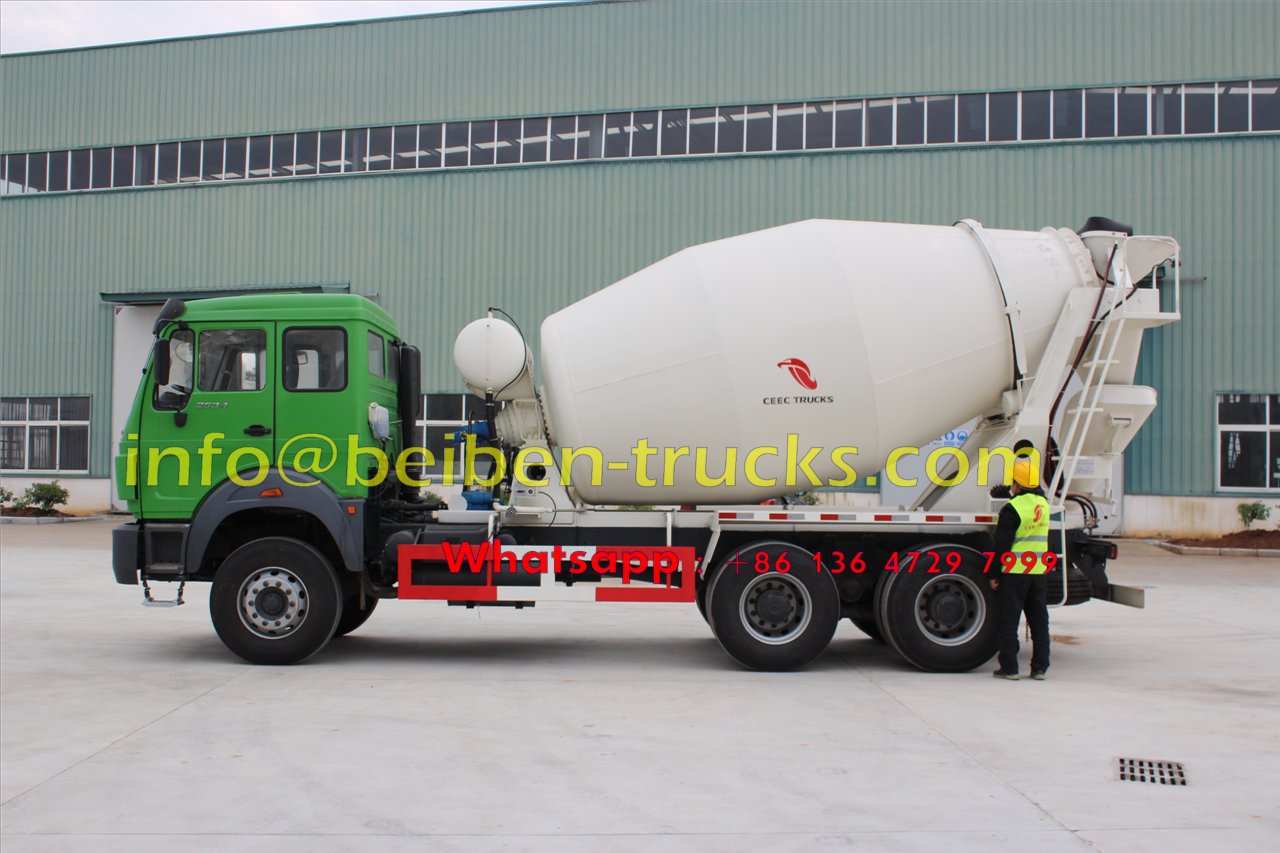

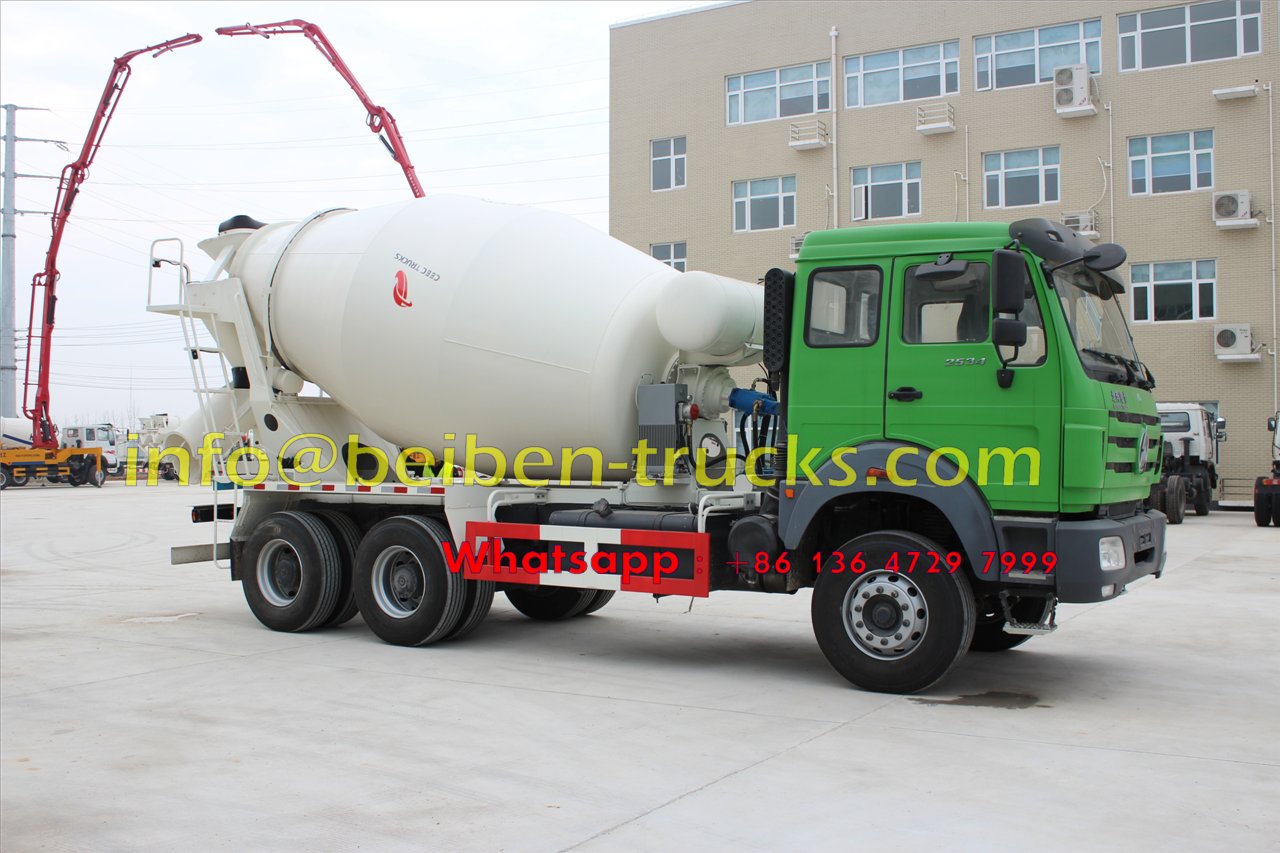

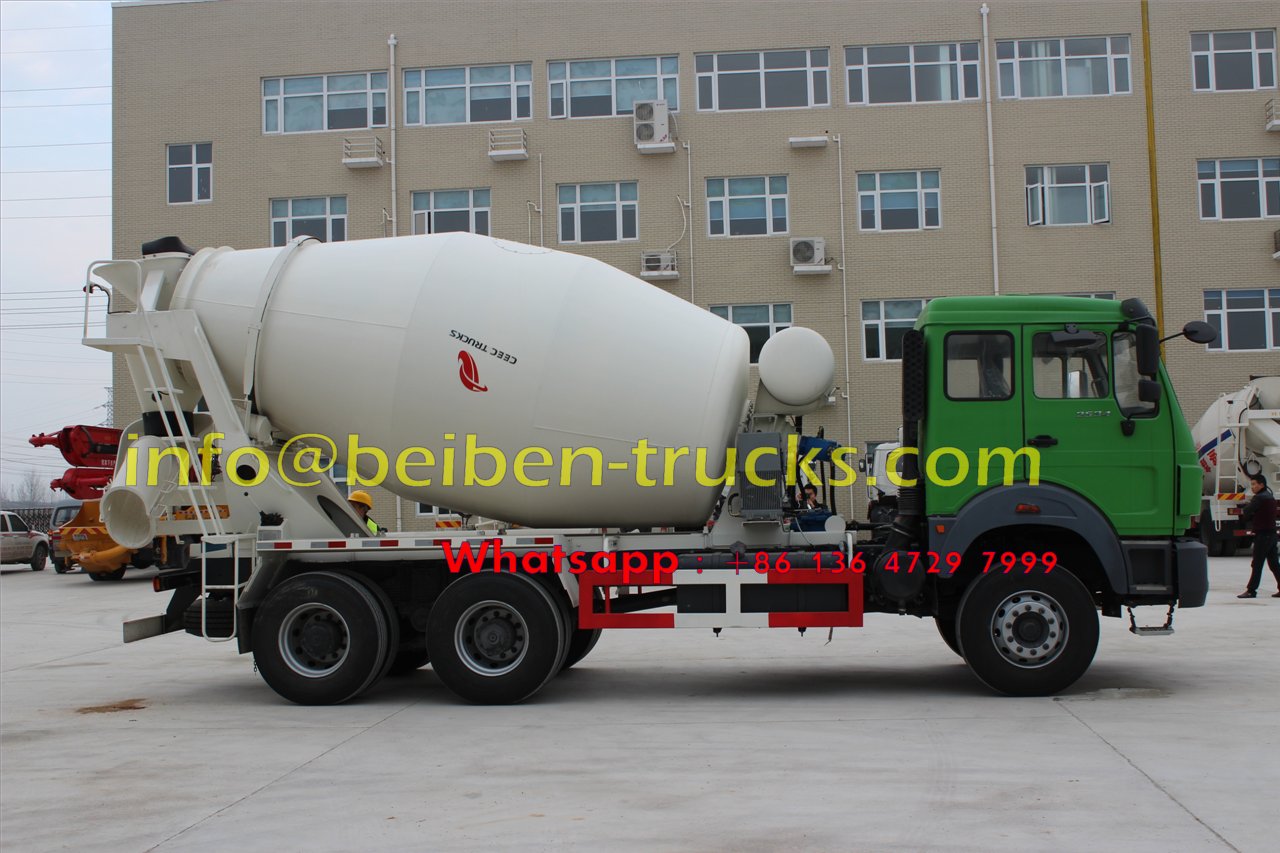

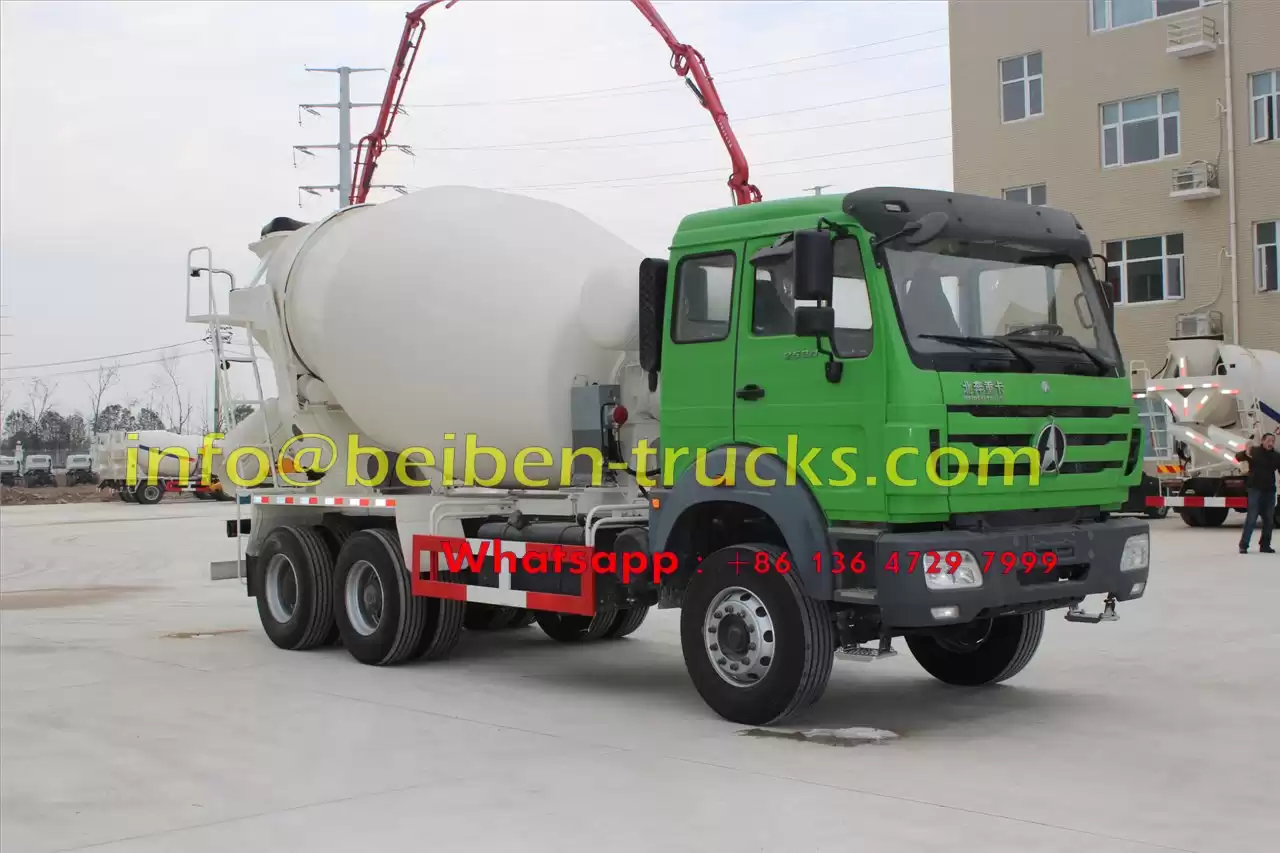

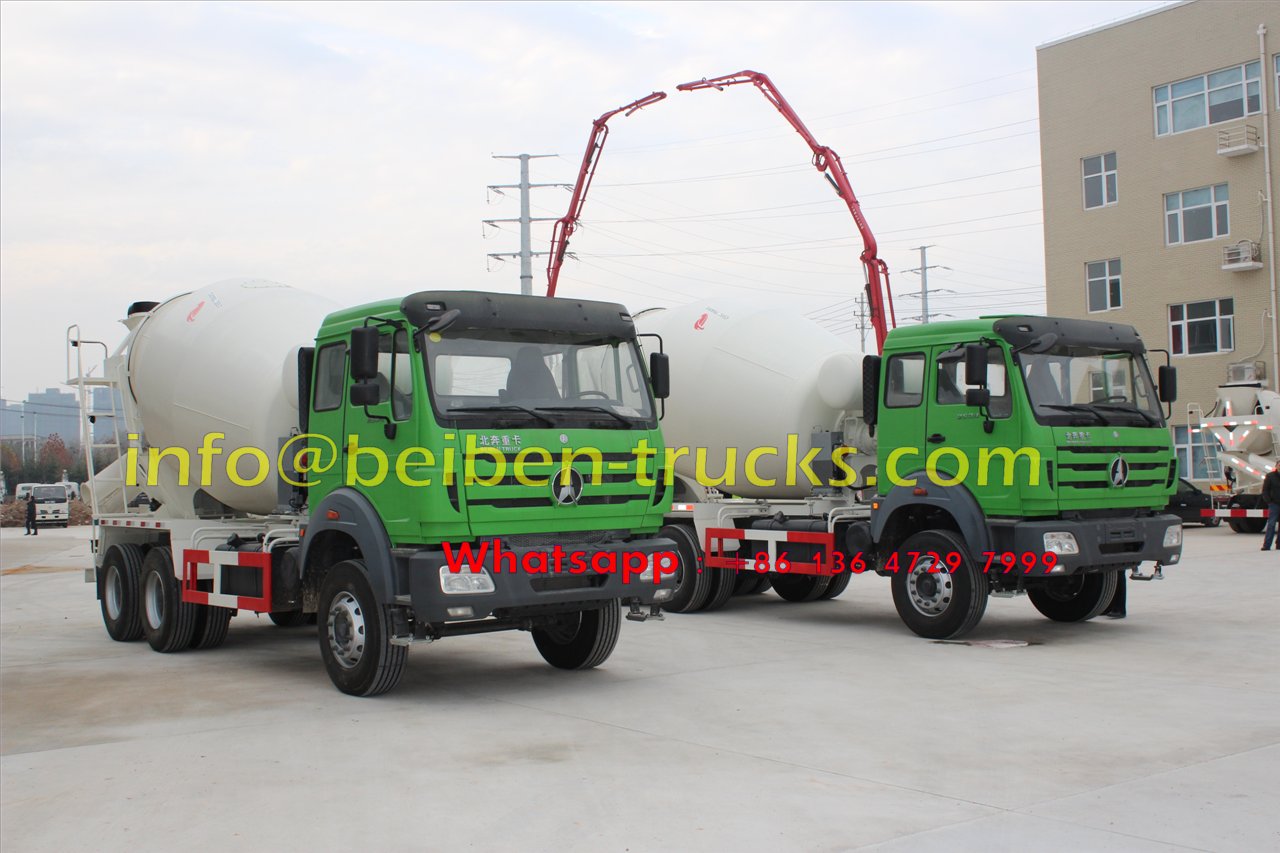

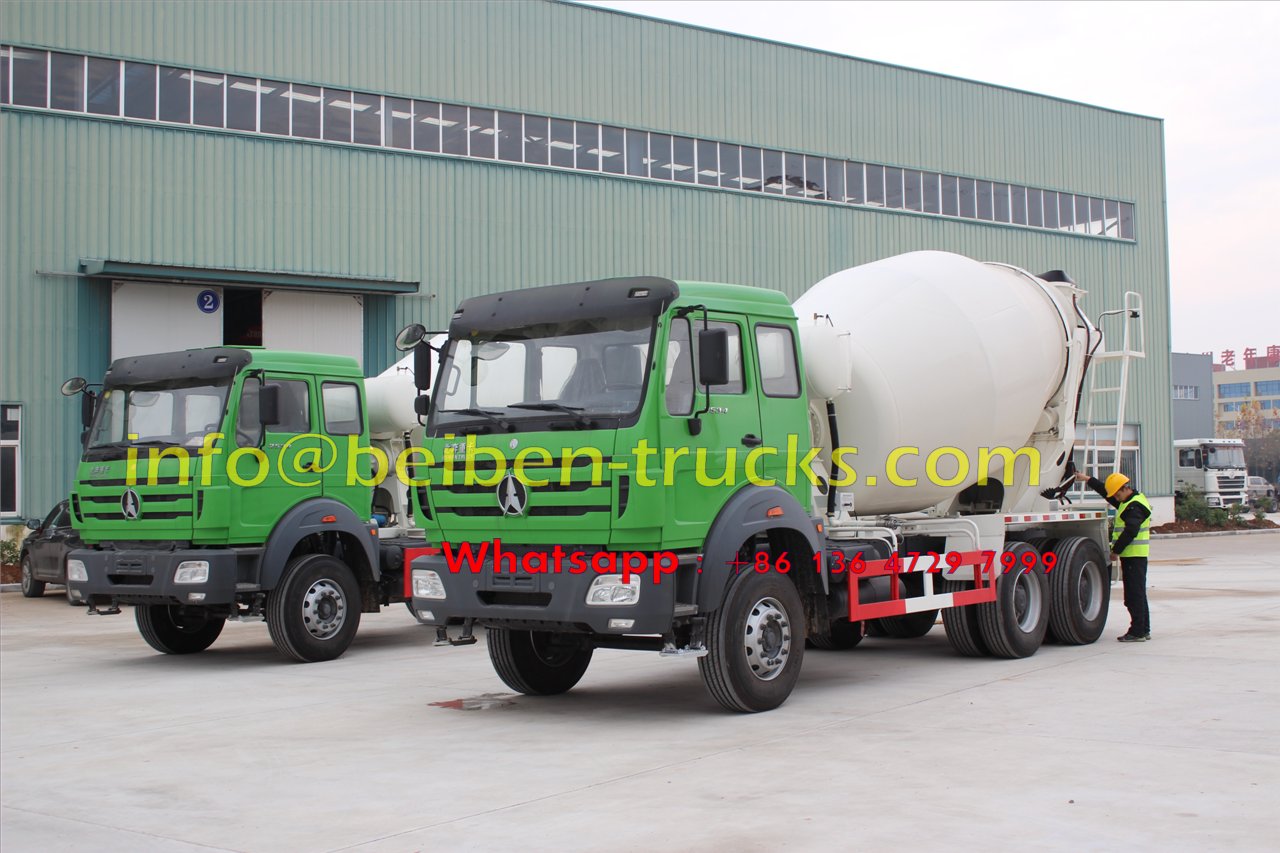

2529BY /6×4/3450+1450/Short Cab/LHD
|
|
Dimension 尺寸
|
8840*2500*3840mm
|
|
Approaching angle/Departure angle
|
26/15°
|
|
Overhang(front/rear)
|
1410/2530mm
|
|
Wheel base
|
3450+1450mm
|
|
Max speed
|
80km/h
|
|
Curb weight
|
13350kg
|
|
Loading capacity
|
11520kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.290E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
213/2200 (kw/rpm)
|
|
Max.torque
|
1160/1200-1600（Nm/rpm）
|
|
Emission stantard
|
EuroⅢ
|
|
Fuel tanker capacity
|
400L
|
|
Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
|
Gearbox
|
9JS135T-B, mechanism,9 forward gears,1
reverse gear, manual operated, with synchronizer
|
|
Gear ratio of gear box
|
12.11/8.048/5.96/4.42/3.36/2.41/1.77/1.32/1.00
R: 12.66
|
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic
shock absorber with stablizer bar suspension , 10pcs
|
|
Rear
|
Non-free standing stablization spring,
balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically,
double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and
rear wheels
|
|
Steering system
|
TAS85,whole circulation in ball,
hydraulic booster
|
|
Frame
|
Fish belly shape, variable width,
variable sections
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving
steering axle
|
|
Middle and Rear axle (Mercedes
Technology)
|
Double-shoe pneumatic brake, ductile
casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
12.00R20 Radial
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

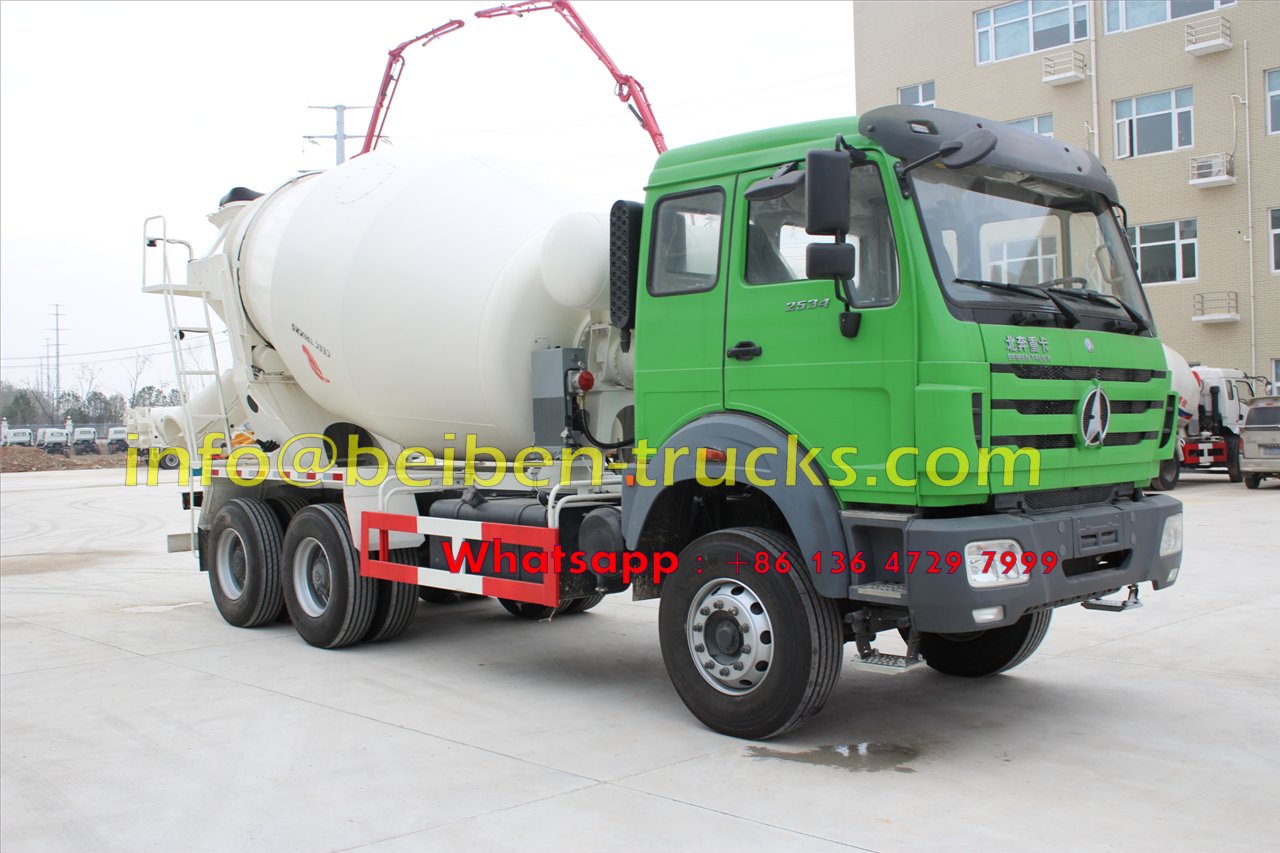

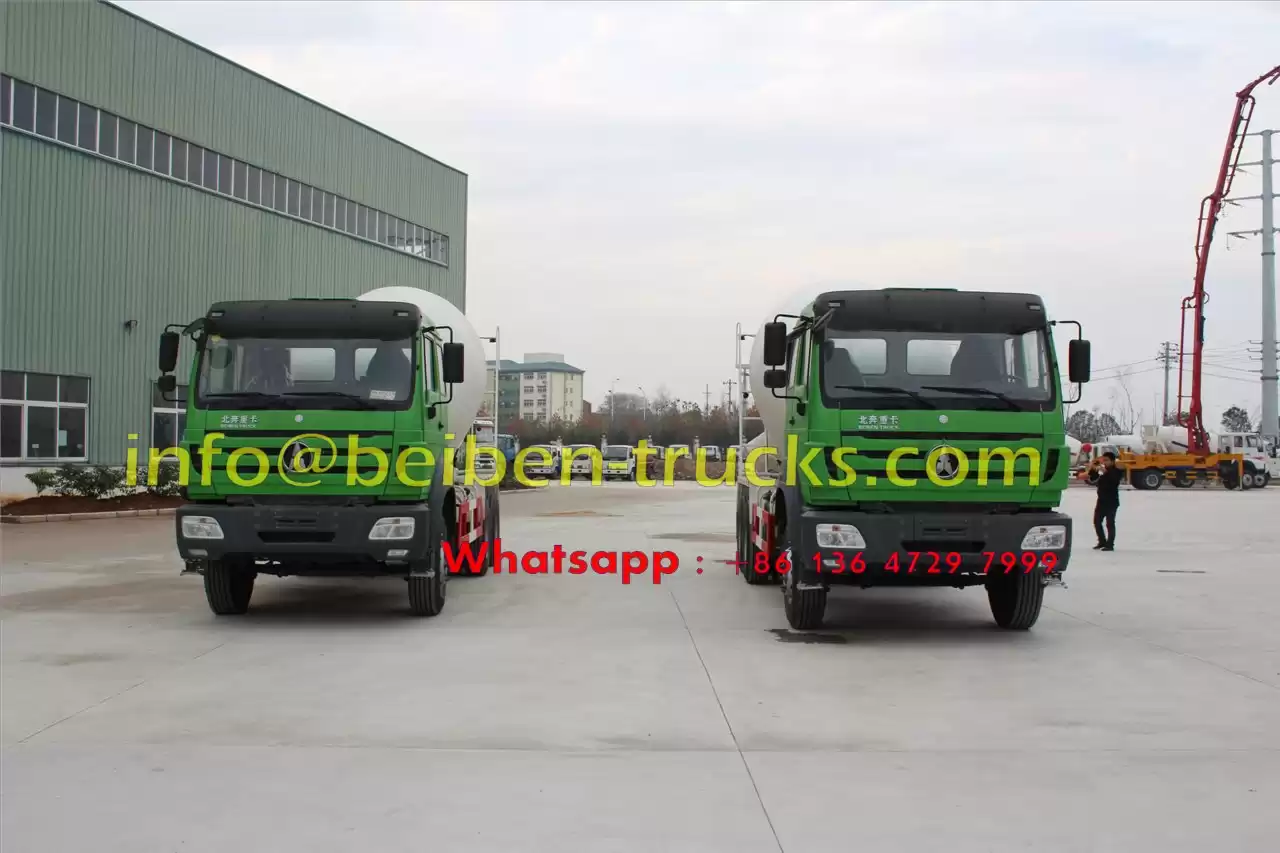

Cabin
|
NG80B short cabin;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver;With inner
A/C
|
|

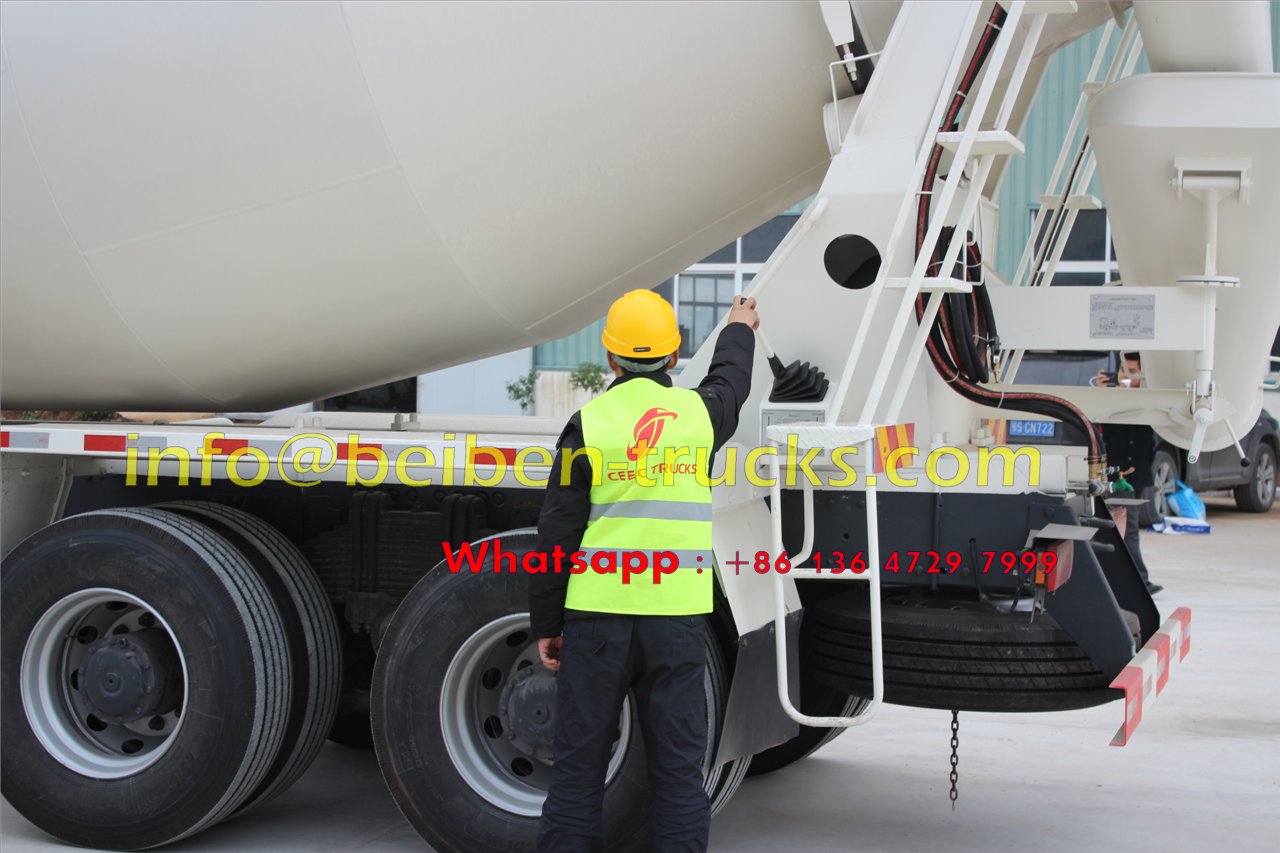

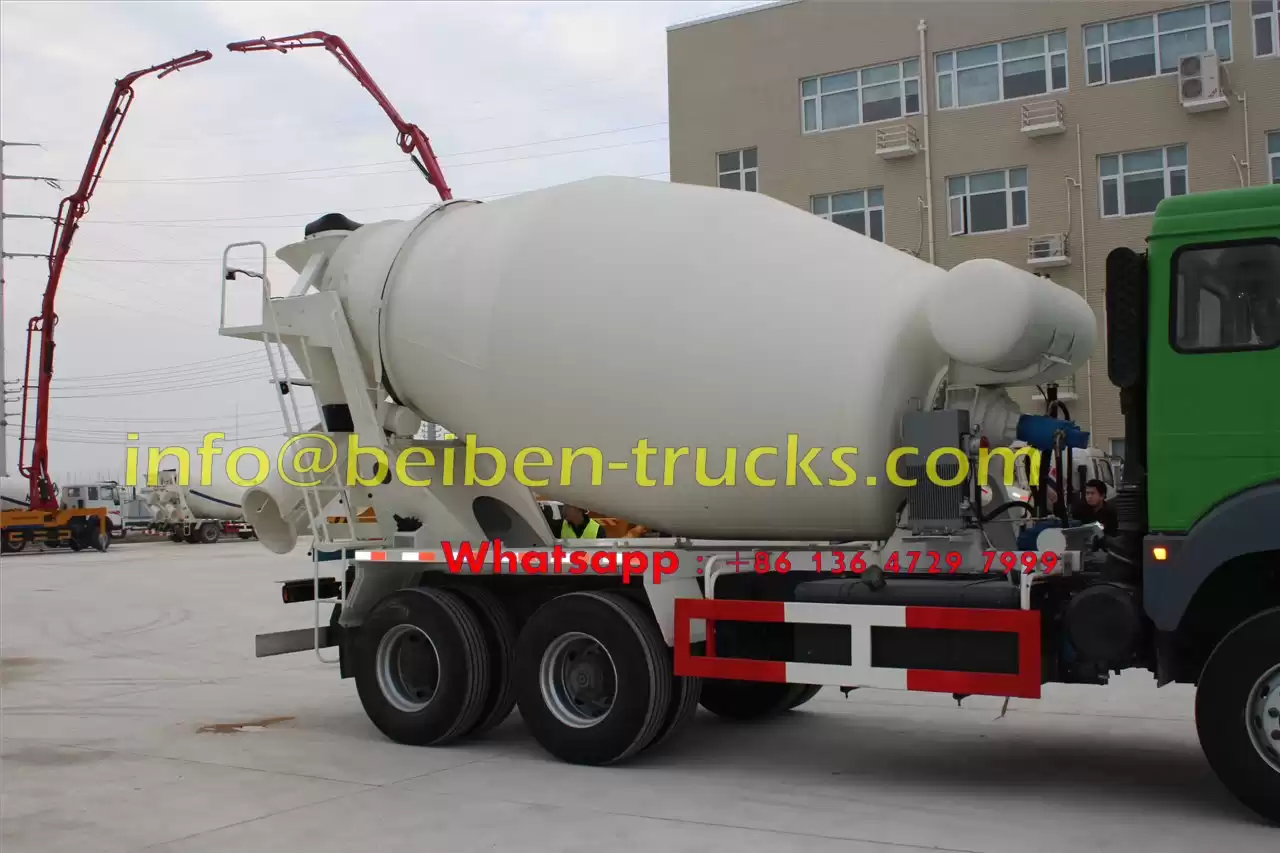

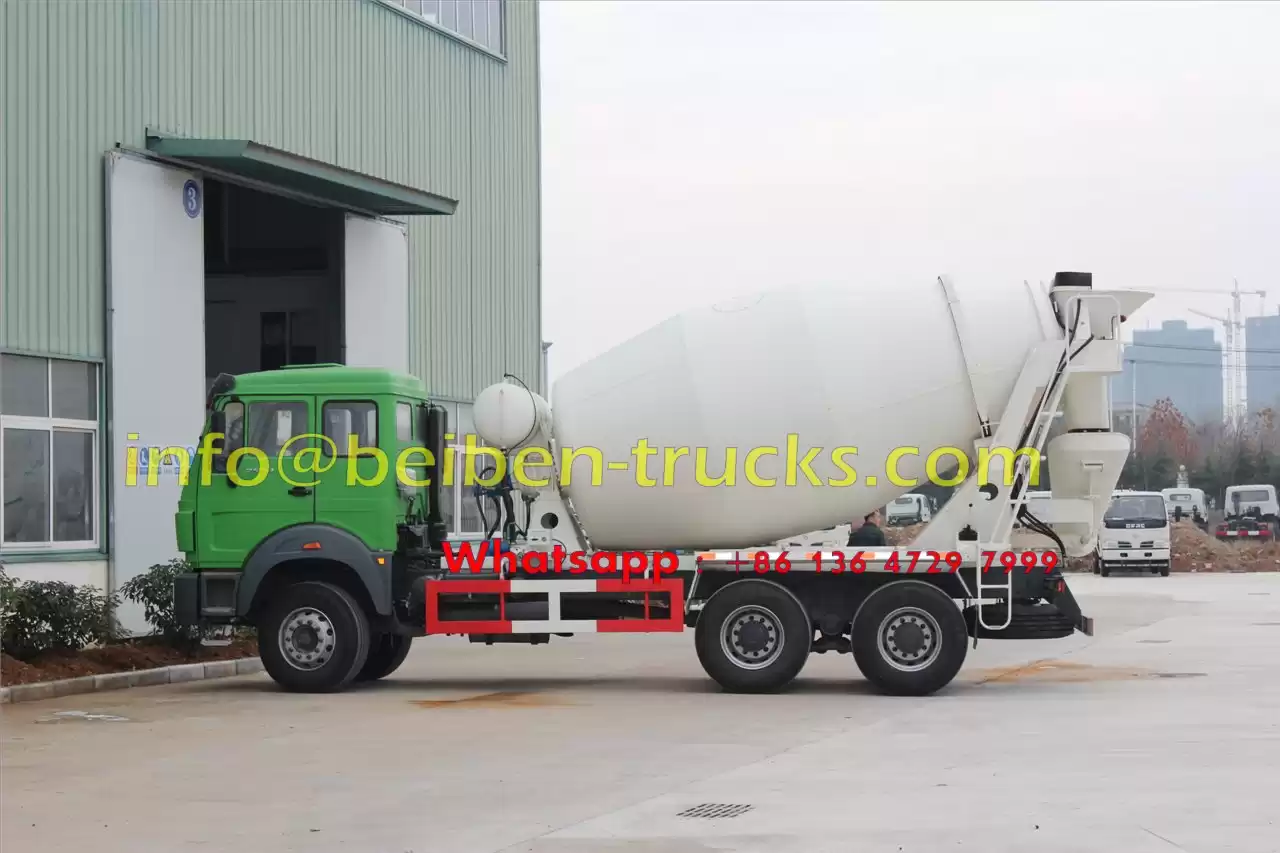

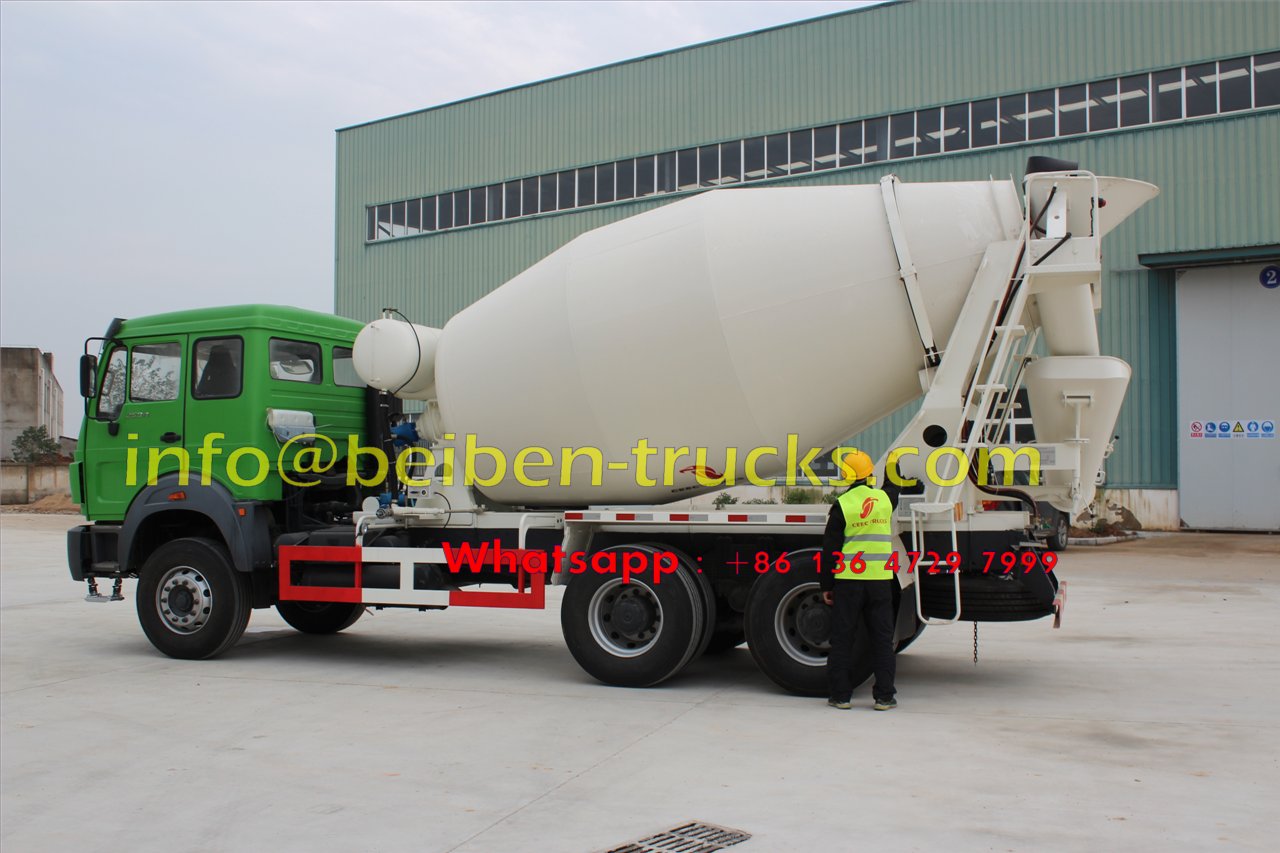

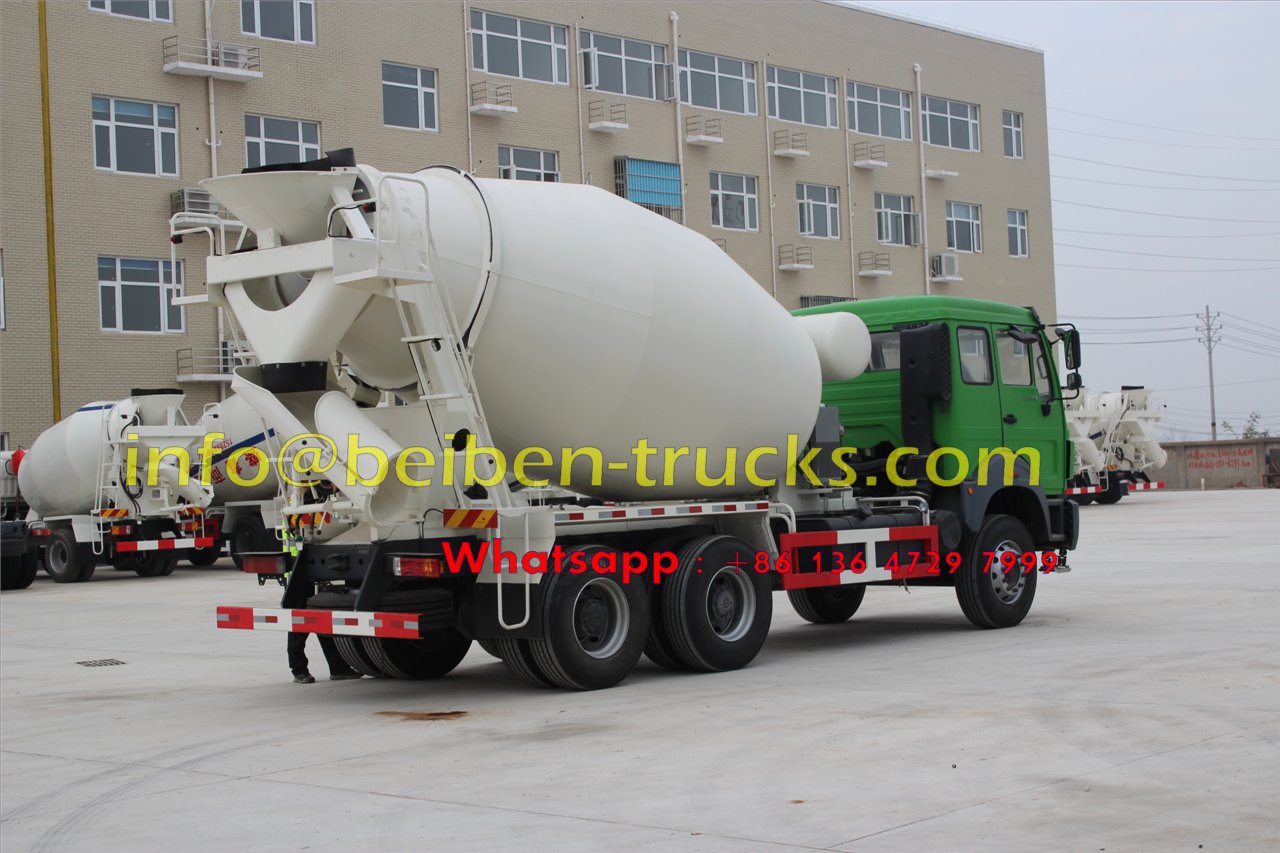

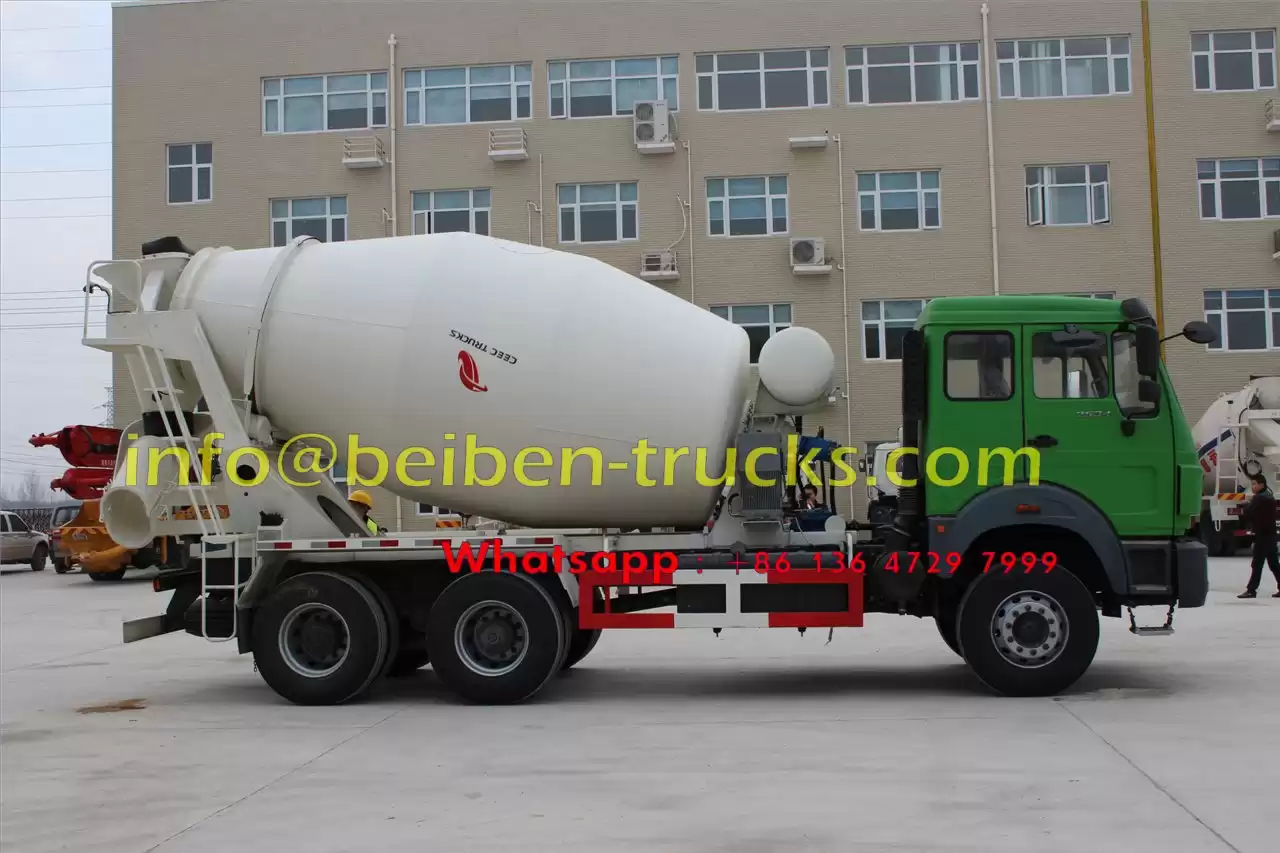

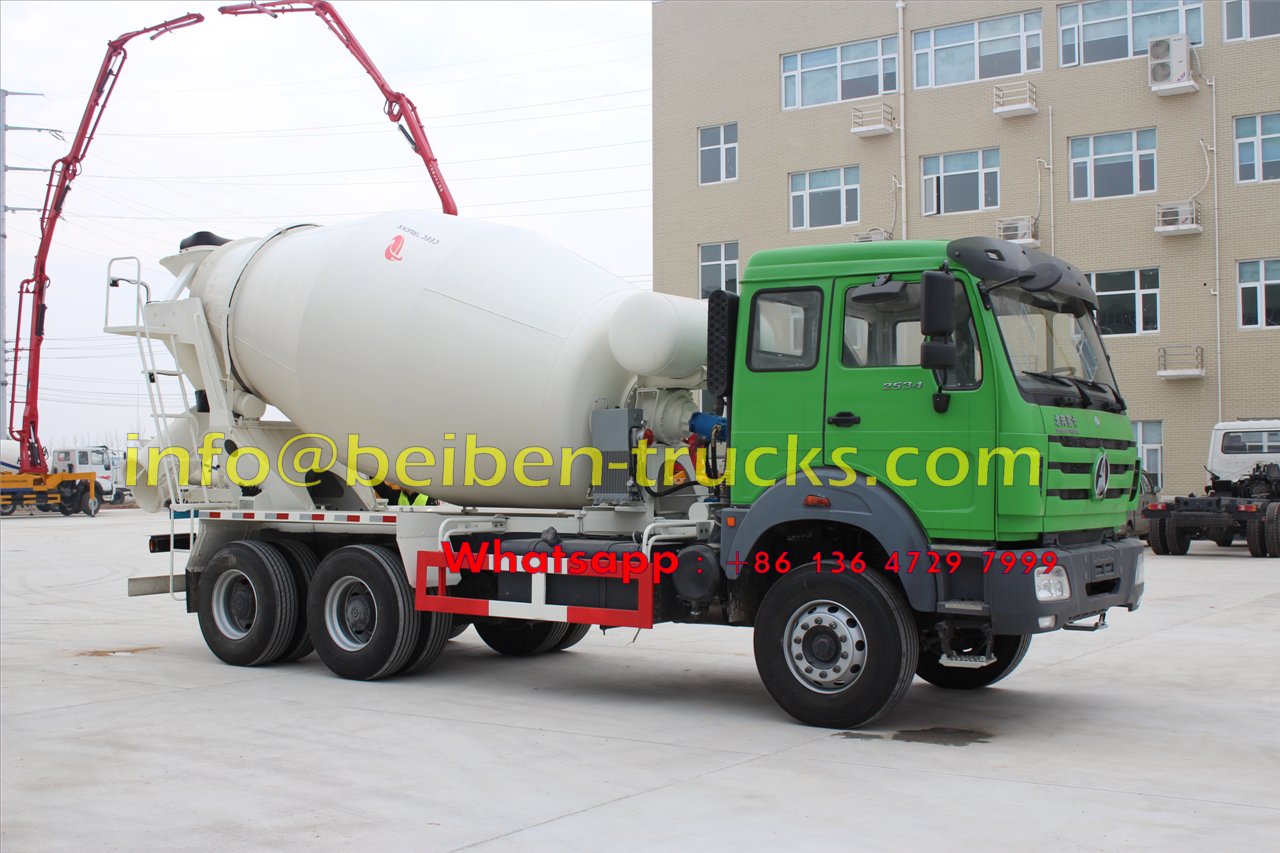

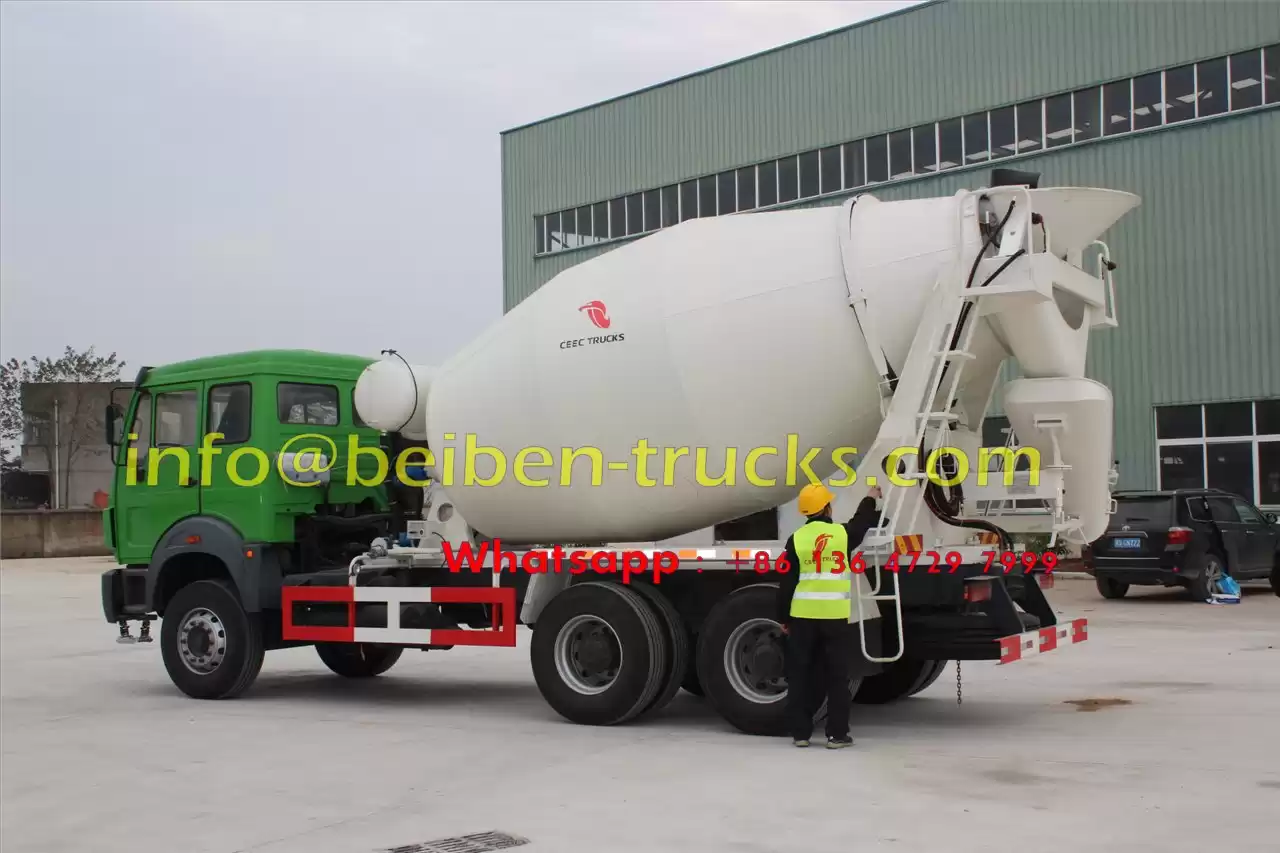

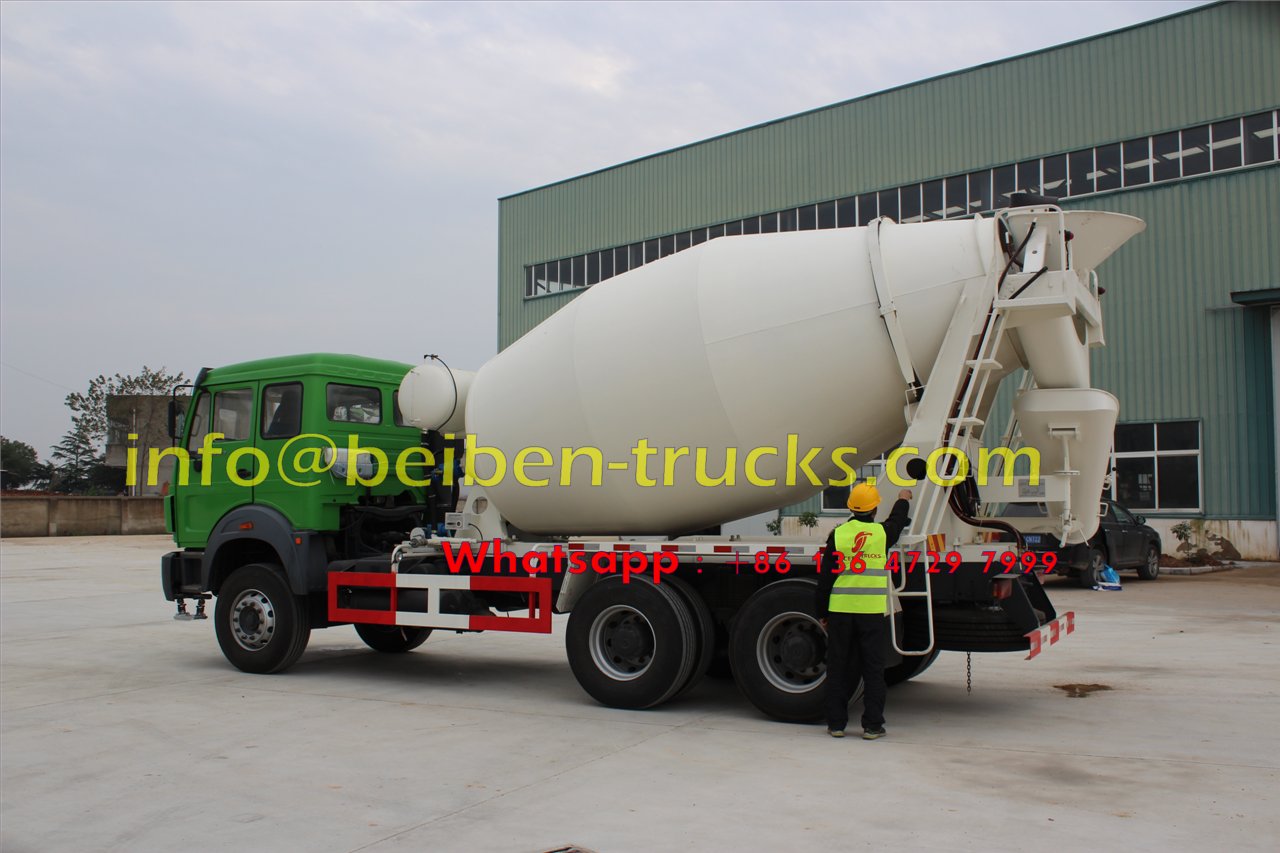

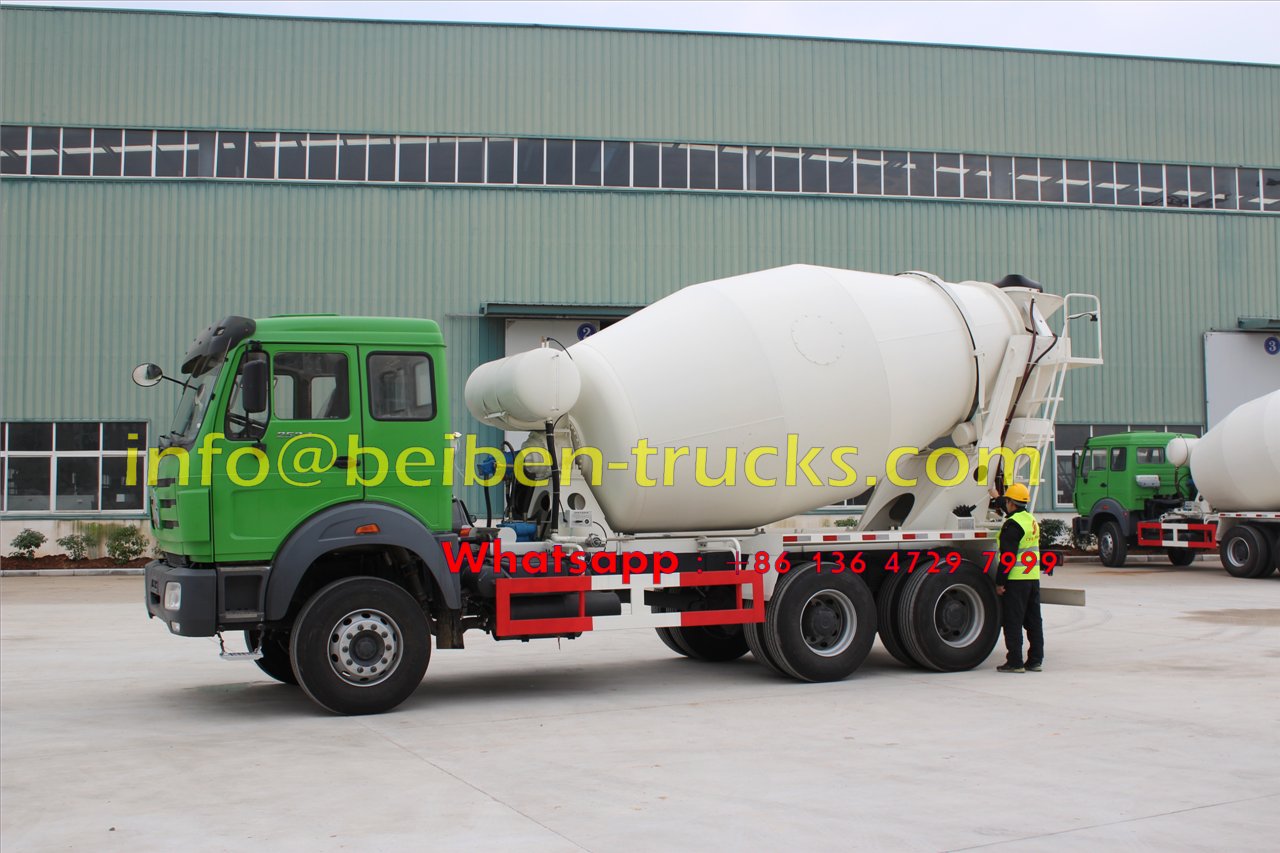

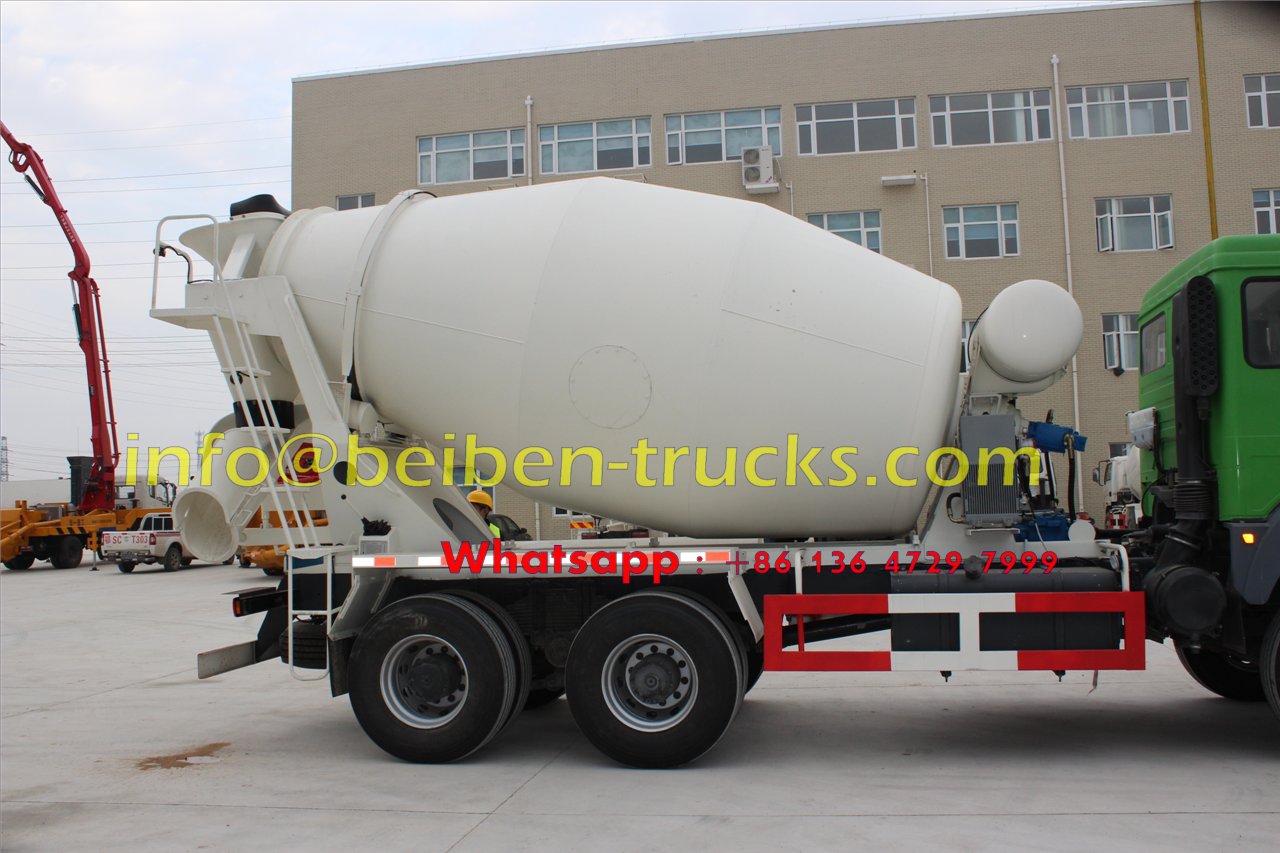

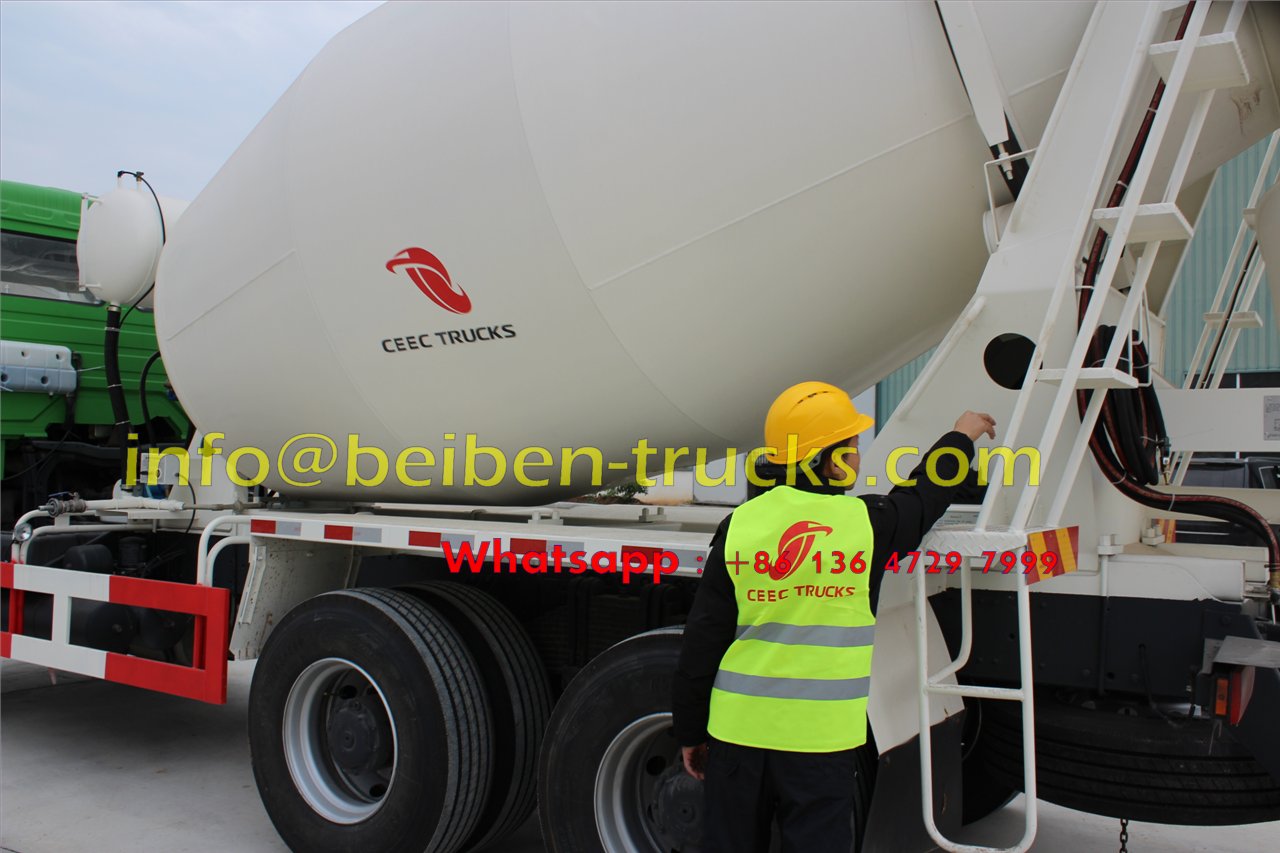

Main technical parameters of concrete
mixer
|
|
Drum performance parameter
|
Geometric Volume m3
|
13.1 m3
|
|
Effective Volume m3
|
8 m3
|
|
Filling Ratio %
|
64.5%
|
|
Gradient of the Drum °
|
15°
|
|
Filling speed m3/min
|
≥3
|
|
Discharging Speed m3/min
|
≥2
|
|
Surplus Ration %
|
<1%
|
|
Range of Slump mm
|
20～300
|
|
Hydraulic System
|
Pump
|
Eaton 54 (ACA542337R)
|
|
Motor
|
Eaton 54 (HHD542337R)
|
|
Gear Box
|
PMB6sp
|
|
Water supply system
|
Volume of water tank
|
400L
|
|
Water supply type
|
Air pressure Type
|
