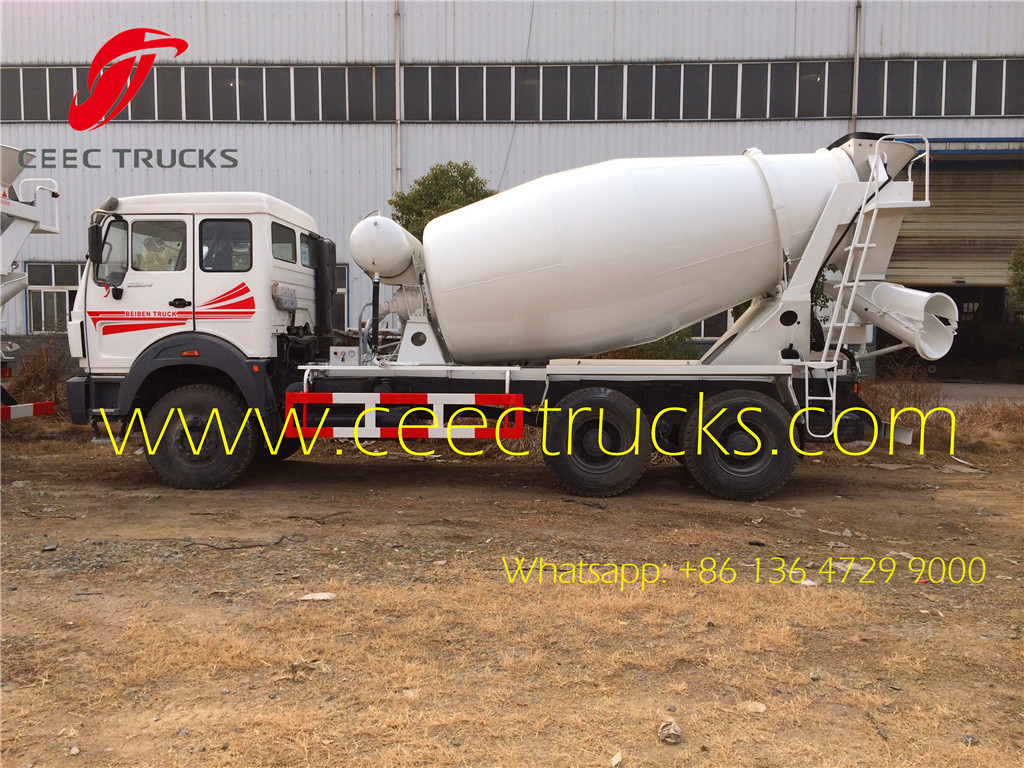

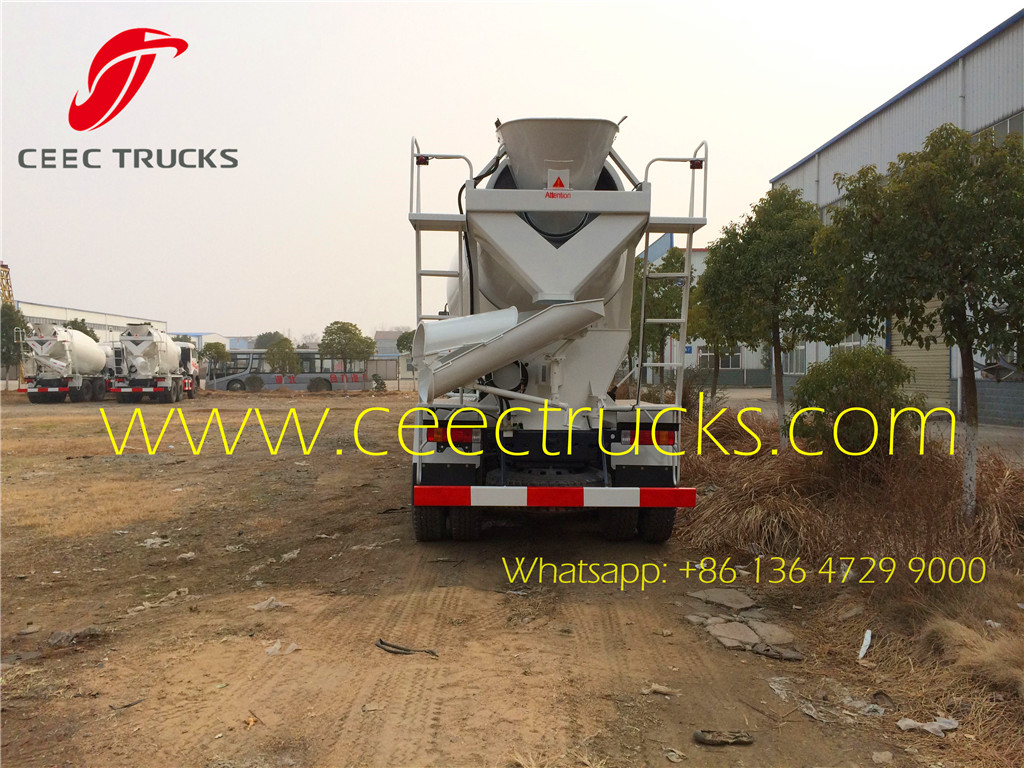

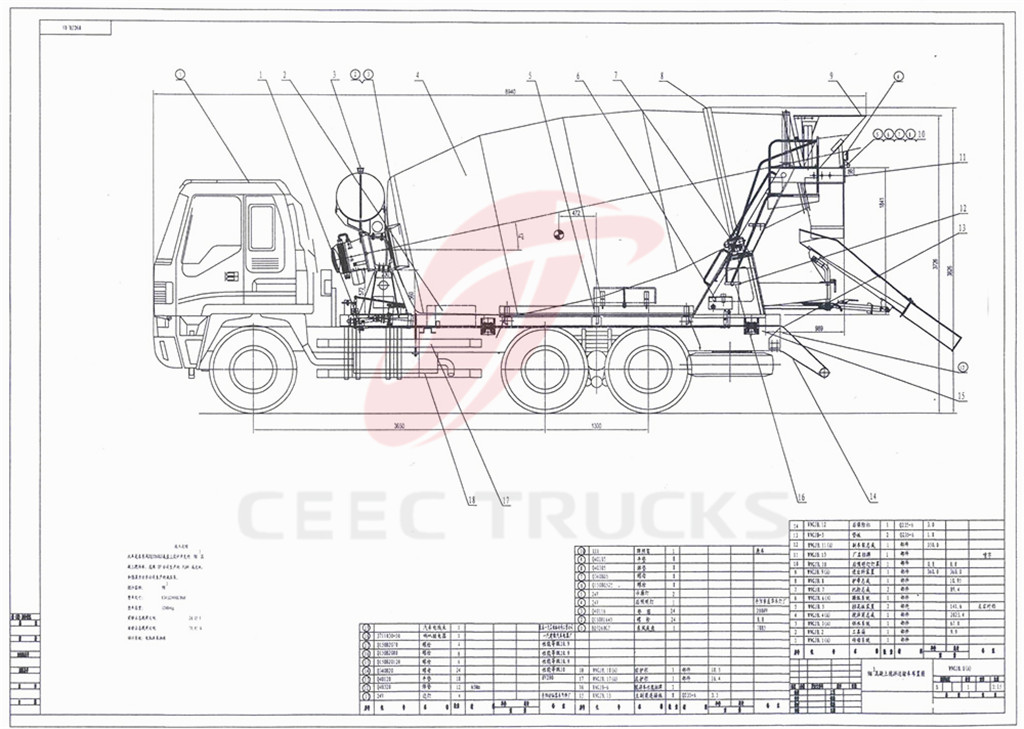

The beiben 10 CBM mixer concrete mixer truck is used to transport construction concrete. It is made of automobile chassis, mixing barrel, transmission system, water supply equipment, take full power and power,mixing drum support, deceleration machine, hydraulic transmission system, material in and out of the system, operating mechanism and other parts.
Congo Beiben 336HP concrete mixer truck on sale
China best beiben 2534, 2538 cement mixer truck manufacturer can supply beiben 10CBM transit mixer truck, beiben 14 CBM cement mixer.
CEEC export Dubai beiben 10CBM concrete mixer truck use Beiben NG80B cabin, 2534 concrete mixer truck chassis, world famous
weichai diesel 340 hp engine, fuller 9 shift transmission, 3800+1450 mm
wheelbase, beiben 10 CBM mixer truck upper structure adopts Germany

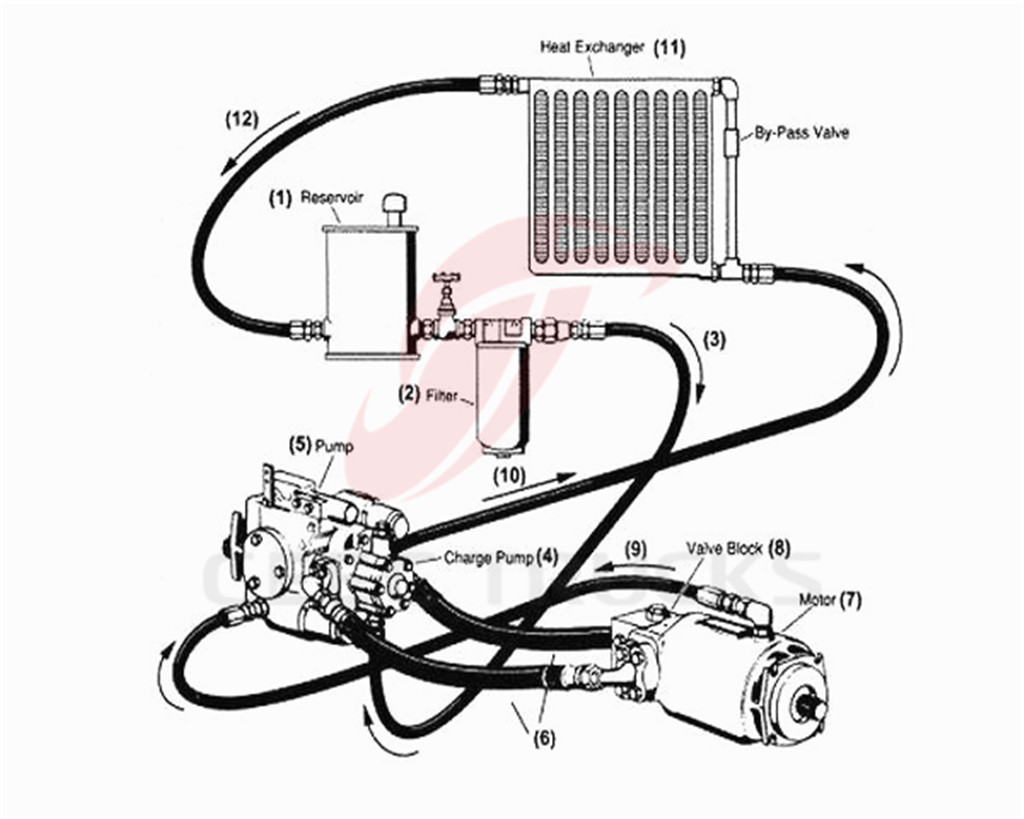

Rexroth, America EATON, Italy ARK, America Sauer brand Hydrulic Motor,
Hydraulic Pump and Reducer.
CEEC TRUCKS produced Beiben 10 CBM concrete mixer truck features:
★ Beiben 2534 transit mixer trucks equipped with new NG80B cabin, which has attractive appearance
★ WEICHAI engine WP10.340E32, Euro 2 / 3 emission, strongly 380ps, and 9shift manual mechinical gearbox
★ Curb weight approx 13650kg and rated mixing capacity can be up to 10CBM, very good performance
★ Specific
heavy truck metallic framework and stressed-skin construction,
processing security of same level of European automobiles
★ Beiben
2534 Tractor truck use European ECER29 safety and regulatory
requirements, stamping molding of frame only once ensures girder
strength
★ High strength carbon steel Q345 material, with thickness over 6mm
★ Americal brand Eaton Hydraulic Pump, Hydraulic Motor, and best performed Germany Rexroth Reducer.
Similar Key Words: beiben 10 CBM cement mixer truck, north benz 2534 transit mixer, beiben 2538 mixer trucks, beiben 10 CBM concrete mixer truck, LHD beiben 10 CBM mixer truck, Beiben RHD 10 CBM concrete mixer truck
The best beiben 10CBM mixer truck supplier from china baotou beiben heavy duty trucks. The most professional beiben 6*4 concrete mixer truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 mixer trucks. Currently, we supply beiben LHD transit mixer truck with 2534 cabin, beiben RHD mixer truck with 2534 cabin.
| Model
|
Beiben 6x4 NG80B 10m3 concrete mixer truck
|
| Whole Vehicle Performance & Parameters
|
Chassis
|
BEIBEN
|
| Curb Weight (Kg)
|
15200
|
| Total Vehicle Weight (Kg)
|
25000
|
| Outline Dimension(L*B*H) (mm)
|
9900x2500x3980
|
| Wheelbase (mm)
|
4100+1450
|
| Front Overhang (mm)
|
1410
|
| Rear Overhang (mm)
|
2640
|
| Max
Traveling speed
|
85
|
| Vehicle Configuration
|
Clutch
|
Dry Single Disc Clutch (φ430)
|
| Gear Box
|
FAST 9T-1680
|
| Driving Type
|
6x4
|
| Steering Mechanism
|
TAS85
|
| Service Brake
|
Dual-circuit Air Brake
|
| Parking Braking
|
Spring-powered Air-cut-off Brake
|
| Auxiliary Brake
|
Engine Exhaust Brake
|
| Tyre
|
12.00R20 radial tyre
|
| Engine Parameters
|
Model
|
WP10.380E32
|
| Type
|
Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
|
| Emission Standard
|
Euro 3
|
| Max Power (KW)
|
380HP(2200r/min)
|
| Max Torque
|
1500 N.m
|
| Mixing Drum Parameters
|
Max Mixing Cubage (m3)
|
4.5
|
| Feeding Speed (m3)
|
≥3.5
|
| Discharging Speed (≥m3)
|
≥3
|
| Leftover Rate
|
Nearly Zero
|
| Max Rotating Speed (r/min)
|
14---16
|
| Mixing Drum Obliquity (°)
|
10
|
| Max Mixing Drum Diameter (mm)
|
φ2412
|
| Driving System
|
Hydraulic Pump
|
Italian TOP 089
|
| Hydraulic Motor
|
TOP 089
|
| Speed reducer
|
TOP P68
|
| Water supply mode
|
Water pump; pneumatic pump
|

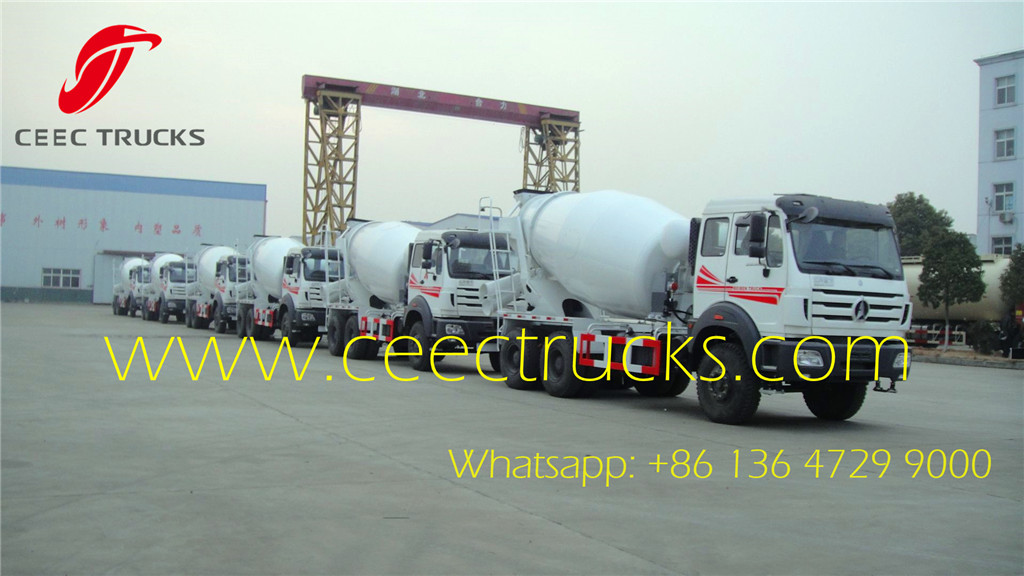

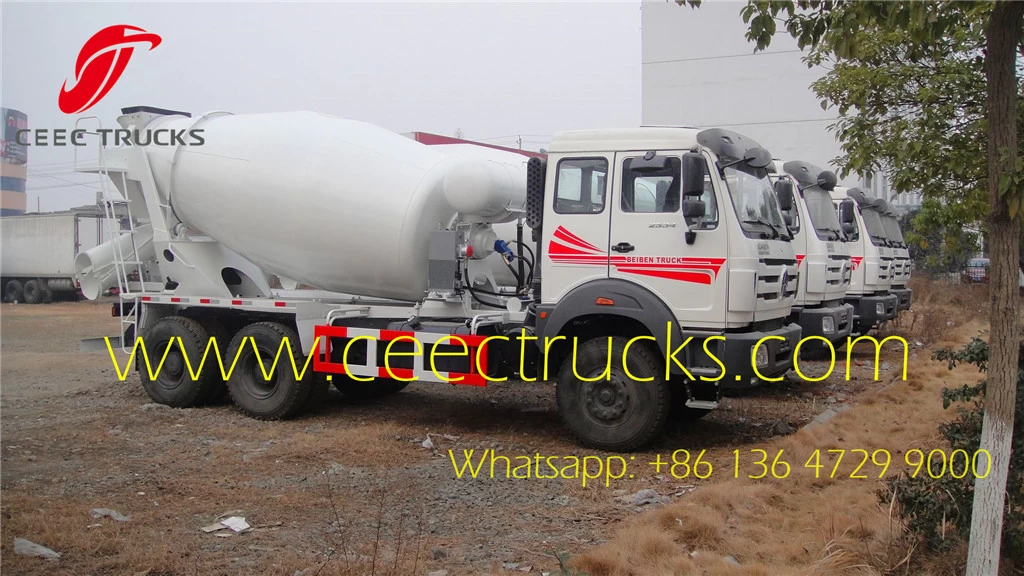

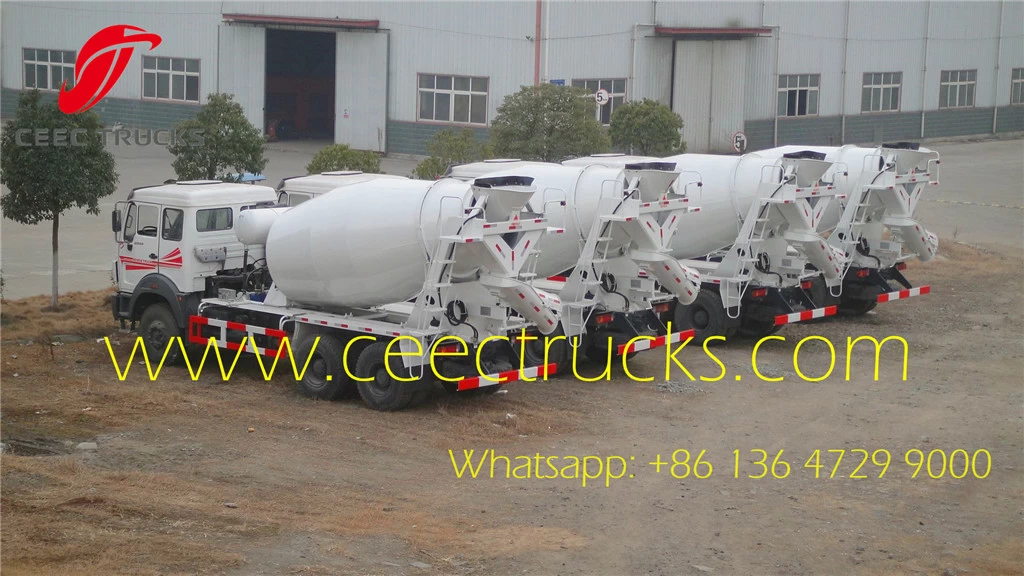

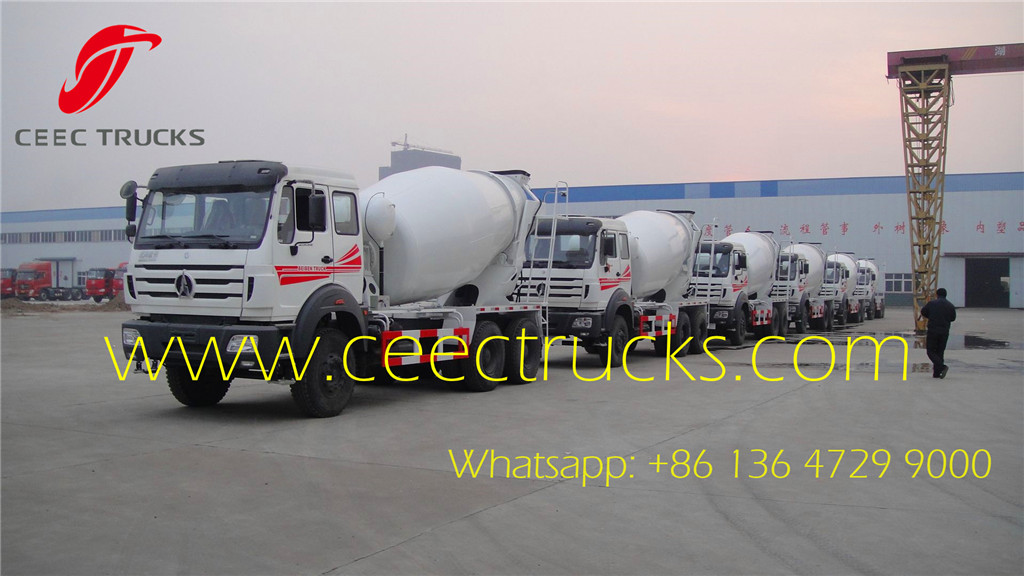

Beiben Transit mixer trucks on sale
