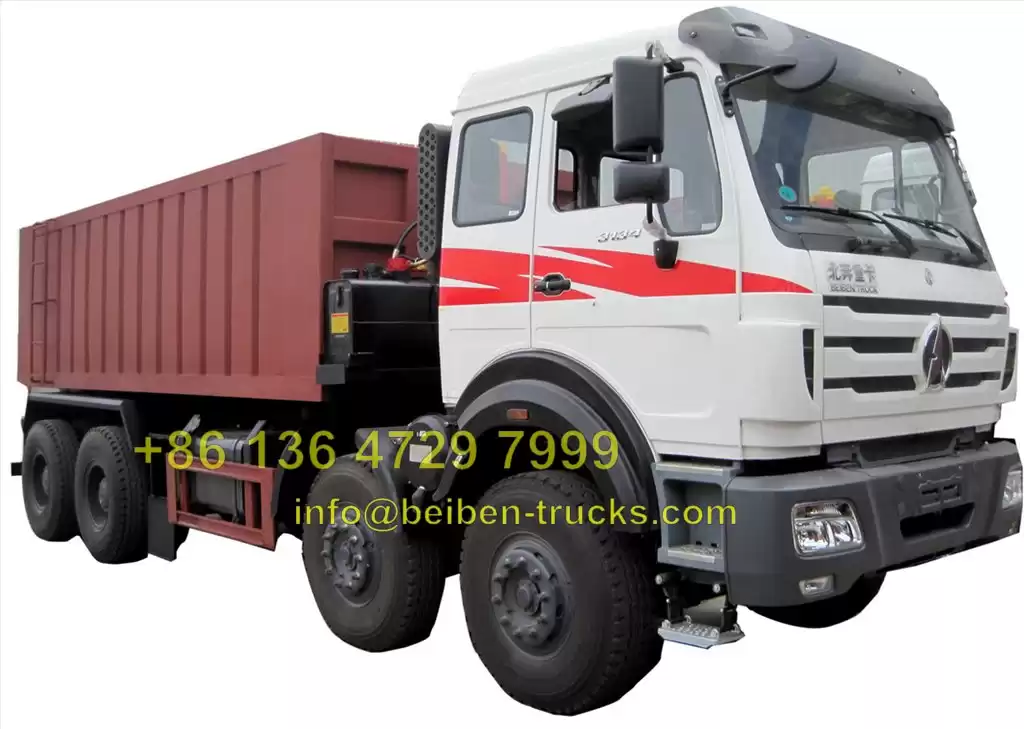

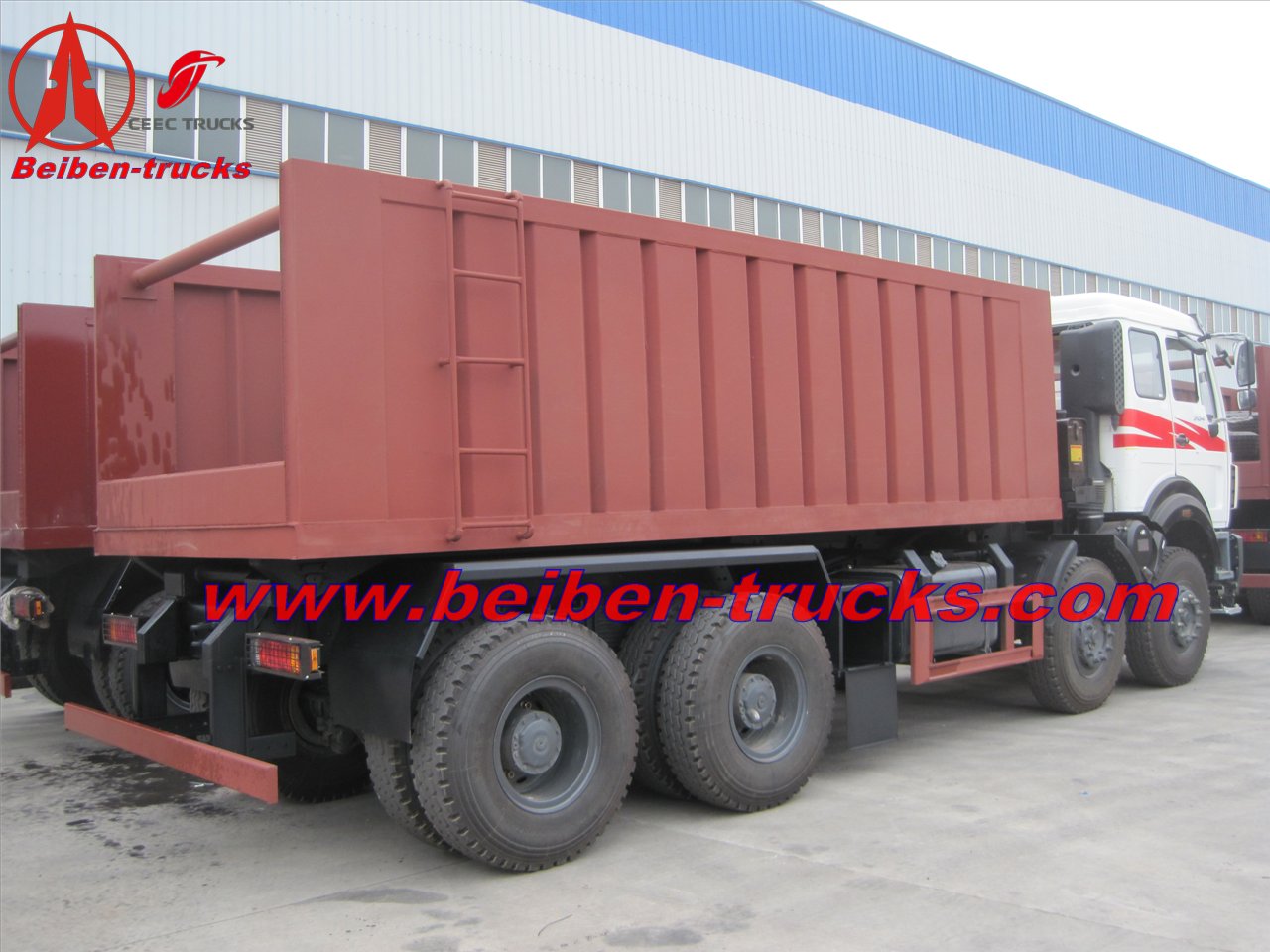

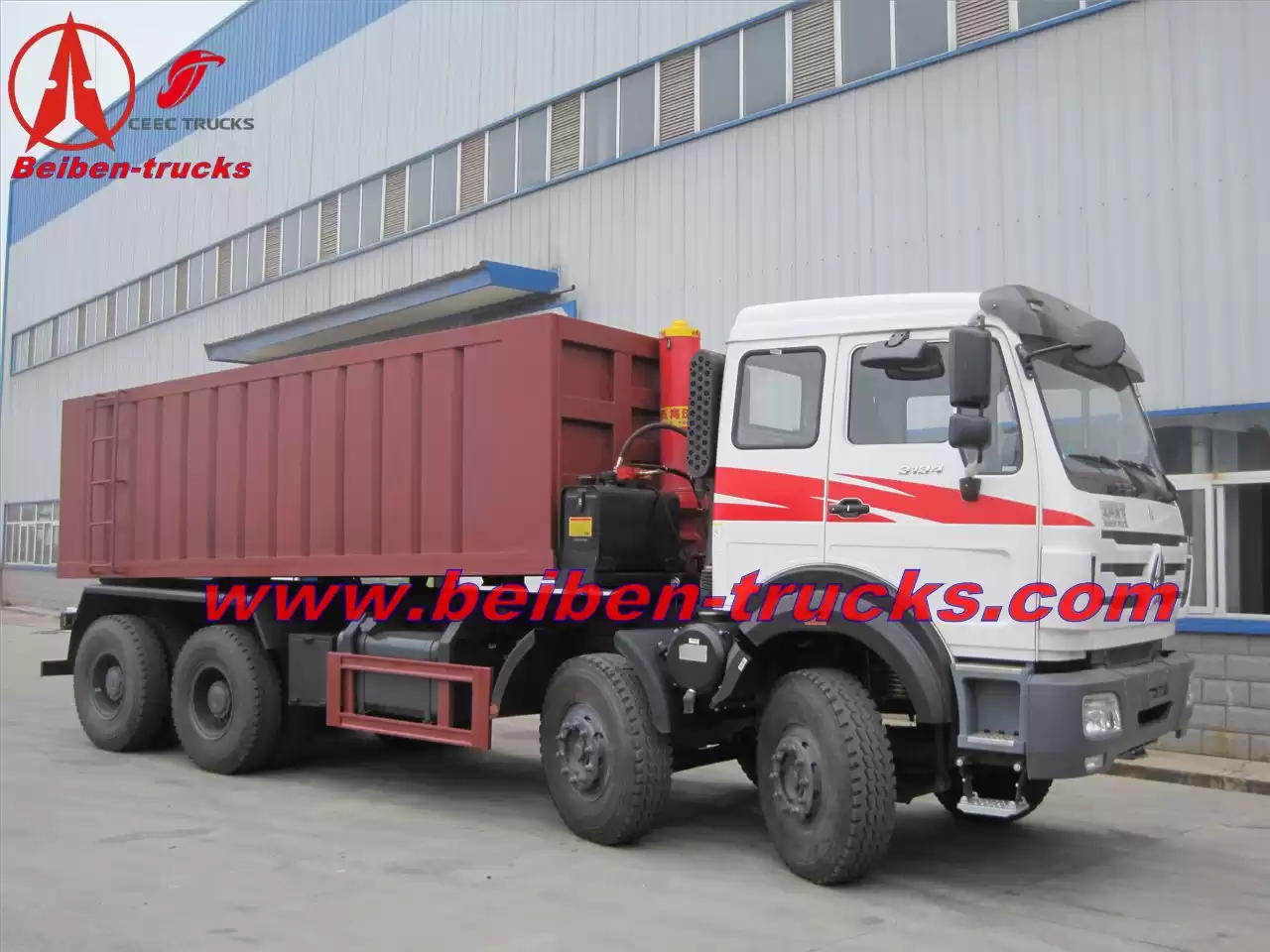

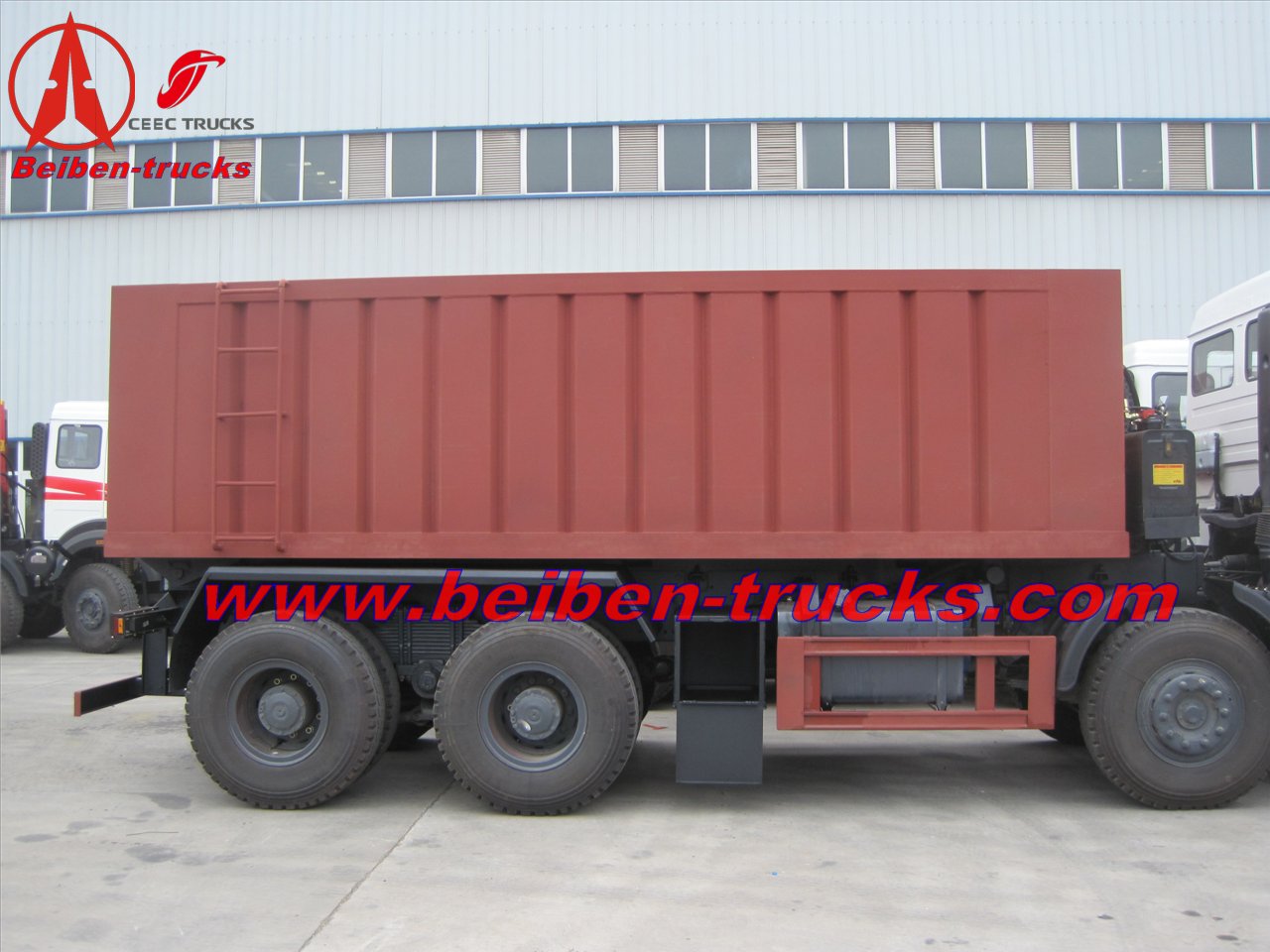

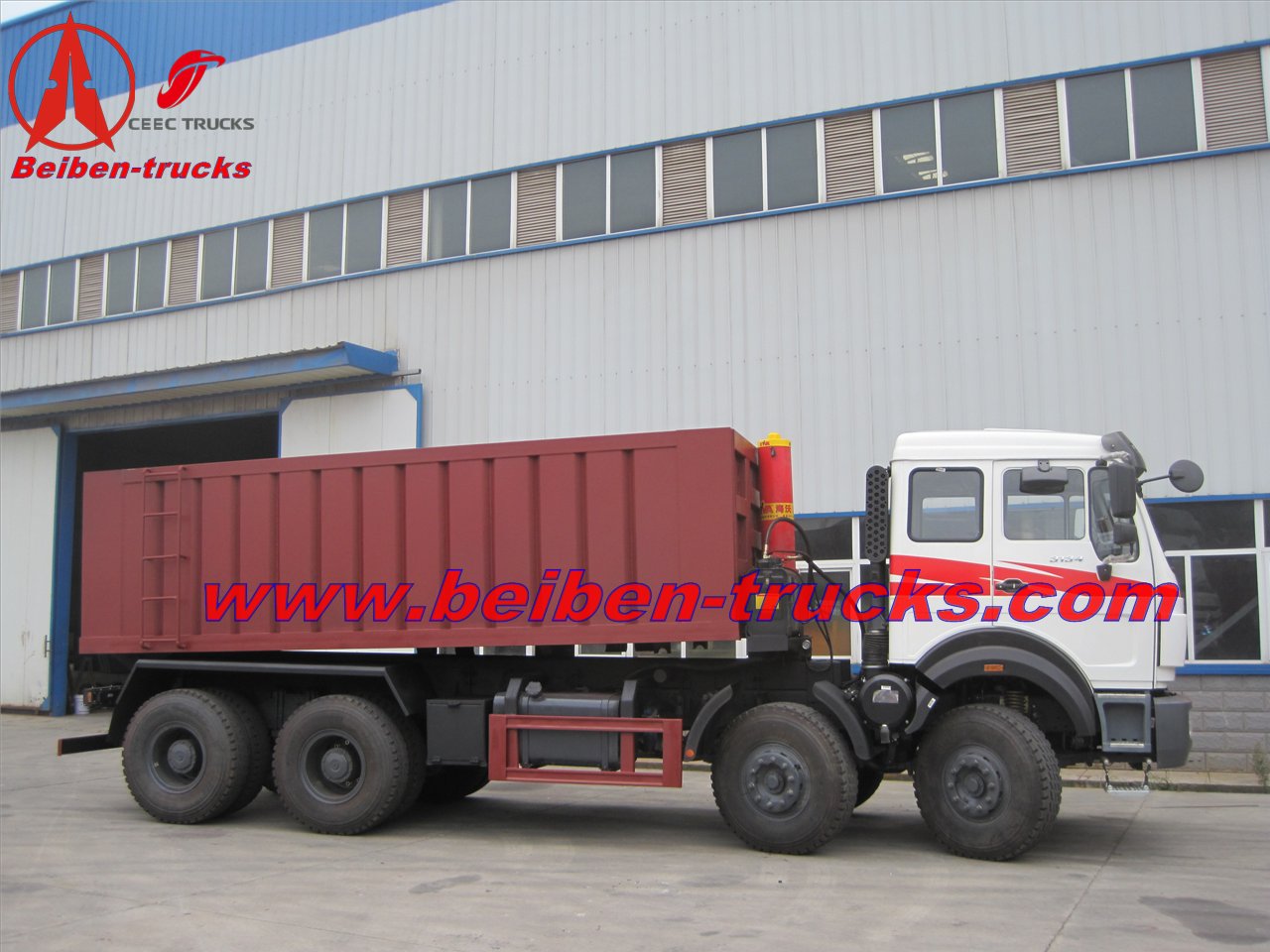

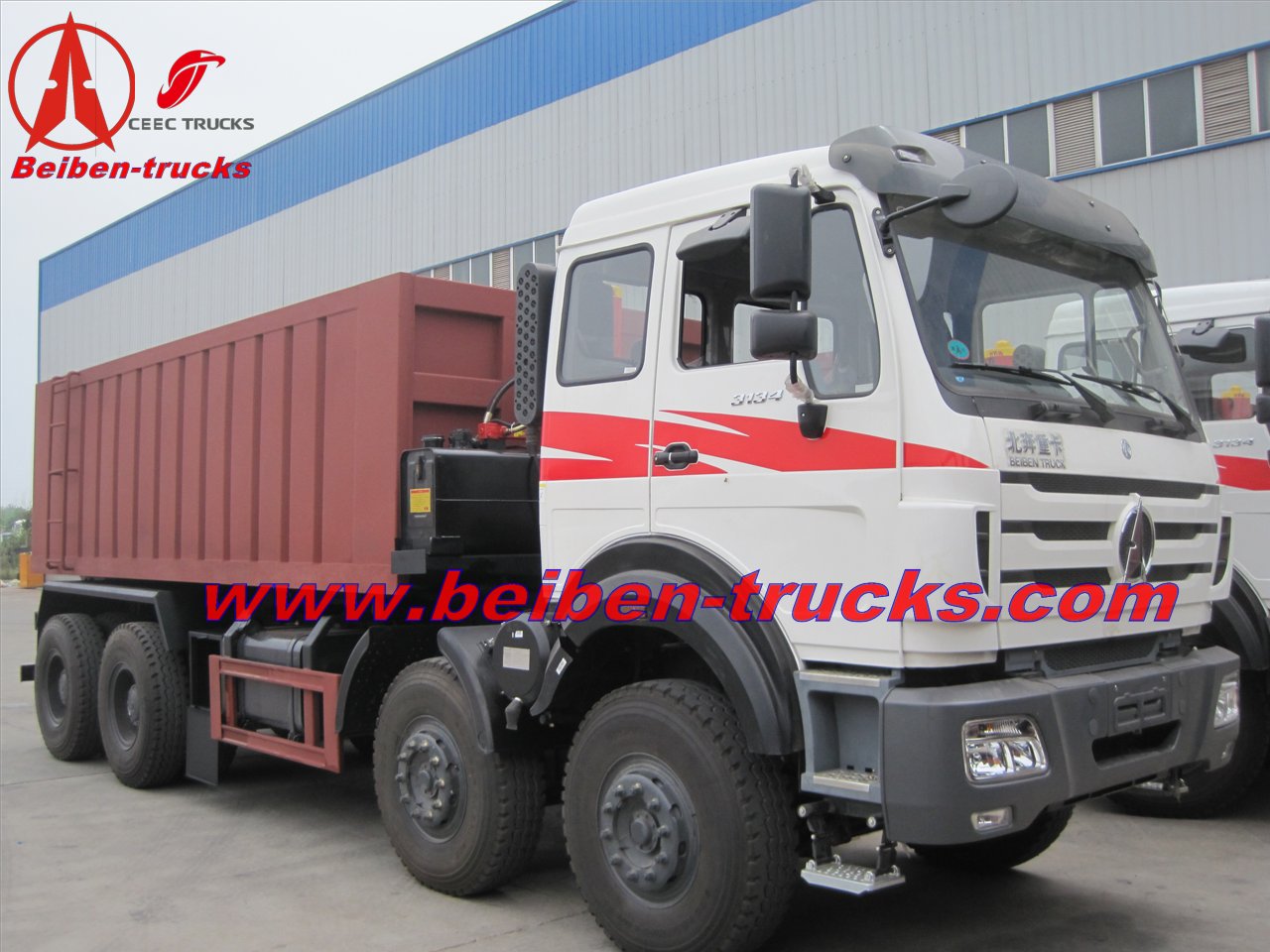

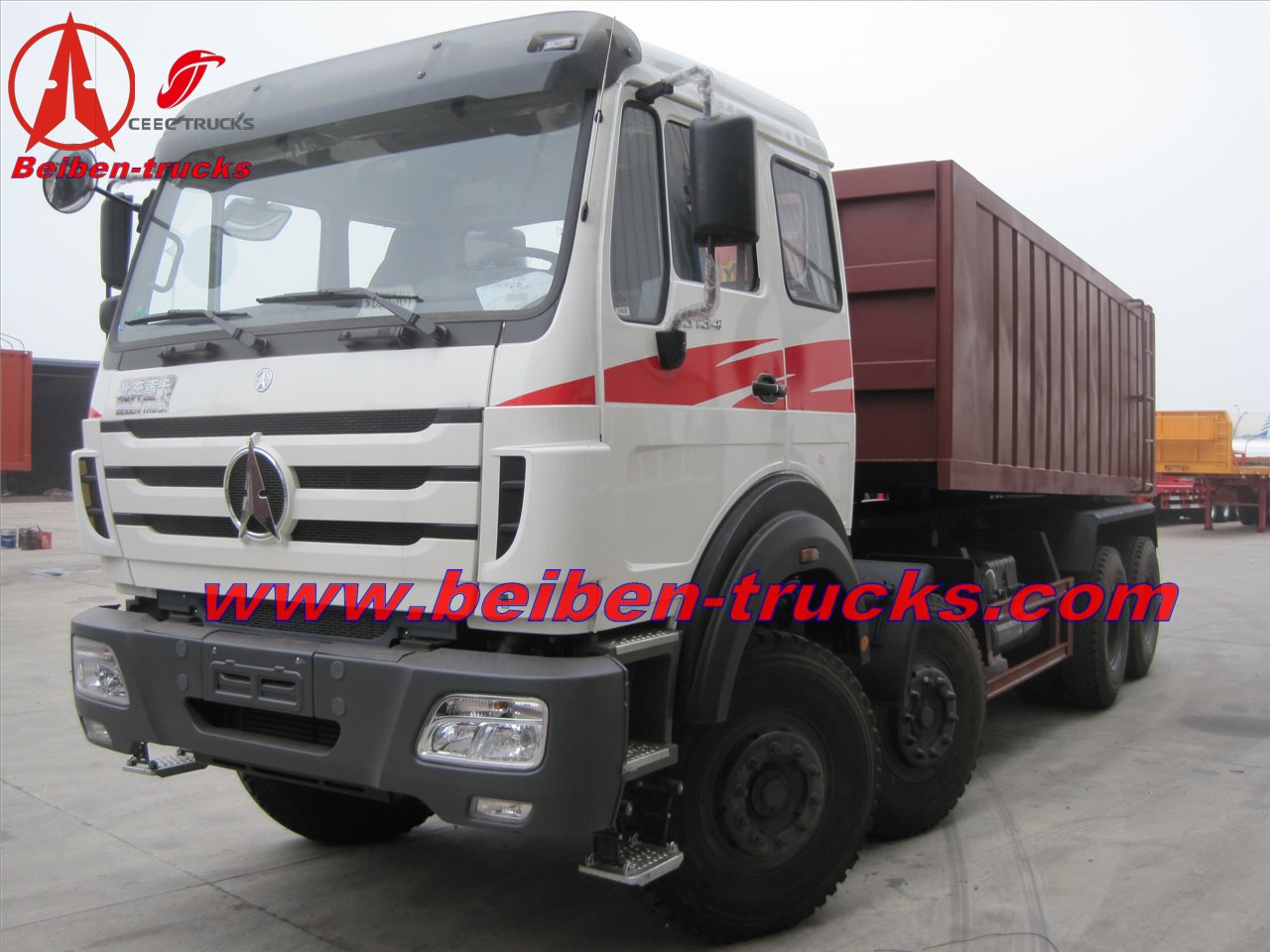

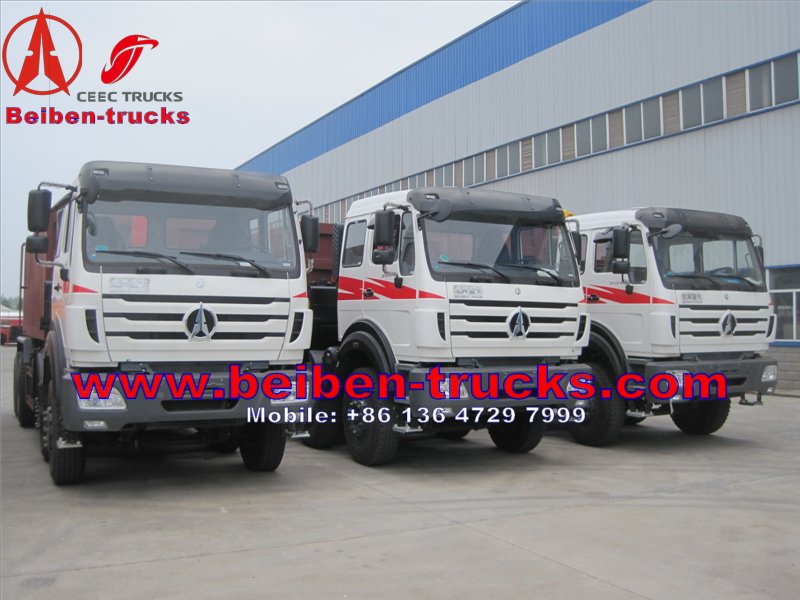

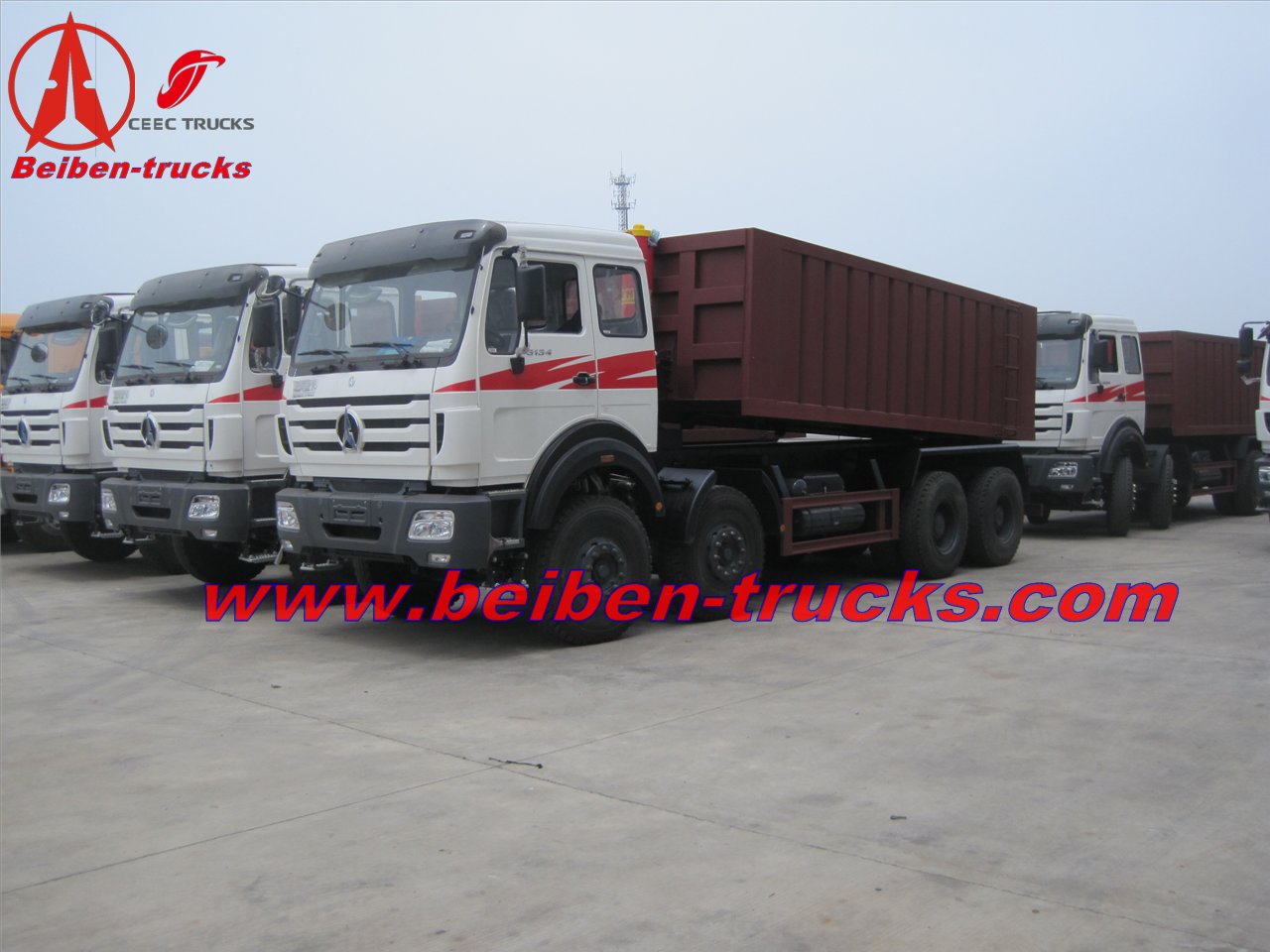

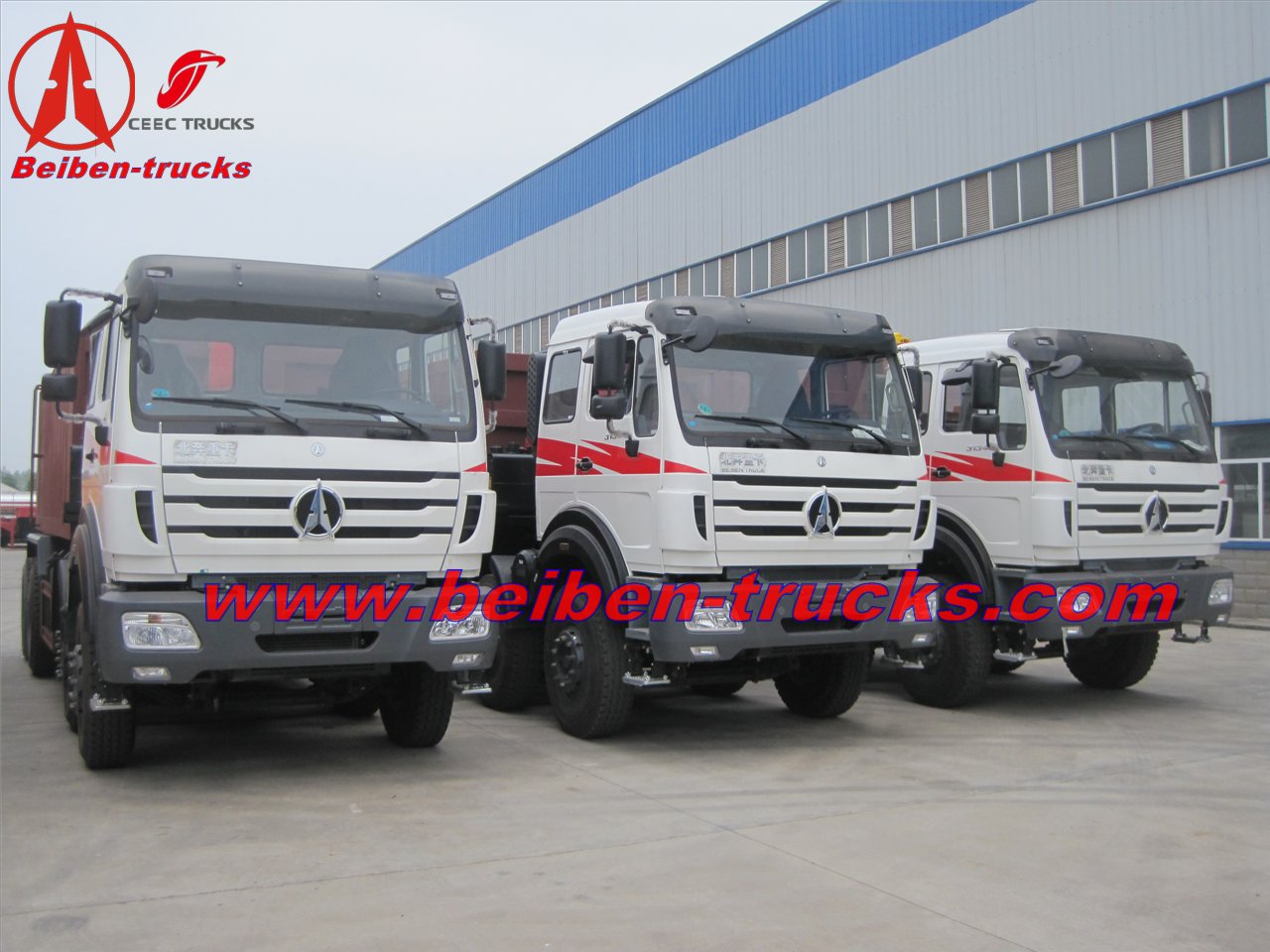

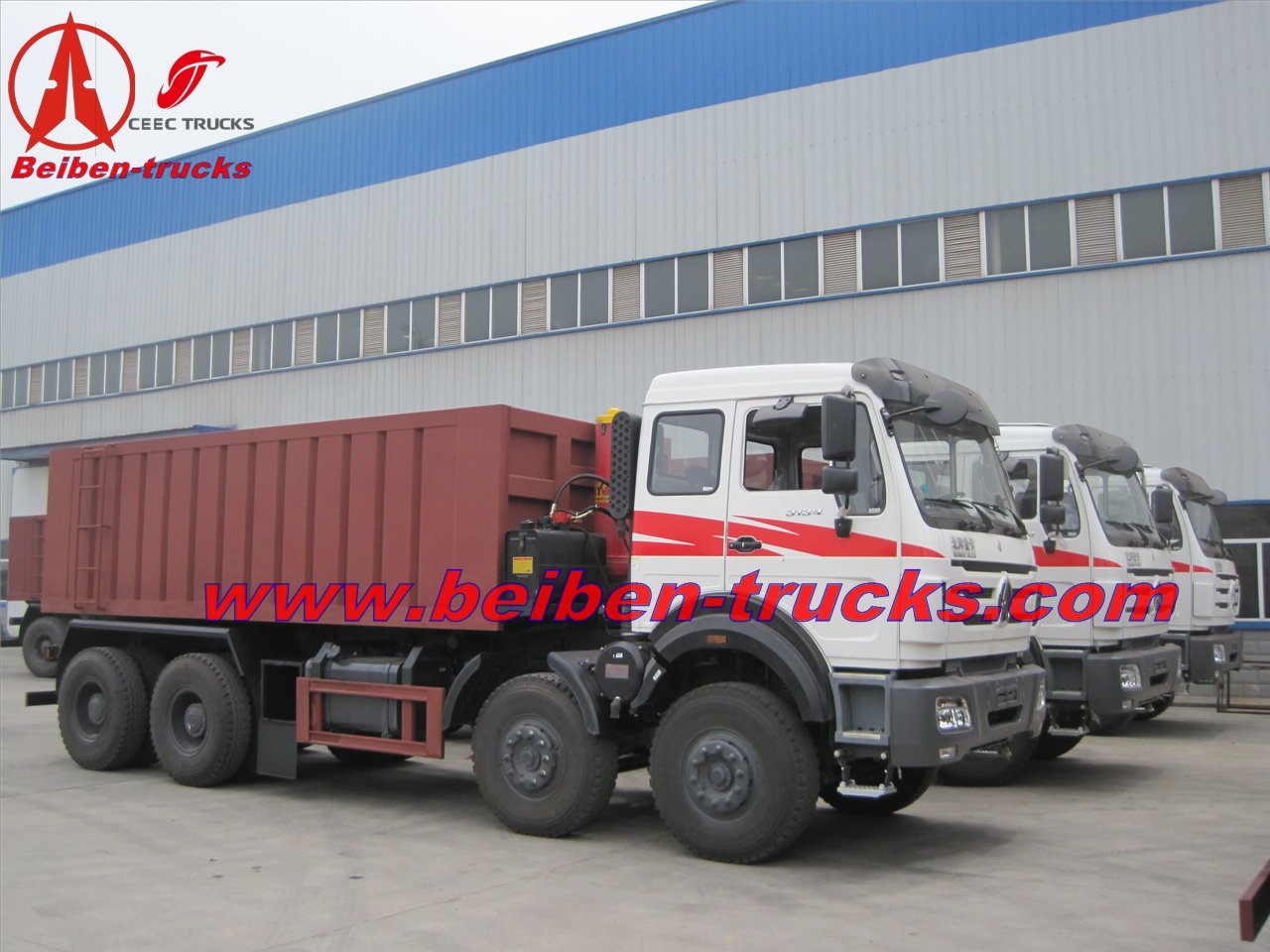

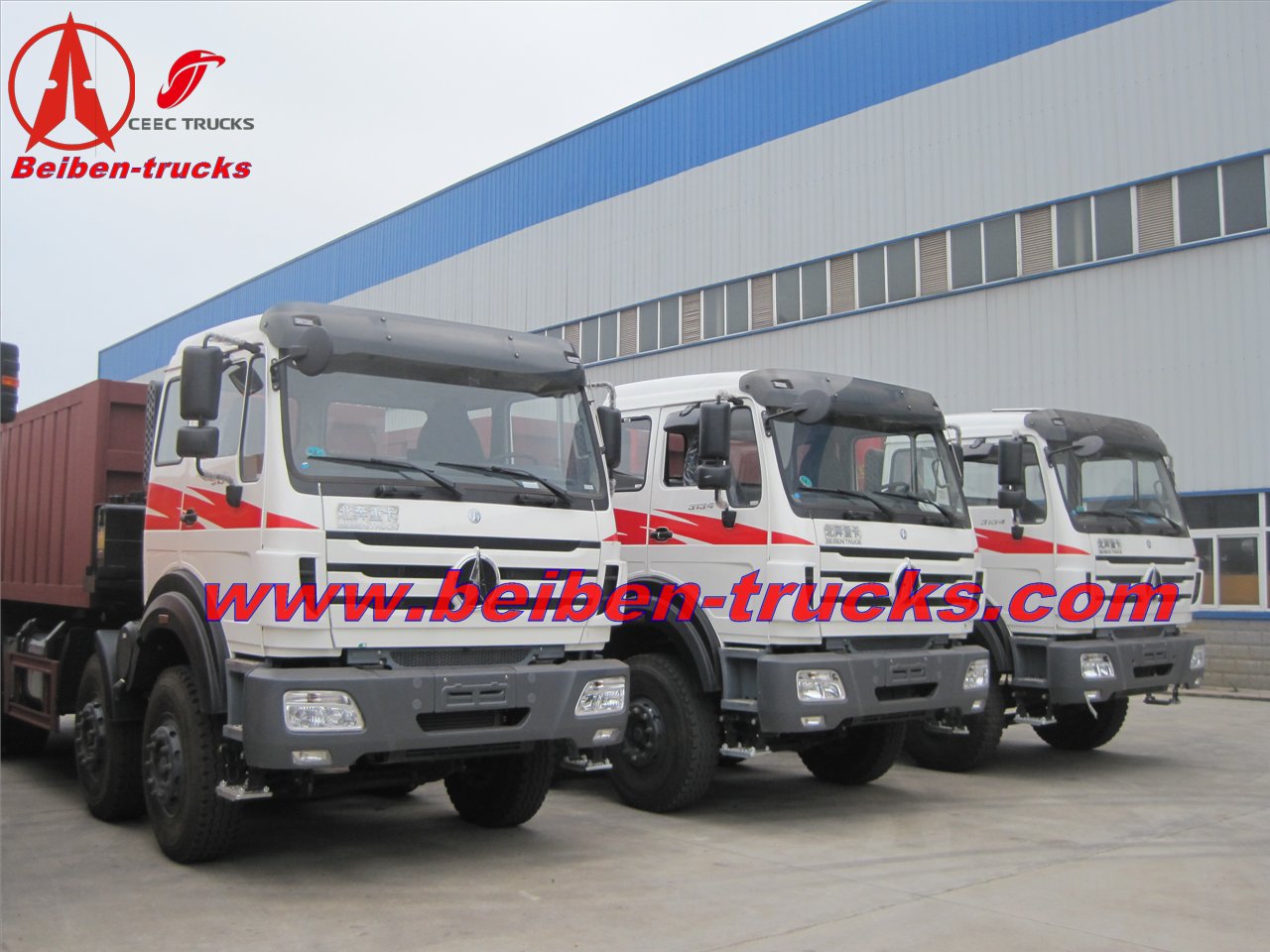

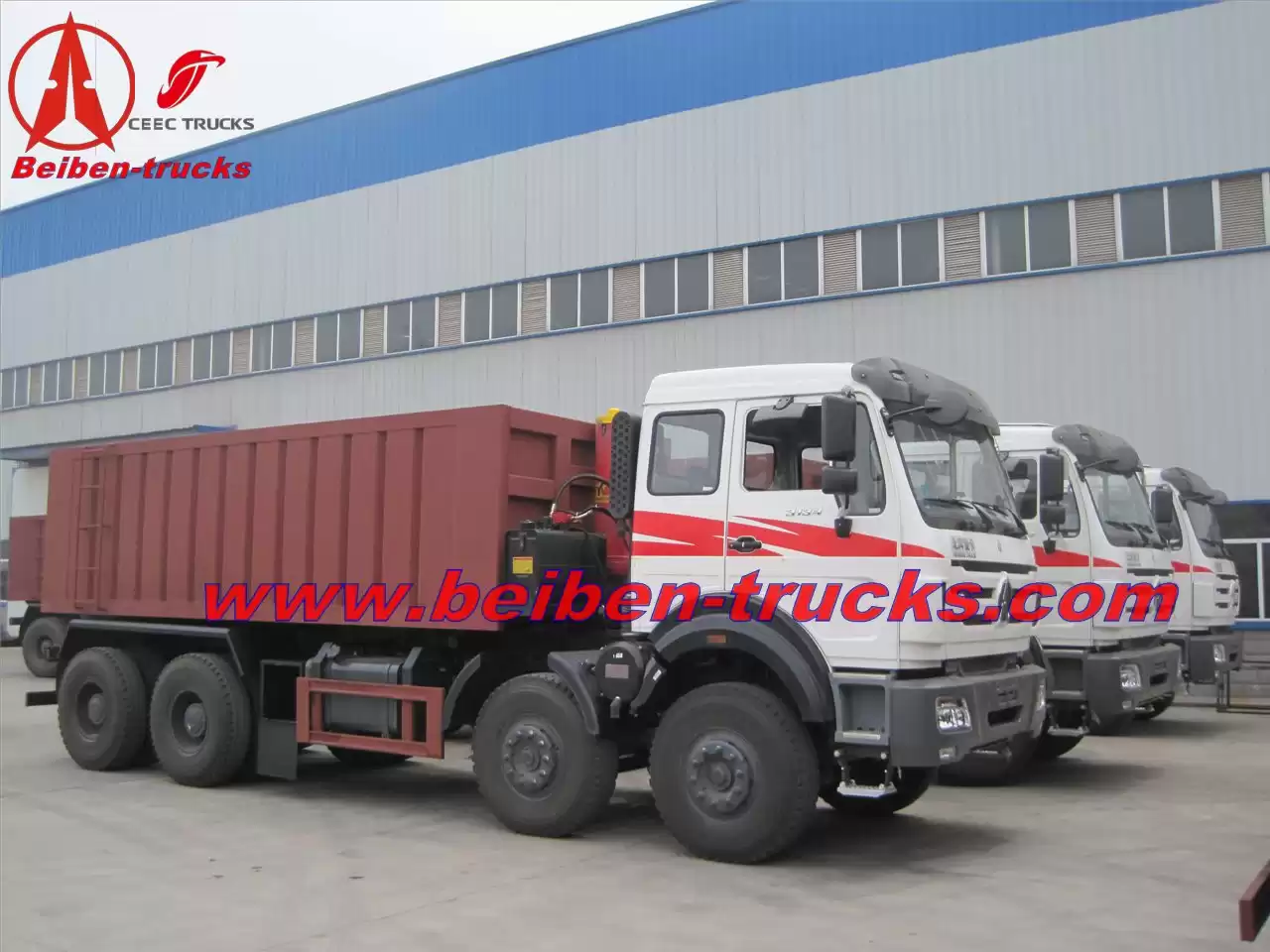

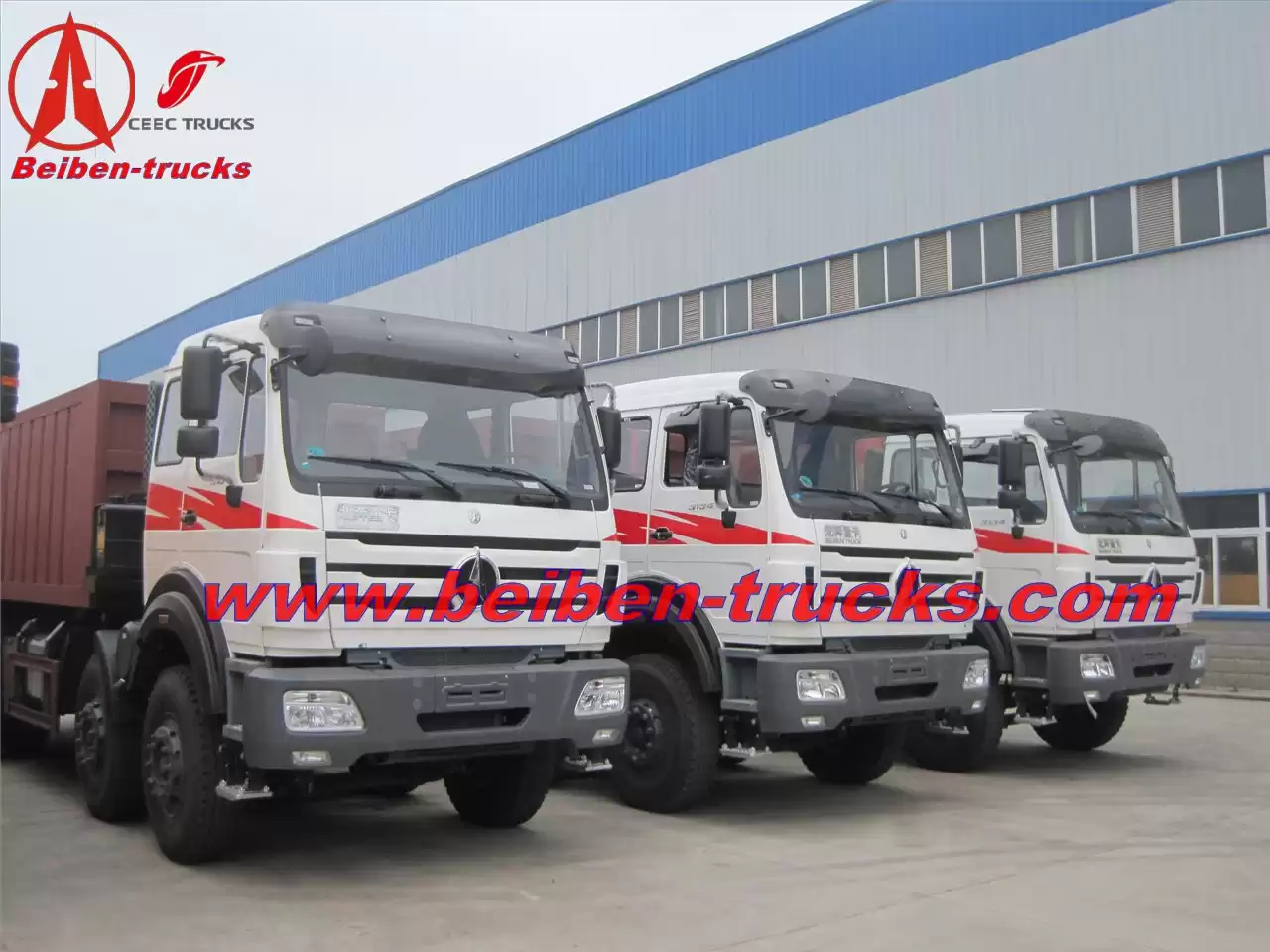

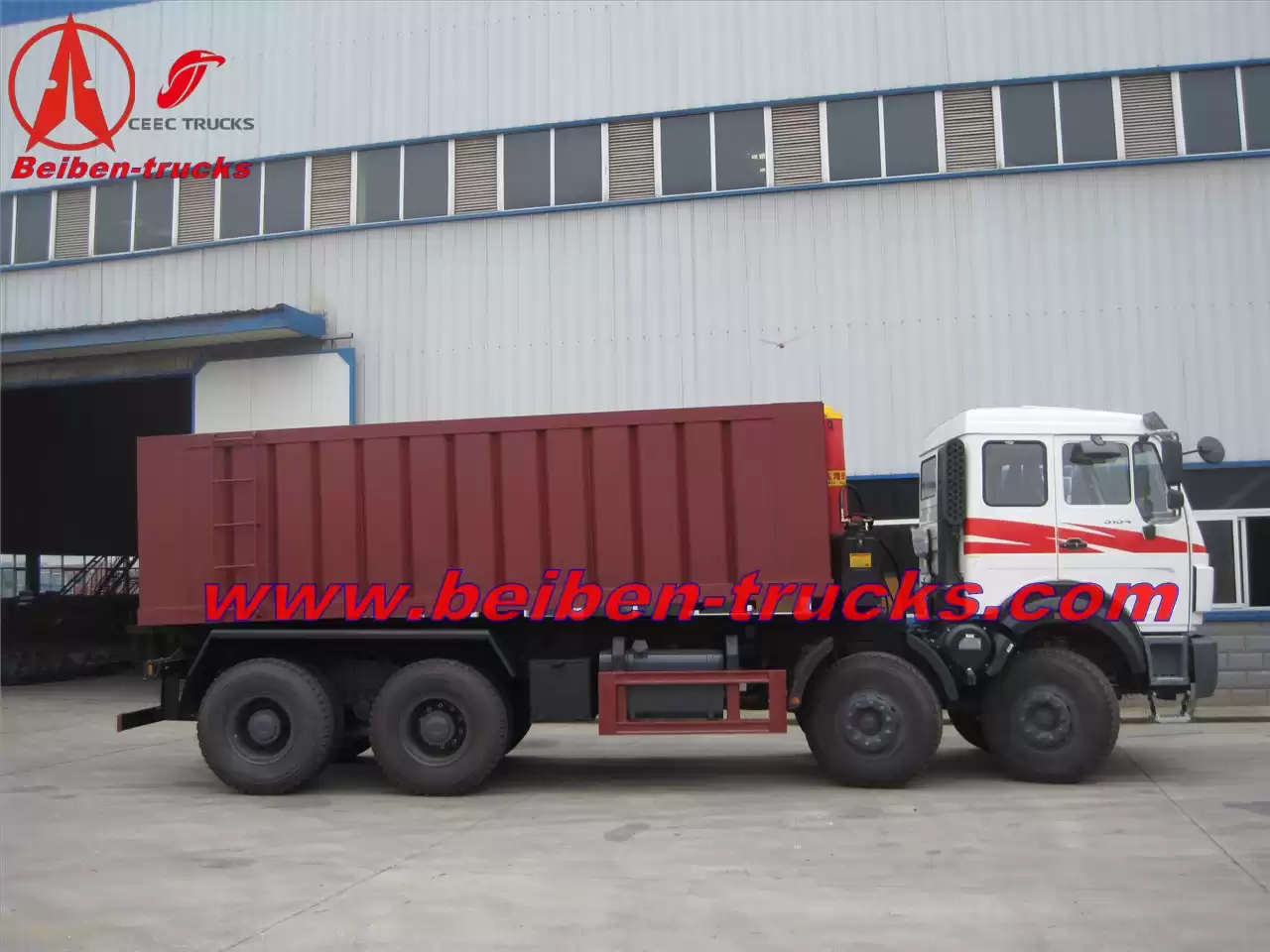

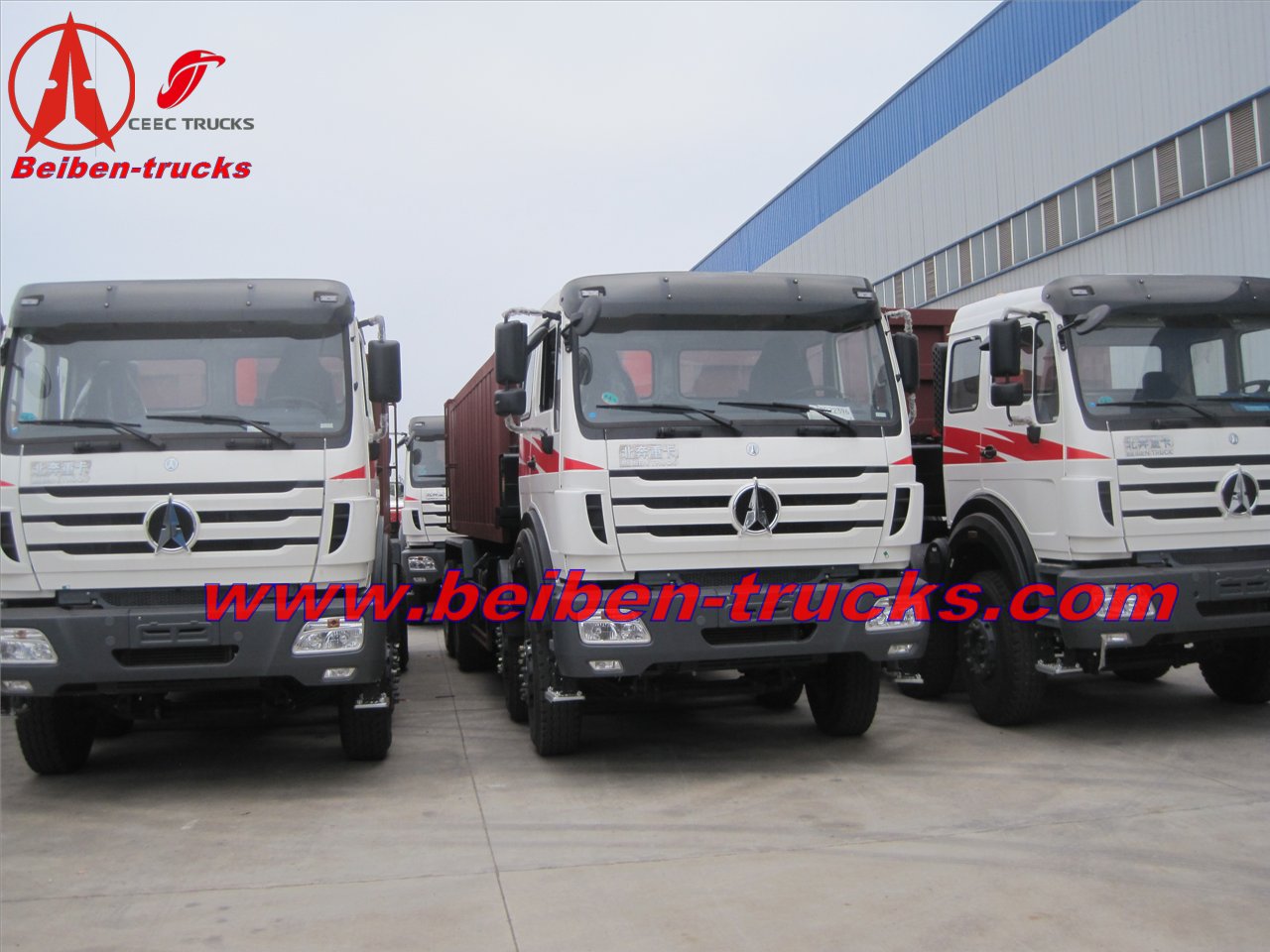

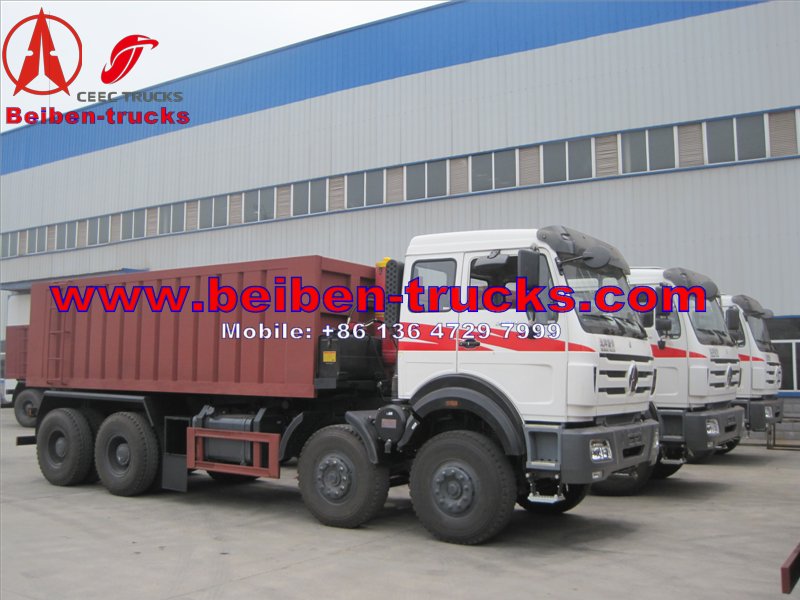

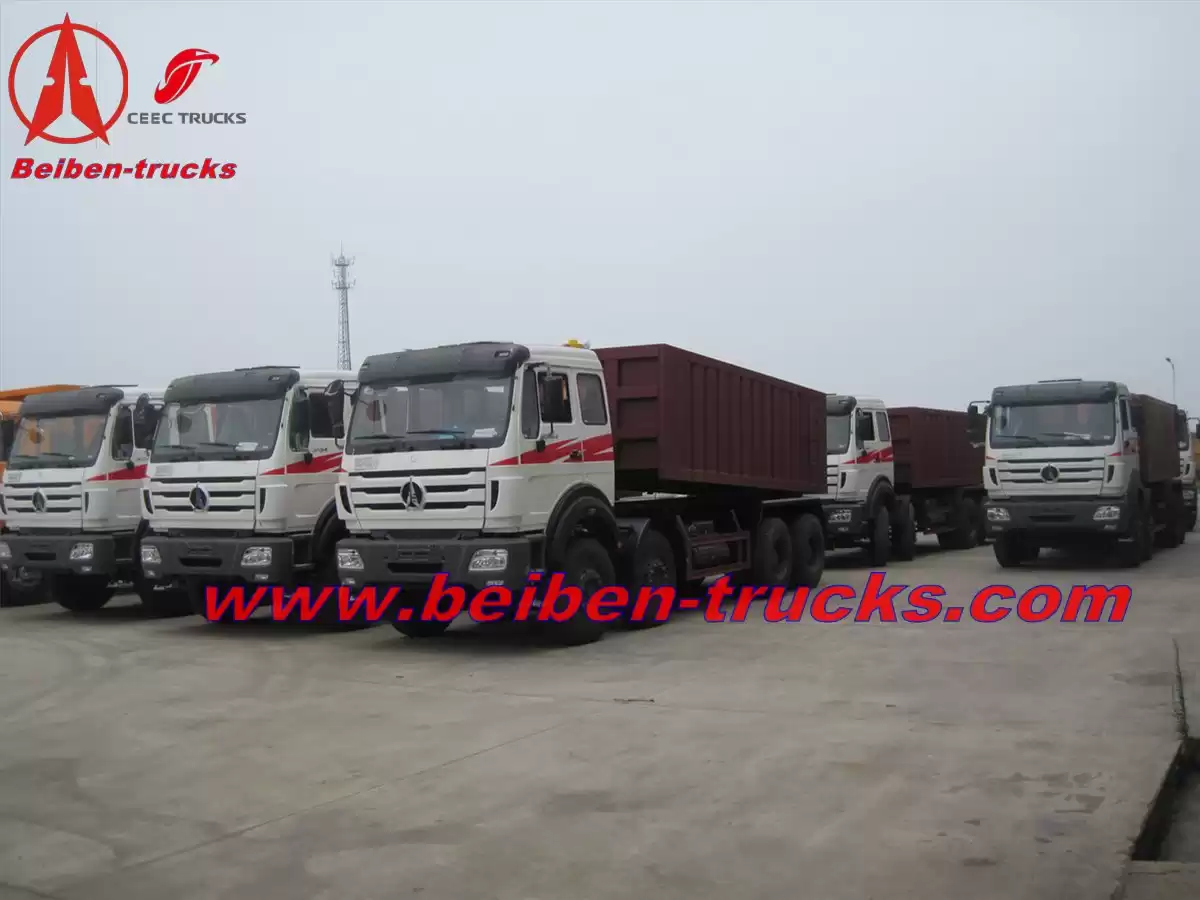

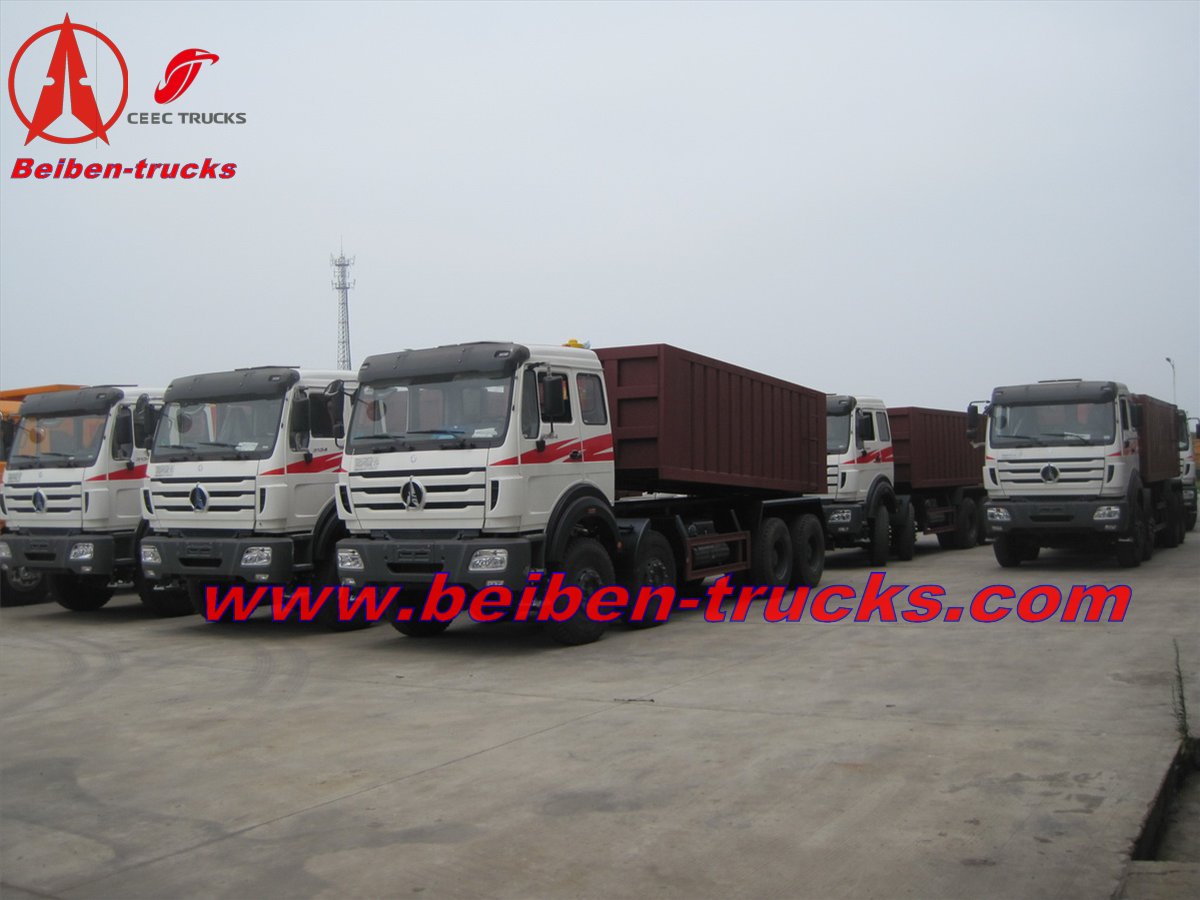

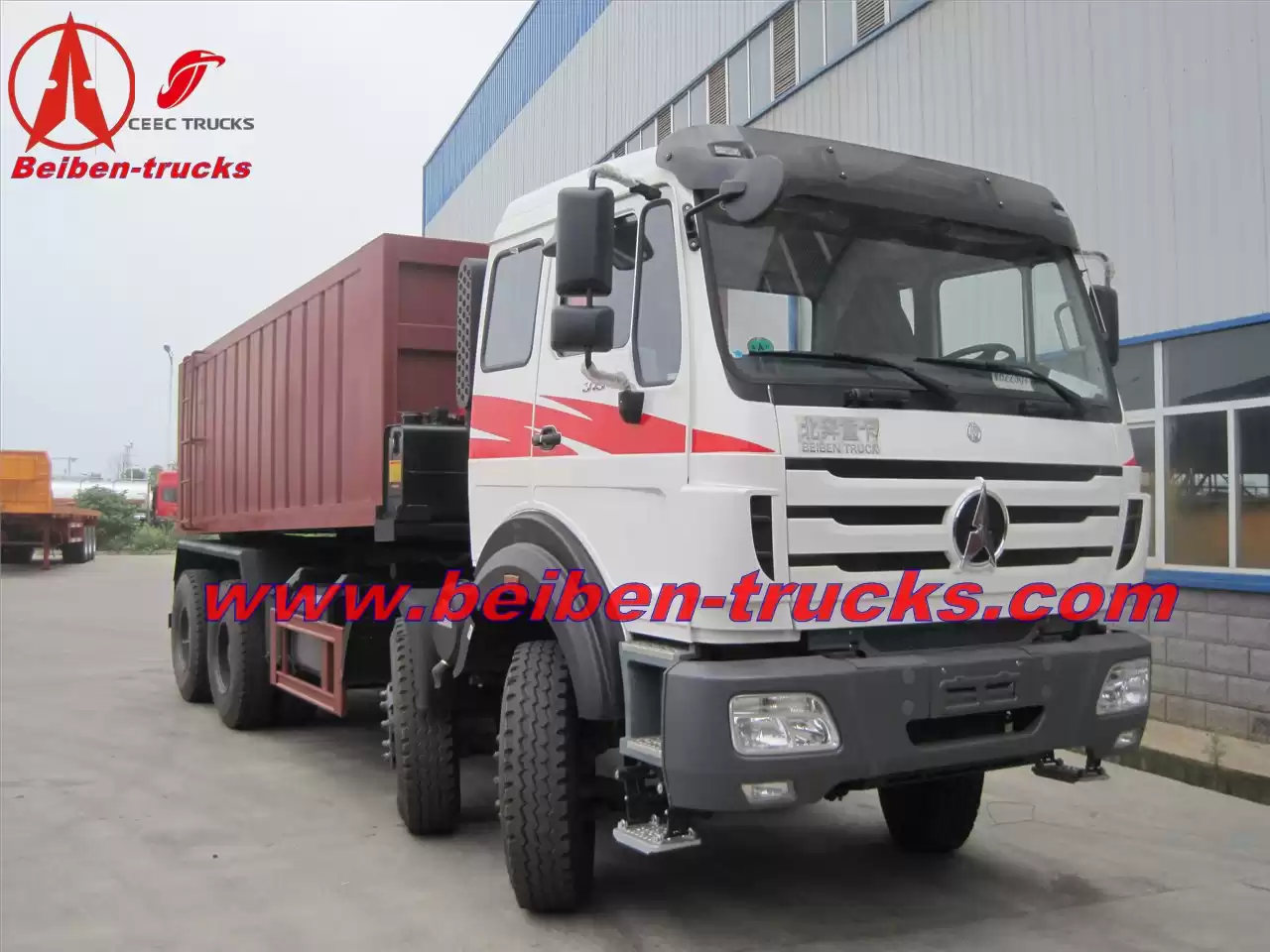

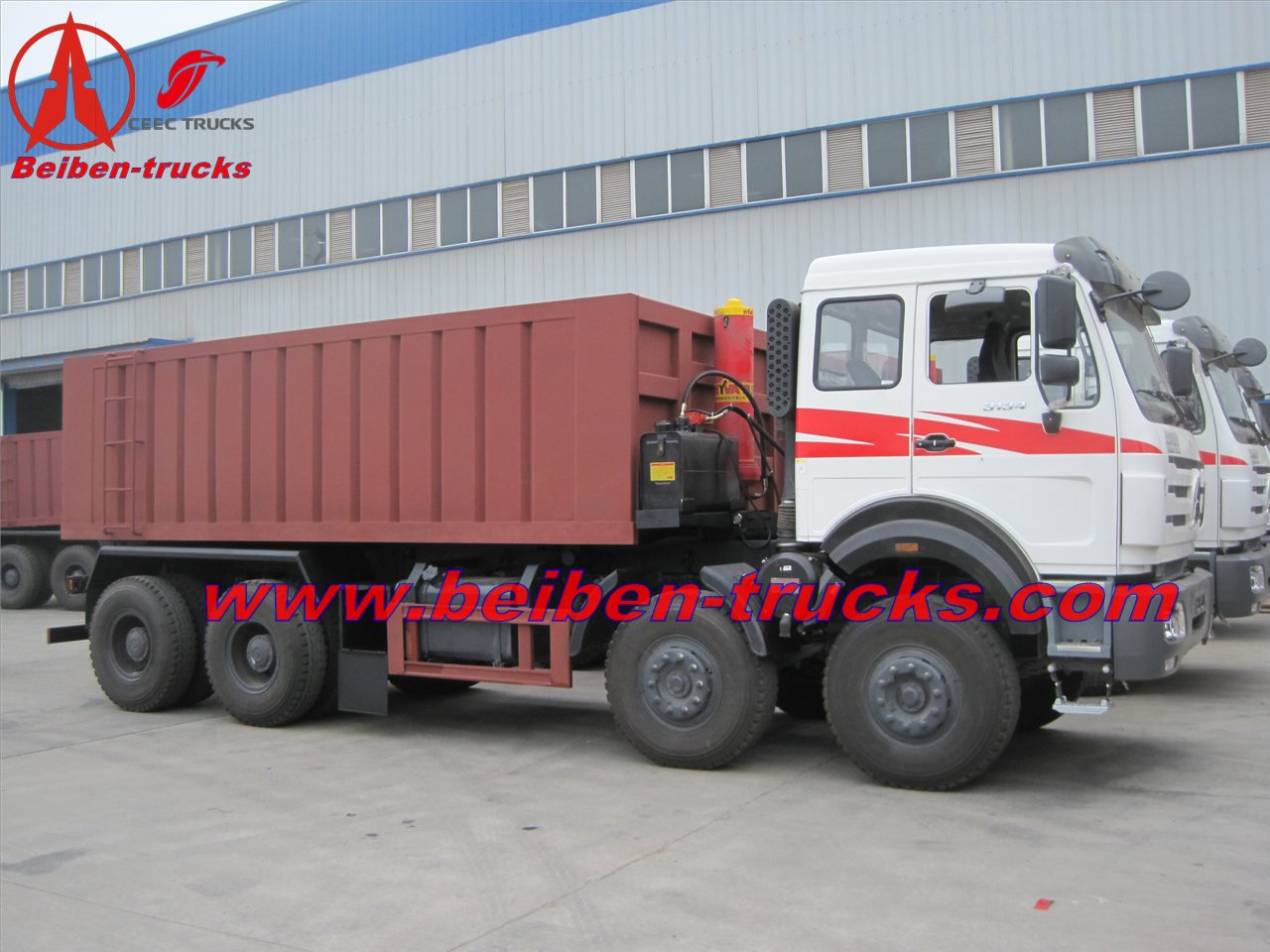

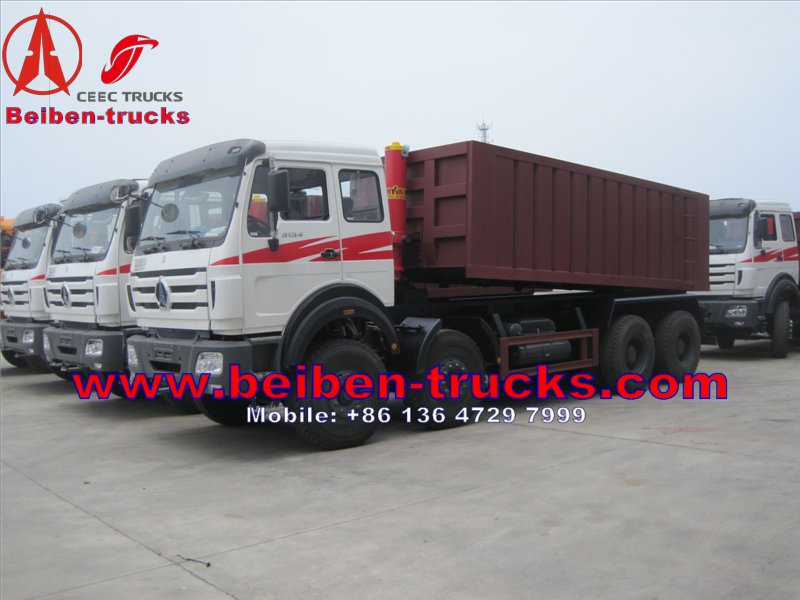

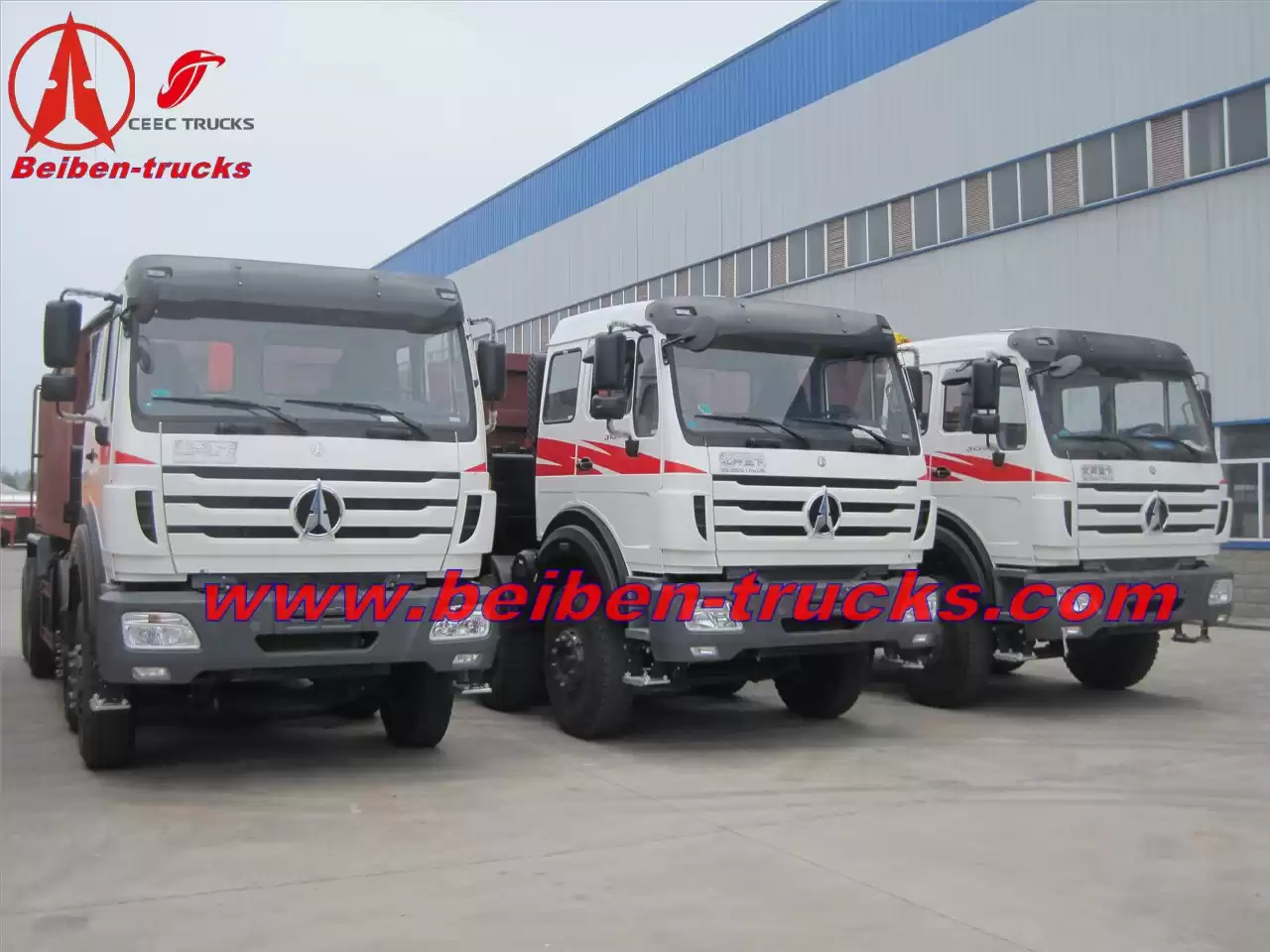

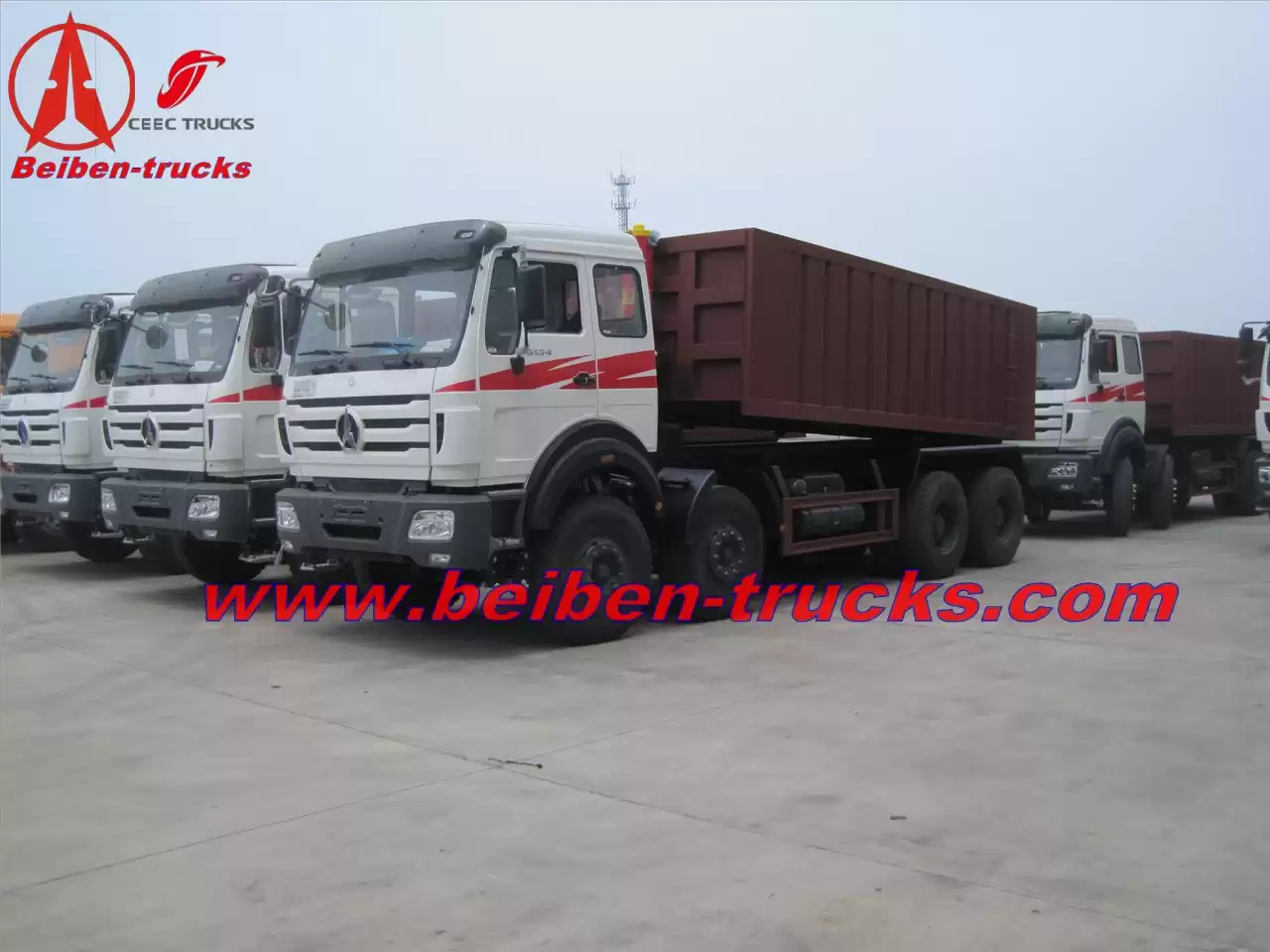

Baotou beiben 340 Hp dump truck 8*4
This beiben 12 wheeler dump truck is with baotou beiben 3134 dump truck chassis, with germany benz technology, ZF steering system. With CEEC TRUCKS TECHNOLOGY, FOR YOUR SUCCESS.
KEY FEATURES
◆Consist of original Beiben Vehicles chassis, hydraulic system,elevating system and electrical system.
◆Unique three-point support structure ensures higher anti-torsionstrength while tipping.
◆ Tailgate opens automatically as the body is raised for dumping.
◆ Dump lever——Dumping operation can be done in the cab.

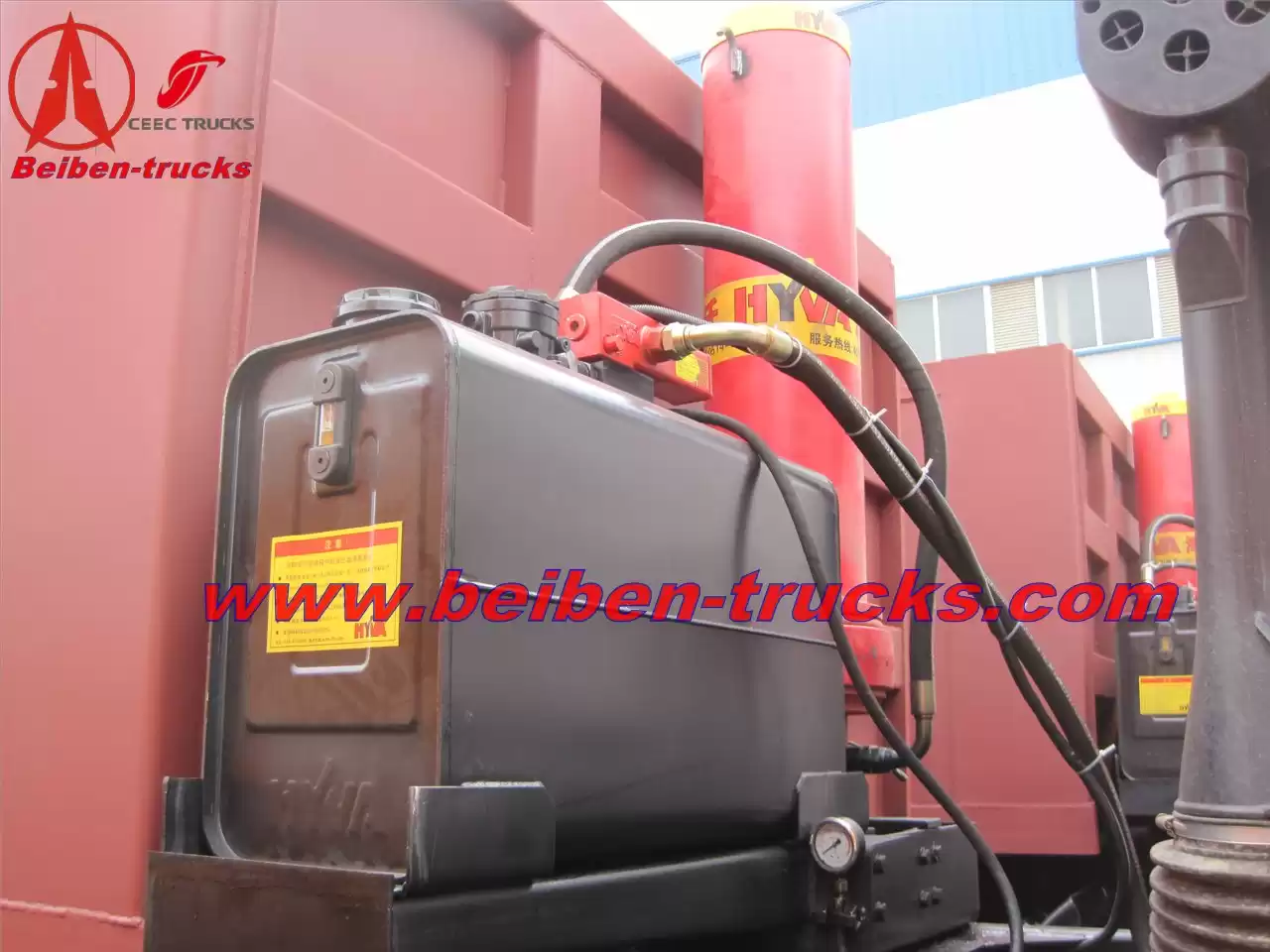

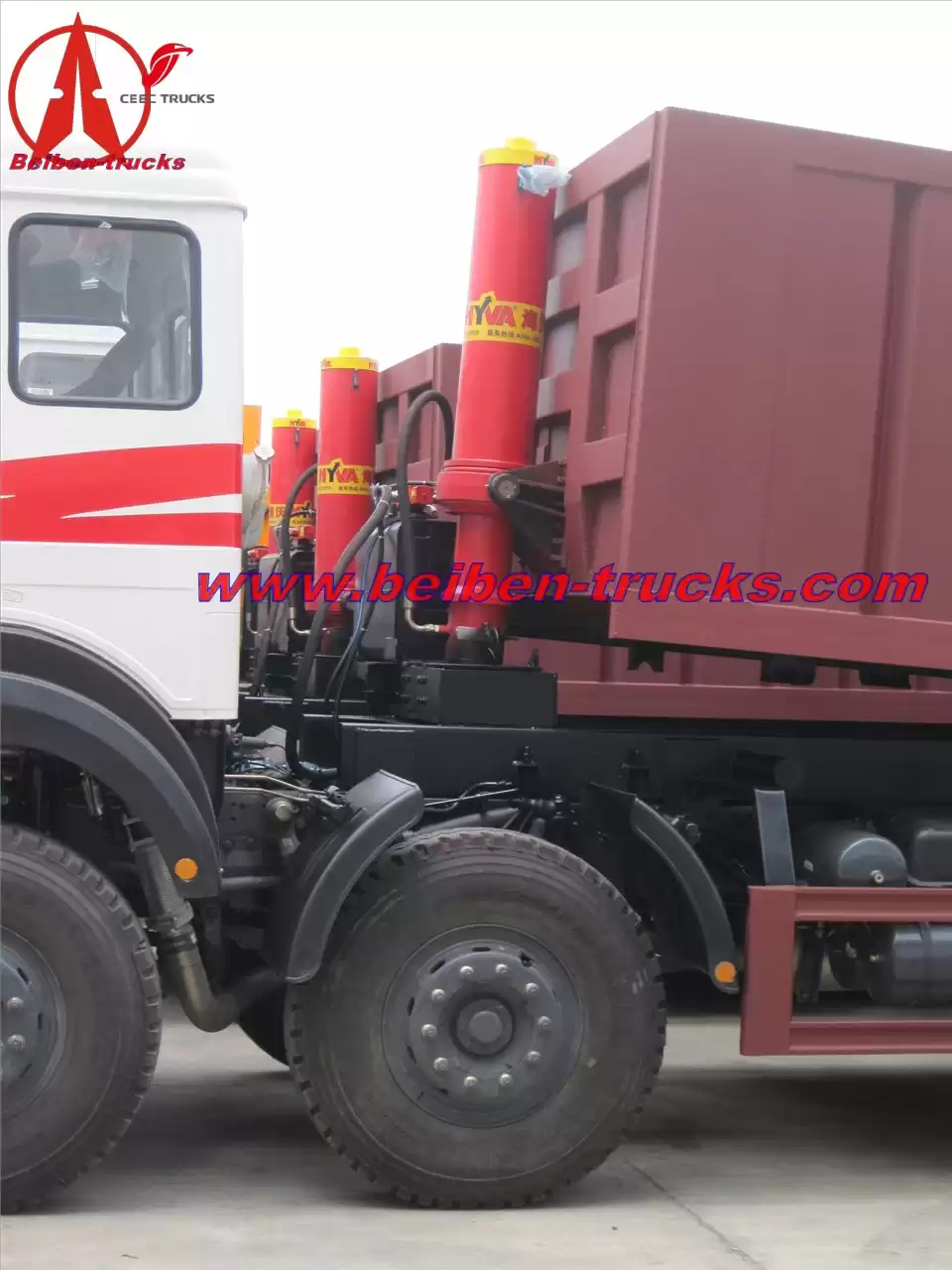

◆Power stream: Truck engine →Transmission PTO →Oil pump →Dump cylinder.
◆UniqueOptional Body: U-section body, Miningrock body, Scoop end type body, Refuse body with canopy, Super large capacitybody, Three-way dump body.

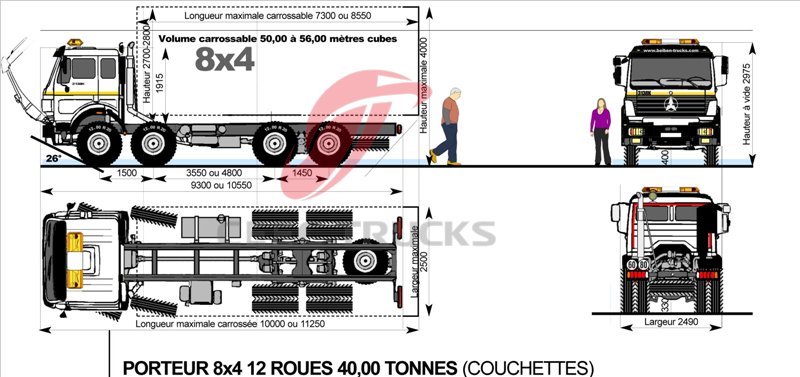

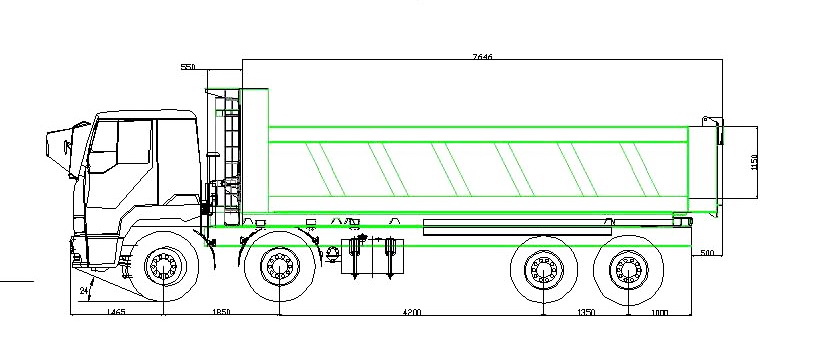

| Beiben 3134KY dump truck /8×4/1500+3550+1450/Long Cab
|
| Dimension 尺寸
|
9630*2500*3484mm
|
| Upper body inner dimension
|
7150x2300x1150 sand body, China famous hydralic lifting system, thickness: bottom 8mm, side 6mm
|
| Approaching angle/Departure angle
|
33/25°
|
| Overhang(front/rear)
|
1410/1720mm
|
| Wheel base
|
1500+3550+1450mm
|
| Max speed
|
80km/h
|
| Curb weight
|
14765kg
|
| Loading capacity
|
16105kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
| Displacement
|
9.726L/Diesel
|
| Stroke
|
126/130mm
|
| Max. power
|
250/2200 (kw/rpm)
|
| Max.torque
|
1350/1200-1600（Nm/rpm）
|
| Emission stantard
|
EuroⅢ
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
| Gearbox
|
12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated,
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
|
| Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
|
| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
ZF8098,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00R20 Radial
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

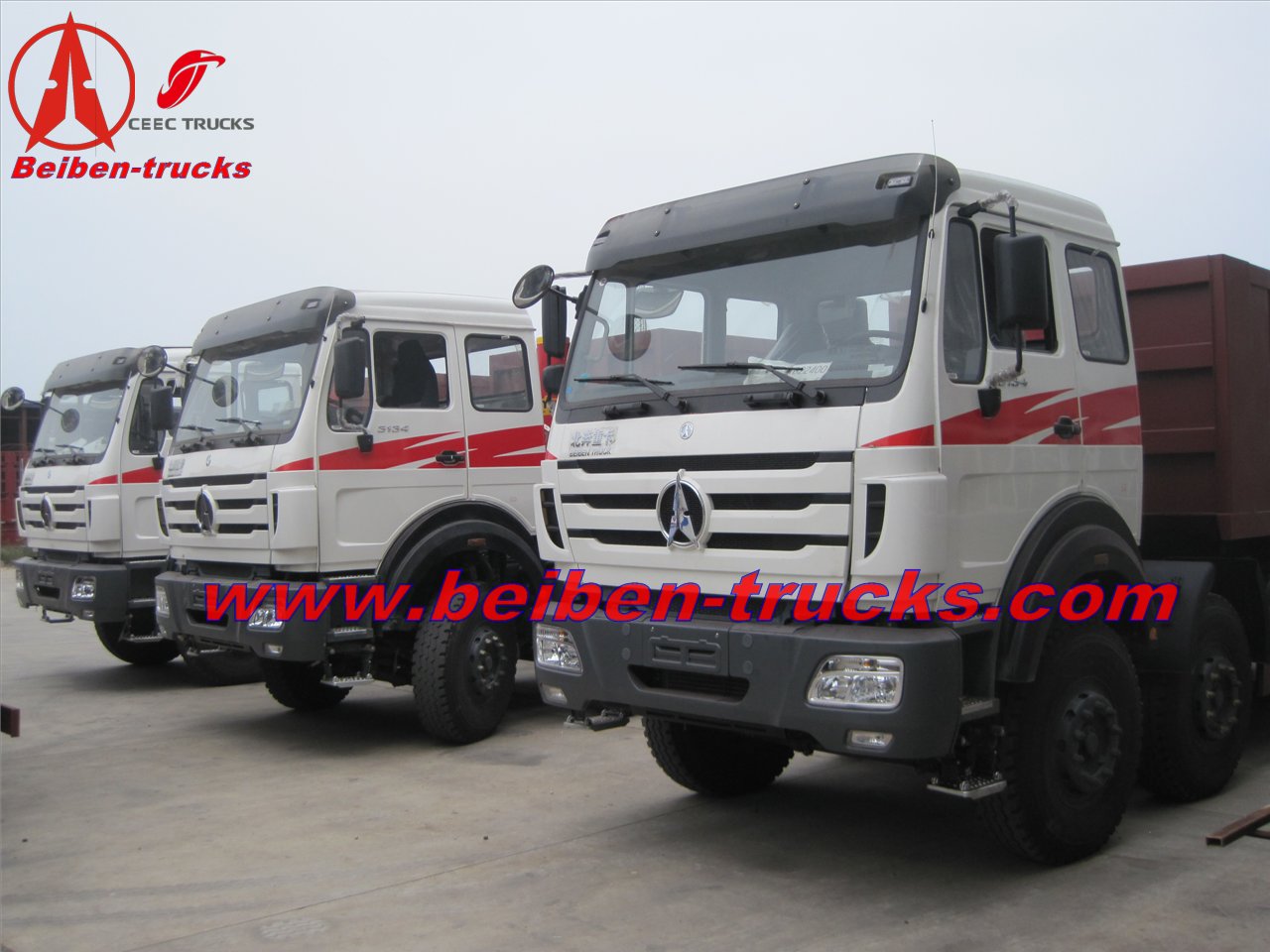

| Cabin
|
NG80B long cabin with single sleeper ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C
|
