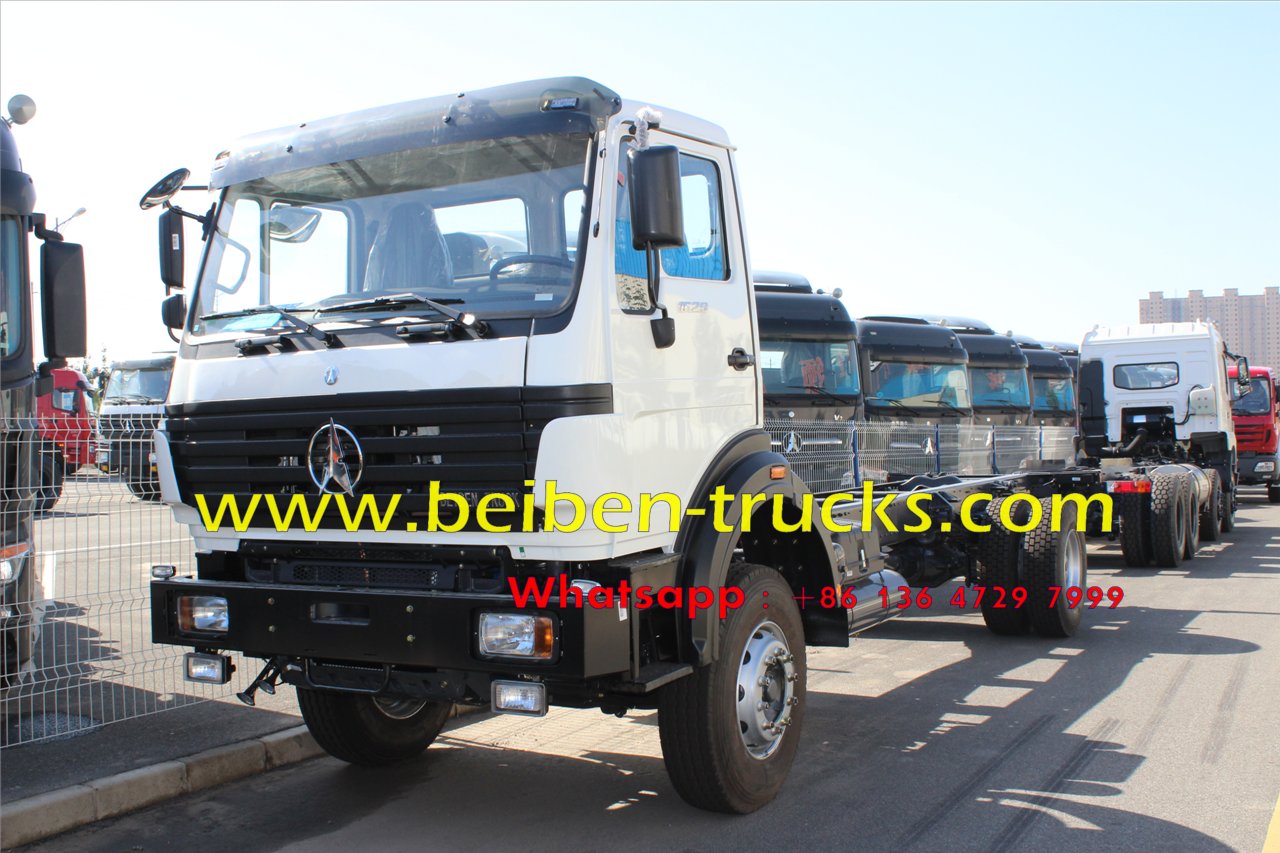

1929S /4x2/3500/Long Cab/LHD
|
|
|
Wheel base (mm)
|
3500
|
|
Curb Weight（kgs)
|
5800
|
|
Engine Model
|
WP10.290E32，290HP，water-cooled，four strokes，6 cylinders straight in line，turbocharged
|
|
Engine Fuel type
|
Diesel
|
|
Engine Min rate of consuming fuel（g/(kW.h)
|
235g/Kw.h
|
|
Engine Rated Power / rotating（KW/(r/min)
|
213Kw/2200rpm
|
|
Engine Emission
|
EURO 3
|
|
Engine Displacement（ml)
|
9726
|
|
Fuel tanker capacity (L)
|
400
|
|
Clutch Model
|
#430, Single dry frictional disc，Hydraulic
boosting
|
|
Gearbox - Model
|
9JS119B/ ZF9T 160, mechanical type，Based on Fuller
Eaton technology ,9 Forward speed gear.
|
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake
system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system - Model
|
ZF8098, whole circulation in ball type, hydraulic boosting
|
|
Rear Suspension
|
Non-free standing stabilisation spring， stabilisation
suspension.
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor,
double reduction driving axle
Ratio：5.263
|
|
Tyre
|
315/80R22.5 radial tyre
|
|
Qty of tyre
|
7
|
|
Electrical system - Battery
|
2X12V/135Ah
|
|
Electrical system - Generator
|
28V-35A
|
|
Electrical system - Starter
|
5.4Kw/24V
|
|
Cab
|
NG80B, Short cab without sleeper, Full steel skeleton structure, covered
with double layer steel plate; Can be tipped forwardly;
Interior trimming: Integral interior trimming, Integral instrument, digital
instrument, , radio (with USB interface), high back/shock absorption seat for
driver, high back seat for co-driver. Steering wheel can be adjusted.
Exterior trimming: Metal bumper, with new mirror. with outer sun visor ,with
Headlight retainer
|
|
Fifth wheel
|
#90 single direction
|
|
Others
|
With protective plate under radiator
Insect screen in front of cooling system
30T Jack
Radio and CD player
Differential lock on rear axle
ABS (optional)
Headlamp protector
|
