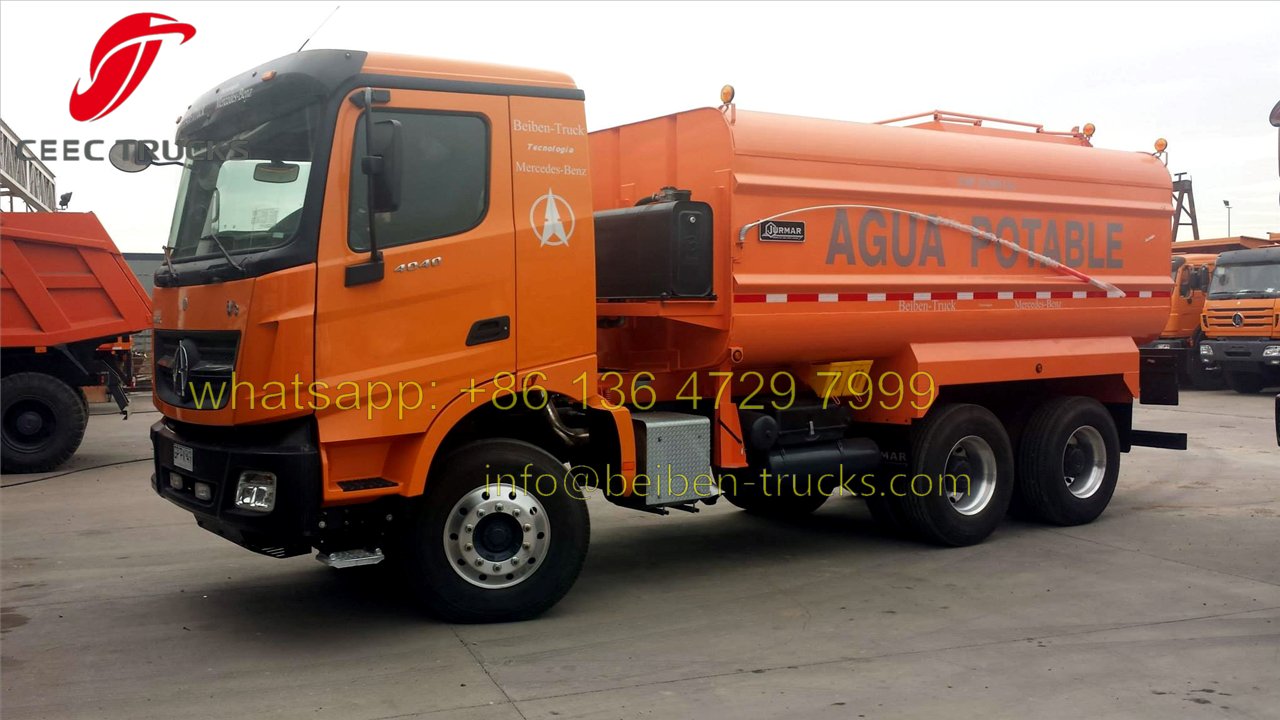

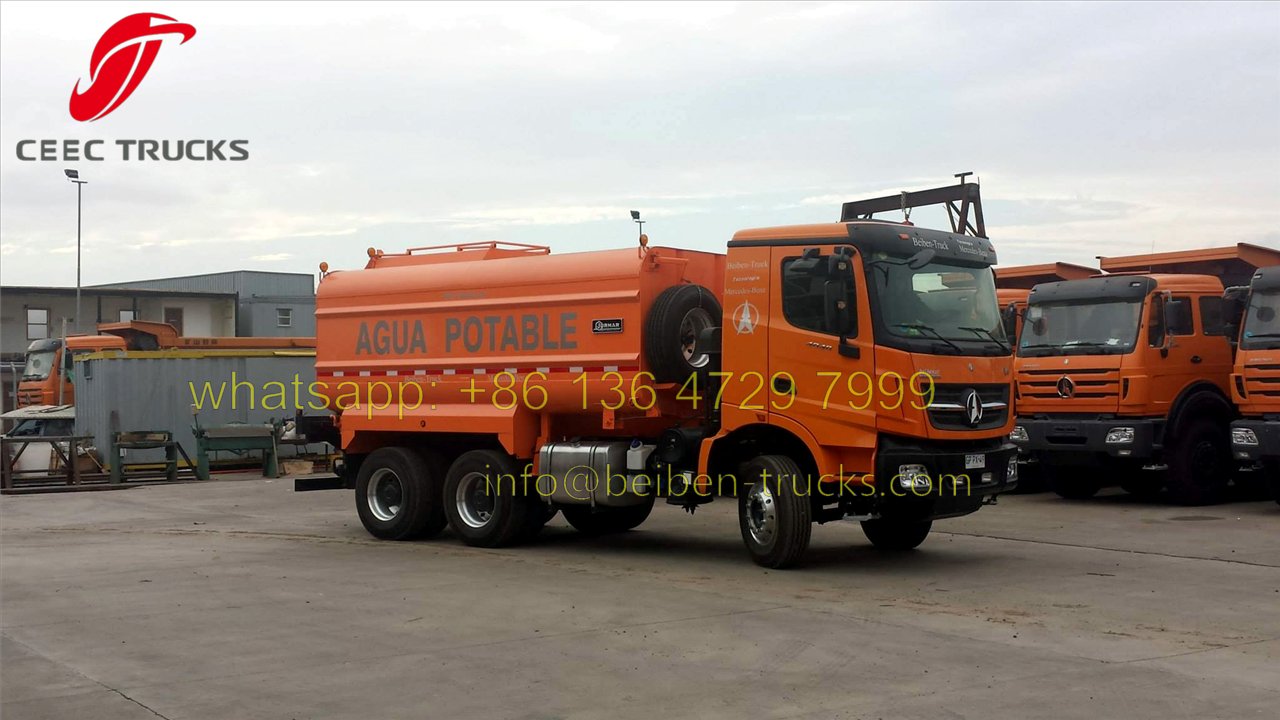

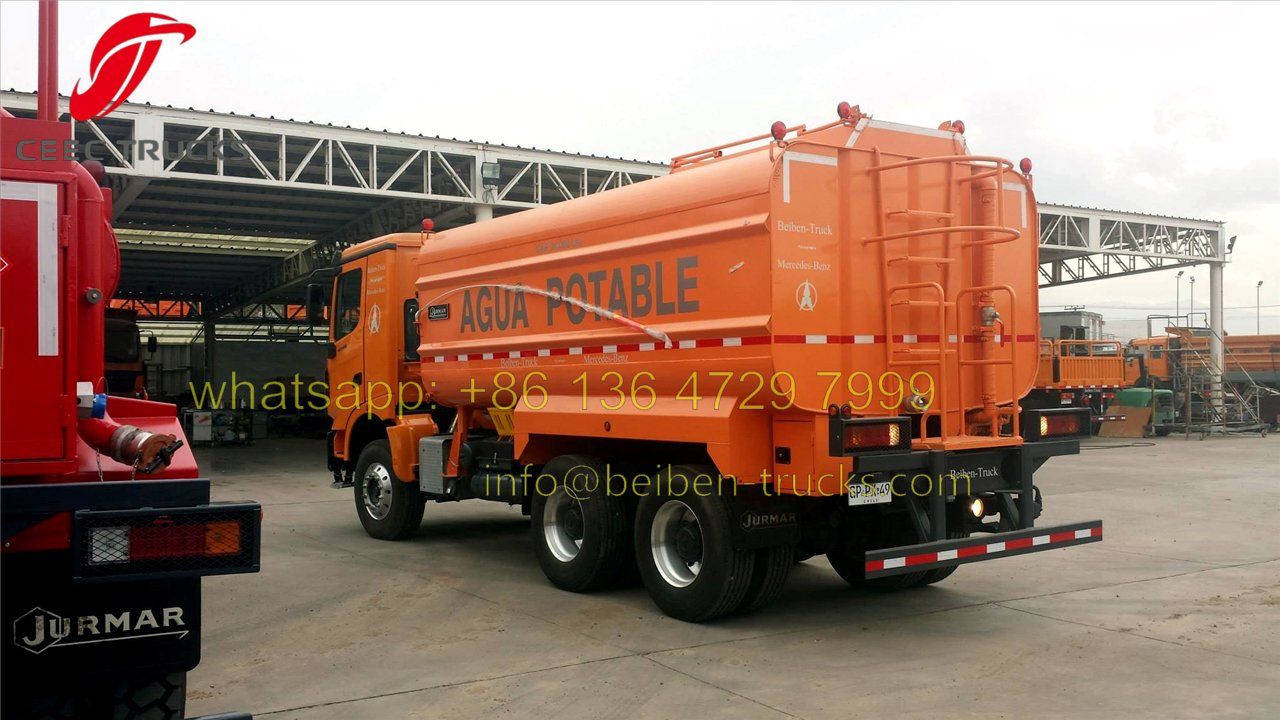

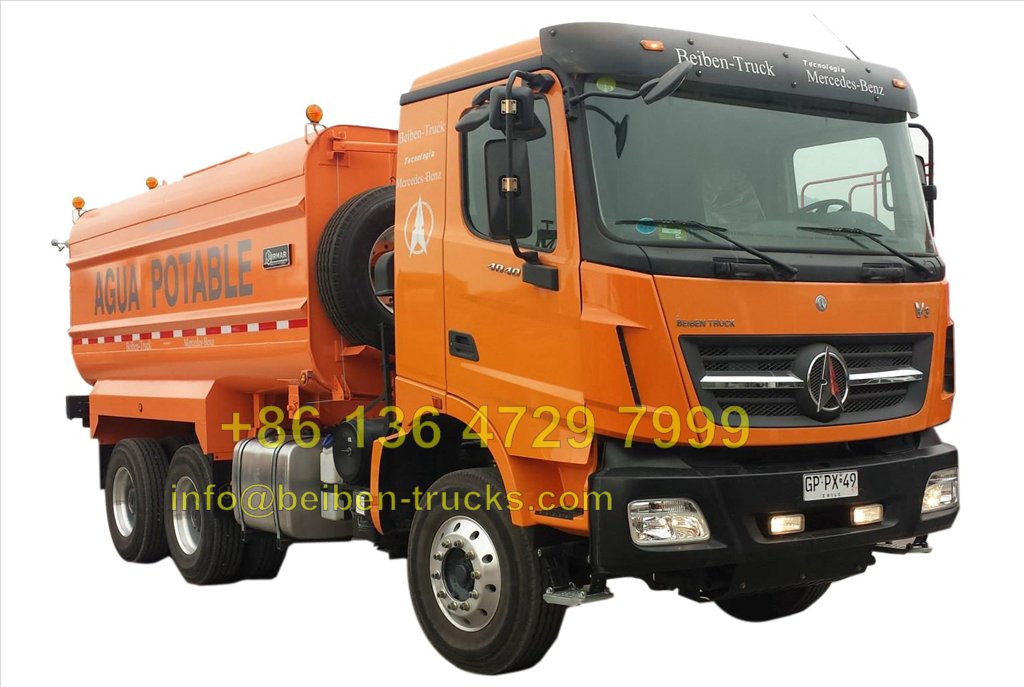

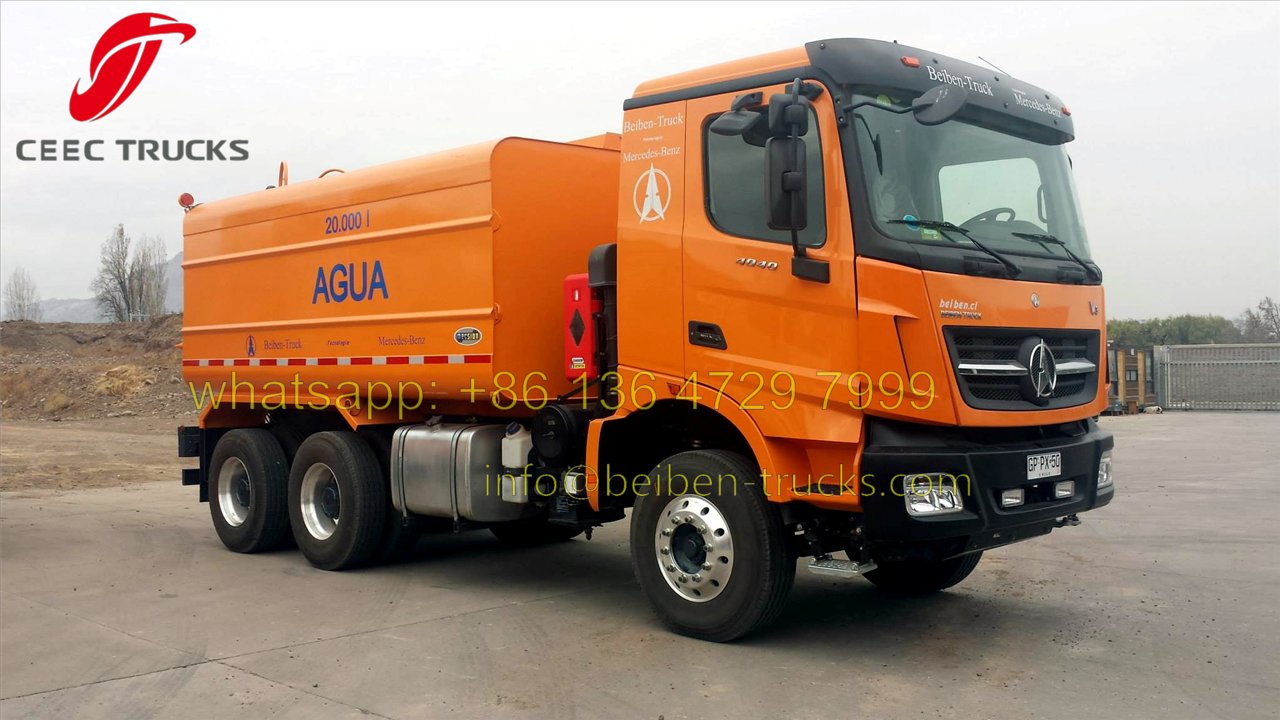

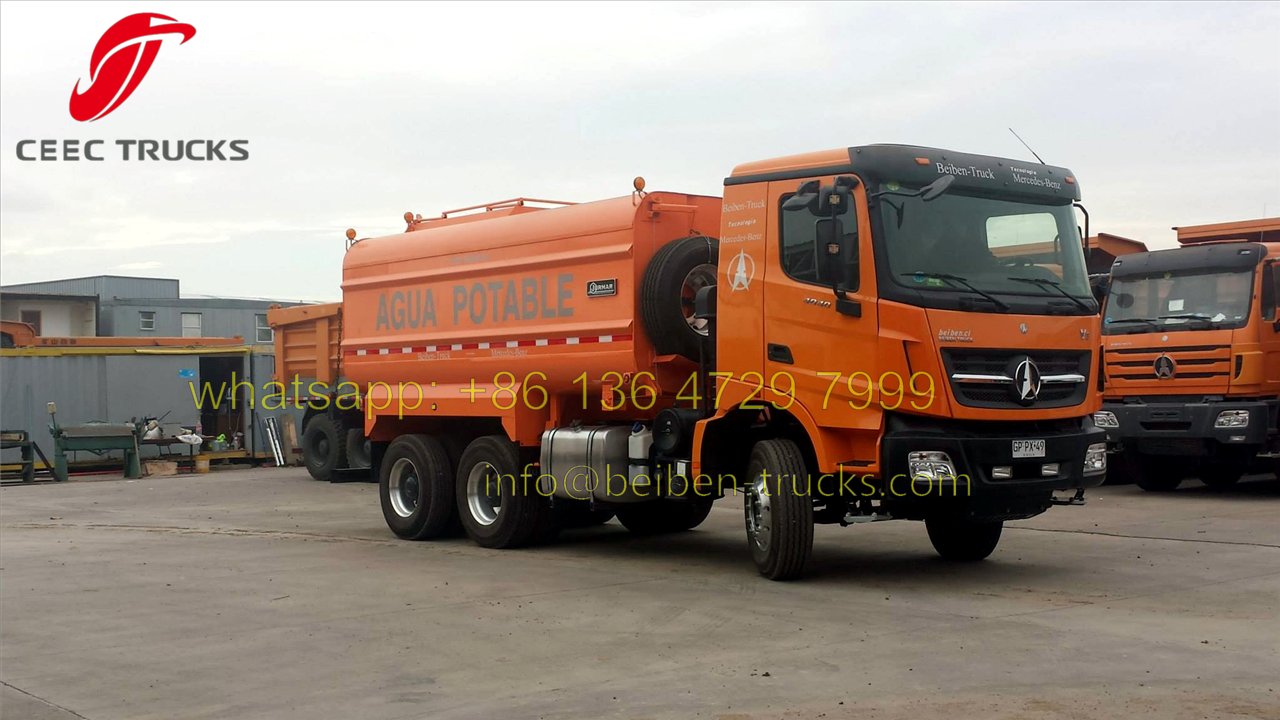

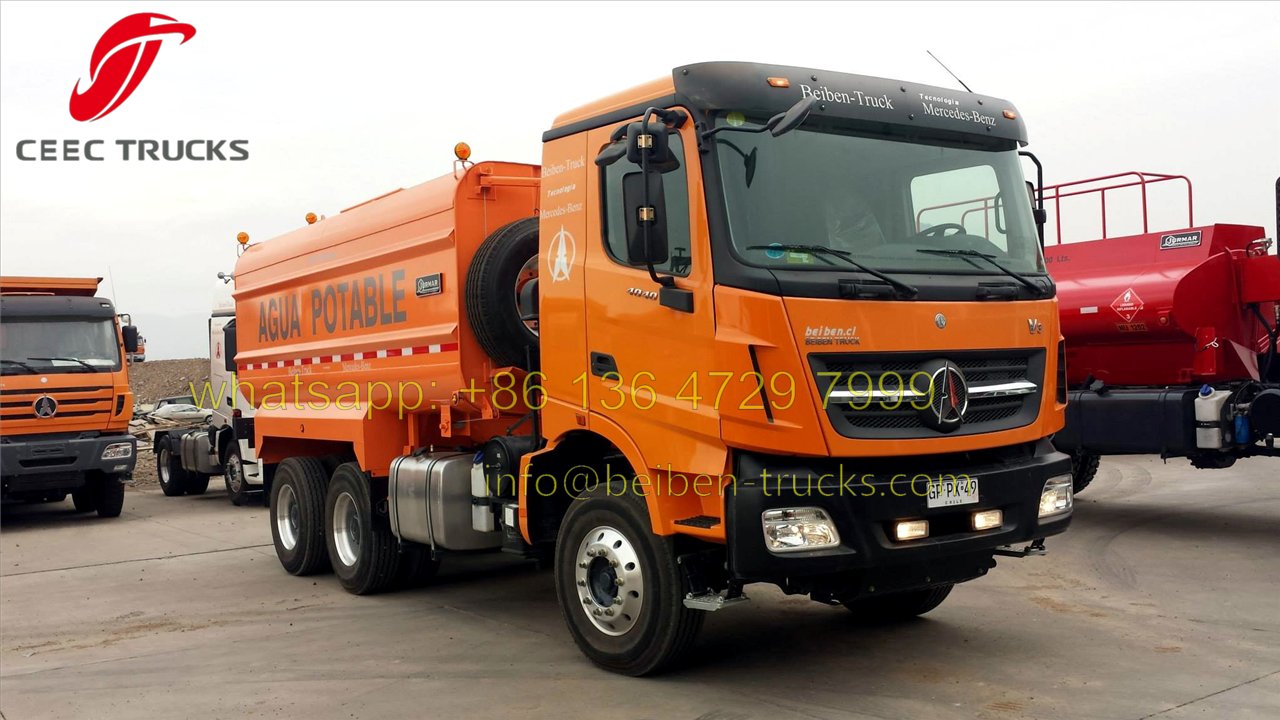

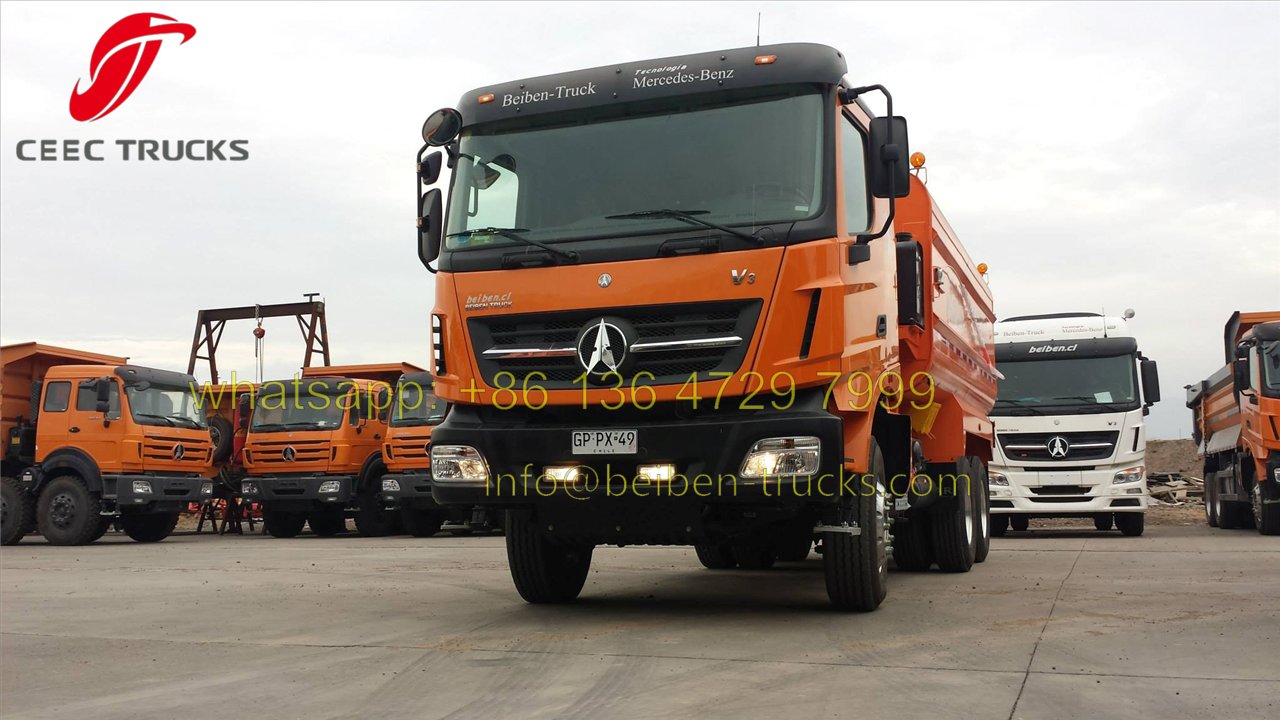

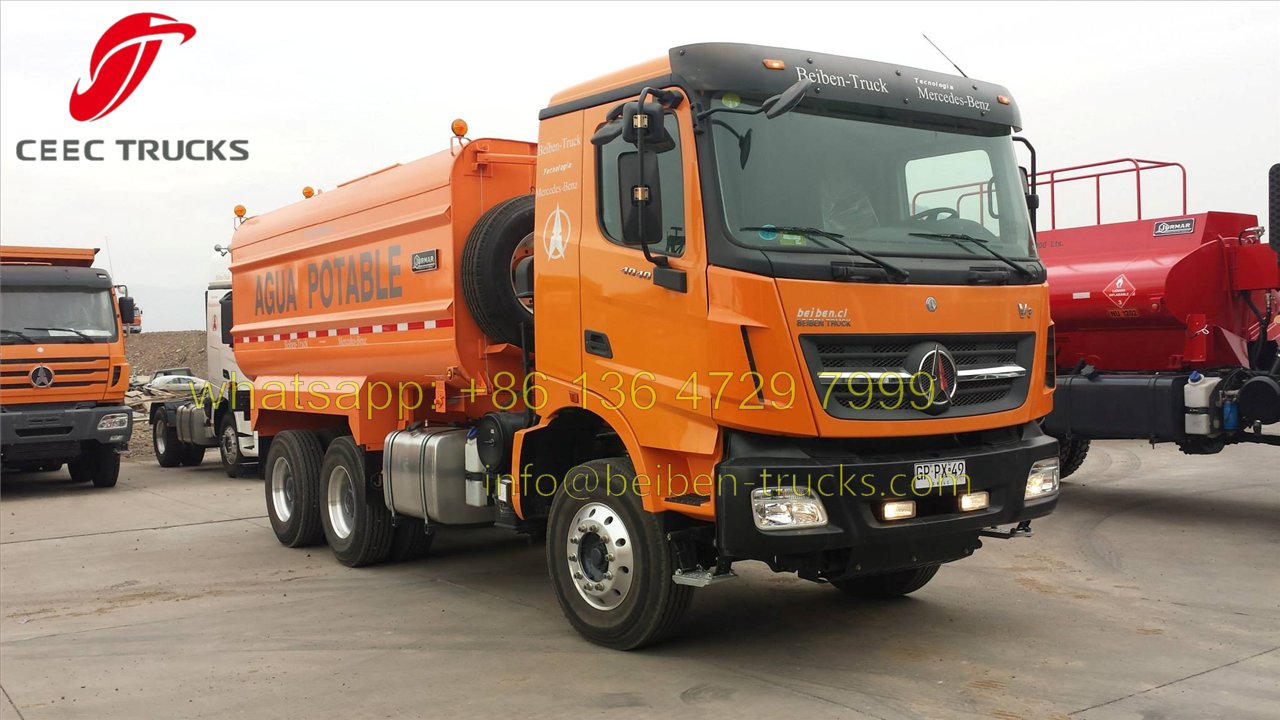

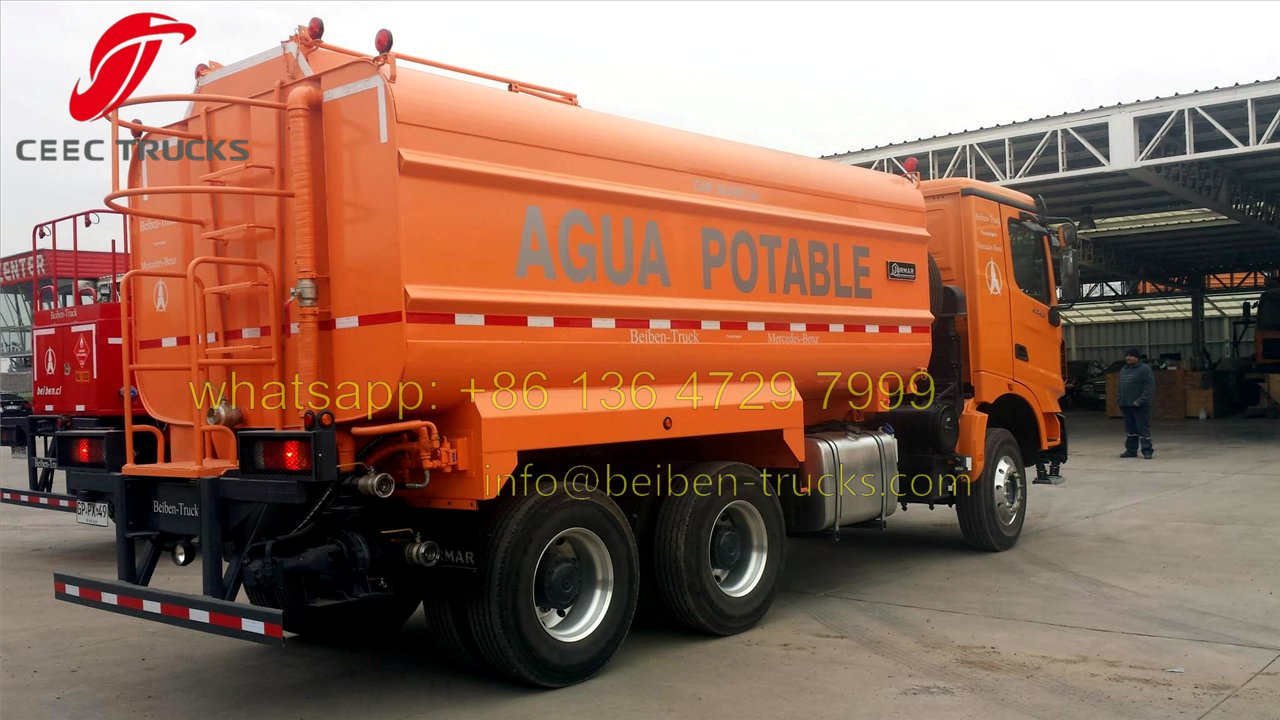

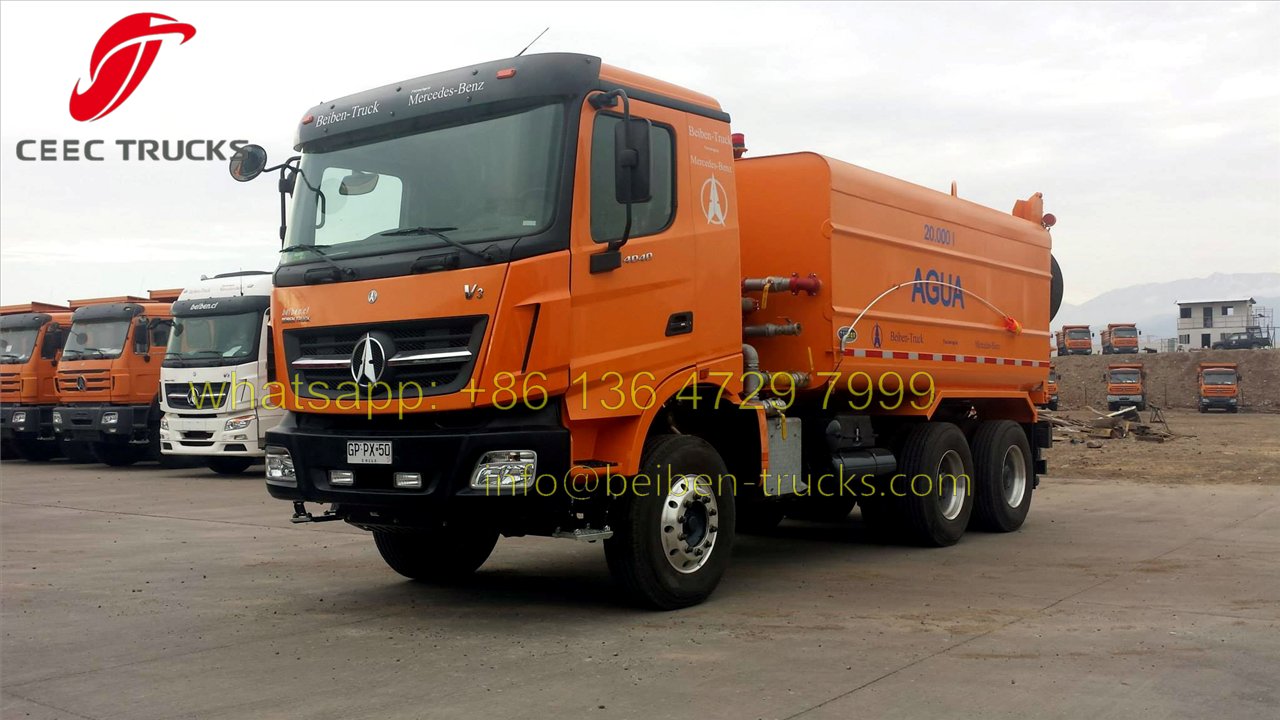

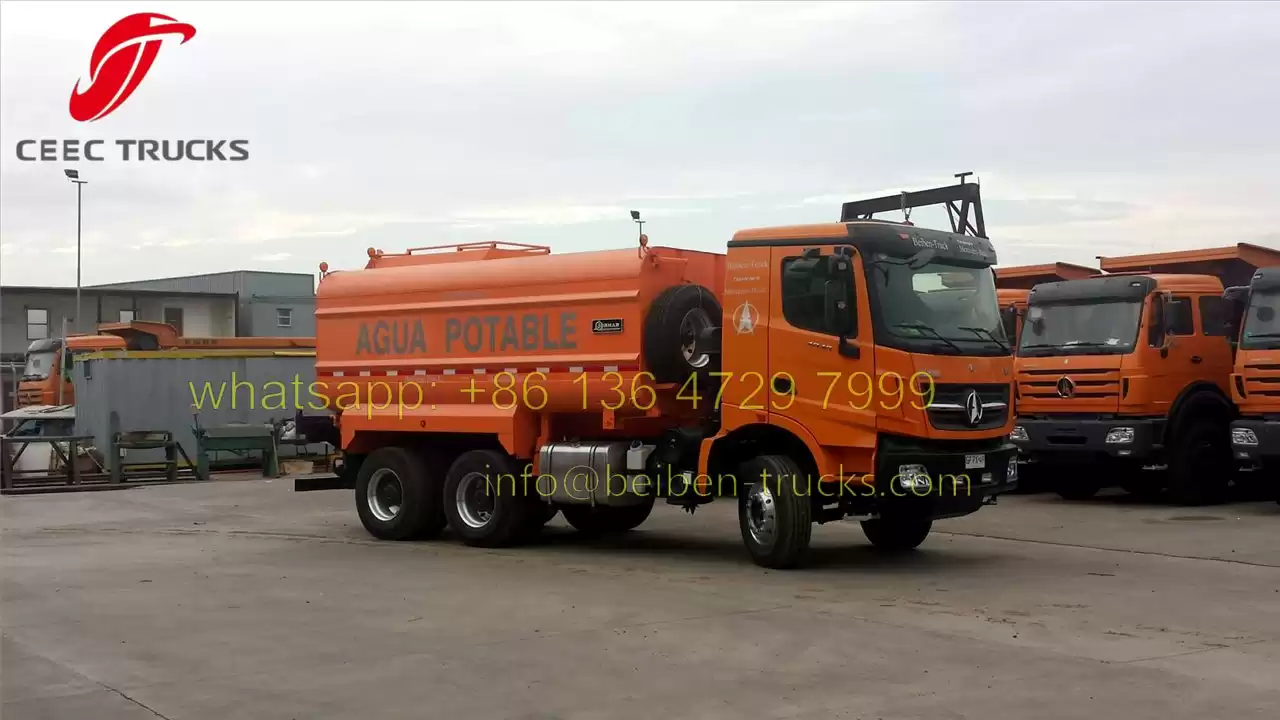

The beiben brand 6*6 Water Truck also called beiben water bower, beiben water wagon, beiben water transportation truck, north benz water tanker sprinkler . Series has multiple functions, multi-angle powerful dredging, separation zone cleaning, flushing guard rail of freeway, low flat flushing with strong water flow, road sprinkling, flower watering from both sides.
Feature:
Beiben water tanker Key Features:
◆Carbon Steel, Stainless Steel, and Aluminum Tanks Available
◆World class beiben chassis, excellent quality and operation control
◆We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
◆The water tanker has safety guards and special power pump which can suck and discharge automatically.
◆Water tanker equip with filter gauze and fire control connector, and water can come in along fireplug.
◆The water cannon can revolve all position from Front/Rear/Side
◆Other devices can be supplied according to customer’s demands
Specification:
Similar key words: beiben V3 water tanker truck, beiben V3 cabin 6*6 drive water truck, china north benz 6*6 water tanker supplier, beiben 6*6 drive water transportation truck. beiben 2534 water trucks, beiben 2538 water tanker trucks.
Sales No.
| |
2642A |

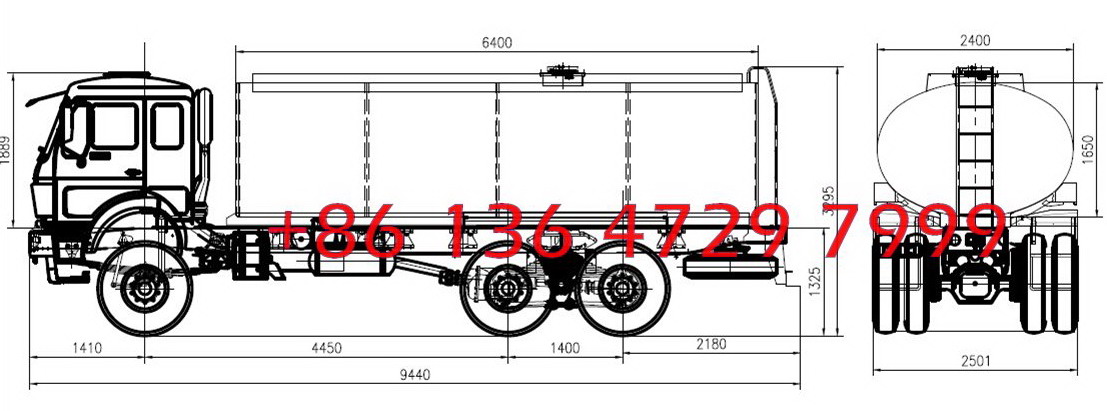

| Dimension（mm) |
Long |
9365 |
| |
Wide |
2495 |
| |
High |
3428 |
| Wheel base（mm） |
5650+1650 |
| Drive |
6×6 |
| Engine |
Model |
WP10.420E32 |
| Cabin |
NG80B/Long cab |
| Clutch（mm） |
Φ430 |
| Front Axle |
7.5T |
| Rear/Mid Axle |
Model/speed radio |
Double Reduction Driving Axle /5.263 |
| Steering System |
ZF8098 |
| Braking System |
Dual Circulation Air Brake System |
| Fuel Tank（L） |
400L |
| Frame/mm |
317×70×8.5+7 |
| Tire |
14.00R20 |
| Front/Rear Overhang |
1410/2915 |
| Transmission |
Fuller 12JS200T |
| Curb Weight（kg) |
9300 |
| Max loading Weight(kg) |
2500 |
| Max Speed（km/h) |
90 |
| Remark |
Water tank/Fuel tank |
china beiben water bowser tanker specification
Sales No.
| |
2629A |
| Dimension（mm) |
Long |
9765 |
| |
Wide |
2495 |
| |
High |
3500 |
| Wheel base（mm） |
4450+1450 |
| Drive |
6×6 |
| Engine |
Model |
WP10.290 |
| Cabin |
NG80B/Long cab |
| Clutch（mm） |
Φ430 |
| Front Axle |
7.5T |
| Rear/Mid Axle |
Model/speed radio |
Double Reduction Driving Axle /5.263 |
| Steering System |
ZF8098 |
| Braking System |
Dual Circulation Air Brake System |
| Fuel Tank（L） |
400L |
| Frame/mm |
317×70×8.5+7 |
| Tire |
12.00R20 |
| Front/Rear Overhang |
1410/2055 |
| Transmission |
Fuller 9JS135T |
| Curb Weight（kg) |
11800 |
| Up Body Volume(m³) |
--- |
| Max Speed（km/h) |
90 |
|
|
|
|
|
|
|
|
|
