Product Description

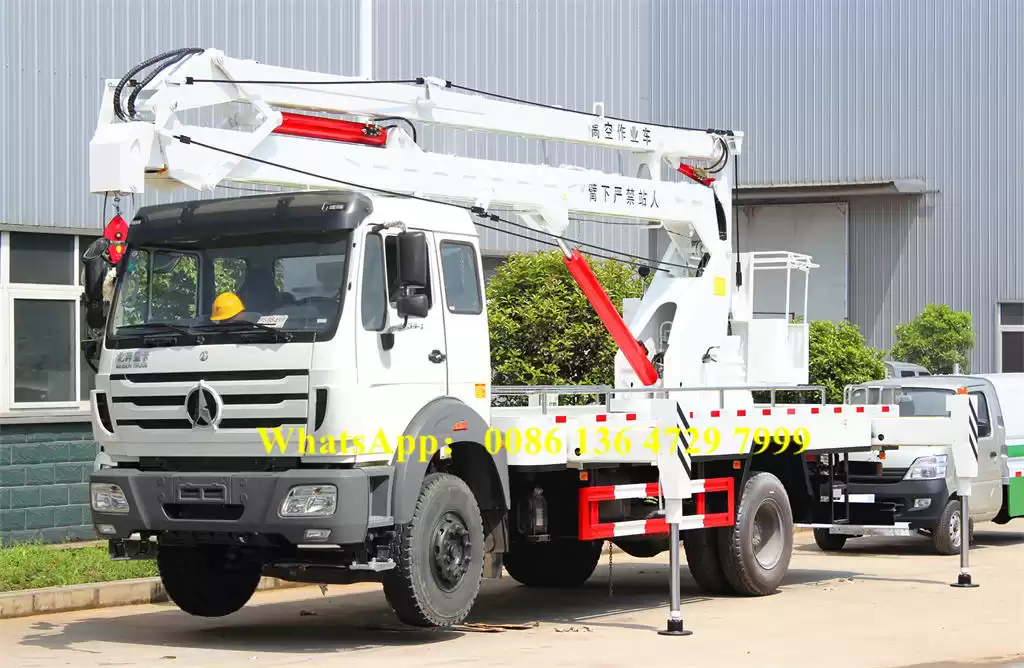

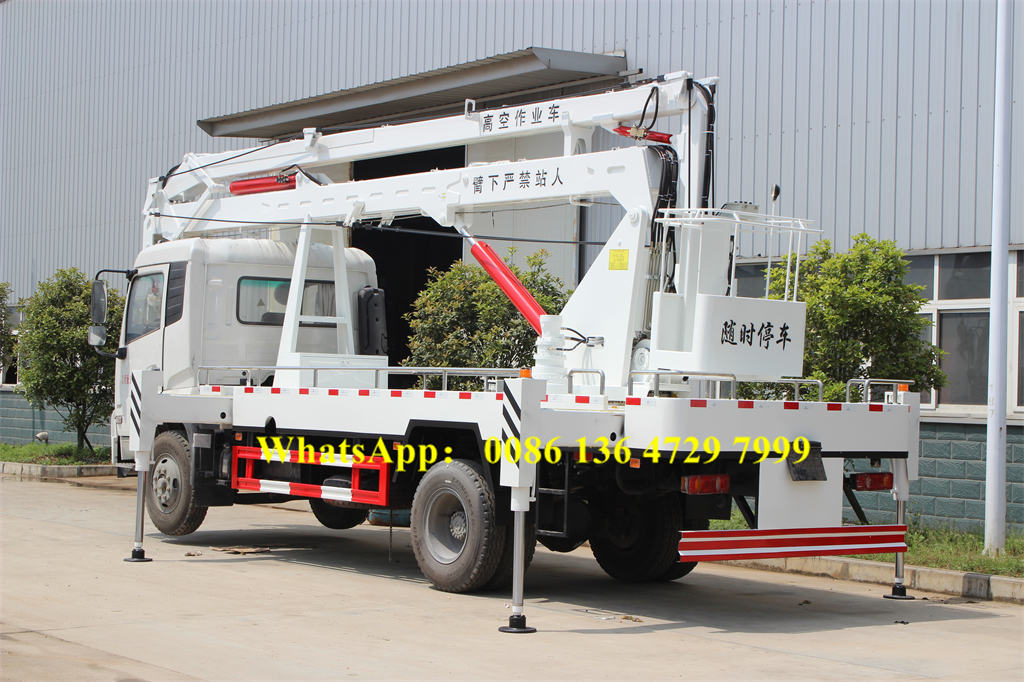

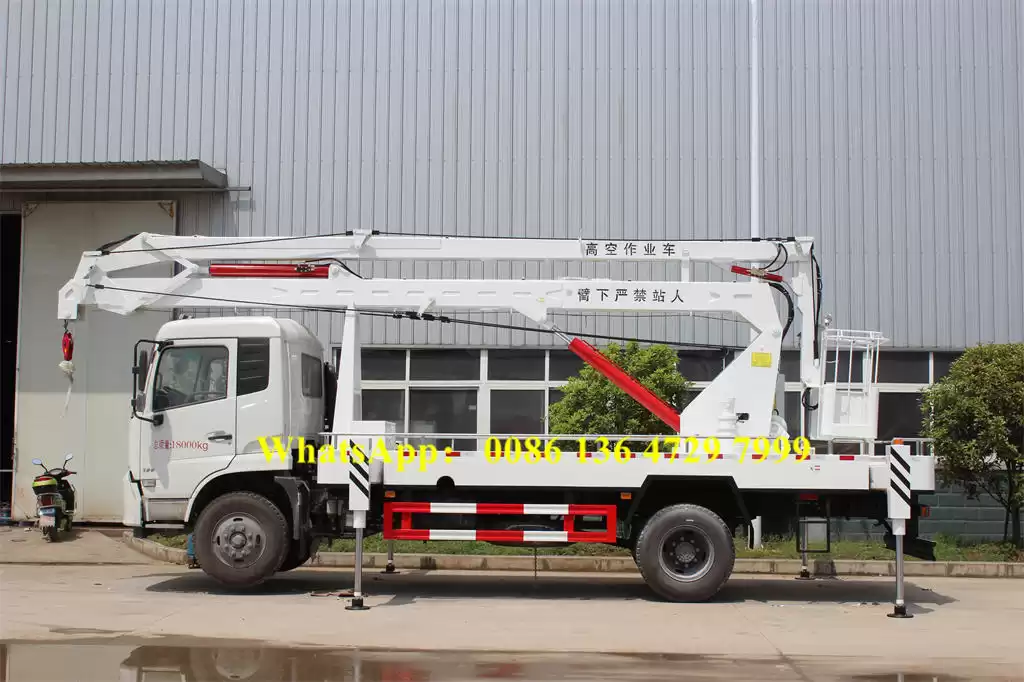

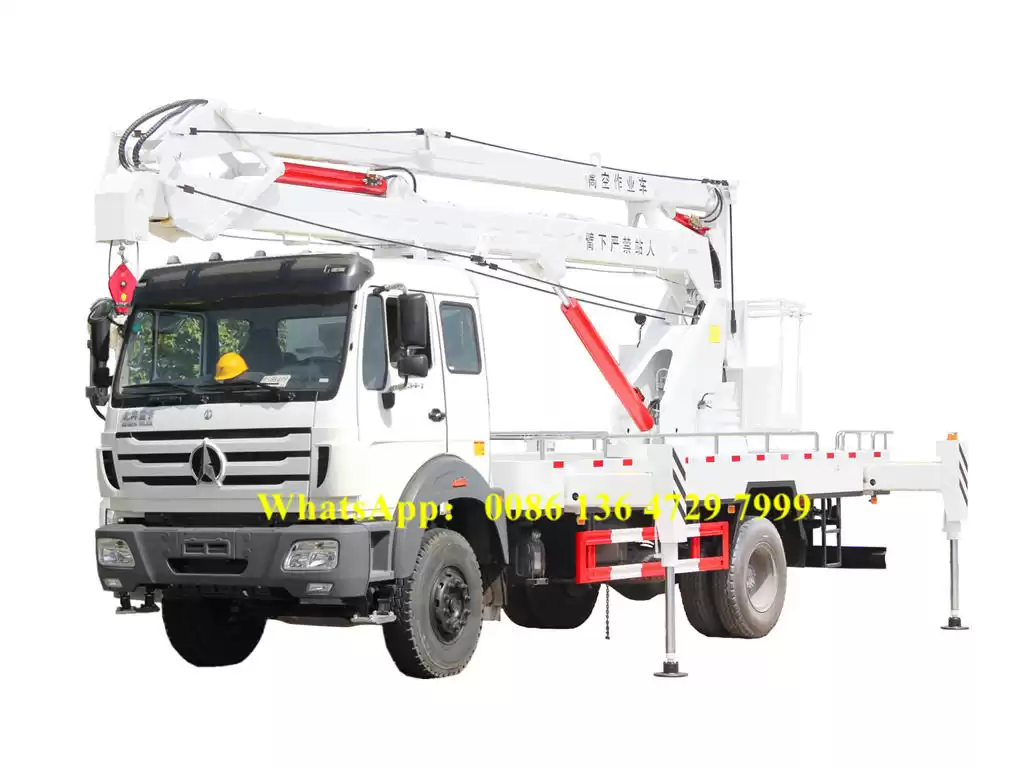

Beiben aerial work platform truck has won the recognition of customers for its excellent performance parameters and stable operating performance. The truck adopts the NG80 single-row air-conditioned cab, which provides a comfortable working environment for operators. The total mass of the vehicle reaches 18,000kg, ensuring stability and carrying capacity during operation.
Beiben 4×2 manlift truck is equipped with a WP6.240E32 turbocharged engine, which adopts turbocharging and intercooling technology to ensure efficient and stable output of the engine. The engine has a displacement of 6.75L, a maximum output power of 176KW/240HP, a maximum torque of 900N.m, and a rated speed of 2500rpm. Such a power configuration enables the vehicle to handle various operations with ease.

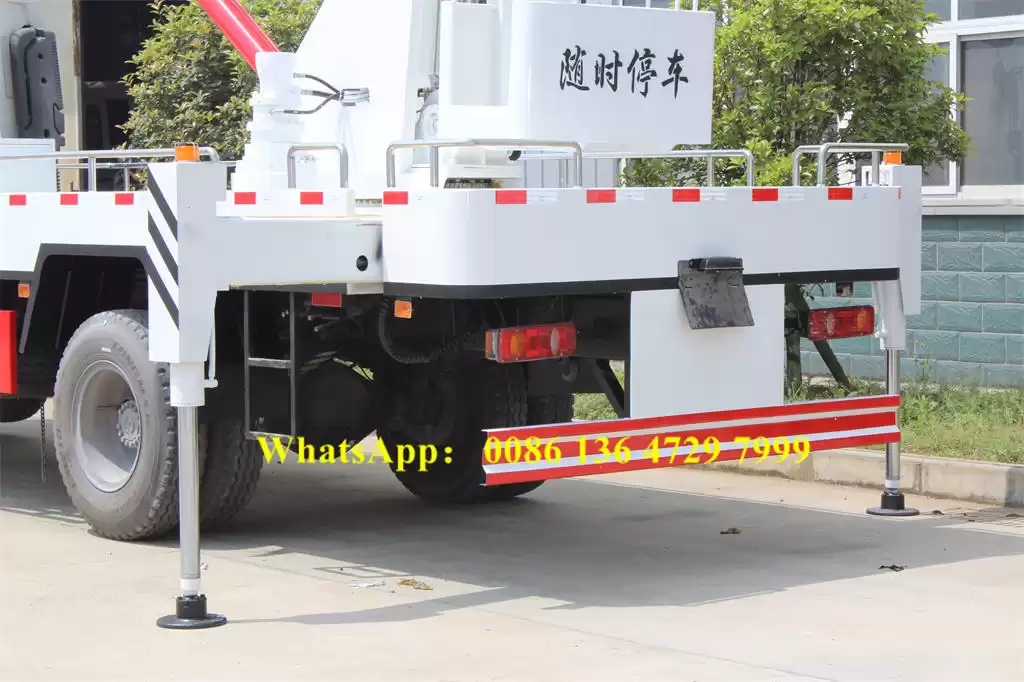

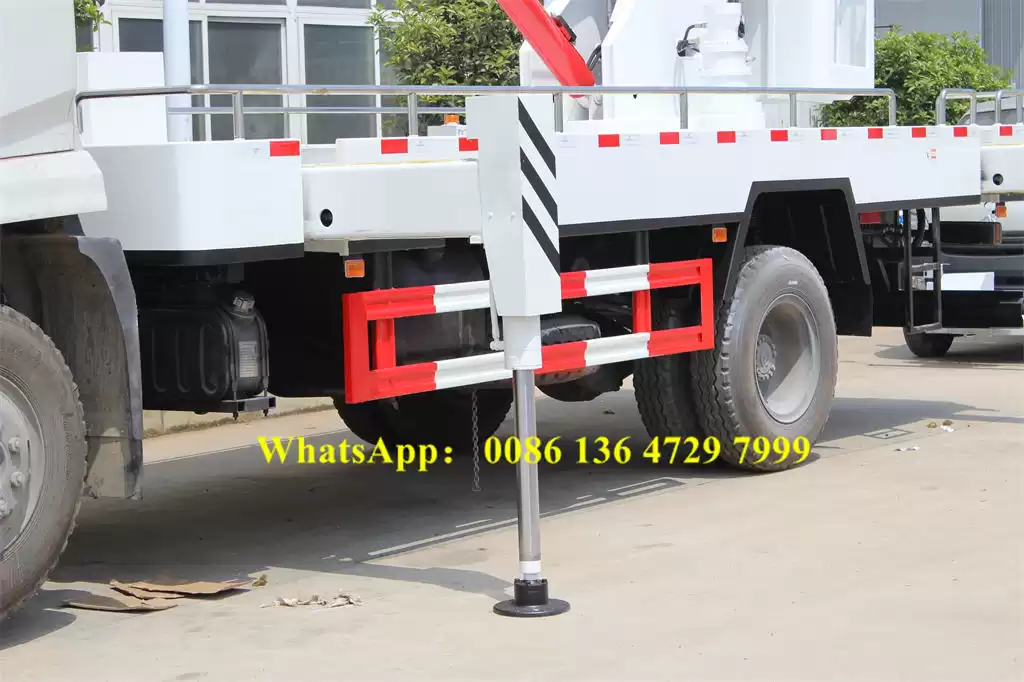

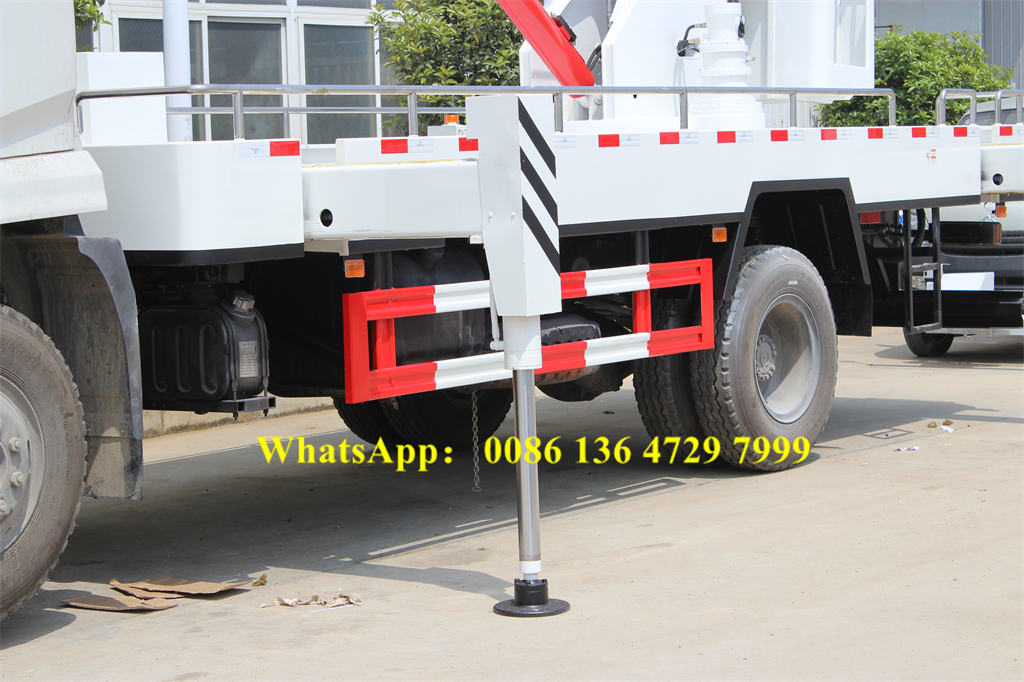

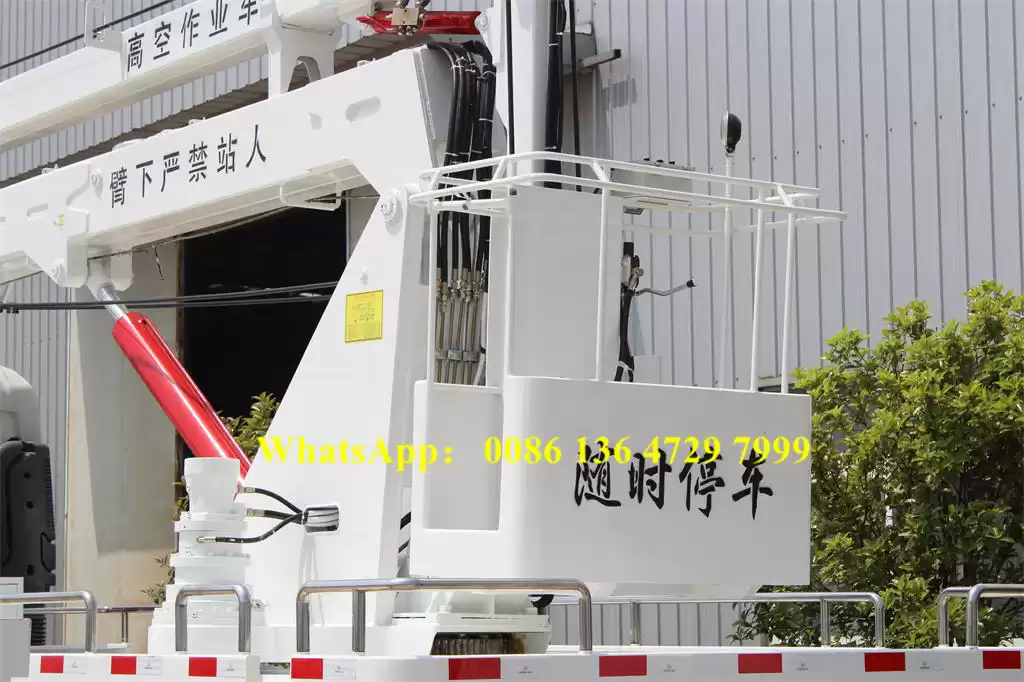

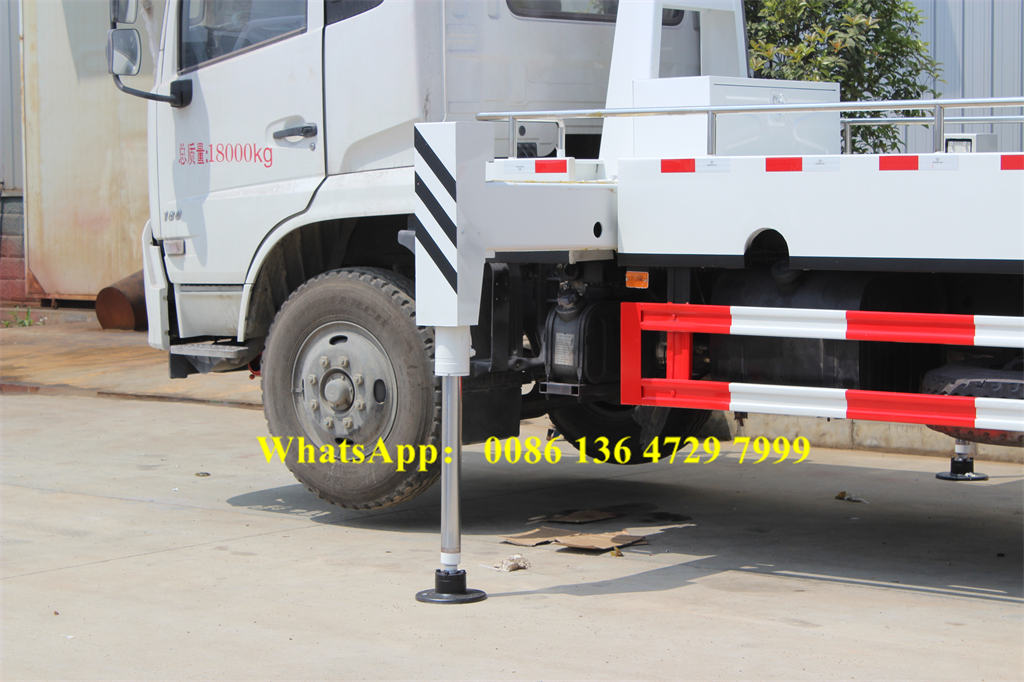

The aerial work system is one of the highlights of Beiben bucket truck. The vehicle is equipped with a powerful hydraulic power system, which provides stable power support for aerial operations. Four H-type hydraulic outriggers ensure the stability of the vehicle during aerial operations. The working bucket is made of fiberglass, which has excellent insulation performance, can carry a rated load of 200kg, and allows two people to work at the same time. The working height can reach 20m, the maximum working radius is 9m, the rotation speed is 0-2r/min, and the rotation angle is 360°, which fully meets various high-altitude work needs. In addition, the vehicle is also equipped with a hook load capacity of 1000kg, providing more possibilities for high-altitude work.
Product Specifications
|
Beiben aerial work platform truck specifications
|
|
Cab
|
NG80, single row with A/C
|
|
Gross vehicle weight
|
18000 kg
|
|
Curb weight
|
17500 kg
|
|
Max. Speed
|
95 Km/h
|
|
Dimension
|
8600*2500*3750
|
|
Steering
|
Left-hand driving (power-assisted)
|
|
Gear box
|
FAST 9-Speed
|
|
Electric system
|
24
|
|
Braking system
|
Air brake
|
|
Chassis
|
Brand
|
Beiben
|
|
Wheelbase
|
4600 mm
|
|
Axle load
|
7/18 Ton
|
|
Tire
|
10.00R20
|
|
Wheel track
|
Front
|
2060 mm
|
|
Rear
|
1855/1855 mm
|
|
Suspension
|
Front
|
1525 mm
|
|
Rear
|
1770 mm
|
|
Angle
|
Approach
|
17°
|
|
Departure
|
13°
|
|
Engine
|
Model
|
WP6.240E32
|
|
Type
|
Turbocharged
|
|
Intercooled, turbocharged
|
|
6 cylinders, high pressure common rail
|
|
Displacement
|
6.75L
|
|
Emission standard
|
Euro 3
|
|
Max. Power
|
176KW/240HP
|
|
Max. torque
|
900 N.m
|
|
Rated speed
|
2500 rpm
|
|
Superstructure parameters
|
|
Power of movement
|
Hydraulic pump
|
|
Hydraulic outriggers
|
4, H type
|
|
Bucket material
|
Fiberglass, insulated
|
|
Rated loading of bucket
|
200 kg
|
|
Allowed person in bucket
|
2
|
|
Working height
|
20 m
|
|
Max. Working radius
|
9 m
|
|
Rotating speed
|
0-2 r/min
|
|
Rotating angle
|
360°
|
|
Loading of hook
|
1000 kg
|
