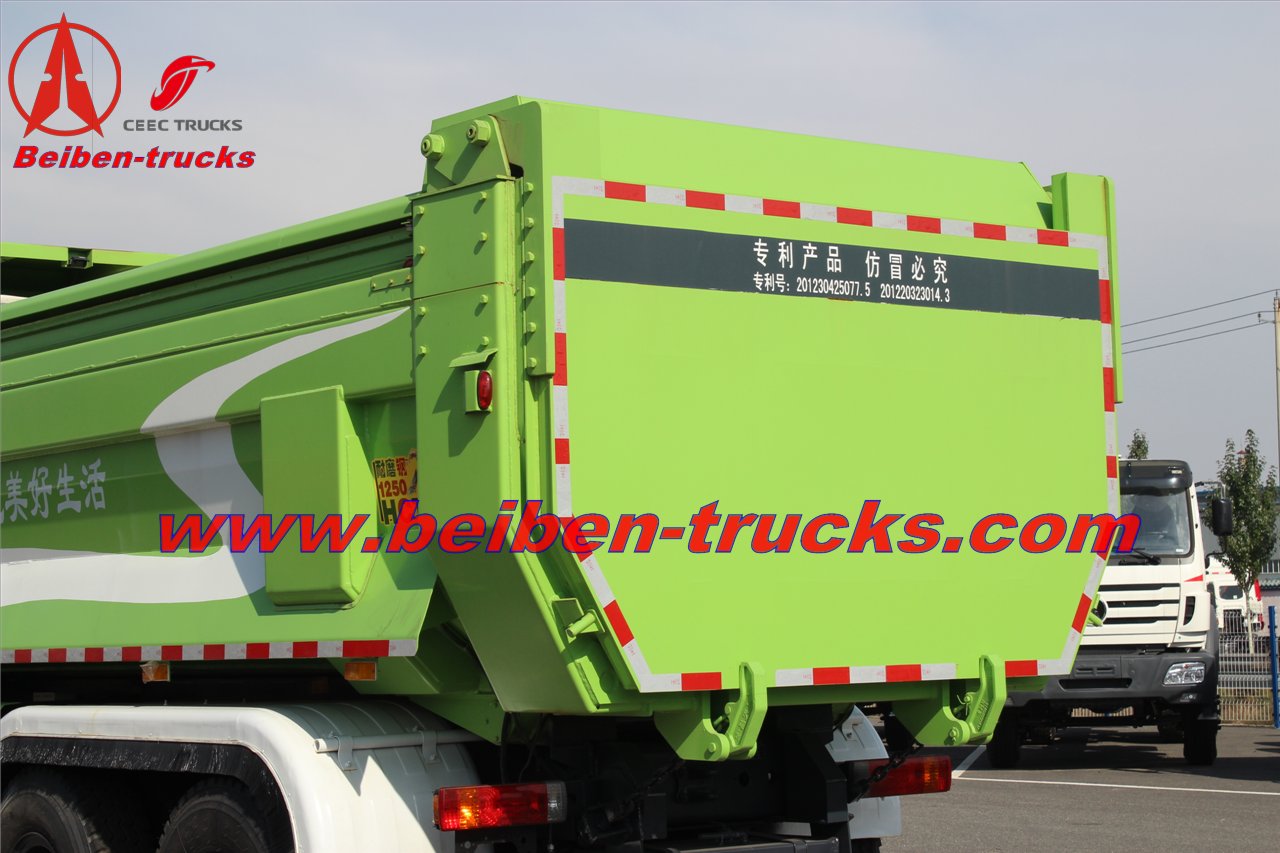

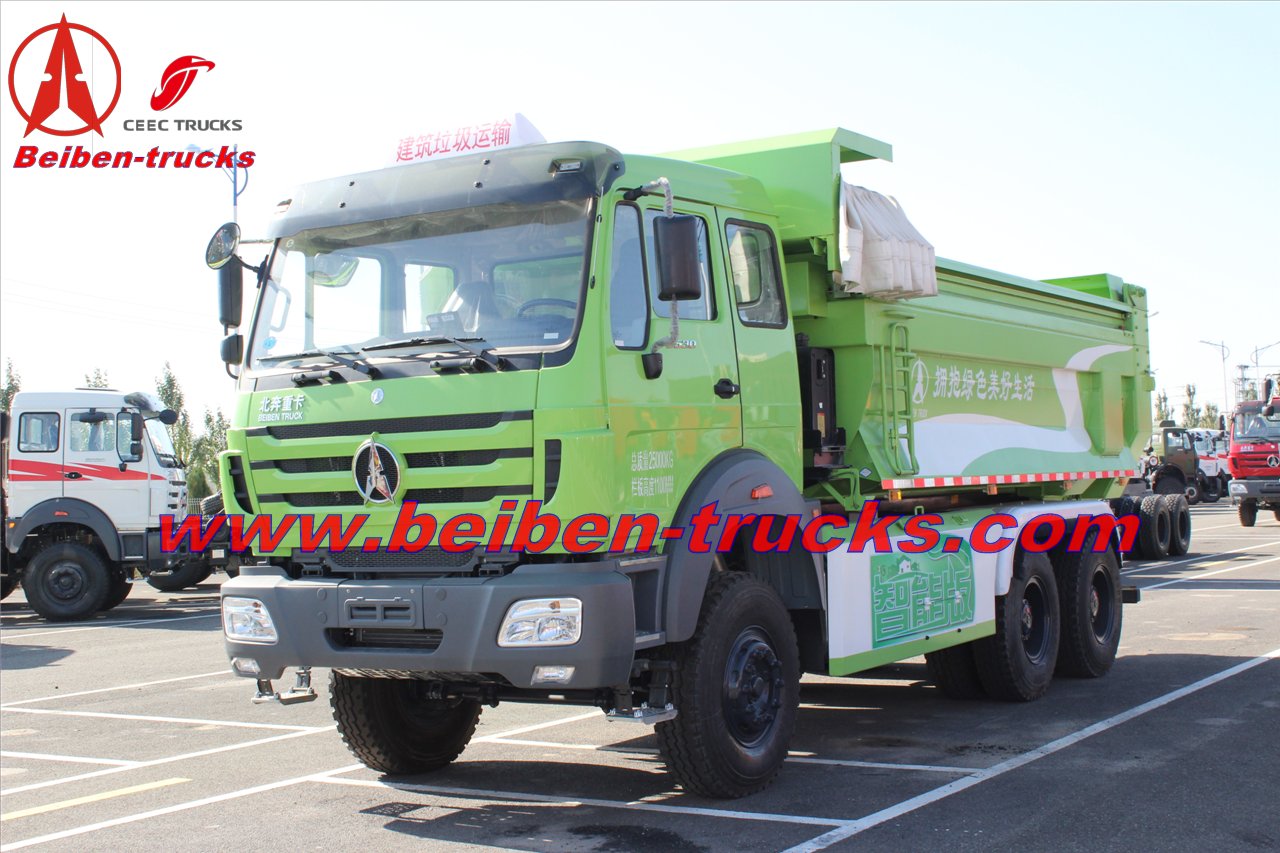

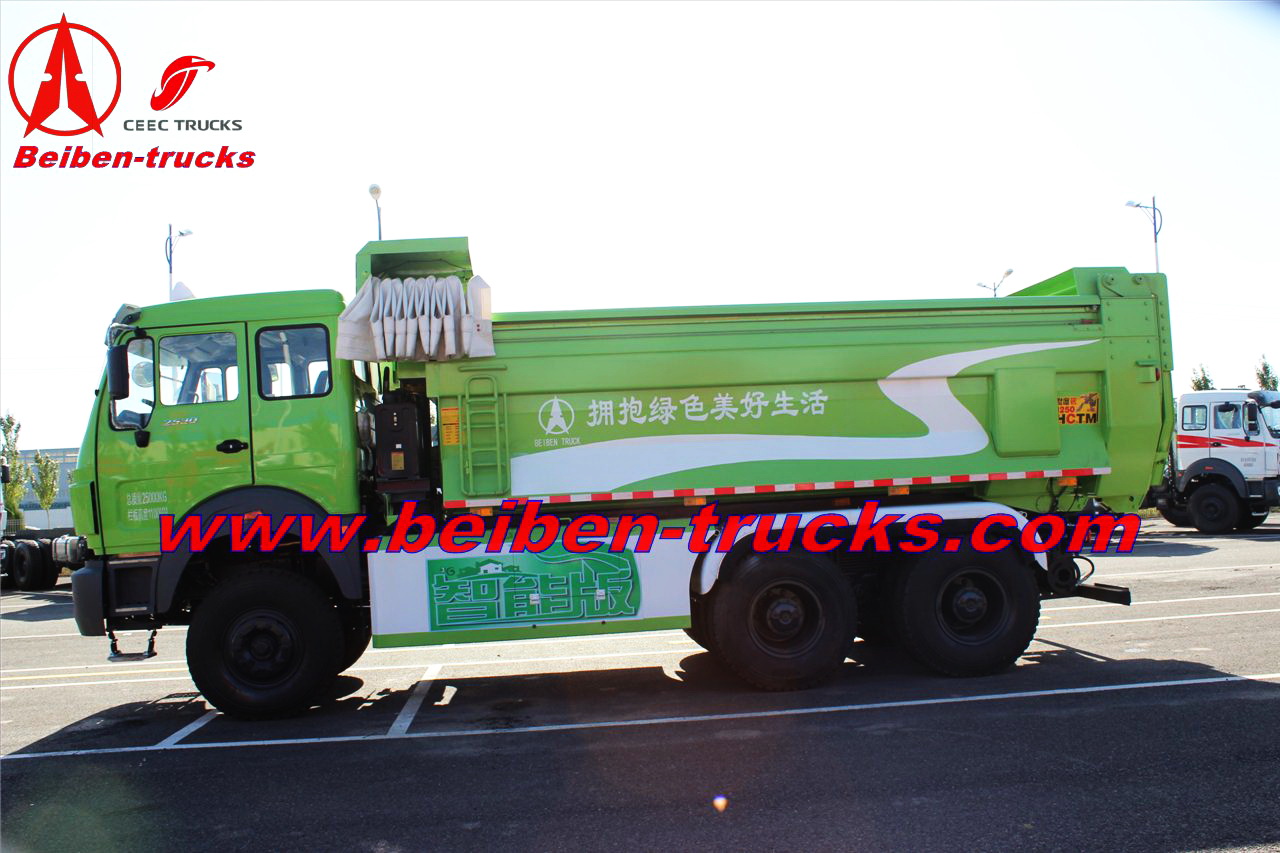

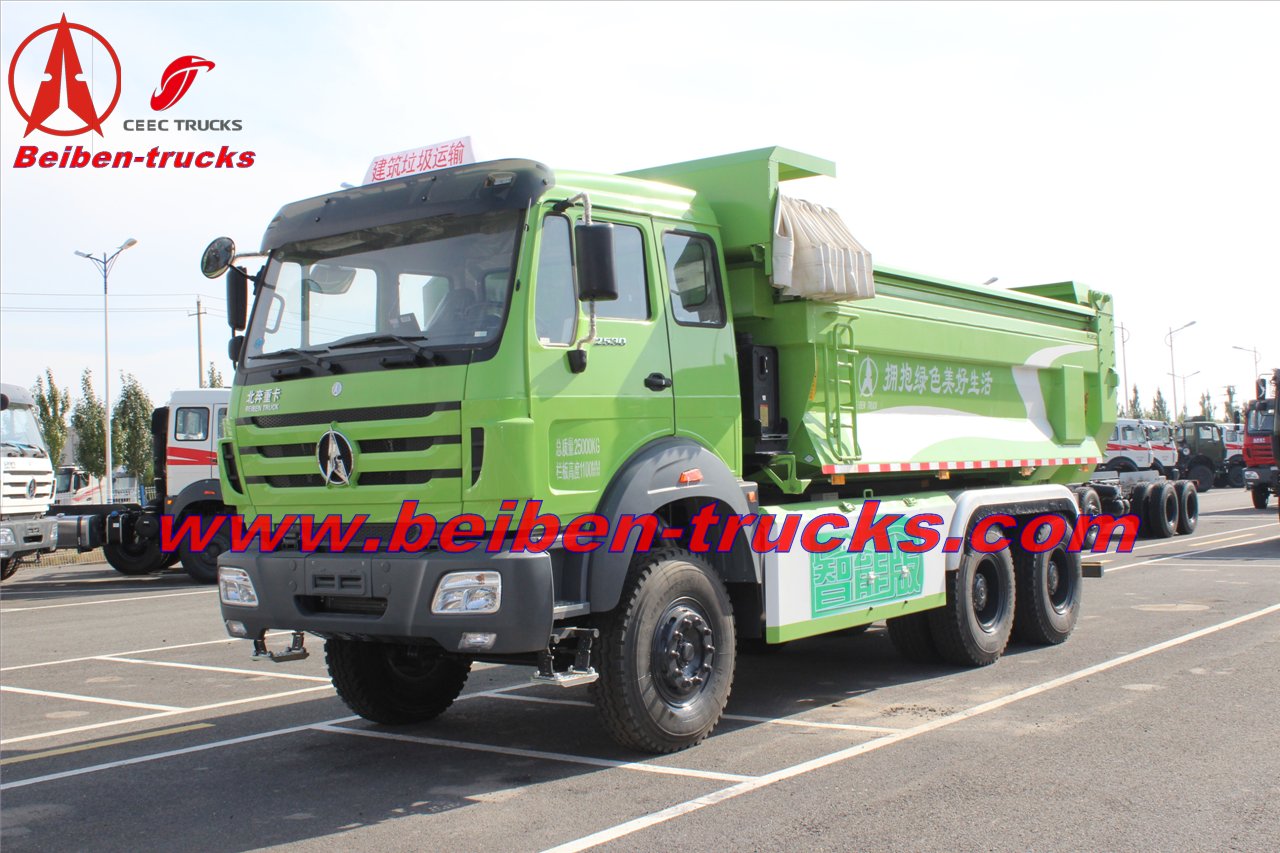

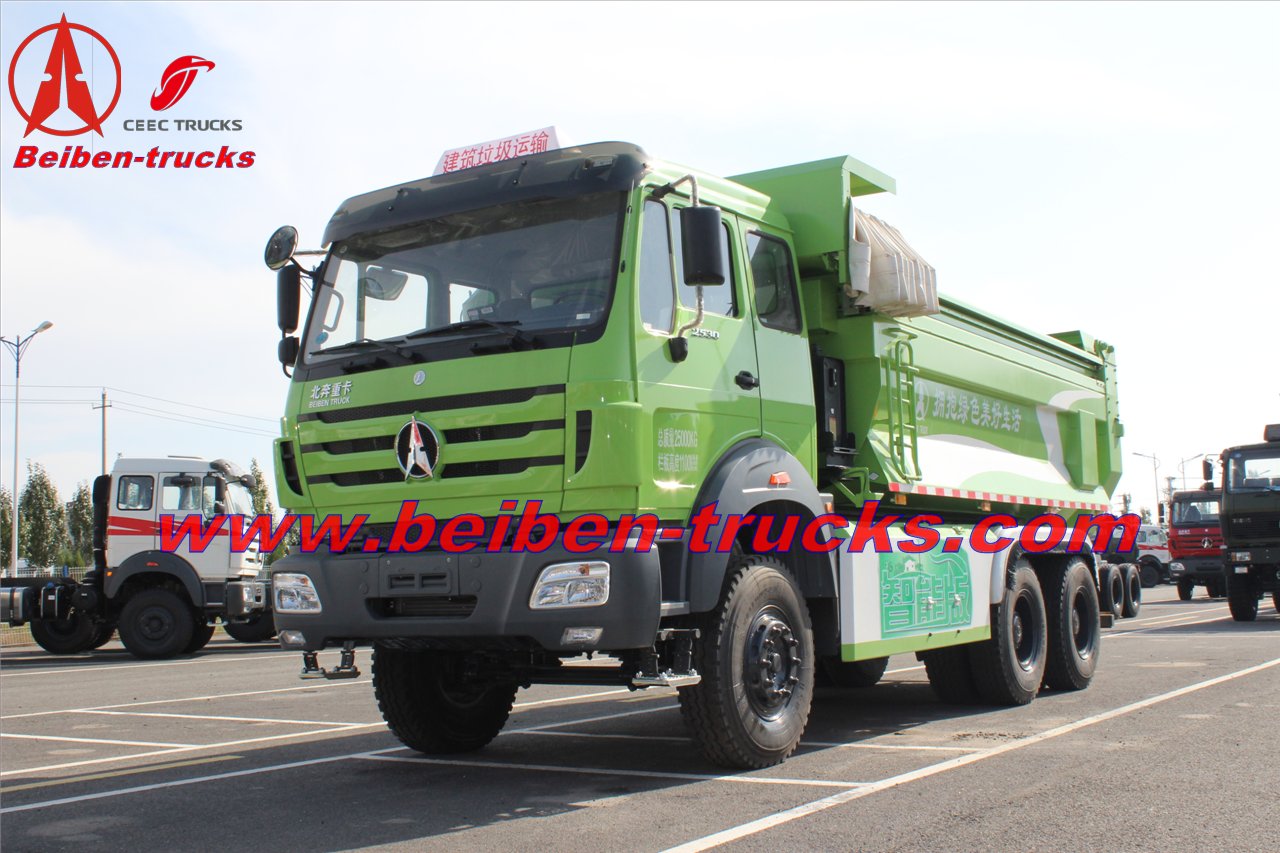

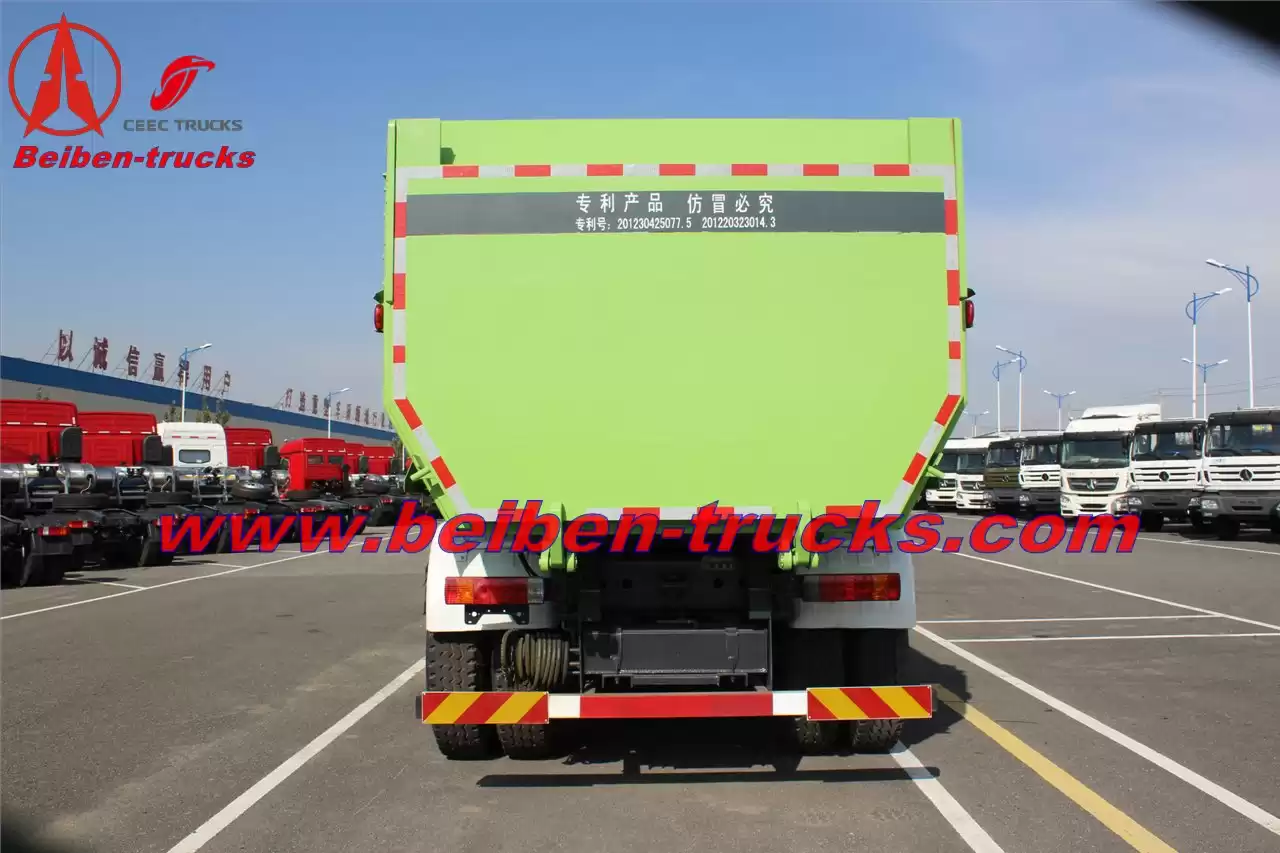

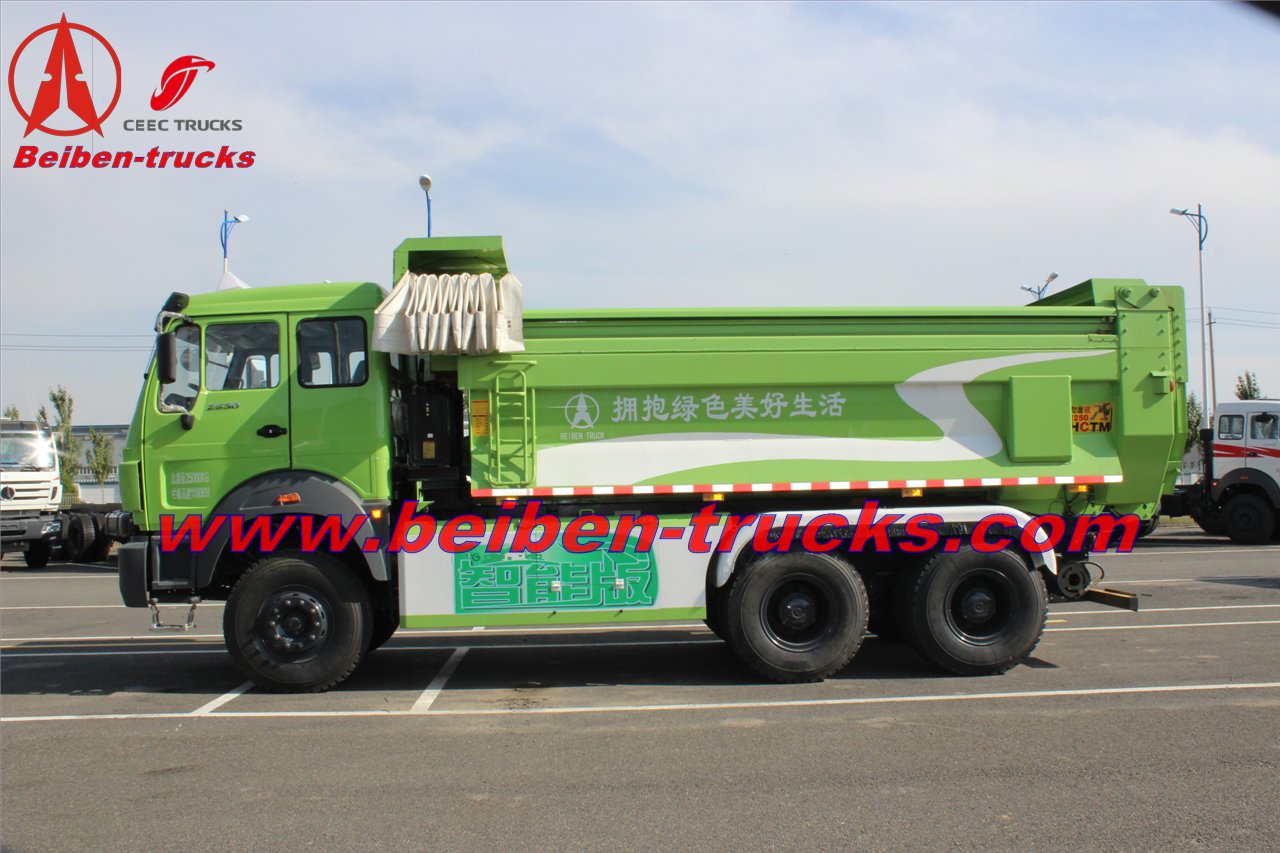

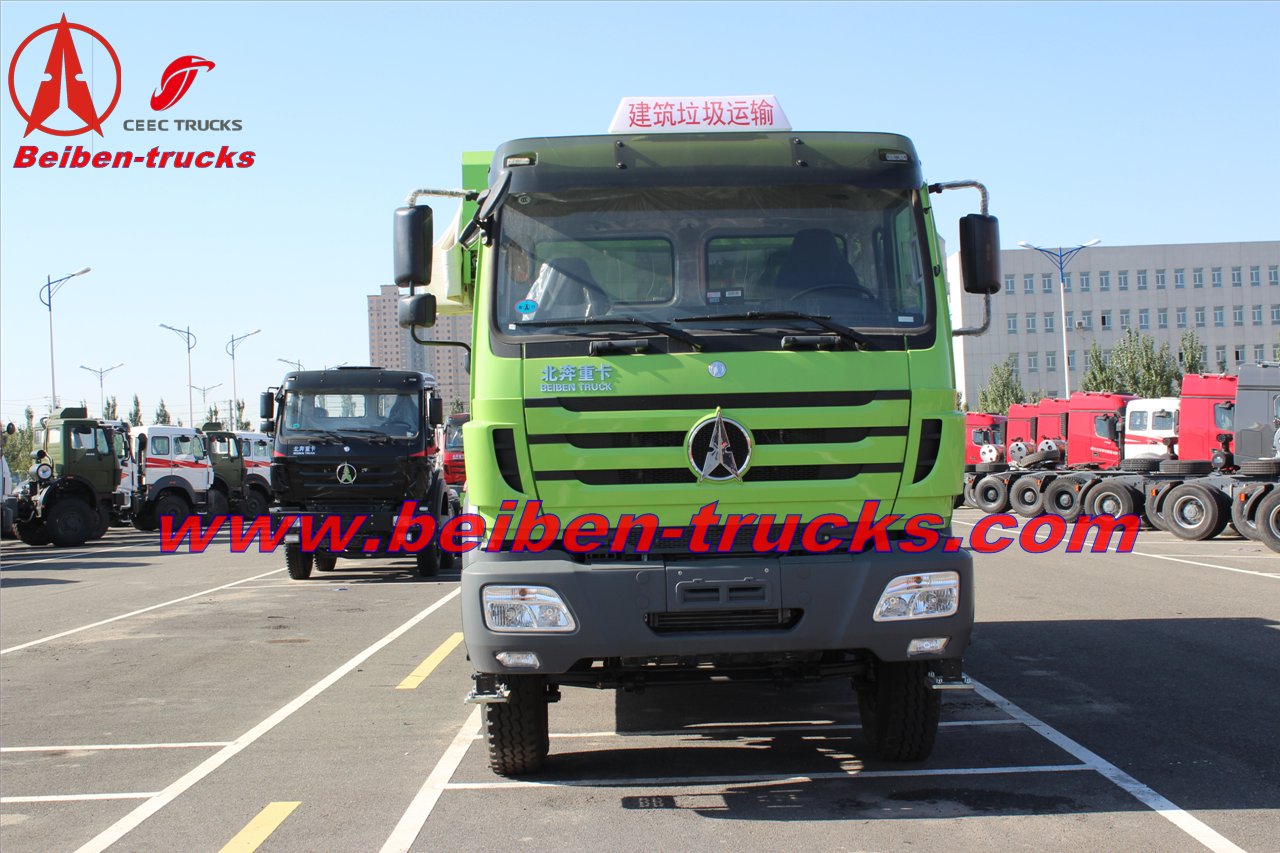

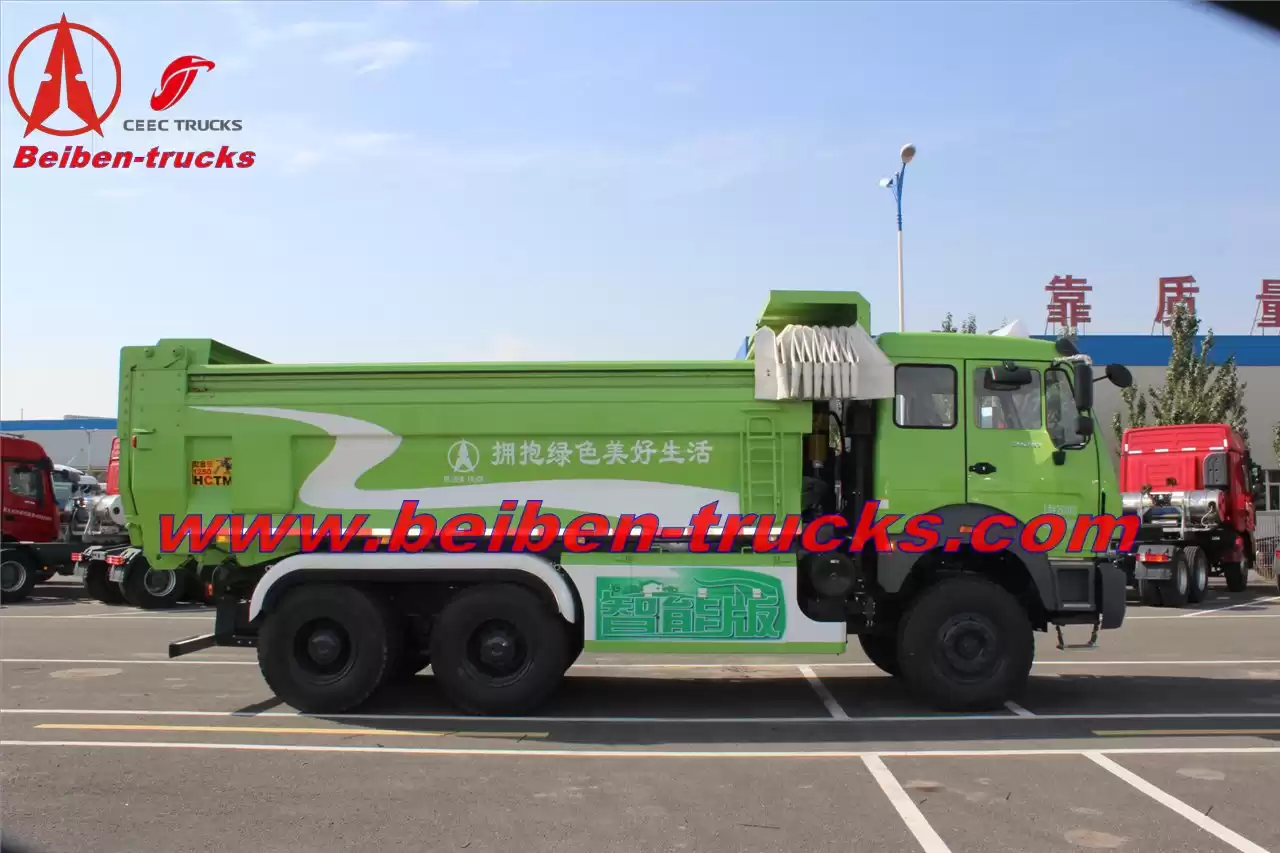

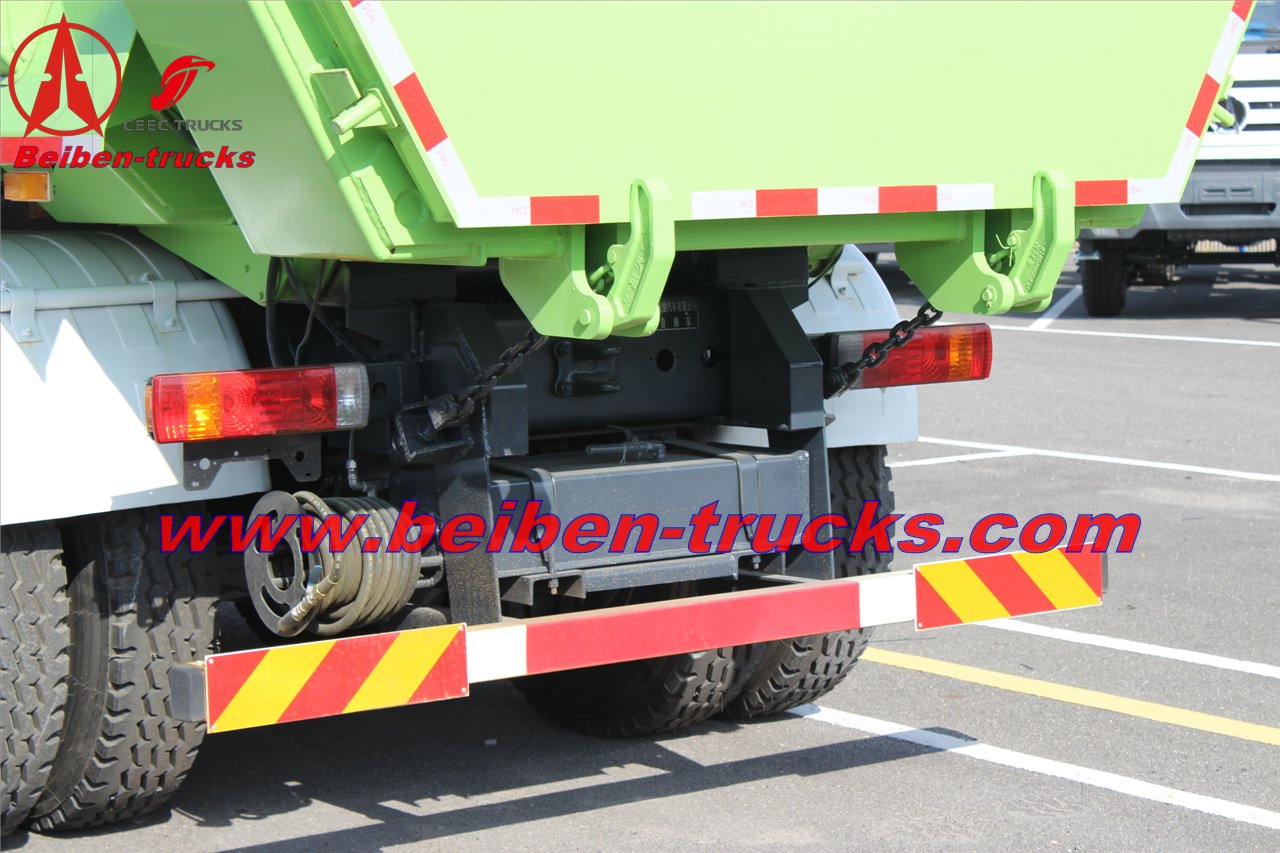

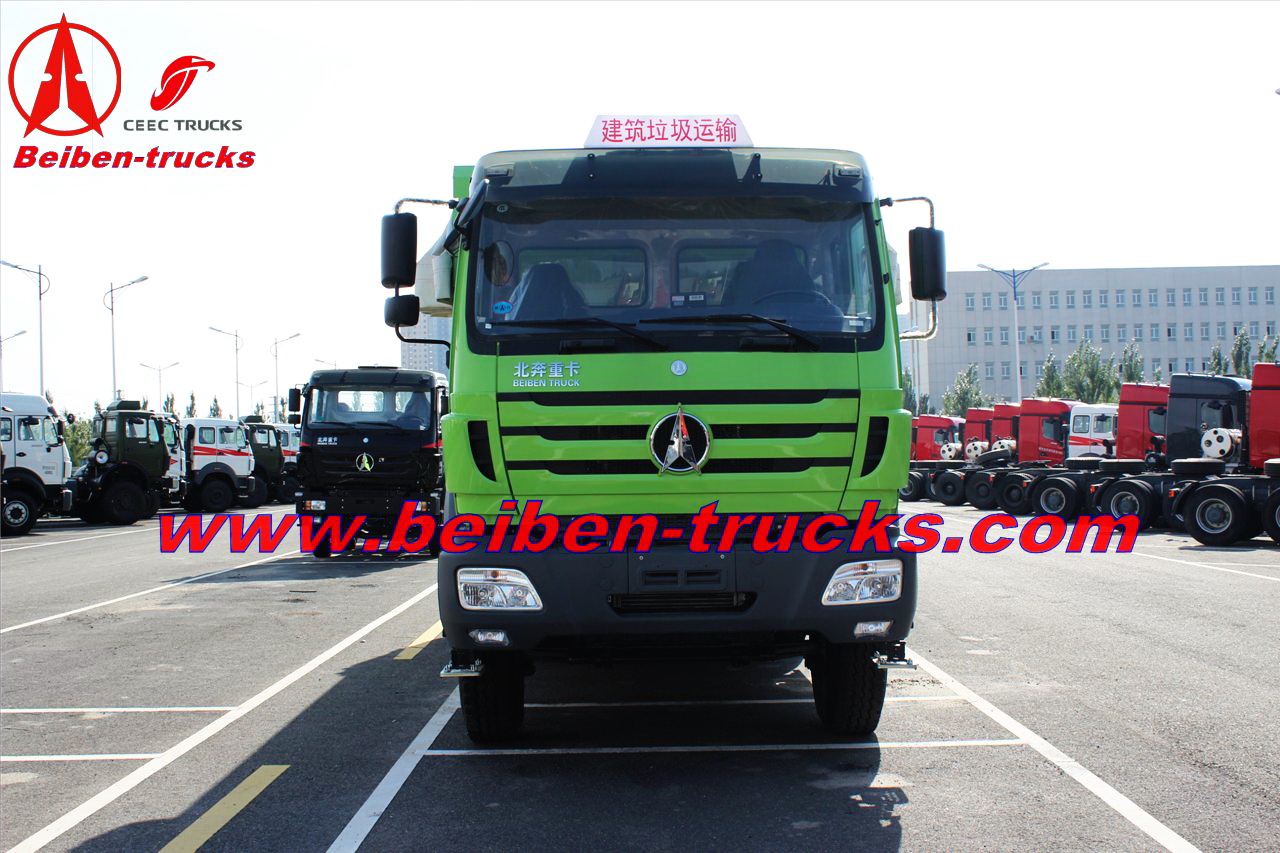

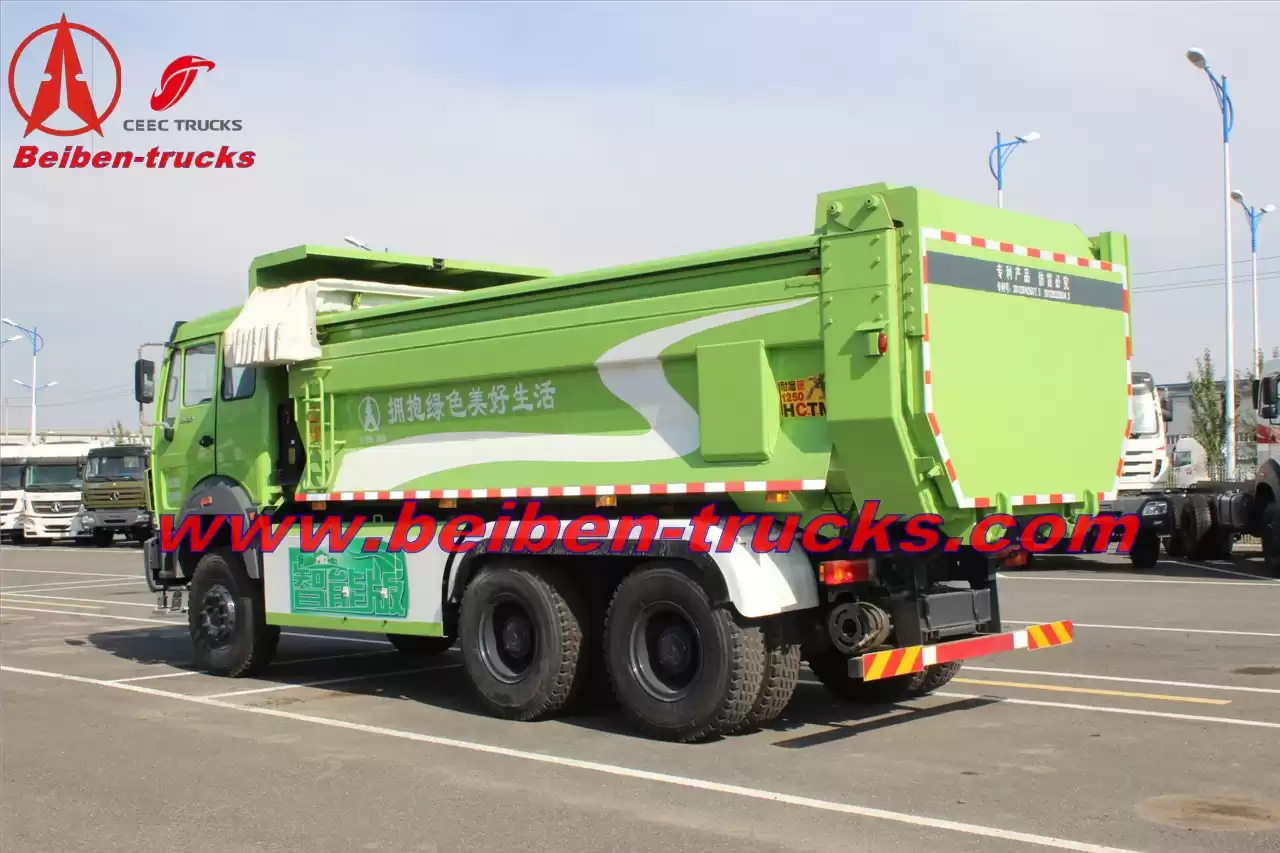

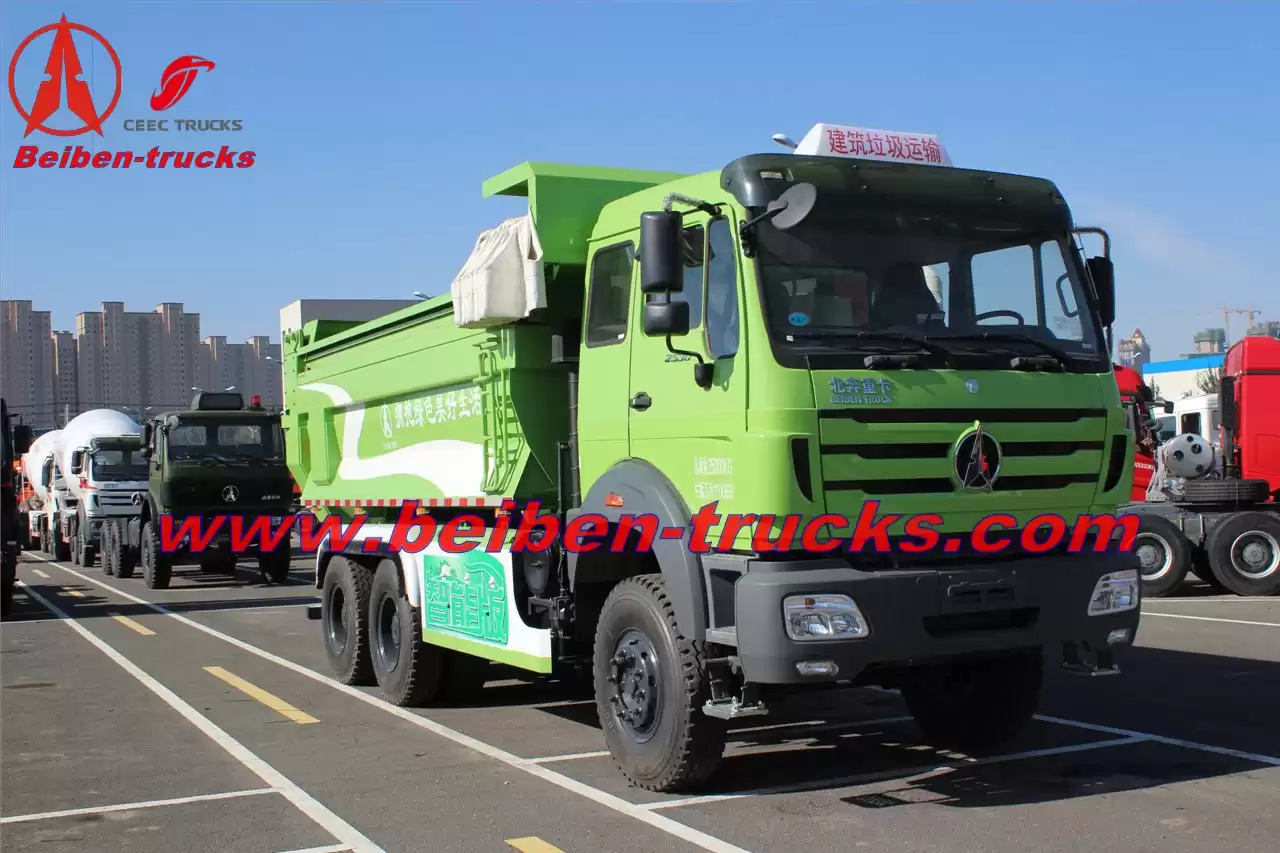

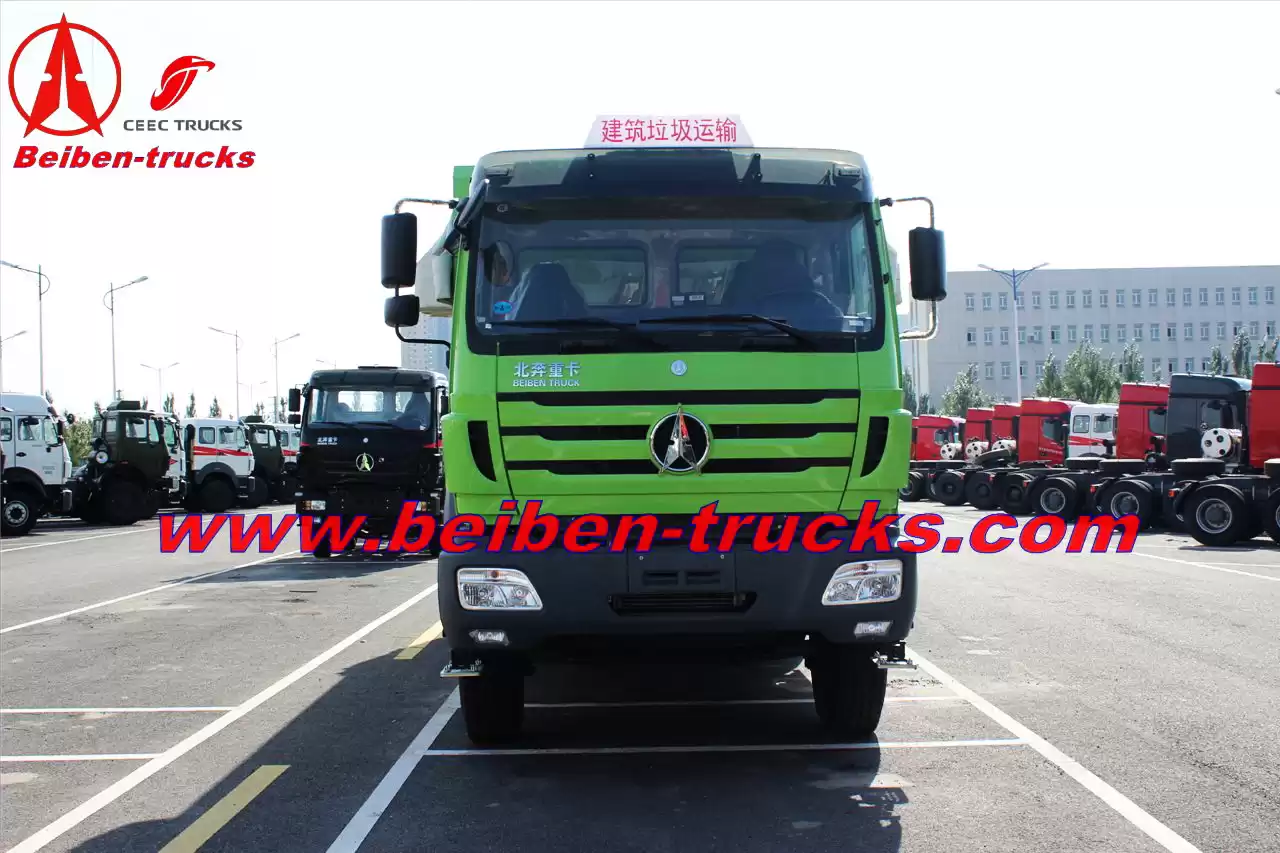

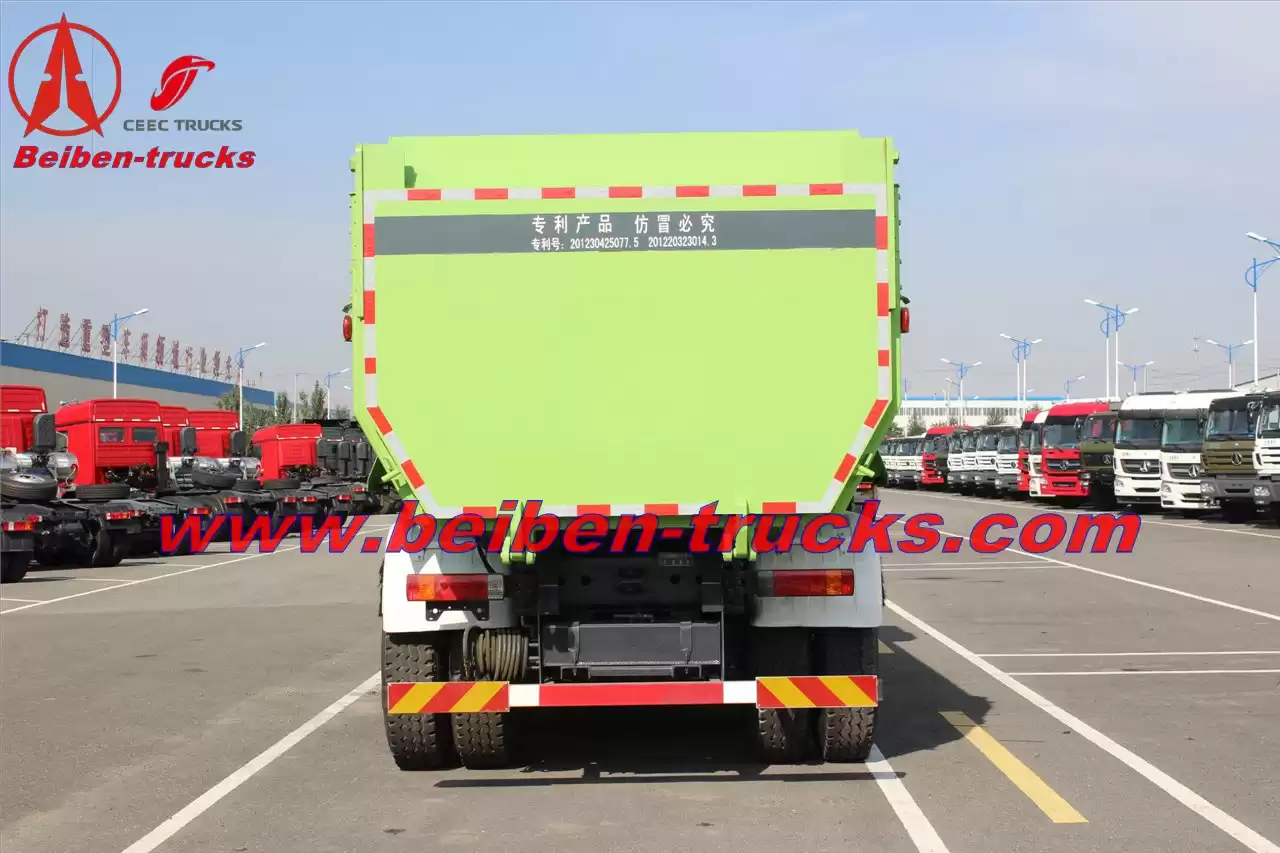

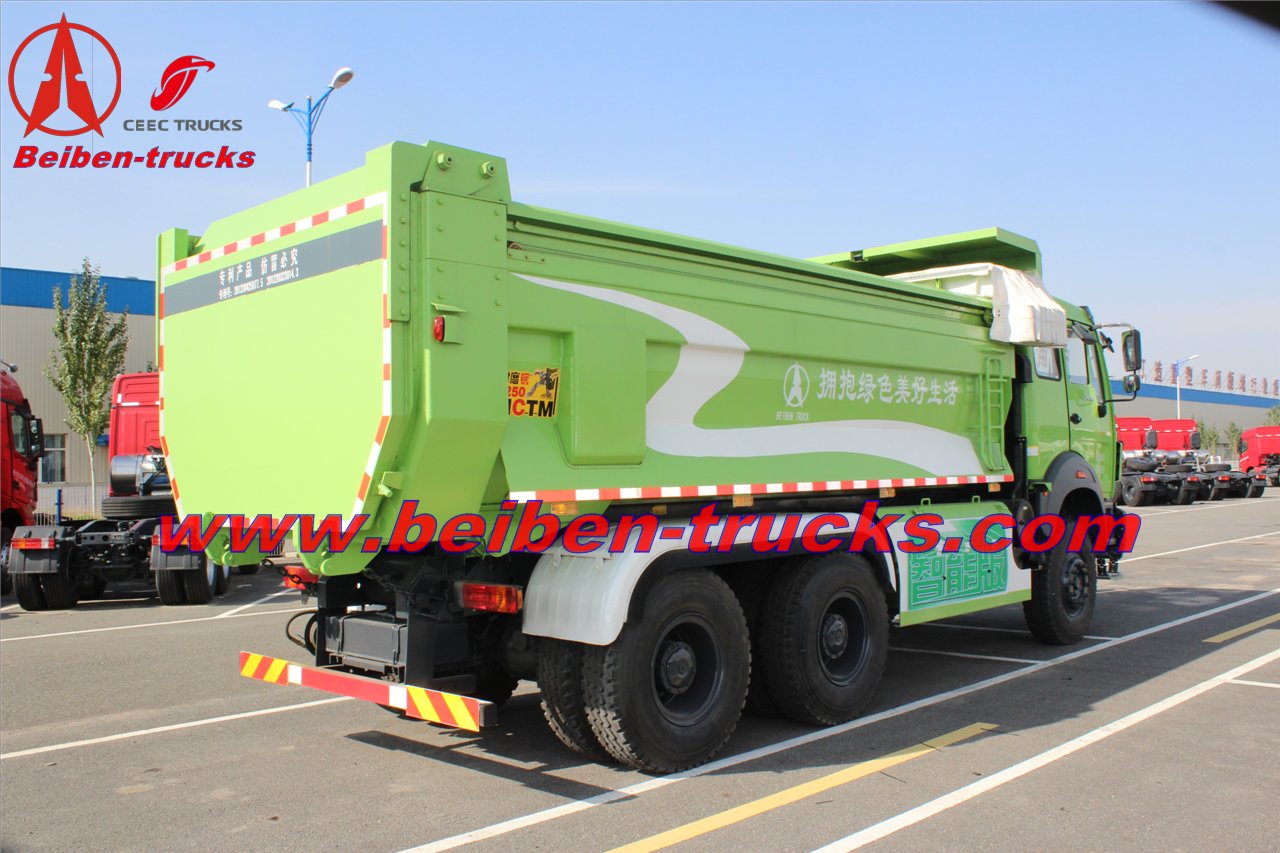

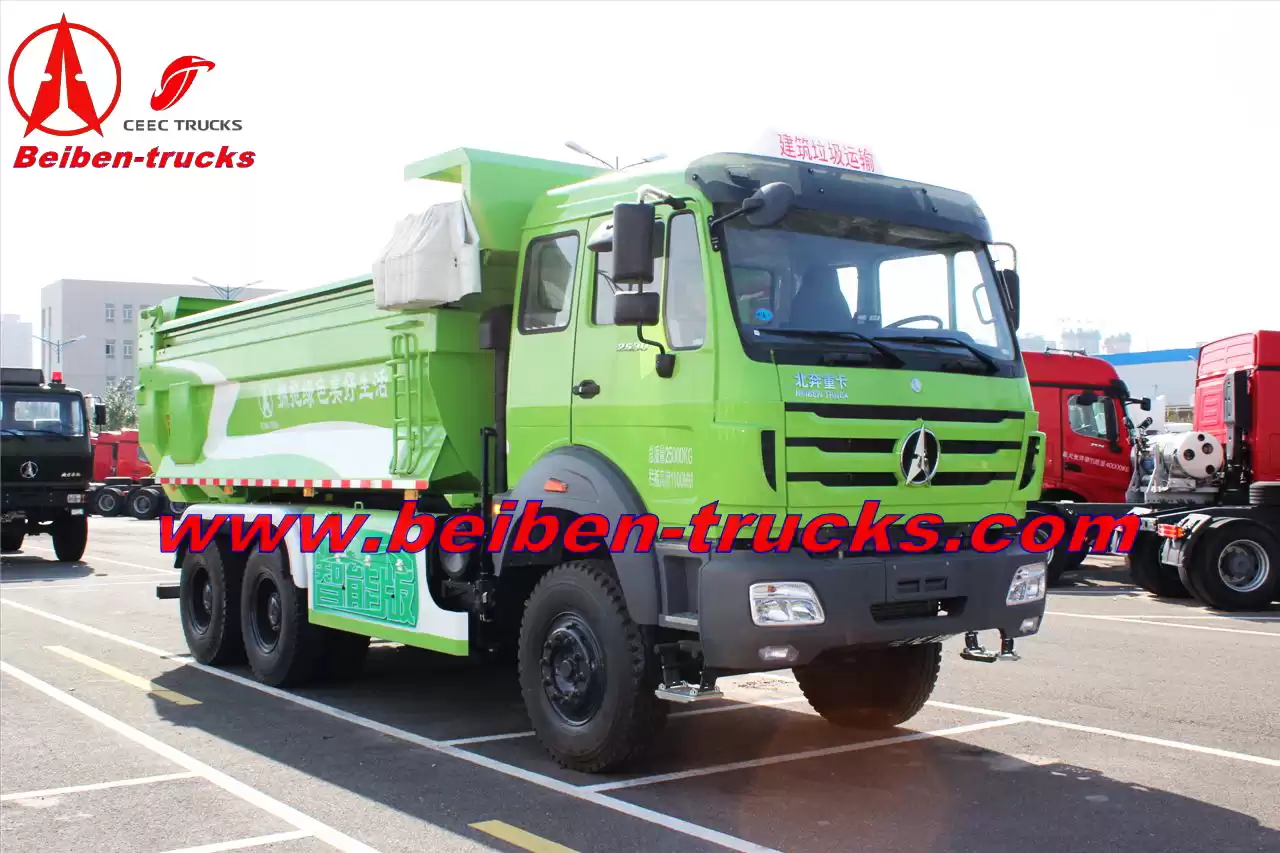

BEIBEN tipper truck 2530K 6x4 truck
|
| Wheel base (mm)
|
3800+1450 wheel
|
| Curb weight kg
|
12200
|
| Engine
|
Model
|
WP10.336 6 cylinders in line, turbo charged, water cool.
|
|
Power,
max HP/rpm
|
340/2200
|
|
Torque
|
1250 Nm
|
|
Emission standard
|
EUROIII
|
| Fuel tanker capacity L
|
300
|
| Clutch
|
Model
|
GFX420, Single dry frictional disc, Hydraulic boosting
|
| Gearbox
|
Model
|
FAST 9JS150A (9+1 gear)
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system, with 600L air bottle.
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels.
|
| Steering system
|
Model
|
TAS85
|
| Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
| Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle,
|

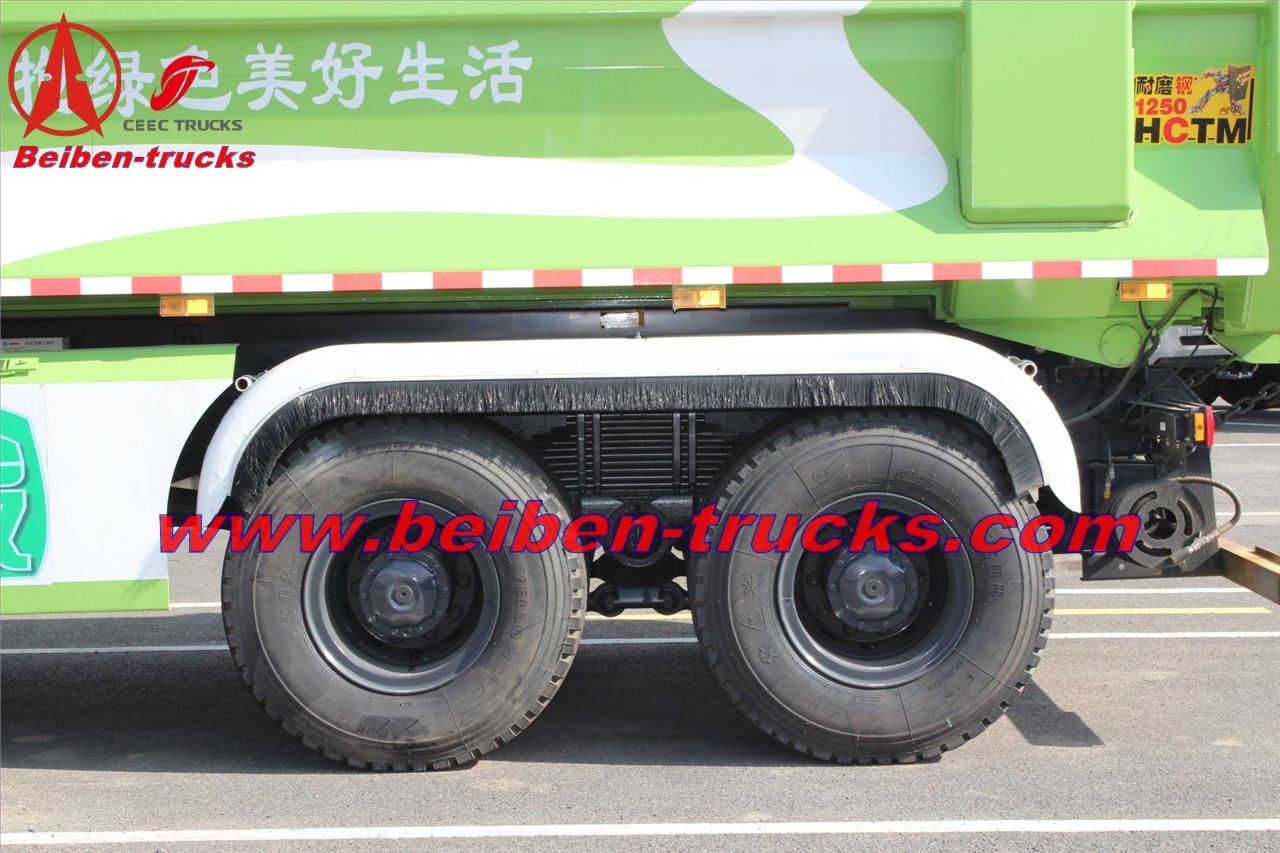

| Suspension
|
Front two axles with 10 steel spring each wheel, thickness 15mm/ pic.
Rear two axles with 13 steel spring. ( 9 pic with 25mm, 4 pic with 22mm).
4 strengthen U bolts, with strengthen thrust shank ).
|
