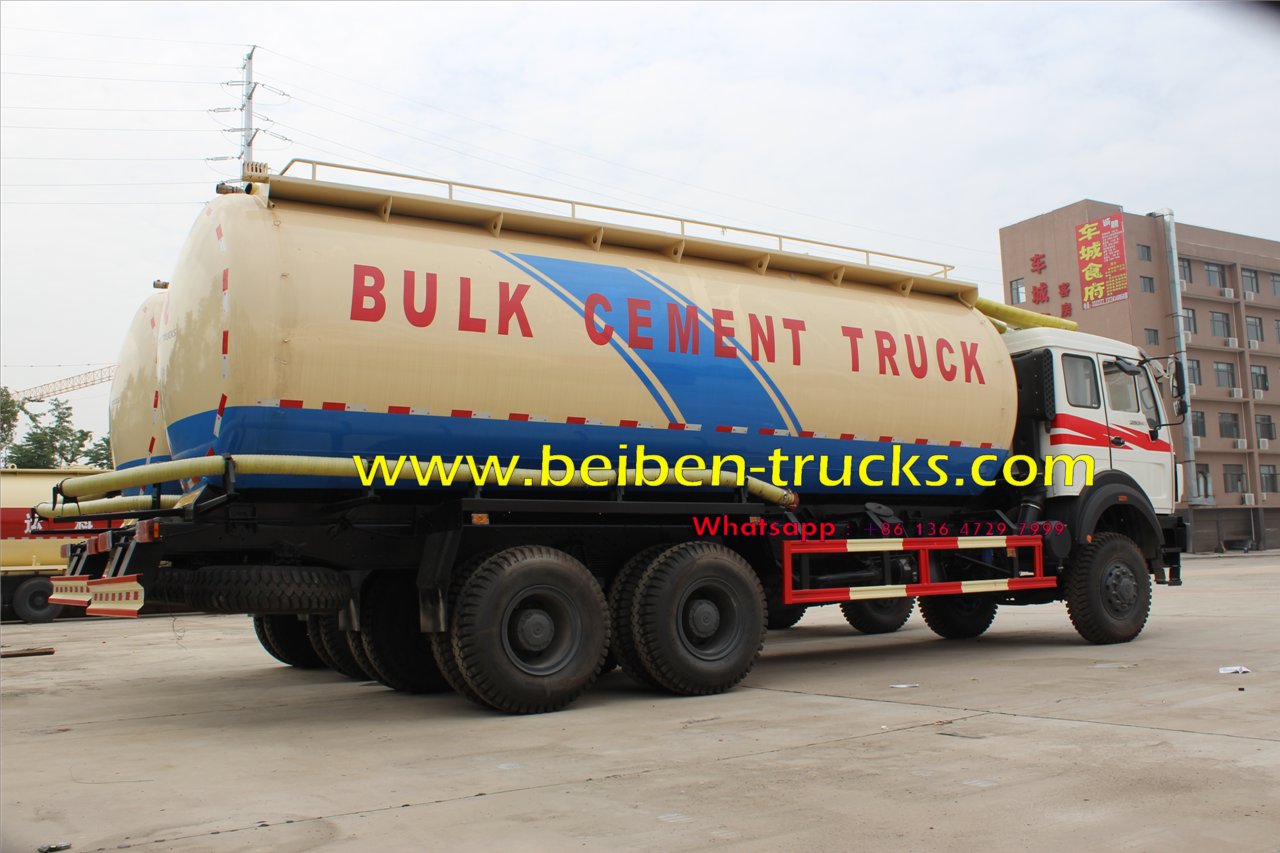

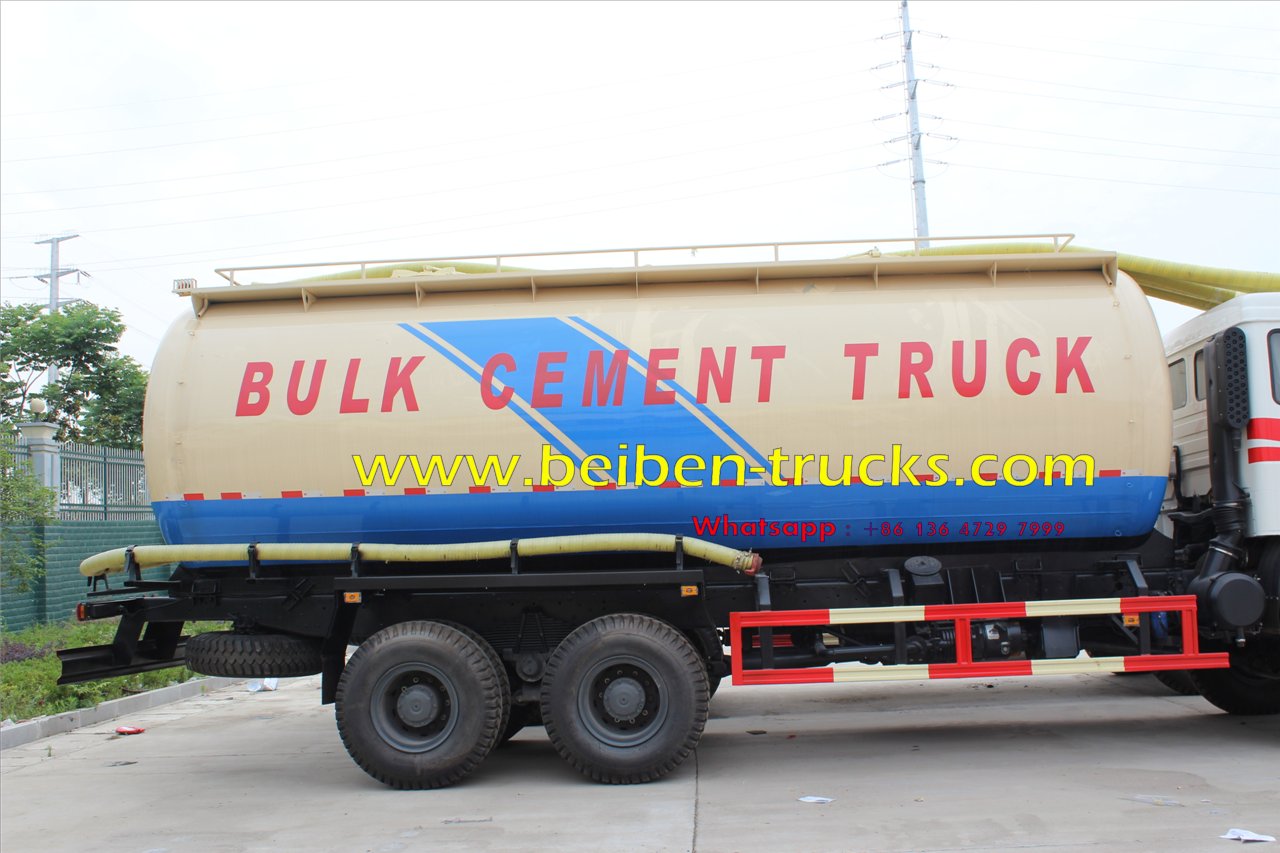

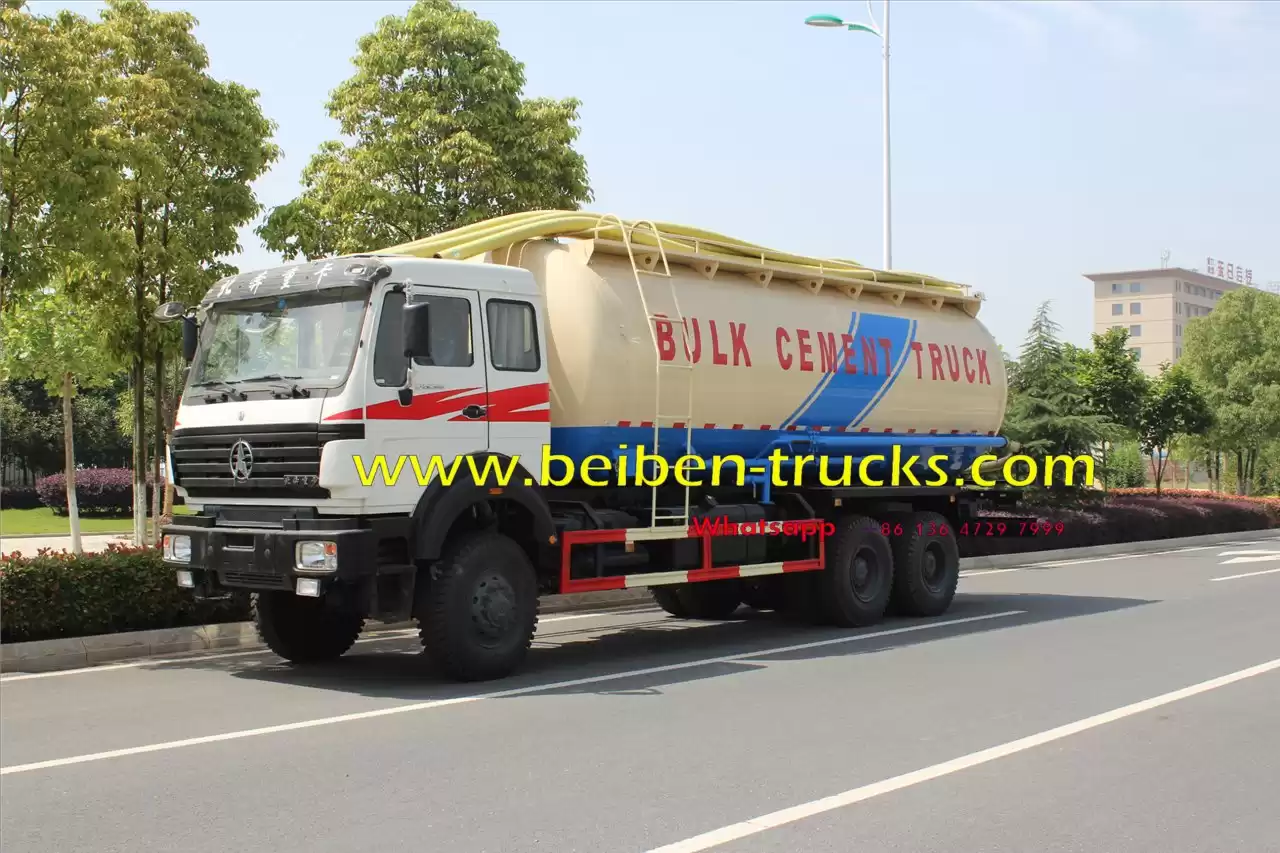

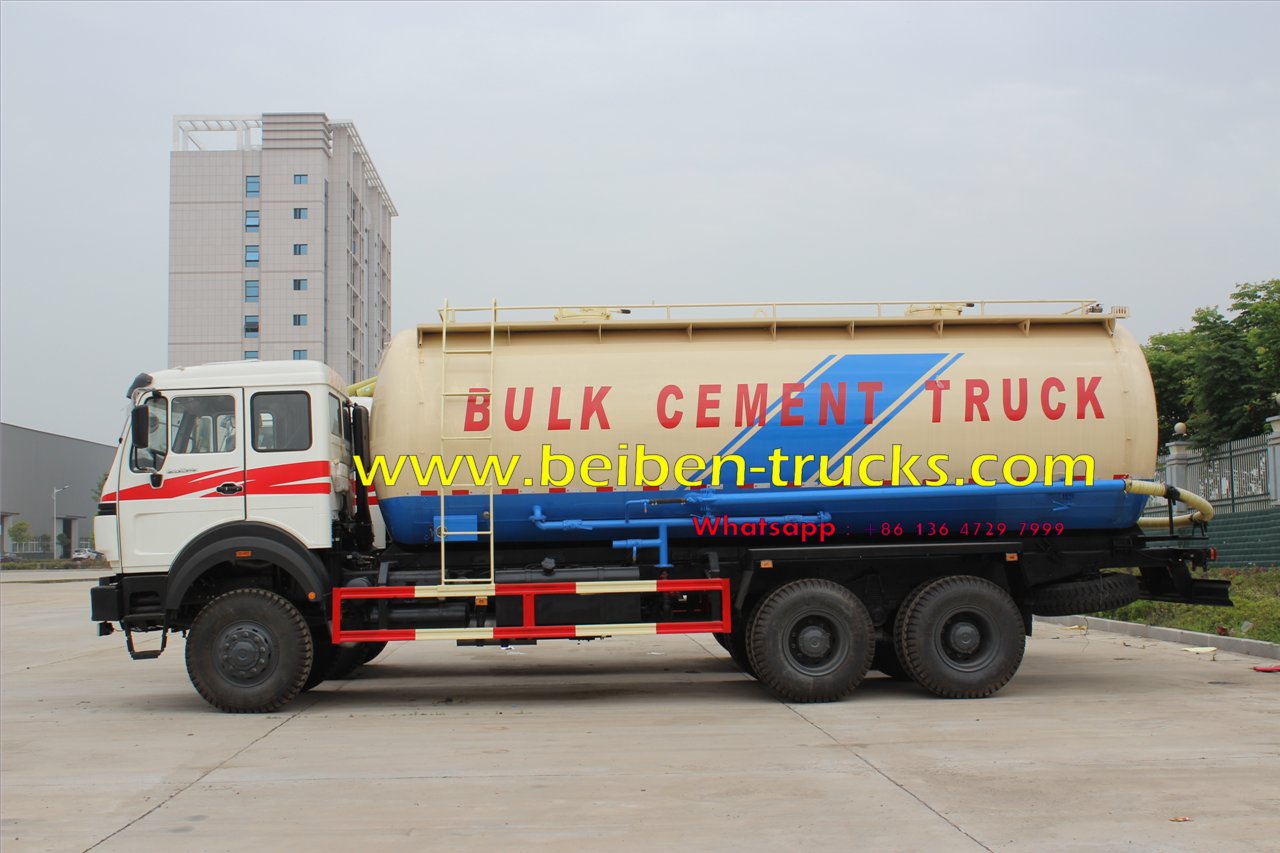

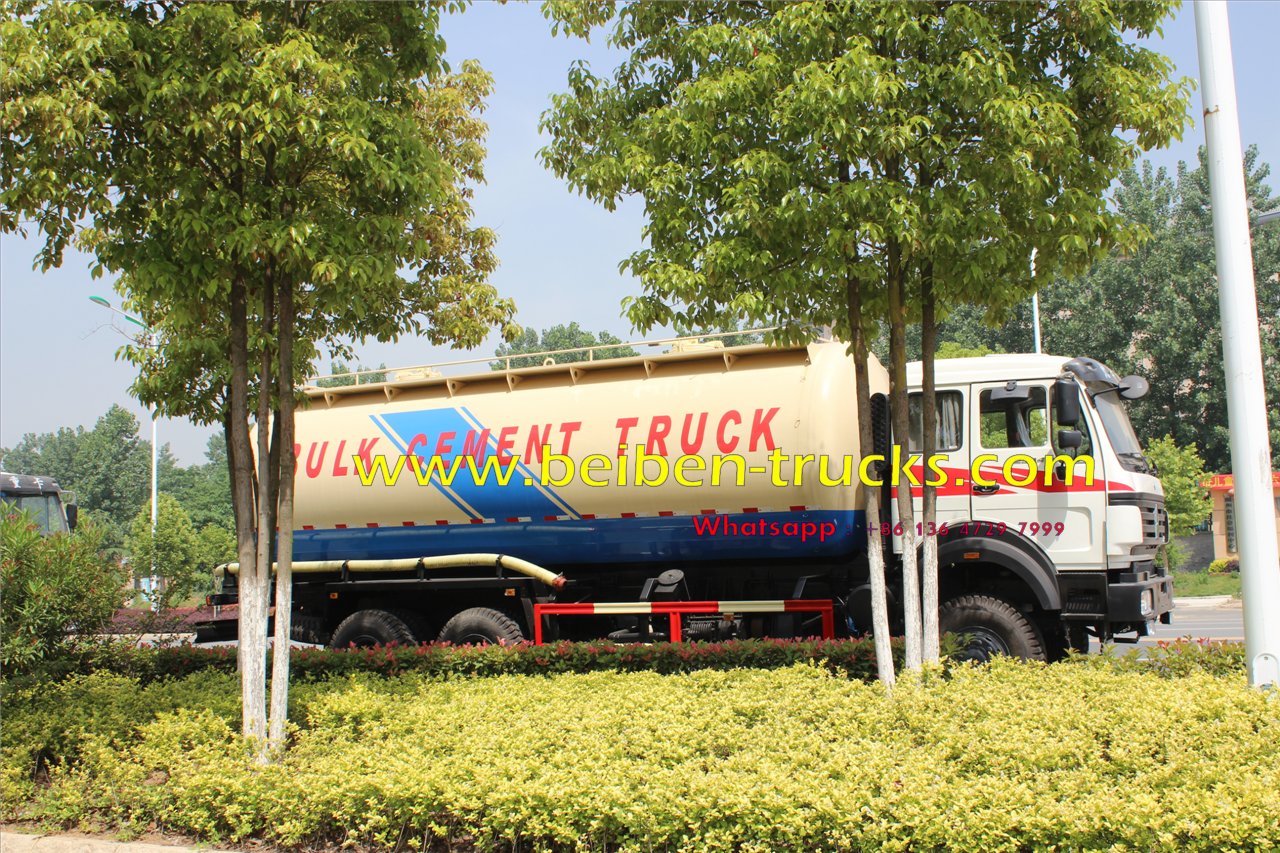

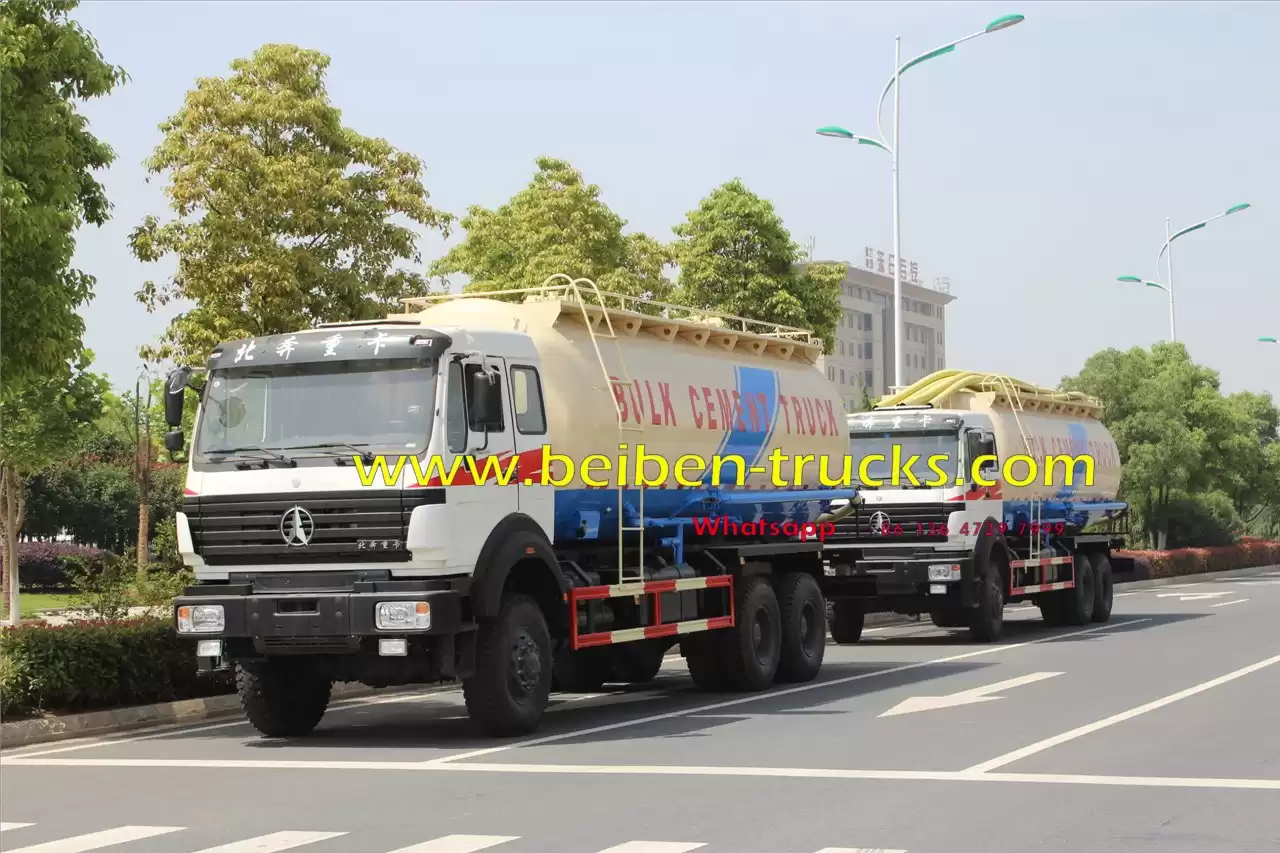

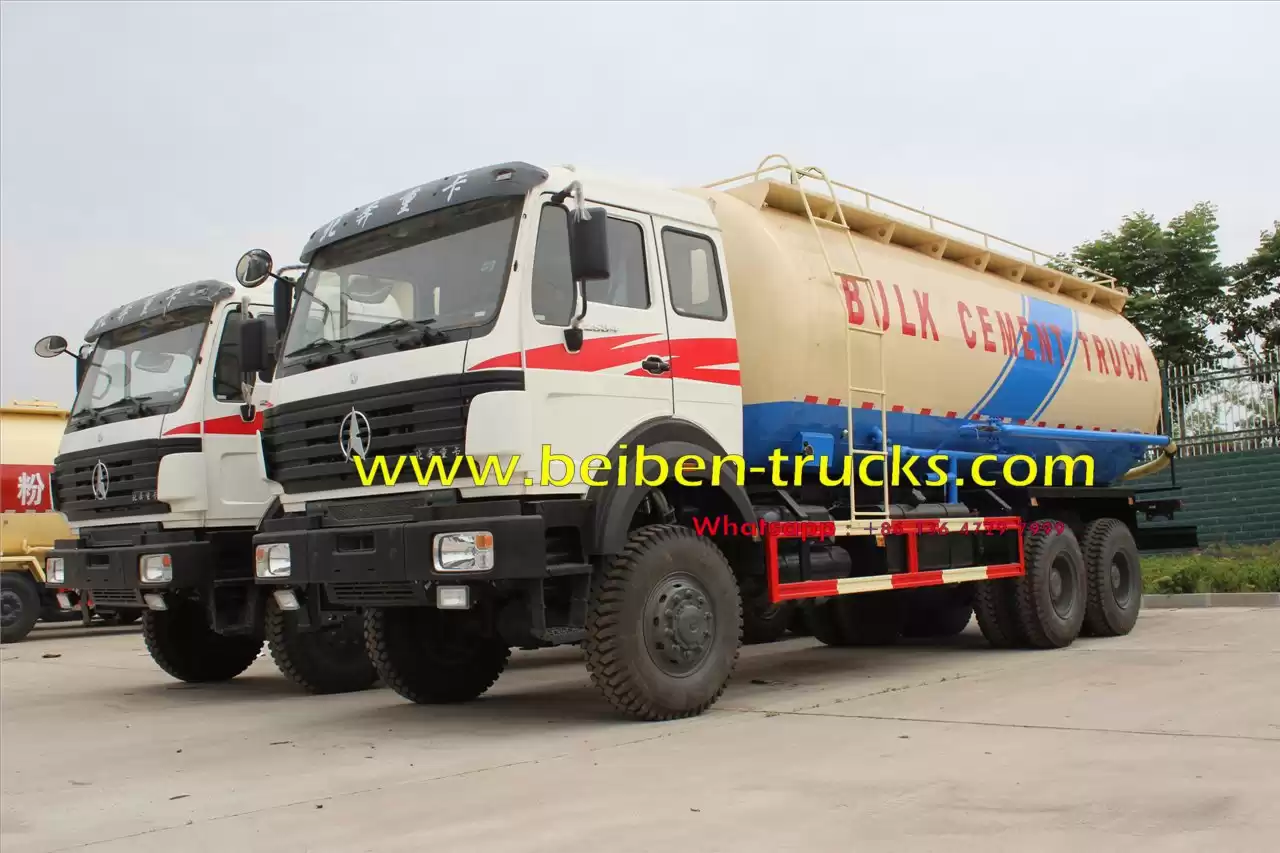

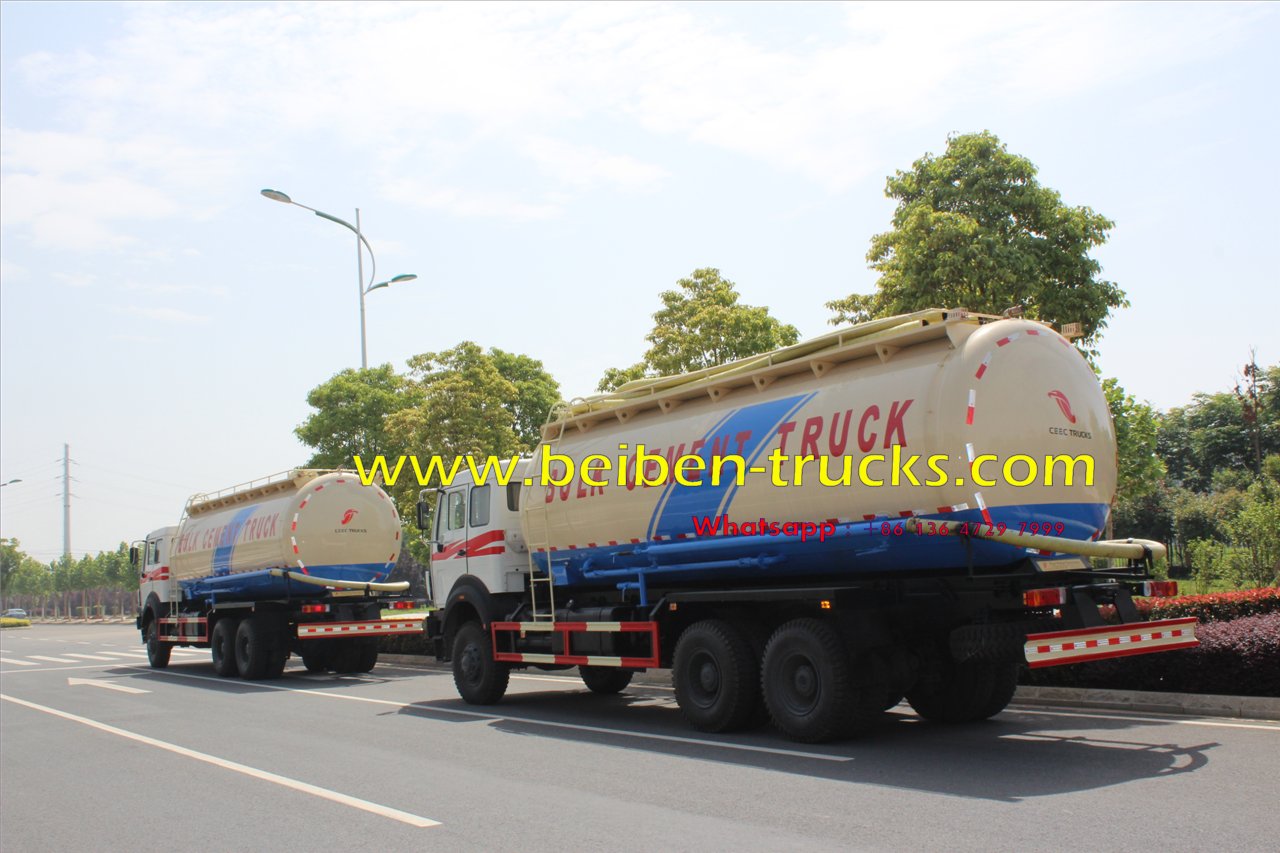

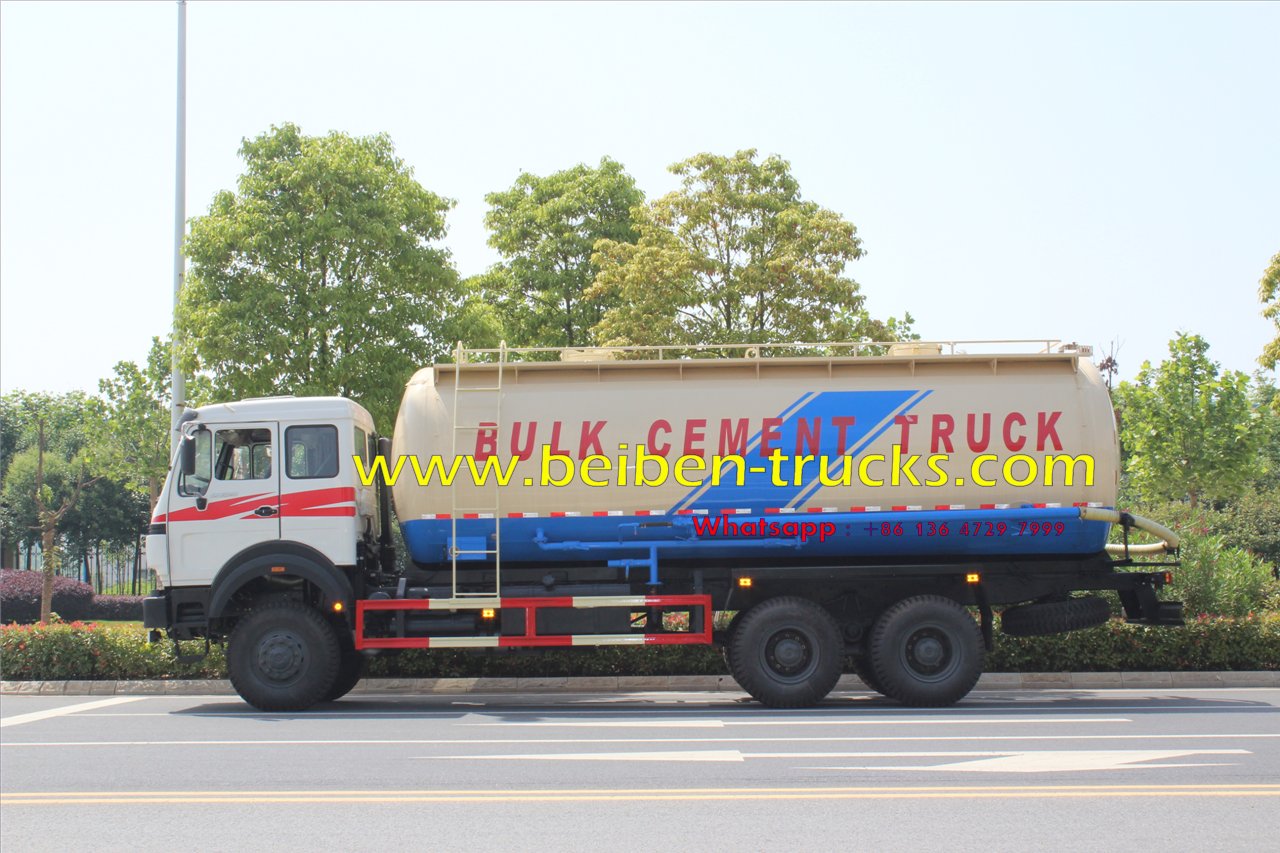

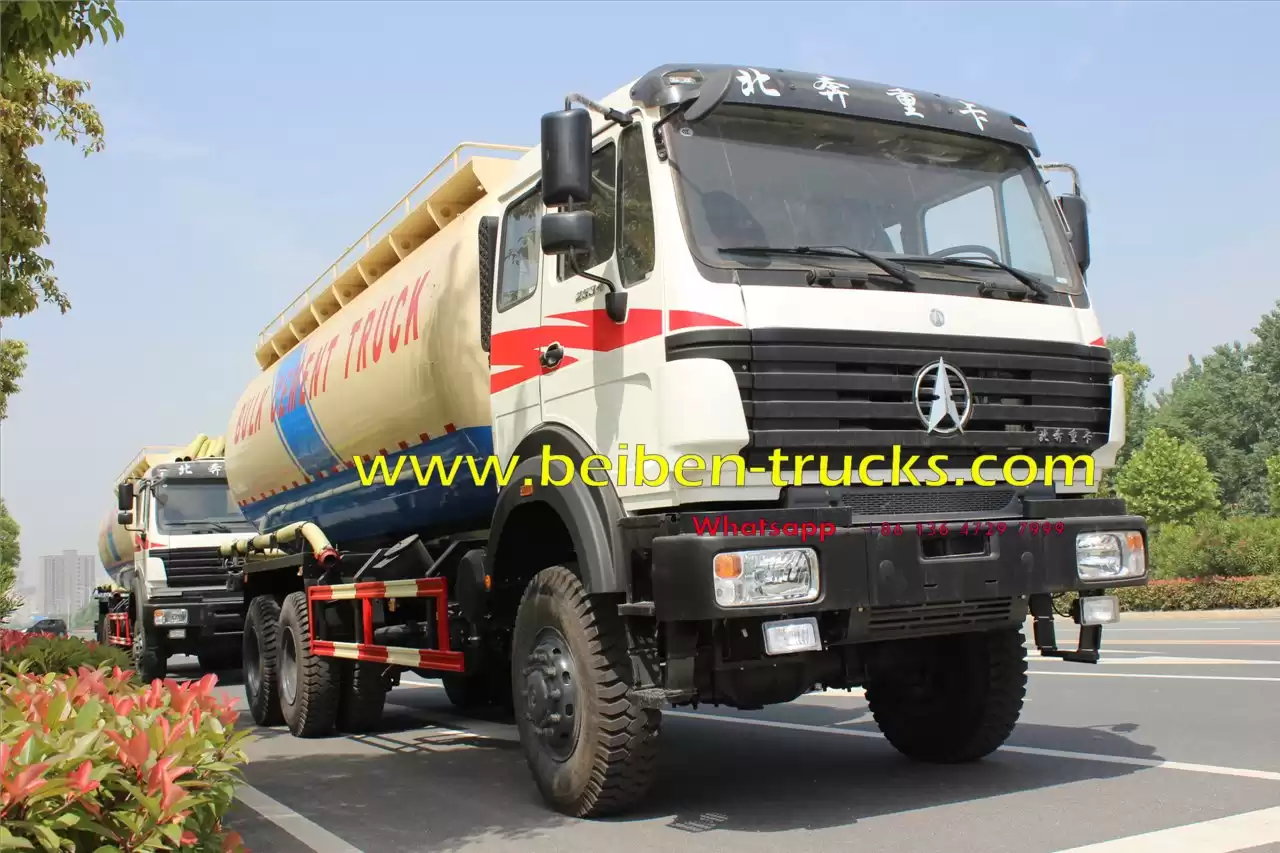

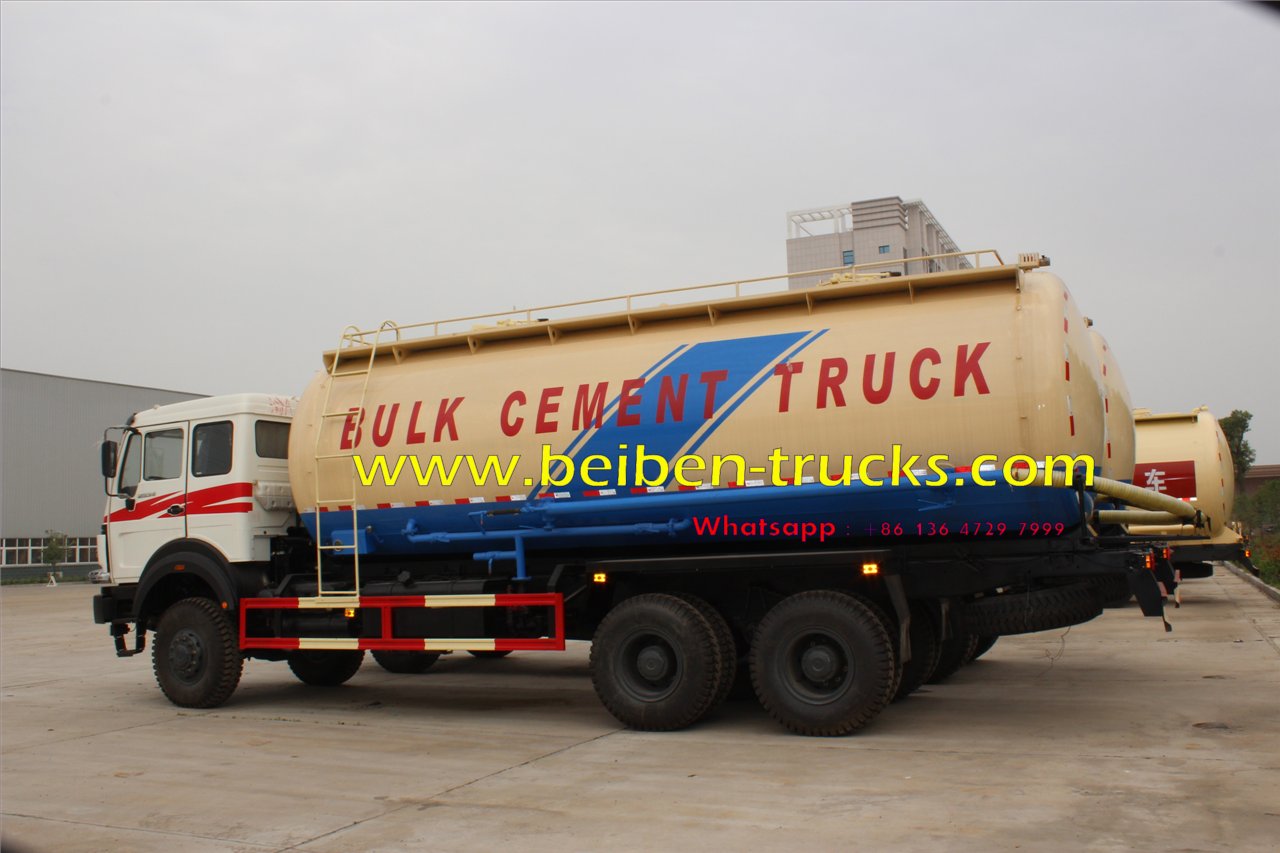

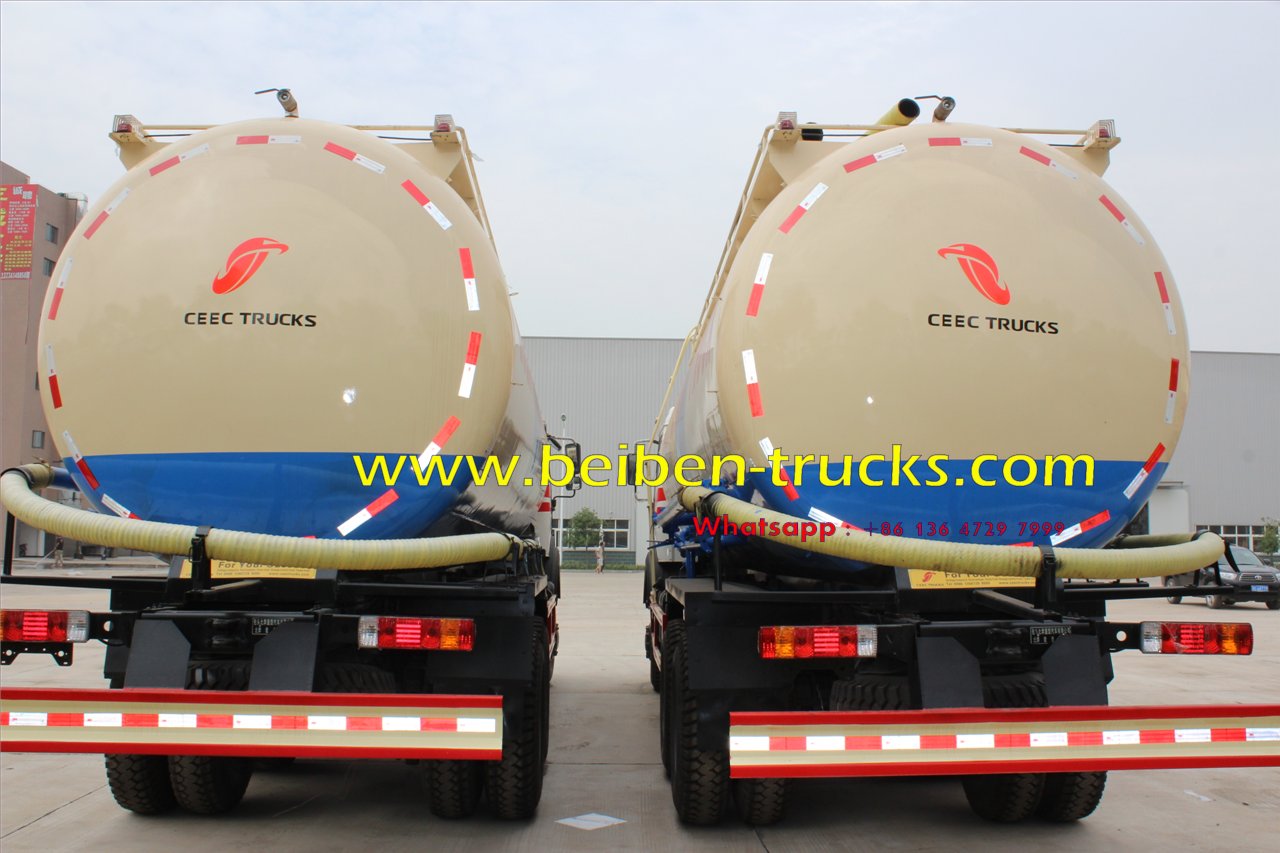

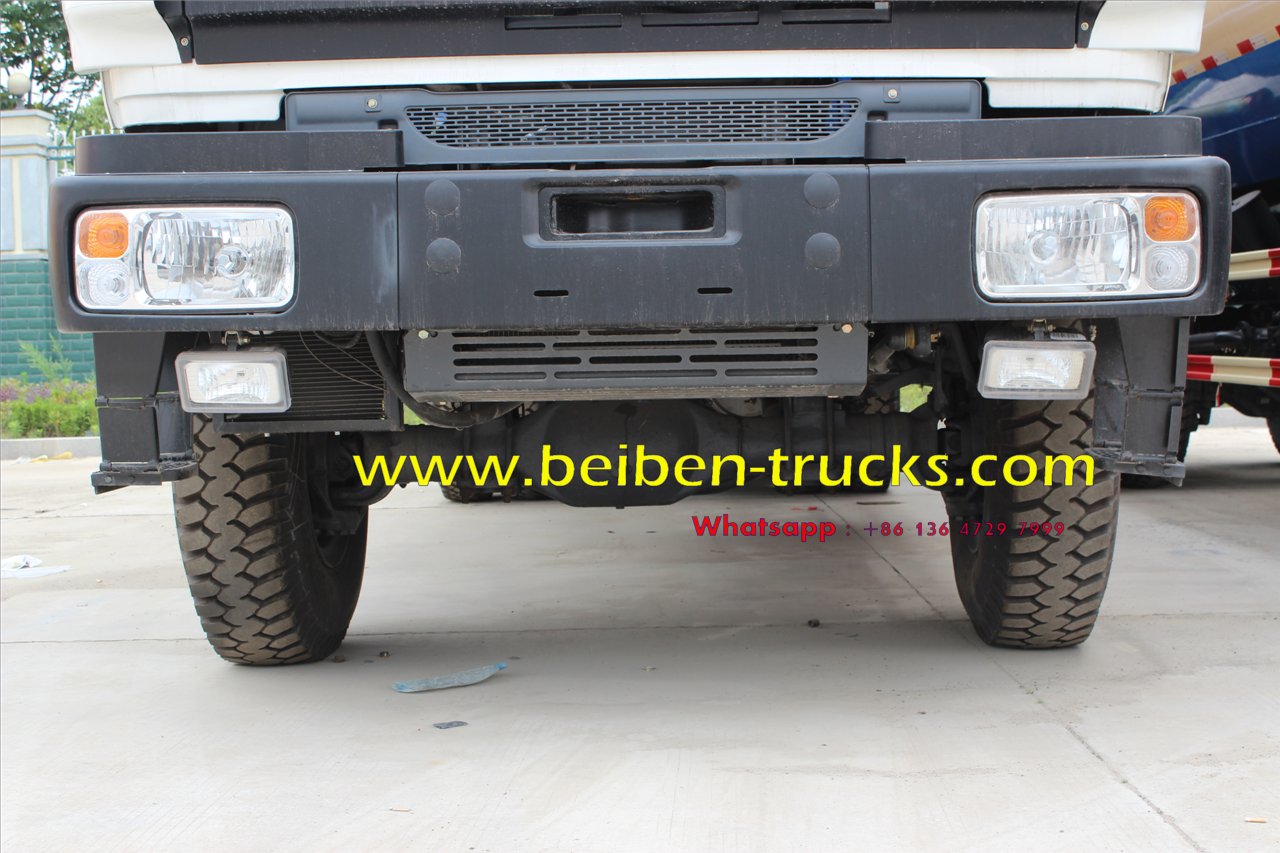

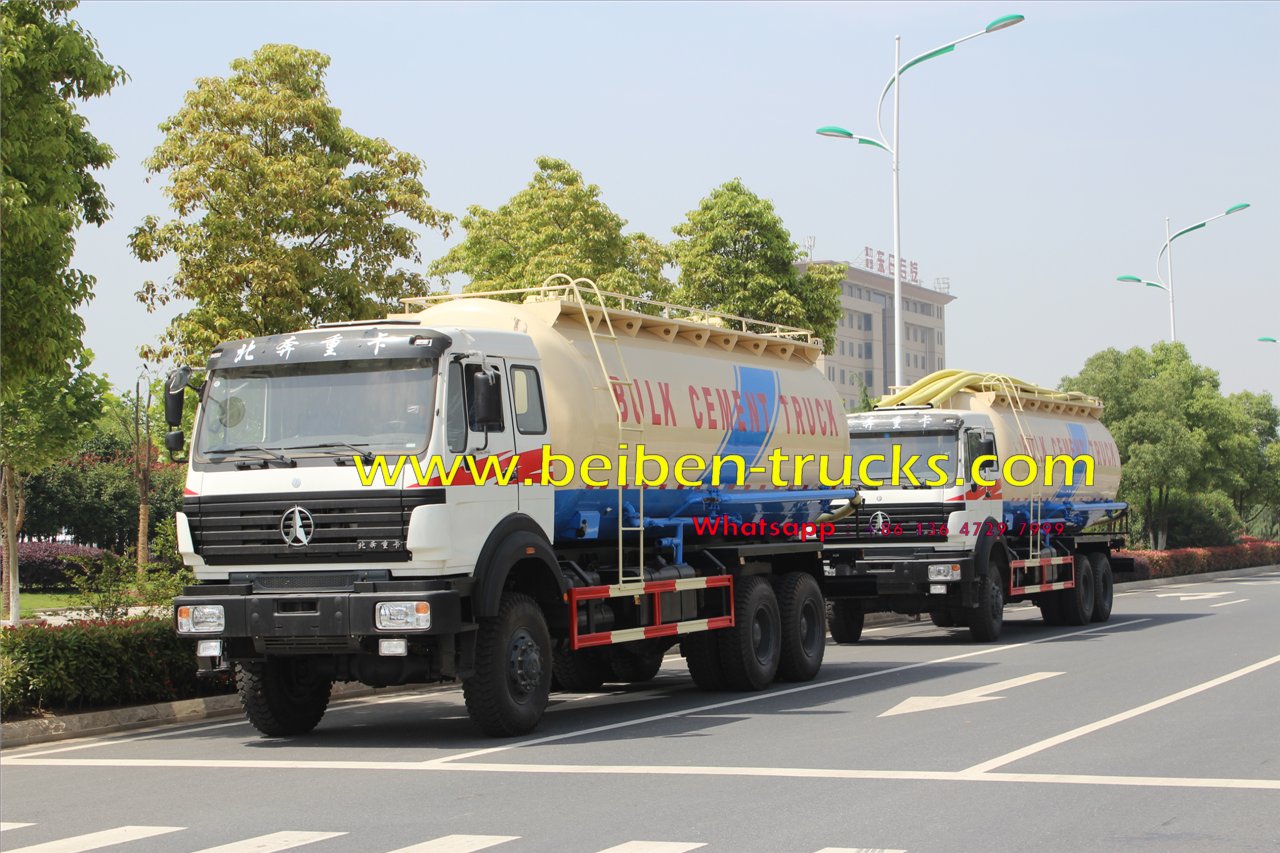

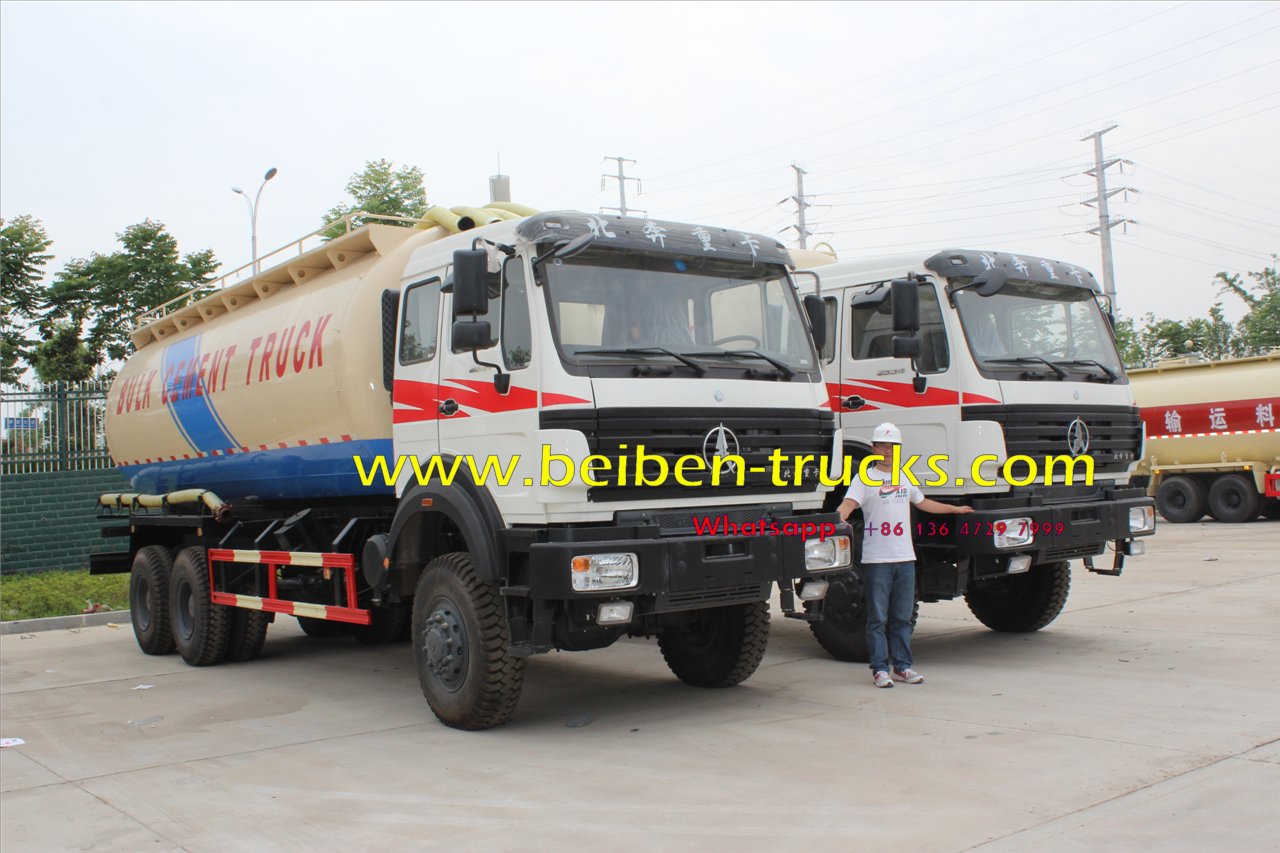

Beiben 2534 off road cement truck Tank assembly
Straight cylindrical tank body is made of 5mm quality steel plate with firmly
and evenly welded 6mm standard ellipsoidal heads on both ends, which features
overall high strength, rigidity and excellent pressure bearing performance. The
reasonable layout of the tank body with two chambers shortens the discharging
time, enhances the operating factor of the tank capacity, and reduces residual
rate.
Pipeline
system

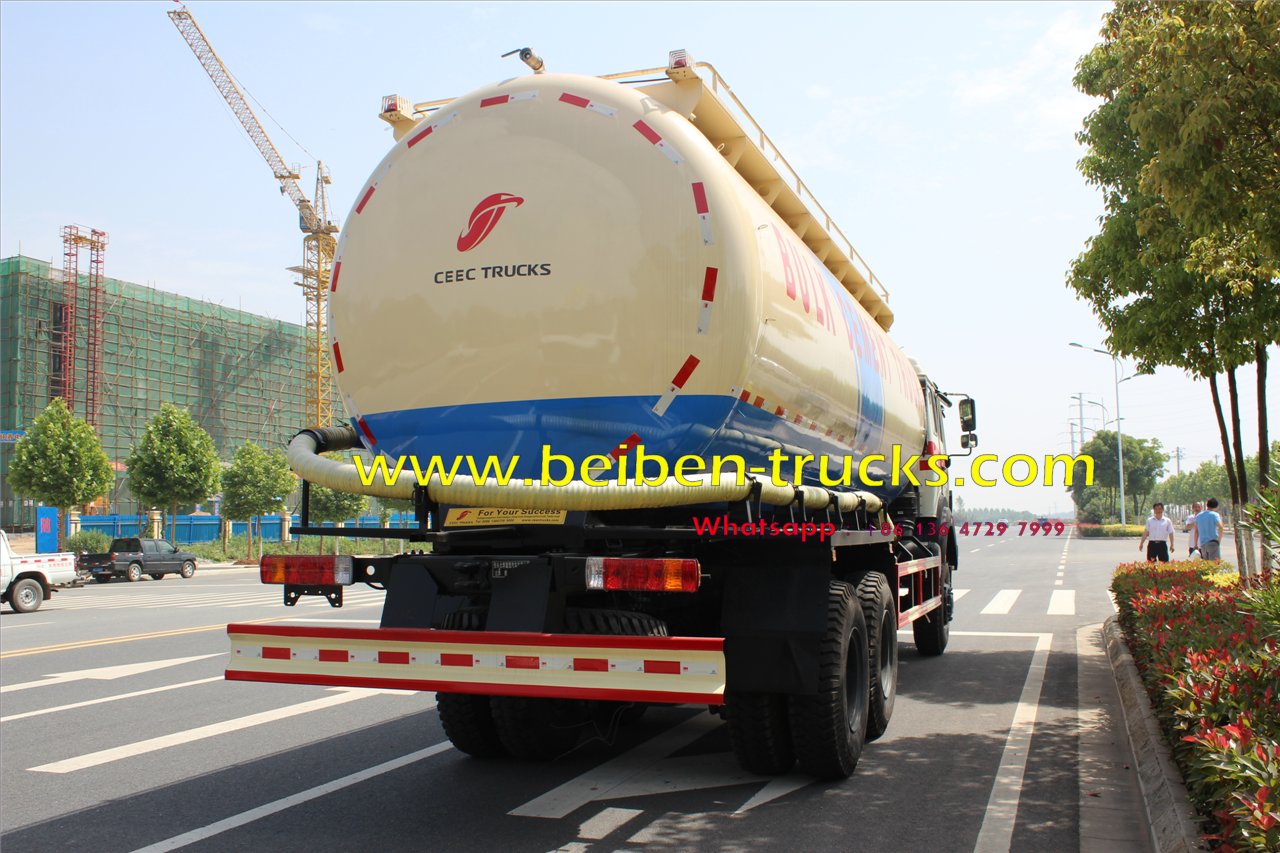

There is an air intake pipe and a discharge pipe at the front and rear air
chambers respectively, which can be opened simultaneously and controlled
separately via their respective ball valves and butterfly valves. When the
system pressure is about to be higher than the rated pressure, the safety valve
of the pipeline will exhaust for the convenience of operations above the tank
body.
Driving
and operating systems
The power of the beiben 2534 off road bulk cement truck is taken from the left output shaft at the rear part of
the gearbox, which is accurately connected to the external power takeoff. The
power takeoff is controlled by the bottom-left push button on the instrument
panel in the cab. The speed regulating device in front of the tank body is easy
and convenient to operate. The control gas circuit is powered by the auxiliary
gas circuit on the cement truck chassis, which has no impact on the safety of running
the truck.
MODEL CEEC1259FJ ( 20-25 T )
Drive System 6X6
SIZE
Volume(m3) 20~25
Dimension(mm) 10500×2500×3690mm
Wheelbase(mm) 5050+1450
WEIGHT
G.V.W(kg) 25000
Payload(kg) 16000
Kerb (kg) 9980
Max.Traveling speed 78km/h
Min.turning diameter 18.8 m
Grade ability 48%
Approach angle 33°
Departure angle 40°
Fuel consumption 33L/100km
Ground clearance 285 mm
ENGINE
Engine Model WEICHAI
336 HP
Engine Type weichai
Max Power(hp) 336
Emission(ml) 9726
TRANSSITION
Gearbox fuller FAST 9 shift , forward 9, reverse 1
Axle Number 3
Front Axle(kg) 8000 Stub axle with double T-cross section

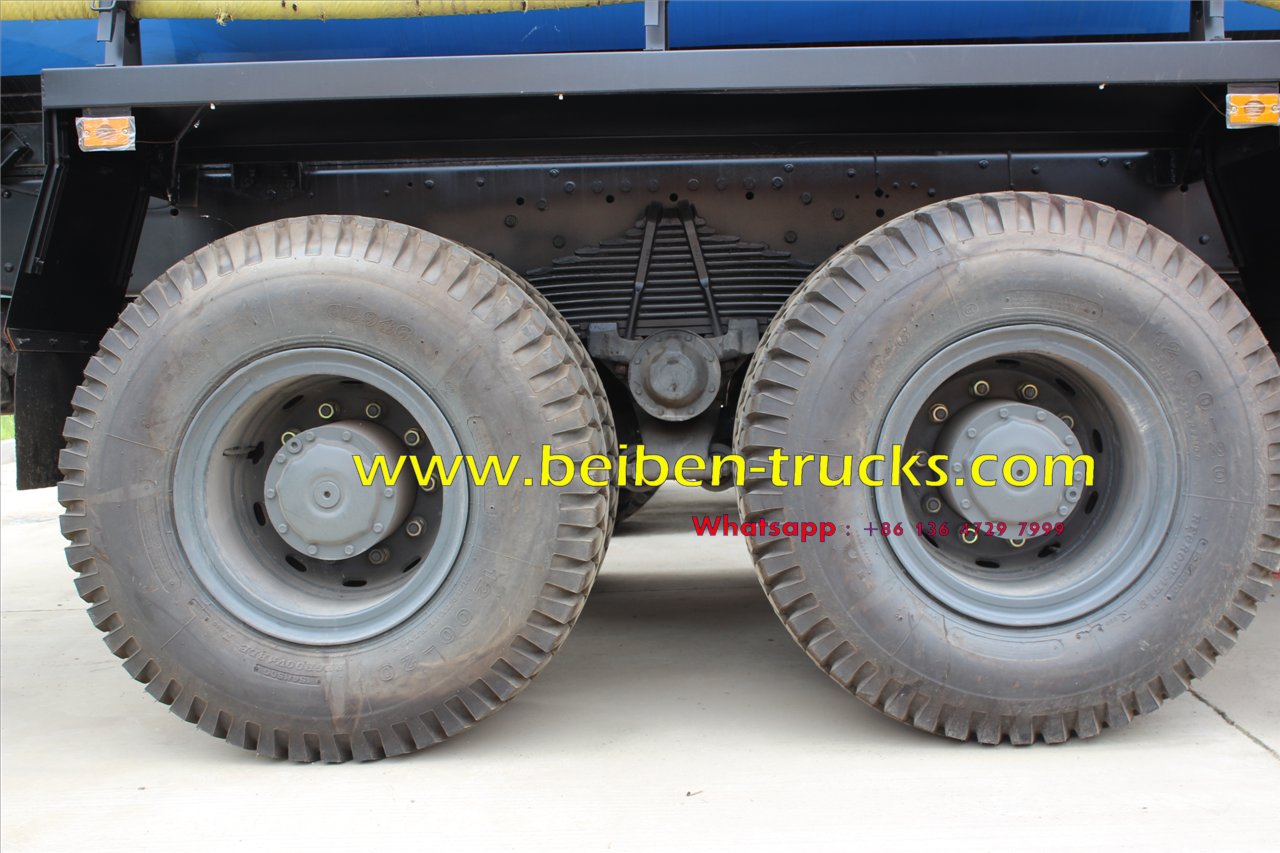

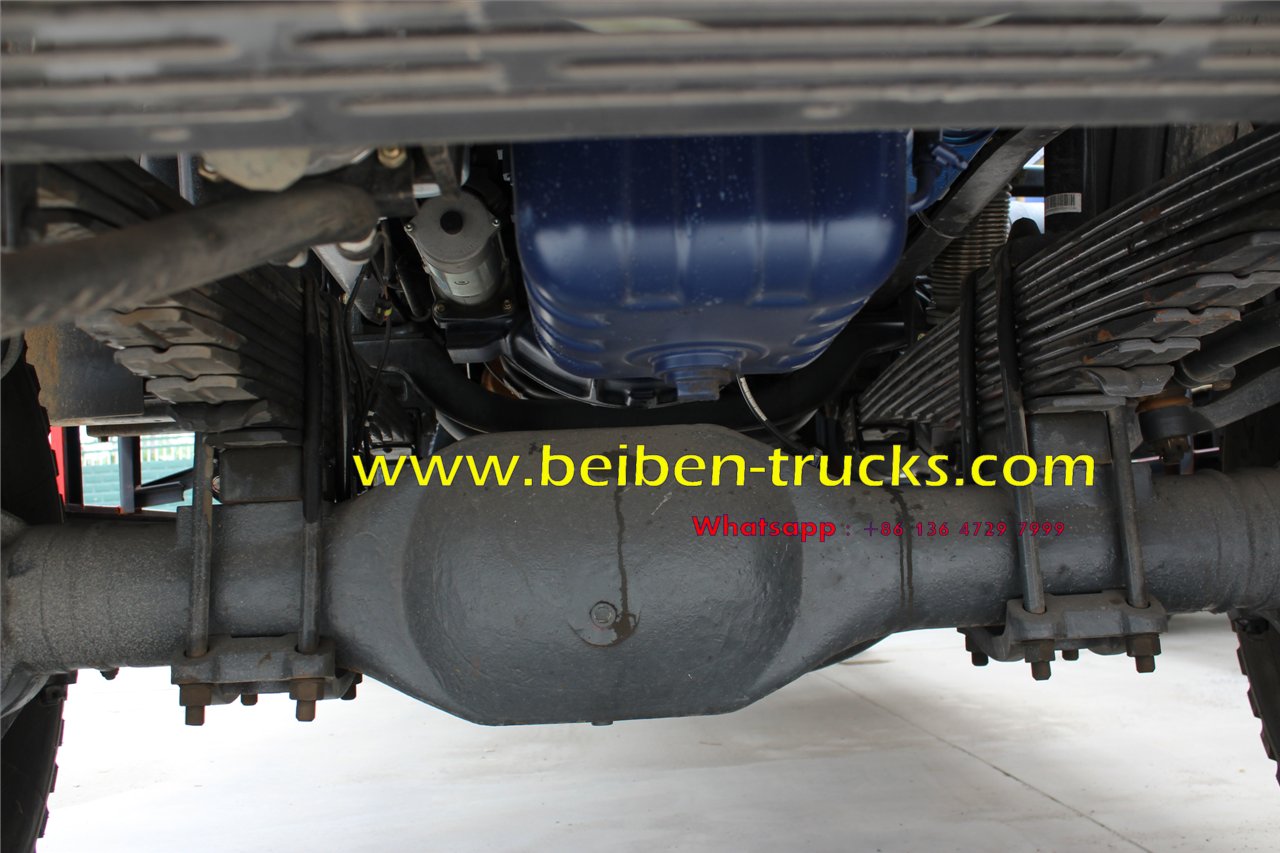

Rear Axle(kg) 18000*2 Hub reductor
Main Ratio(rear axle) 5.73
Leaf Spring L14R13/L14R13/12

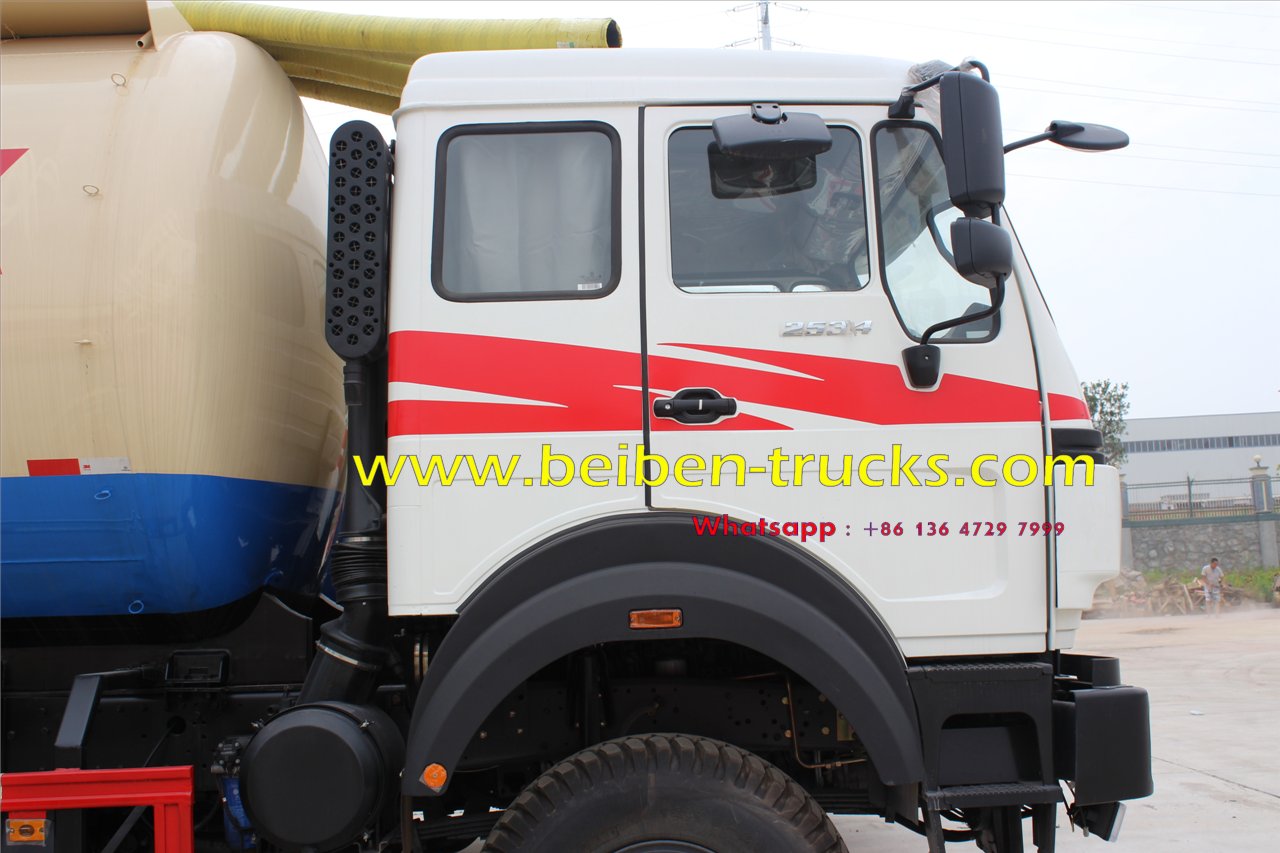

Cabin With
air conditioner and MP3
Clutch and
Brake
Single—plate dry coil-spring clutch,
hydraulically operated with air assistance
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering
System
hydraulic steering with power assistance,Amecica
FOWO .
Ratio 22.2-26.2
Electric System
Negative grounded
System voltage 24V
Batteries 24V/165Ah
Pneumatic
driving SYSTEM
Air
Compressor
Model WBK-7.5/2A left set left rotary
Nominal working pressure 0.2 Mpa
Power take off model QH70A Shanxi
Fasite
Speed Ratio 0.818
pneumo itself loadings > 0.4T/minute
pneumo itself unloadings >1.2
T/minute
vertical height >15 m
Range of supply cement >25 M
