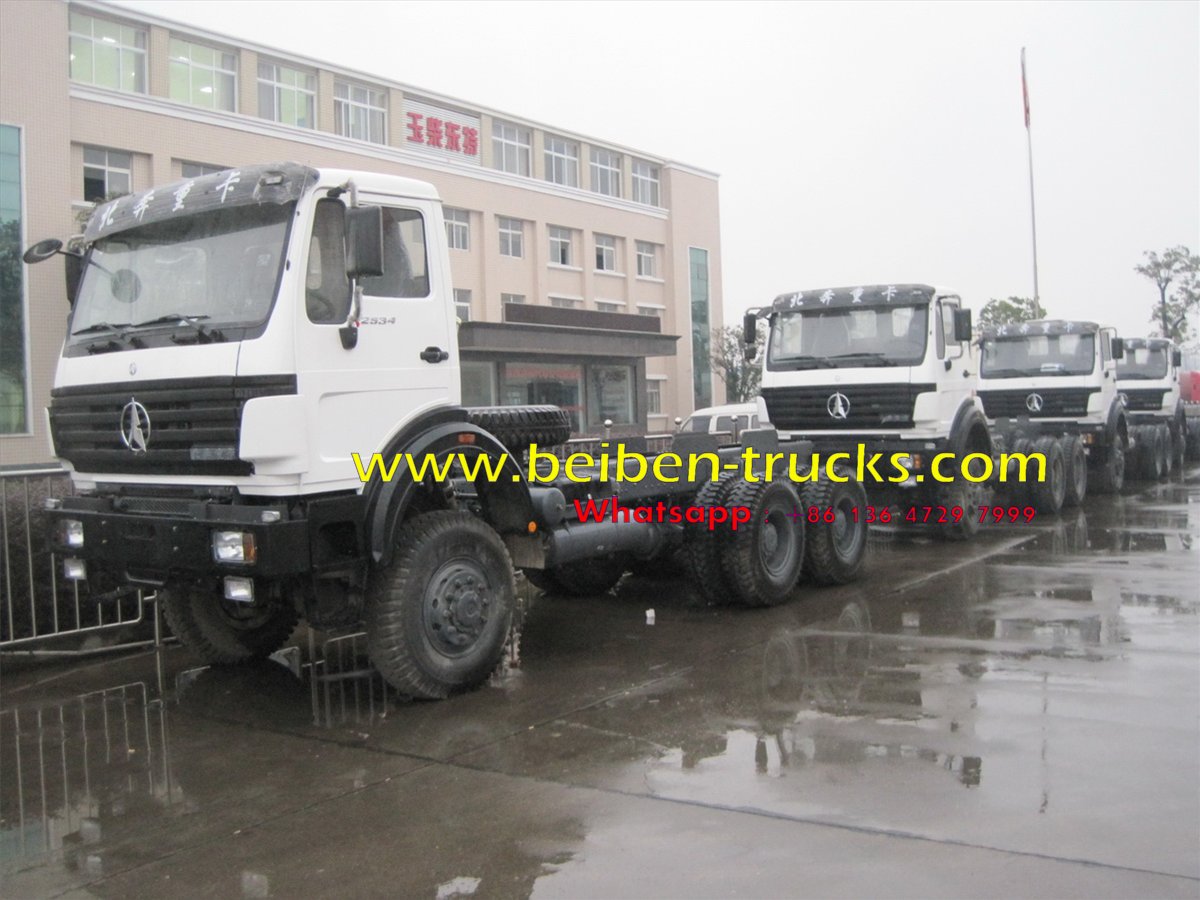

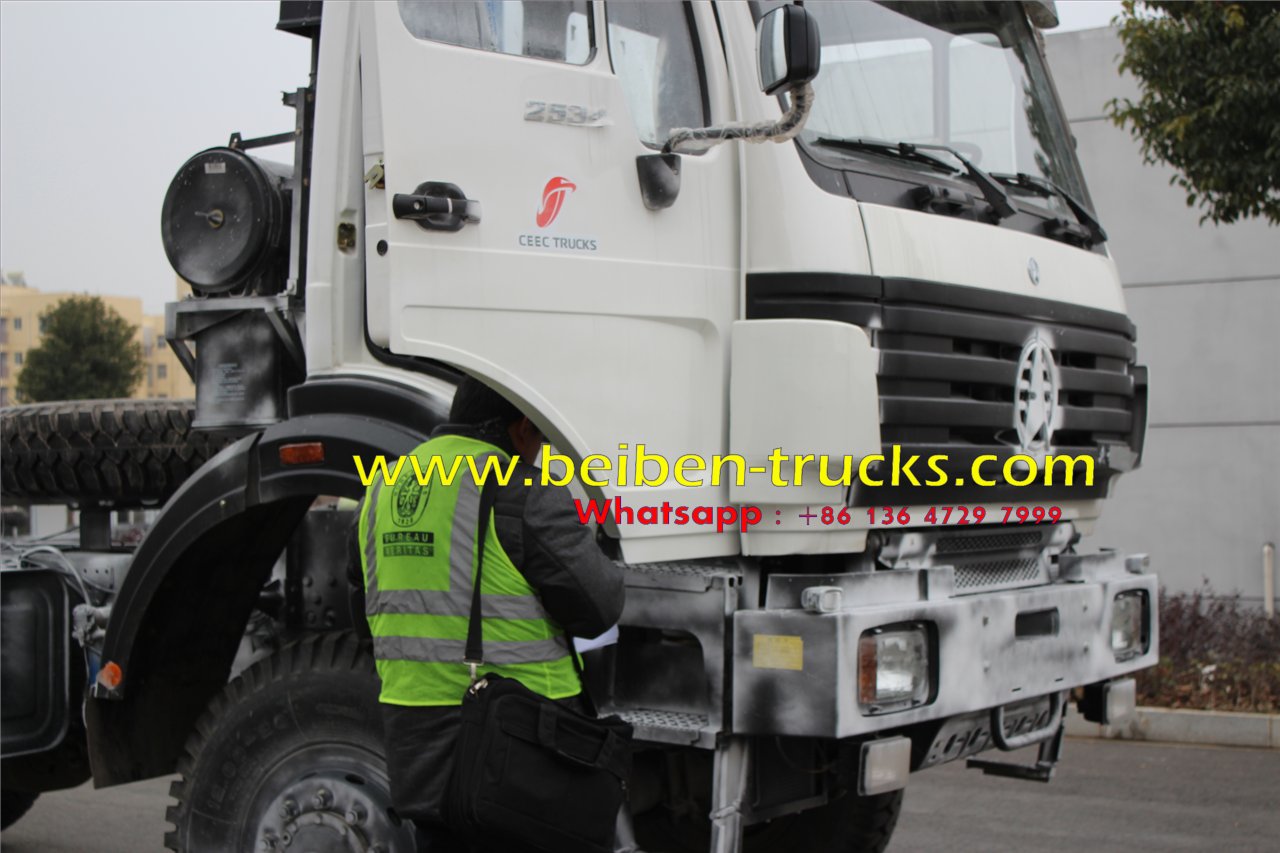

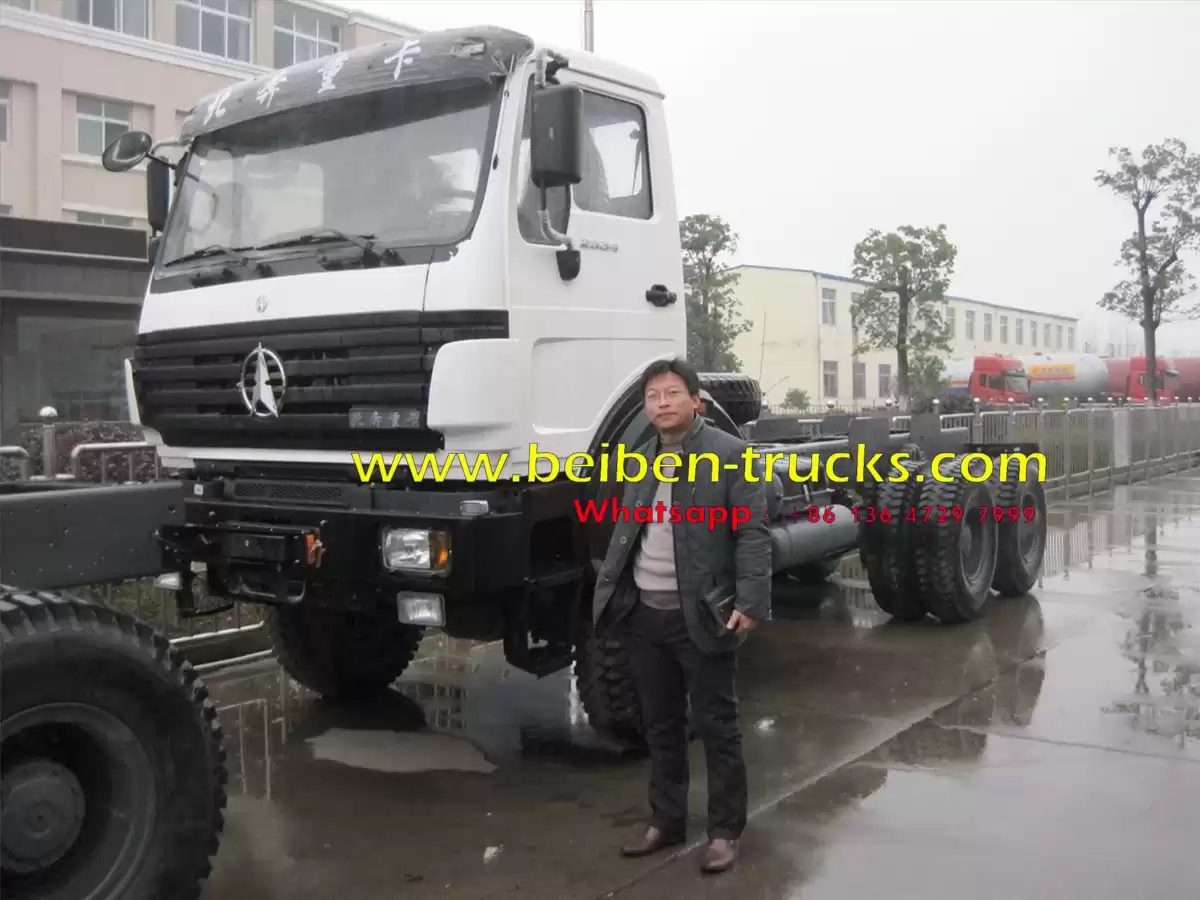

Beiben 2534 6 wheel drive off road tractor truck
Best beiben 6 wheel drive truck supplier in
china, we have more than 10 years on beiben 6 wheel off road military
truck supplying, such as beiben 2631 military truck, beiben 2534
military truck, beiben 2634 military truck.
All north benz 6 wheel drive truck from
our plant will have guaranee more than 12 months, we have professional
engineer to make full solution for all the beiben 6*6 military
truck, beiben 4 wheel drive trucks and beiben 8*8 drive trucks.
The series products of our Beiben military all wheel drive trucks
are ideal transport with outstanding performance and high quality, they
are widely used in industries and sectors, such as national defense,
aviation, postal service, railways, highways, harbors, petroleum,
chemicals, water and electricity, forests, fire fighting, banks and
peace keeping forces
The series products of our Beiben military all wheel drive
trucks are ideal transport with outstanding performance and high
quality, they are widely used in industries and sectors, such as national
defense, aviation, postal service, railways, highways, harbors, petroleum,
chemicals, water and electricity, forests, fire fighting, banks and peace
keeping forces.
|

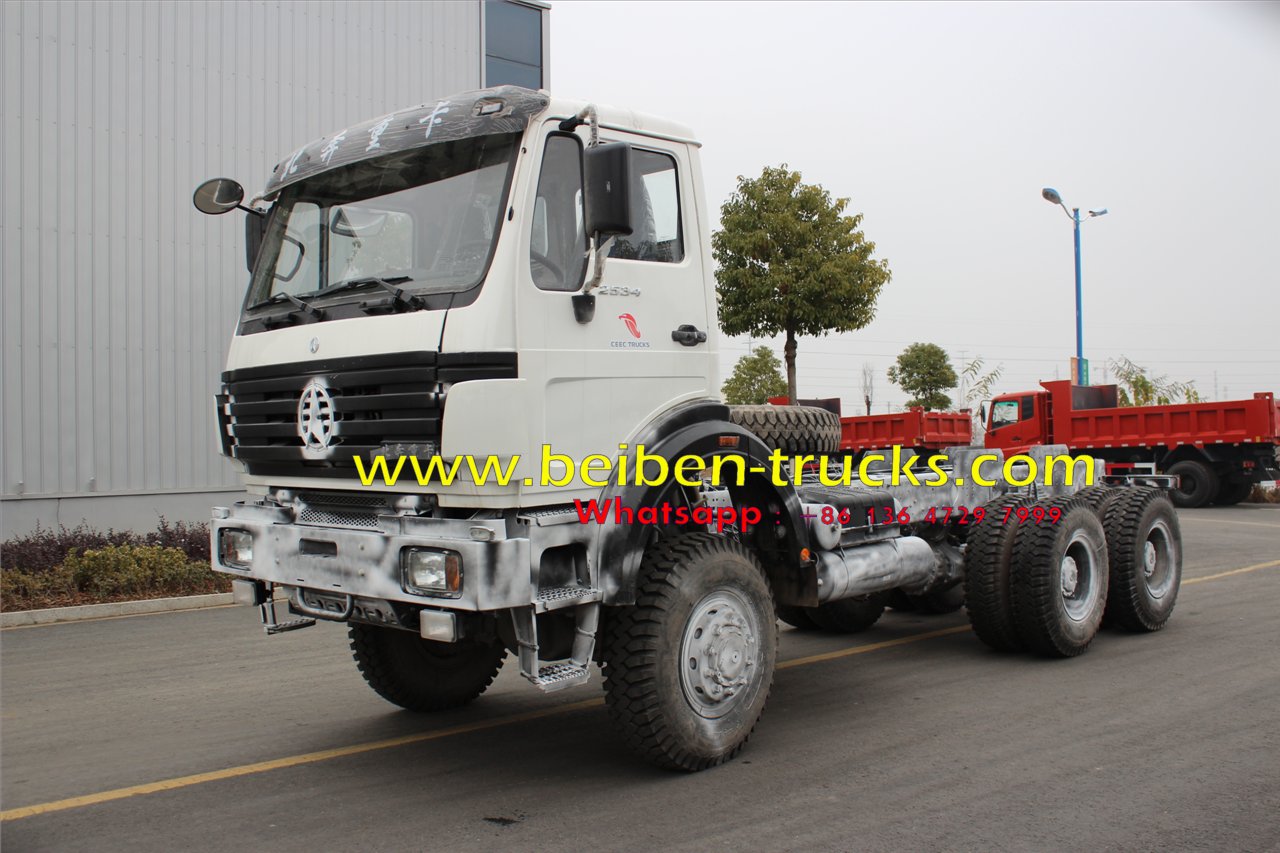

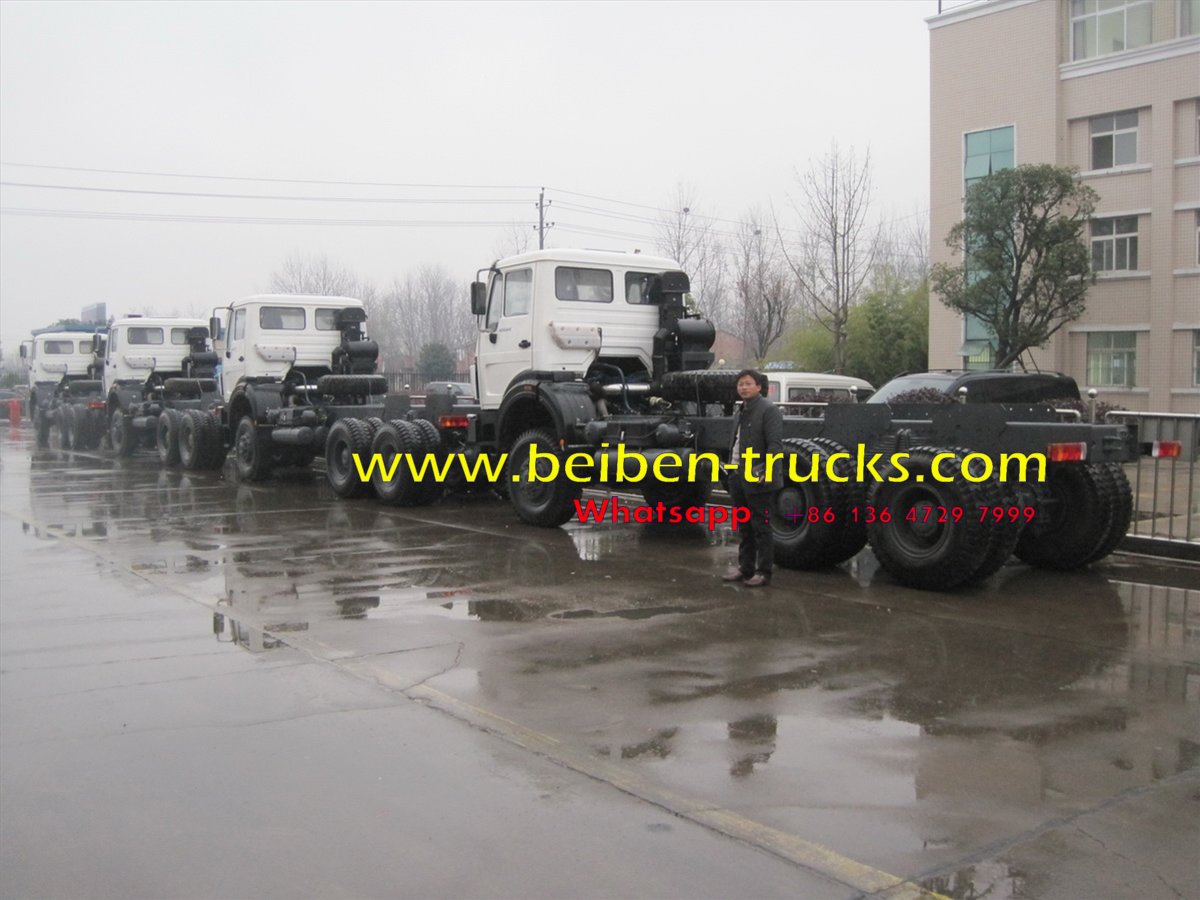

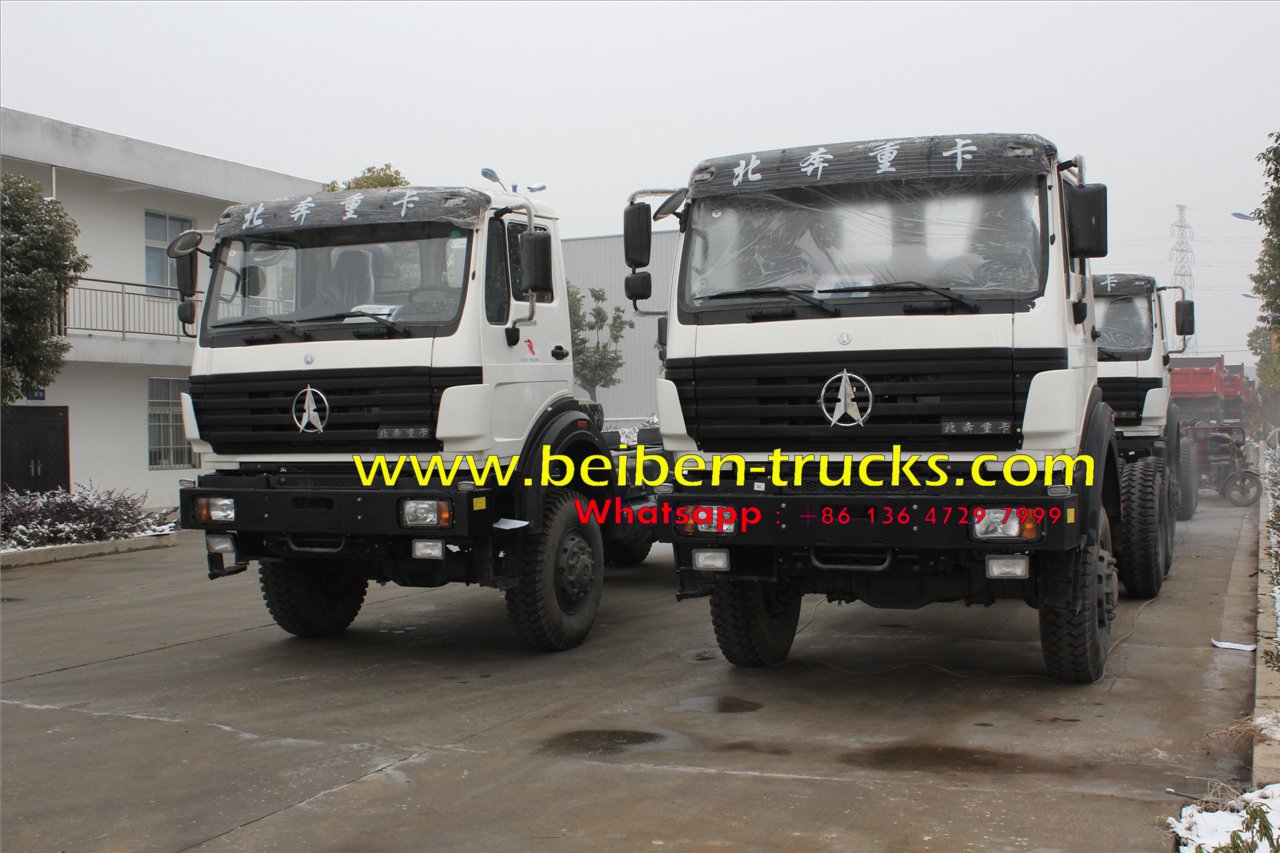

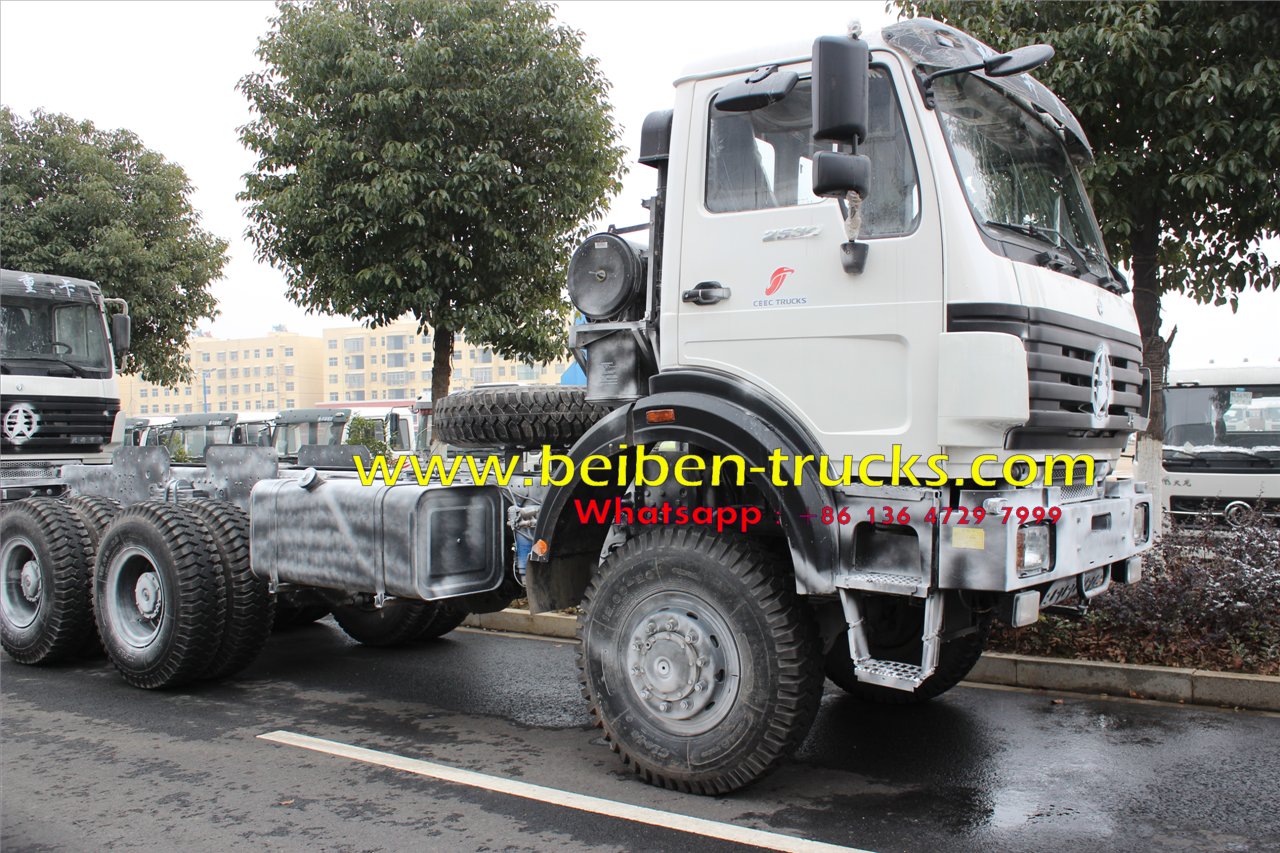

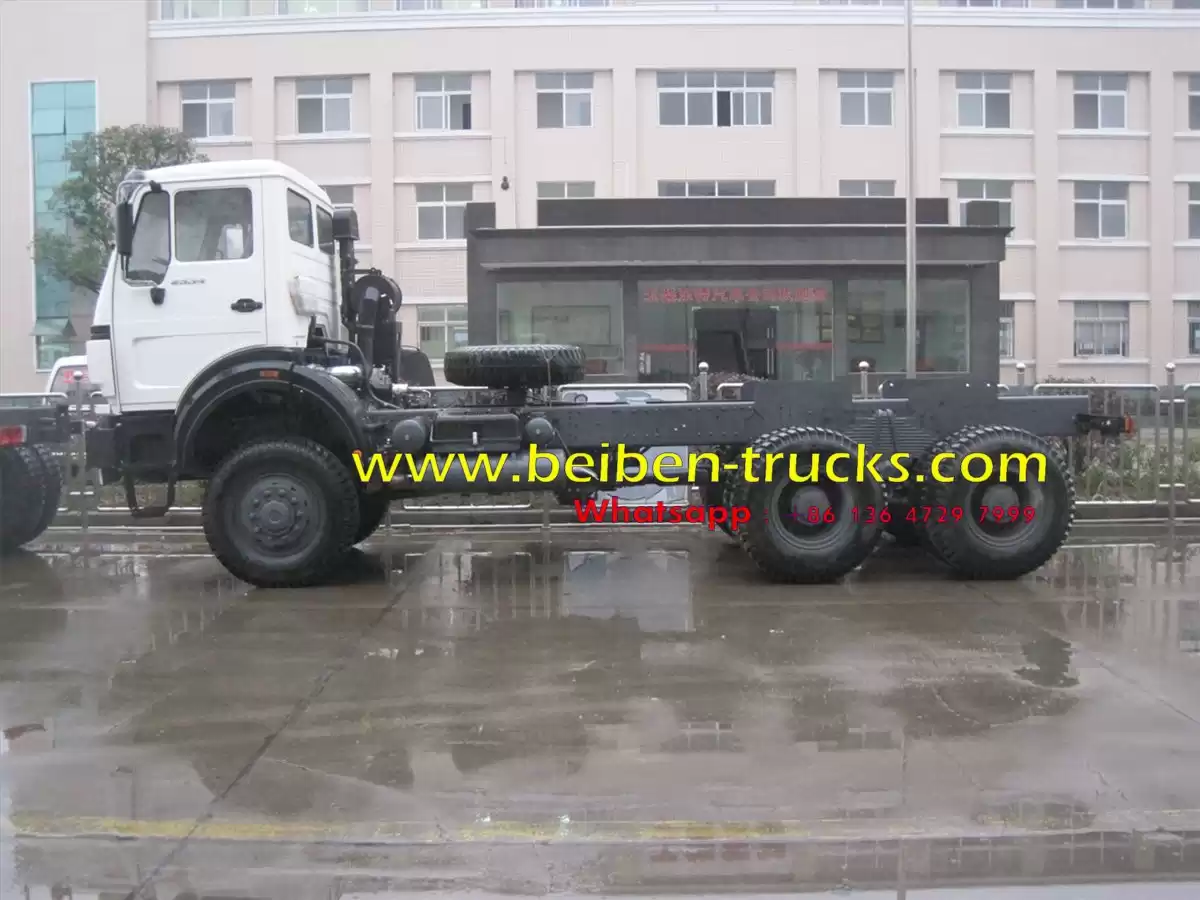

Vehicle Name:
|

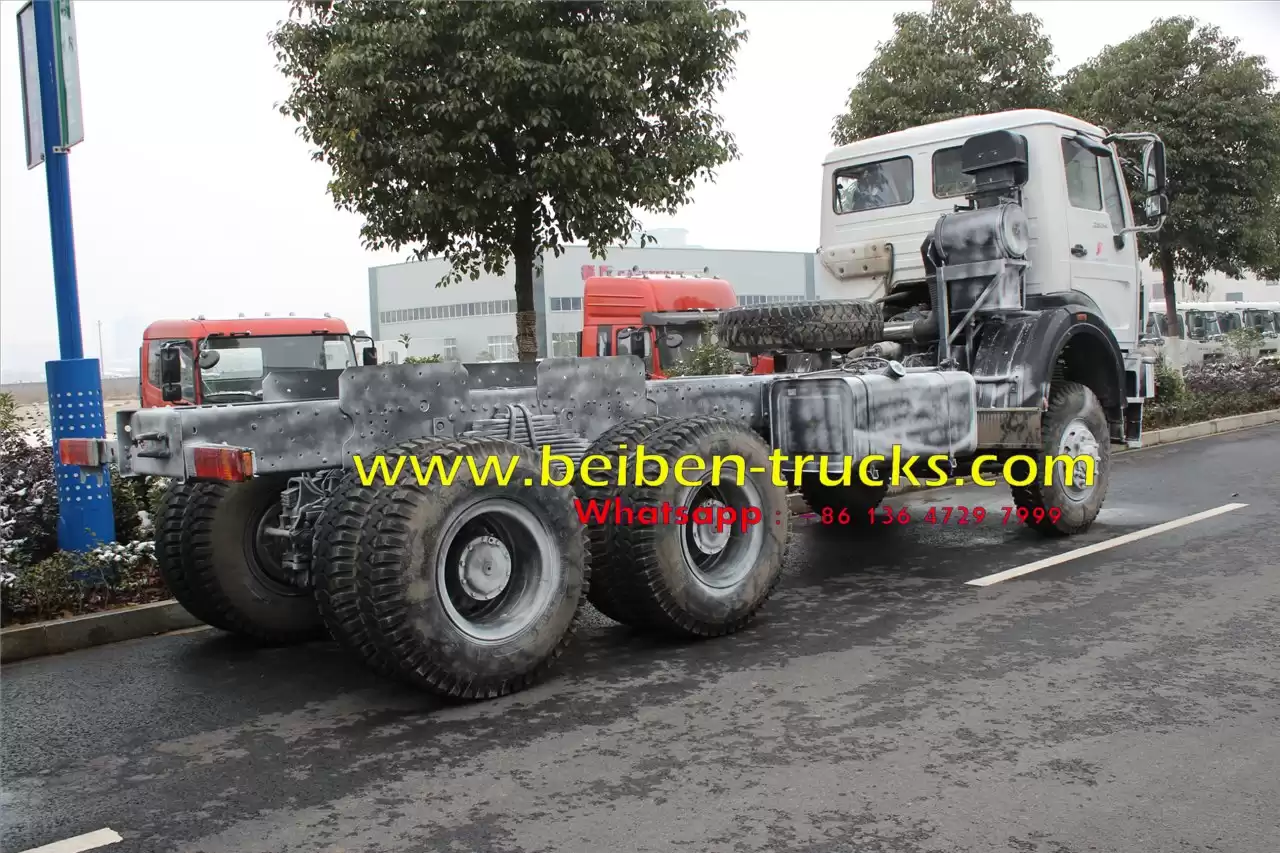

Beiben 6*6 truck chassis
|
|
Types of drive
|
Right hand drive (LHD
)
|
|
Truck model number
|
2534S
|
|
Drive wheel
|
6×6
|
|
Engine model
|
WD10.340 Diesel 4-stroke direct injection engine,
6-cylinder in-line with water cooling, turbo-charging & intercooling EURO 2 engine.
|
|
Horsepower(hp)
|
340
|
|
Bore*stroke (MM)
|
126*155
|
|
Displacement (L)
|
11.596
|
|
Rated speed (R/min)
|
2200
|
|
Max torque (Nm)
|
1750
|
|
Max Torque speed( R/min)
|
1300-1600
|
|
Lowest fuel consumption (G/kw.h)
|
< 198
|
|
Net weight (KG)
|
905
|
|
Meridian tire
|
14.00-20
|
|
Number of tires
|
10 + 1(spare wheel)
|
|
Saddle types
|
None
|
|
Transmission types :
|
12JS200T , 12 shift transmission,
FAST technology
|
|
Steering mechanism:
|
TAS85
|
|
Wheelbase (mm)
|
4450+1450
|
|
Cab style
|
Long with 2 beds, Benz technology
|
|
Air-condition
|
With air-condition
|
|
Cab body style
|
The whole steel ,The driver’s seat adjustable
, high safety,lower wind resistance coefficient, Benz Technology.
|
|
Steering system
|
High safe and reliable, and flexible, ZF8098
|
|
Brake system
|
Service brake ,Can automatically adjust the
brake clearance, Double air brake system , WEVB
|
|
Electric system:
|
Stronger load ability, high reliability and
easy maintenance
|
|
Truck frame style
|
Fish maw shape, inequilaterally section, equal
intensity, Benz technology
|
|
Front axle
|
Benz 7.0T Transaxle
|
|

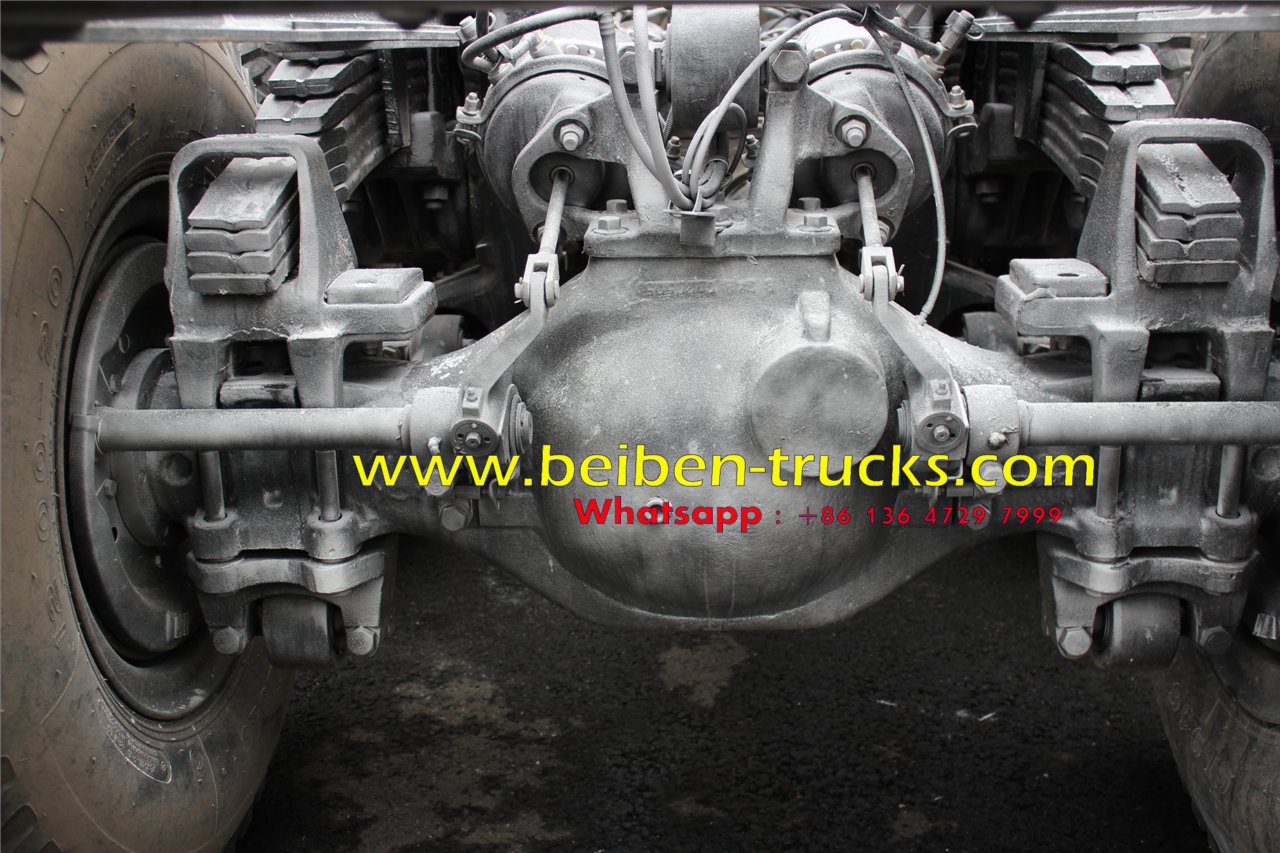

Rear axle
|
Benz
Technology,double deceleration bridge, high
efficiency, carrying large, Mercedes
Benz strengthened axle (punching-welding axle housing, double
reduction driving axle, inter-wheel differential and differential lock)
Ratio=5.263
|
|
Electric system:
|
Stronger load ability, high reliability and
easy maintenance,24 V
|
|
Emission standard
|
Eur 2 & EURO 3
|
|
Fuel tank capacity (L)
|
400
|
|
Optional equipment
|
Saddle , upper berth, ABS , squareness
silencer.
|
