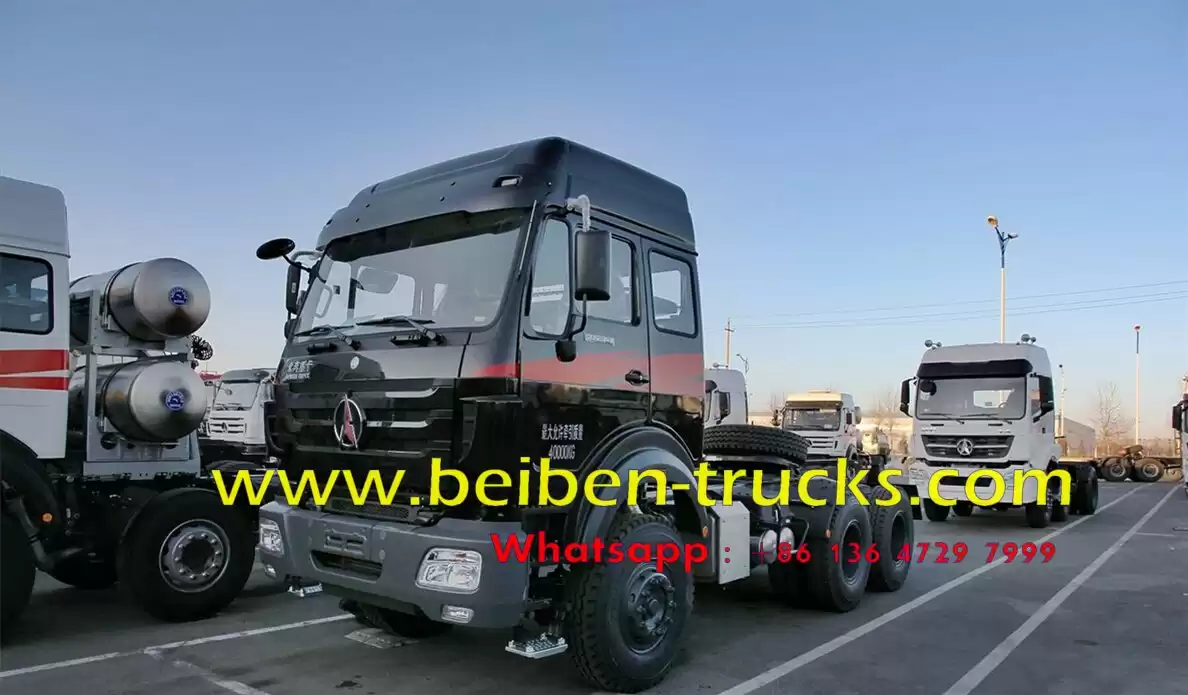

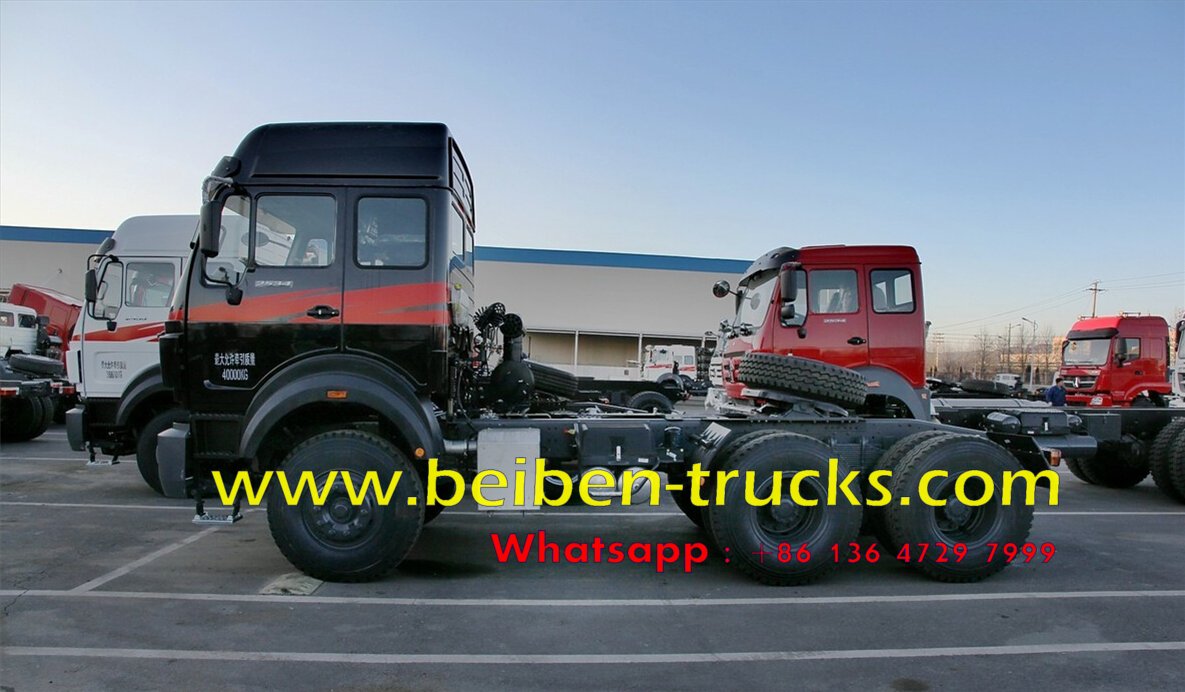

Congo 6x4 tractor truck(Mercedes Benz technology)
Germnay benz truck Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: North Benz (One Sleeper)
As the best beiben camions tracteur supplier for congo customer,we aim at to be the most professinal beiben NG80B tractors supplier on beiben 340 hp engine tractor trucks, beiben 340 hp engine tractor truck, beiben 420 hp engine tractor truck for congo country.
We provide original beiben 340 Hp tractor truck, 380 hp, 420 hp tractor truck for CONGO , pointe noire , brazaville, kinshasa, Matati . The most competetive price for congo beiben tractor trucks.
Our congo local agent on beiben NG80 tractors will dedicate ourselves to the whole perfect solution for customer's logistic arragement. Beiben trucks , for your success.

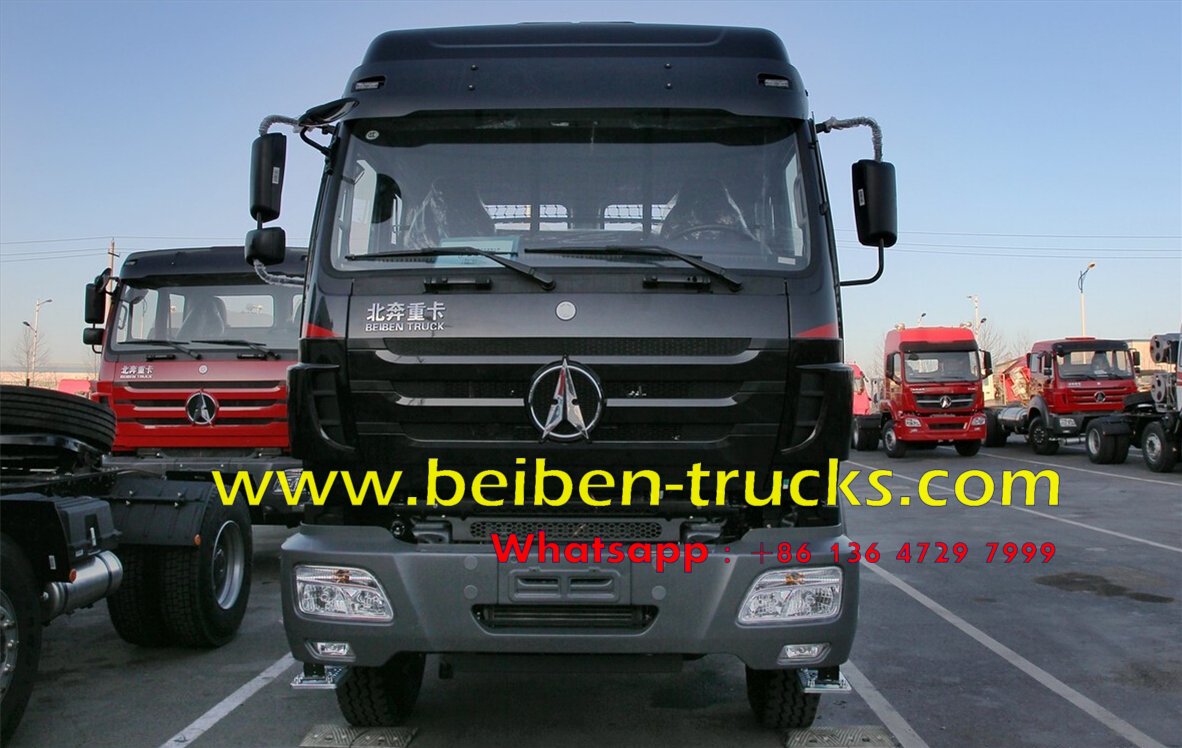

Bei Ben new NG80B tractor trucks is with attractive appearance, and specific heavy tractor truck metallic framework + stressed-skin construction, possessing security of same level of European automobiles, which fulfils European ECER29 safety and regulatory requirements; stamping molding of frame only once ensures girder strength.

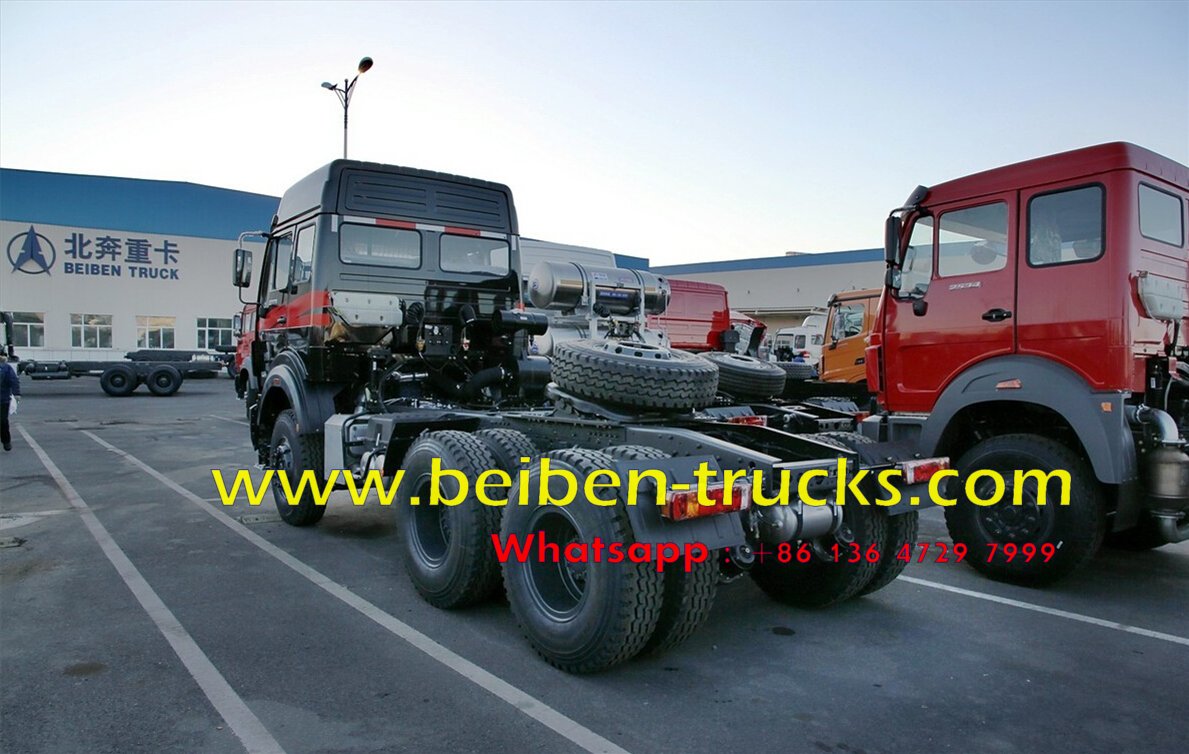

CONGO 2016 year beiben tractor truck on SALE
6x4 drive, 340
Hp engine, 12 shift transmission,Euro 2
Industries application
Construction, Mining
and quarries, Heavy duty material transportation Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Great quantity china Beiben NG80 right hand drive tractor trucks with customer LOGO, which we have exported to South africa.
|

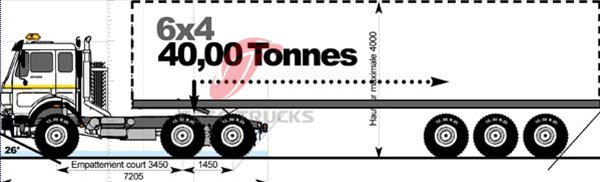

2534SZ
/6×4/3450+1450/Long Cab/LHD
|
|

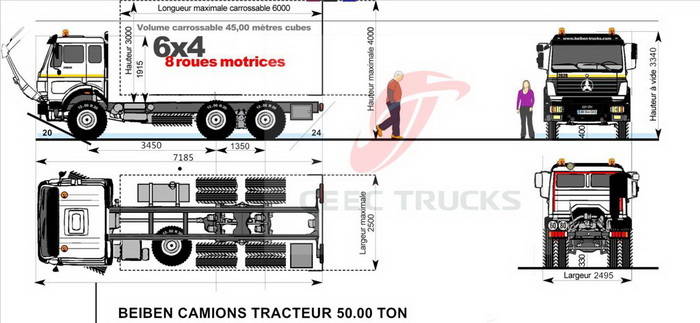

Dimension
|
6935*2495*3180mm
|
|
Approaching
angle/Departure angle
|
26/64°
|
|
Overhang(front/rear)
|
1410/625mm
|
|
Wheel
base
|
3400+1450mm
|
|
Max
speed
|
90km/h
|
|
Curb
weight
|
9200kg
|
|
Max
towing weight
|
39600kg
|
|
Max loading on fifth
wheel, Permitted(kg)
|
15670kg
|
|
Slope
climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly
injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max.
power
|
276/2200
(kw/rpm)
|
|
Max.torque
|
3500/1200-1600（Nm/rpm）
|
|
Emission
stantard
|
EuroⅢ
|
|
Fuel
tanker capacity
|
400L
|
|
Clutch
|
∮430,
Single dry frictional disc，Hydraulic boosting
|
|

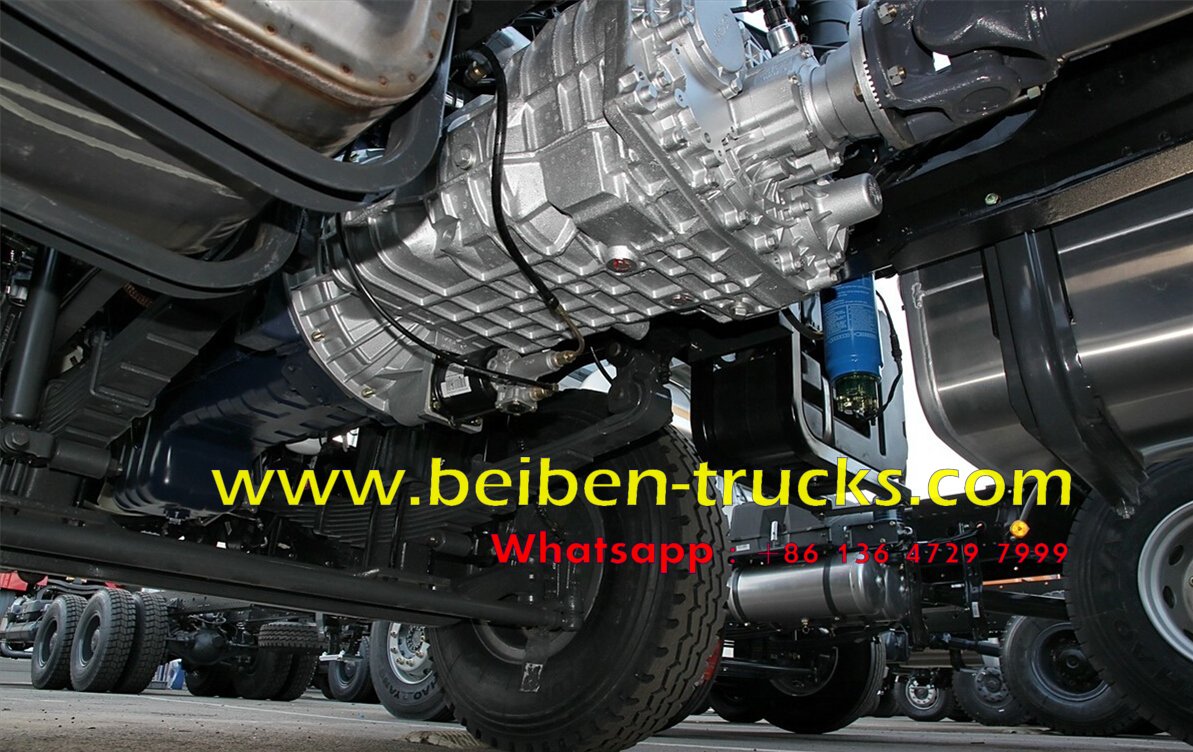

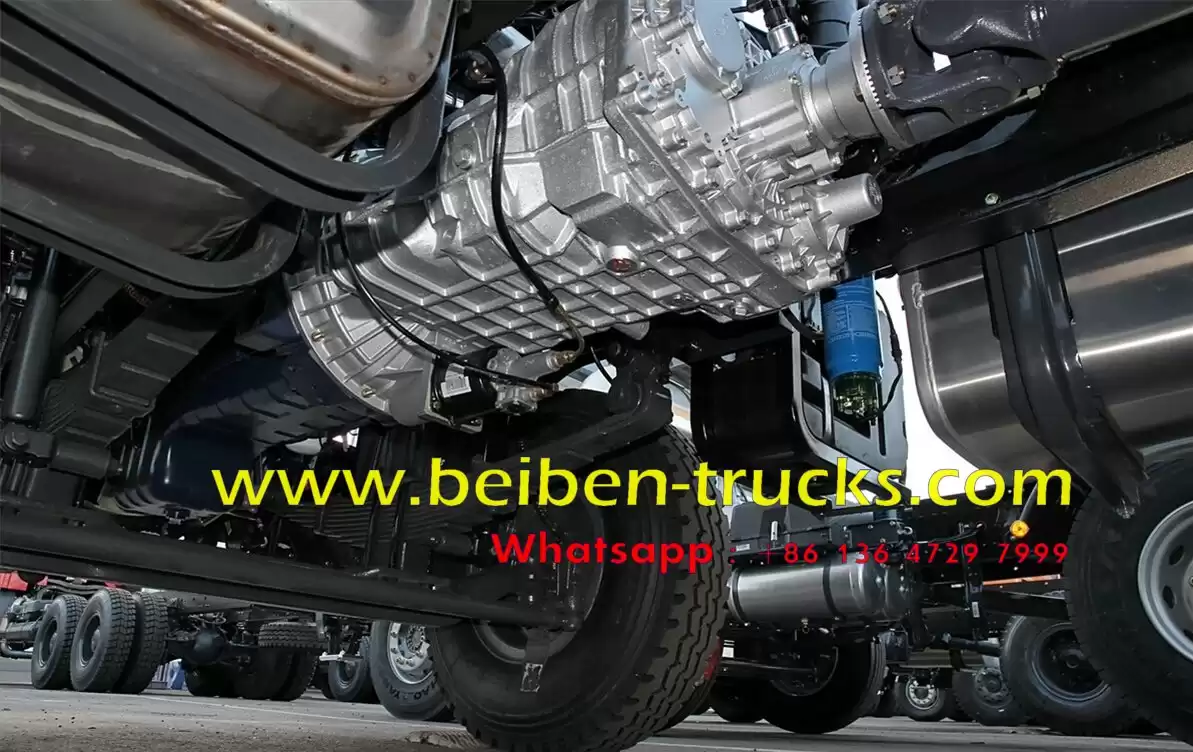

Gearbox
|
12JS160T,
mechanism,12forward gears,2 reverse gear, manual operated
|
|
Gear
ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00
R:14.86/3.33
|
|

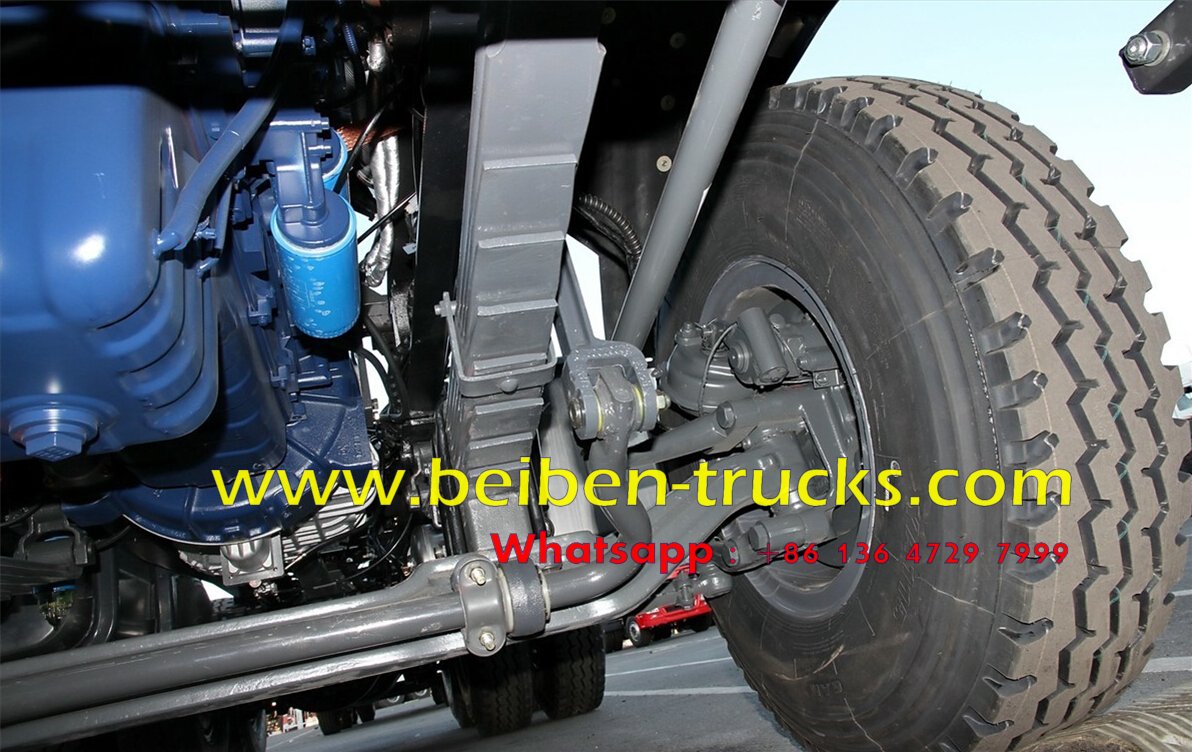

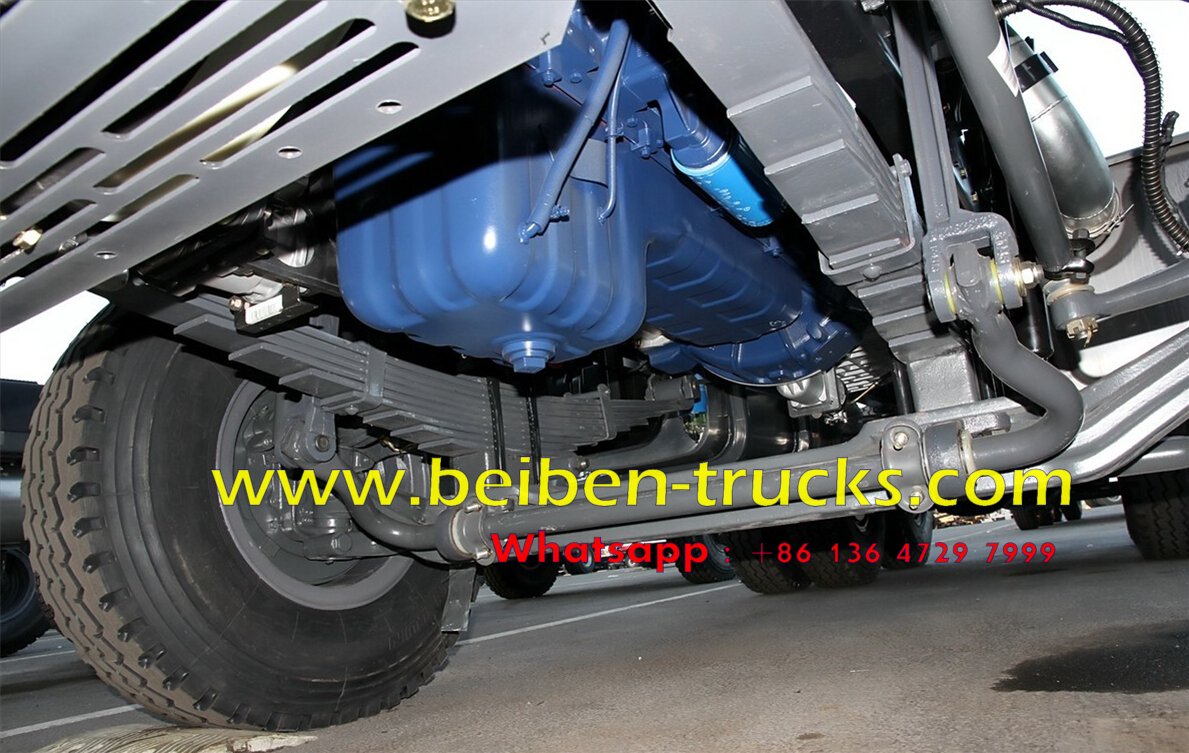

Suspension
system
|

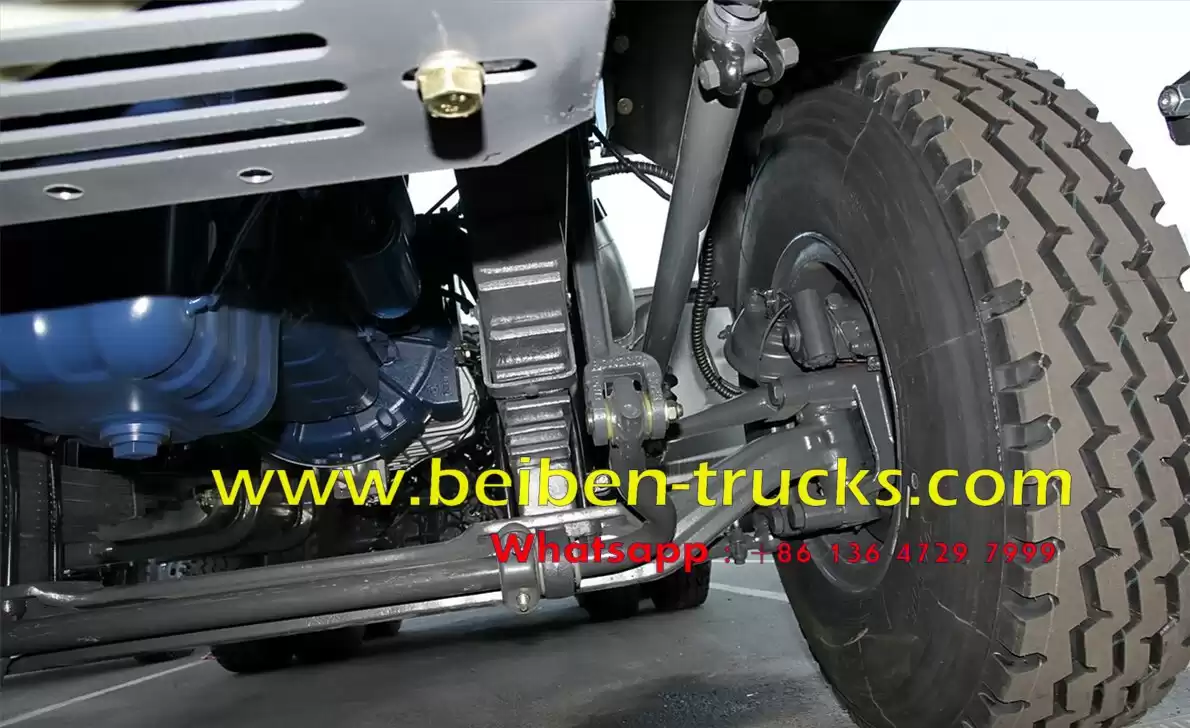

Front
|
Non-free standing leaf spring,telescopic shock absorber with
stablizer bar suspension , 13pcs
|
|

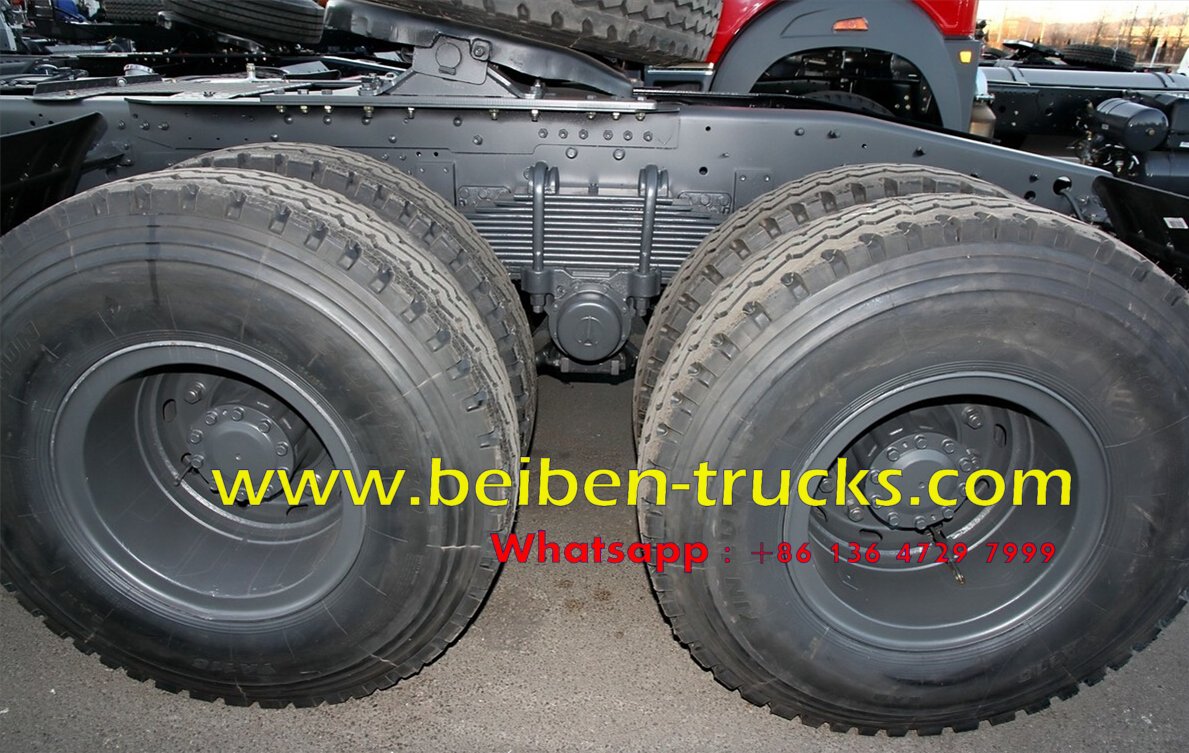

Rear
|
Non-free
standing stablization spring, balance suspension system, 13pcs
|
|
Brake
system
|
Service
brake
|
Brake gap can be adjusted automatically, double circulation
air brake system
|
|
Assistant
brake
|
Engine
exhaust brake
|
|
Park
brake
|
Potential
springs pressing on middle and rear wheels
|
|
Steering
system
|
ZS8098,whole
circulation in ball, hydraulic booster
|
|

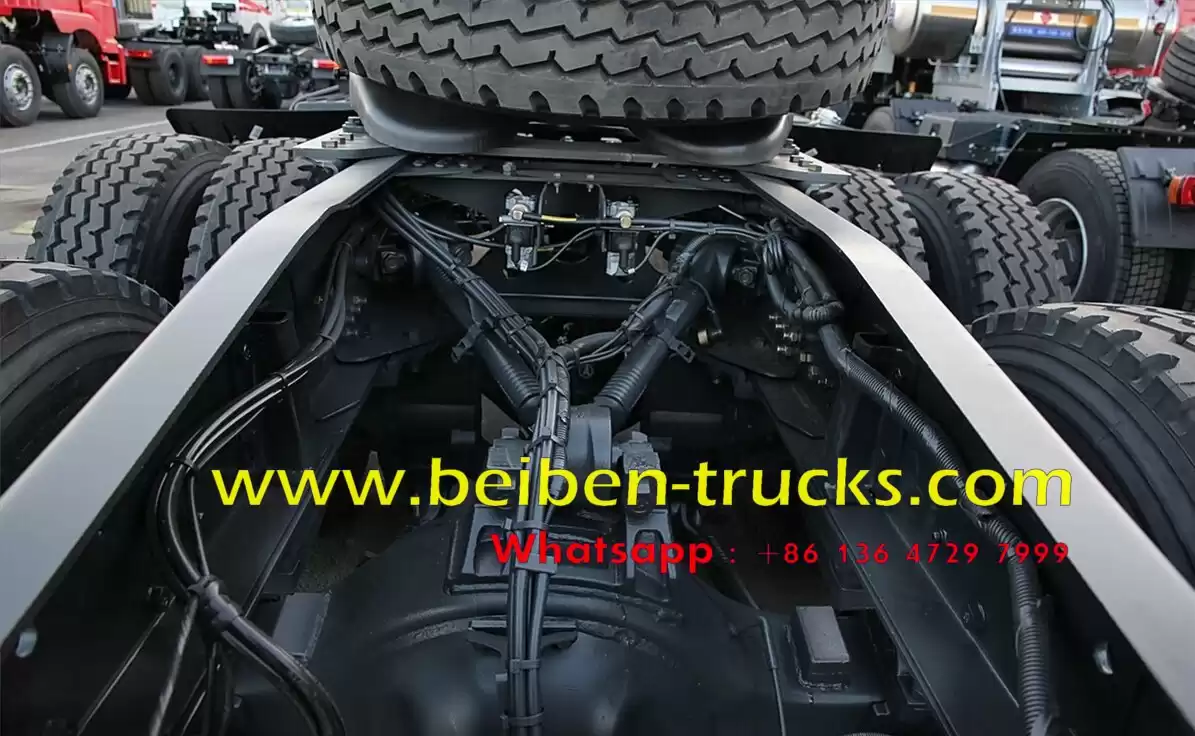

Frame
|
Fish
belly shape, variable width, variable sections
|
|
Model
|
JOST ∮90
single direction
|
|
Height of fifth
wheel(mm) (unload)
|
1410
|
|
Radius of front gap
(mm)
|
2300
|
|
Radius of rear slew
(mm)
|
2600
|
|

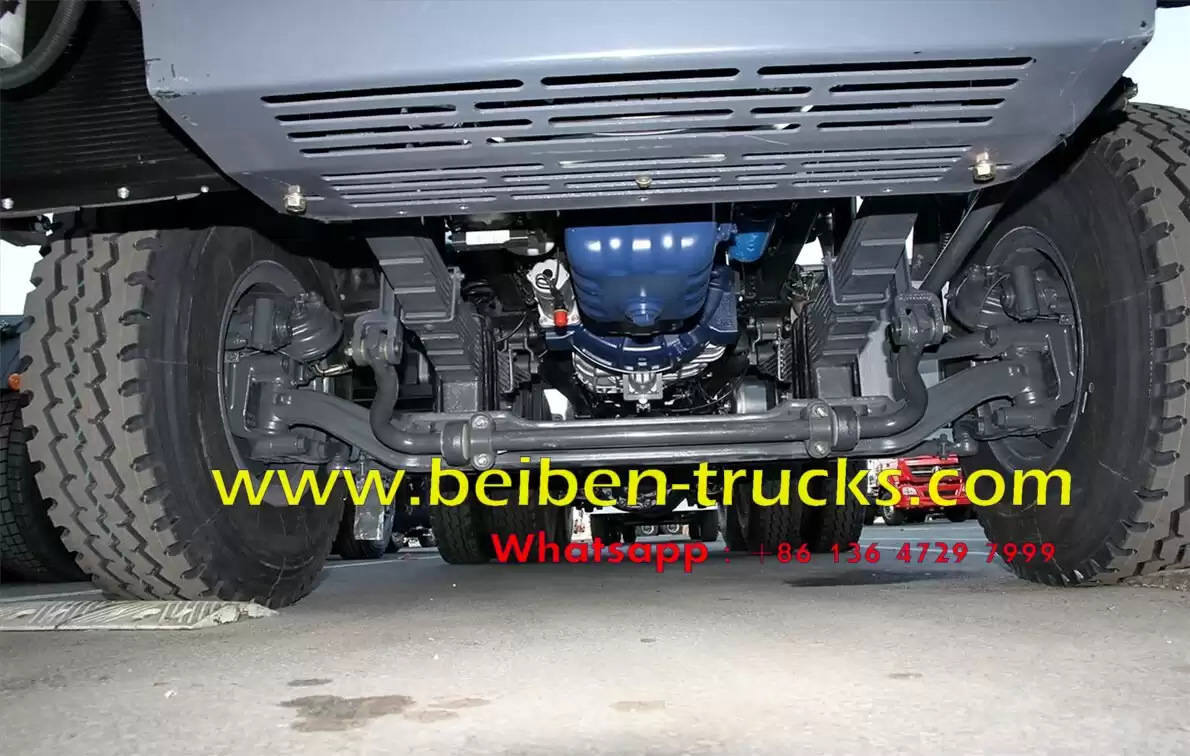

Front
axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, non-driving steering axle
|
|

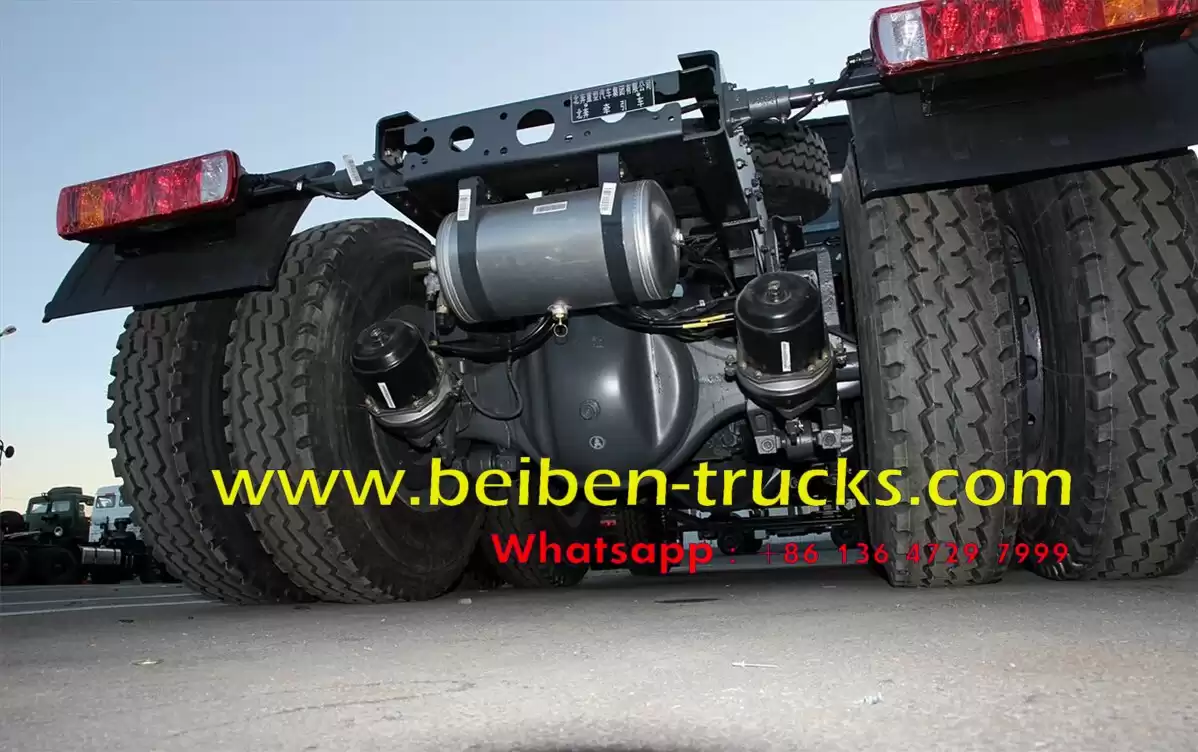

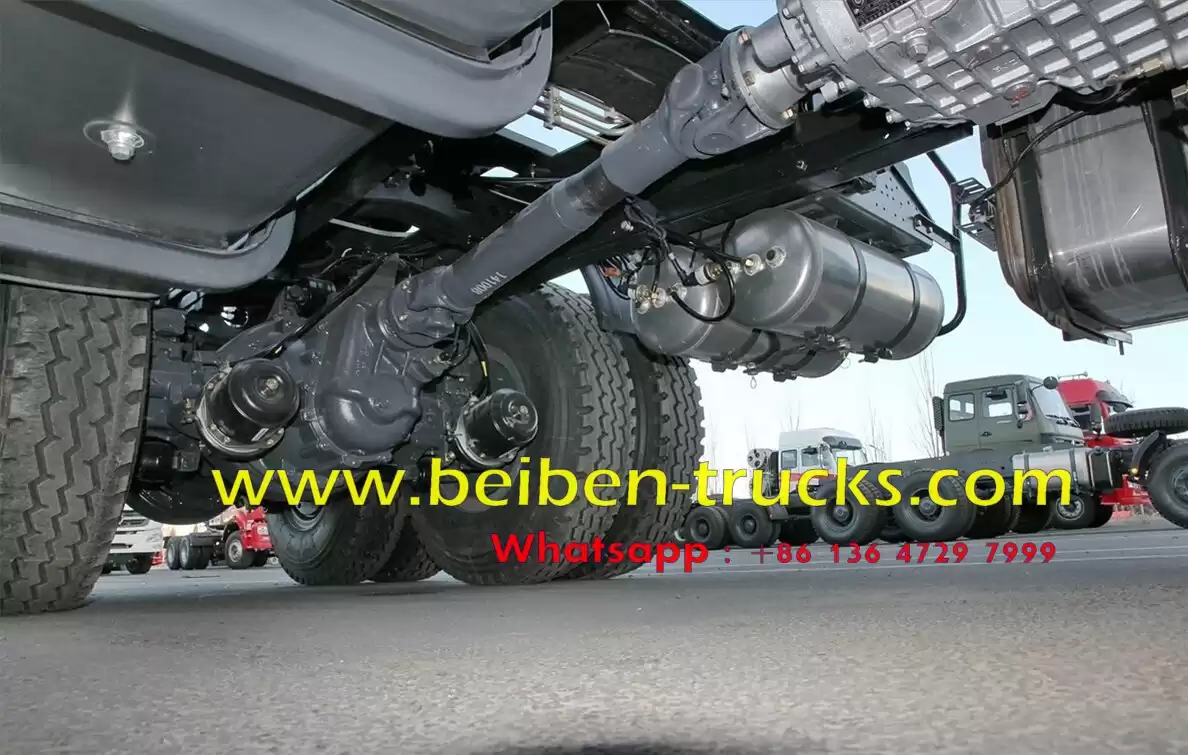

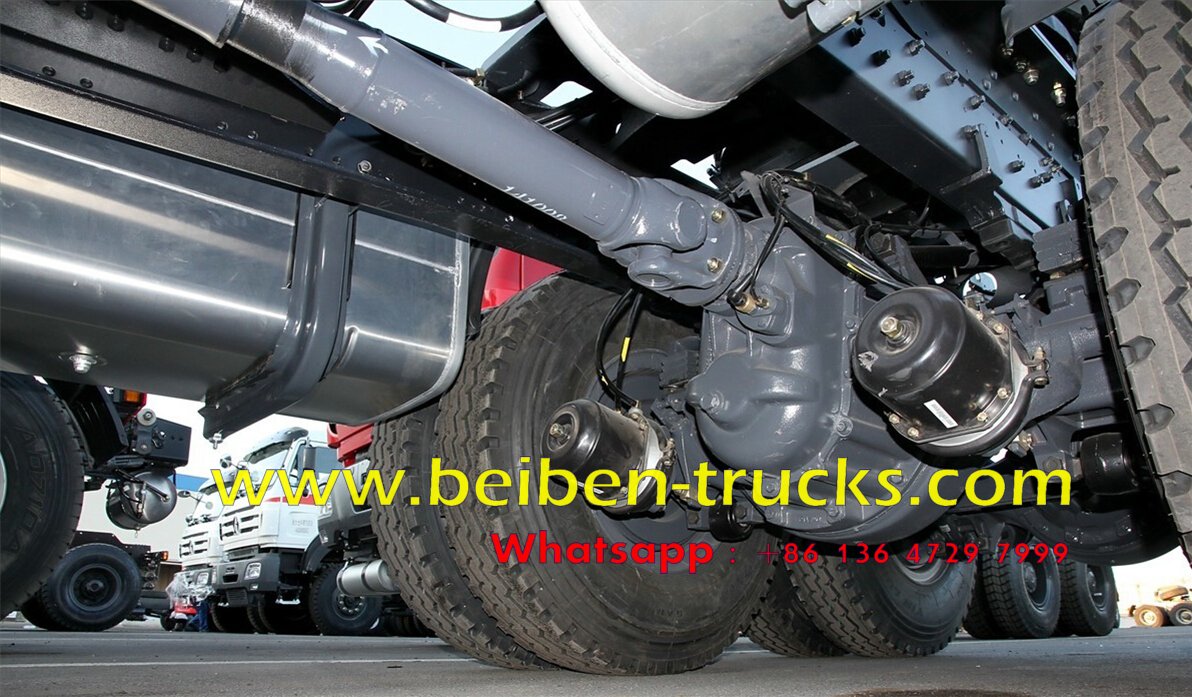

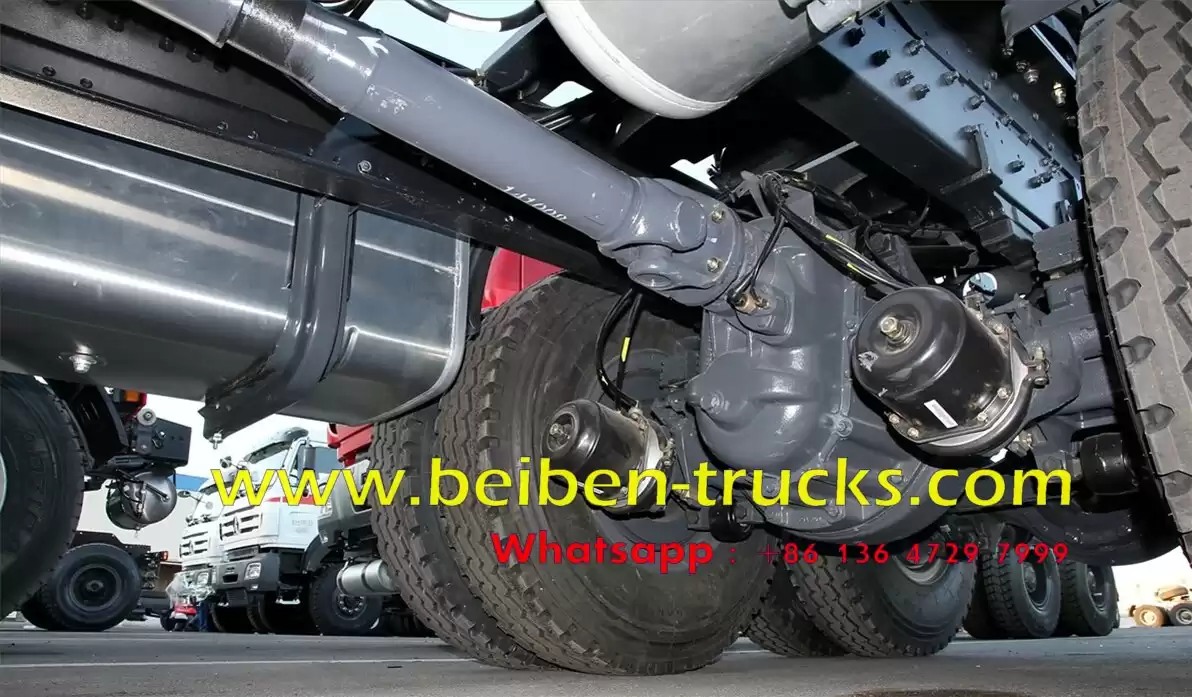

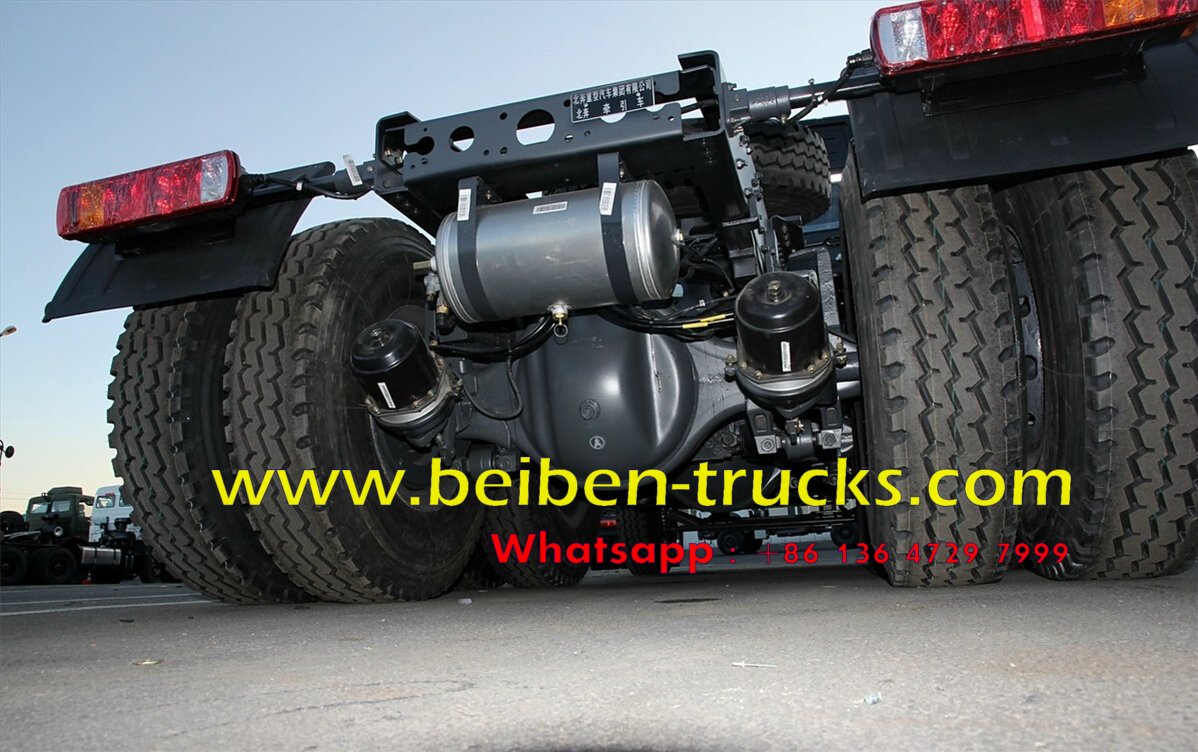

Middle
and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub
redactor, double reduction driving axle
|
|
Tyre
|
12.00/R20
|
|

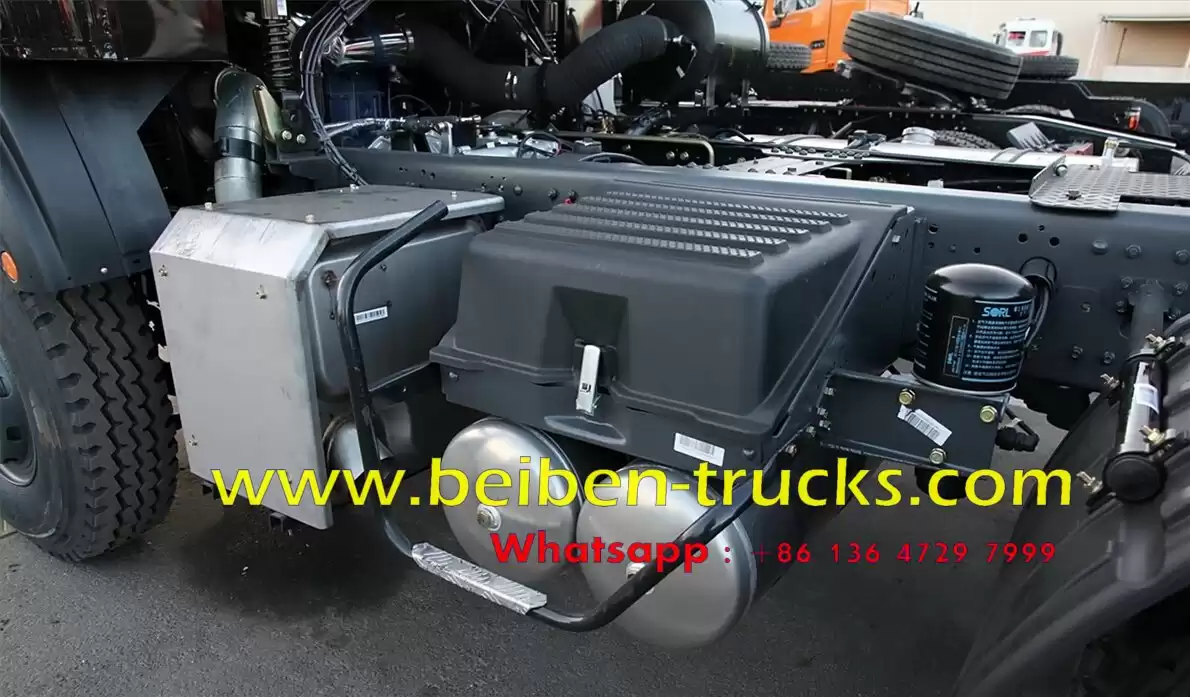

Electrical
system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

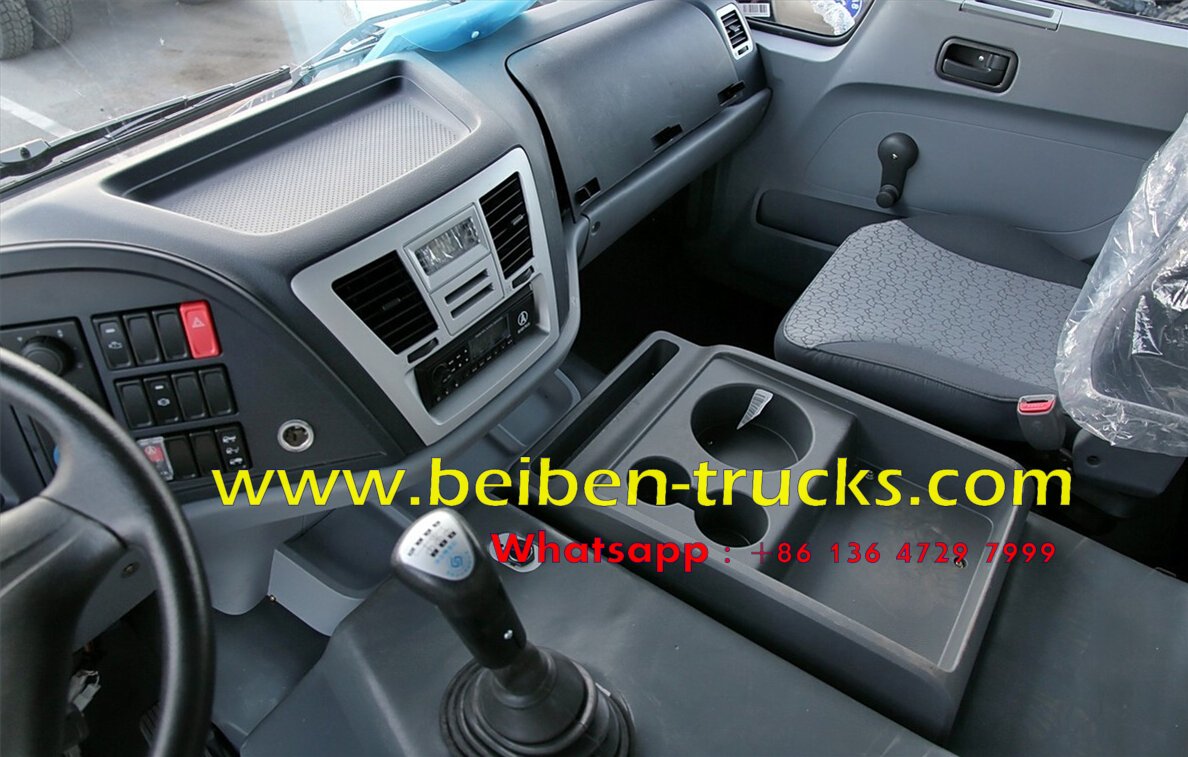

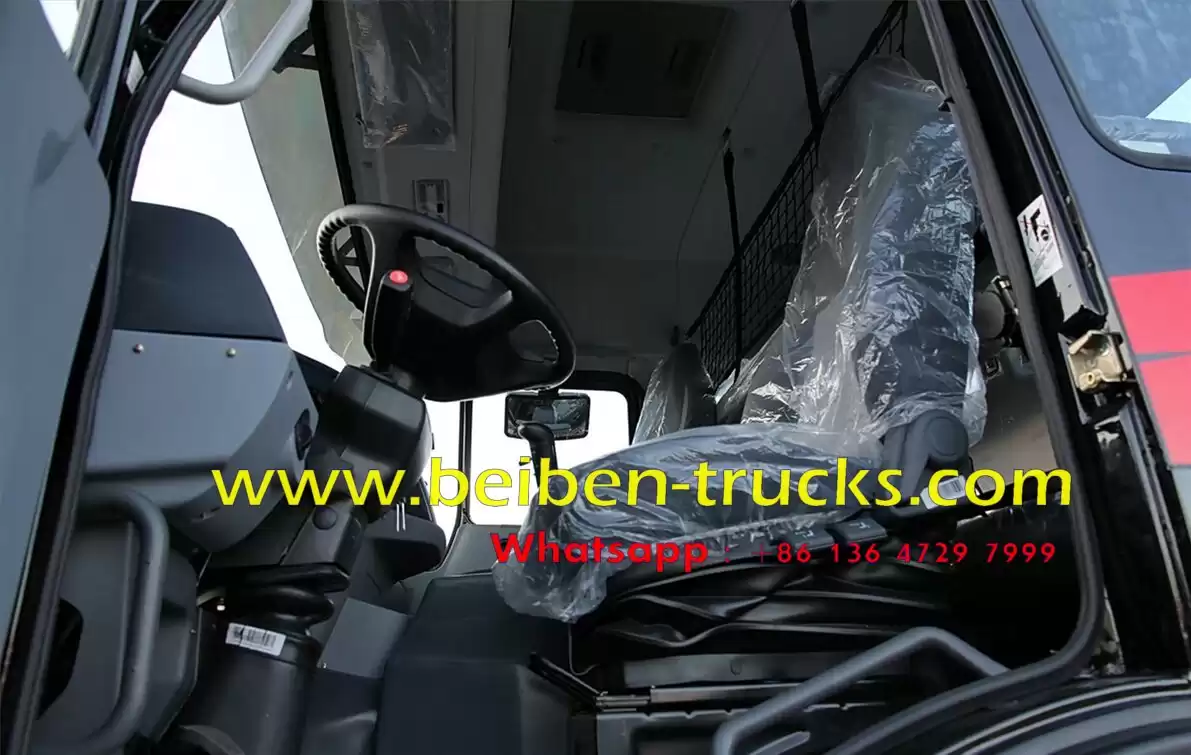

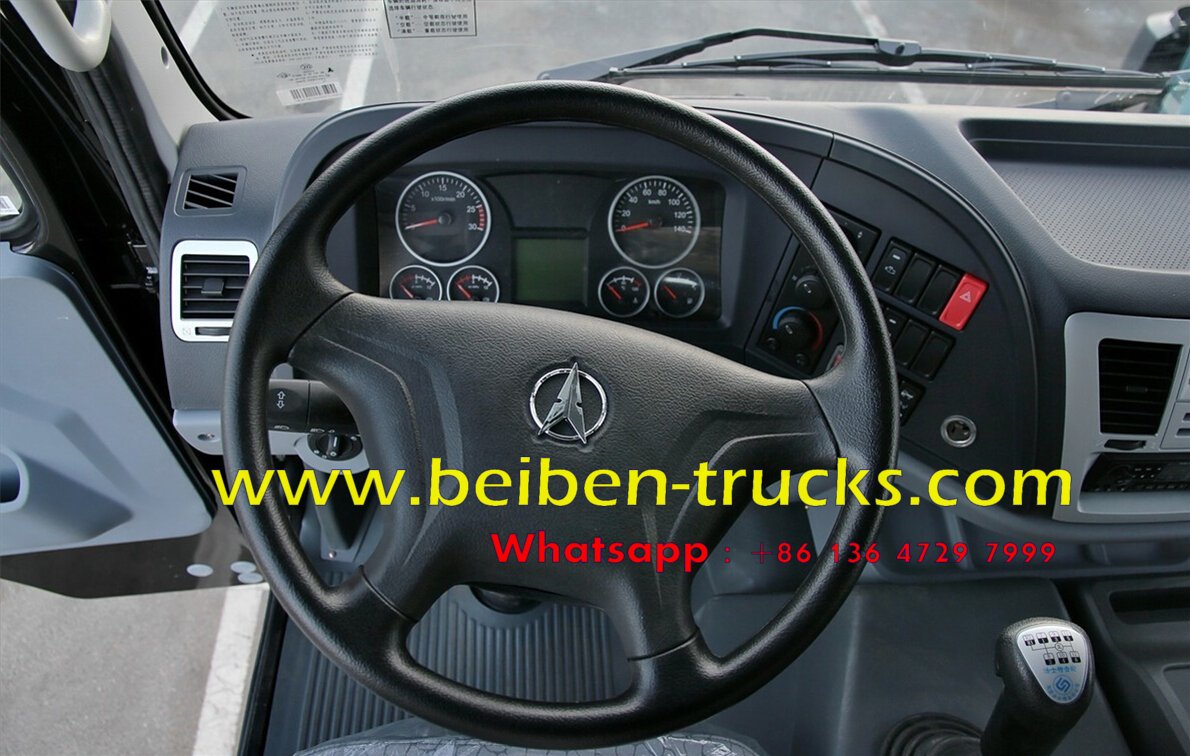

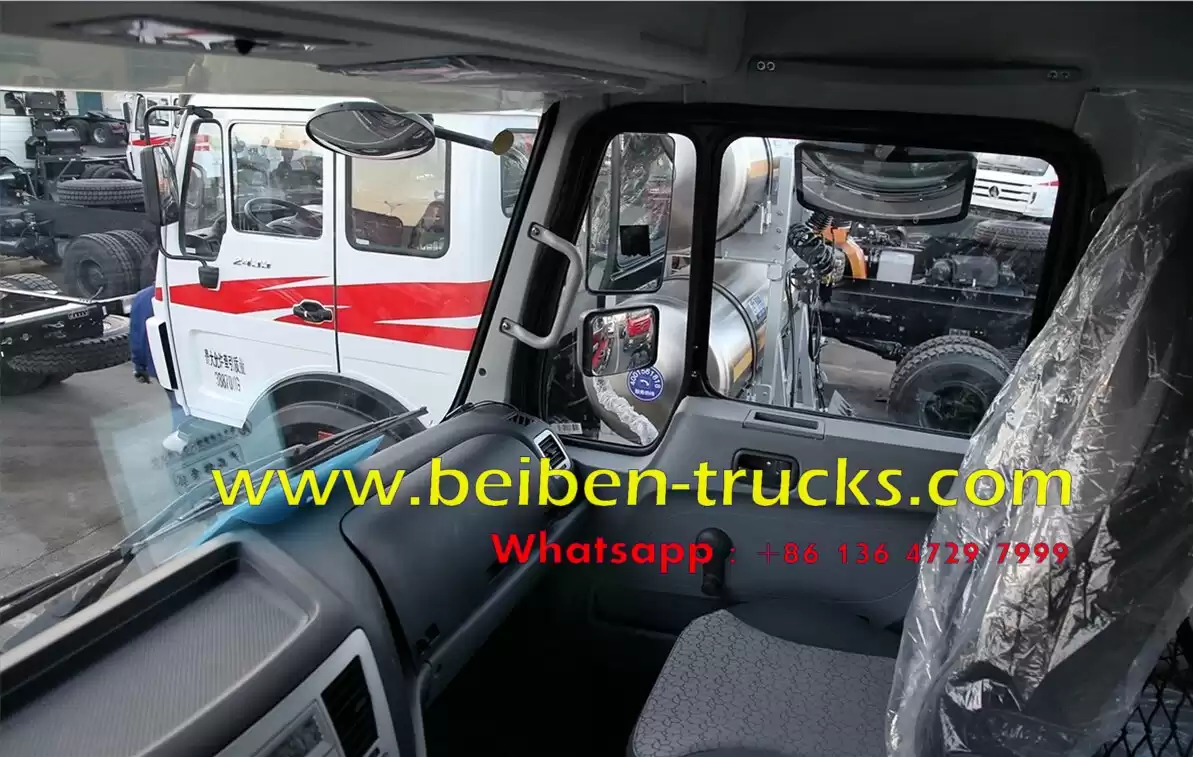

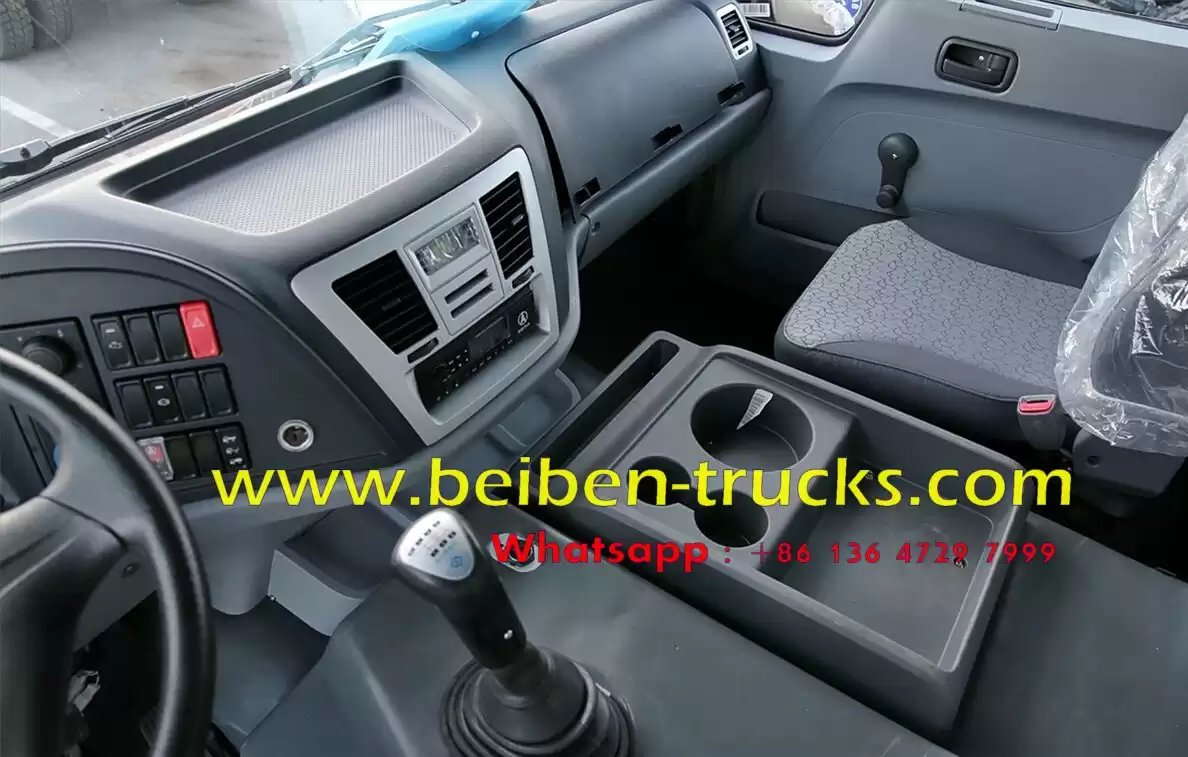

Cabin
|
NG80B
Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
