Beiben 2538 tipper trucks

Beiben 2538 drive dump truck chassis, cargo box 19 CBM capacity, payload around 60T rock stone or mine material , weichai 380HP engine, FAST 9-shift manual mechanical gearbox, Germany benz technology axle, and Q550 steel cargo box

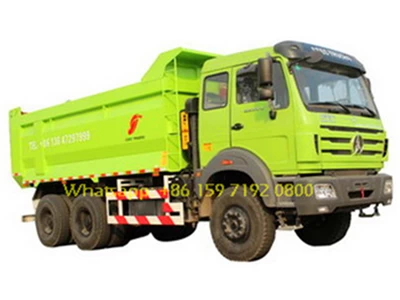

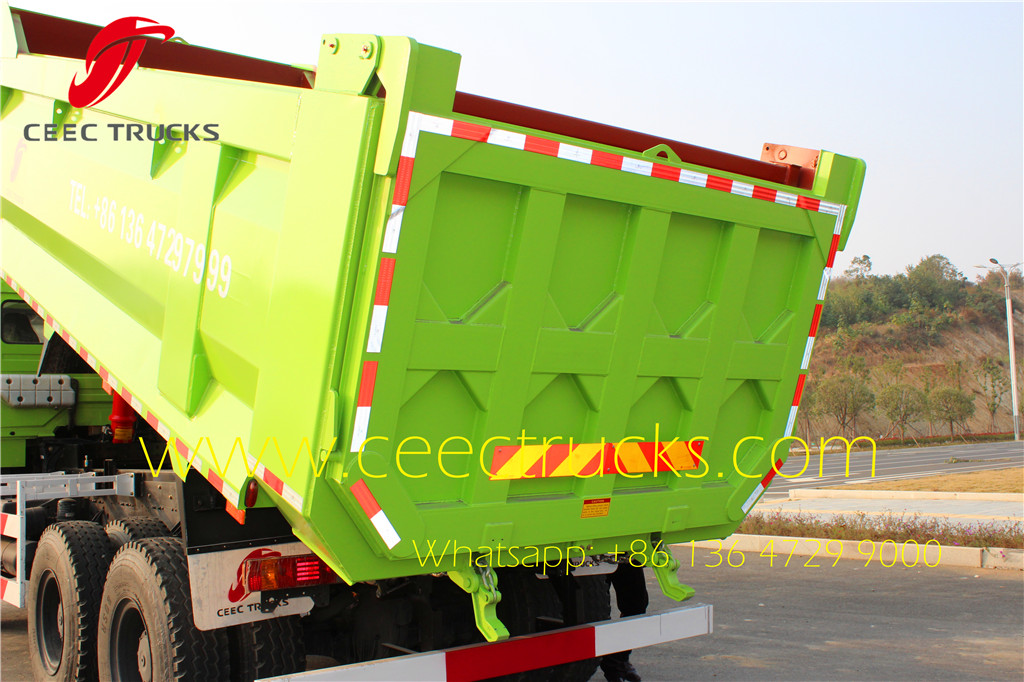

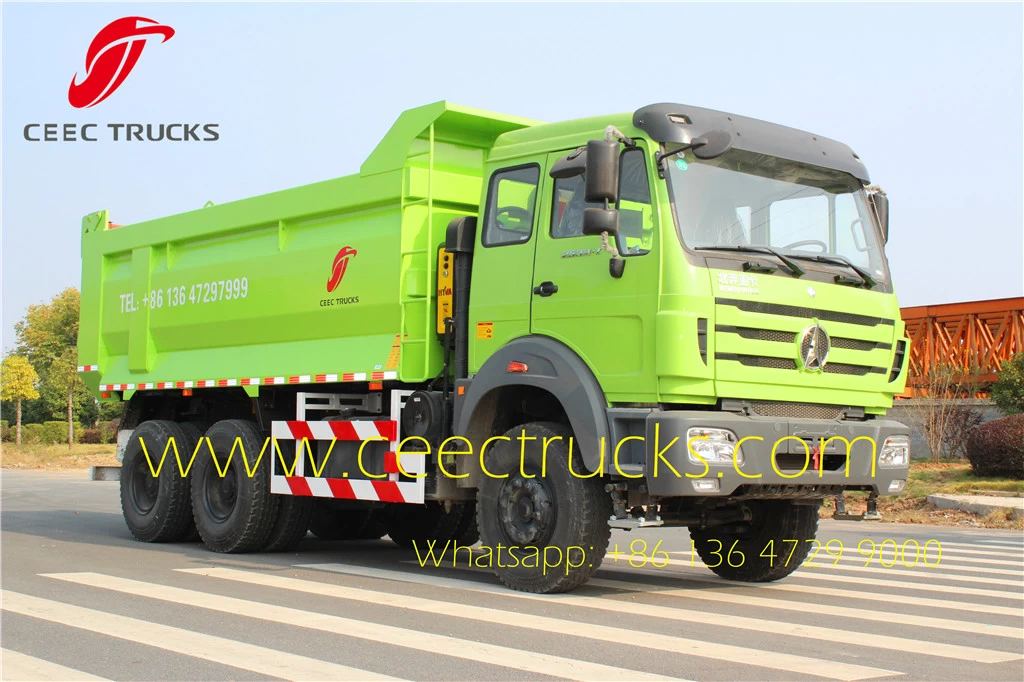

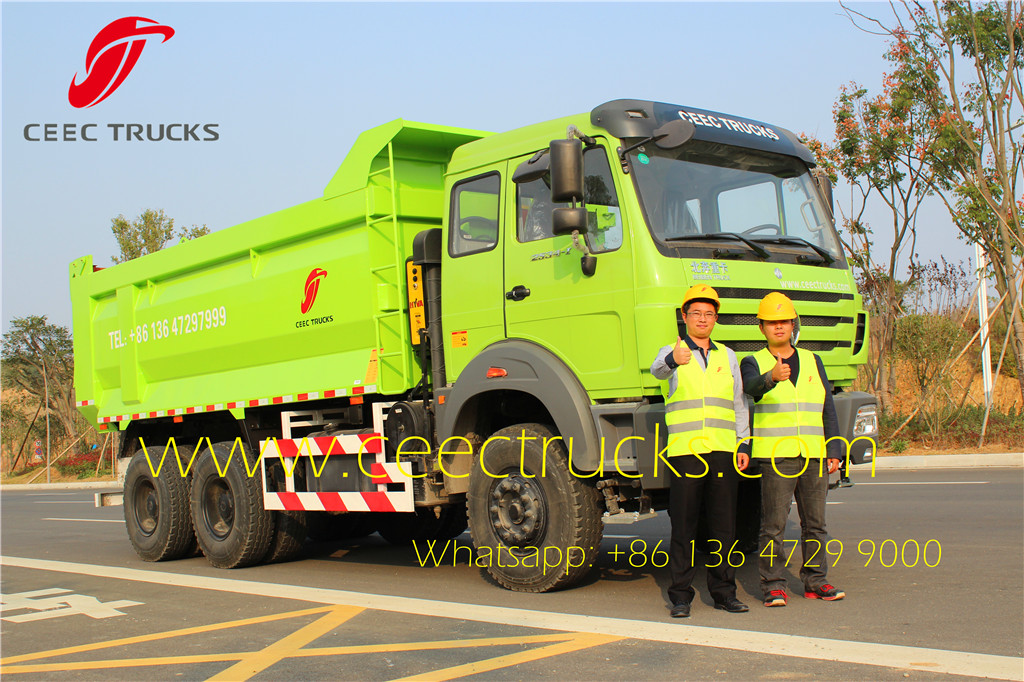

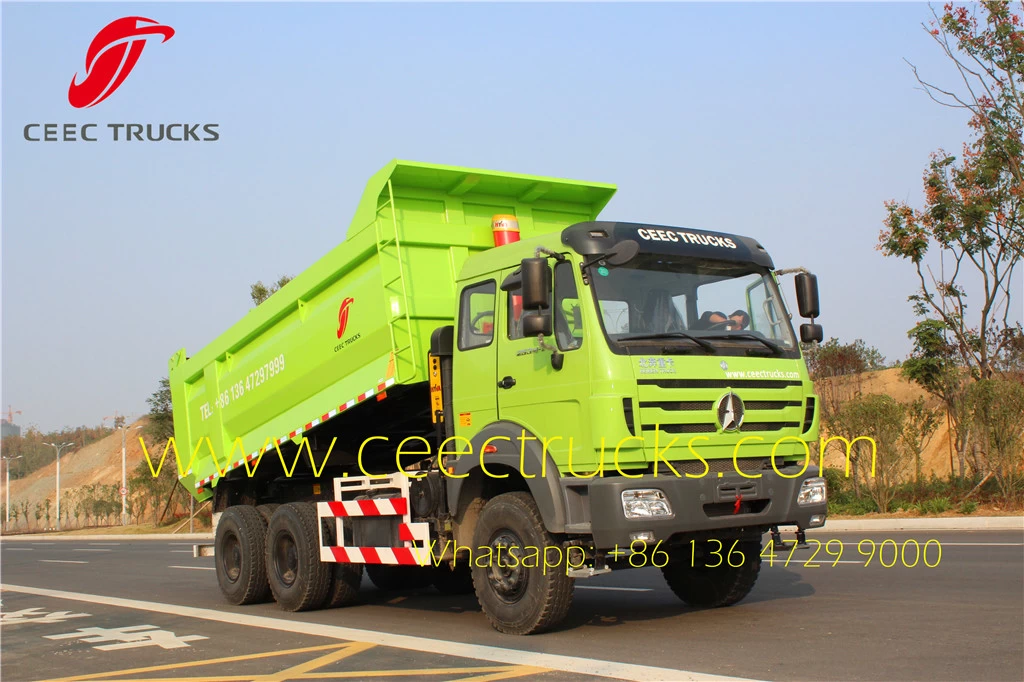

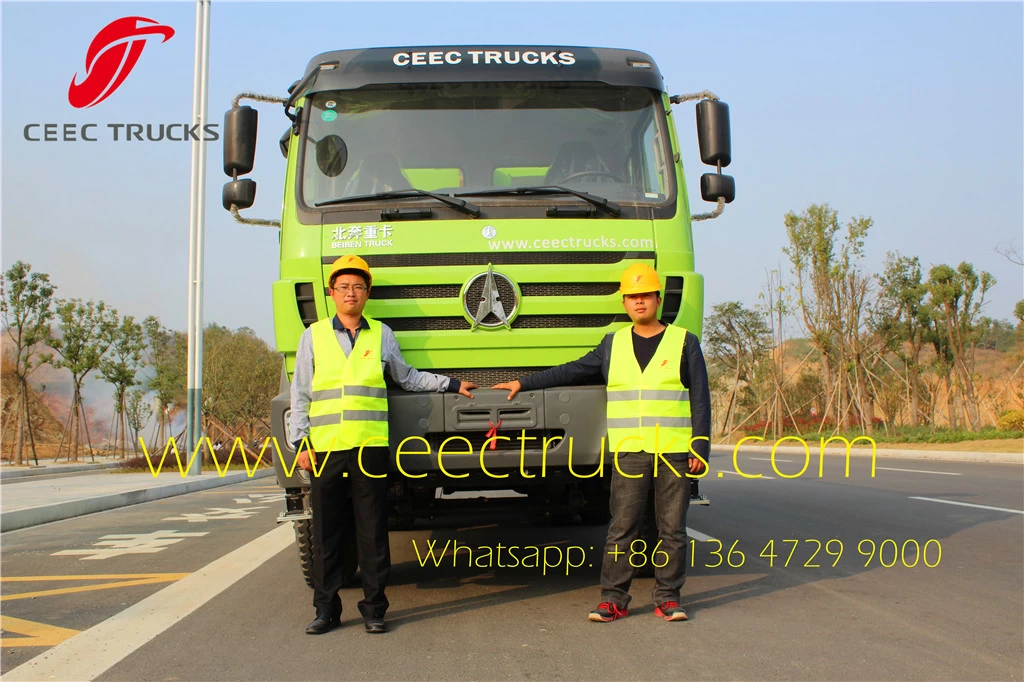

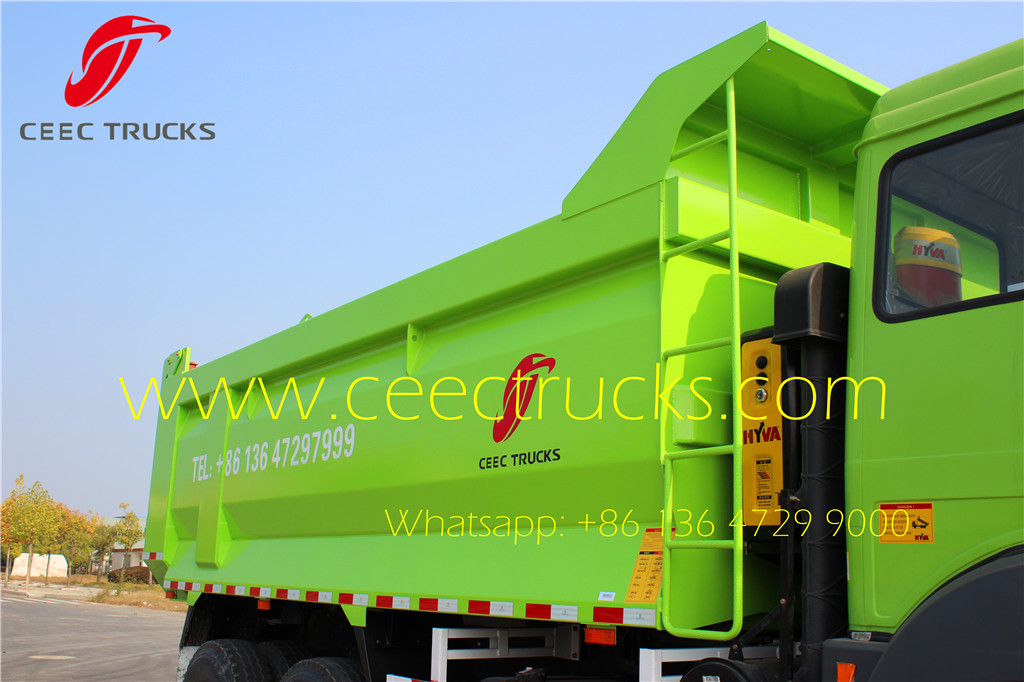

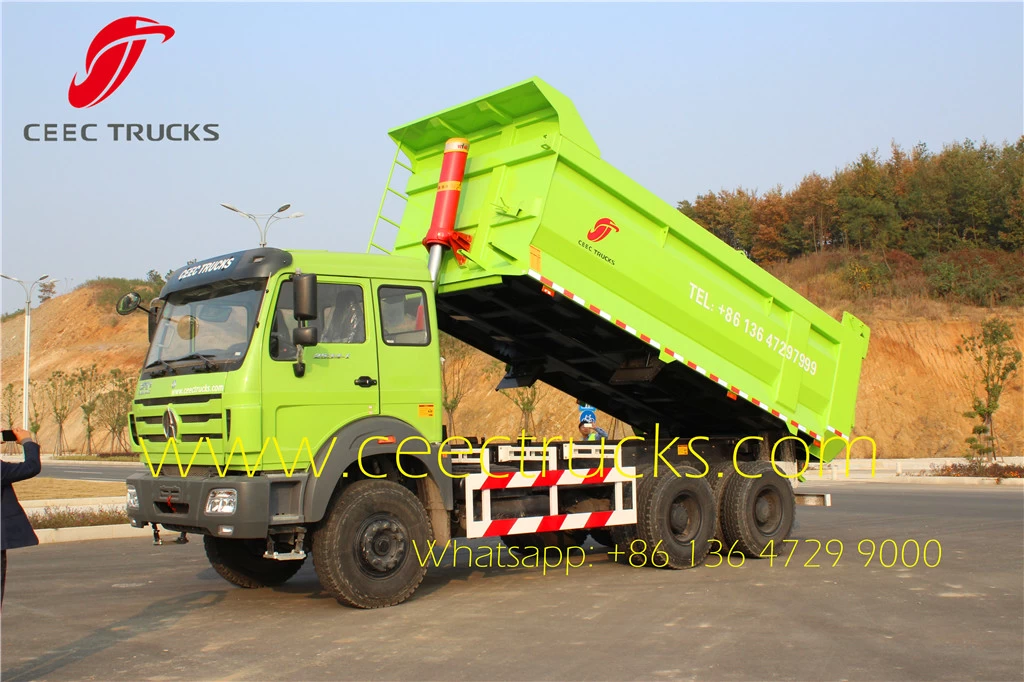

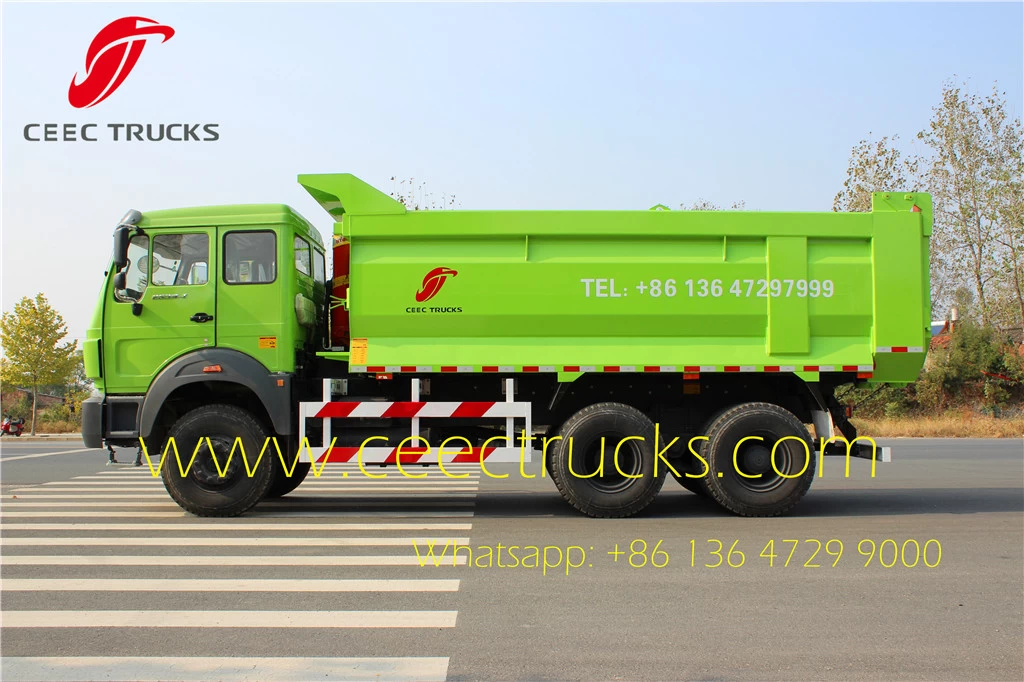

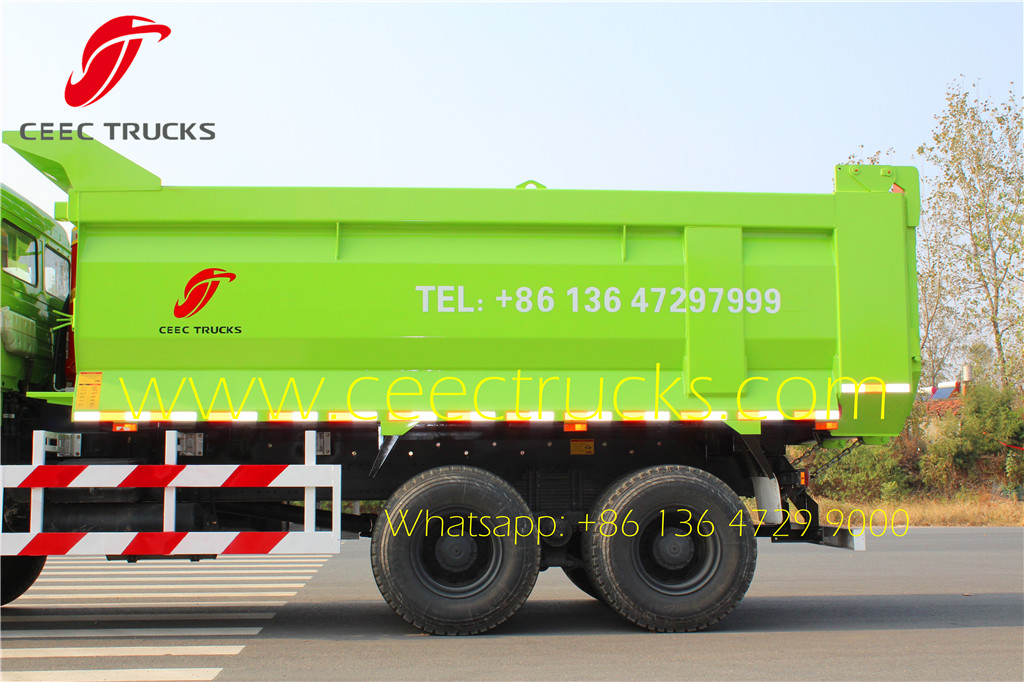

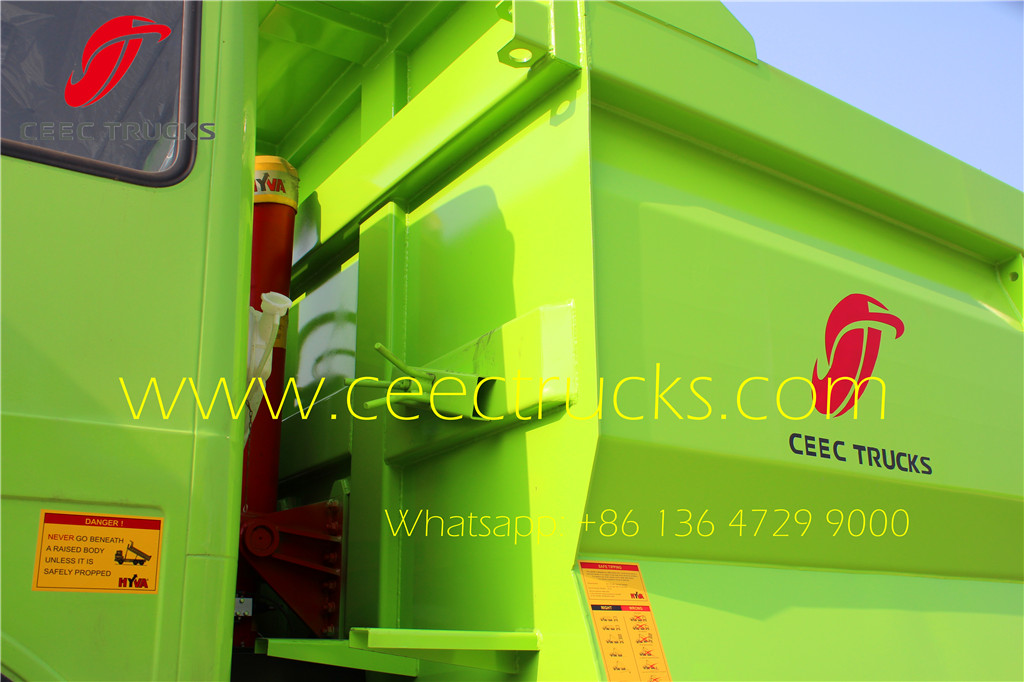

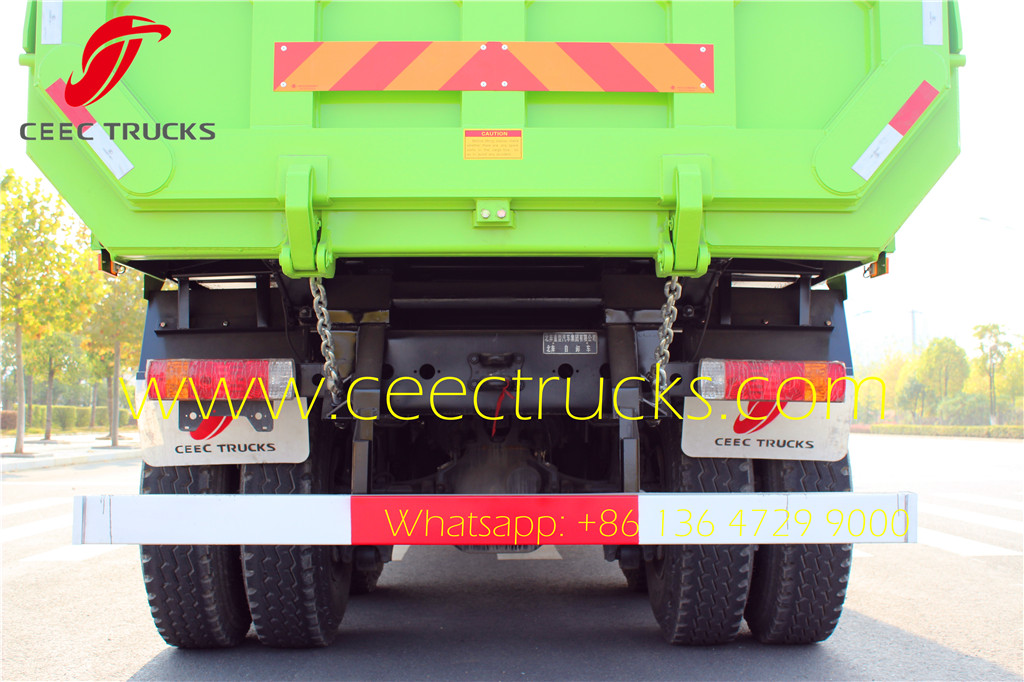

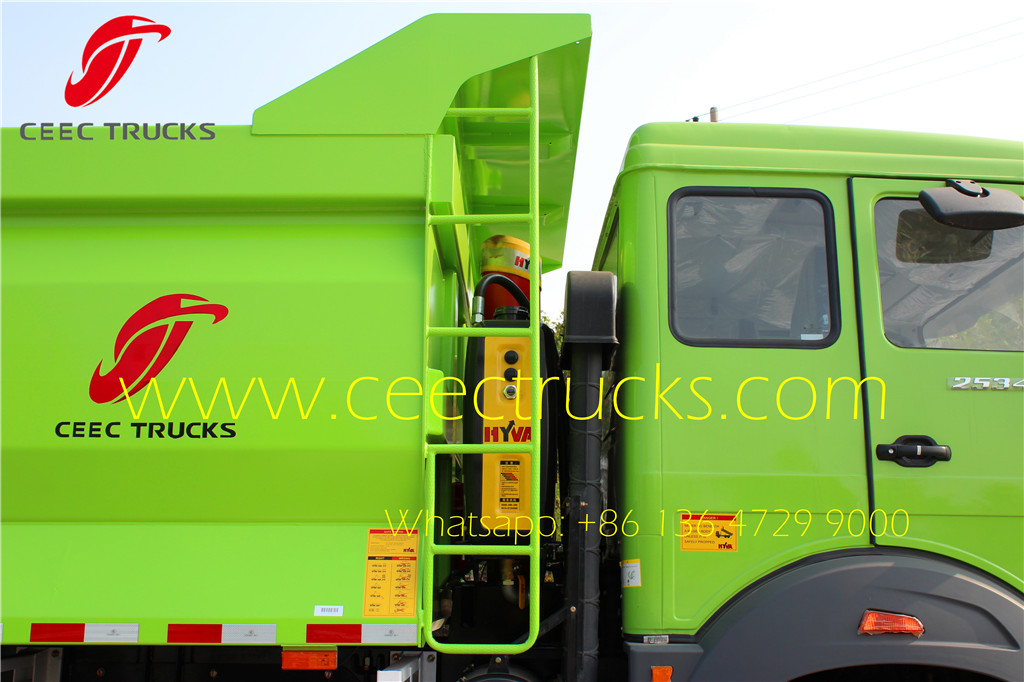

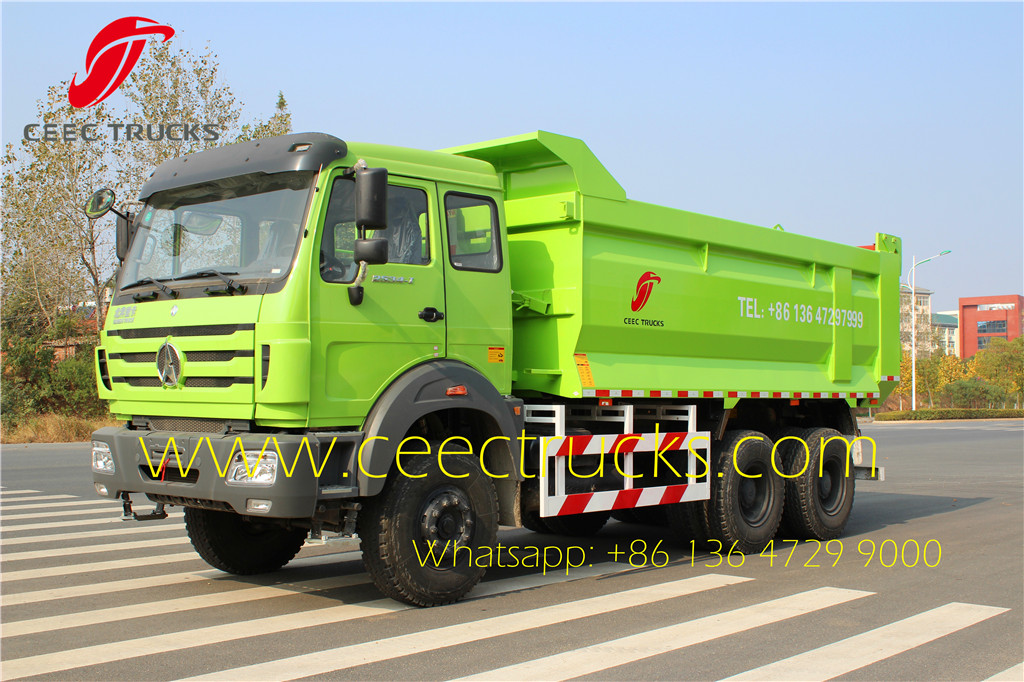

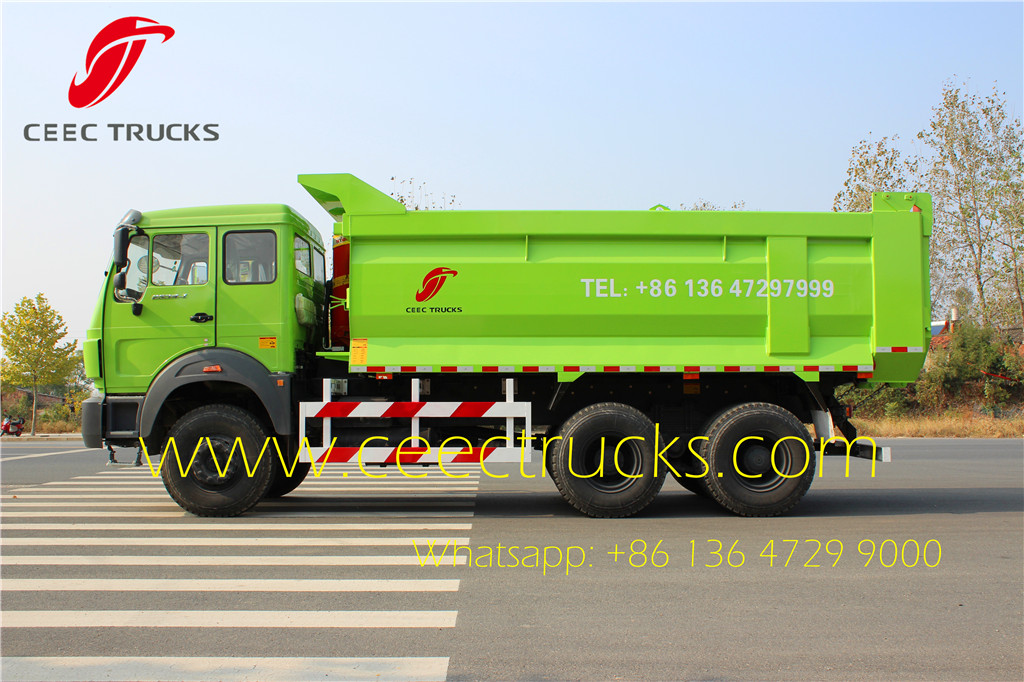

Beiben 2538 Tipper truck with U-shape cargo box



beiben 2538 tipper truck with T type cargo box



Beiben 2538 U type cargo box dumper truck featuers:

we provides greater durability and superior performance with its newly Beiben 60 T reinforced heavy-duty trucks ofresponding to customer’s needs.

Beiben 10 wheeler dumper truck advantage

â—† Germany Mecedes BENZ technology chassis with high durability andreliability

â—† Germany BENZ technology engine combined with original rear axle reducer gear and differential gear

â—† Continuous welding throughout body for additional strength, Fulldepth rear corner post with full depth rear crossmember.

â—† Enhanced body, and the motherboard adopts variable cross-sectionbeams.

â—† Special beiben 60 t Dumper Body Design are optional

â—† Other customer requirements are welcome

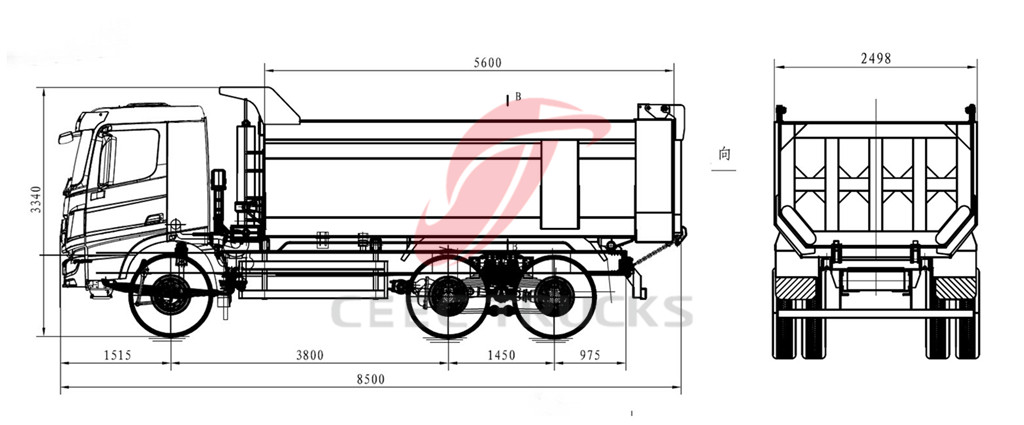

beiben dumper truck chassis dimension

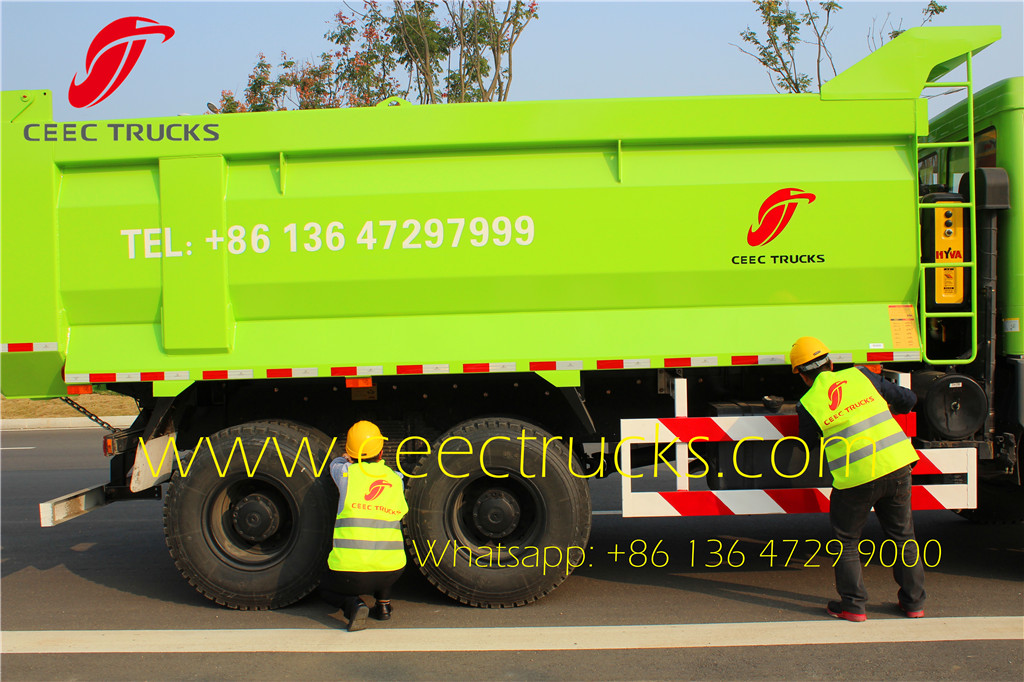

How to build Beiben 2538 U type cargo box tipper trucks:



How to build beiben 2538 dumper trucks



beiben 2538 tipper truck with T type cargo box



beiben 2538 tipper truck with T type cargo box



beiben 2538 tipper truck with T type cargo box



beiben 2538 tipper truck    beiben 2538 tipper truck



beiben 2538 tipper truck    beiben 2538 tipper truck with T type cargo box



beiben 2538 tipper truck supplier    beiben 2538 tipper truck with T type cargo box



Similar key words: beiben 2538 dumper truck, north benz 2538 dump truck, beiben 2538 tipping truck, beiben 2538 dump truck price, africa beiben dumper manufacturer, kenya beiben dumper truck, congo beiben 6*4, 8*4 dump truck, baotou beiben 2538 dump truck supplier.



Beiben 2538 Dumper truck with U-type cargo box                                         2538K /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4100+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

280/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc, Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension , 10pcs

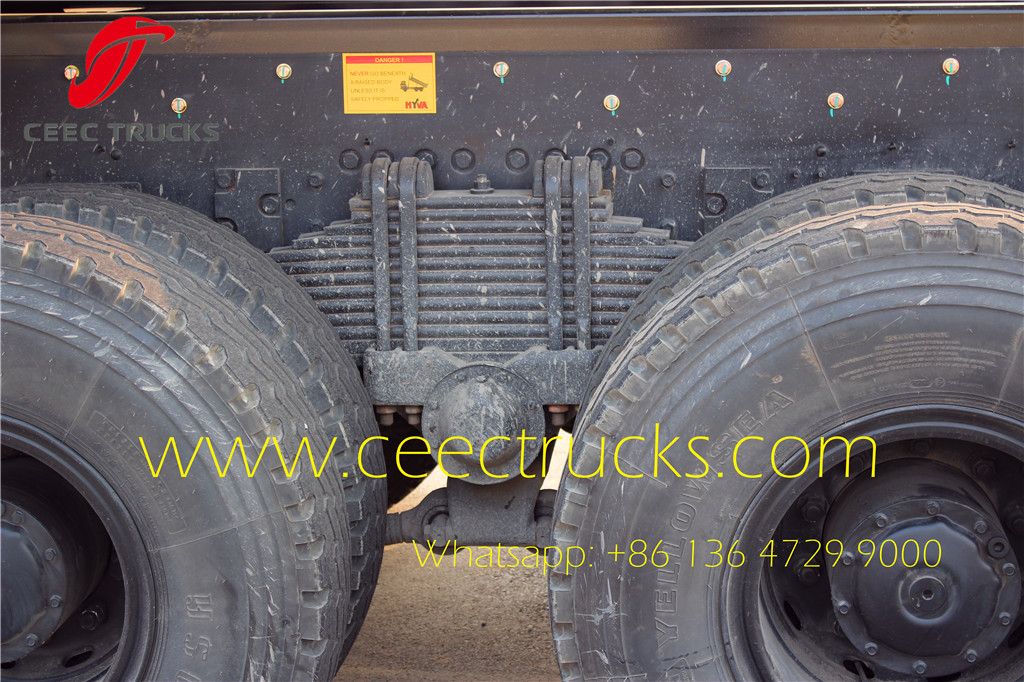

Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

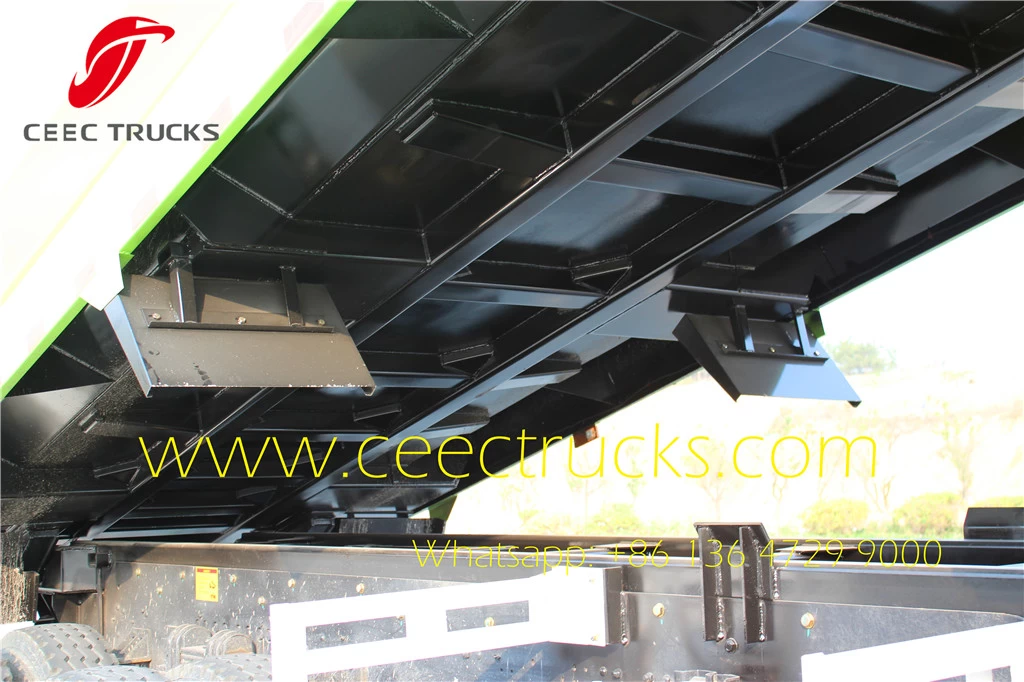

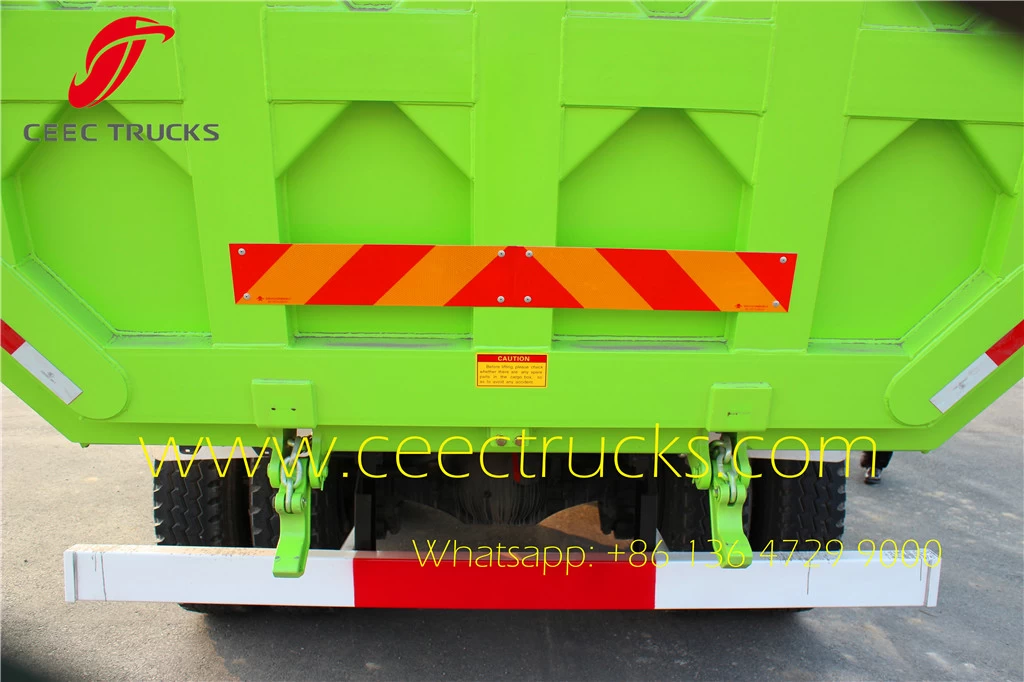

Dump Body

Body type

U type dumper  standard body

(more body type refer to using environment)

Inner size

5600x2250x1300 mm

Side/front/tail plate thickness

8 mm Q550  high strength steel

Deck plate thickness

10 mm  Q550  high strength steel

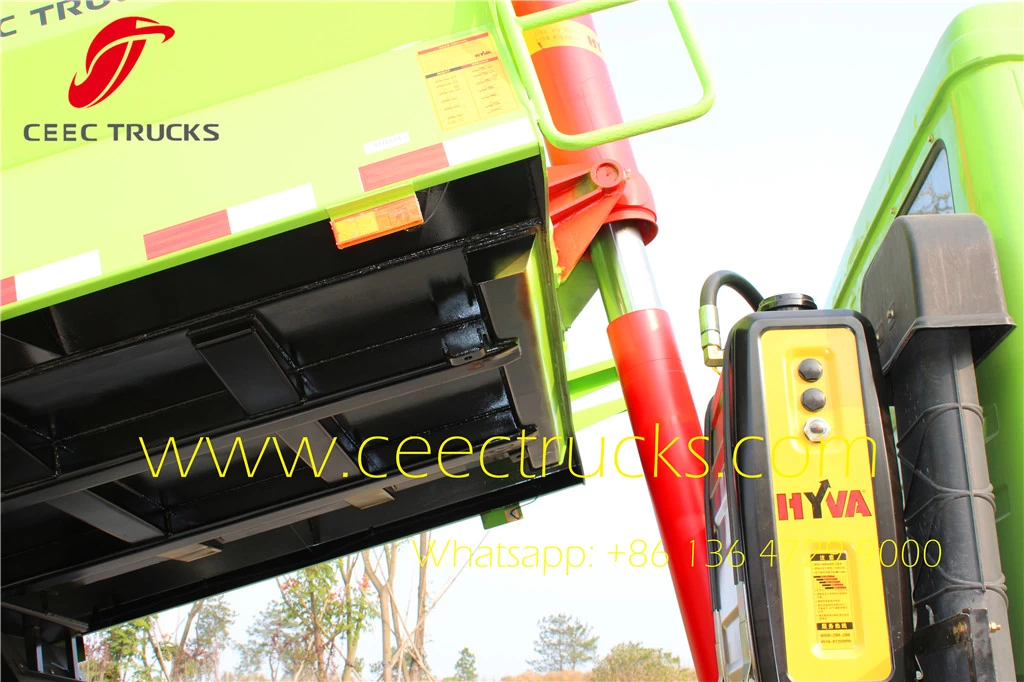

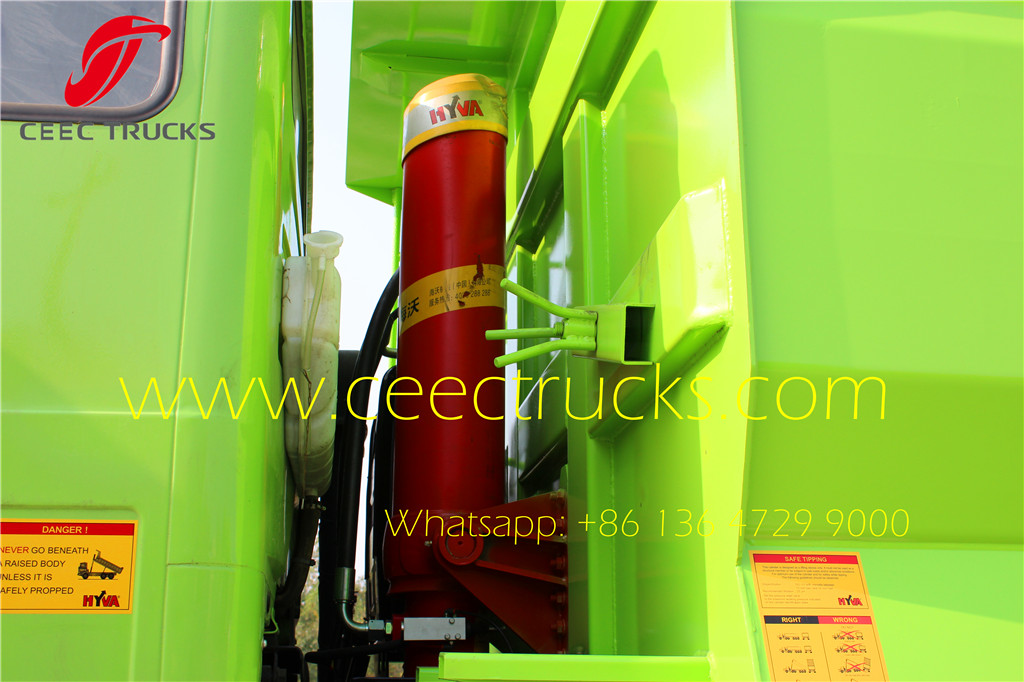

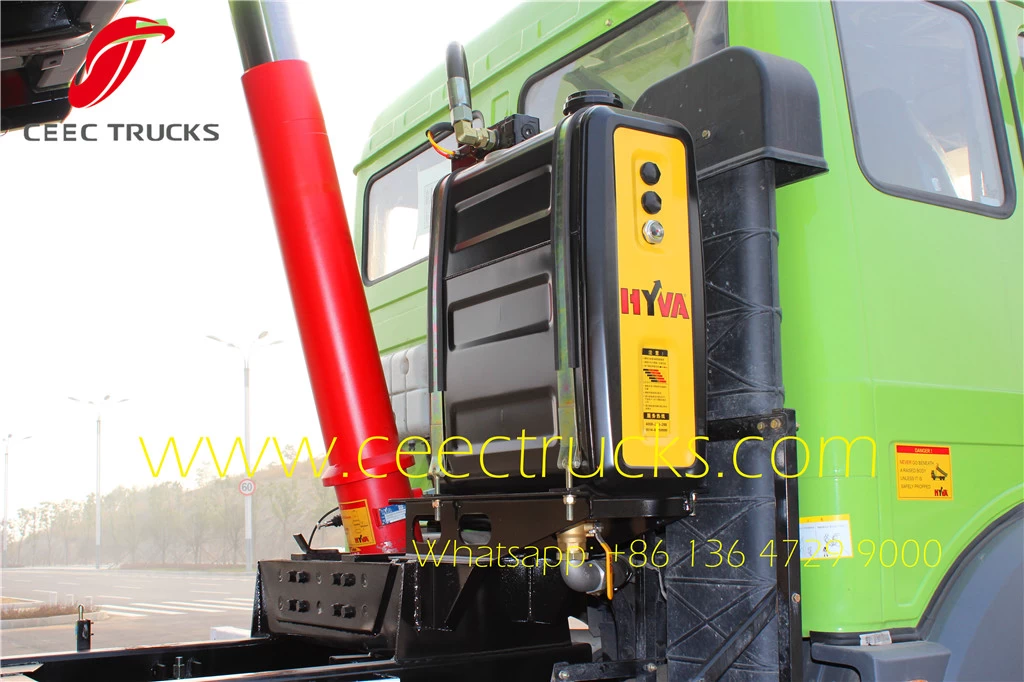

Lifting system,

China famous hydraulic lifting system

Lifting Type

Middle tipping

Tipper body lifting time,

≤ 20 S

Tipper body Falling Time

≤ 20 S

Max. lifting angle

52°
