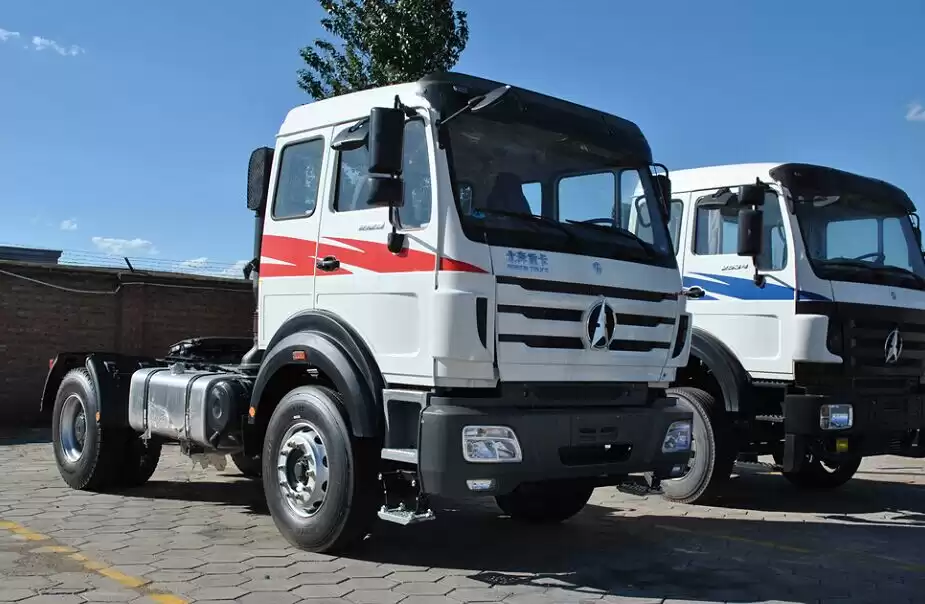

Beiben NG80B 420 Hp tractor truck
6x4 drive, 420 Hp engine, 12 shift
transmission，ERU 3
NG80B-SZ: The driver's cab uses Bei Ben new NG80B with attractive
appearance, and specific heavy truck metallic framework + stressed-skin
construction, possessing security of same level of European automobiles, which
fulfils European ECER29 safety and regulatory requirements; stamping molding of
frame only once ensures girder strength.
Axle of Bei Ben, unique technique of Benz,
increasing reliability, oil-saving with high attendance rate; reinforced
structure is suitable for all kinds of heavy cargos.
| Beiben NG80 340 HP 2542SZ /6×4/3450+1450/Long Cab/LHD
|
| Dimension
|
7136*2495*3180mm
|
| Approaching angle/Departure angle
|
26/64°
|
| Overhang(front/rear)
|
1410/825mm
|
| Wheel base
|
3450+1450mm
|
| Max speed
|
90km/h
|
| Curb weight
|
9200kg
|
| Max towing weight
|
36900kg
|
| Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.420，water-cooled，four strokes，10 cylinders in line，turbocharged, directly injection
|
| Displacement
|
9.726L/Diesel
|
| Stroke
|
126/130mm
|
| Max. power
|
308/2200 (kw/rpm)
|
| Max.torque
|
1460/1200-1600（Nm/rpm）
|
| Emission stantard
|
EuroⅢ
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
| Gearbox
|
Fast 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
| Suspension system
|
Front
|
Mercedez benz Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|
| Rear
|
Mercedez benz Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Model
|
JOST ∮90 single direction
|
| Height of fifth wheel(mm) (unload)
|
1410
|
| Radius of front gap (mm)
|
2300
|
| Radius of rear slew (mm)
|
2600
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00-R20
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|
| Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
|
