Product Details
Applications:

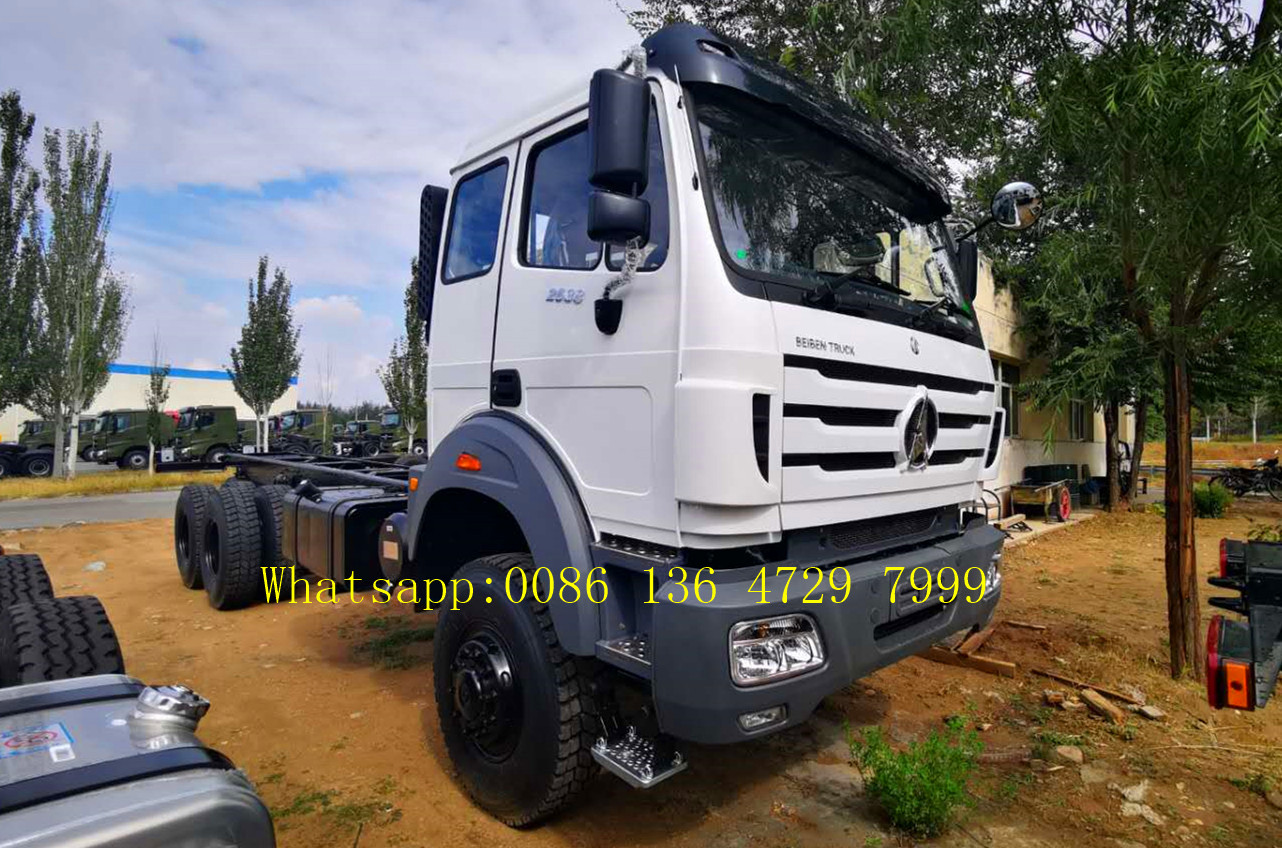

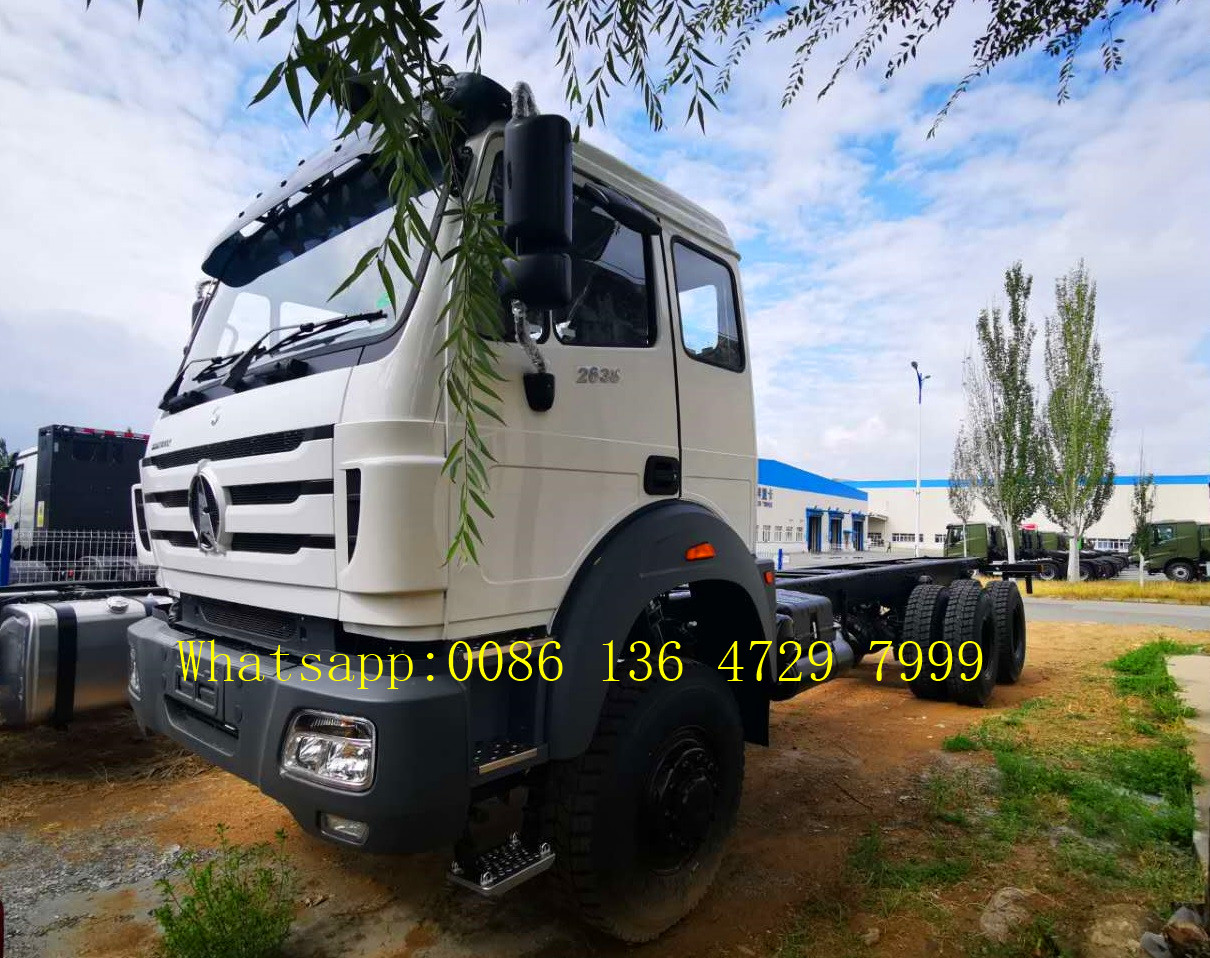

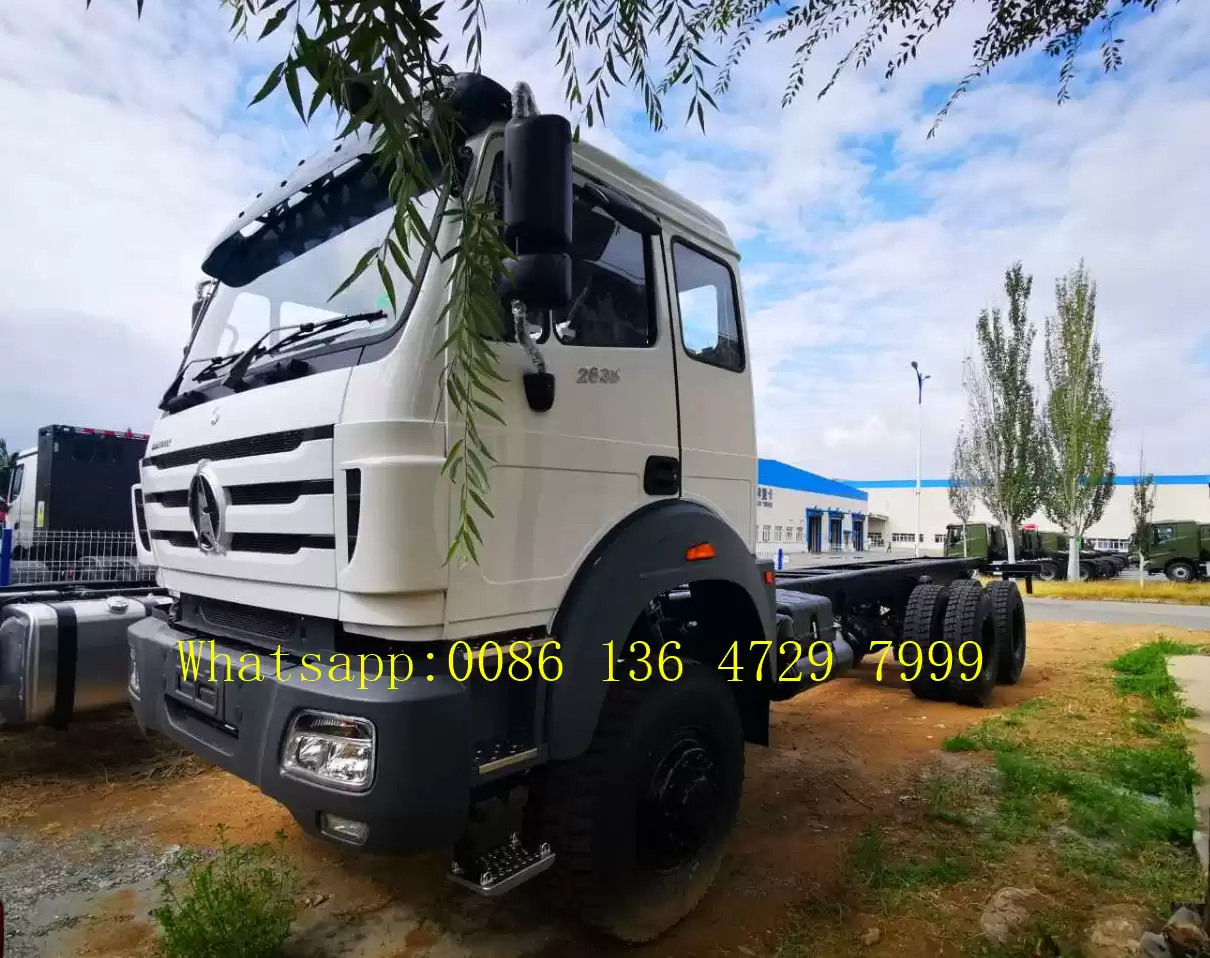

beiben 6*6 drive truck ,also
called as beiben 2638 all wheel drive truck chassis,beiben 6*6 drive truck chassis, africa beiben 2638 off road truck, africa beiben 2642 off road trucks, is designed
for producing beiben 6*6 tanker truck, beiben 6*6 dump truck, beiben 6*6 drive wagon truck, beiben 6*6 drive cargo trucks. This beiben heavy duty truck chassis can loading, transporting and discharging heavy duty
material , also can
be used in for extremely road and weather situation, can be used in wild area, off road area.
china beiben 2638 truck chassis apply germany benz technology device, with extremely work performance.
The north benz 6*6 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz 2638 chassis, strong military driving system
---- Military quality , Mercedes benz technology

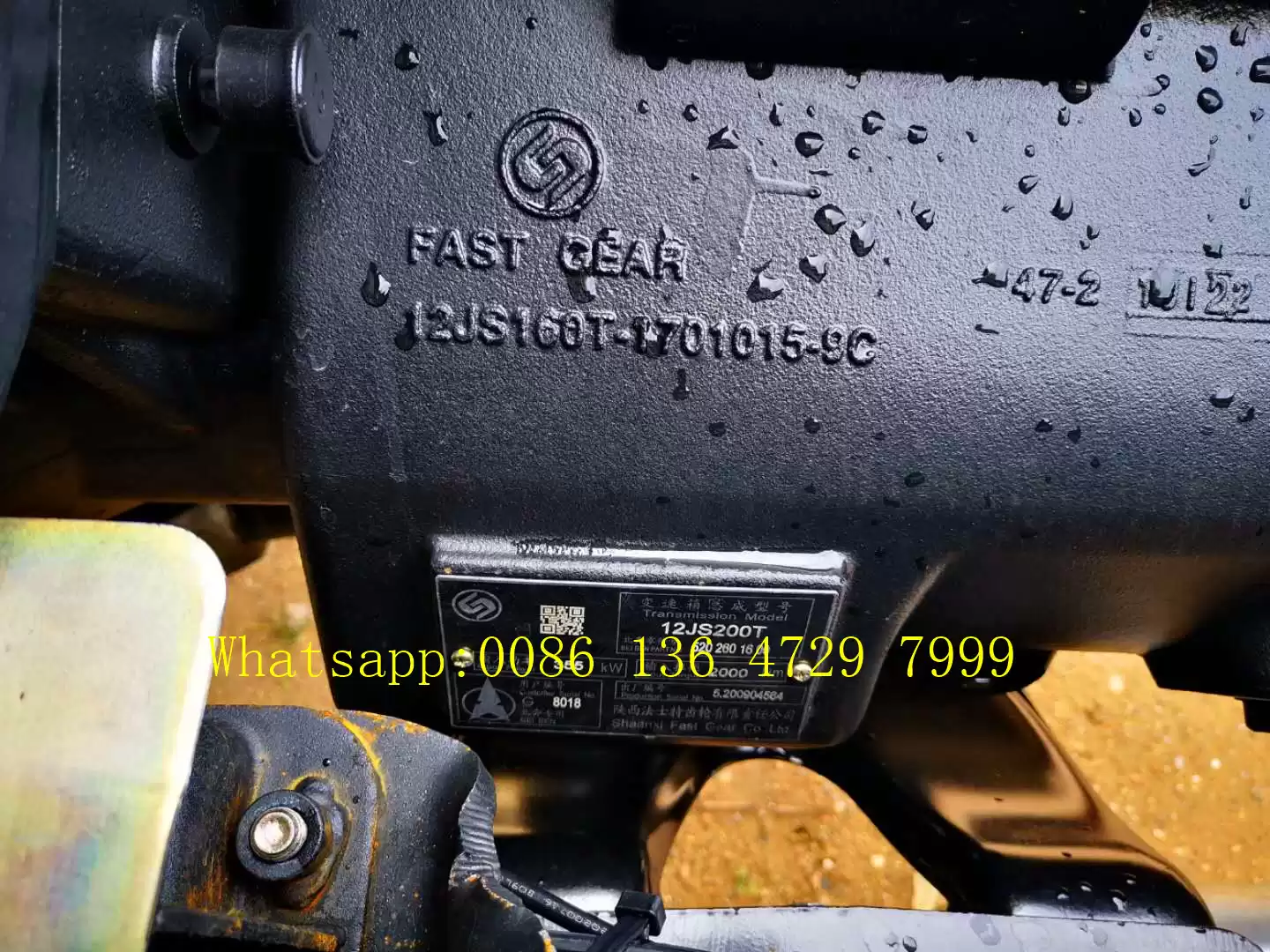

---- 12JS160T transmission, super combination.
---- Patented axle technology, with wheel reducer
---- Completely steel cabin , safety and reliable.
Specifications:
|
Africa BEIBEN 6X6 truck chassis
|
|
Model
|
ND1255B50J
|
|

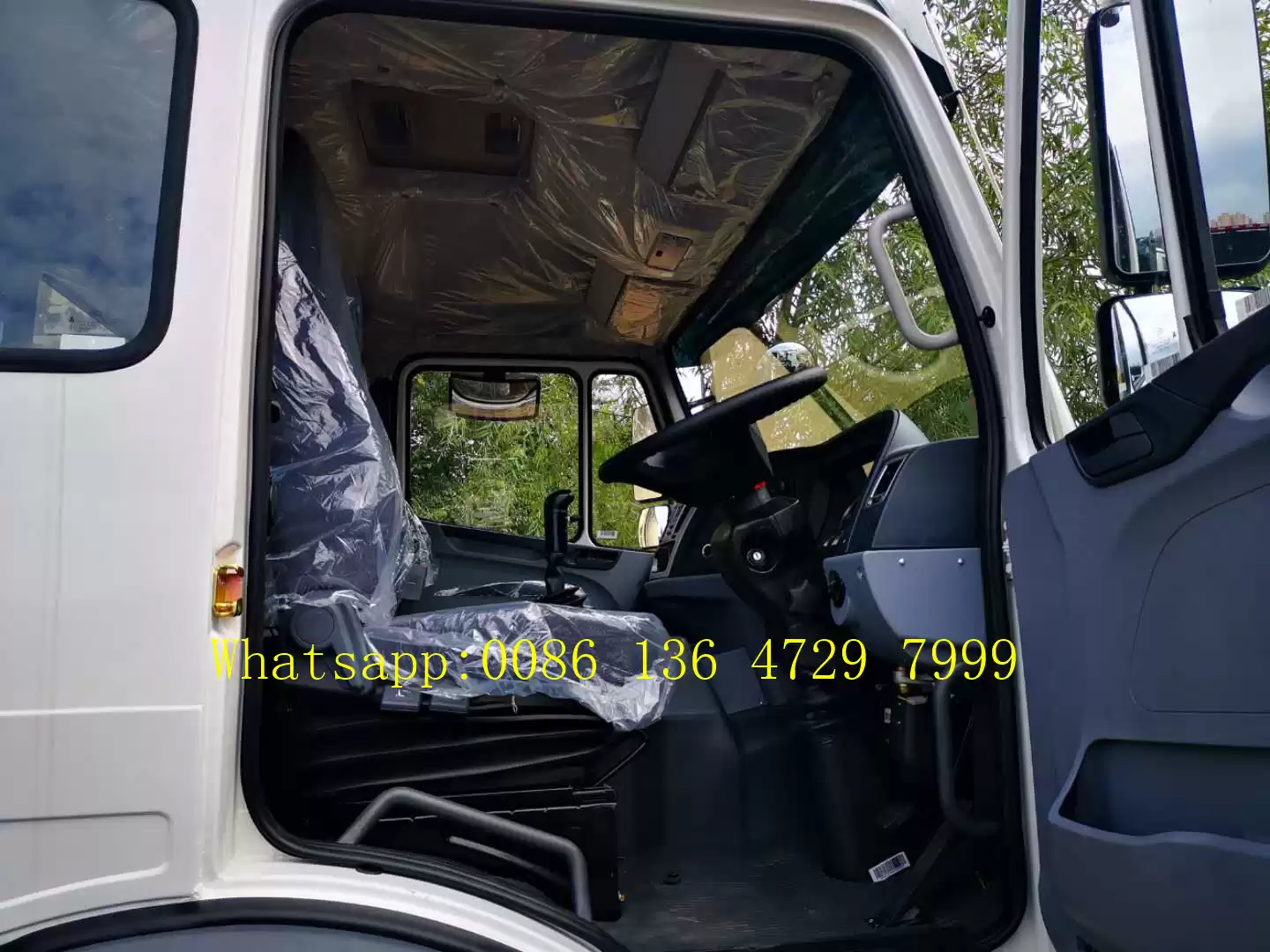

Driver's cab
|
Long cabin, one sleeper
|
|
Engine
|
Maker: North Benz
|
|
Diesel 4 stroke direct injection
diesel engine, 6 cylinder in-line with water cooling,turbo-charging &
inter cooling
|
|
Engine model: WP10.380NE32
EURO II/EUROIII emission standard
|
|
Maximum output:380hp@2200rpm
|
|
Number of cylinder:6
|
|
Displacement: 9.726L
|
|
Clutch
|
Single-plate dry coil-spring
clutch,diameter 420mm,hydraulically operating with air assistance
|
|
Transmission
|
Fuller 9JS160T transmission.
|
|
Front Axle
|
Mercedes Benz, drum brake
|
|

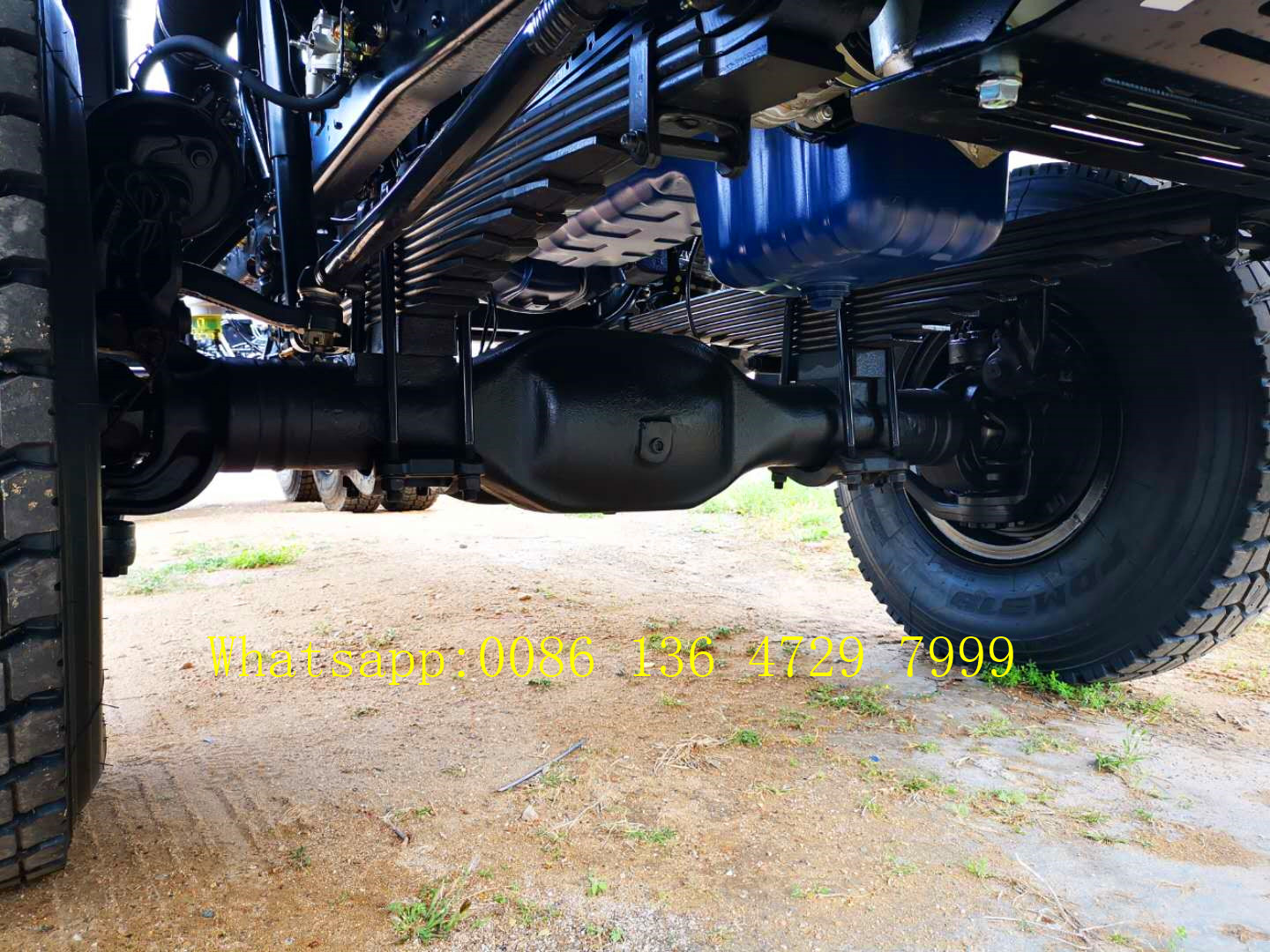

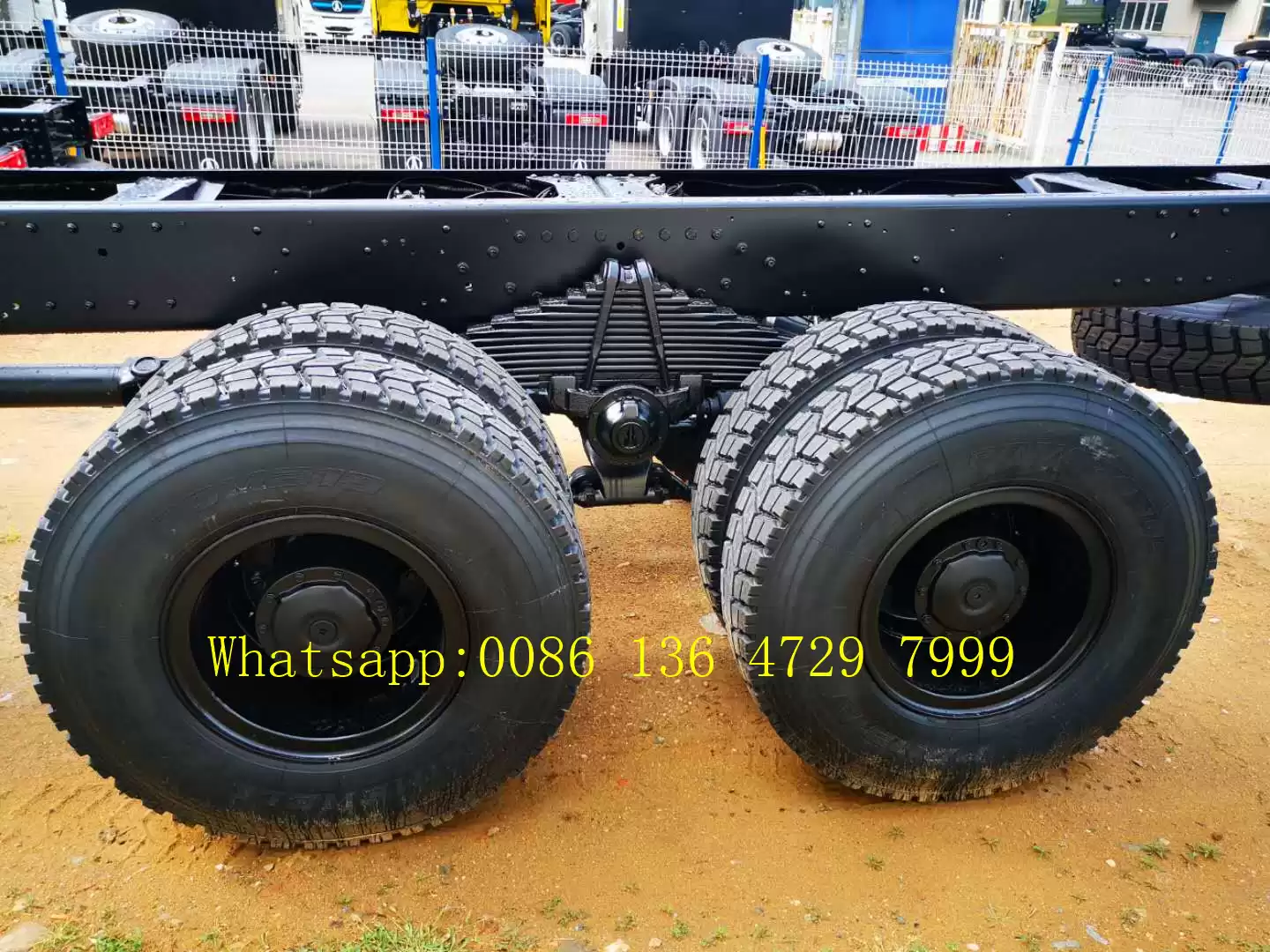

Rear Axle
|
Mercedes Benz double
reduction drive axle, ratio=5.2
|
|
Steering
|
ZF8098
|
|
Wheel & Types
|
Rims:8.5-20
|
|
Tyre:12.00R20 tube
|
|
Optional:
12R22.5//315/80R22.5
|
|
Radial tire is optional
|
|
Electrics
|
Operating voltage:
24V,negative grounded
|
|
Dimensions in mm
|
Wheel base : 5050+1450
|
|
Overall size:
10576x2500x3385
|
|
Weight in kg
|
Kerb. mass: 9800 kg
|
|
Total mass: 25000kg
|
|
Performance
|
Maximum driving speed(km/h)
85
|
|
Body in mm
|
7000x2300x800
|
|
The manufacture reserves the
right of technical alteration/change for better improvement prior notice
|
Beiben off road truck system, 6*6 drive system.

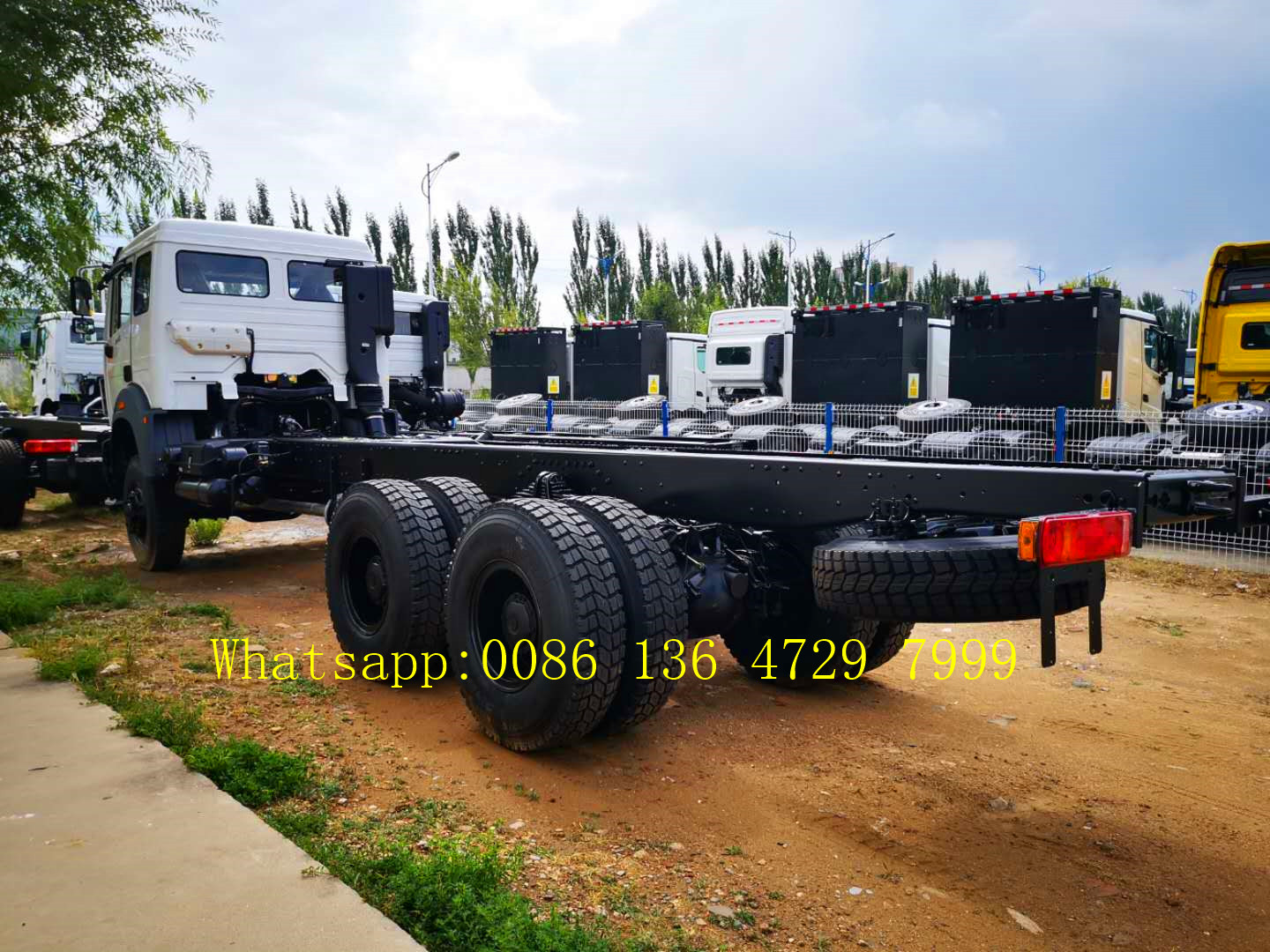

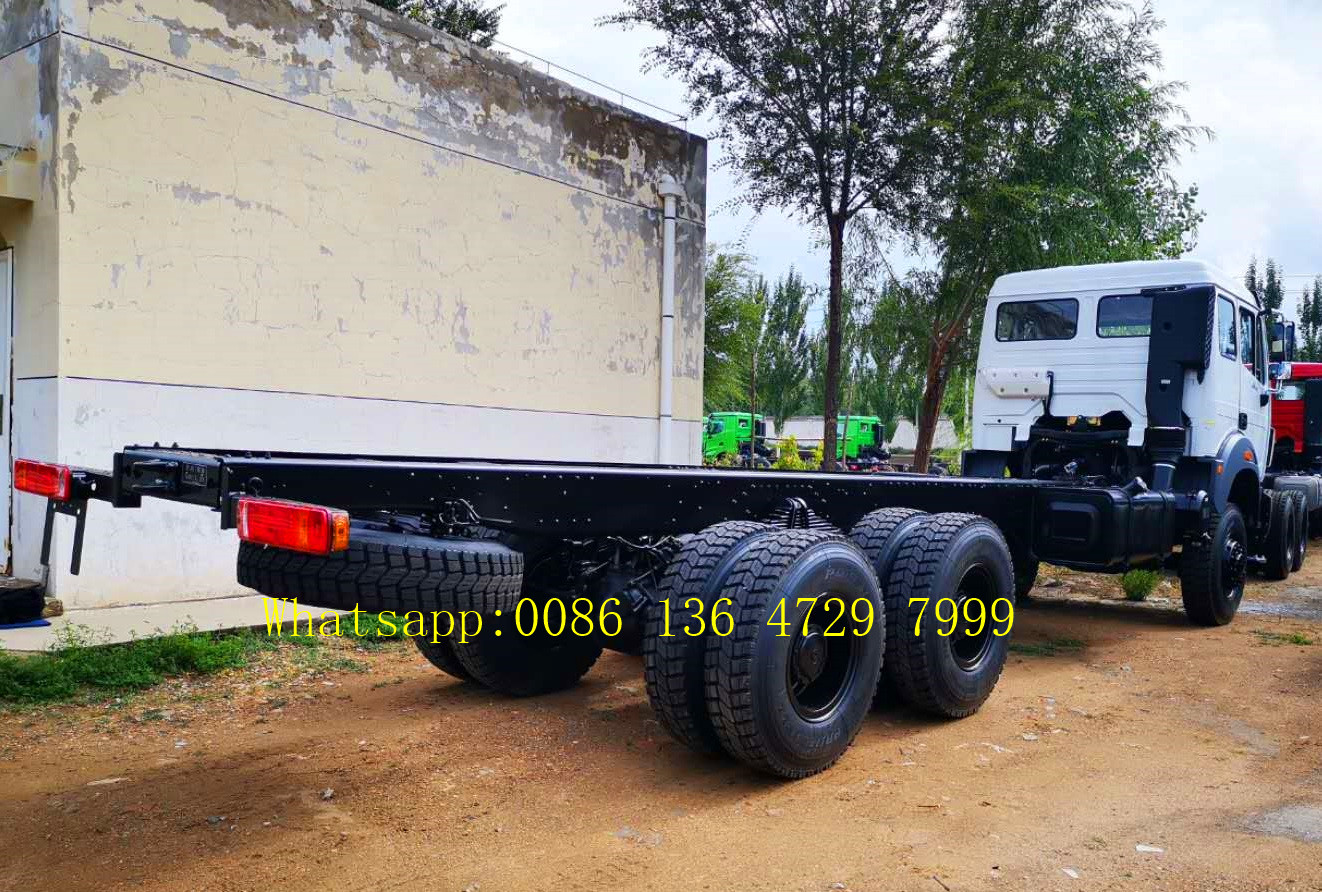

long wheelbase for beiben off road truck, 7.5 meter after the truck cabin.
Beiben front axle, with steering system, china beiben 6*6 drive system.
