Applications:
beiben 3138 cargo truck ,also
called as beiben 3138 cargo truck chassis, beiben 12 wheeler cargo truck 380 hp engine, north benz 12 wheeler truck, beiben 3138 cargo van truck, is designed
for producing beiben oil tanker truck, beiben cargo van truck, and beiben dump truck. This beiben truck chassis can loading, transporting and discharging heavy duty material , also can
be used in for earth, sand, rock and mining delivery.
china beiben 3138 truck chassis apply germany benz technology device, with extremely work performance.
The cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz 3138 chassis, strong military driving system
---- Military quality assurance, Original germany benz technology
---- Extremely work service , long terms maintenance
---- Patented axle technology, with wheel reducer
---- Completely steel cabin , safety and reliable.
Specifications:
| Beiben 3138 cargo truck
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
Beiben
|
| Overall Dimension
|
10500*2490*3340 mm
|
| GVW / Kerb Weight
|
45,000 kg / 14,800 kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
WEICHAI
|
| Power
|
380 HP (279 KW)
|
| Displacement
|
9726 ml
|
| Emission Standard
|
Euro 3
|
| Chassis
|
Drive Type
|
8X4, (left hand drive)
|
| Transmission
|
FAST 9 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
1950+5050+1450 mm / 4
|
| Tire Specification
|
12.00R20
|
| Tire Number
|
10 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Body Capacity
|
40 T- 80 T
|
| Tilting Device
|
Front lifting device
|
| Hydraulic Cylinder
|
China brand
|
| Discharging model
|
Rear discharging
|
Dump Body Dimension
|
7600*2300*1500 mm |
| Thickness
|
Side Board: 8mm
Floor Board: 10 mm
|
| Control panel
|
English or Your language
|
| All standard accessories: basic tool kit, English manual……
|
| Optional
|
** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 12.00-24 tyre, 14.00R20 tyre, 13.00R22.5 tyre avaiable.
|

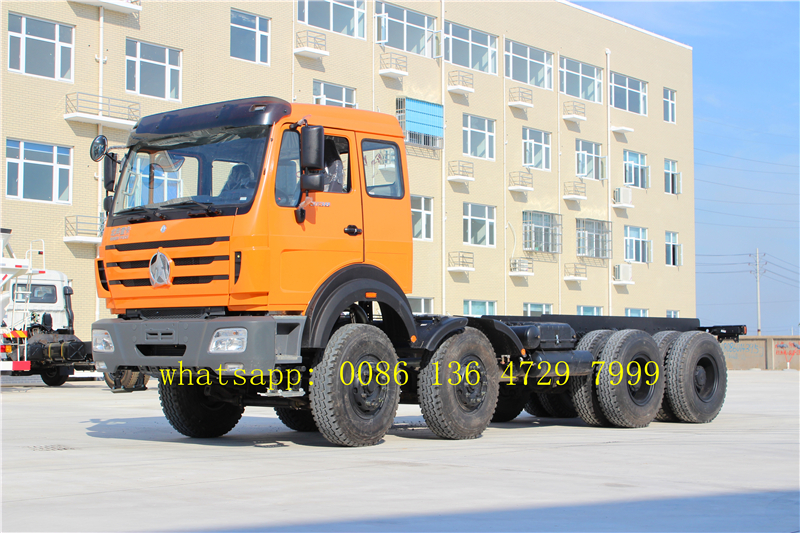

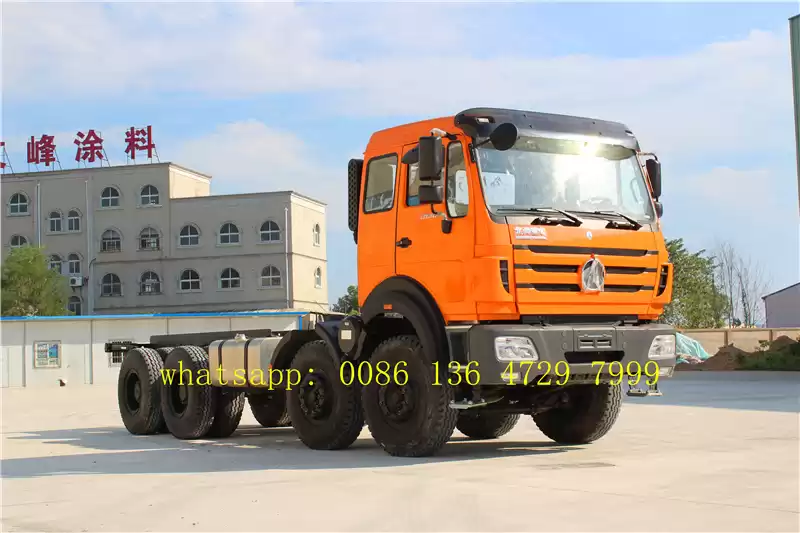

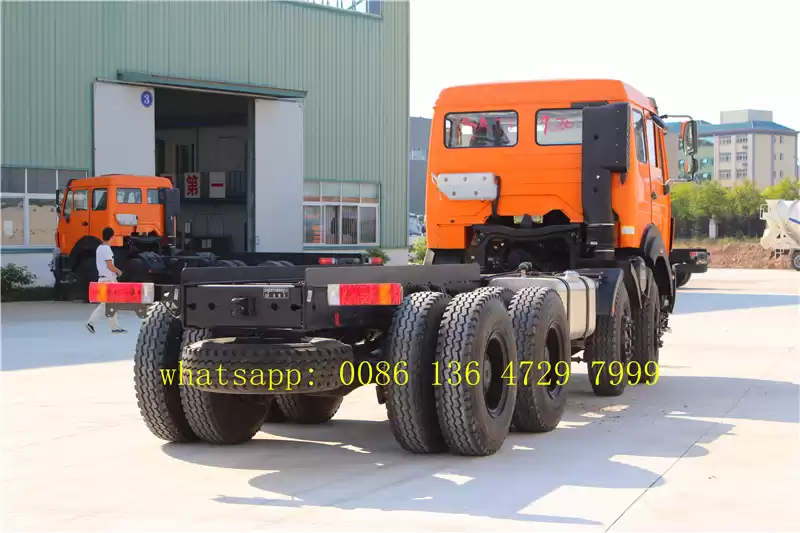

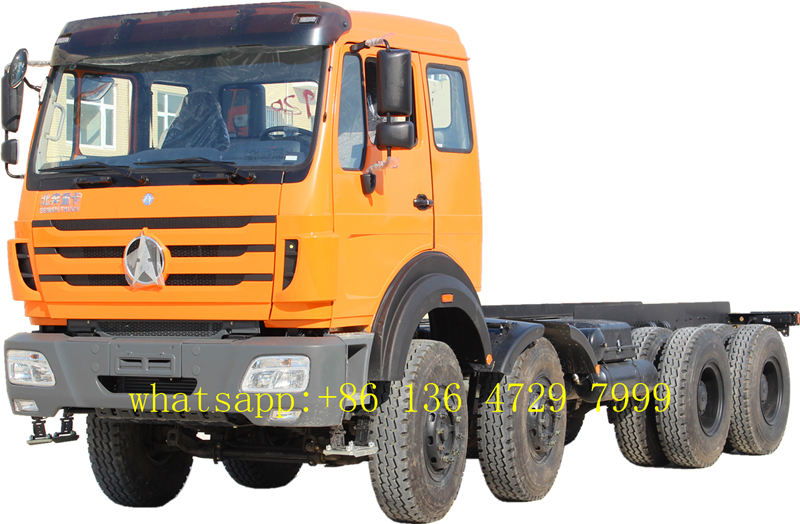

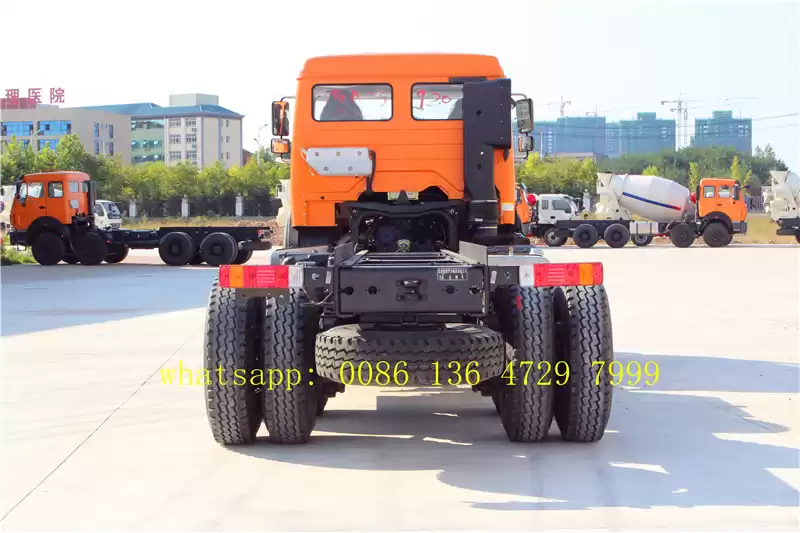

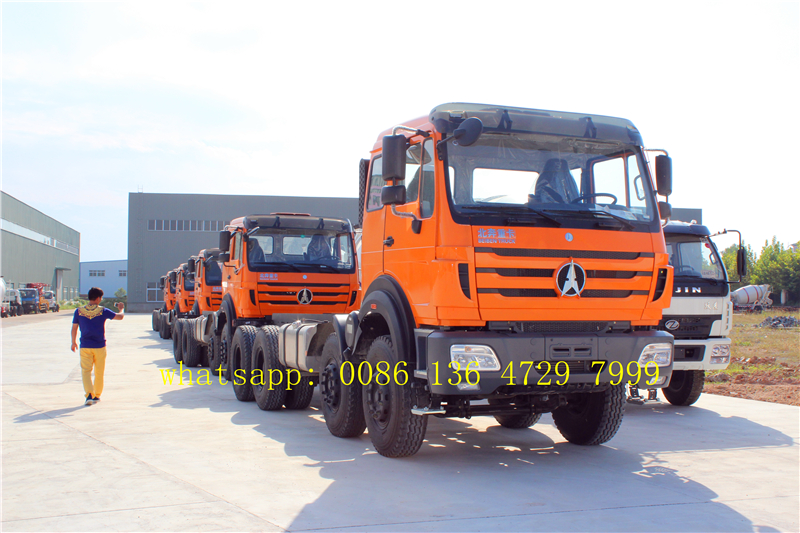

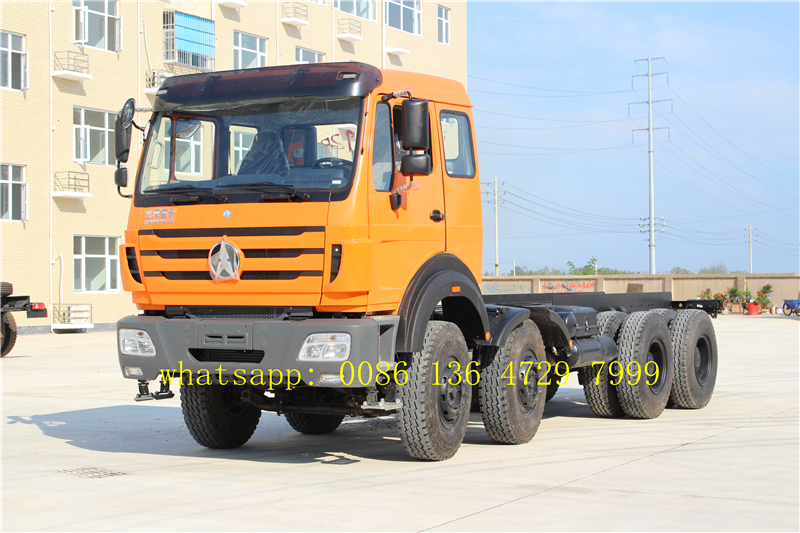

Beiben 3138 truck chassis , military quality assurance, with strong merdeces benz technology axle and cabin.

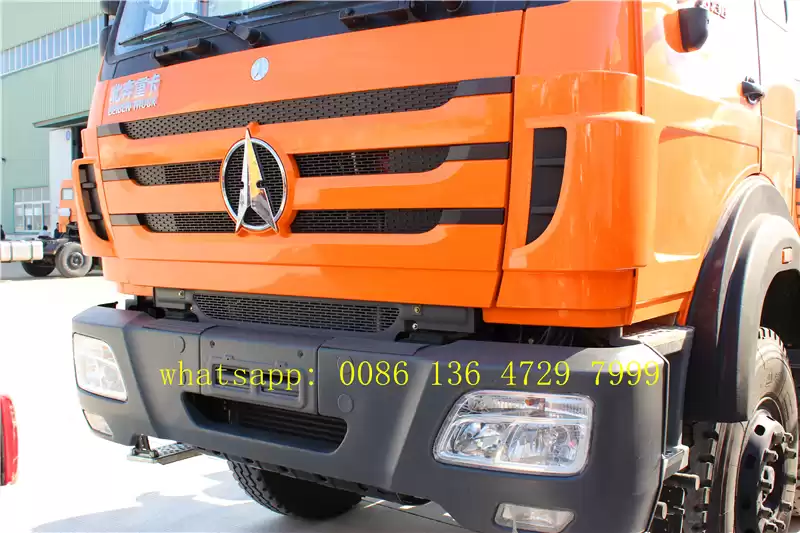

Beiben NG80B new cabin, 3138 model with strong diesel 380 hp engine.
