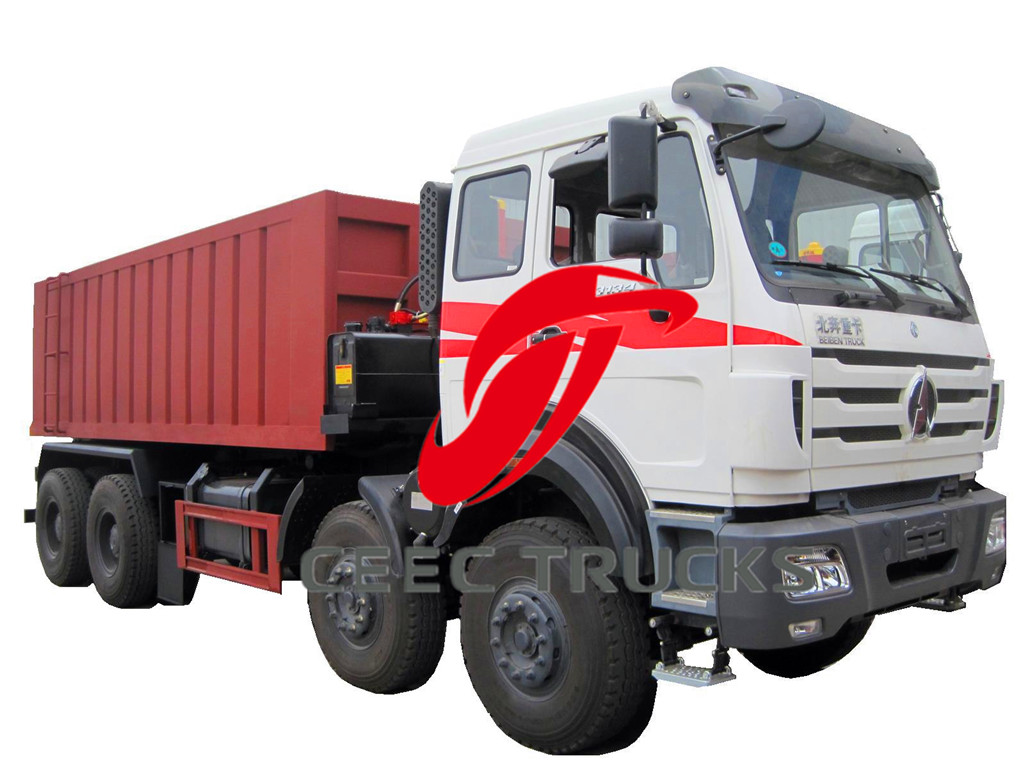

Beiben 340hp 8*4 50ton dump truck Congo beiben 3134 tipper trucks

beiben 3134 tipper trucks, WP10.340 engine, 12-shift mechanical transmission gearbox, Q345 material dumper body with loading capacity over 50T, super performance. Congo beiben 340HP dumpers widely export Africa countries with low price



Best Beiben 3134 tipper trucks Lowest price sale



beiben 3134 tipper trucks sale



The best beiben NG80 mining 3134 dump truck supplier from china baotou beiben heavy duty dump trucks. The most professional beiben dump truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638,3134,3138,3142 dump trucks. Currently, we supply beiben LHD dump truck with 2534 cabin, beiben RHD dumper with 3134 cabin. Also beiben off road dumper , beiben mining dump trucks are also avaliable .



beiben 3134 V3 tipper trucks drawing

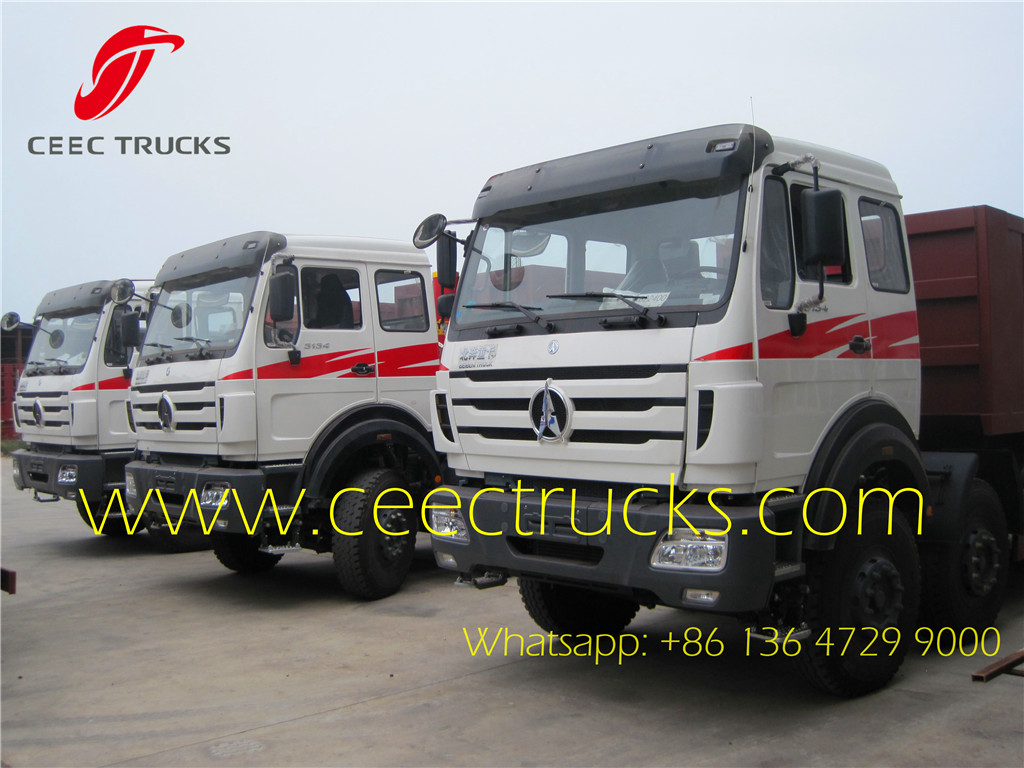

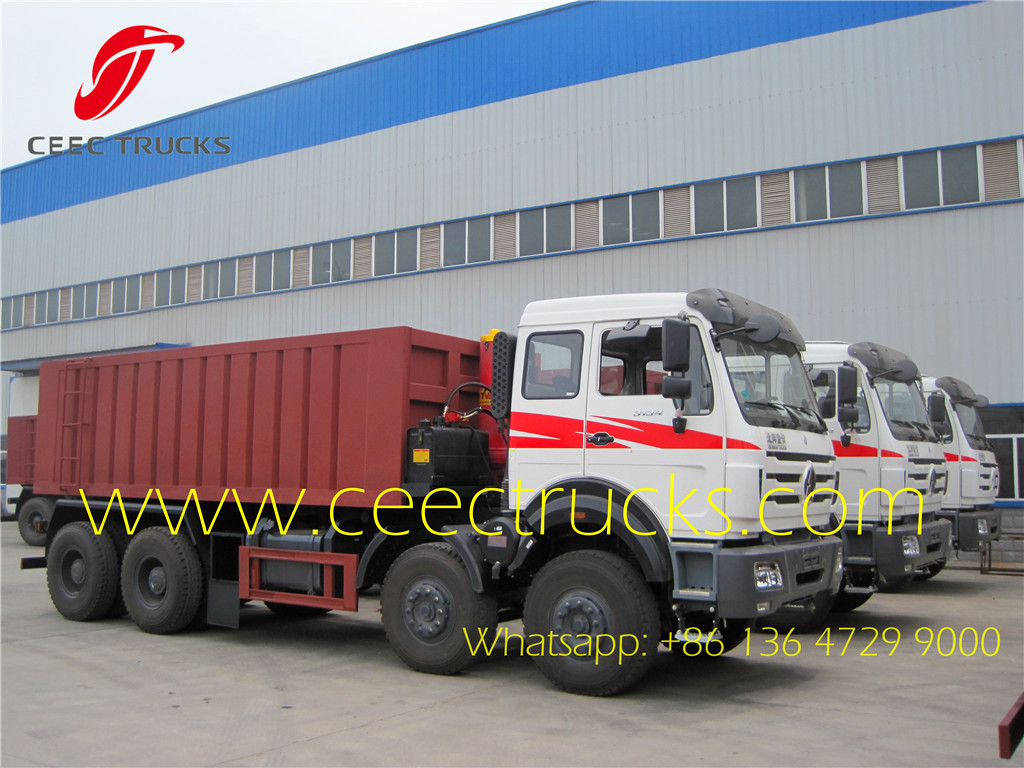

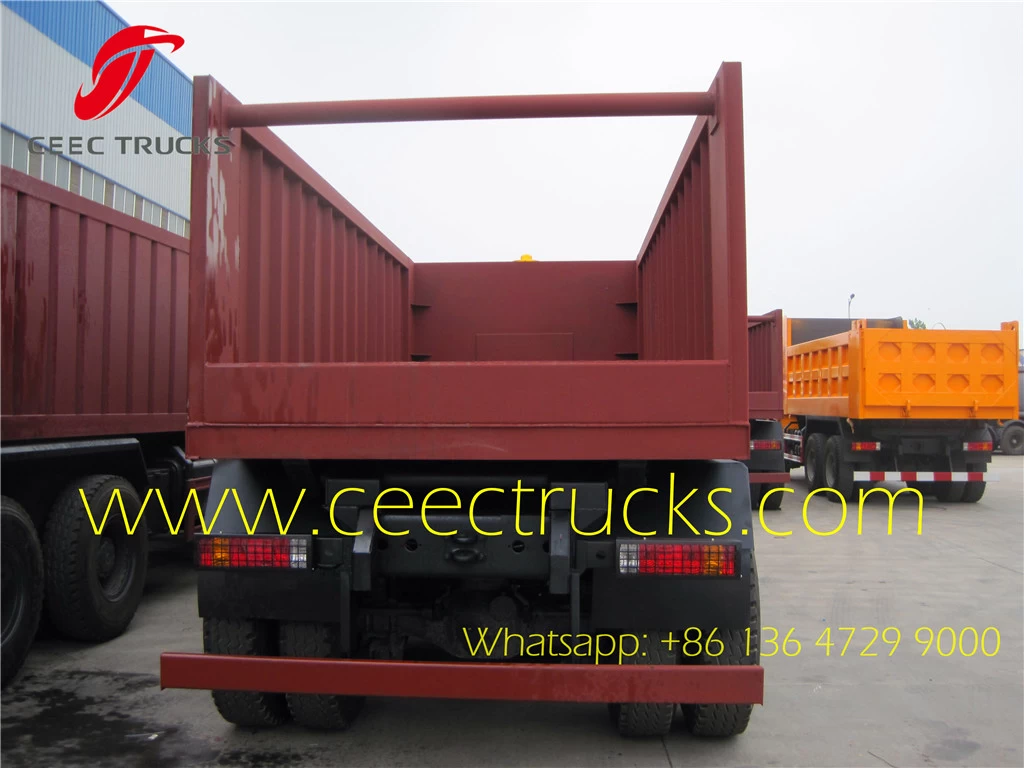

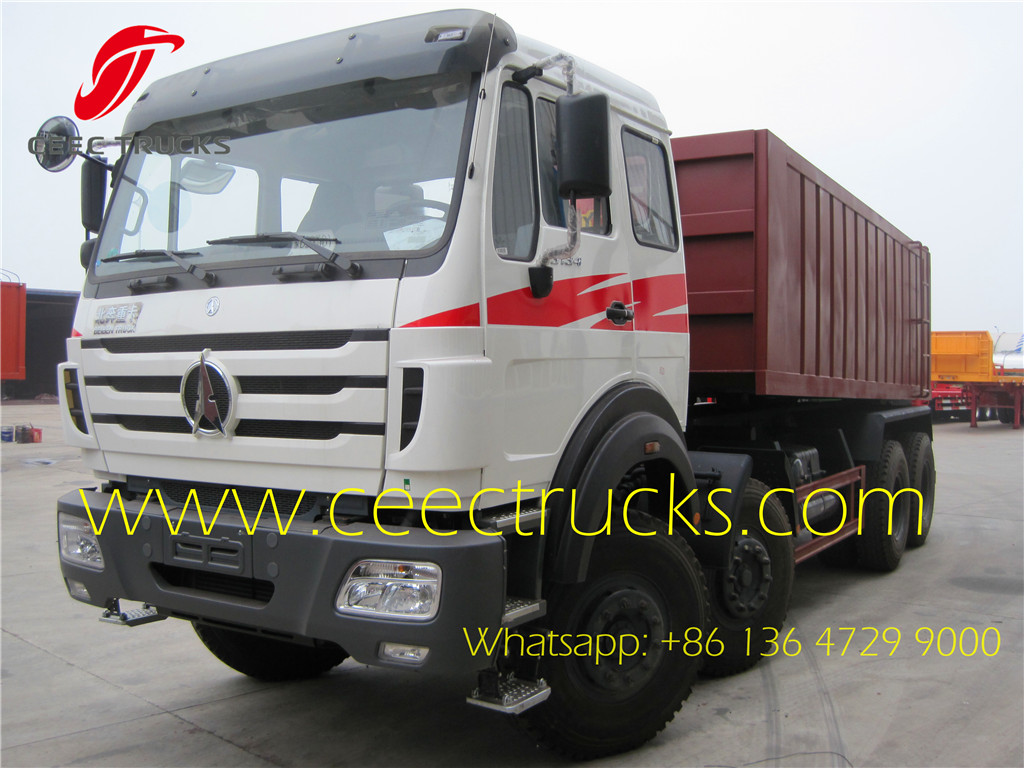

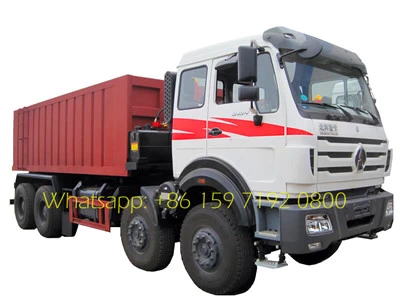

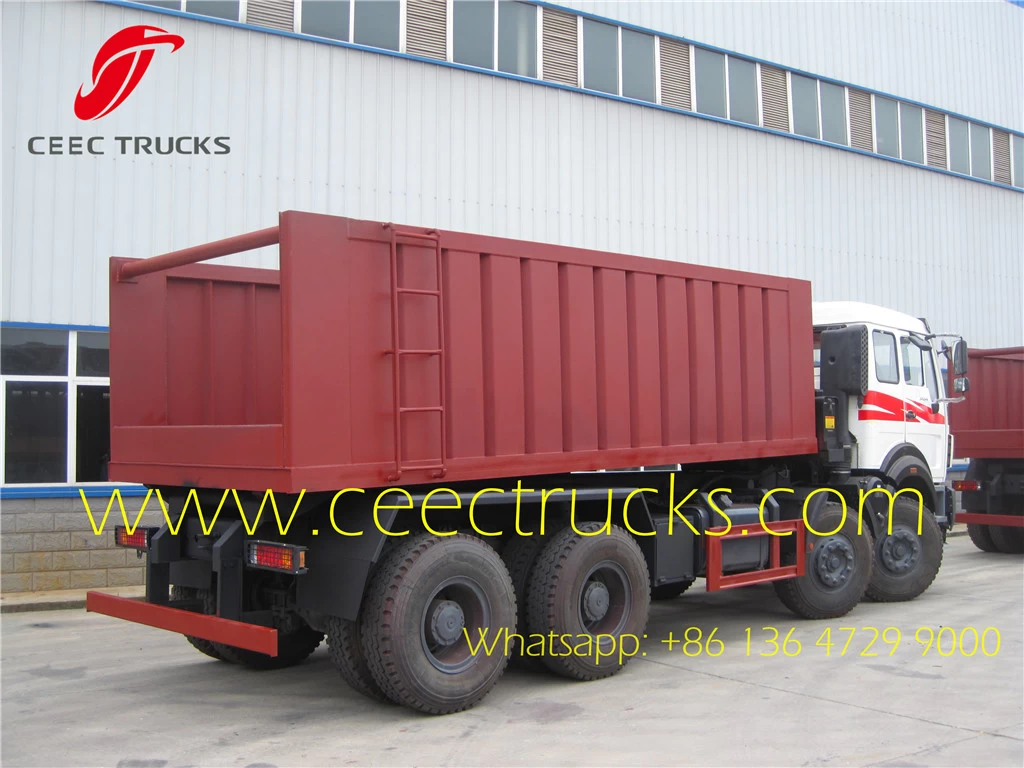

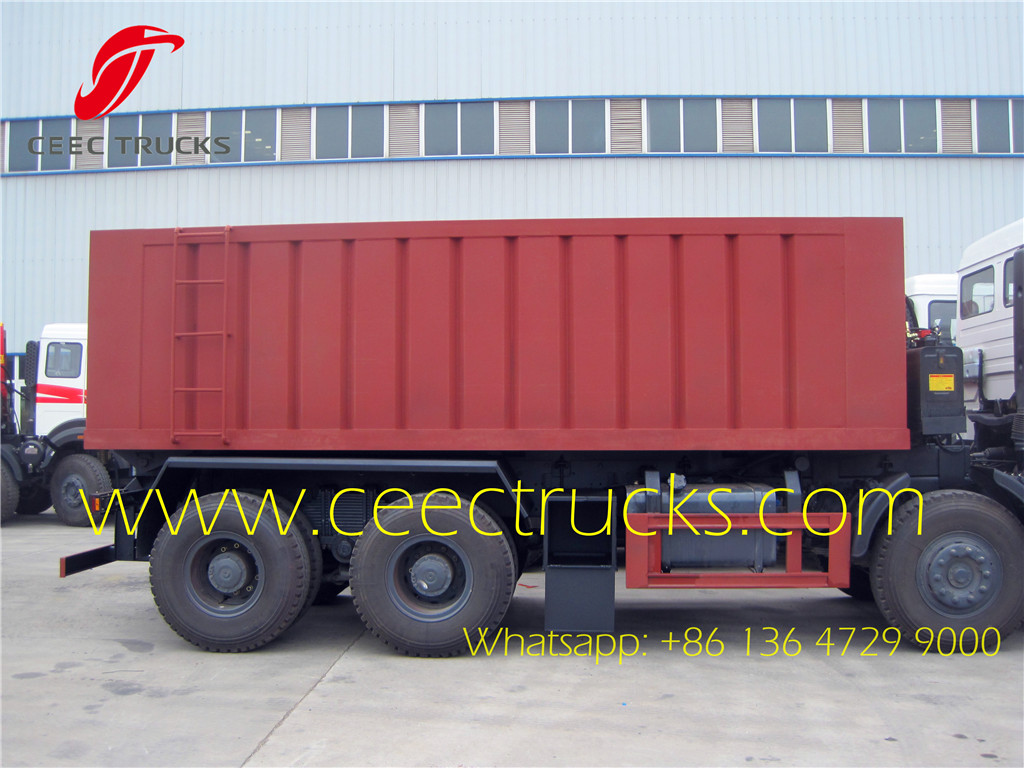

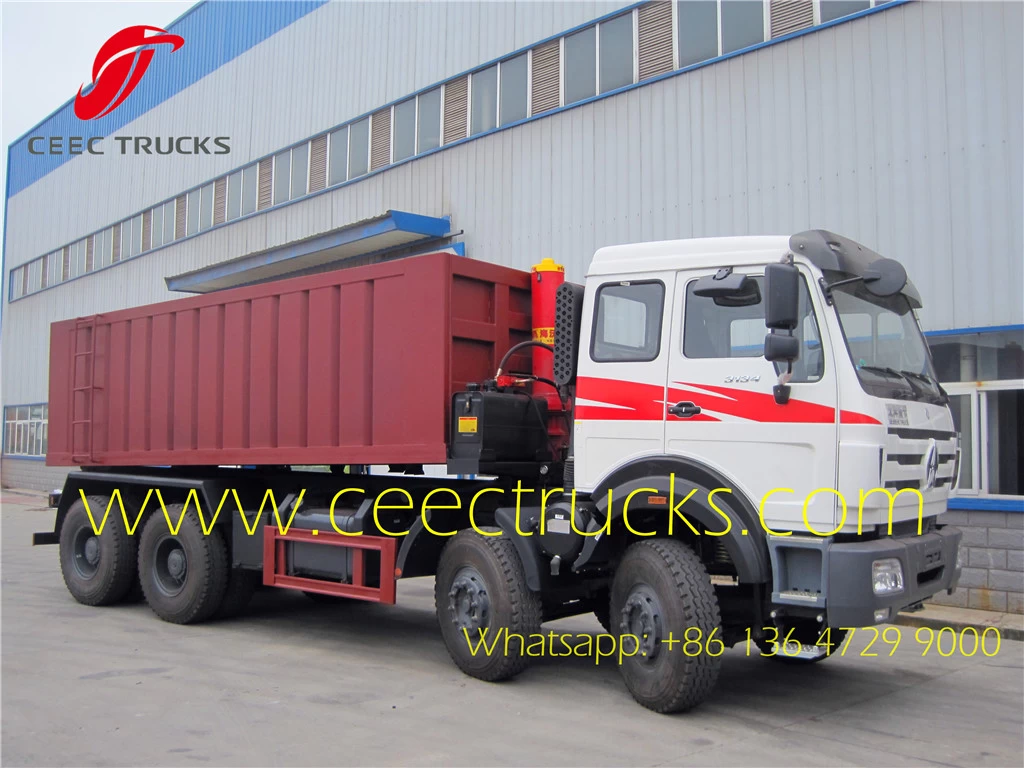

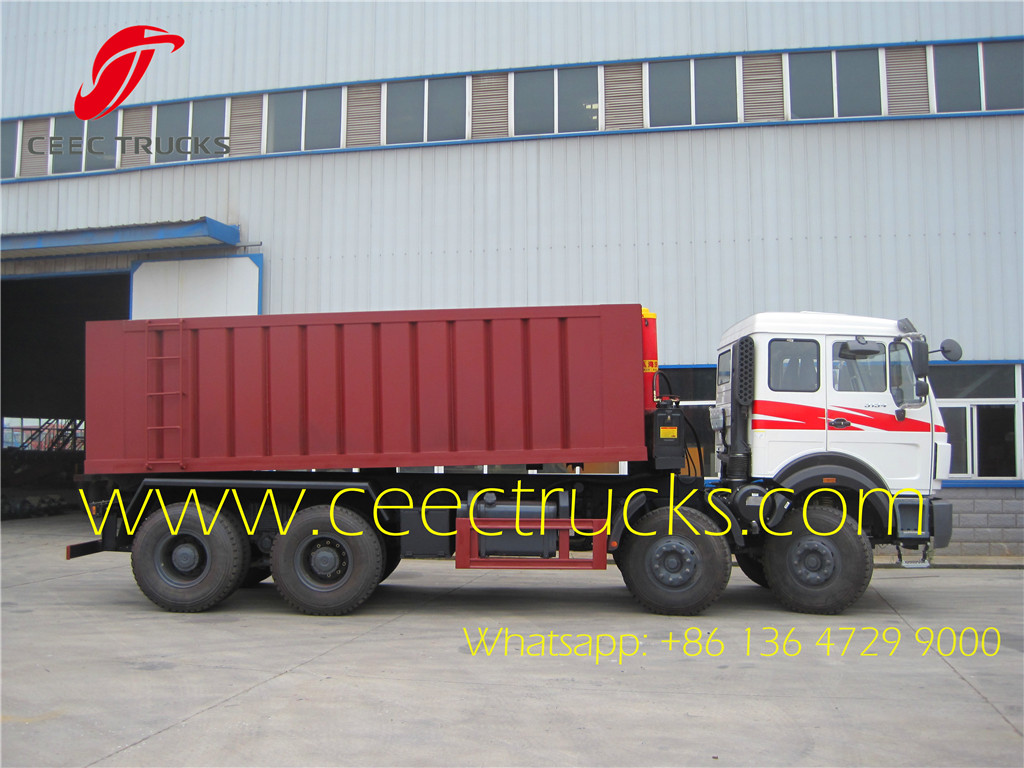

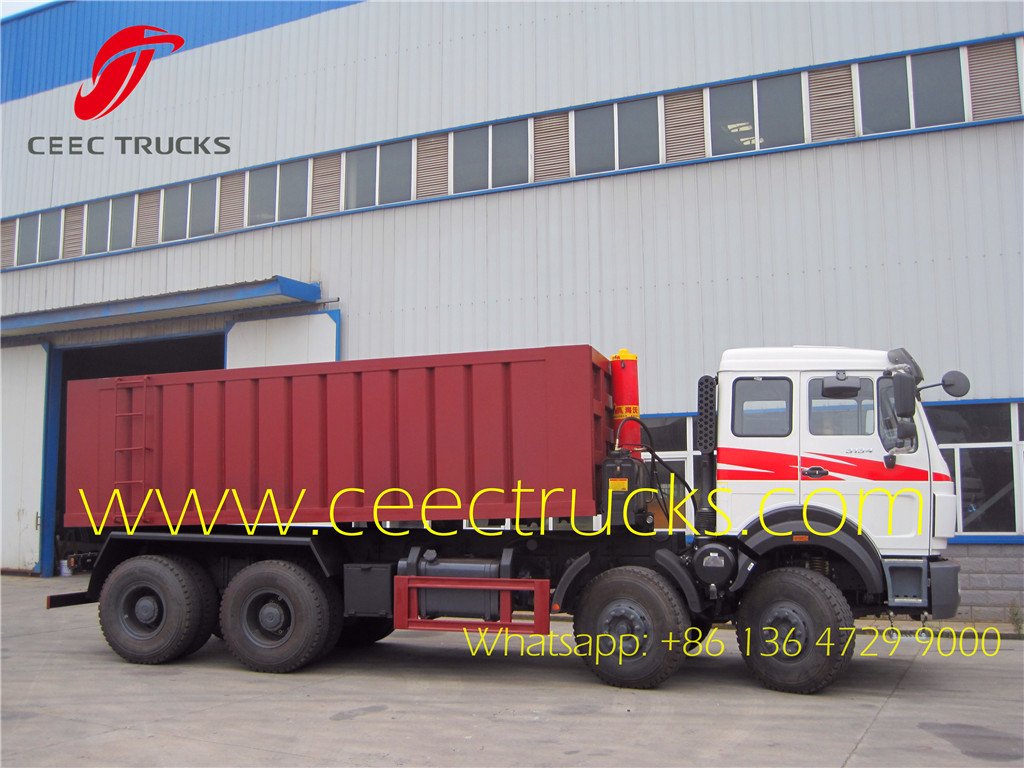

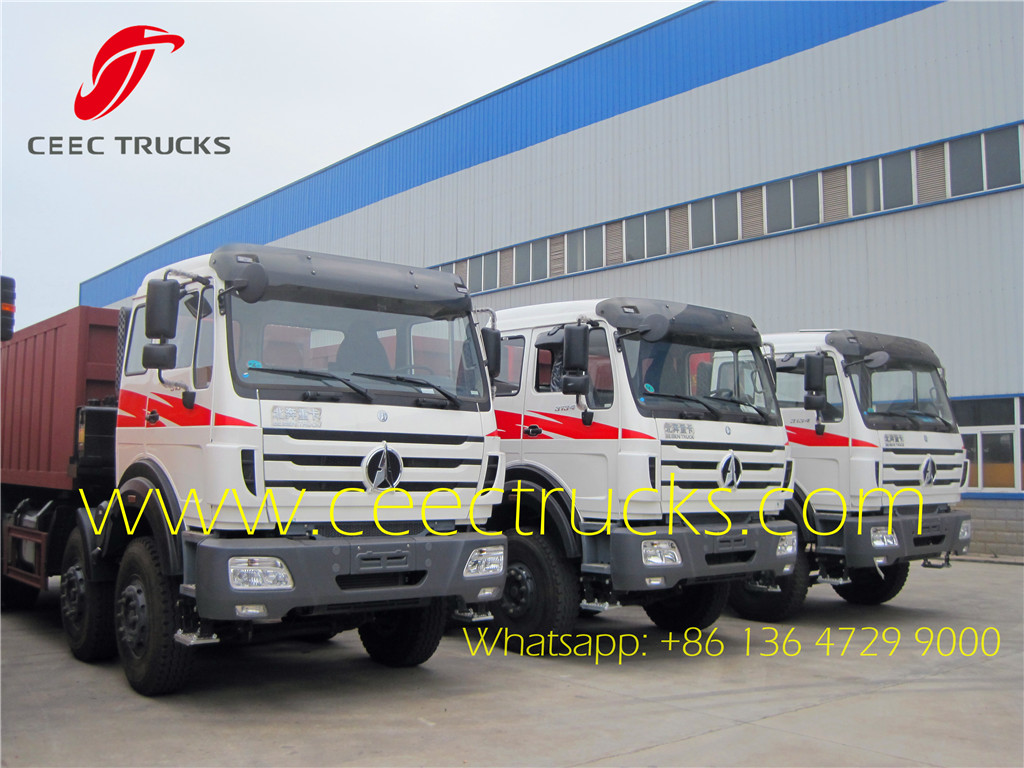

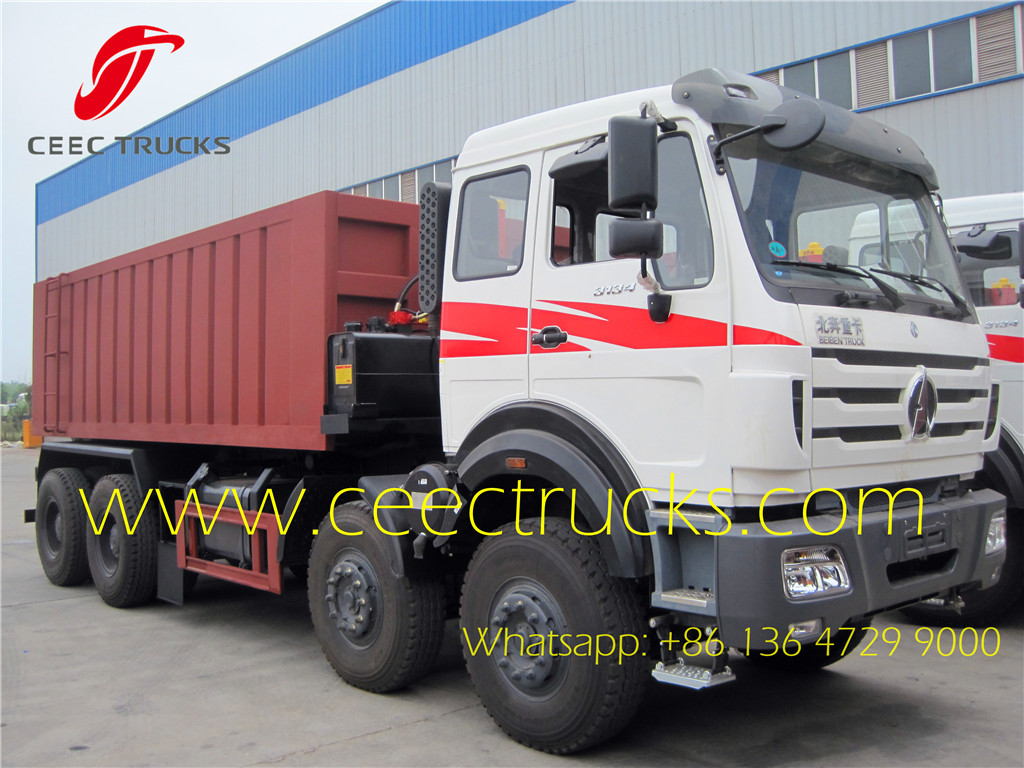

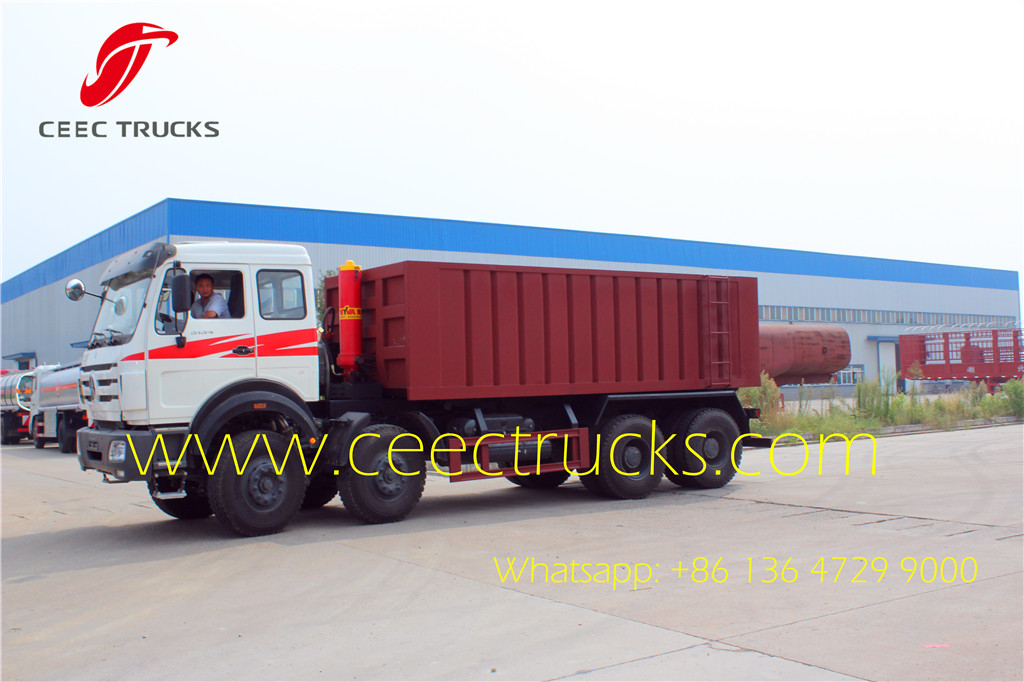

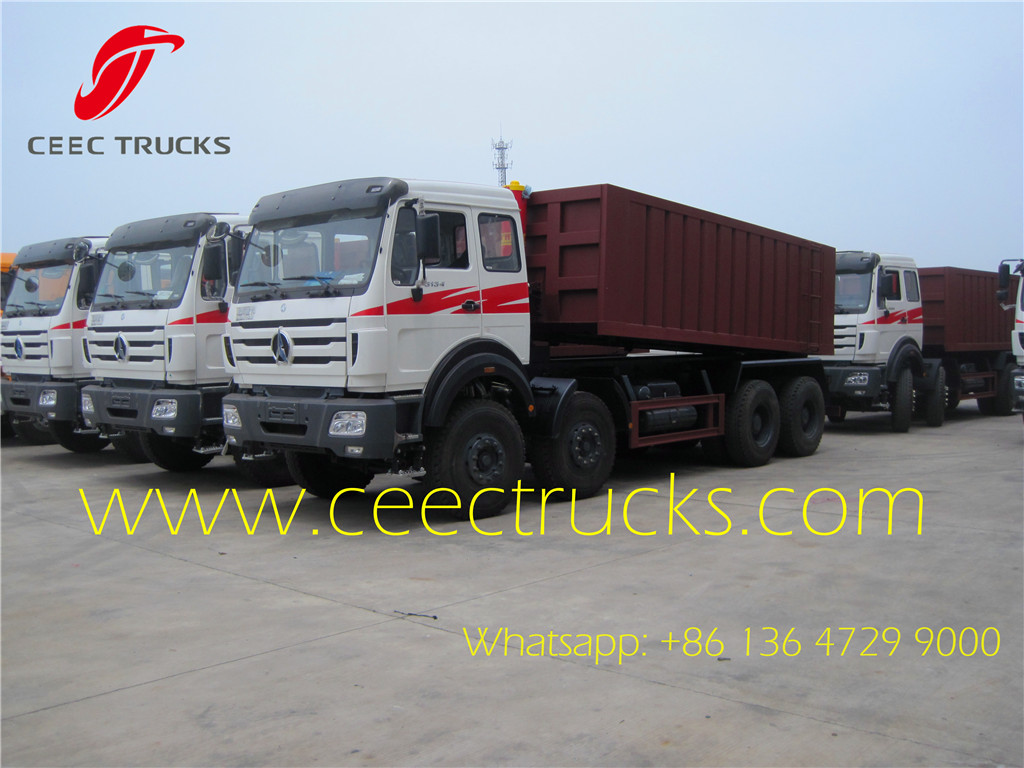

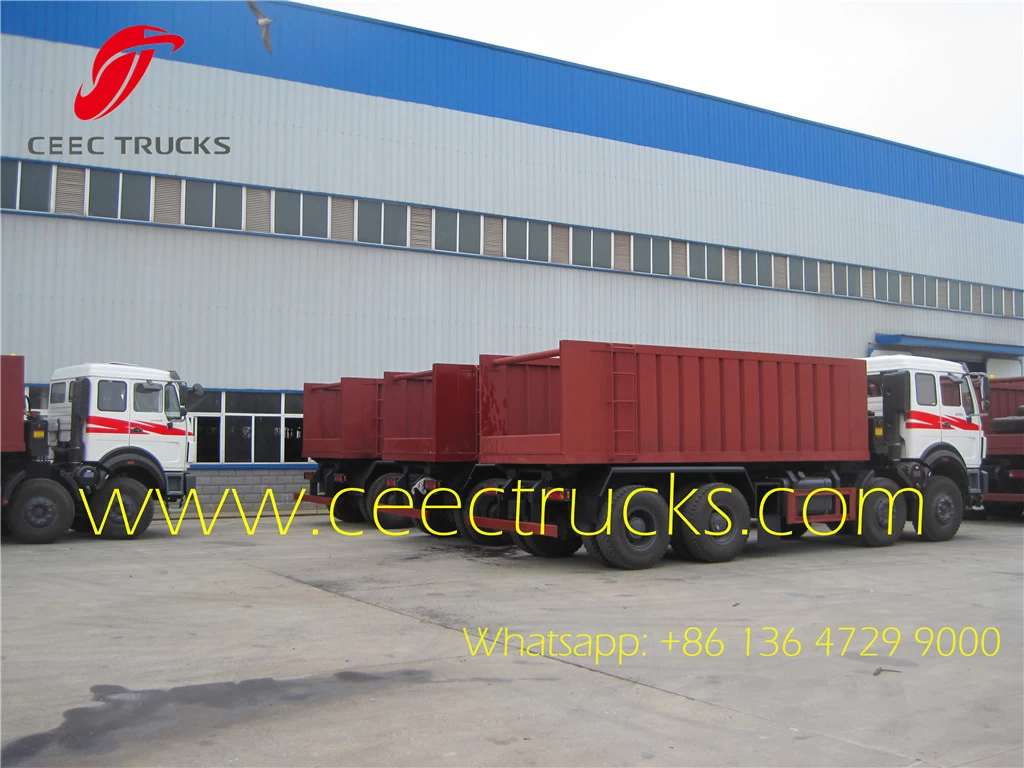

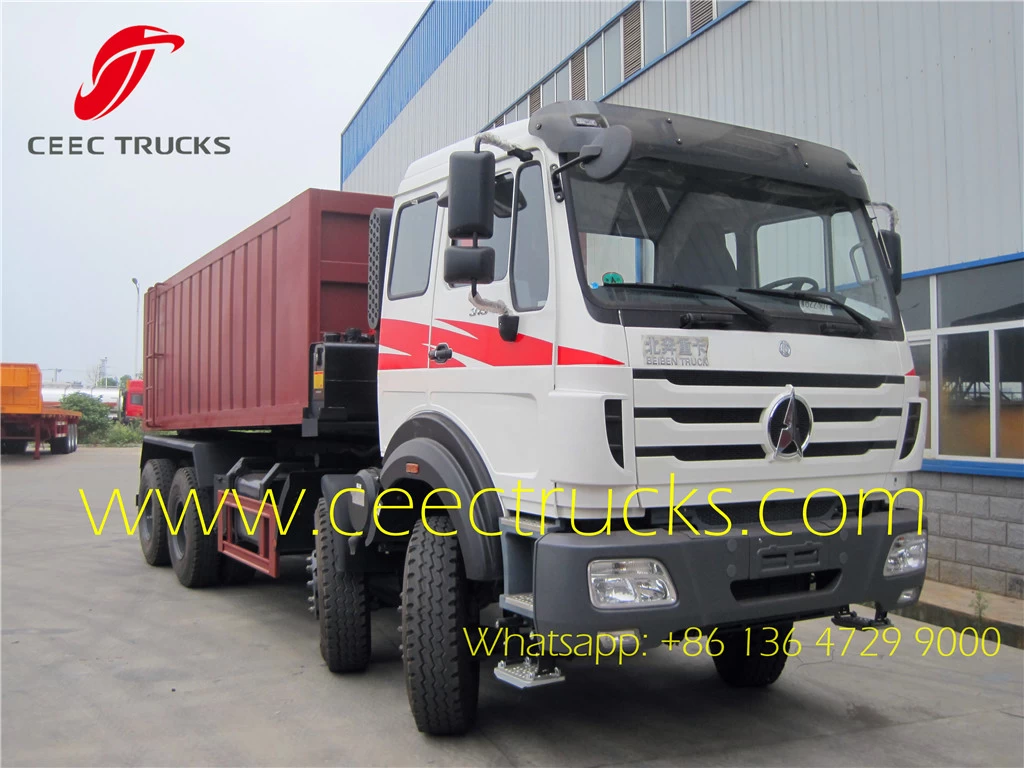

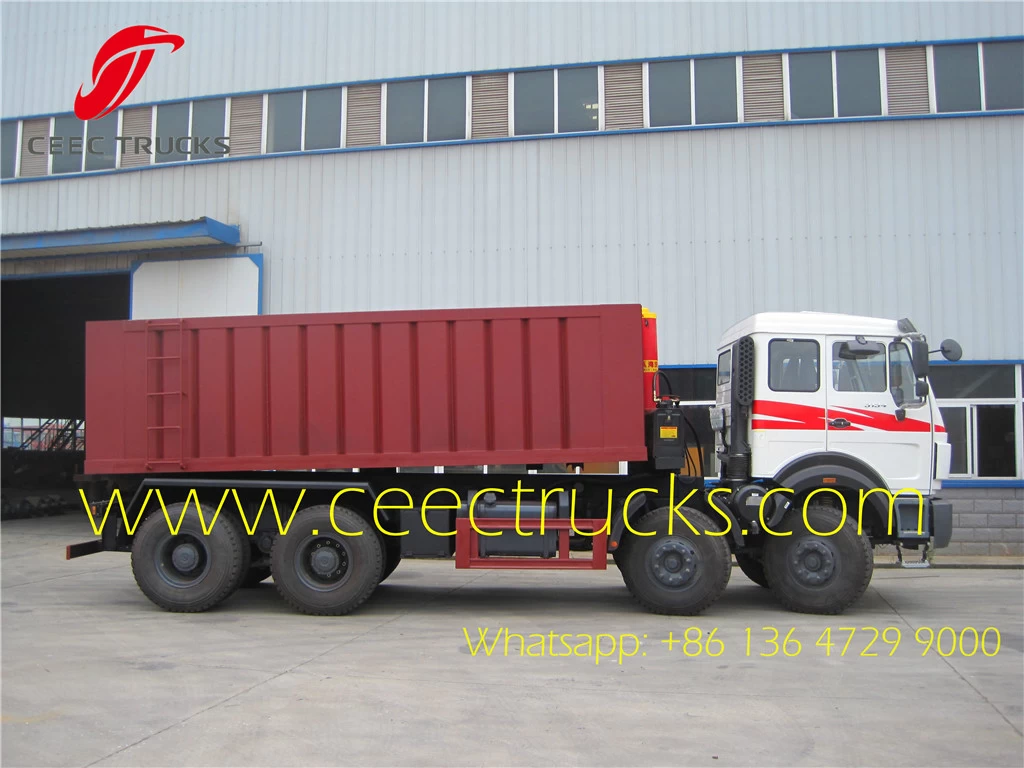

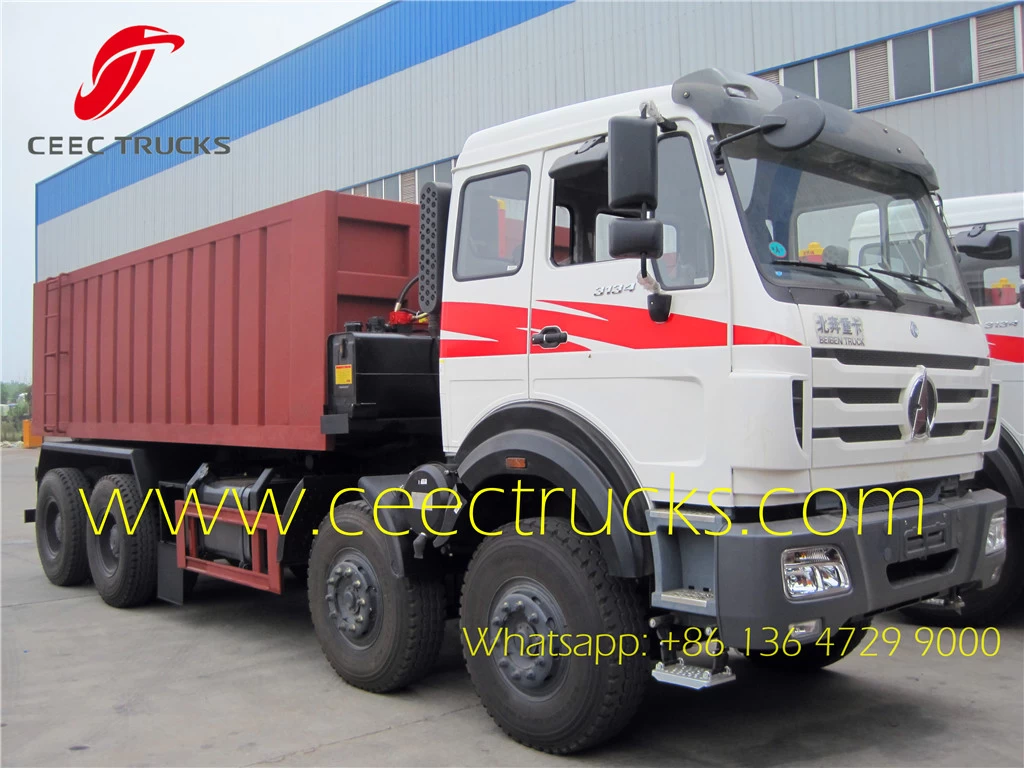

Congo customer choose Beiben 3134 tipper trucks with green painting from China CEEC TRUCKS:

◆ Super reliable benz dumper technology, 100 years quality assurance.

◆ Famous weichai engine combined with original benz typerear axle reducer gear and differential gear

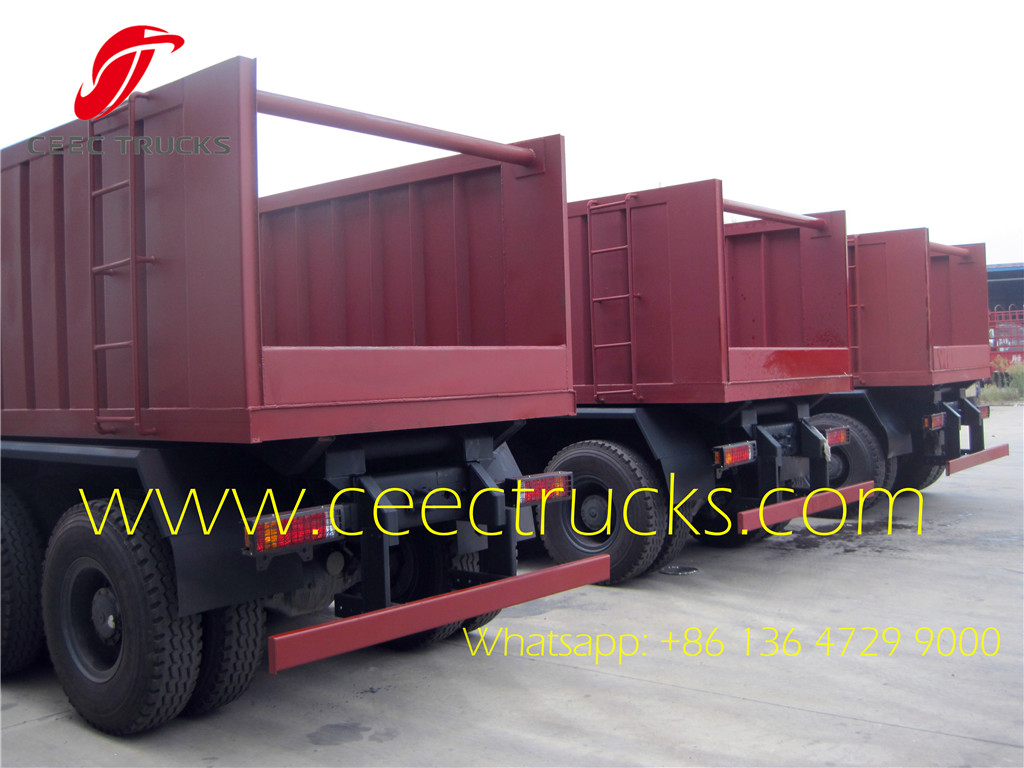

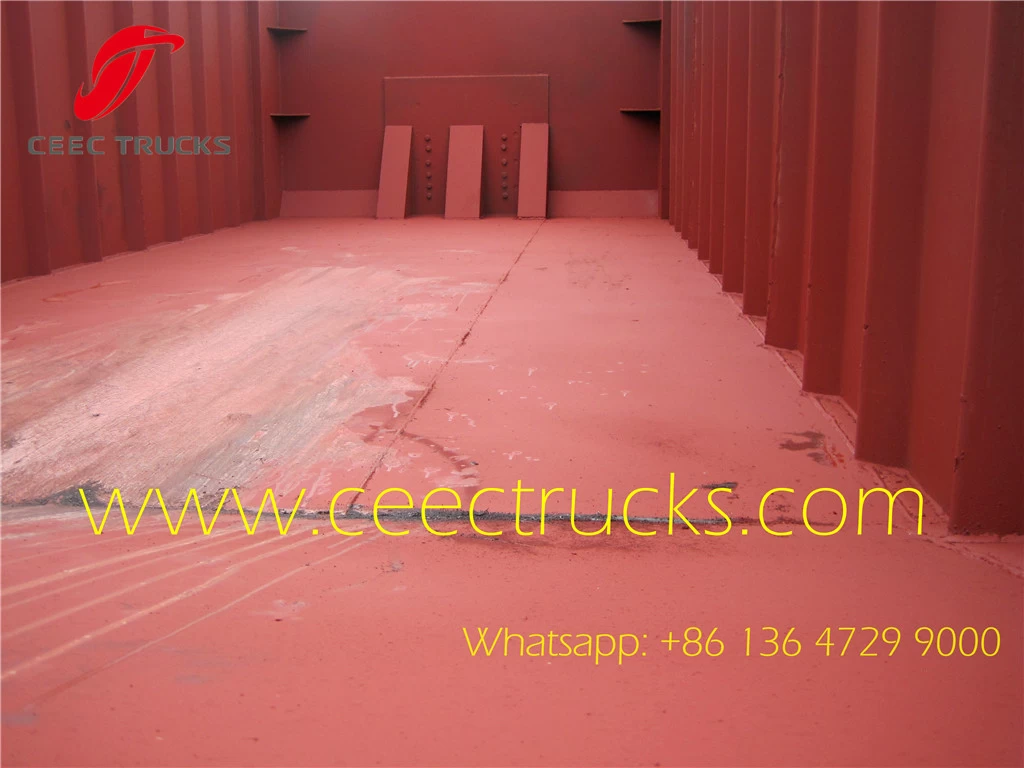

◆ Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.

◆ 15 years great experiences on beiben dump truck upper structures designing and supplying.

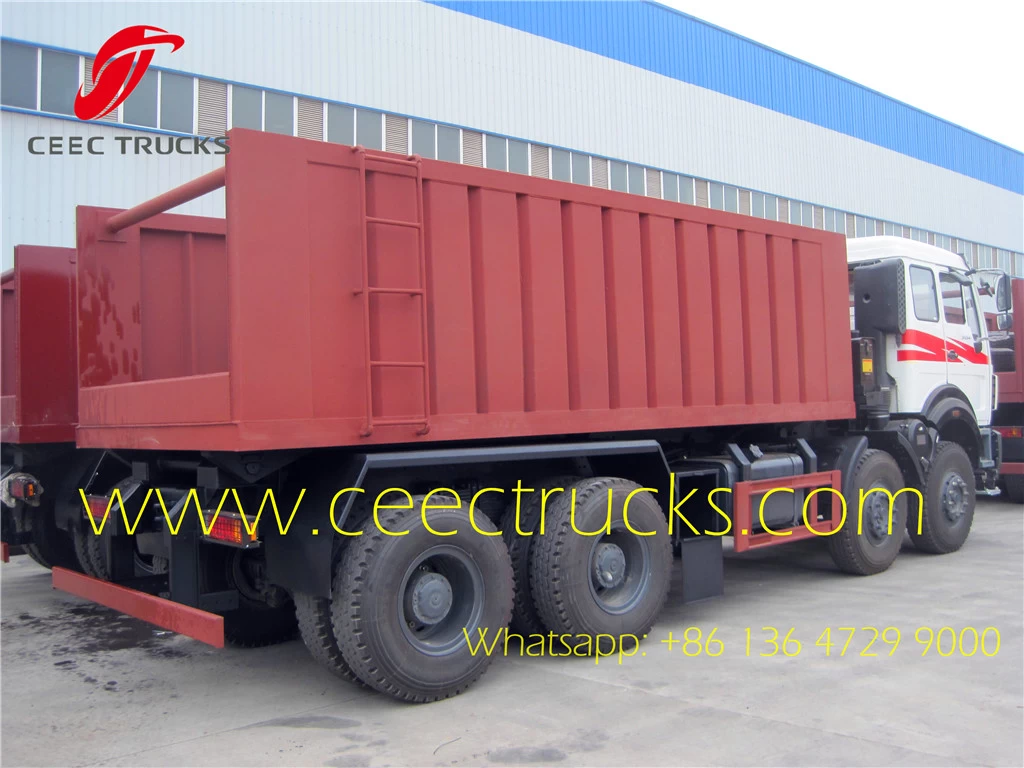

◆ Special beiben 50T tipper Body Design are optional as below

 Special beiben tipper Body Design are optional



beiben 3134 dump trucks wholesale



beiben 3134 dump trucks wholesale



Similar key words: beiben 8*4 dumper truck, beiben 3134 tipper truck, north benz 12 wheeler dump truck, international best beiben 8*4 tipper trucks, beiben dump truck supplier



Beiben 12 wheeler dumper truck advantages



Beiben 3134 tipper trucks manufacturer supply

Overall dimension(mm)

9950x2500x3180

Wheel base  (mm)

1500+4450+1450

Curb weight kg

11200

Engine

Model

WP10.340(Wei Chai engine.Euro II,Based on Styre technology, made in China)

Power, max   kw/rpm

250/2200

Max torque(Nm/rpm)

1250/1200-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

ZF5S-112GP(ZF technical, mechanism,9gears,1 reverse gear, manual,made in China,produed by Bei Ben Transmission)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C
