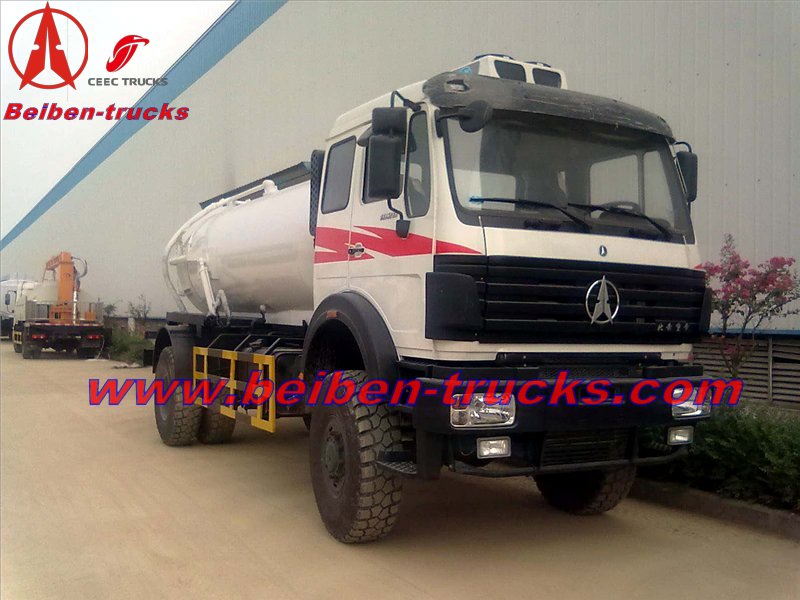

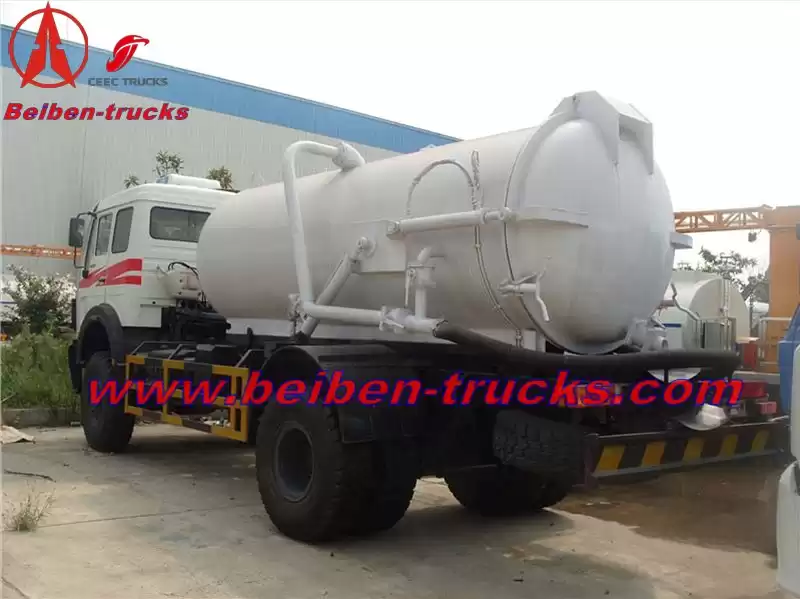

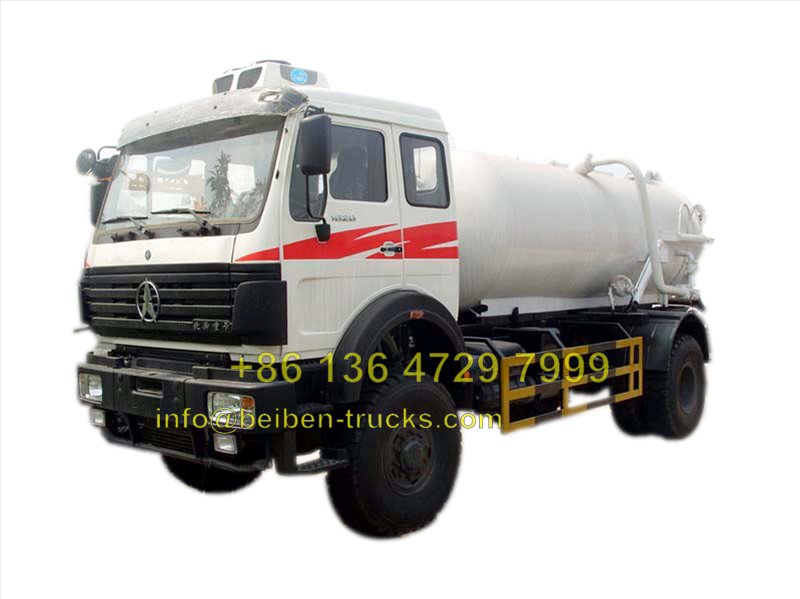

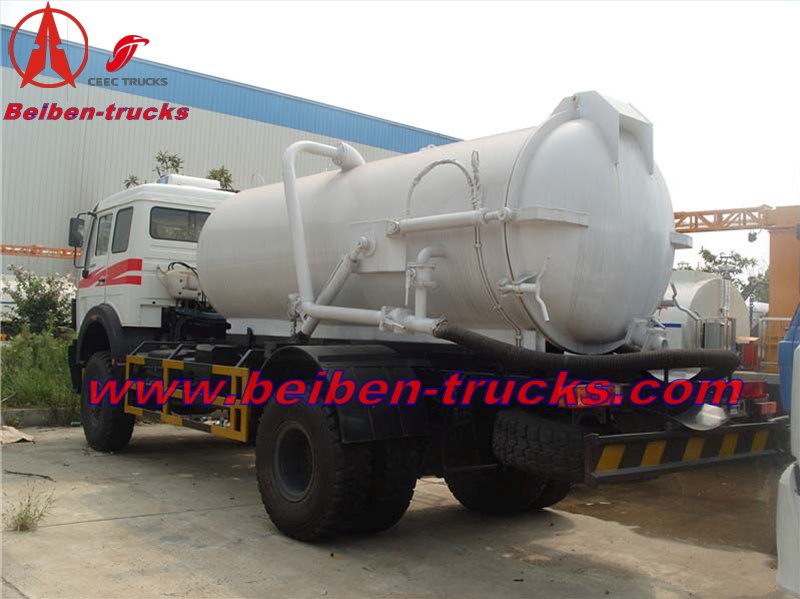

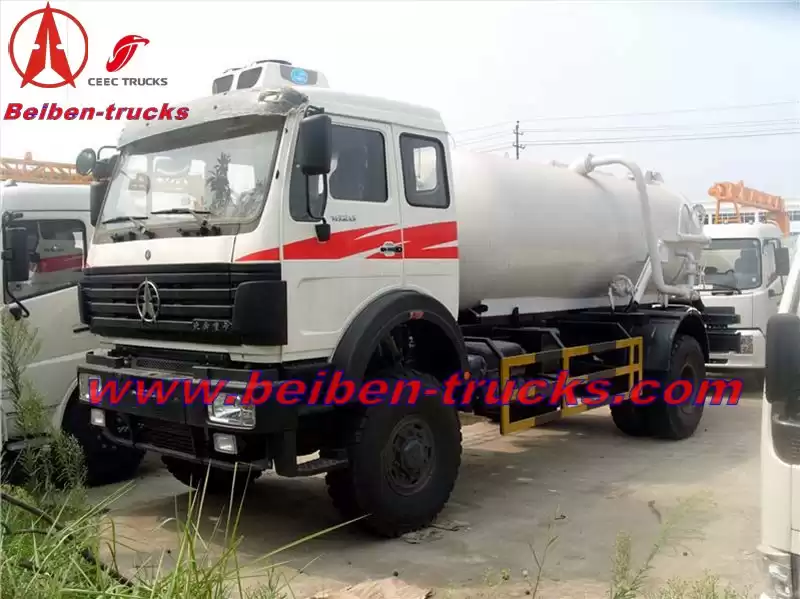

Beiben 4*2 sewage suction truck 10 CBM capacity , 10,000 L vacuum tanker based on beiben 1161 truck chassis, weichai 160 hp diesel engine, fast 9 shift transmission.
We can supply best quality beiben 4*2 drive sewage tanker truck.
| Chassis
|
ND2161E48J
|
| Cubage (T)
|
7000Litres to 10,000Litres
|
| Vehicle
|
Overall dimension(length/width/height)mm
|
8826×2500×3355
|
| G V W(kg)
|
16000
|
| Payload (kg)
|
7960
|
| Kerb mass(kg)
|
7910
|
| Fuel Type
|
Diesel
|
| Fuel consumption(L/100km)
|
22
|
| Top speed
|
90
|
| Engine
|
Model
|
WP10.270
|
| Exhaust/Power(kw)
|
9726cc/199kw
|
| 270HP
|
| Manufacturer
|
Weichai Motor Co., Ltd.
|
| Type
|
6-in-line water cool Turbo Charge engine
|
| Chassis
|
Drive type
|
4×2
|
| Wheelbase (mm)
|
4,800
|
| Tread(front/rear)mm
|
1995/1800.
|
| Front Bridge
|
7.5T FRONT AXLE
|
| Number of spring axles(front/rear)
|
9/9+6
|
| Tire specification
|
12.00-20 ; 12.00R20
|
| Air condition
|
with
|
| suction system
|
suction pump
|
Single Stage Rotary Oil Seal Vacuum Pump
|
| special parameter
|
Vertical suction heihgt
|
≥8
|
| working pressure
|
8500Pa
|
| rotation speed
|
500
|
| suction speed
|
98L/S
|
| power
|
5.5kw
|
| inlet diatmeter
|
50mm
|
