Product Description

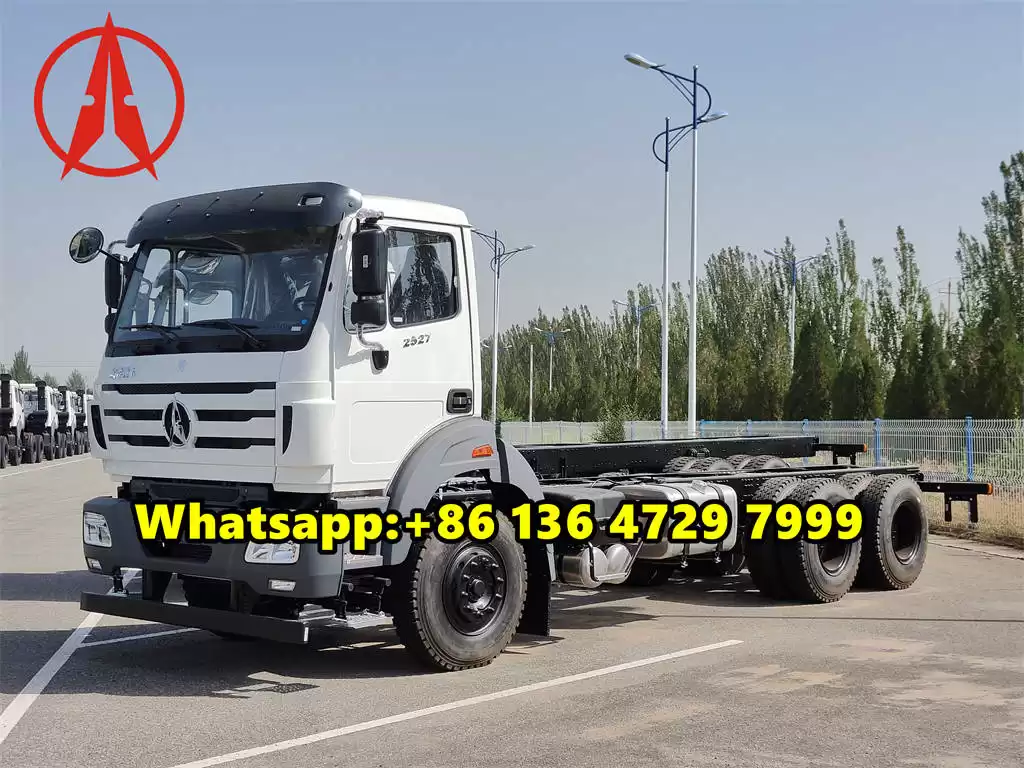

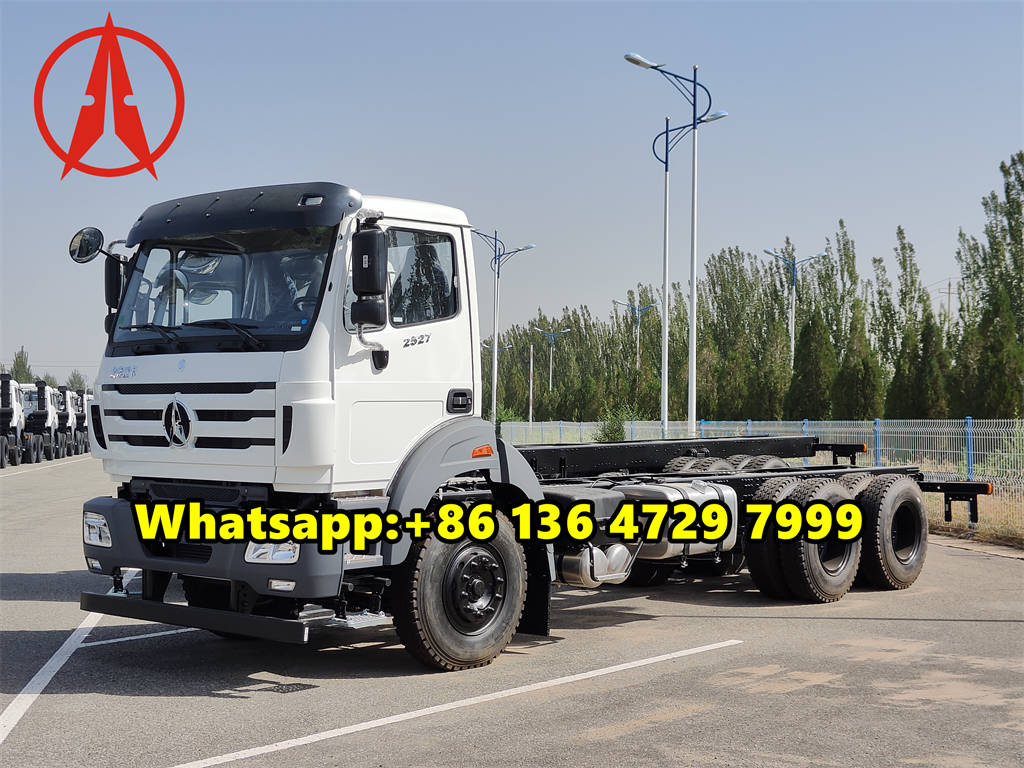

The Beiben 6×4 truck chassis is a high-performance chassis specifically designed for heavy-duty cargo transportation. With its exceptional drive system, comfortable cab configuration, and outstanding load capacity, it occupies an important position in the logistics and transportation industry. The chassis features a 6x4 drive configuration, with front four-wheel drive and rear dual wheels, and is available in both left-hand drive and right-hand drive options to accommodate driving habits in different countries and regions. In terms of the cab, the Beiben 6×4 chassis is equipped with the NG80 cab, offering a choice between a short or long cabin to adapt to different transportation needs and driving environments. The cab is equipped with air conditioning to ensure driver comfort during long-distance driving. To maximize space utilization, the chassis is designed without a sleeper berth.
The kerb mass of the Beiben 6×4 cargo truck chassis is 10,800kg, and the gross vehicle weight (GVW) is 25,000kg, demonstrating its strong load-carrying potential. In terms of dimensions, the chassis has a maximum length of 9,880mm, a maximum width of 2,500mm, and a maximum height of 3,630mm, providing sufficient space to accommodate various large cargo. The front and rear overhang lengths are 1,410mm and 1,870mm, respectively, and the wheelbase is 4,750mm + 1,450mm, ensuring stability during vehicle operation.
The Beiben 10 wheeler chassis is powered by a WEICHAI brand WP10.340E32 engine, delivering a power of 340 horsepower (HP) and a maximum torque of 1,250 N.m within the range of 1,400 to 1,600 rpm. With a displacement of 9.726 liters, the engine meets Euro III emission standards. In terms of the transmission system, the chassis adopts a FAST brand 9JS180 manual transmission, featuring 9 forward speeds and 1 reverse speed, providing smooth shifting and convenient operation.
Product Specifications
|
Beiben 6×4 cargo truck chassis
|
|
Drive Type
|
6x4 LHD/RHD
|
|

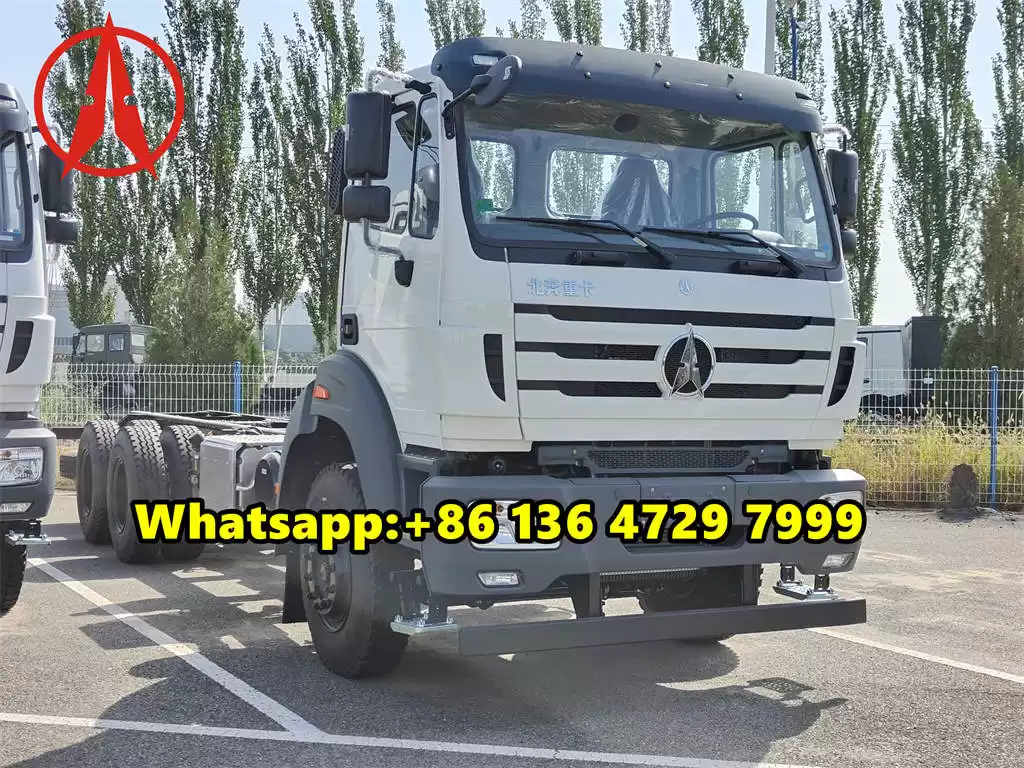

Cab
|
NG80B
|
|
Type
|
Short/Long Cabin
|
|
Equipment
|
With Air Condition, none bed
|
|
Weight
|
|
Kerb mass(kg)
|
10800
|
|
GVW(kg)
|
25000
|
|
Dimensions
|
|
Max. length(mm)
|
9880
|
|
Max. width(mm)
|
2500
|
|
Max. height(mm)
|
3630
|
|
Front/Rear overhang(chassis)
|
1410/1870
|
|
Wheel base(mm)
|
4750+1450
|
|
Track width(mm)
|
1995/1808
|
|
Performance
|
|
Max. speed (km/h)
|
90
|
|
Max. gradeability(%)
|
30
|
|
Approach/Departure angel(°)
|
26/32
|
|

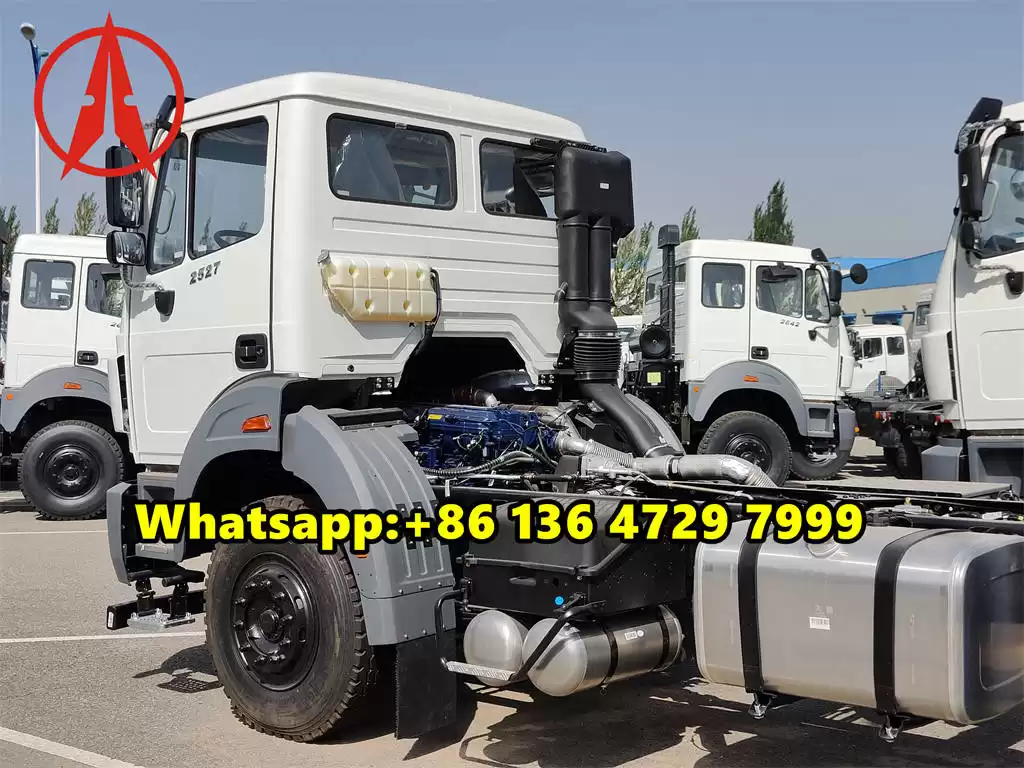

Engine
|
|
Brand
|
WEICHAI BRAND
|
|
Model
|
WP10.340E32
|
|
Power (kw/hp)
|
340 HP
|
|
Max torque (N.M)/rpm
|
1250/1400--1600
|
|
Displacement (L)
|
9.726
|
|
Emission Standards
|
Euro III
|
|
Transmission
|
|
Brand
|
FAST
|
|
Model
|
9JS180
|
|
Control type
|
Manual
|
|
Gear Shift
|
9-forward & 1 reverse speeds
|
|
Clutch
|
|
Type
|
Single plate, diaphragm spring
|
|
Diameter (mm)
|
Φ430
|
|
Action
|
hydraulically operating with air assistance
|
|
Brakes
|
|
Type
|
Drum
|
|
Service Brake
|
With dual-circuit compressed air brake
|
|
Park Brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary Brake
|
WEVB
|
|
Steering
|
ZJ120D/D50/TAS85
|
|

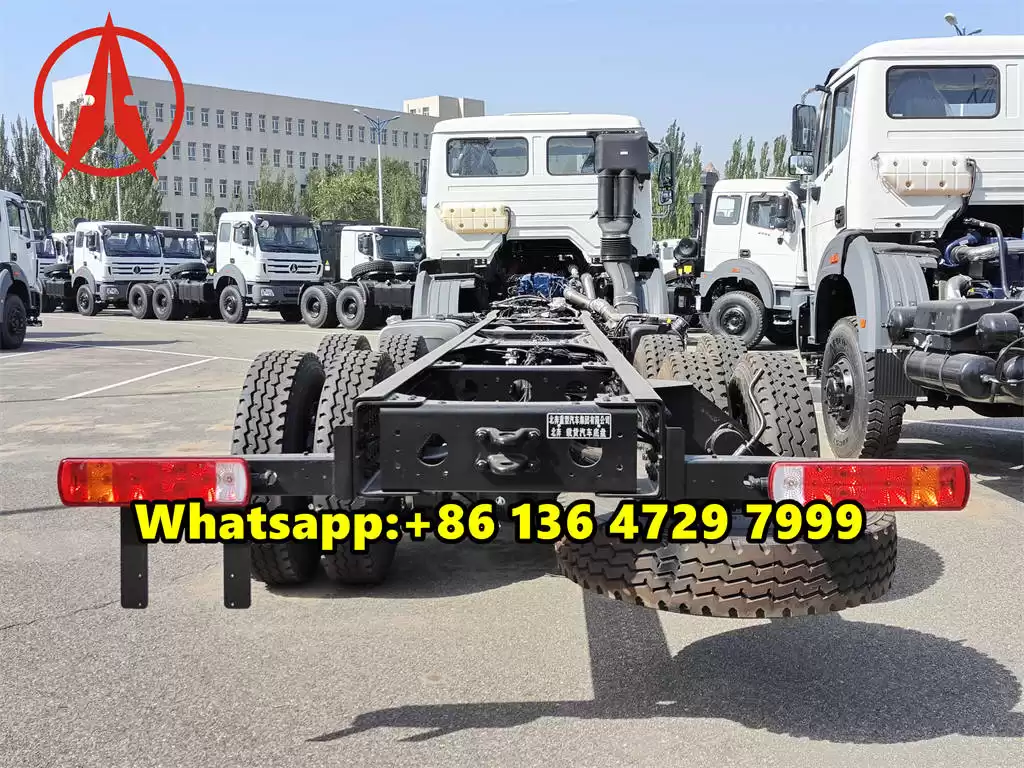

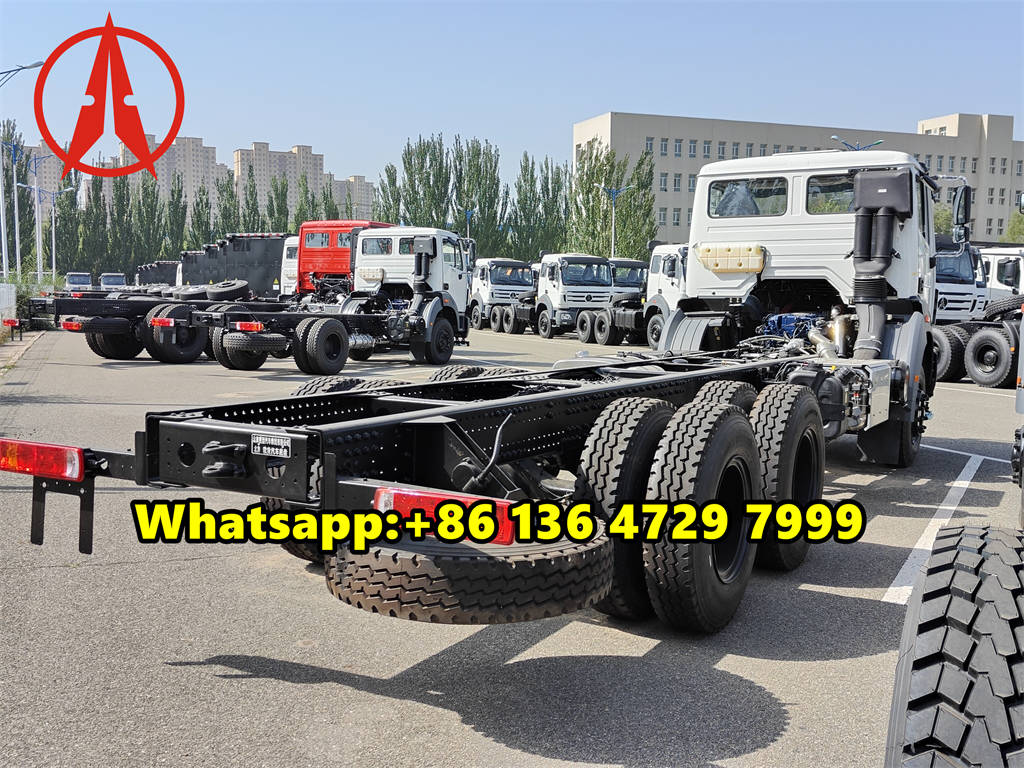

Chassis
|
Ladder structure with parallel straight
|
|
Dimensions (mm)
|
300x90x8+6+8
|
|

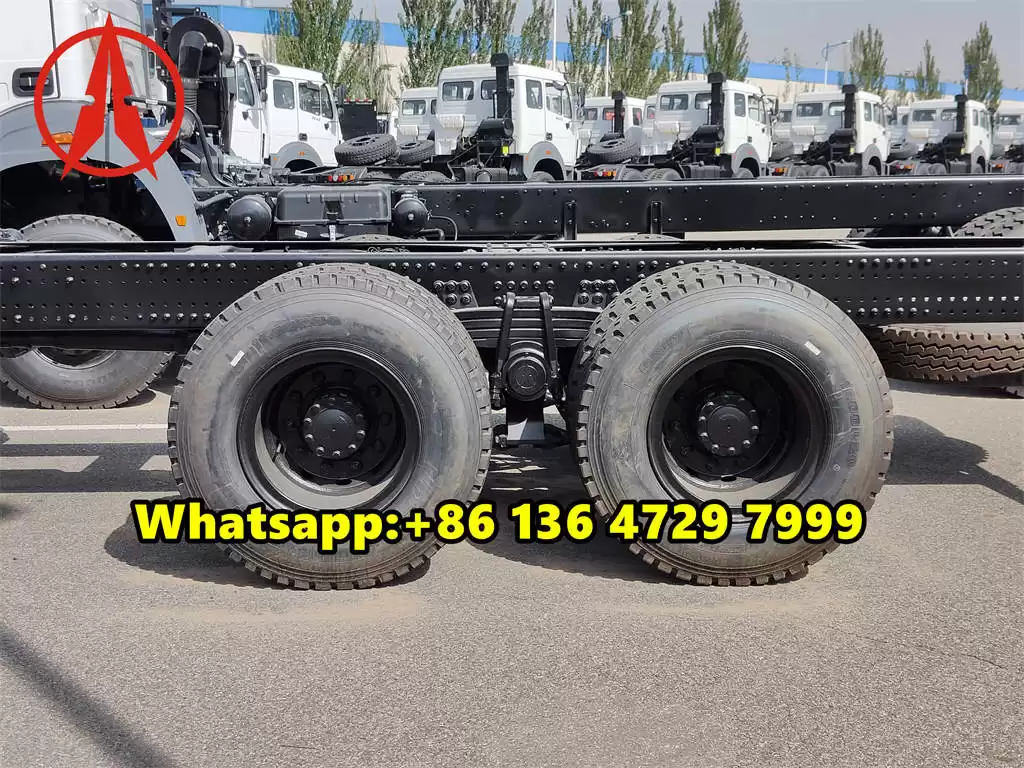

Suspension
|
|
Front
|
Longitudinal leaf spring
|
|
Rear
|
Inverted leaf spring stabilizator suspension
|
|
Axles
|
BENZ TECHNOLOGY
|
|
Front
|
BENZ TYPE: 7.5 tons
|
|
Rear
|
BENZ TYPE: 13tons
|
|
Ratio
|
5.921
|
|
Tyre
|
12.00R20 radial tire
|
|
Fuel tank
|
|
Tank capacity(L)
|
300
|
|
Material
|
Aluminum alloy
|
|
Electrics
|
|
Type
|
24V
|
|
Starter
|
5.58 kw (24V)
|
|
Generator
|
2.0 kw (28V 70A)
|
|
Battery
|
2x135Ah
|
