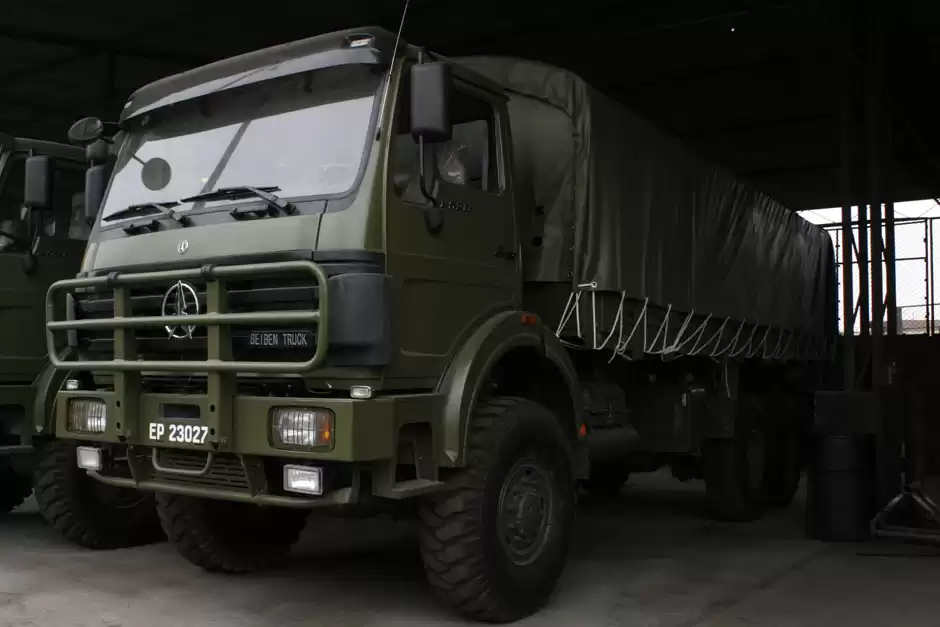

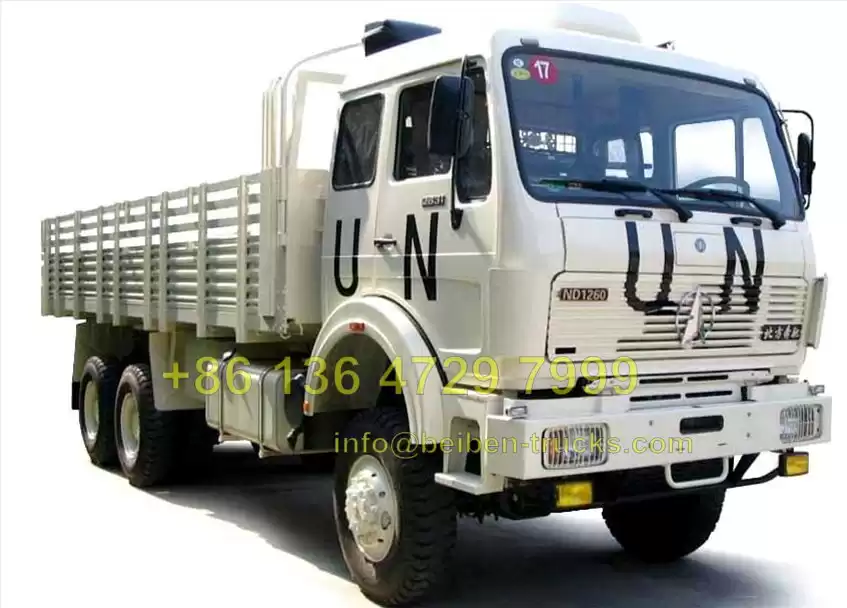

Beiben 6*6 truck Lorry truck
The series products
of our Beiben military all
wheel drive trucks are ideal transport with outstanding performance and
high quality, they are widely used in industries and sectors, such as national
defense, aviation, postal service, railways, highways, harbors, petroleum,
chemicals, water and electricity, forests, fire fighting, banks and peace
keeping forces.
Originate from Mercedes-Benz
Germany and Chinese local manufacturers,Beiben truck is the Chinese best
truck brands and best quality, technical performance properties index and
conform to the state and military standard.
Beiben truck
features and advantages:
1: Driving room: the steel structure, high
safety,lower wind resistance coefficient
2:Power system dynamic matching technology of
mercedes-benz: less power loss and more efficient

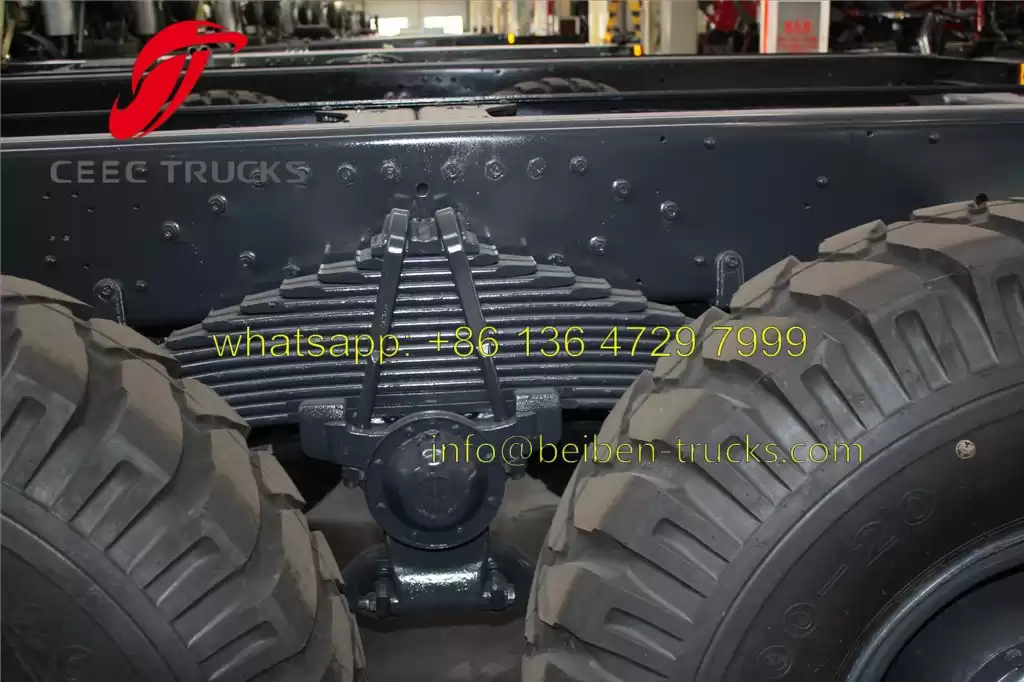

3: The suspension system: Mercedes suspension, high
intensity
4: Benz axle: double deceleration bridge, high
efficiency, carrying large
5: Transmission system: high efficiency, bigger
torque, climbing superior performance
6: Steering system:high safe and reliable, and
flexible
7:Braking system, high security, brake with high
efficiency
8: Electric system: stronger load ability, high
reliability and easy maintenance

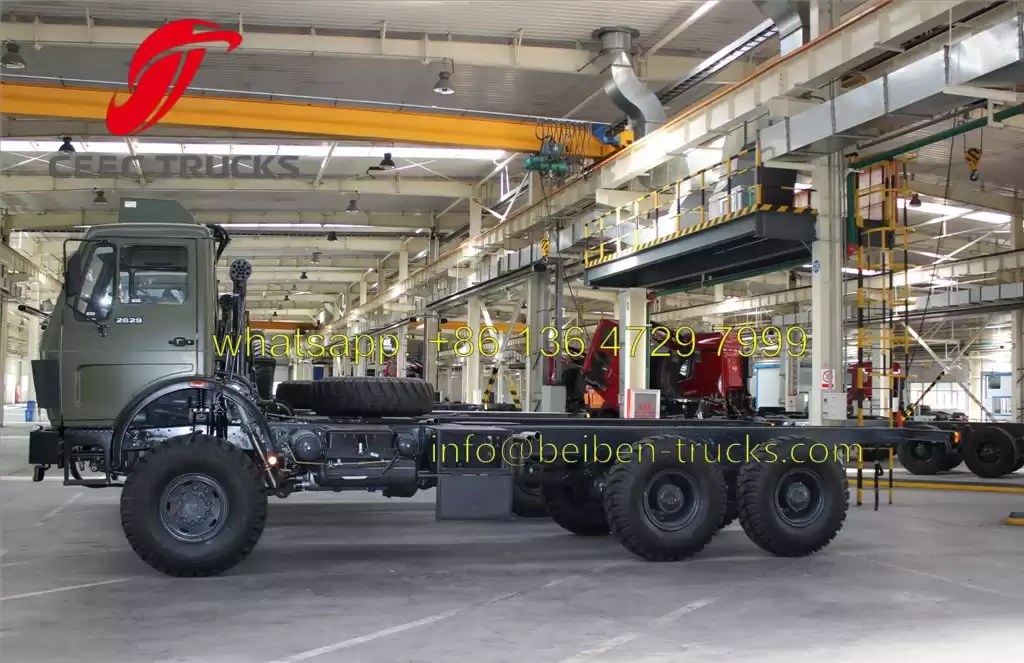

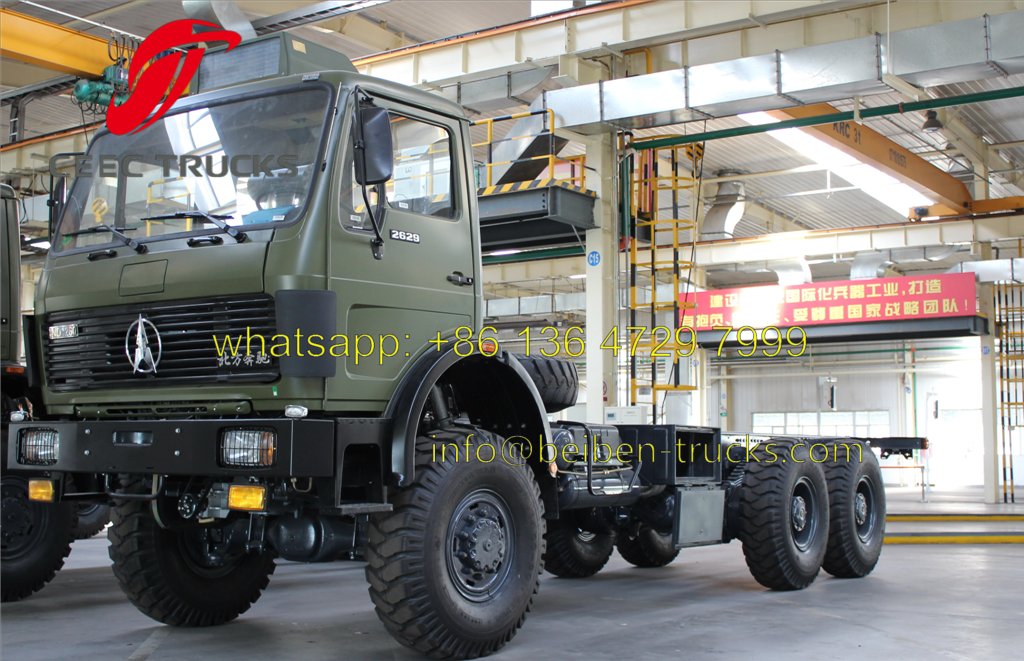

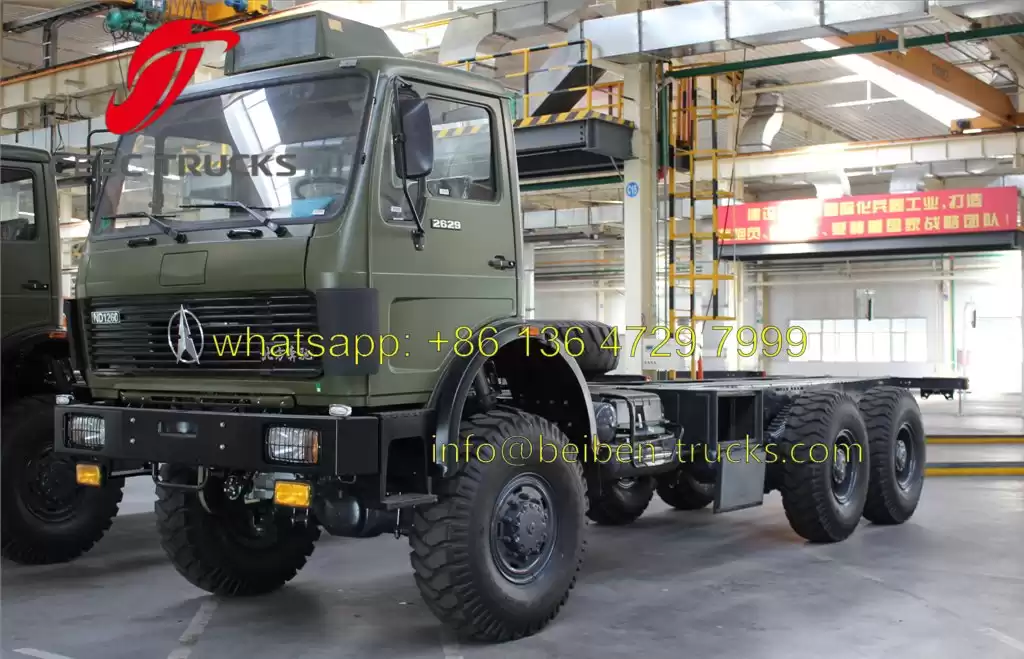

Beiben 6*6 cargo truck manufactured under
the license of Mercedes Benz technology, which has excellent performance with
reasonable price.
|
Vehicle Name:
|
Beiben 6*6 truck chassis
|
|
Types of drive
|
Right hand drive (LHD
)
|
|
Truck model number
|
2528S
|
|
Drive wheel
|
6×6
|
|
Engine model
|
WD10.340 Diesel 4-stroke
direct injection engine, 6-cylinder in-line with water cooling,
turbo-charging & intercooling
|
|
Horsepower(hp)
|
340
|
|
Bore*stroke (MM)
|
120*150
|
|
Displacement (L)
|
9.876
|
|
Rated speed (R/min)
|
2200
|
|
Max torque (Nm)
|
1750
|
|
Max Torque speed( R/min)
|
1300-1600
|
|
Lowest fuel consumption (G/kw.h)
|
< 198
|
|
Net weight (KG)
|
905
|
|

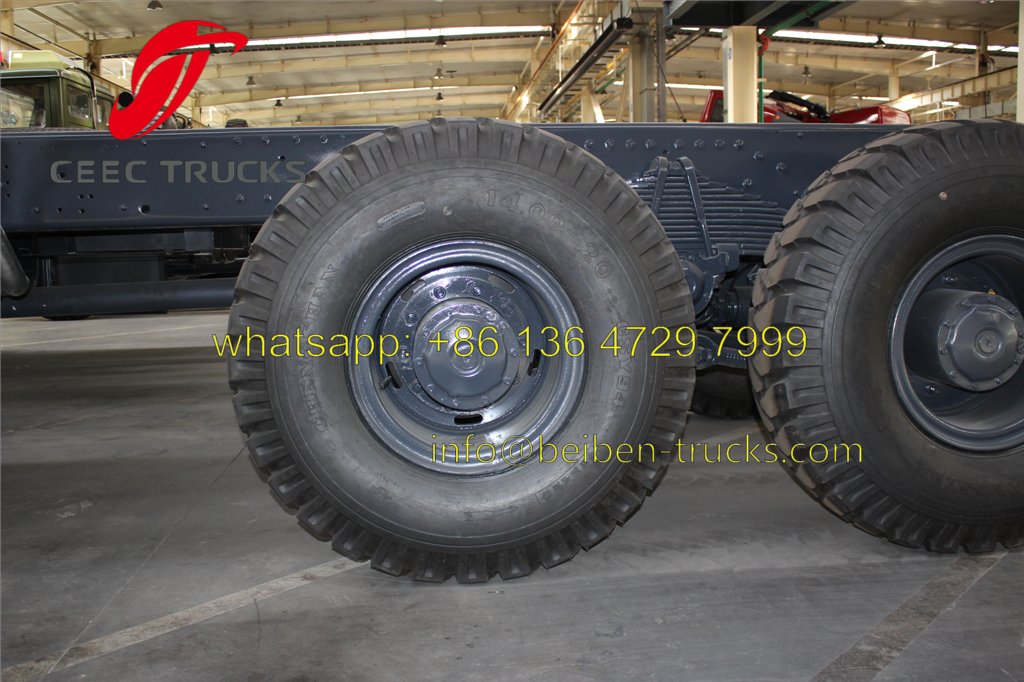

Meridian tire
|
12.00-20
|
|
Number of tires
|
10 + 1(spare wheel)
|
|
Saddle types
|
None
|
|
Transmission types :
|
12JS200T , 12 shift transmission,
FAST technology
|
|
Steering mechanism:
|
TAS85
|
|
Wheelbase (mm)
|
4450+1450
|
|
Cab style
|
Long with 2 beds, Benz technology
|
|
Air-condition
|
With air-condition
|
|
Cab body style
|
The whole steel ,The driver’s seat adjustable
, high safety,lower wind resistance coefficient, Benz Technology.
|
|
Steering system
|
High safe and reliable, and flexible, ZF8098
|
|
Brake system
|
Service brake ,Can automatically adjust the
brake clearance, Double air brake system , WEVB
|
|
Electric system:
|
Stronger load ability, high reliability and
easy maintenance
|
|
Truck frame style
|
Fish maw shape, inequilaterally section, equal
intensity, Benz technology
|
|
Front axle
|
Benz 7.0T Transaxle
|
|
Rear axle
|
Benz
Technology,double deceleration bridge, high
efficiency, carrying large, Mercedes
Benz strengthened axle (punching-welding axle housing, double
reduction driving axle, inter-wheel differential and differential lock)
Ratio=5.263
|
|
Electric system:
|
Stronger load ability, high reliability and
easy maintenance,24 V
|
|
Emission standard
|
Eur 2 & EURO 3
|
|
Fuel tank capacity (L)
|
400
|
|
Optional equipment
|
Saddle , upper berth, ABS , squareness
silencer.
|
|
|
|
|
|
|
|
|
|
