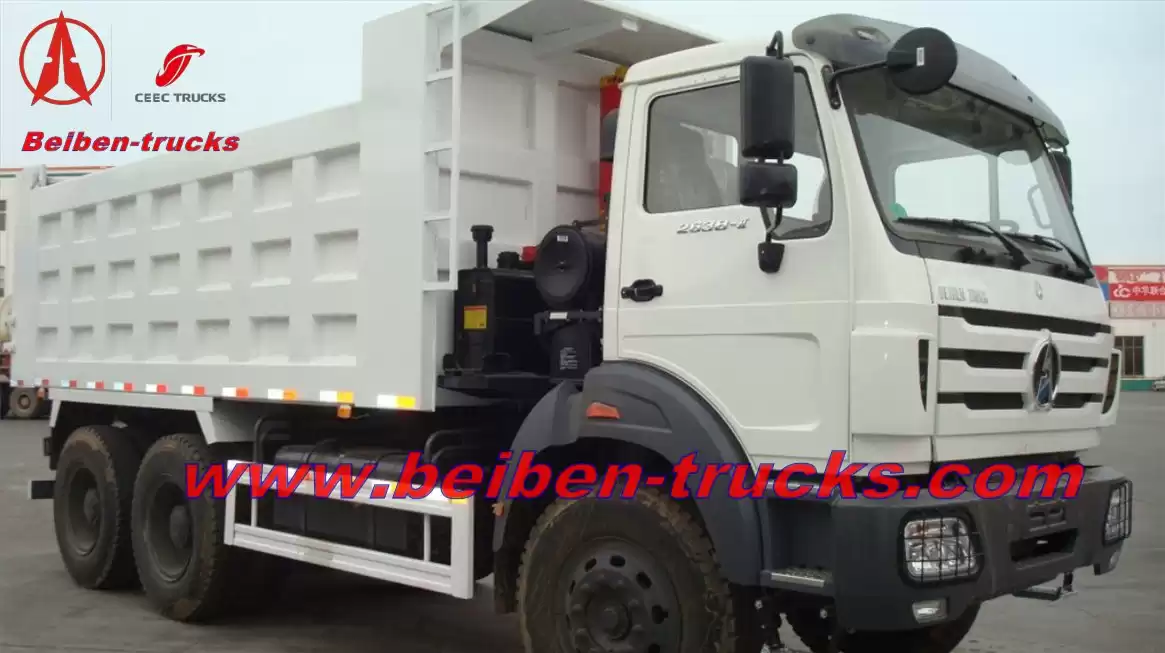

BEIBEN 6x4 CAMION BENNE 340HP HEAVY DUMP TRUCK

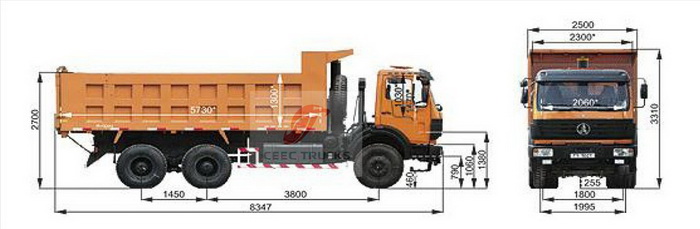

| Dimension |
9730*2500*3500(mm) |
| Wheel span |
3425+1350(mm) |
| Engine |
WD615.69 Europe II (WICHAI made in china ) |
| Wheel |
8.0-20, 10 holes steel Disc wheel, 11Pcs. |
| Tyre |
12.00-20 , 11Pcs( With one spare tyre ) |
| Engine power |
247kw (336hp ) |
| Engine Capacity |
9726 |
| Transmission |
HW15710 |
| Loading capacity |
14.9M3 |
| Dimension of cargo box |
L: 5400 x W: 2300 x H: 1200 (MM) |
| Lift system |
" F" style |
| Thickness of bottom plate |
8mm |
| Thickness of side plate |
6mm |
| Material |
Q235 |
| Tare weight |
12495kg |
| Pay load |
15000kg |
| GVWR |
27495kg |
