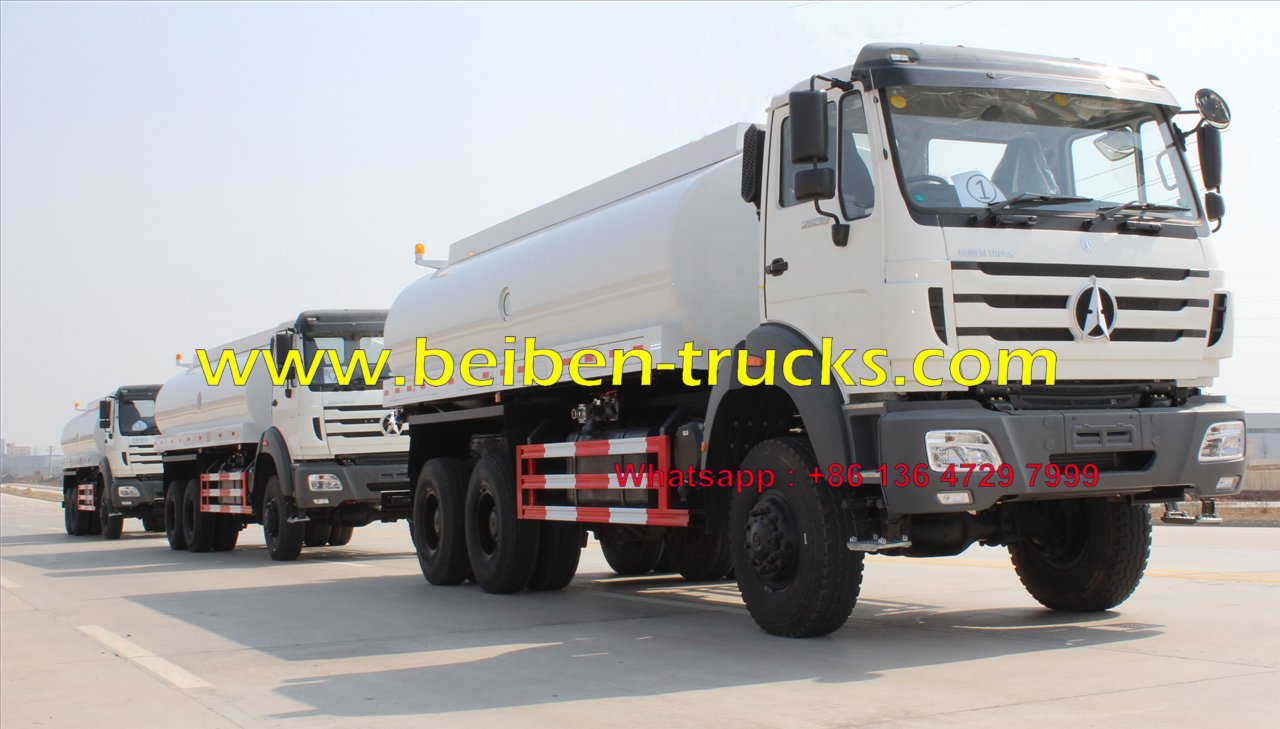

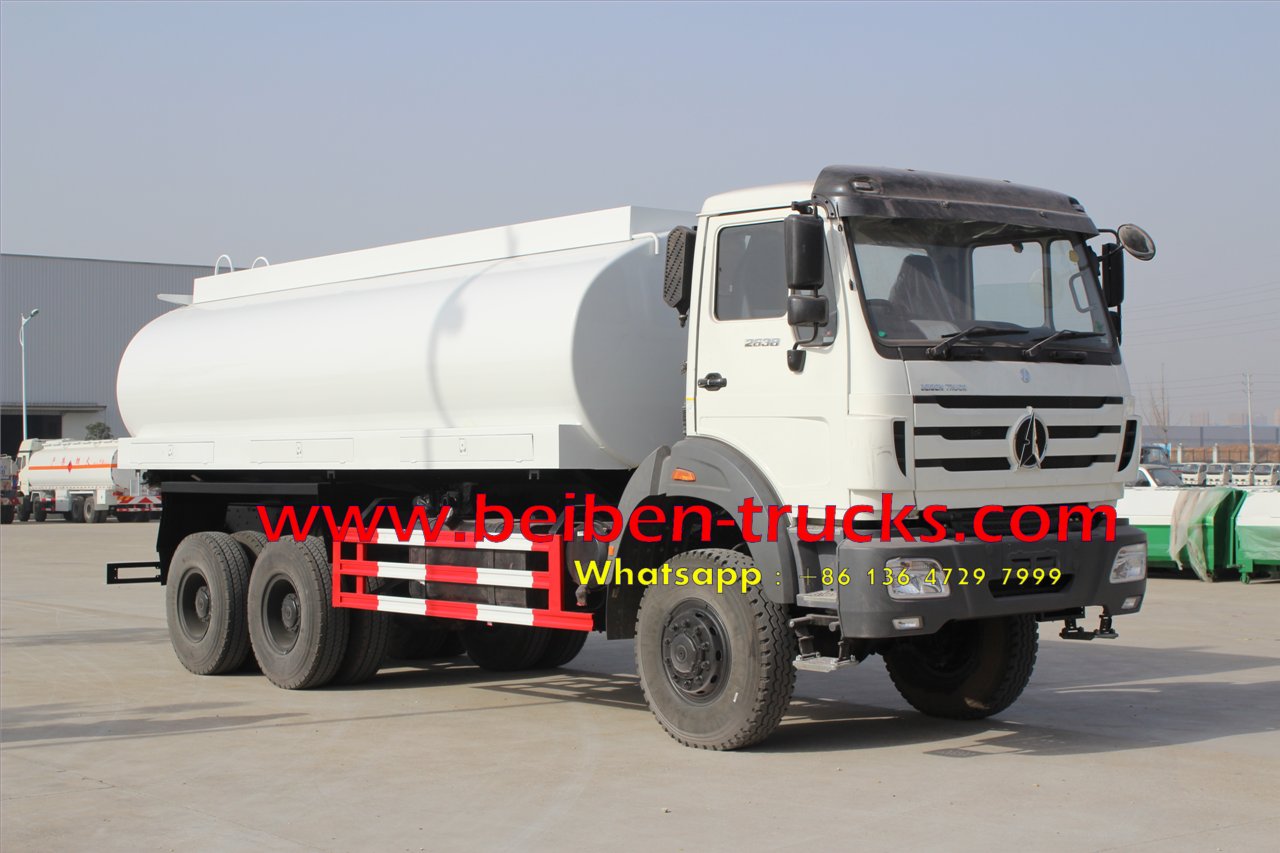

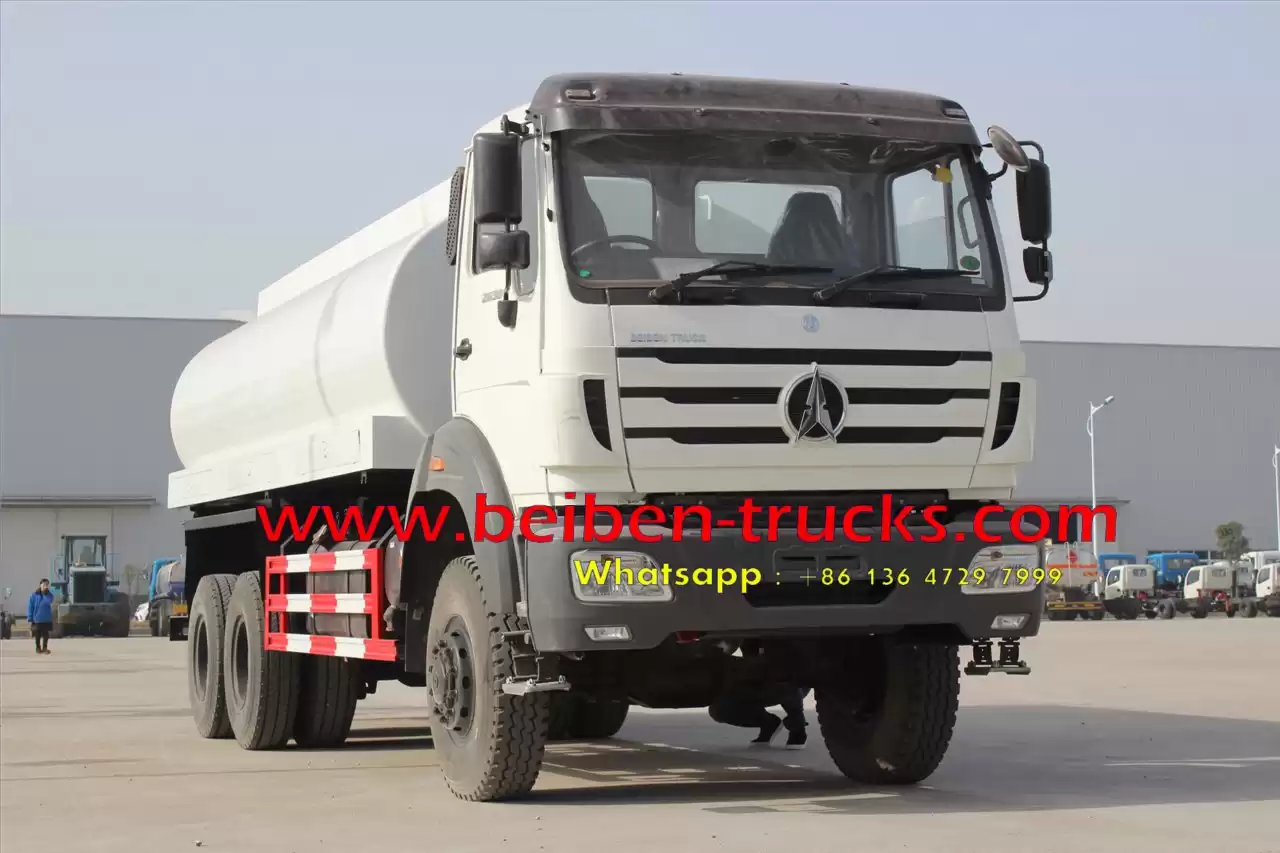

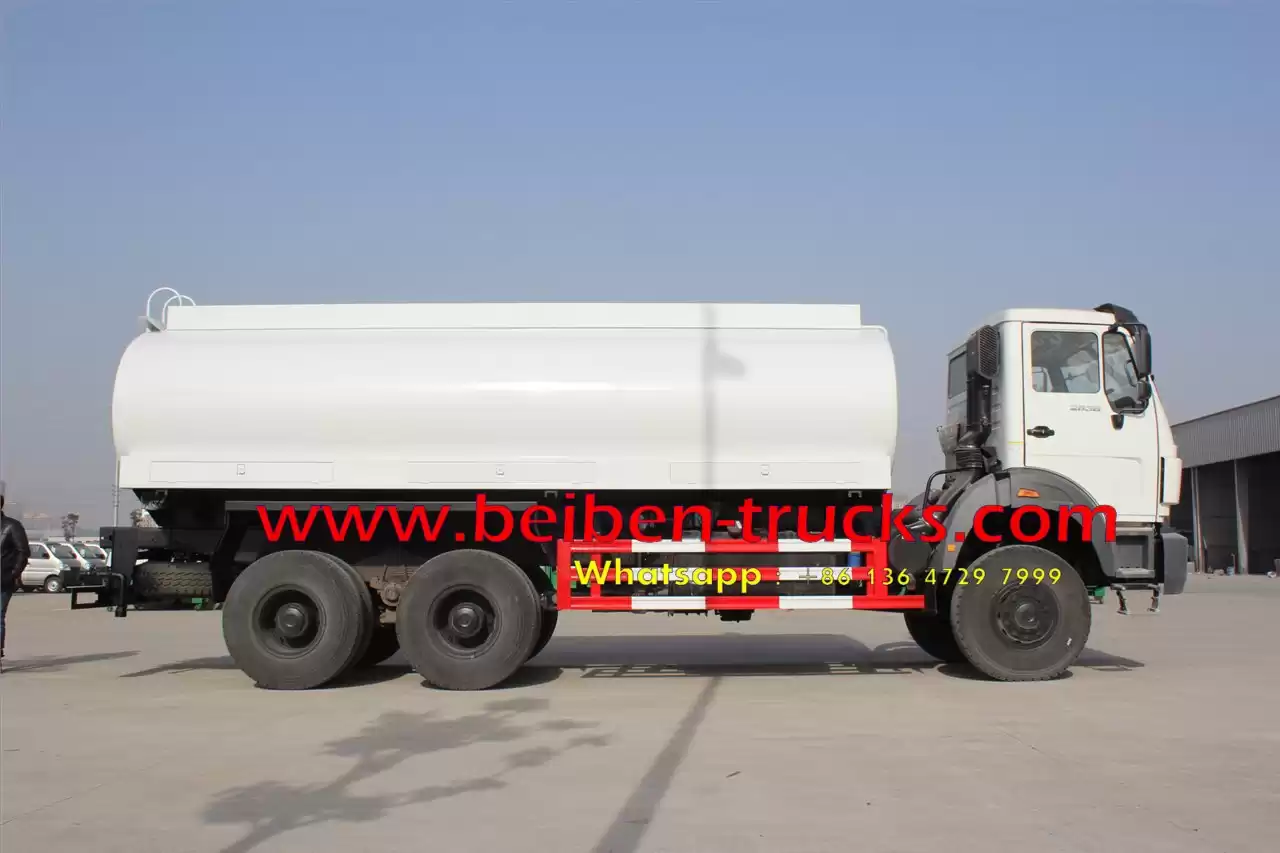

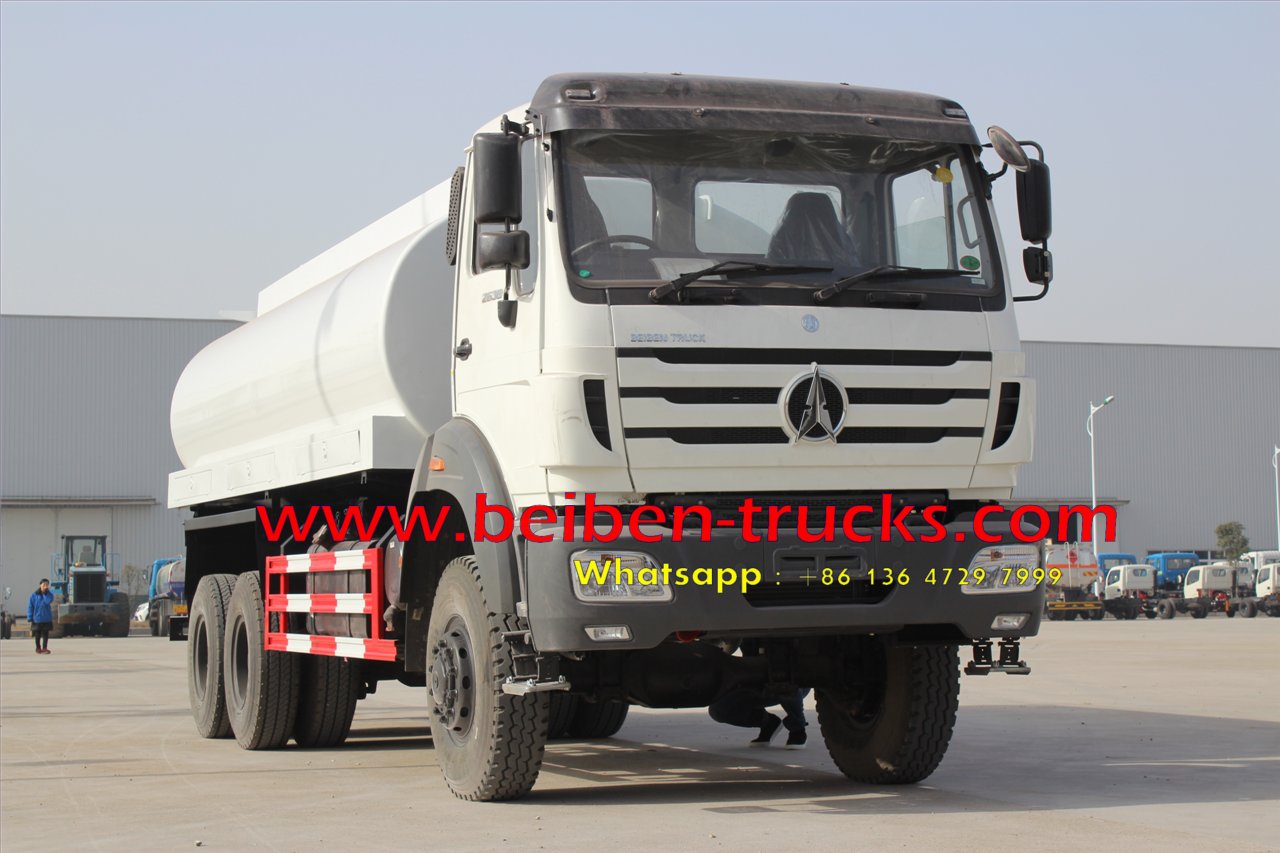

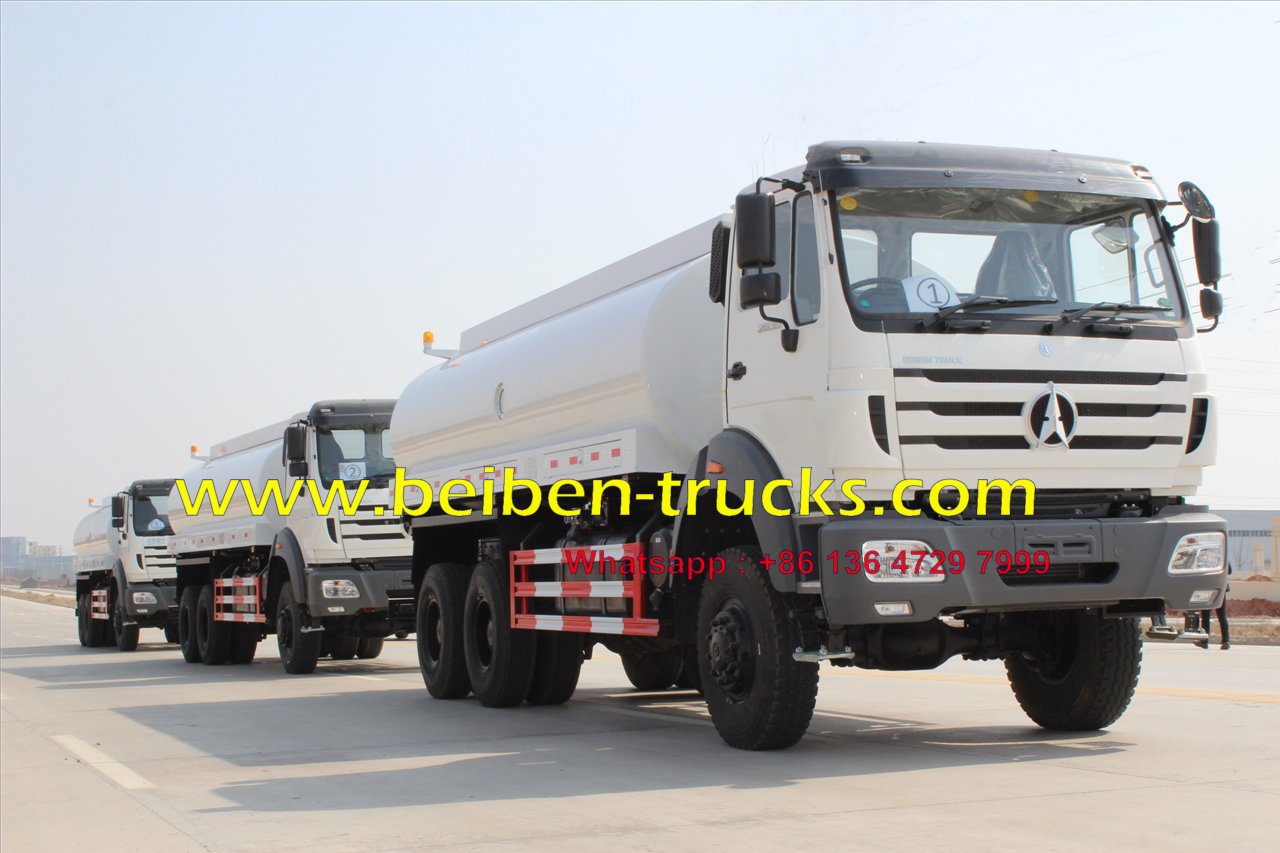

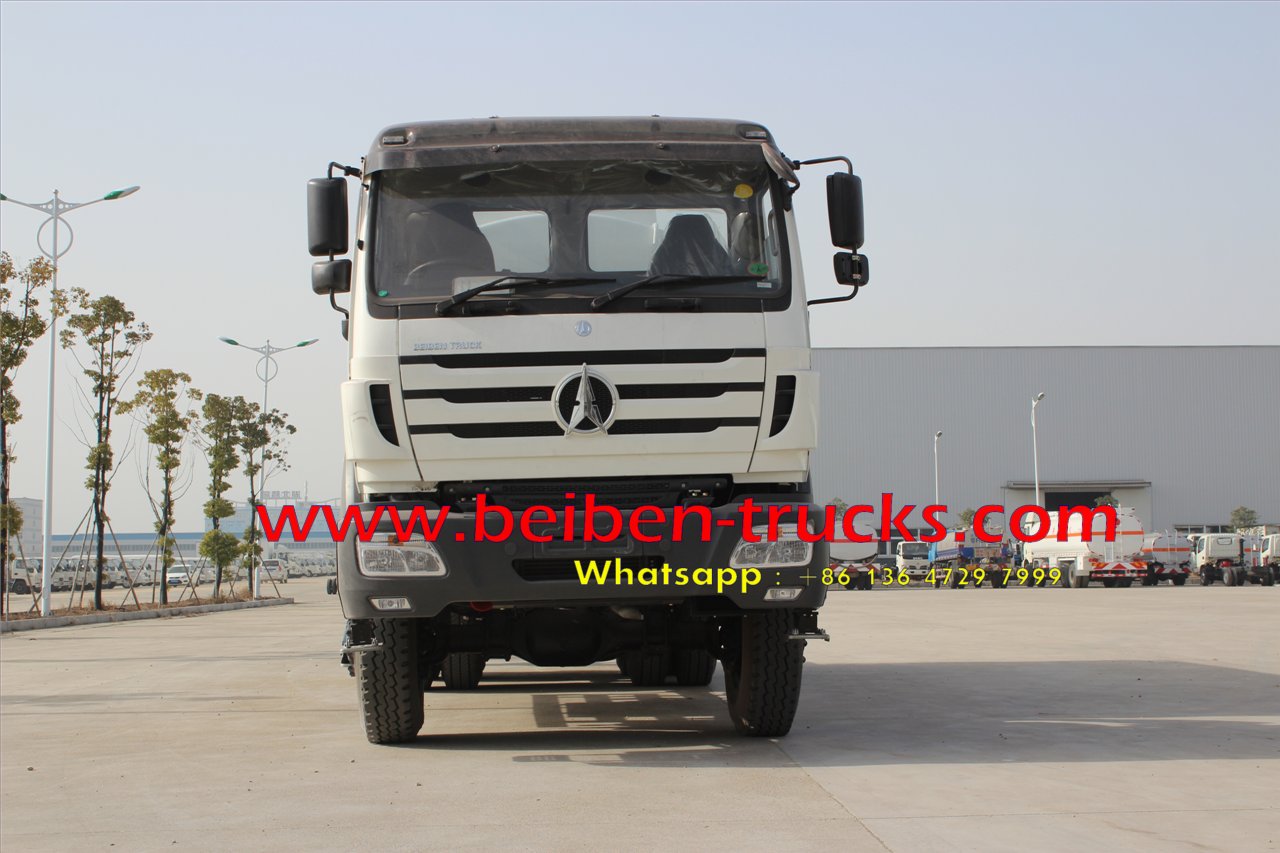

1. beiben NG80B 2638 6X6 water tank truck
2. Flat roof cabin,single sleeper, auto-air conditioner
3. High quality and competitive price
4. Quick delivery time
5. Best after-sales
The series
products of our Beiben
military all wheel drive trucks are ideal transport with outstanding
performance and high quality, they are widely used in industries and sectors,
such as national defense, aviation, postal service, railways, highways,
harbors, petroleum, chemicals, water and electricity, forests, fire fighting,
banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben
truck is the Chinese best truck brands and best quality, technical performance
properties index and conform to the state and military standard.
Beiben truck
features and advantages:
1: Driving room: the steel structure, high
safety,lower wind resistance coefficient
2:Power system dynamic matching technology of
mercedes-benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high
intensity
4: Benz axle: double deceleration bridge, high
efficiency, carrying large
5: Transmission system: high efficiency, bigger
torque, climbing superior performance
6: Steering system:high safe and reliable, and
flexible
7:Braking system, high security, brake with high
efficiency
8: Electric system: stronger load ability, high
reliability and easy maintenance
.
|

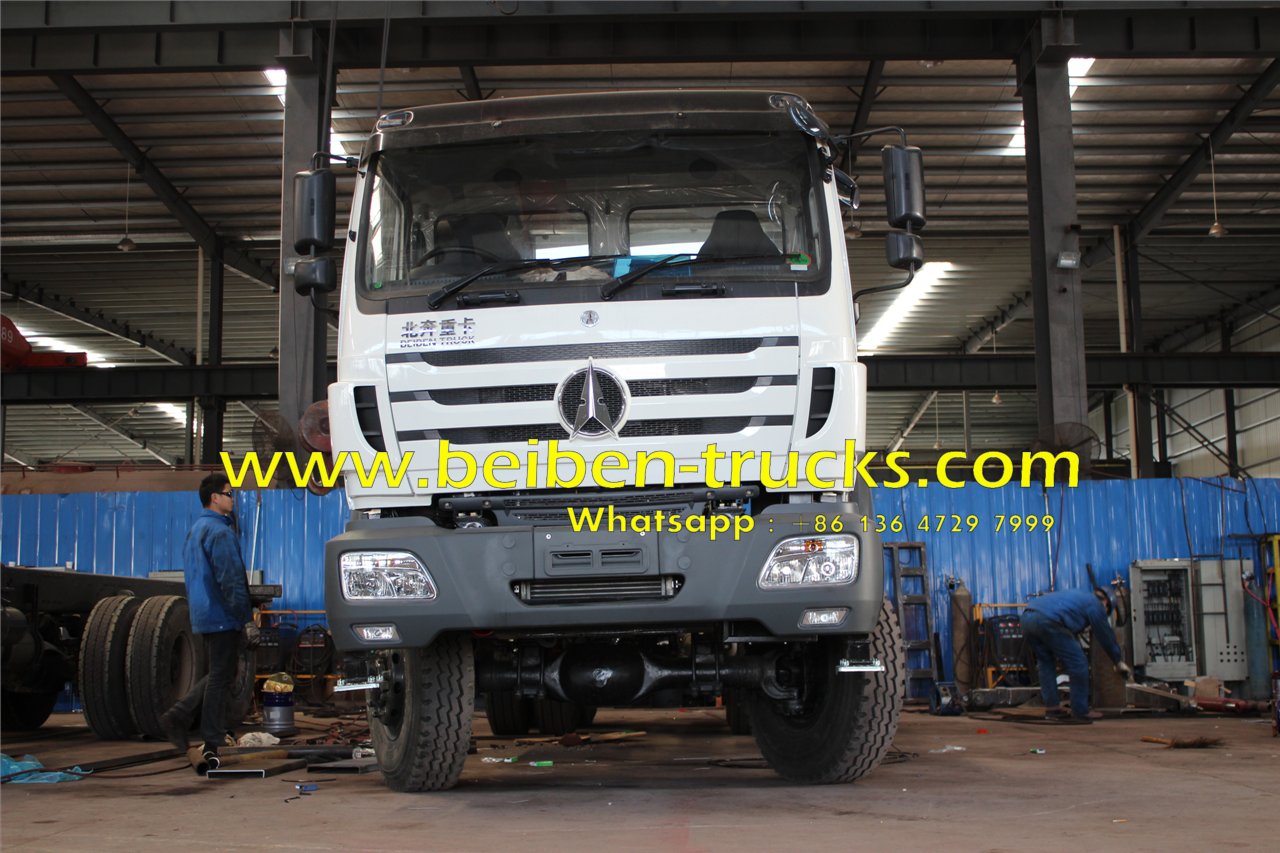

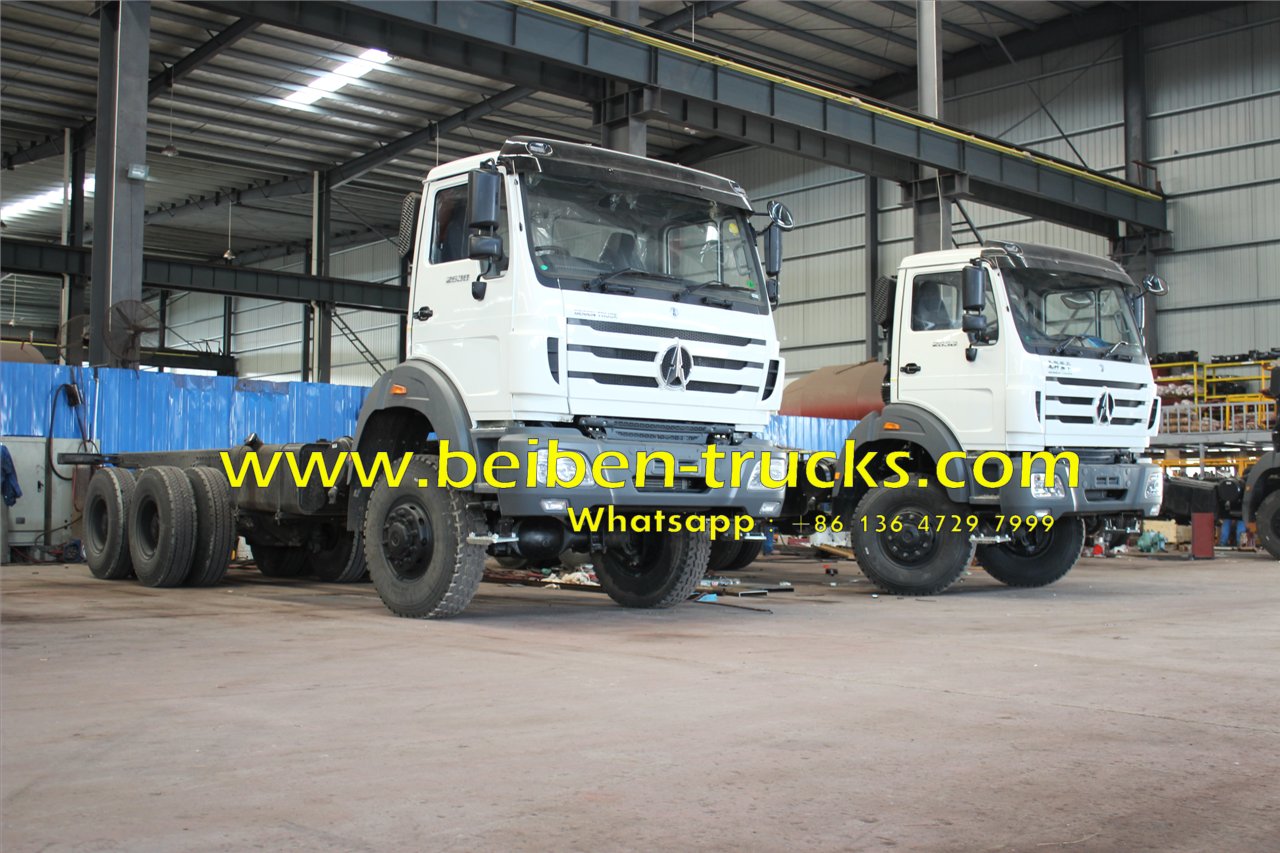

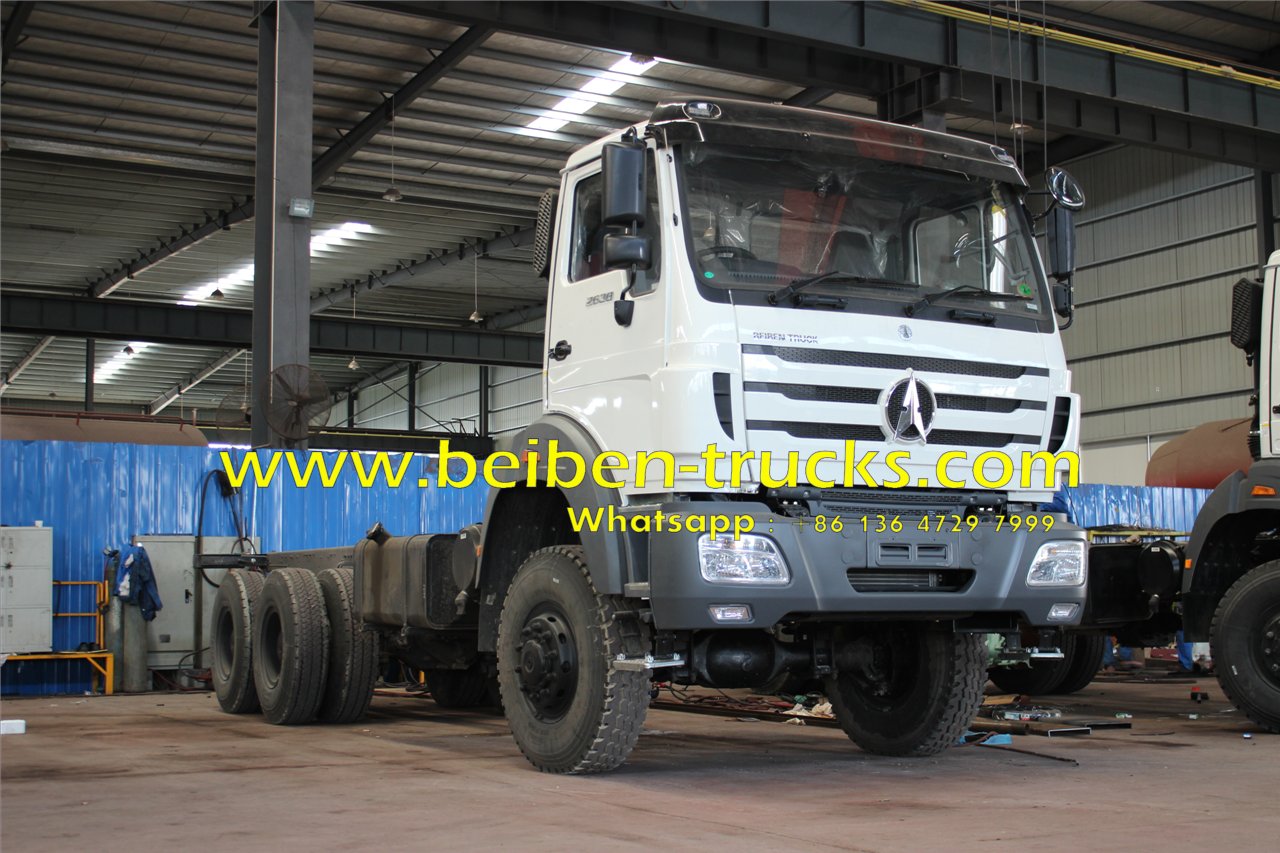

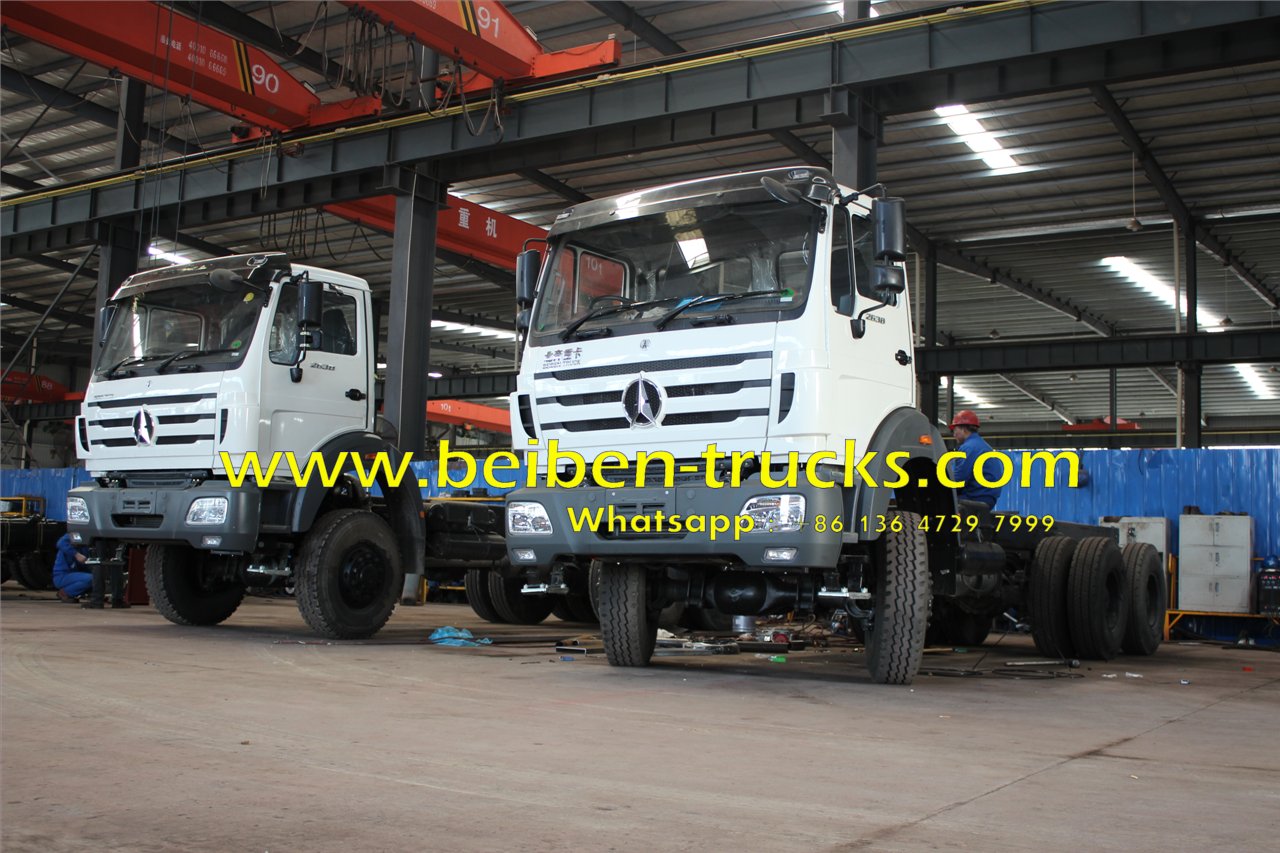

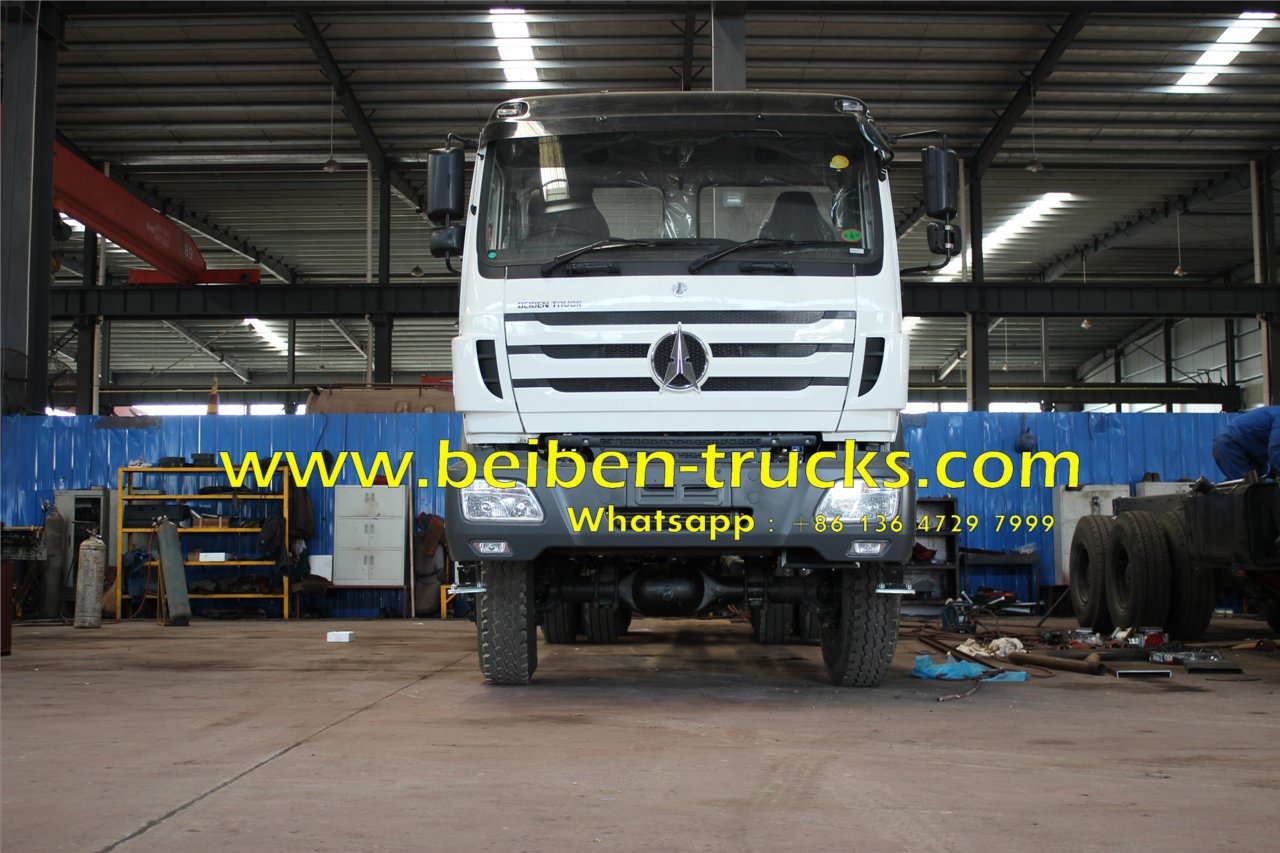

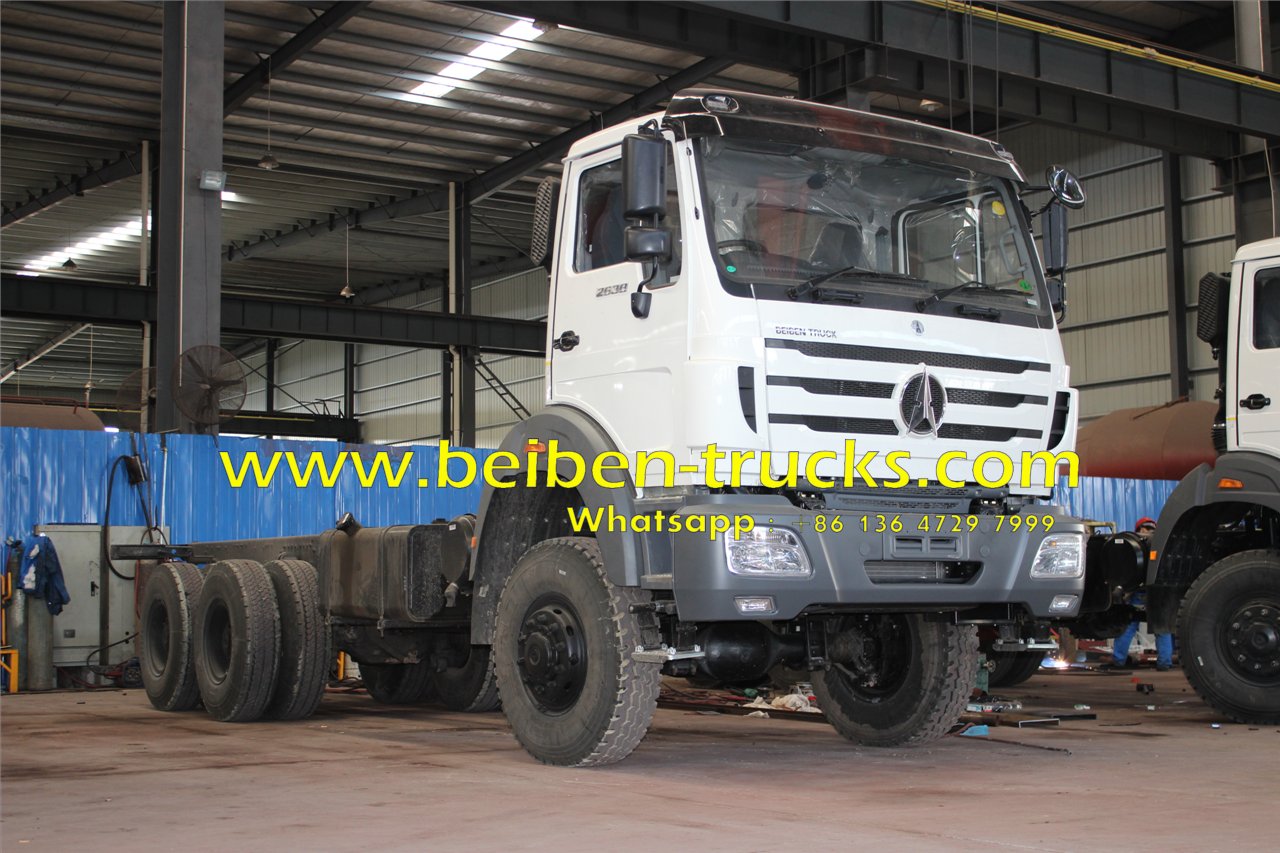

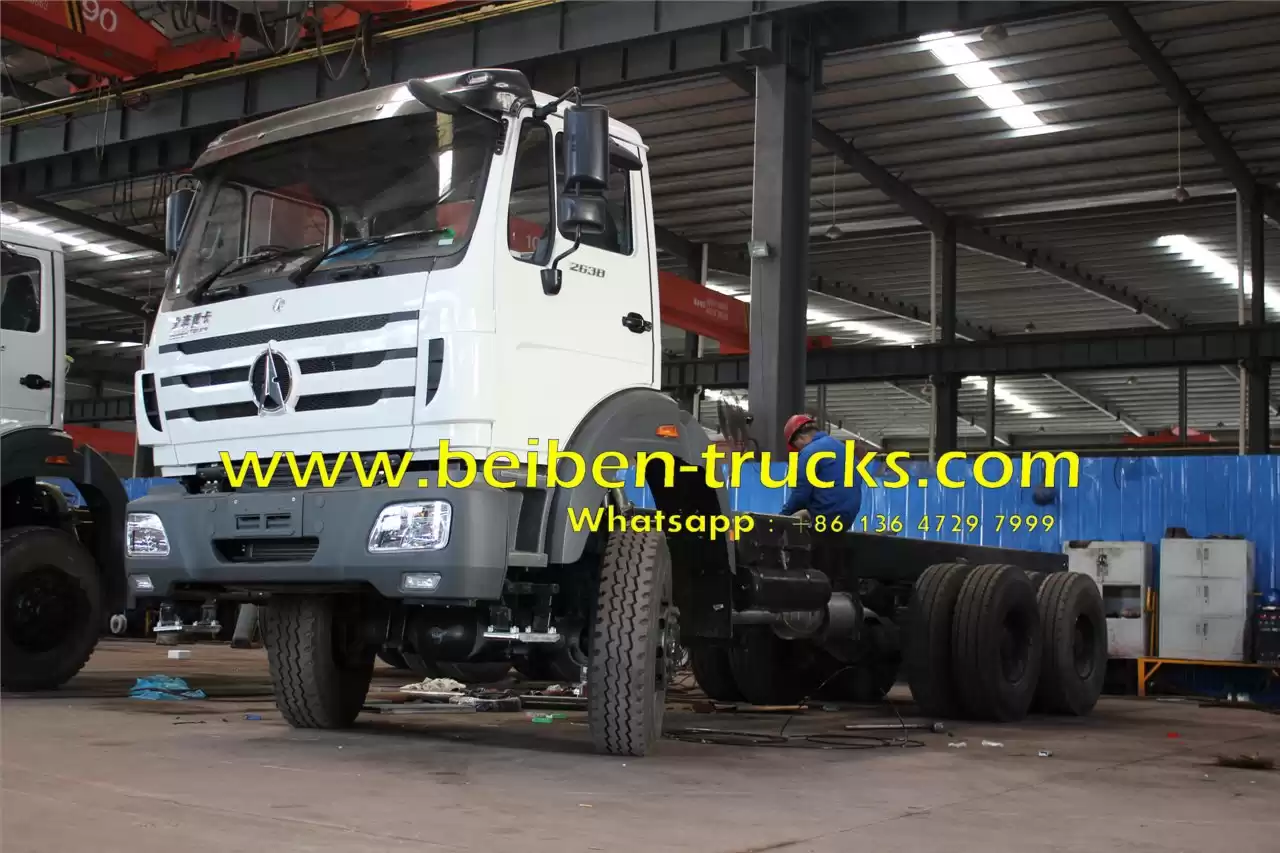

Vehicle Name:
|
Beiben 6*6 truck chassis
|
|
Types of drive
|
Right
hand drive (LHD & RHD )
|
|
Length*width*height (mm)
|
9400*2500*3260
|
|
Kerb weight (kg)
|
9100
|
|
Truck model number
|
2538S
|
|
Drive wheel
|
6×6
|
|
Engine model
|
WD615.38 Diesel
4-stroke direct injection engine, 6-cylinder in-line with water cooling,
turbo-charging & intercooling
|
|
Horsepower(hp)
|
380
|
|
Bore*stroke (MM)
|
138*155
|
|
Displacement (L)
|
11.596
|
|
Rated speed (R/min)
|
2200
|
|
Max torque (Nm)
|
1750
|
|
Max Torque speed( R/min)
|
1300-1600
|
|
Lowest fuel consumption
(G/kw.h)
|
< 198
|
|
Net weight (KG)
|
905
|
|
Meridian tire
|
14.00R20
|
|
Number of tires
|
10 +
1(spare wheel)
|
|
Saddle types
|
None
|
|
Transmission types :
|
RT11509C , 9 shift transmission, FAST technology
|
|
Steering mechanism:
|
ZF8098
|
|
Wheelbase (mm)
|
4450+1450
|
|
Cab style
|
Long
with 2 beds, Benz technology
|
|
Air-condition
|
With
air-condition
|
|
Cab body style
|
The
whole steel ,The driver’s seat adjustable , high safety,lower wind resistance
coefficient, Benz Technology.
|
|
Steering system
|
High
safe and reliable, and flexible, ZF8098
|
|
Brake system
|
Service
brake ,Can automatically adjust the brake clearance, Double air brake system
, WEVB
|
|
Electric system:
|
Stronger
load ability, high reliability and easy maintenance
|
|
Truck frame style
|
Fish
maw shape, inequilaterally section, equal intensity, Benz technology
|
|
Front axle
|
Benz 7.0T Transaxle
|
|
Rear axle
|
Benz Technology,double deceleration bridge, high
efficiency, carrying large, Mercedes
Benz strengthened axle (punching-welding axle housing, double
reduction driving axle, inter-wheel differential and differential lock)
Ratio=5.263
|
|
Electric system:
|
Stronger
load ability, high reliability and easy maintenance,24 V
|
|
Emission standard
|
Eur 2
& EURO 3
|
|
Fuel tank capacity (L)
|
400
|
|
Optional equipment
|
Saddle
, upper berth, ABS , squareness silencer.
|
