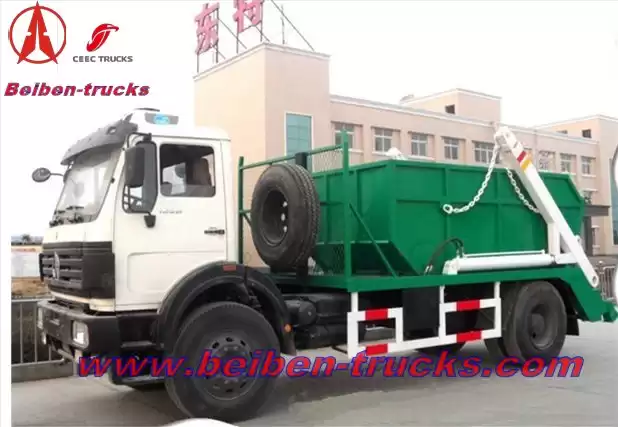

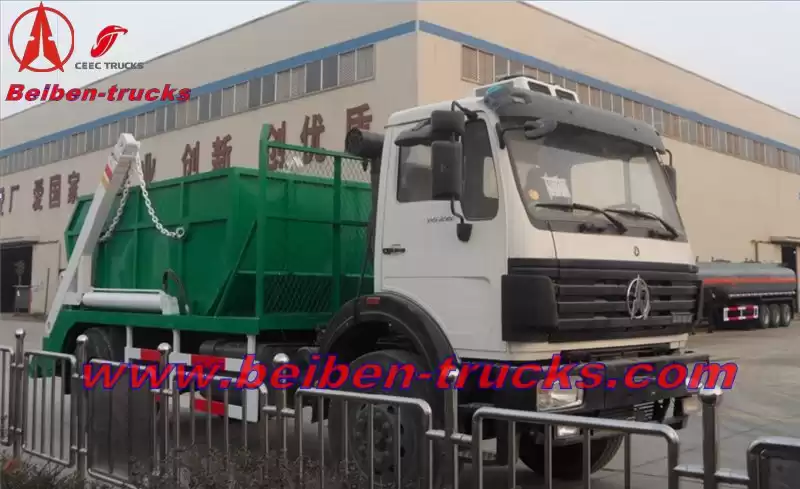

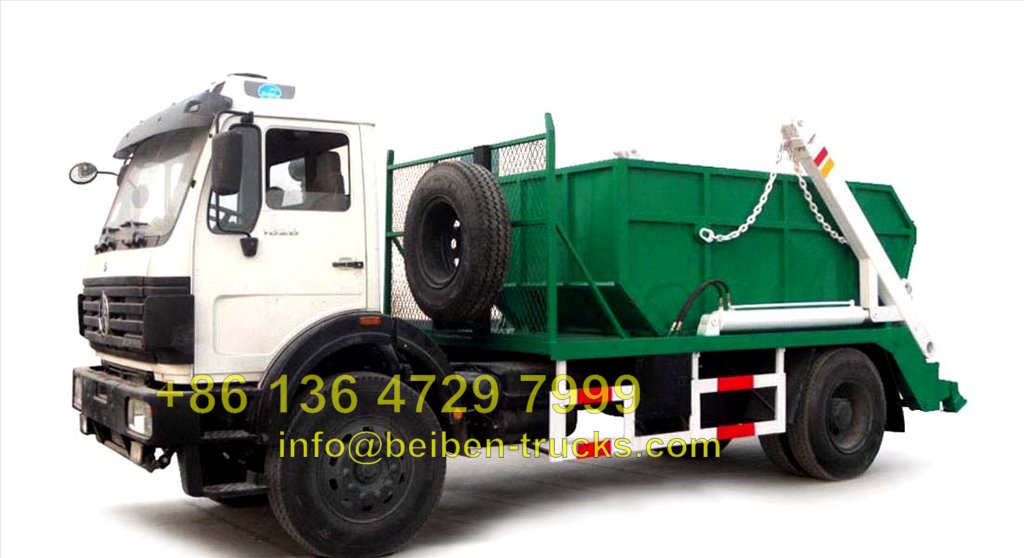

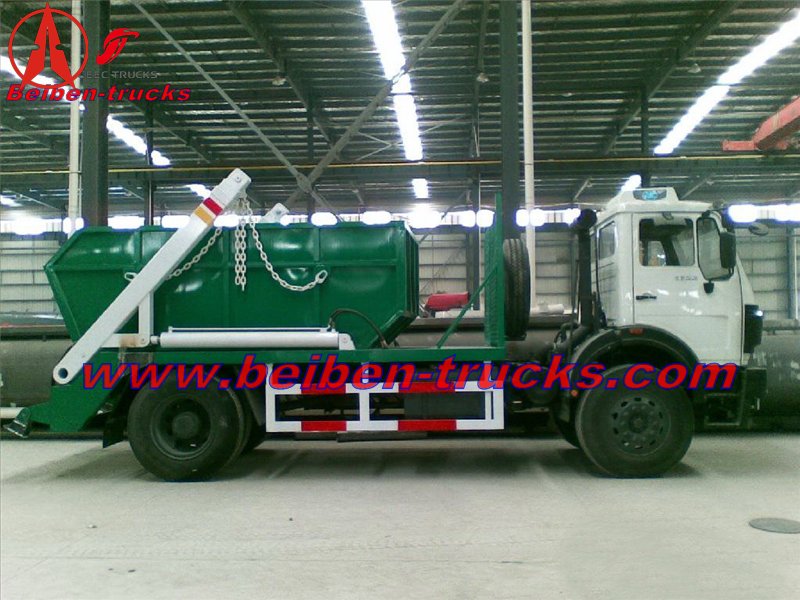

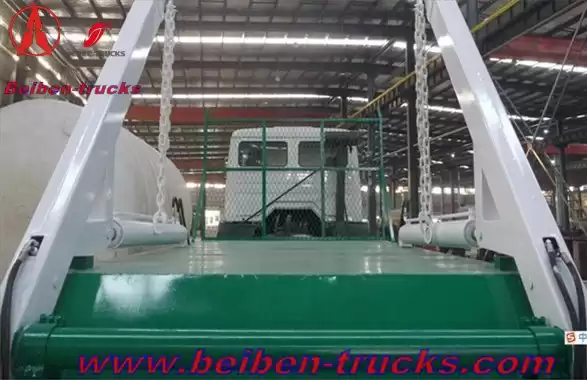

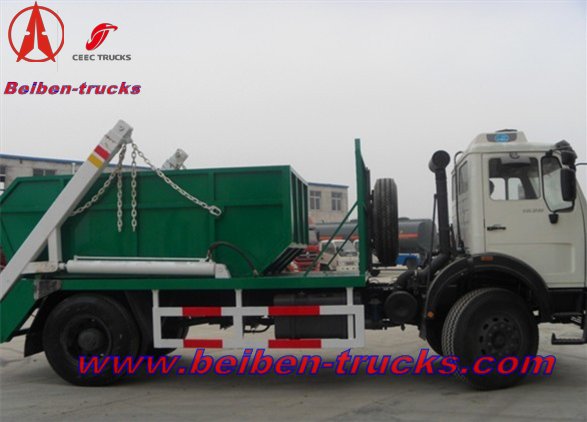

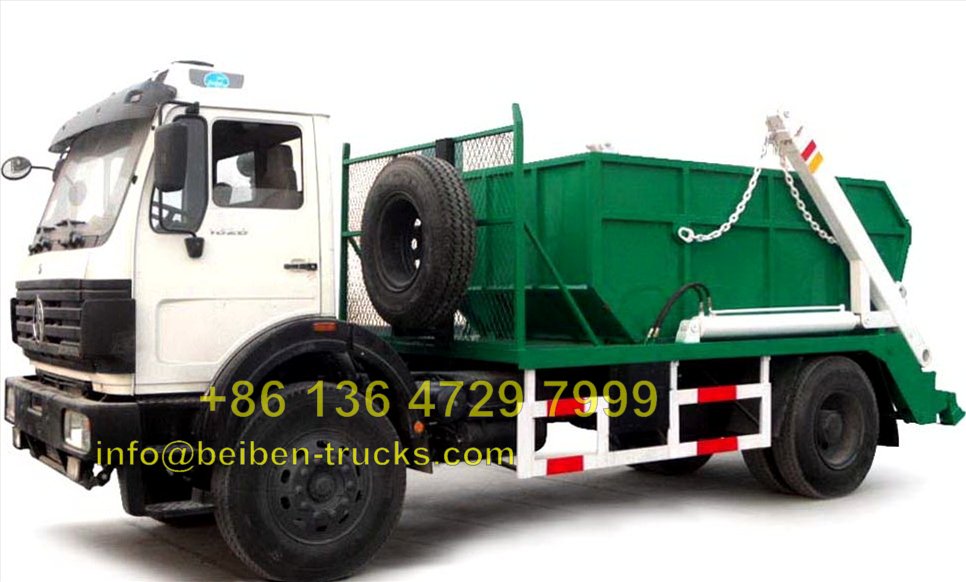

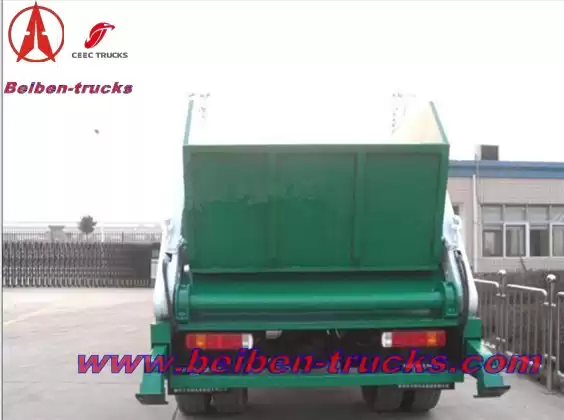

Beiben Skip loader 4x2 Northbenz waste truck container garbage truck
10 CBM BEIBEN SKIP REFUSETRUCK 4x2
◆The Beiben Skip loader cancircularly lift swing arms ON or OFF. It’s cycle time is 60s per time.
◆It’s dumping hopper isseparated from truck body, so the truck can work with several hoppers at thesame time. This also greatly improved the transport capacity of truck.
◆Equipped with dustbin,hydraulic system and operating system
◆Equipped with twoadvanced double acting hydraulically cylinders.
◆Our Skip loader withgood price is particularly for short-distance transport.
Detailed description:
|
Chassis type
|
ND1161
|
|
Cubage( T )
|
7-8
|
|
Parameters
|
Overall dimension length/width/height (mm)
|
8800×2470×3250
|
|
Total Mass(kg)
|
14800
|
|
Payload(kg)
|
7000
|
|
Kerb Mass(kg)
|
7450
|
|
Approach angle/ Departure angle(mm)
|
34/20
|
|
Front suspension/rear suspension(mm)
|
1245/1405
|
|
Fuel Type
|
diesel
|
|
Fuel Consumption/100 km
|
22
|
|
Max Speed
|
85
|
|
Engine
|
Type
|
WD615.58 supercharged six-cylinder inner-coolingdiesel engine
|
|
Displacement/Power(kw)
|
9726/175(240hp)
|
|
Manufacturer
|
Weichai Diesel Engine Co., Ltd
|
|
Type
|
6-in-line supercharged inner-cooling diesel engine
|
|
Chassis
|
Drive type
|
4×2
|
|
Wheelbase(mm)
|
3800
|
|
Tread(front/rear)
|
1940/1860
|
|
Front axle
|
5T
|
|
Rear axle
|
10T
|
|
Steering gear
|
Dual-armed steering wheel,power steering
|
|
Transmission
|
6 gear mechanical drive transmission
|
|
Clutch
|
Diaphragm clutch, hydraulic remote control,pneumatic serveo
|
|
Braking system
|
Split air braking system,spring breaking,exhaust braking
|
|
Cab
|
Non-longheaded one and a half row cab,whole metal-enclosed
|
|
Number of spring axle(front/rear)
|
9/11+8
|
|
Tire Type
|
10.00-20 16PR
|
|
Air-condition
|
Choose to fix
|
|
Special performance parameters
|
Hydraulic system pressure
|
16MPa
|
|
Crane arm turn radius
|
2400mm
|
|
Hydraulic systemFlow capacity
|
50L/min
|
|
Crane arm maximum pivot angle
|
145
|
|
Hoisting time
|
30s
|
|
Unloading time
|
50s
|
