Applications:

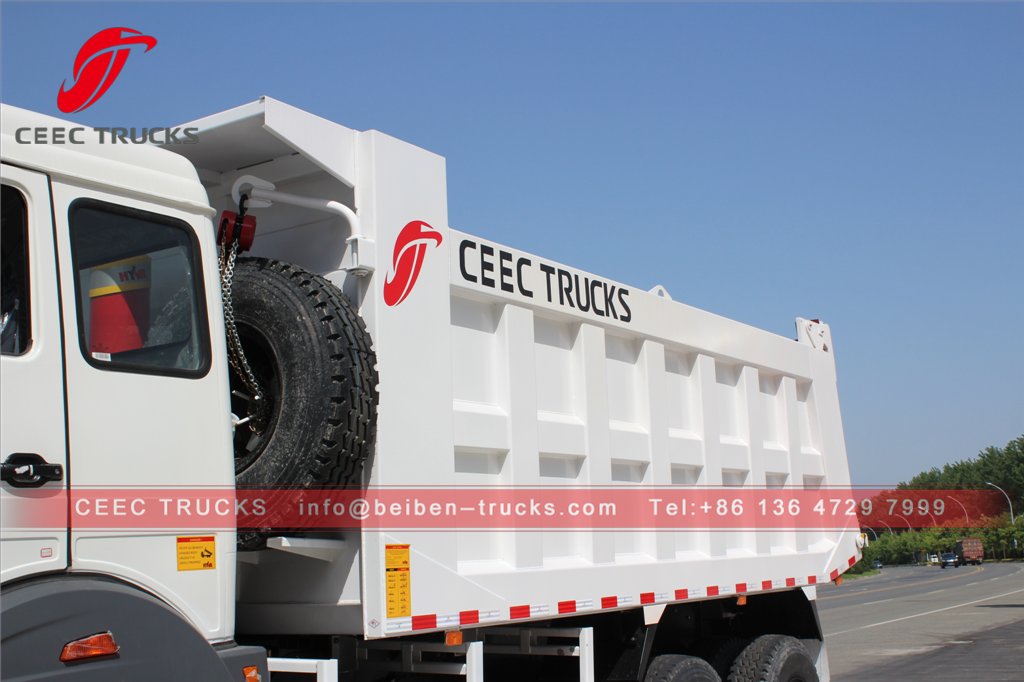

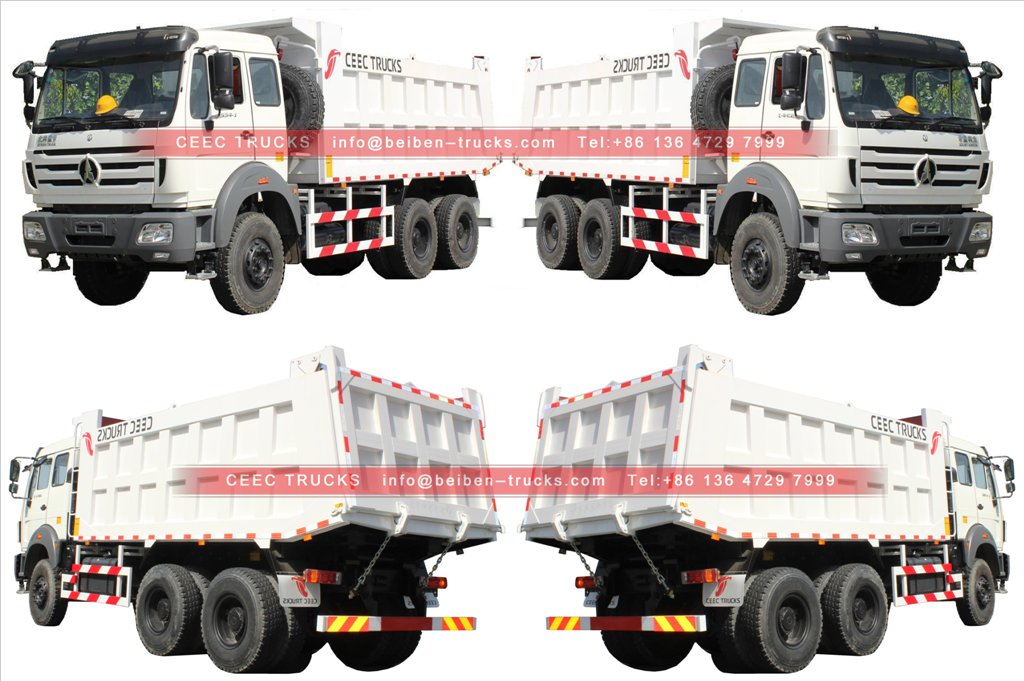

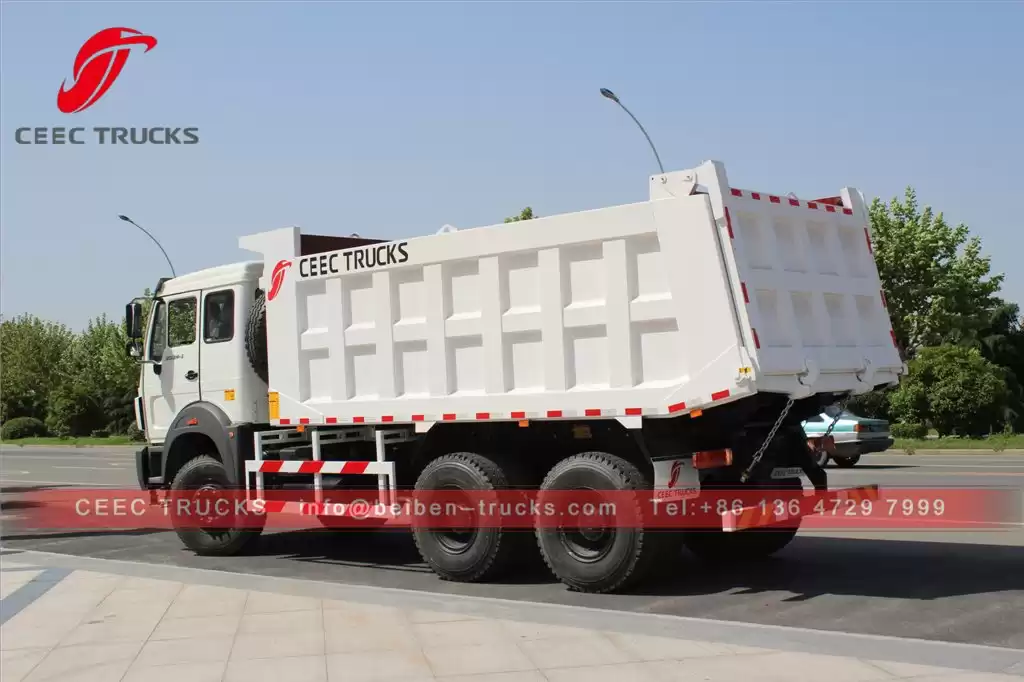

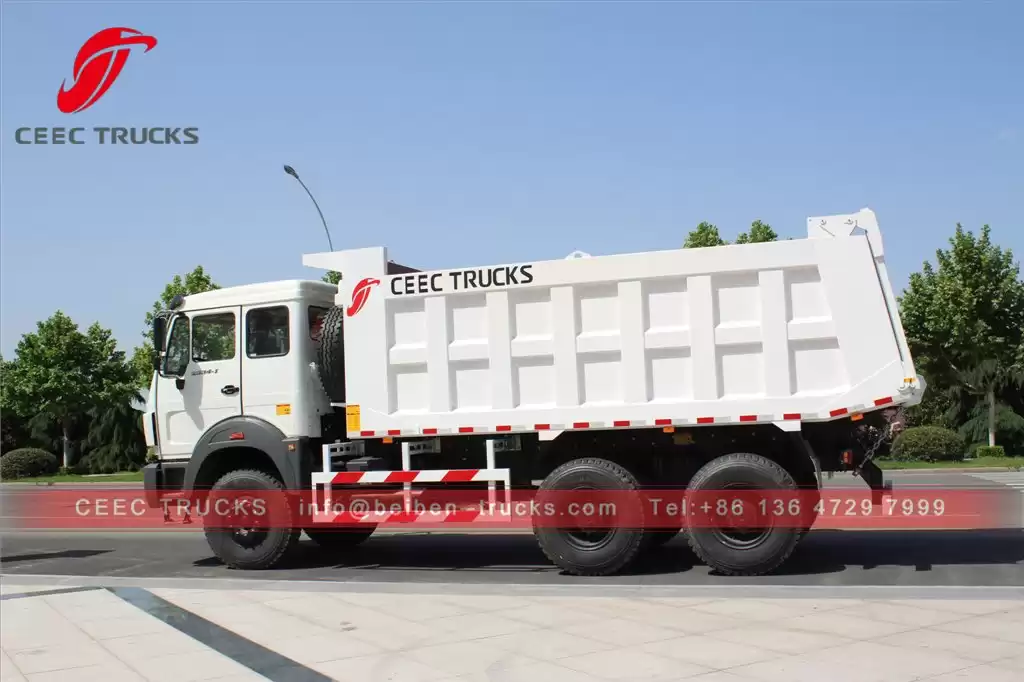

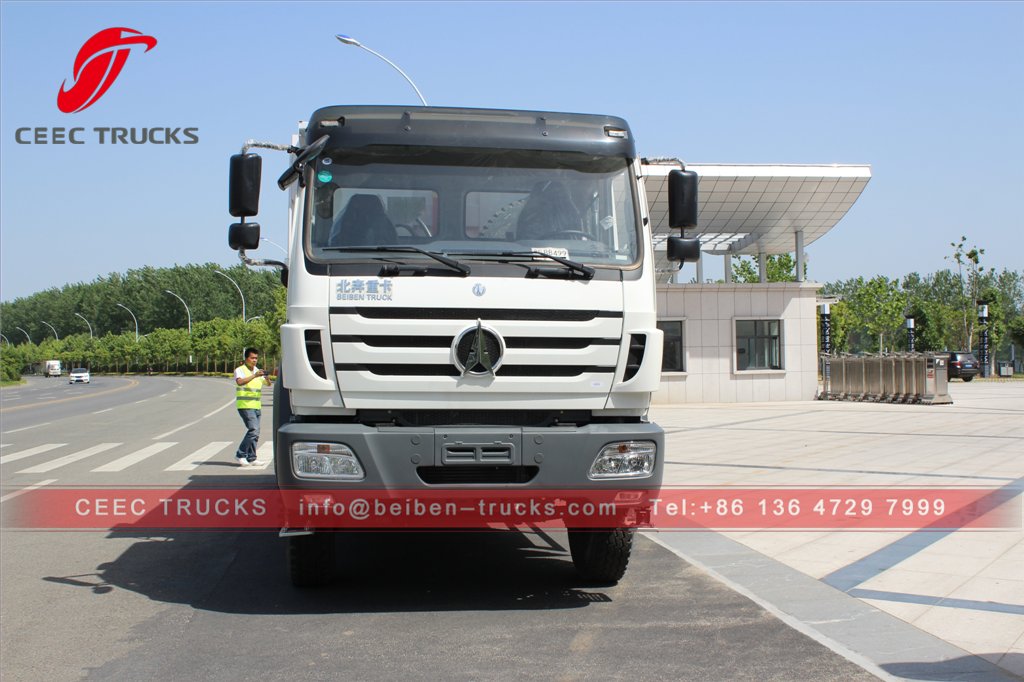

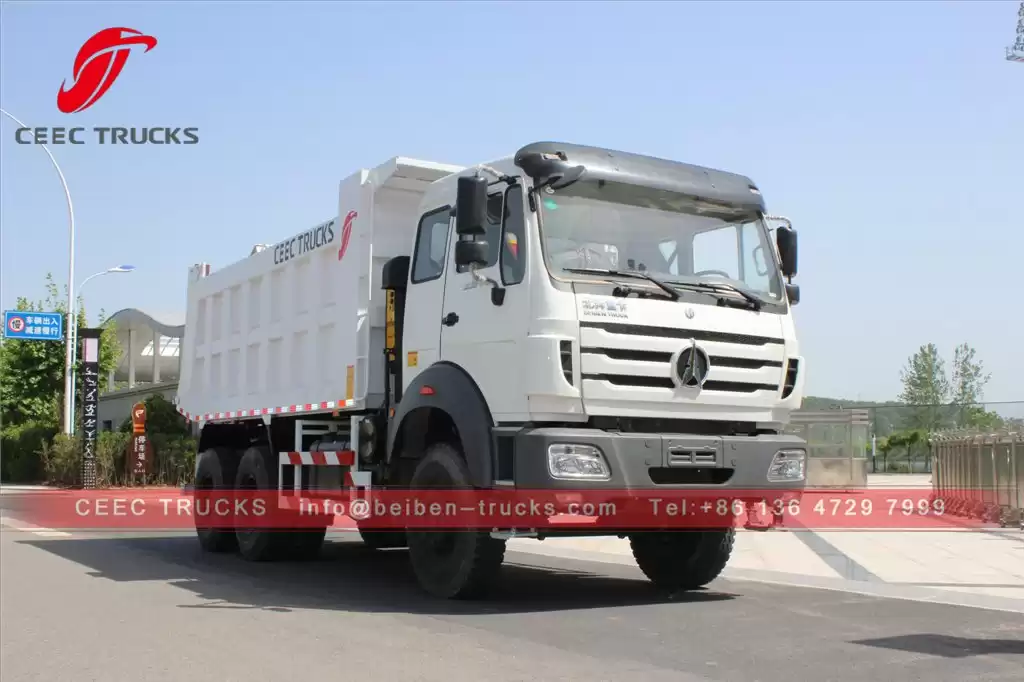

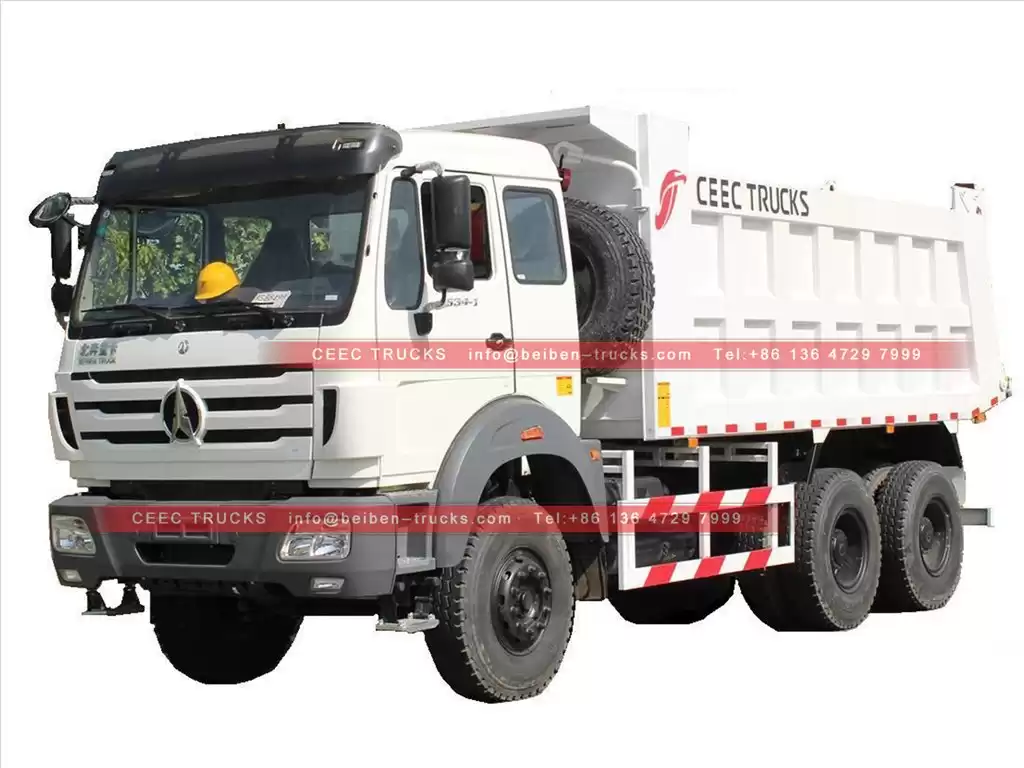

china north benz tipper (also called beiben 2534 dumper, beiben weichai 340 hp dump truck, china north benz dumper, baotou beiben 2534 dump trucks, beiben 2534 cabin earth transporting trucks ) is designed for loading, transporting and discharging construction material, also can be used in for mine rock delivery.

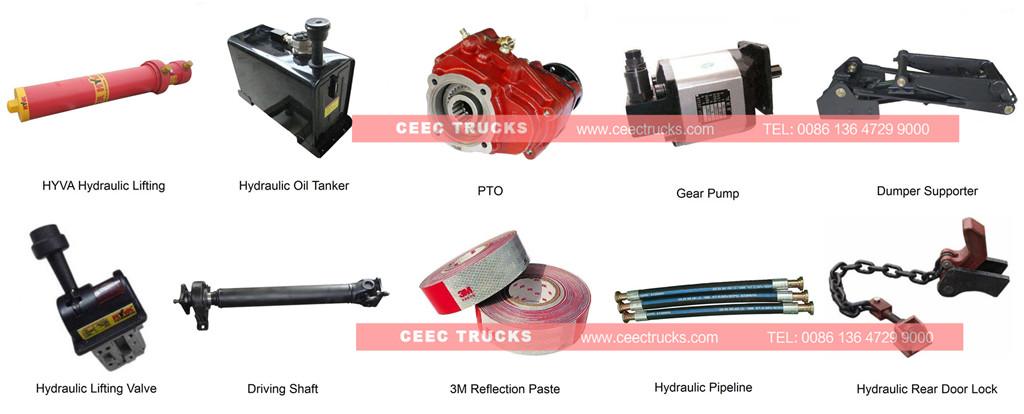

CEEC TRUCKS dumper trucks all use reliable HYVA brand hydraulic lifting device, with Front & Middle lifting optional.
The dump truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dumper body capacity from 3 to 100 Metric Ton.
---- China famous lifting device easy operation and maintenance.
---- Front lifting & middle lifting are available.
Specifications:
| Dump Truck Beiben (35 T)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
Beiben
|

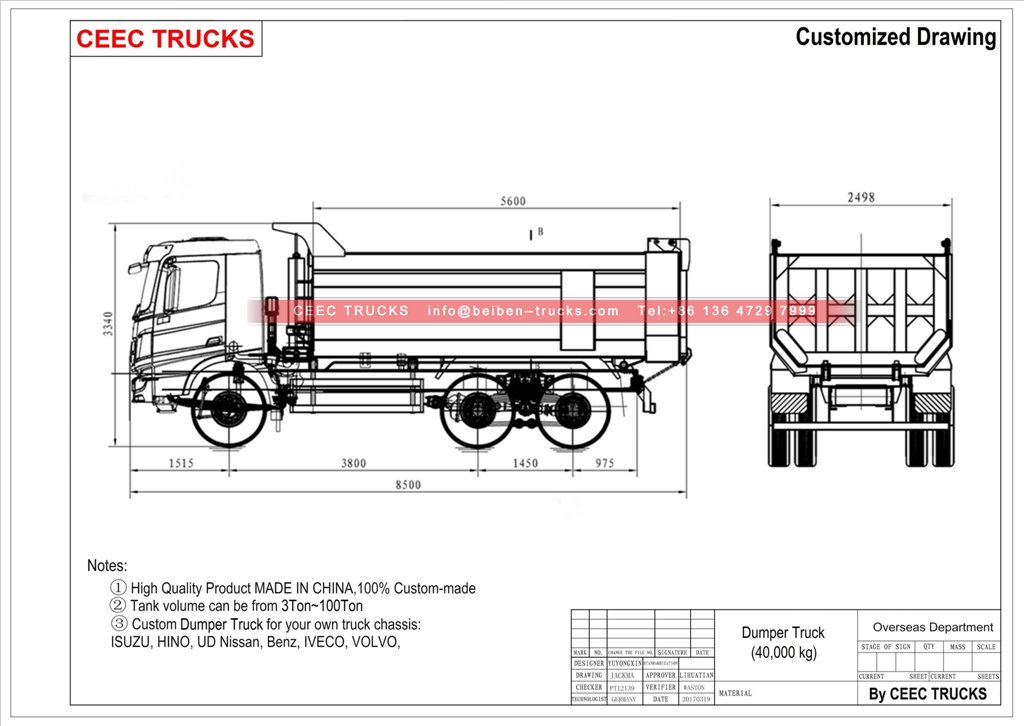

| Overall Dimension
|
8500*2490*3340 mm
|
| GVW / Kerb Weight
|
25,000 kg / 14,800 kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
WEICHAI
|
| Power
|
340 HP (250 KW)
|
| Displacement
|
9726 ml
|
| Emission Standard
|
Euro 2 or 3
|
| Chassis
|
Drive Type
|
6X4, (left hand drive)
|
| Transmission
|
FAST 9 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
3800+1450 mm / 3
|
| Tire Specification
|
12.00R20
|
| Tire Number
|

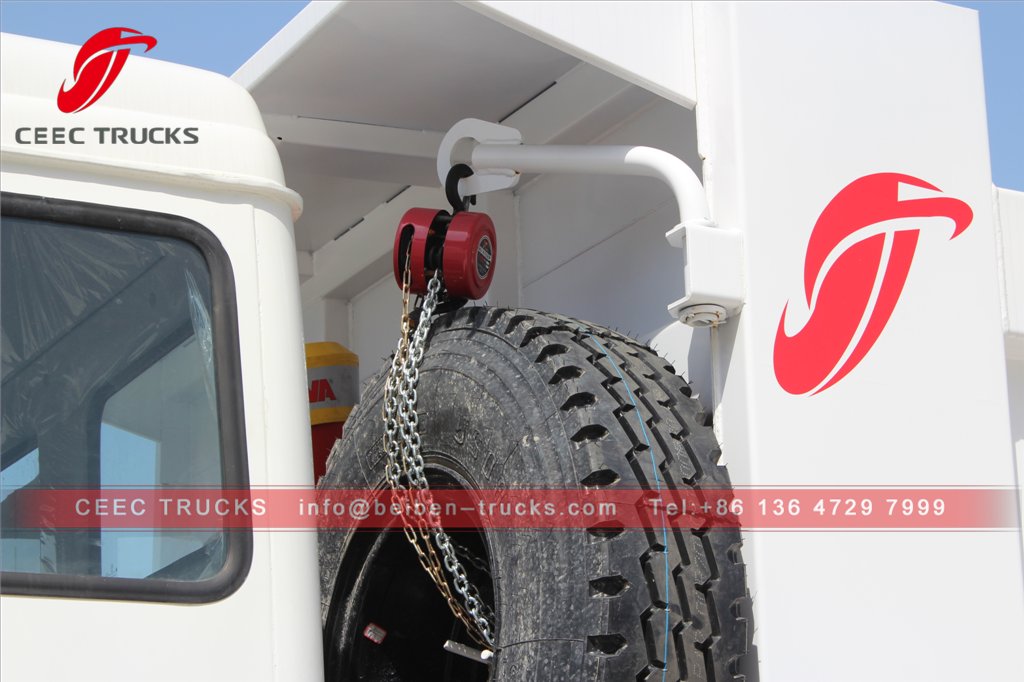

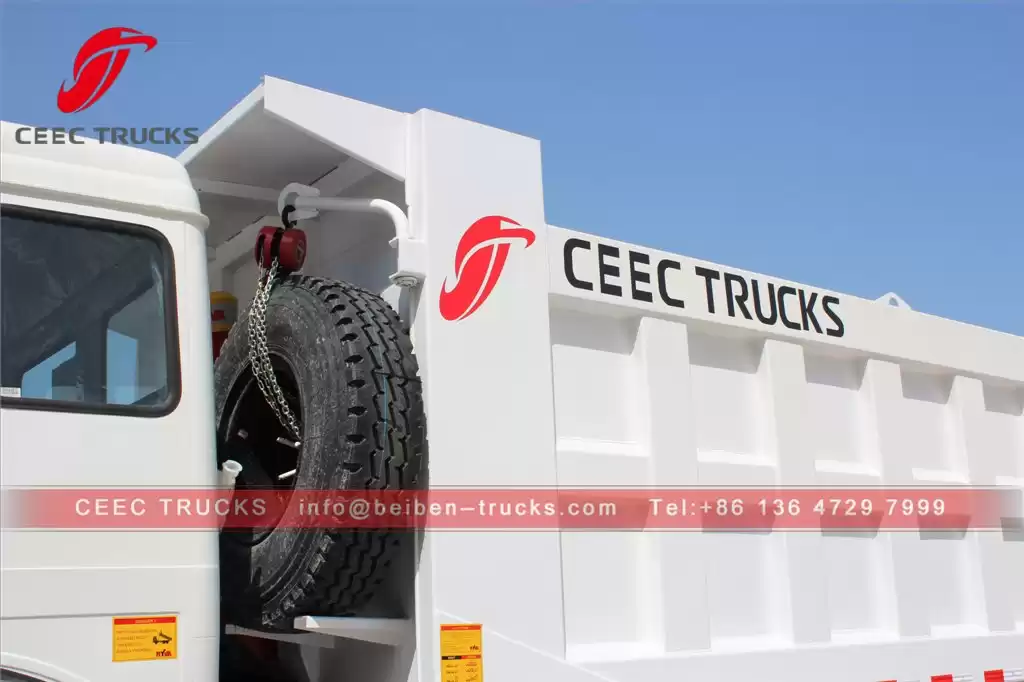

10 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Body Capacity
|
35 T
|
| Tilting Device
|
Front lifting device
|
| Hydraulic Cylinder
|
China brand
|
| Discharging model
|

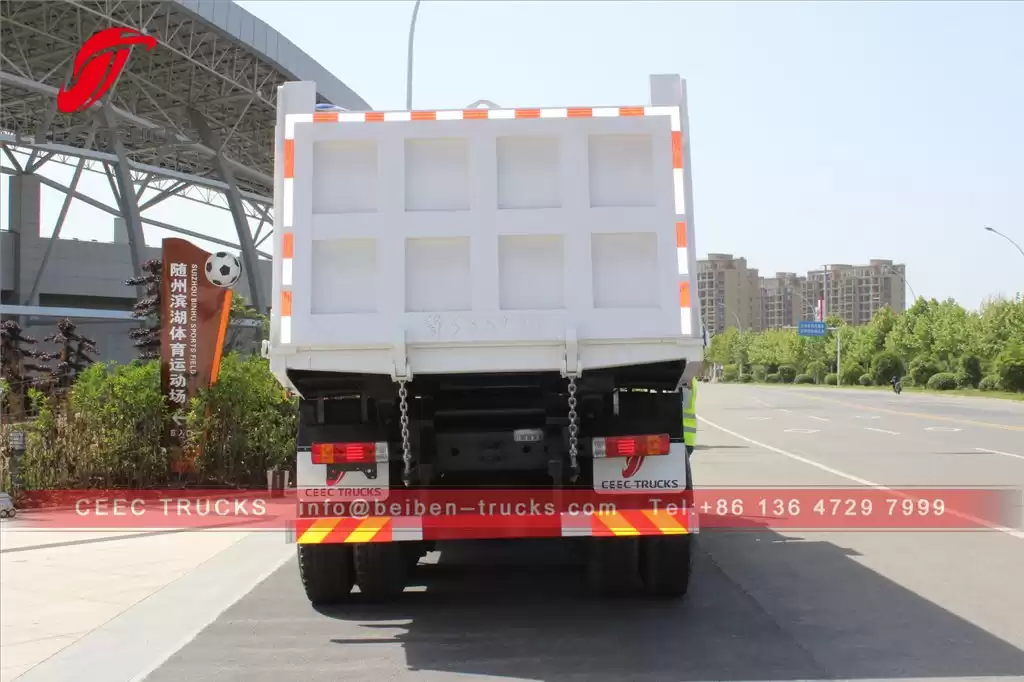

Rear discharging
|
Dump Body Dimension
|
5600*2300*1500 mm |
| Thickness
|
Side Board: 8mm
Floor Board: 10 mm
|
| Control panel
|
English or Your language
|
| All standard accessories: basic tool kit, English manual……
|
| Optional
|
** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
|

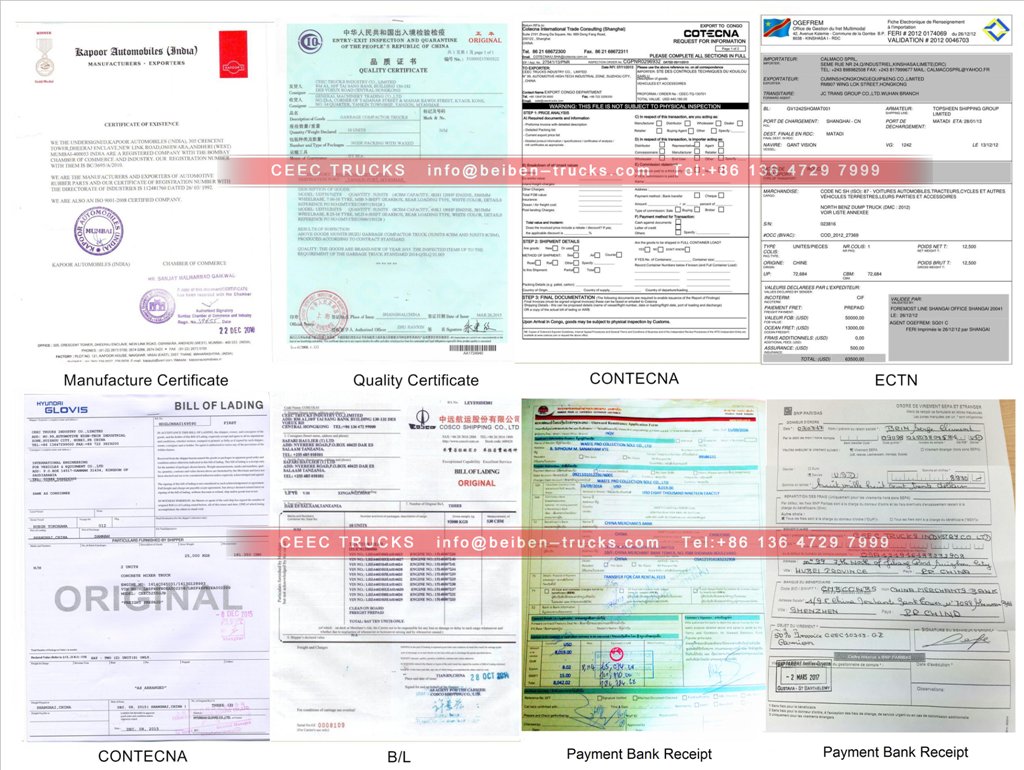

---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.

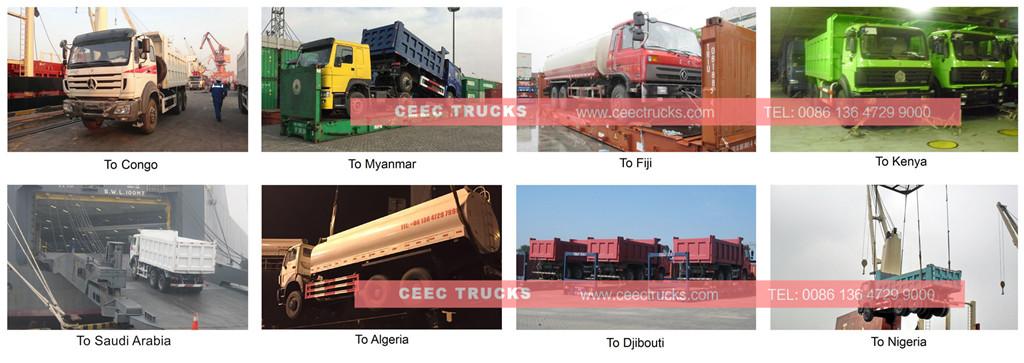

---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Shanghai seaport shipping within 7 days.
---- Painting & Logos change for free---- 100% quality guarantee.
