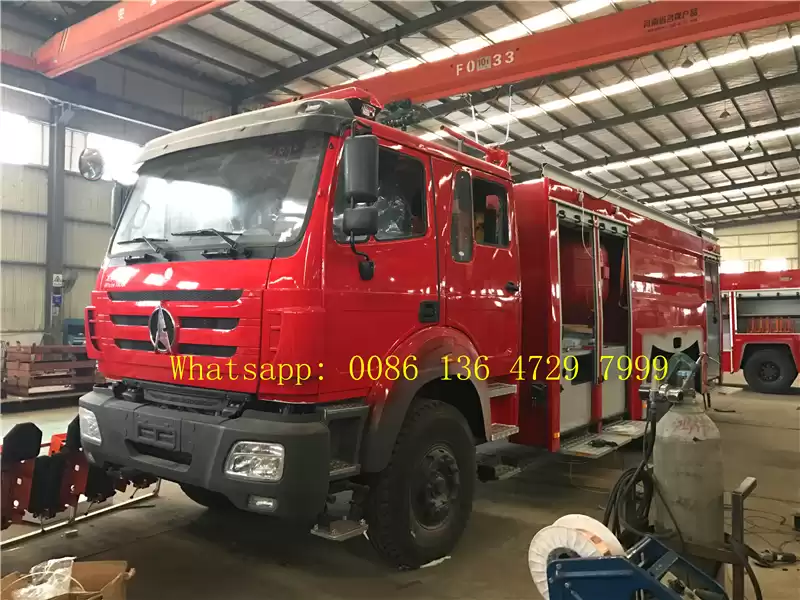

beiben 2638 fire fighting truck
Applications:
Beiben fire trucks,also called as beiben fire fighting truck, beiben 2638 fire truck, north benz fire fighting truck, china beiben fire trucks, china north benz fire trucks, is include liquid tanker, pump
room, equipment boxes, power output and transmission system, pipeline system,
electrical system and so on, widely used in urban public fire brigade,
petroleum chemical industry and other departments, can quickly close to the
fire field fire-fighting, to fighting a variety of fire, is the ideal fire-
fighting equipment.
As china most professional beiben fire trucks exporter, we supply with beiben 10 cbm, 12 cbm, 16 cbm fire fighting trucks. supply north benz 4*2, 4*4, 6*4,6*6 drive fire fighting truck.
The beiben fire ruck can be beiben 1934 fire truck, beiben 2634 fire truck, beiben 2638 fire fighting truck, beiben 2642 fire fighting trucks. If you need any beiben fire truck, we will ensure the best quality and super price.
Key Features:
---- Benz technology 6*4 Heavy-duty chassis, durable & performance
---- Easy access to Pump
room – positioned at chest height making it faster and easier to pull out and
set up.
---- Huge fire equipment
equip with your fire truck, put into service immediately.
---- Mercedes benz front axle , rear axle.
---- Easy access to Pump room
Specifications:
|
Name
|
Standard
configuration
|
|
♦ Model:
|
CEEC5150XFC
|
|
♦ Chassis
|
BEIBEN 6*4
truck for Fire Engine application
|
|
♦ Drive type:
|
6x4 Left hand
drive
|
|
♦ Wheel base
|
5050+1450 mm
|
|
♦ Dimension size
(LxWxH)
|
10105×2480×3380mm
|
|
♦ Cabin Structure:
|
The all-steel
stamping parts welded structure, install double-row seat to rollover the
double-cab hydraulic oil tanks overturned, can be moved overturned forward
|
|
♦ Inside cabin
equipment
|
automatic
temperature control air conditioning system of environmental protection
(R134A refrigerant, without Freon), Radio + MP3. In addition to the car
equipment, the installation of P.O.T. controlled switches, siren, alarms
lights, indicator lights, sign lights, profile signal controlled switches
|
|
♦ Number Of Seats
|
2+4 seats with
Four-door
|
|
♦ Air condition
|
Yes
|
|
♦
Engine
|
Model
|
WP10.336E40
|
|
Power
|
247 Kw (336 Ps)
|
|
Torque
|
1360/1450 N.m/r/min
|
|
Advantage
|
Beiben brand new engine,4 stork, 6 cylinder, New ultra high
pressure common rail fuel injection system, strength of electronically
controlled cooled EGR system, electronically controlled variable geometry
turbocharger systems (VGS)
|
|
Fuel
|
Diesel
|
|
Displacement
|
9800 ml
|
|
♦ Transmission gear:
|
FAST 9-speed
gearbox, suitable to all kinds of roads, more fuel-efficient
|
|
♦ Front axle:
|
Reverse Elliot,
I-Beam
|
|
♦ Rear axle:
|
Single Reduction
Banjo Design Full Floating
|
|
♦ Clutch
|
Single-plate dry
coil-spring clutch, hydraulically operating with air assistance
|
|
♦ Fuel tank
|
400 L
|
|
♦ Tyres:
|
12.00R20
|
|
♦ Curb Weight
|
11205 kg
|
|
♦ Brakes
|
Service
brake: dual circuit compressed air
brake
Parking
brake: Spring energy, compressed air
operating on rear wheels
Auxiliary brake:
engine exhaust brake
|
|
♦ Electrics
|
Operating
voltage: 24V 120 AH Battery, negative grounded
|
|
♦ Maximum Speed:
|
90 km/h
|
|
♦ Maximum
gradeability:
|
35 %
|
-

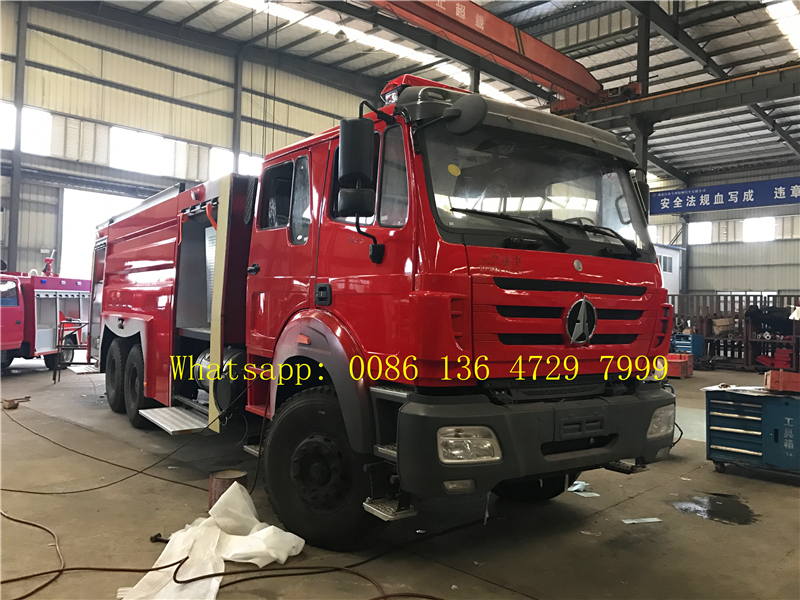

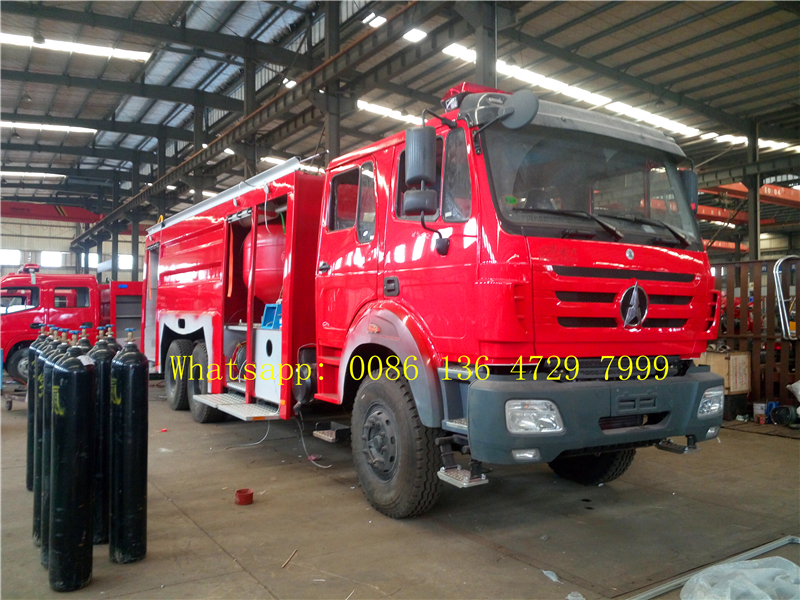

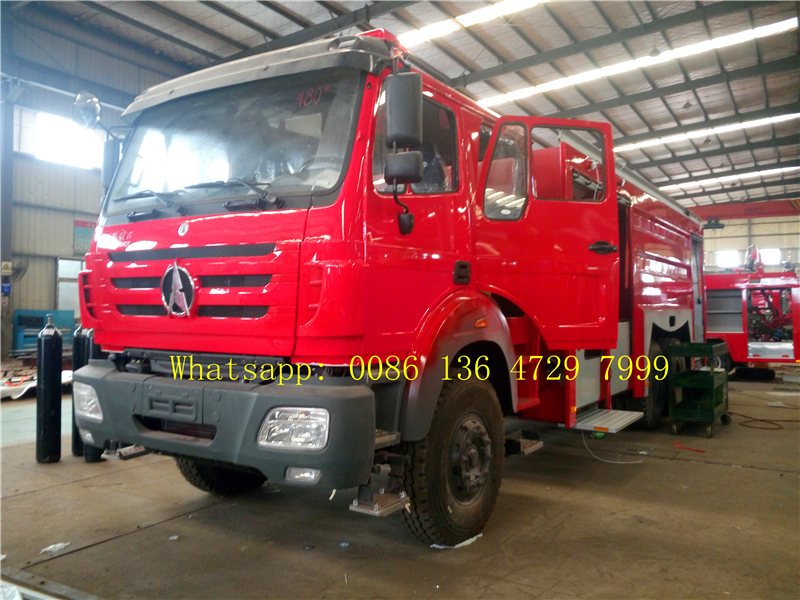

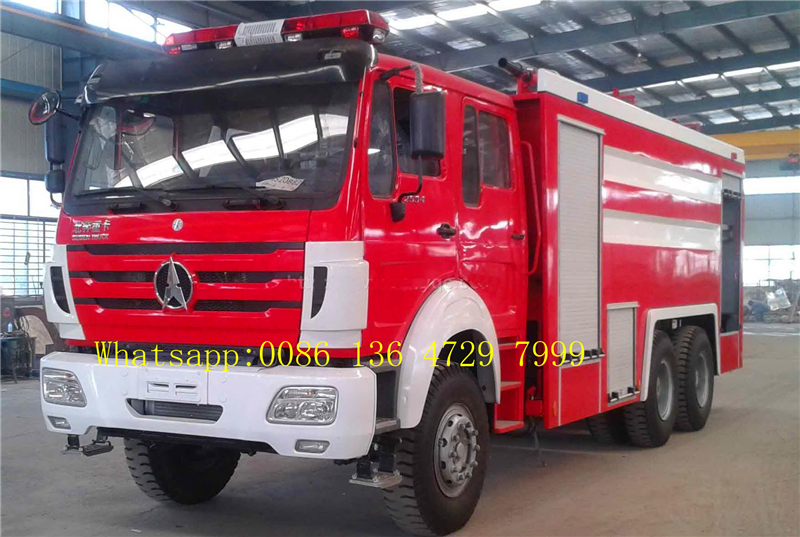

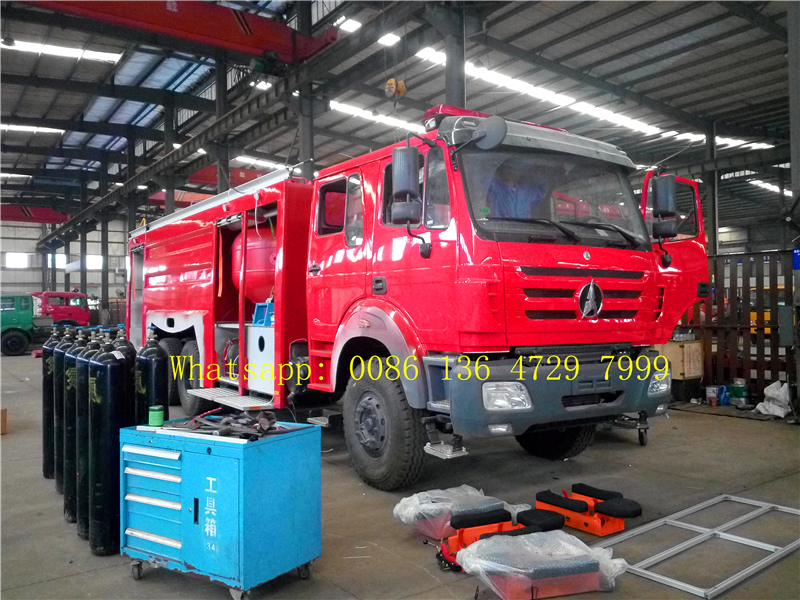

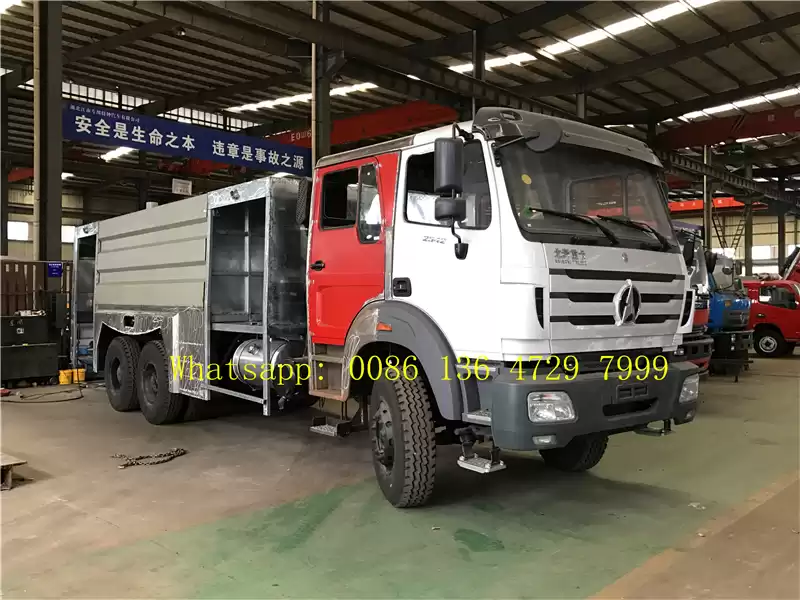

Beiben 2638 fire fighting trucks, china beiben 6*4 drive fire trucks
North benz 2638 fire fighting truck, with 15 cbm capacity tanker body.
2.1 Tanker System:
|
Name
|
Standard
configuration
|
|
♦ Water tank volume
|
8000 L
|
|
♦ Foam tank volume
|
2000L
|
|
♦ Tank material
|
High quality carbon
stell plate, anti- treatment , thickness:5 mm
|
|
♦ Manhole
|
DN500mm, with quick
lock/open device
|

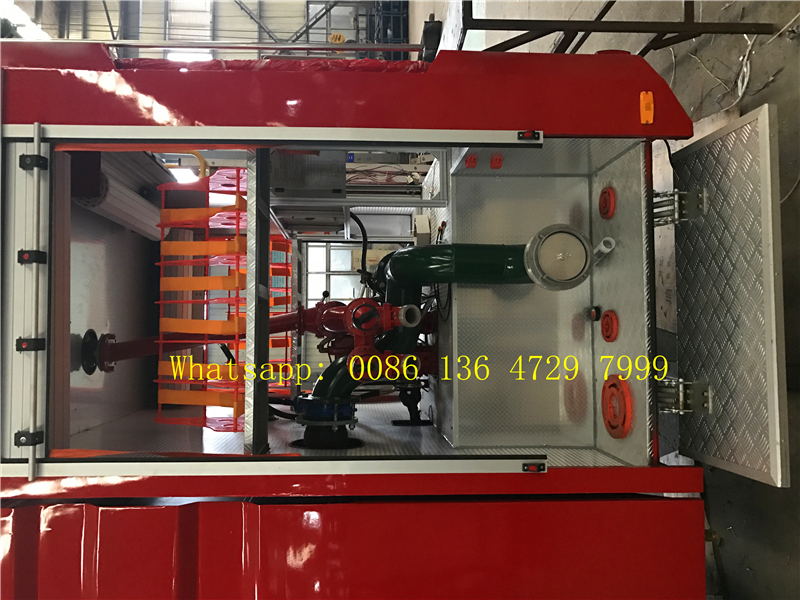

2.2 Fire Pump and Monitor
|
Name
|
Standard
configuration
|
|
♦ Fire pump
|
Model
|
CB10.60/20.40,
middle and normal pressure fire pump,rear back mounted,
with aluminum roller shutter door
|
|
Maker
|
XIONGZHEN / RONGSHEN
(China TOP brand)
|
|
Flow
|
25L/S (middle
pressure)
60L/s (low pressure)
|
|
Pressure
|
2.0 MPA (middle pressure)
1.0 MPA (low pressure)
|
|
Installation
|
Rear mounted
|
|
♦ Fire
monitor
|
Model
|
SP40
|
|
Maker
|
China Famous brand
|
|
Location
|
Top of tank
|
|
Jet monitor rotation
angle
|
360°
|
|
Angle of elevation
|
≥70°
|
|
Angle of depression
|
≤-15°
|
|
Throw
|
Water throw≥65meter,
Foam throw ≥60m
|
|
Rotation
|
360º; elevation:
0-80°, depression -10°
|

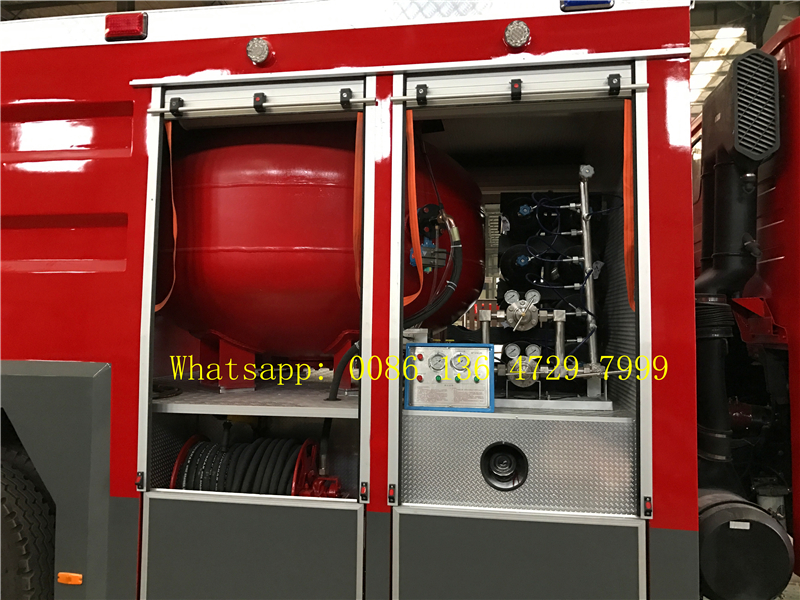

2.3 Storage
compartment:
|
Name
|
Standard
configuration
|
|
♦ Material
|
Framework made out
of the high-quality carbon steel, interior strake of the 2.5 mm aluminum
jacquard card (anode treatment). Outside covered skin made out of
high-quality carbon steel plate.
|
|
♦ Stucture
|
(1) the interior
frame of storage compartment made out of welding structure, the top face to
be 2.5 mm jacquard steel plate, high strength, rigid, and nice.
(2) the inside
storage compartment to be aluminum plate.
(3) convenient
switch of roll shutter, with push-button locking handle
|
