Dimension (mm×mm×mm)
|
11986×2500×3600
|
|
Wheel base (mm)
|
1500+4750+1450
|
|
Curb weight (kg)
|
14500
|
|
Max Speed:(Km/h)
|
≥80
|
|
Front overhang/rear overhang
|
1410/1720
|
|
Engine
|
Model
|
WD615.50,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
|
|
Fuel type
|
Diesel
|
|
Min rate of consuming fuel(g/(kW.h))
|
206g/Kw.h
|
|
Rated Power / rotating
(KW/(r/min)
|
206Kw/2200rpm
|
|
Emission
|
EUROⅡ
|
|
Maximum Torque / rotating speed(N.m/(r/min))
|
1160Nm/1100-1600rpm
|
|
Displacement(ml)
|
9726
|
|
Fuel tanker capacity (L)
|
400
|
|
Clutch
|
Model
|
GFX420, Single dry frictional disc,Hydraulic boosting
|
|
Gearbox
|
Model
|
5S-112GP mechanical type,Based on ZF German technology ,9Forward speed gear.
|
|
Gear ratio of speed
|
8.48/6.04/4.39/3.43/2.47/1.76/1.28/1.00
Crawler:13.04 Reverse:11.77
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
Model
|
ZF8098, whole circulation in ball type, hydraulic boosting
|
|
Suspension system
|
Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension, 13pcs
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Tire
|
12.00R20 radial tire
|
|
Qty of tire
|
13
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

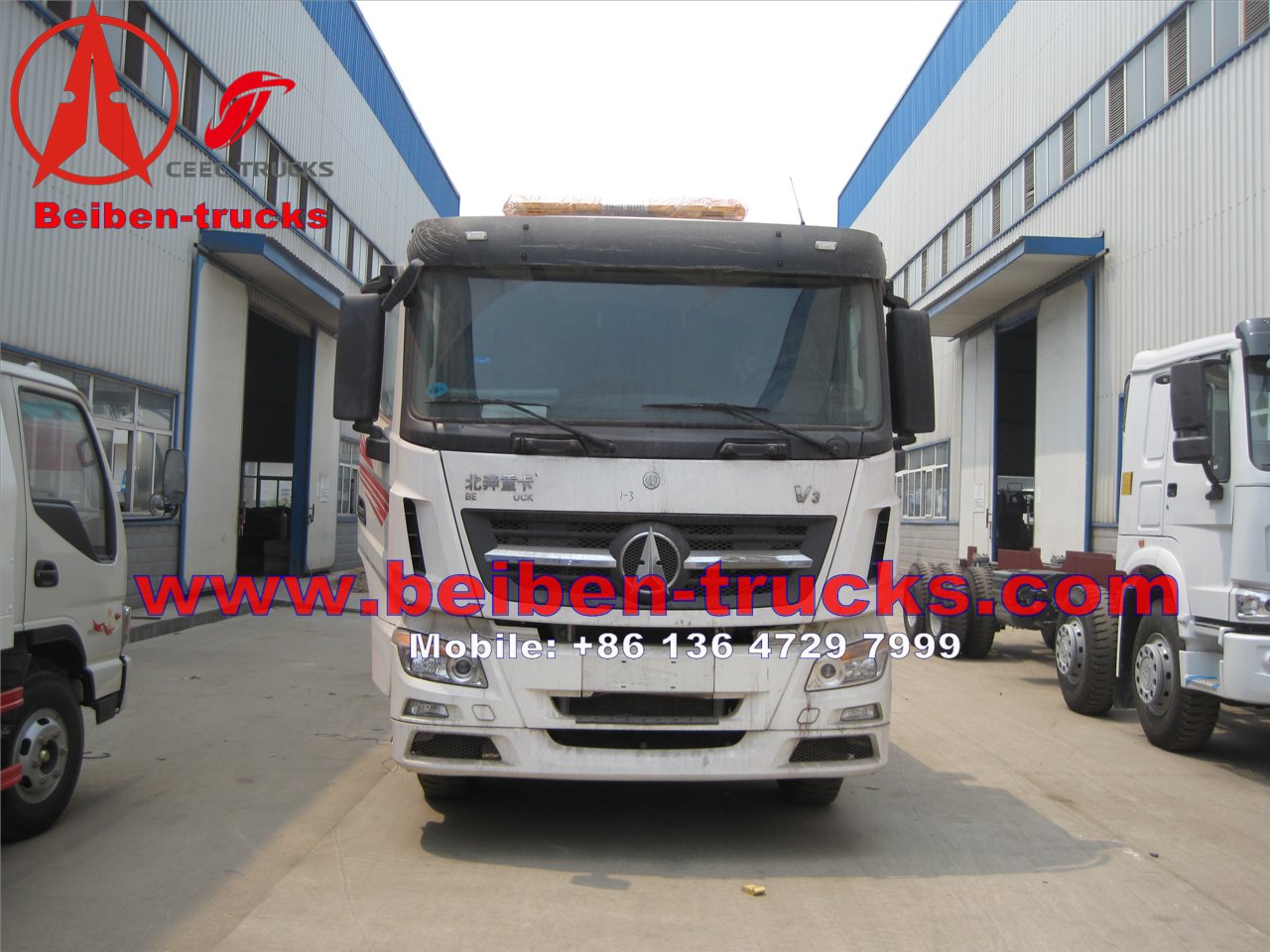

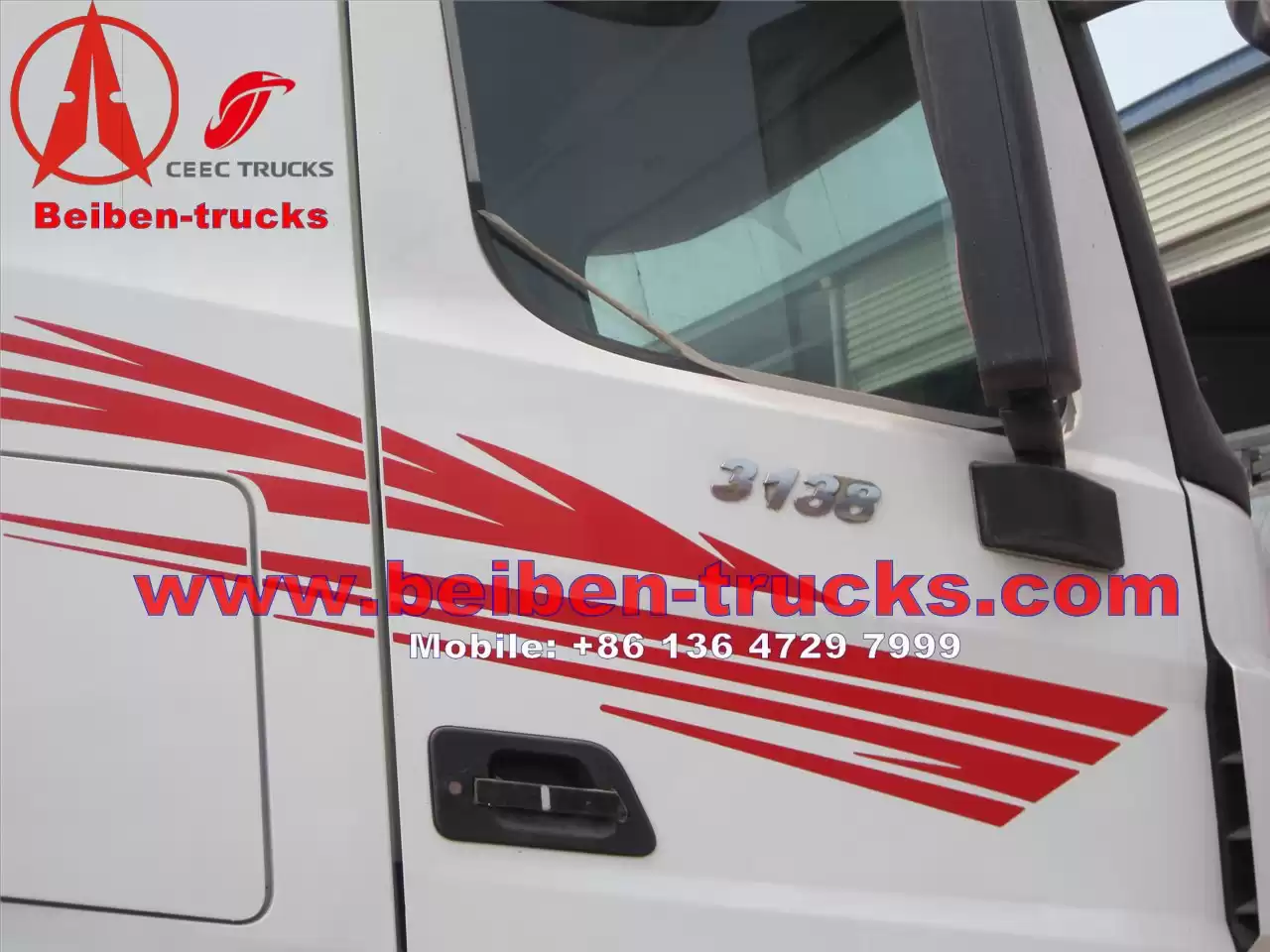

Cab
|
Long cab with sleeper,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
With Tropical thermostat(71C)
|
|
Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.
|
|
Exterior trimming:
Metal bumper, two steps, new mirror.
|
|

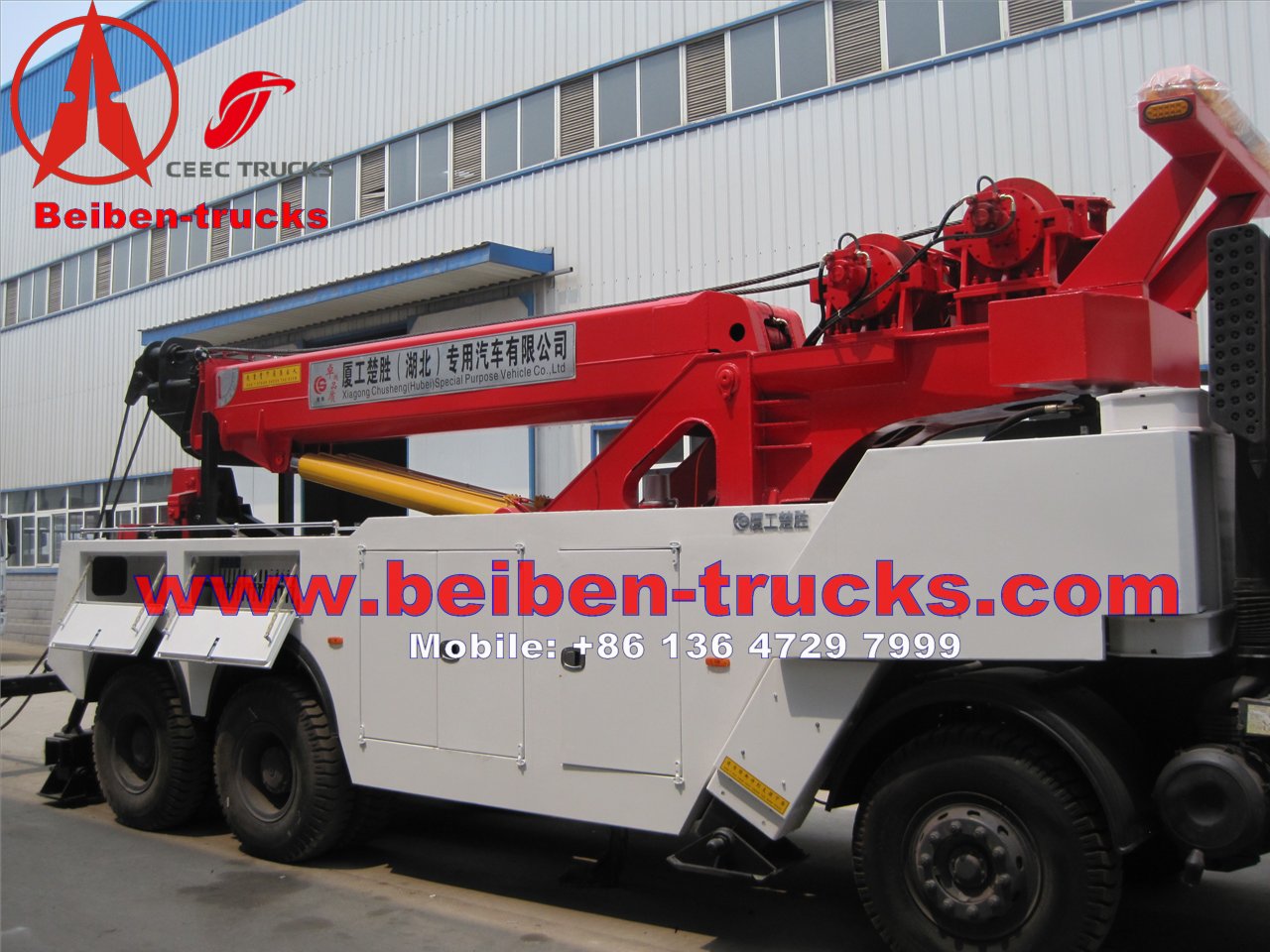

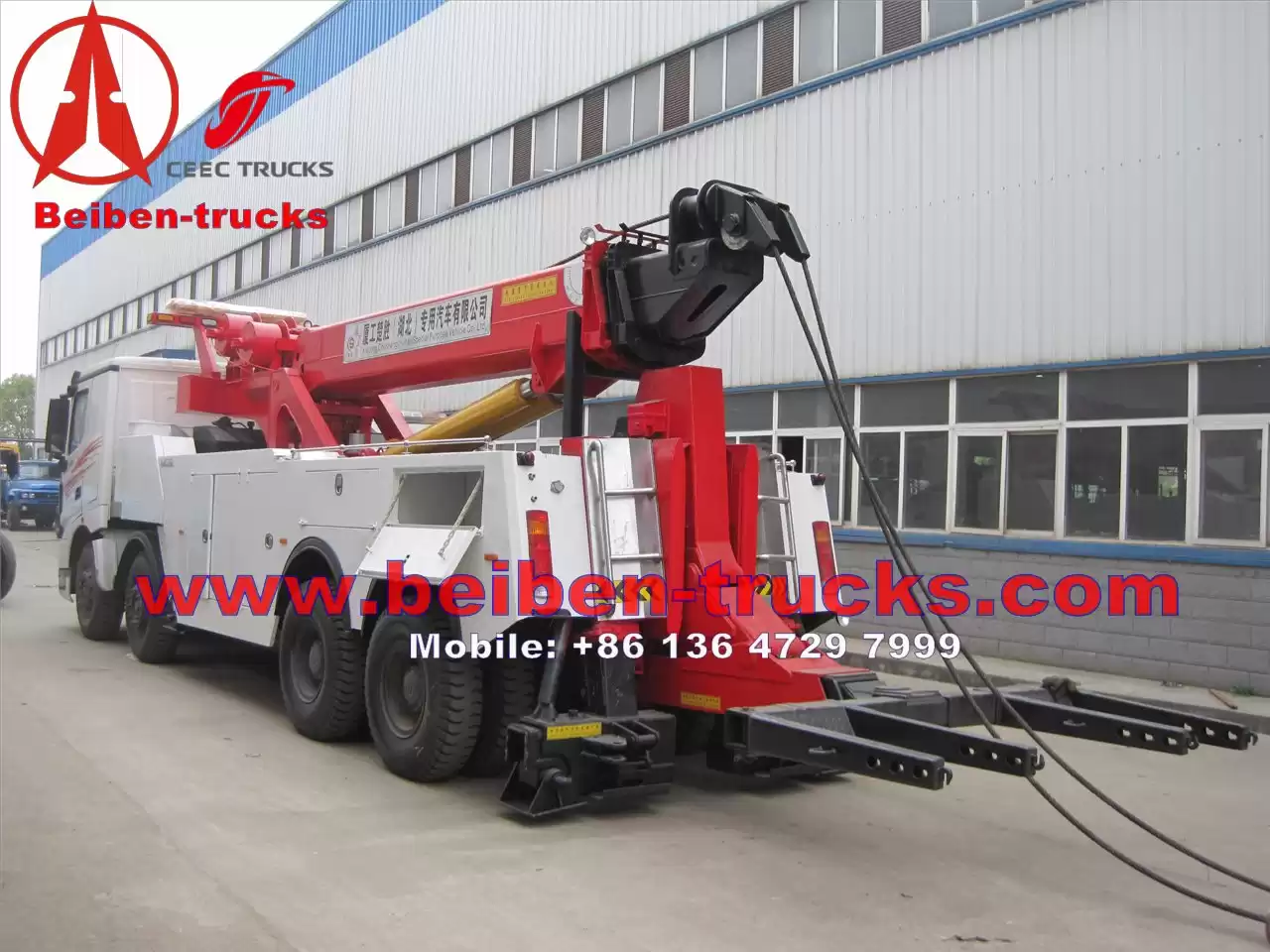

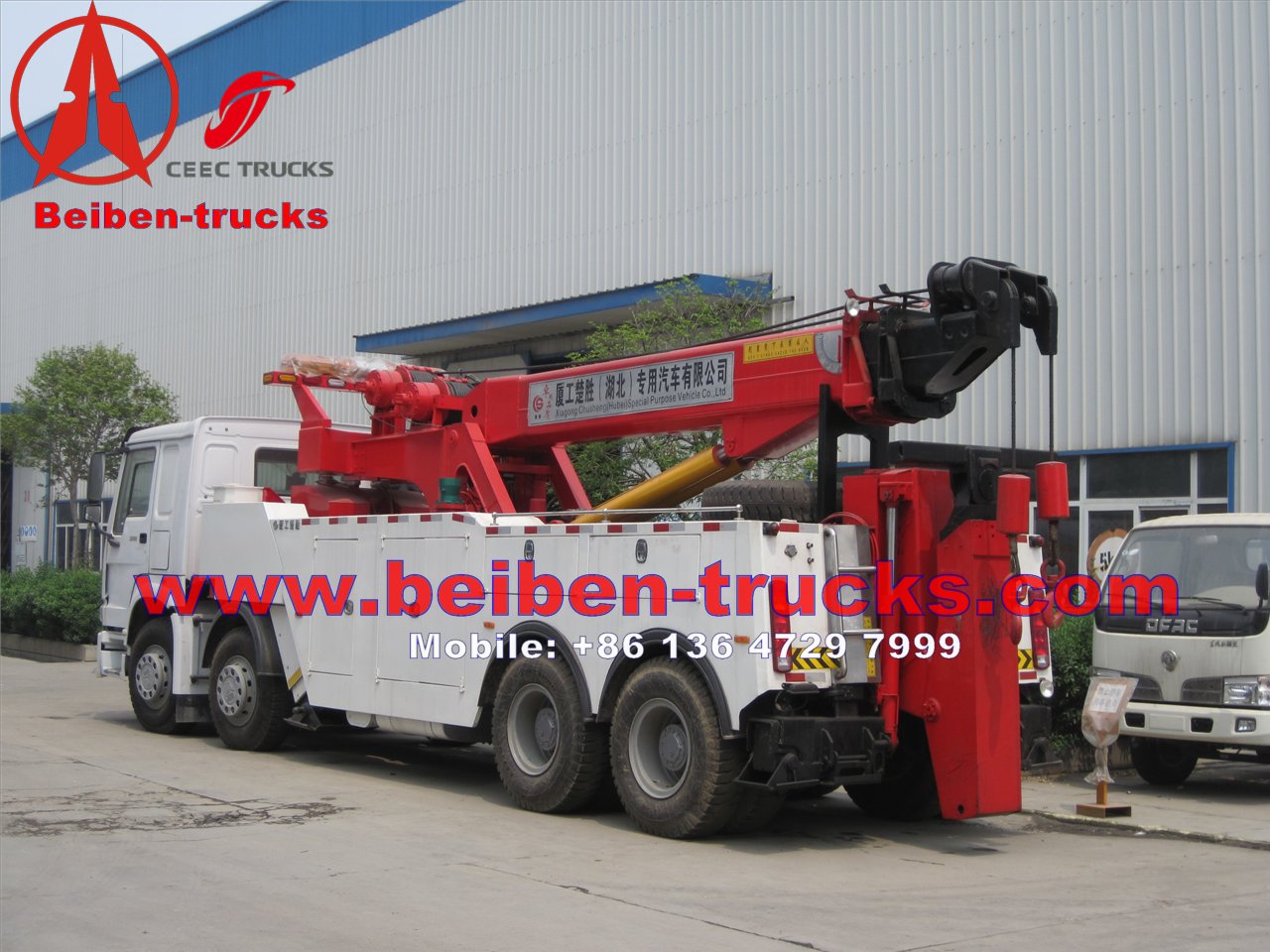

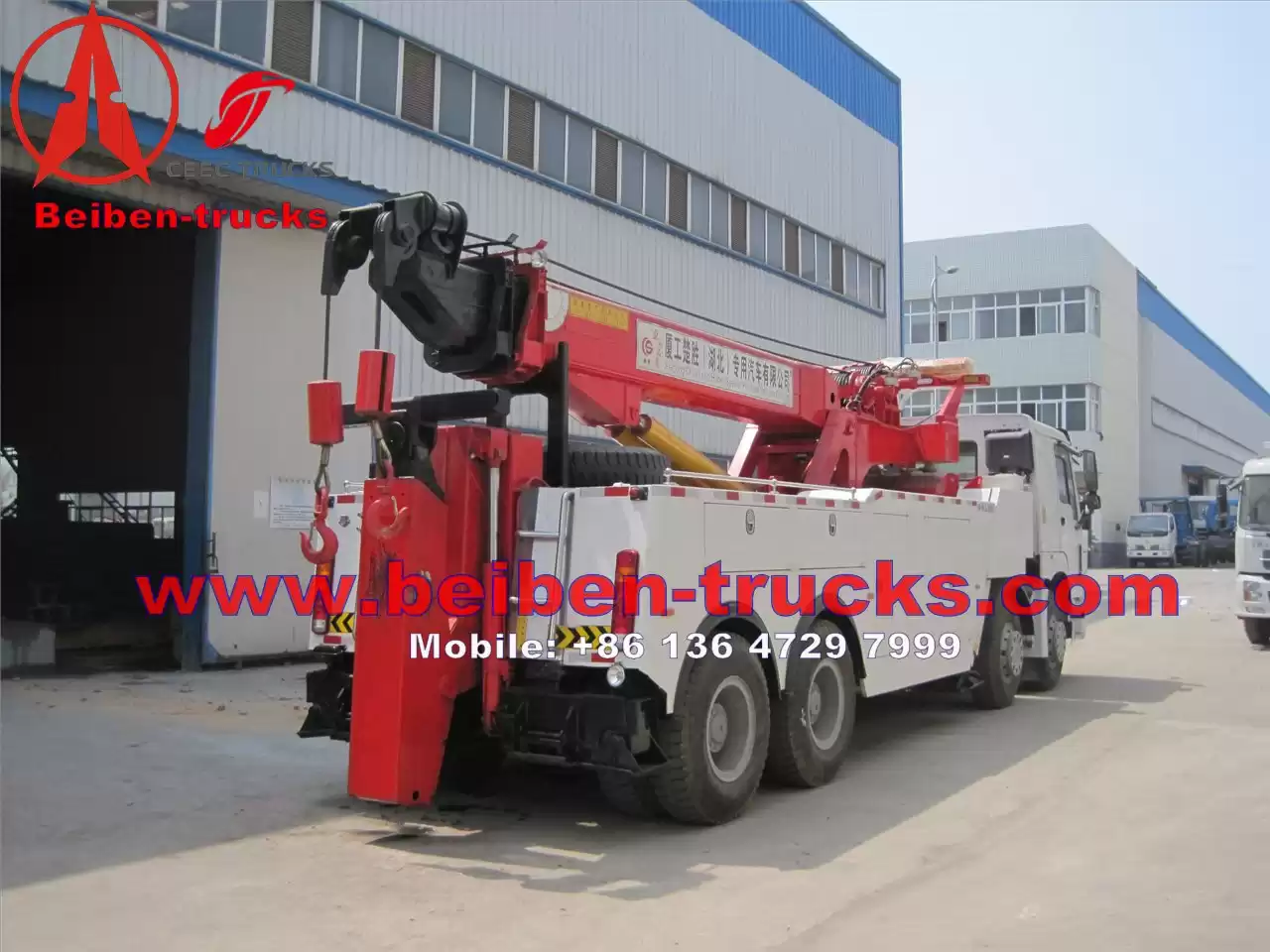

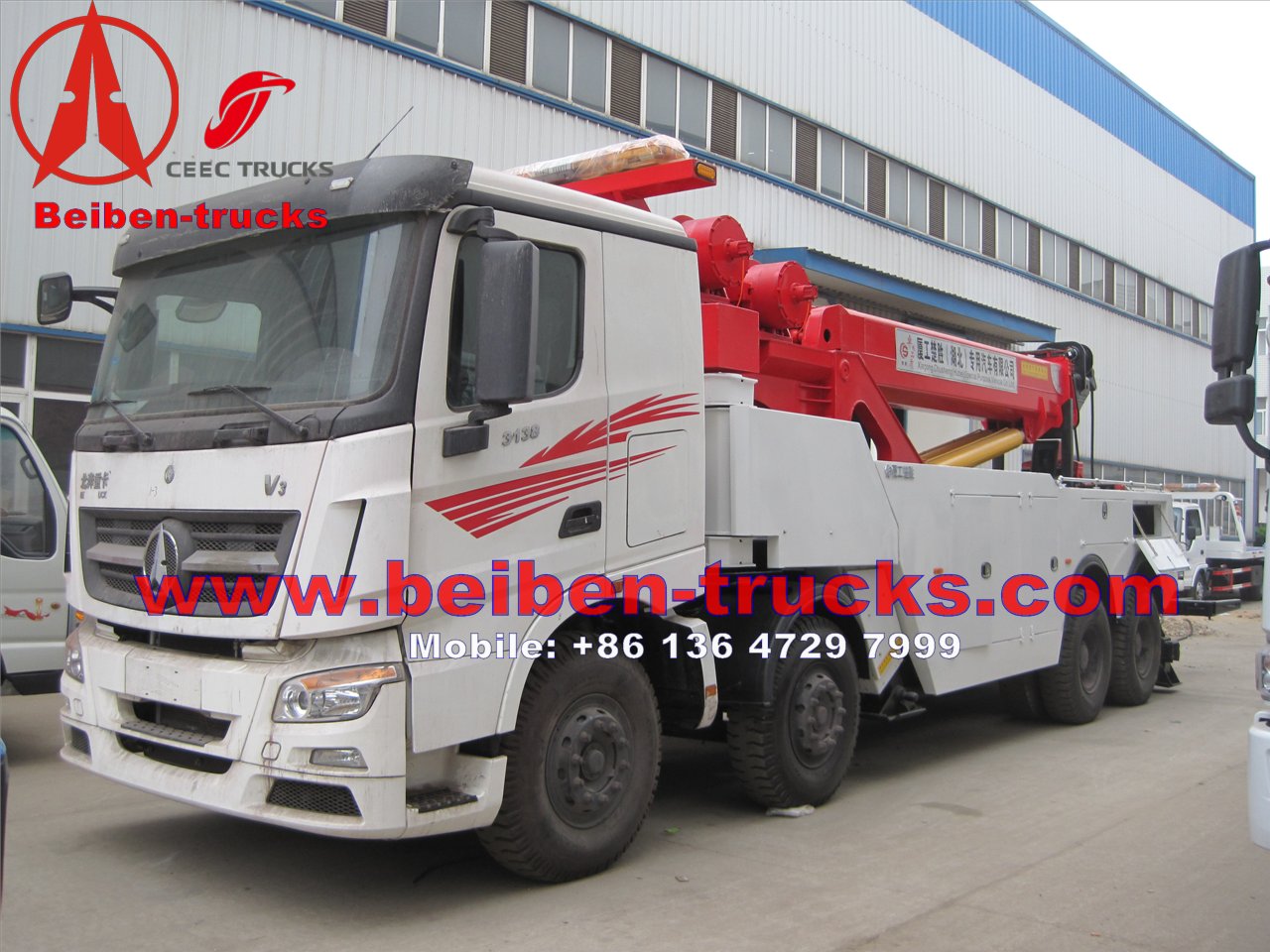

Specification of the Upper body(Wrecker)
|
Towing equipment
|
30DZ+16T( 2stage boom )
|

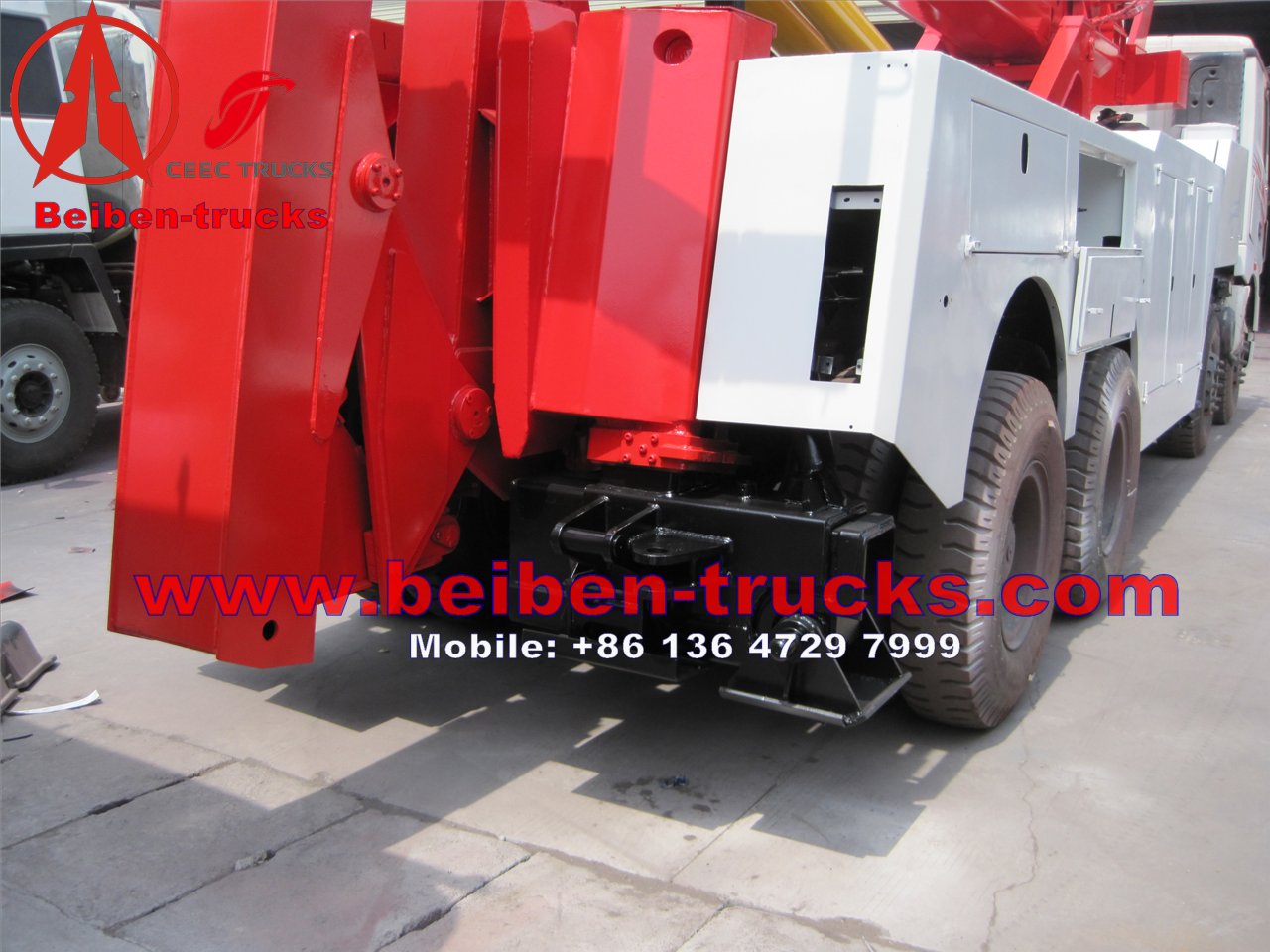

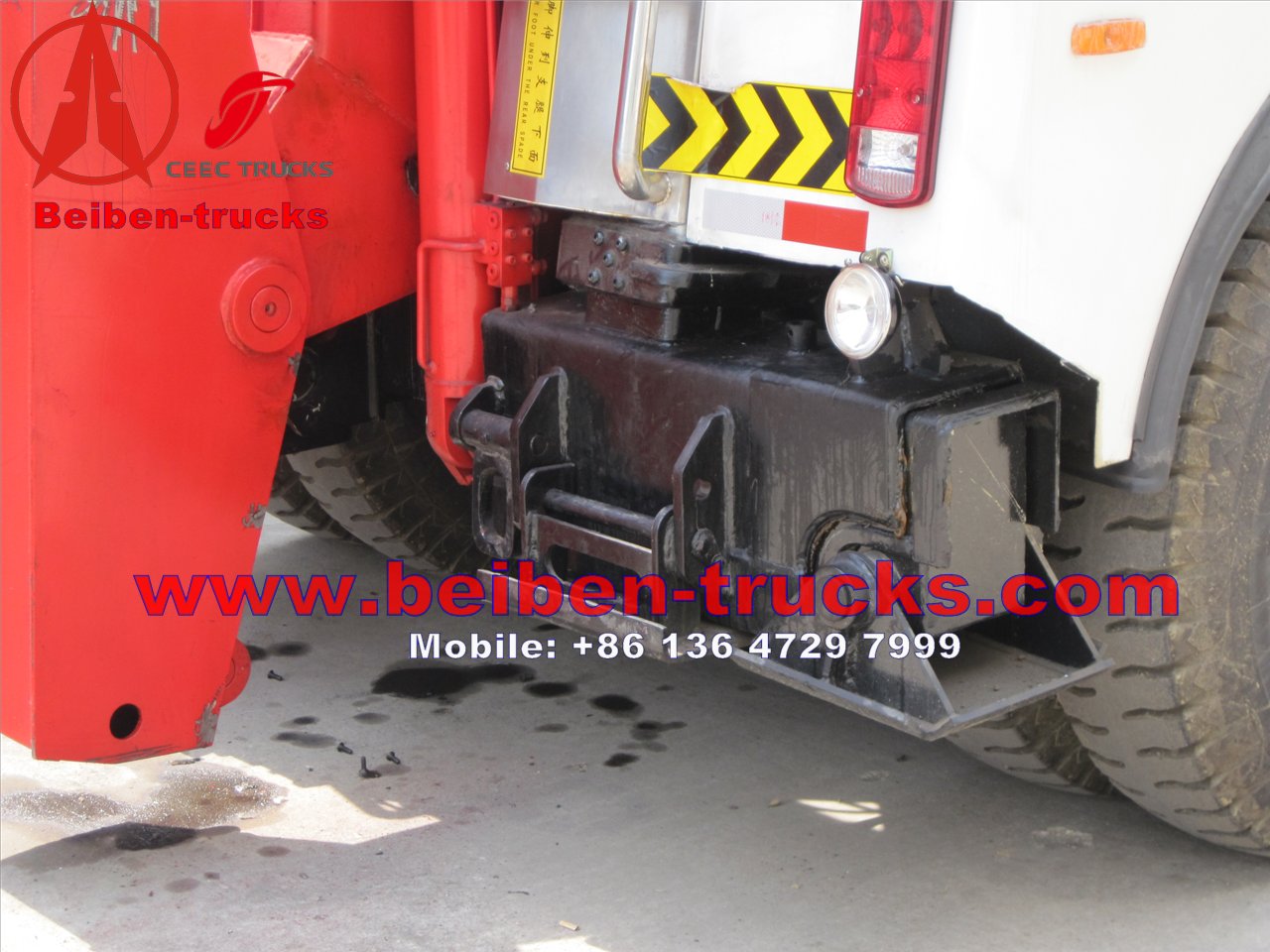

Under
lift
|
Max lift @all extend (kg)
|
7200
|
Max lifting (kg)
|
16000
|
Length of arm (mm)
|
1375~3014
|
In/out length (mm)
|
1639
|
Title angle (0)
|
-10
|
Moving angel(0)
|
-10~93
|

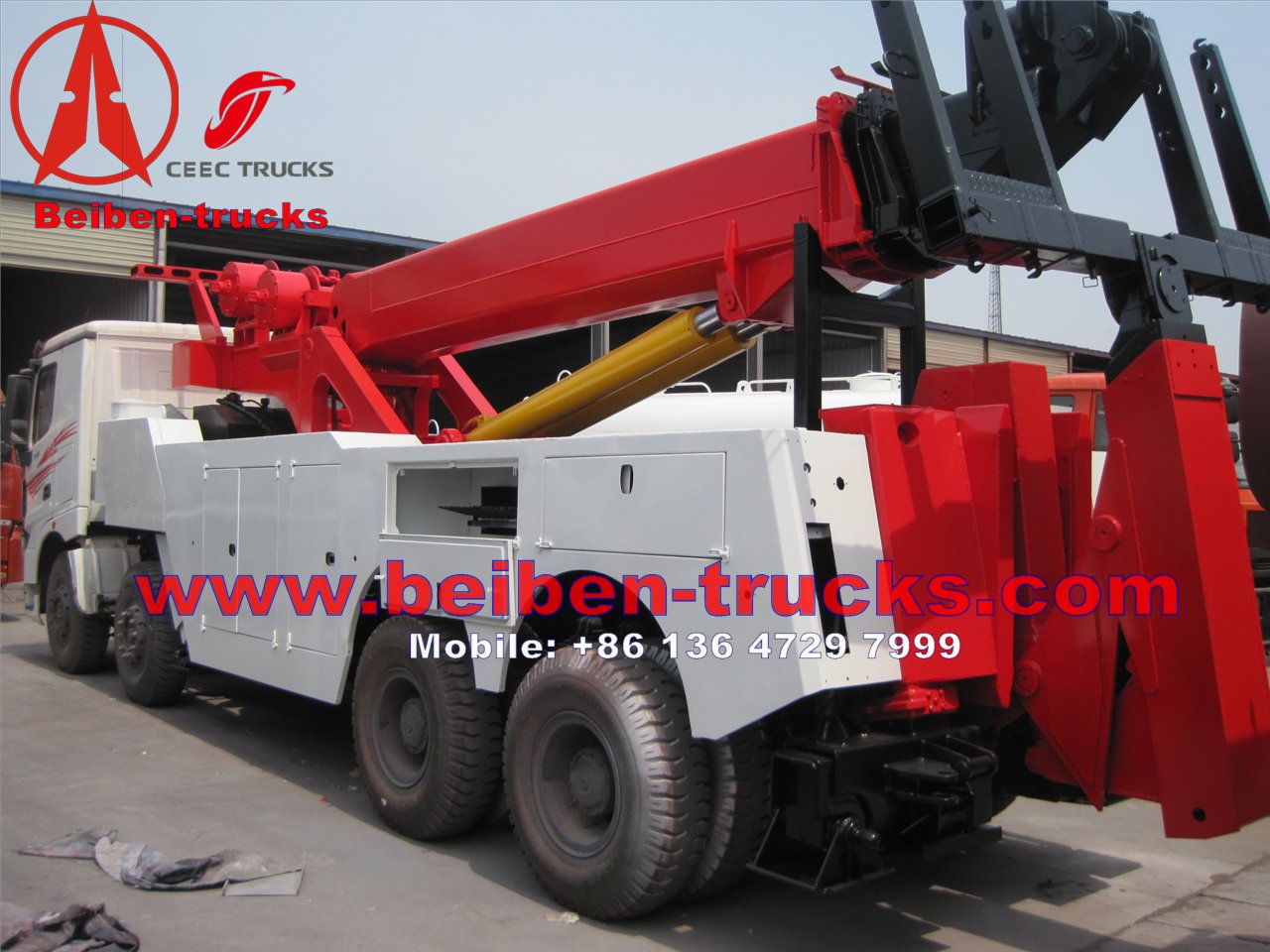

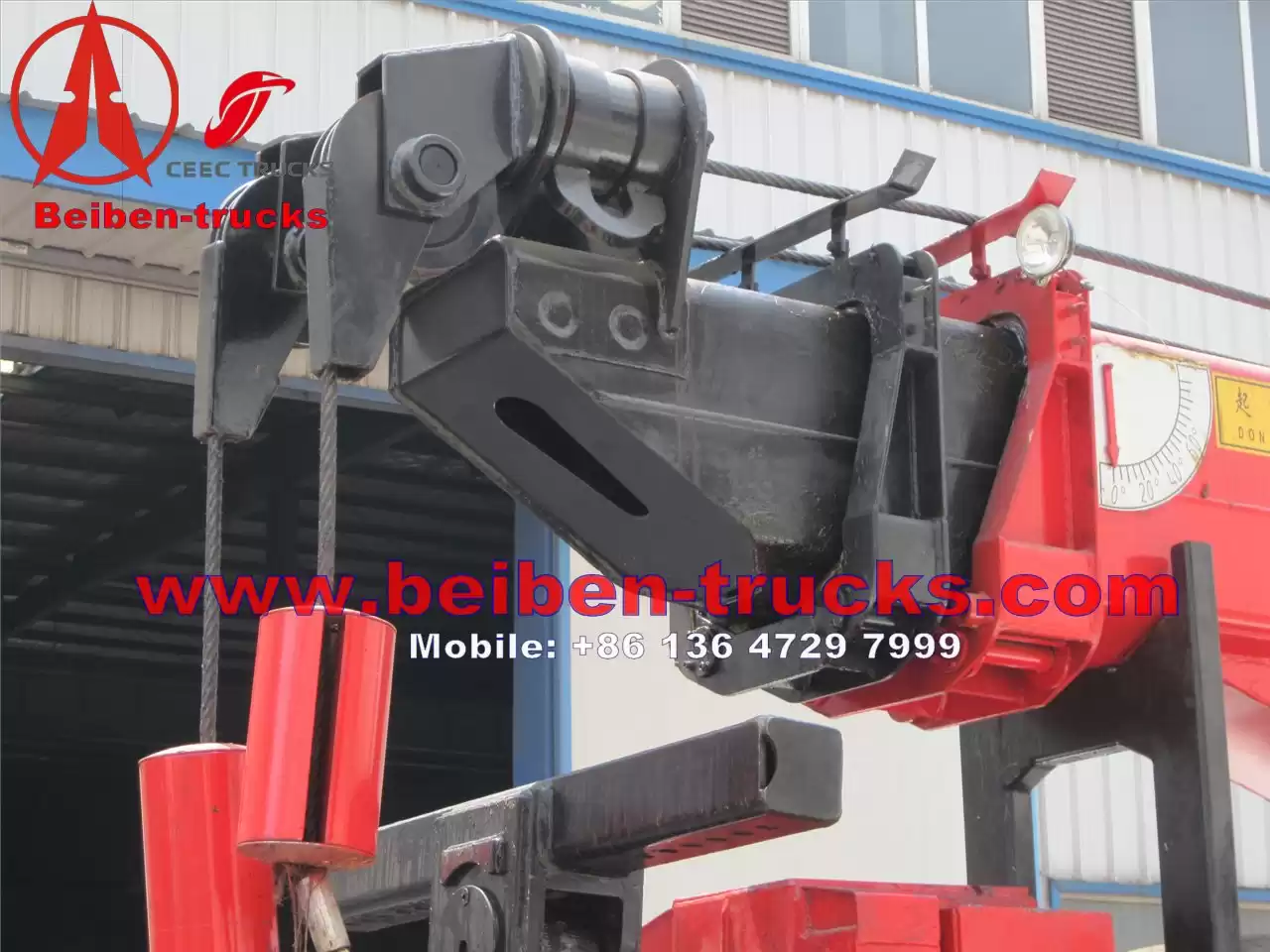

Boom system
|
Max lifting (kg)
|
30000
|
Lifting at all extend (kg)
|
5000
|
Length of 1st stage boom (mm)
|
5280
|
Total length of boom(mm)
|
8380
|
High of lifting (mm)
|
8680
|
move angle (0)
|
0~50
|
rotator (0)
|
360°
|
Winch
|
Qty
|
2
|
diameter of cable (mm)
|
φ18
|
Length of cable (m)
|
45×2
|
Sport legs
|
Front legs span (mm)
|
5110
|
Rear legs span (mm)
|
4000
|
Front to rear (mm)
|
7065
|
