| Dimension
|
6100*2500*3100mm
|
| Approaching angle/Departure angle
|
16/40°
|
| Overhang(front/rear)
|
1515/1085mm
|
| Wheel base
|
3500mm
|
| Max speed
|
110km/h
|
| Curb weight
|
5800kg
|
| Max towing weight
|
33070kg
|
| Max loading on fifth wheel, Permitted(kg)
|
12070kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP12.400N, water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail
|
| Displacement
|
11.596L/Diesel
|
| Stroke
|
126/155mm
|
| Max. power
|
294/1900 (kw/rpm)
|
| Max.torque
|
1920/1000-1400（Nm/rpm）
|
| Emission stantard
|
EuroⅢ
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
| Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
| Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension 9pcs
|
| Rear
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension 9+6pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
D50,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|

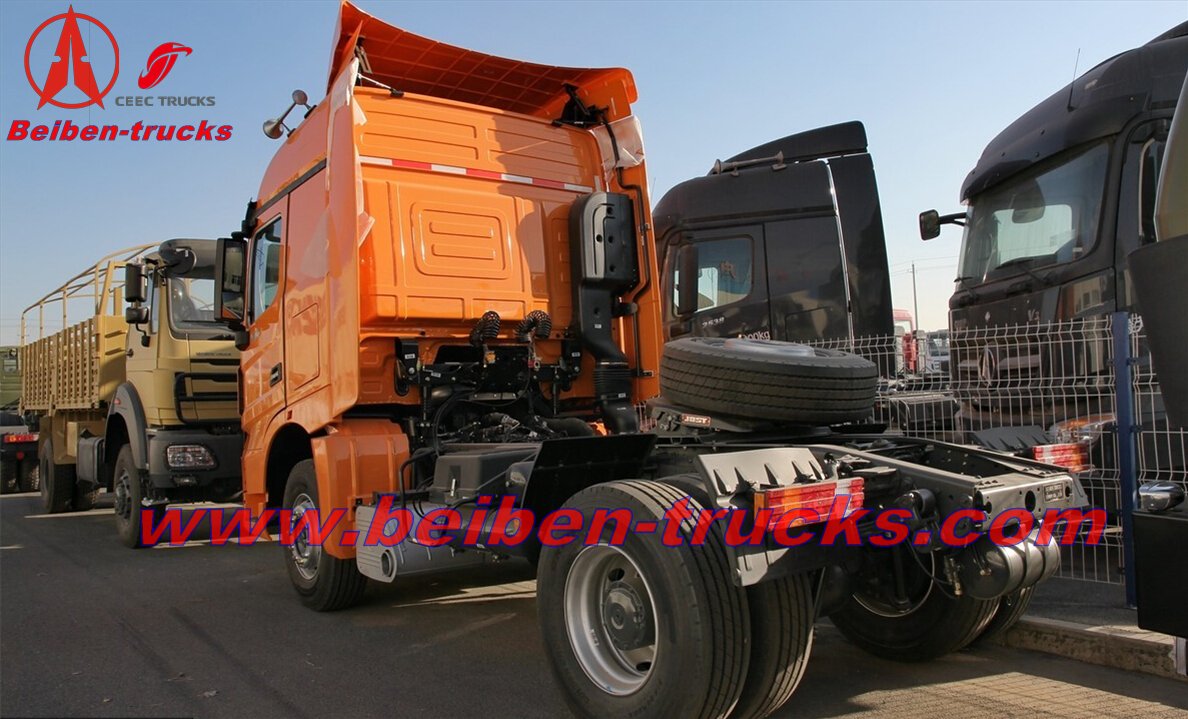

| The Fifth wheel
|
Model
|
JOST ∮90 single direction
|
| Height of fifth wheel(mm) (unload)
|
1410
|
| Radius of front gap (mm)
|
2300
|
| Radius of rear slew (mm)
|
2600
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|

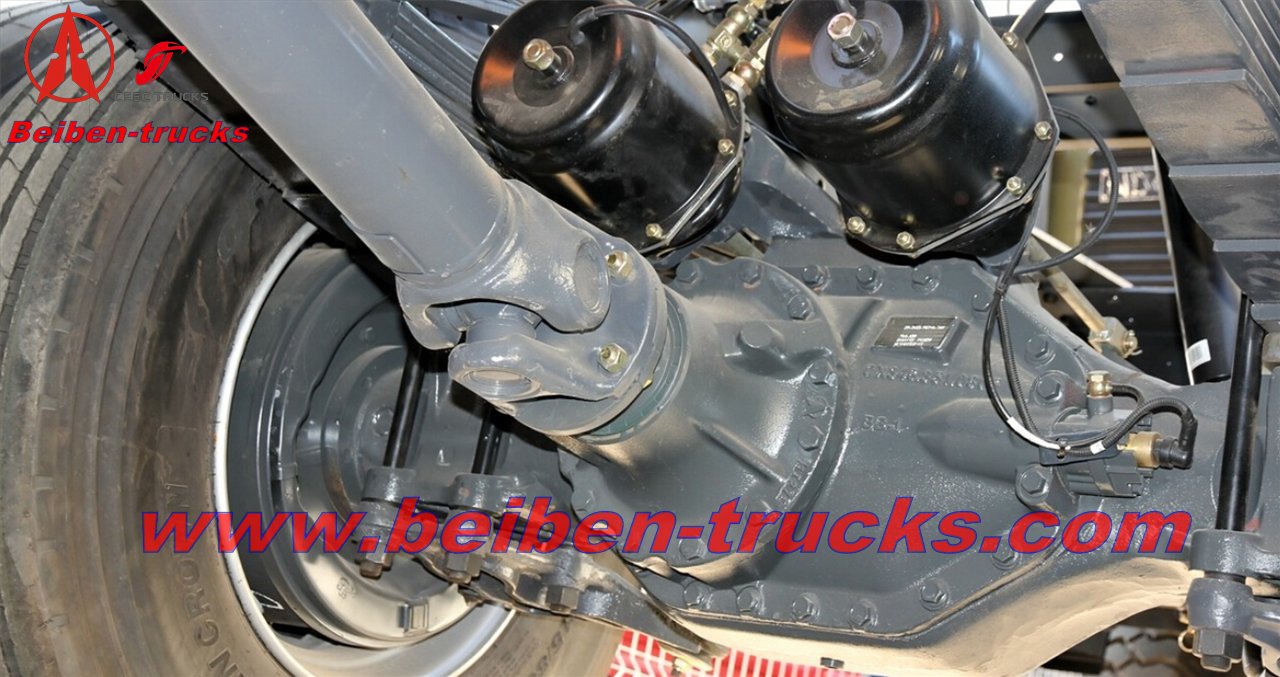

| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
315/80R22.5
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

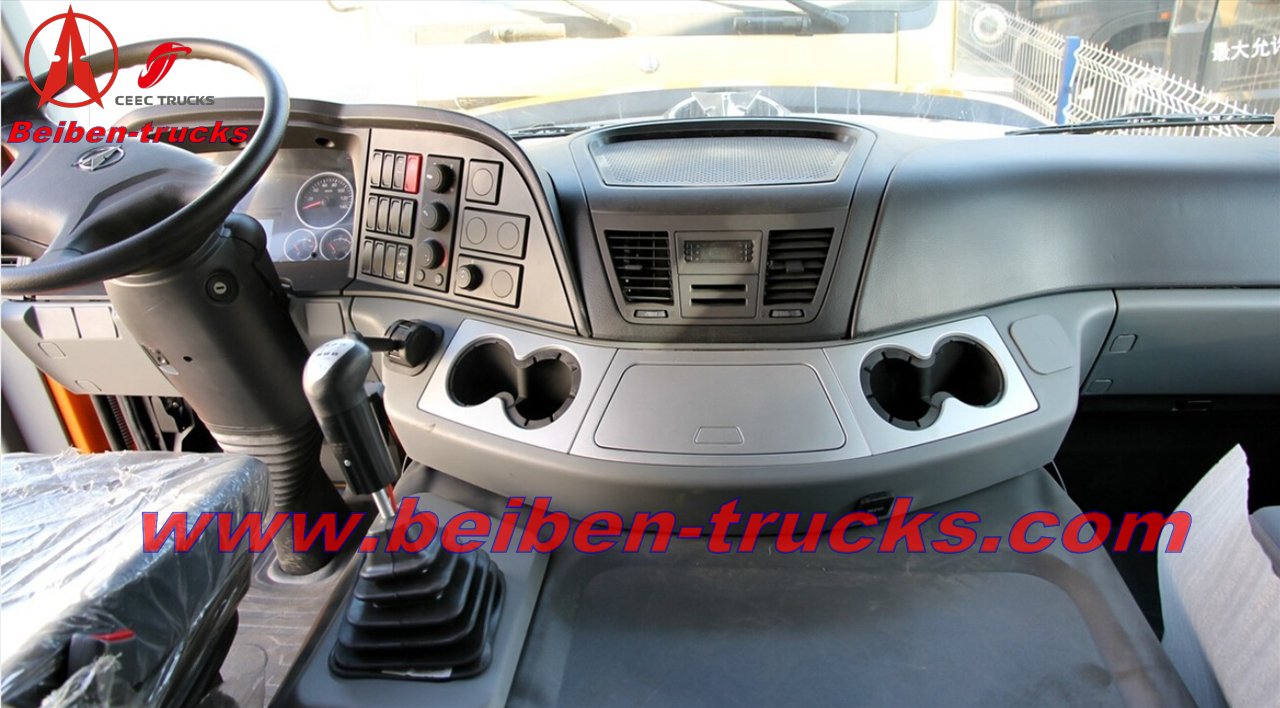

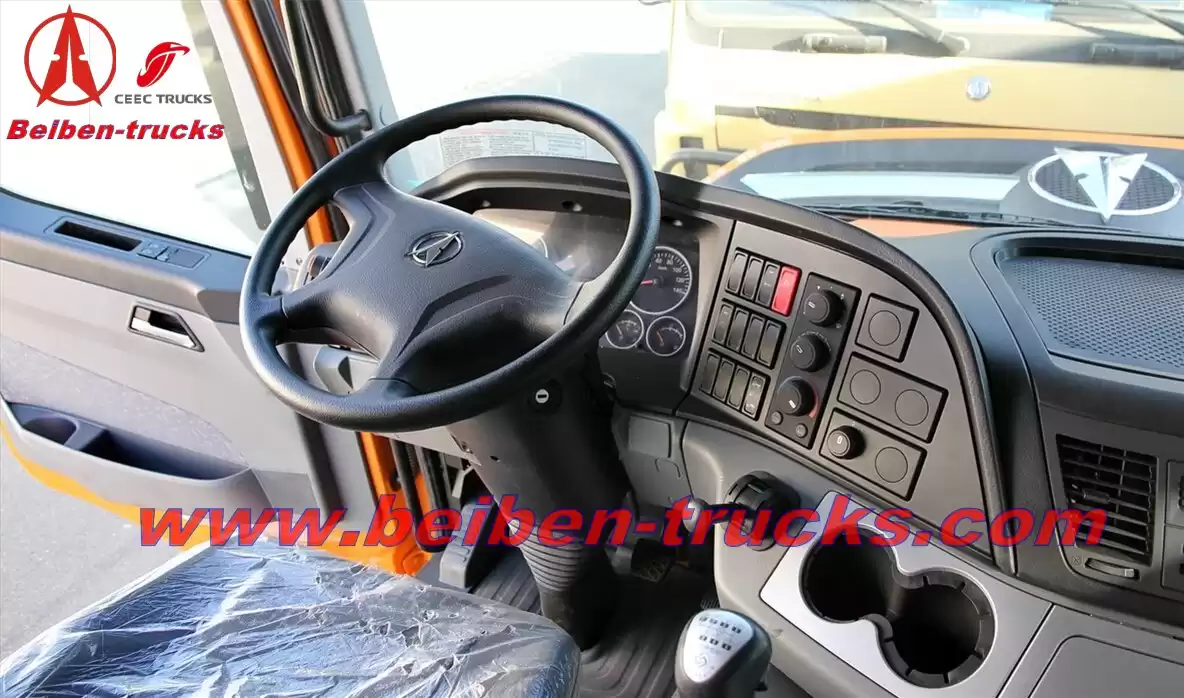

| Cabin
|
V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
