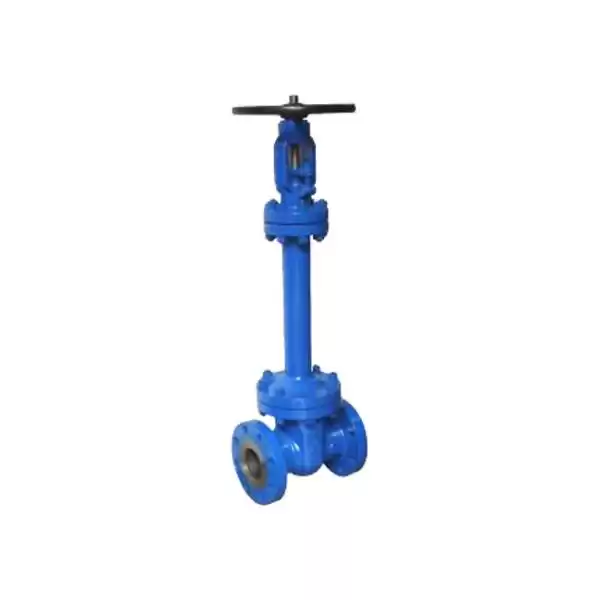

Bellow Gate Valve 4Inch 300LB WCB

API600 Bellow Extended Gate Valve

4Inch,300LB,WCB,SS316+STL,Handwheel

Manufacture STAVAL Factory Offers

Key Specification

Type	Bellow Gate Valve
Size	4Inch
Pressure	150LB
Construction	Bellow Seal, Extended Stem, Bolt Bonnet, Full Bore
Connection	RF End
Body/Bonnet Material	A216 WCB
Wedge Material	A351 CF3
Bellow Material	A182 F316
Stem Material	A182 F316
Seat Material	A351 CF3+STL
Bolt/Nut	B7/2H
Design Standard	API600
Face to Face Dimension	ASME B16.10
End Connection	ASMEB 16.5
Inspection & Test Std.	API598
Temperature Range	-29℃~+425℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
