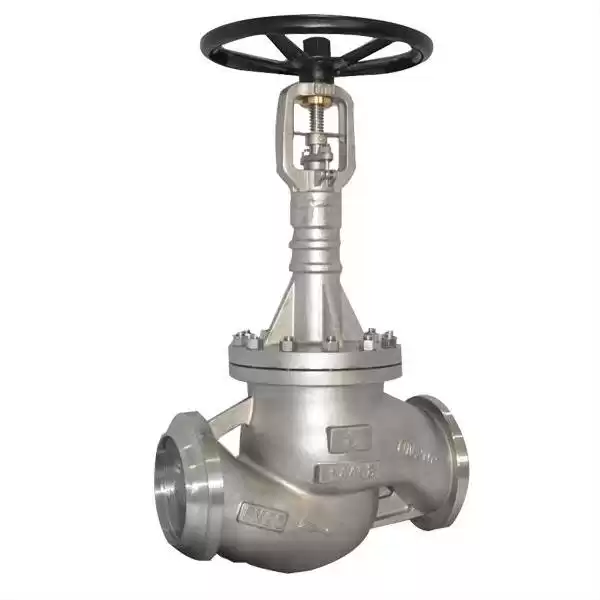

Bellow Globe Valve DN200 PN25 1.4408

EN13709 Rising Stem Bellow Seal Globe Valve

DN200,PN25, 1.4408,1.4408+STL, Handwheel

Manufacture STAVAL Factory Offers.


  • End ConnectionBW, Flange
  • BoreFull Bore, Reduce Bore
  • ConstructionRising Stem, Bolt / Weld Bonnet, Bellow Seal
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
  • Working Temp.-196°C to +600°C

Key Specification

Type

Bellow Globe Valve

Size

DN200

Pressure

PN25

Construction

OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Bellow Seal

Connection

BW End

Body/Bonnet Material

1.4408

Disc Material

1.4408+STL

 Bellow Material                                                         A182 F316

Stem Material

A182 F316

Seat Material

STL

Bolt/Nut

B8M/8M

Design Standard

EN13709

Face to Face Dimension

EN558-1

End Connection

ASMEB 16.5

Inspection & Test Std.

API598

Temperature Range

-60℃~+300

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
