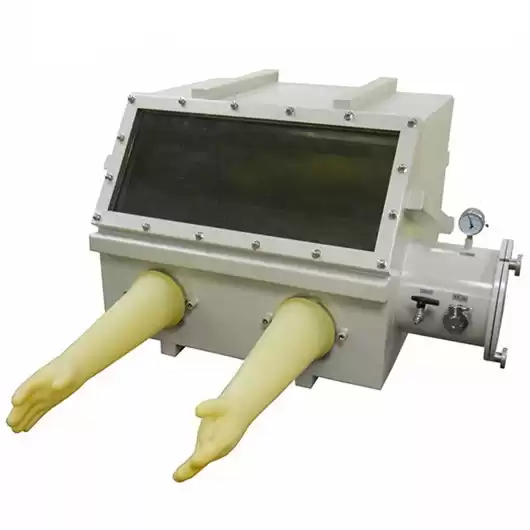

Benchtop Lab Stainless Steel Vacuum Glovebox
DESCRIPTION:
1.The whole box is made of stainless steel, which is reinforced and sprayed plastic on surface so that Benchtop Glove Box is anti-corrosion and easy to clean.
2.The inside of lab glove box can be seen clearly from the tempered glass visual window.
3.Installed electric bulb and socket can heat partially.
4. Thick latex gloves for operation have characteristics of sealing, reliable and durable.
5. The sealing device is designed new, reliable, and easy to start.
6. Water faucets are installed both inside and outside, which is easy for the gas or water to get in.
7. Two doors in transition cabinet solves the problem of pumping vacuum repeatedly for main box.
|
Parameters of Stainless Steel Vacuum Glove Box
|
|
No.
|
Model No.
|
Outline Dimension
(mm)
|
Box Size
(mm)
|
Transition Cabinet
(mm)
|
Glove Port
(mm)
|
Vacuum Degree
|
|
1
|
GBV-1
|
1030*570*530
|
600*500*500
|
Ф200*280
|
Ф145
|
0-0.1Mpa
Keep vacuum for
more than 12 hours
|
|
2
|
GBV-2
|
1295*715*675
|
800*650*650
|
Ф273*350
|
Ф145
|
|
3
|
GBV-3
|
1755*776*1010
|
1200*700*950
|
Ф350*400
|
Ф196
|
SPECIFICATIONS:
|

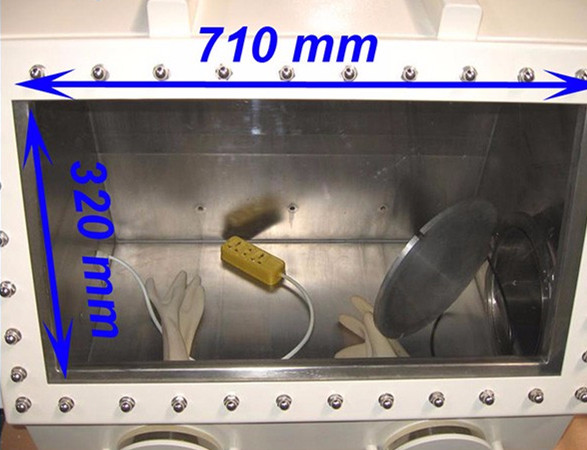

Glove Box Chamber
|
1 Case Material: Made of 11 gauge (5mm thickness) 304 stainless steel sheet with sport frame and plastic painting, which provide heavy duty structure for vacuum

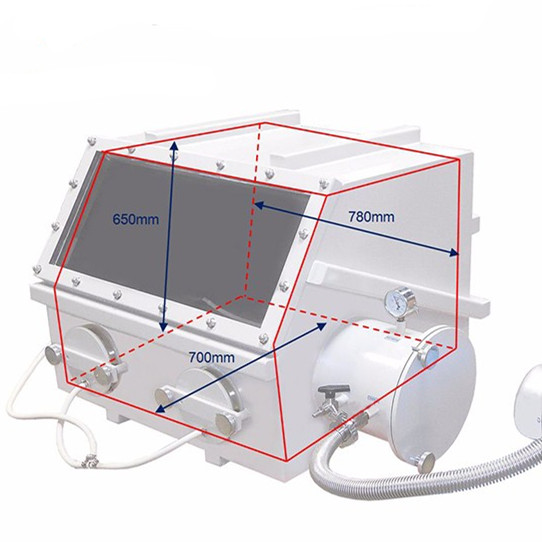

2 Dimensions: 800mm(L) x 650mm(W) x 650mm(H)
3 Max. Positive Pressure: 810 Torr (1.1 atm)
4 Note: Gloves cannot work if pressure is higher than 810 Torr
5 Max. Vacuum Level: 0.5 Torr
6 Note: Stainless Steel case may deform at higher vacuum level
|
|

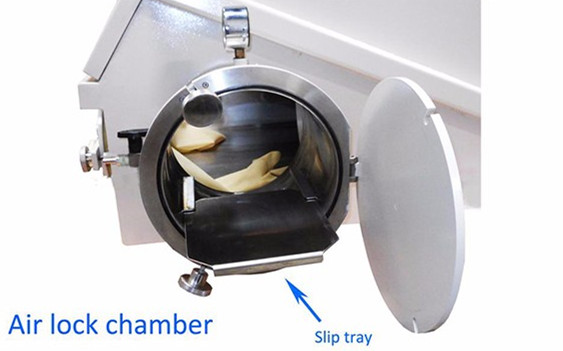

Air-lock Chamber
|
Dimensions: 273mm(ID) x 350mm(L)
Max. Vacuum Level: 0.05 Torr
|
|
Vacuum gauge and valves
|
1 Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging
2 Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation.
|
|
Leakage Rate in Glove Box Chamber
|
< 6 Torr/hour
|
|
Gloves
|
One pair of Latex Gloves are included for immediate use
Glove hole diameter : 139mm (2 pcs)
|
|
Shipping Dimensions
|
50" x 40" x 37"
|
|
Shipping Weight
|
240 kg (520 lbs)
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
