Proximitor Sensor Input : Accepts one noncontacting 3300 XL 11 mm Proximity Probe and Extension Cable
Power : Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range
|
|
Dimensions ：
|
8.8x3.6x7.1cm
|
Weight：
|
0.2kg
|
|
Output resistance：
|
48 Ω
|
Humidity：
|
85%, noncondensing
|
|
Storage Temperature ：
|
-40°C to +105°C
|
Operating Temperature：
|
0°C to +40°C
|
|

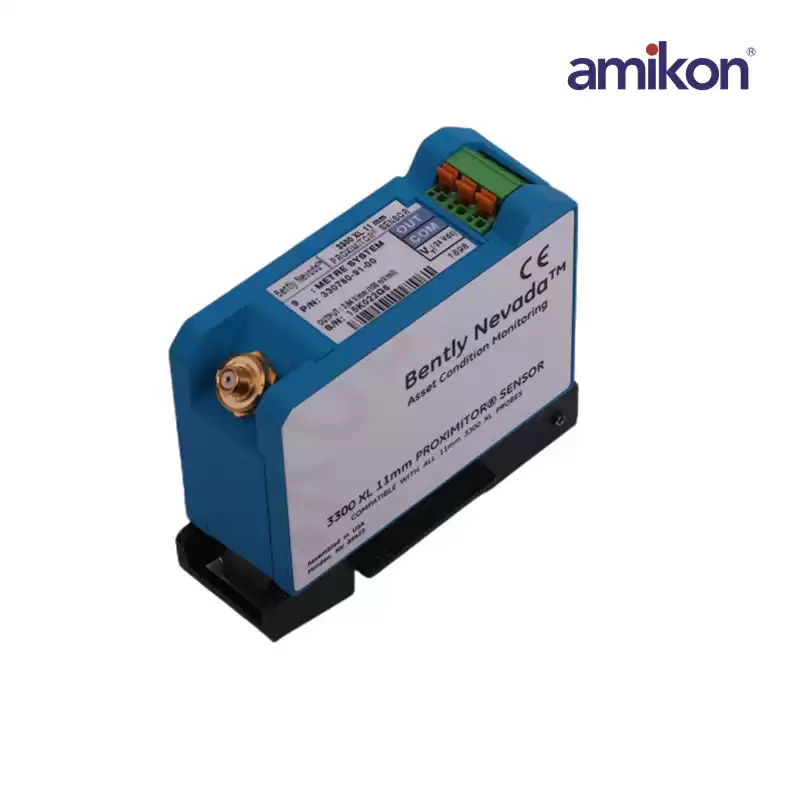

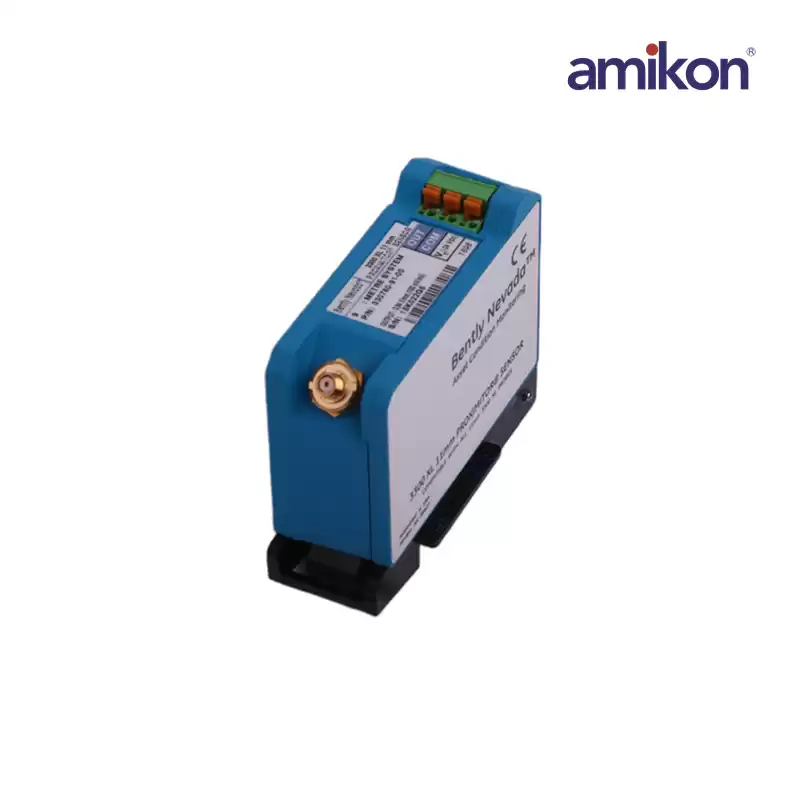

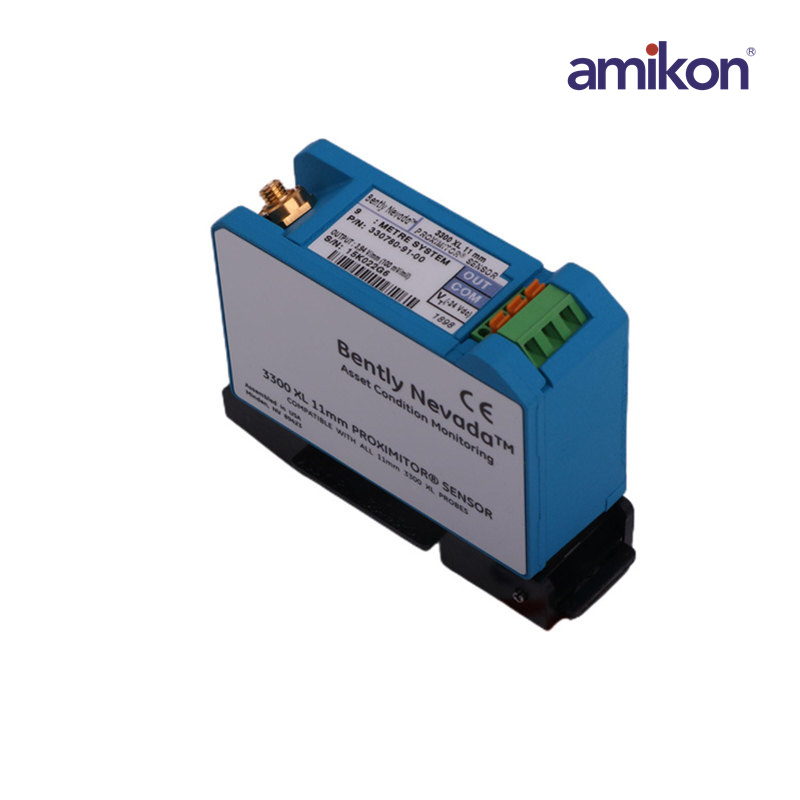

The 330780-91-00 is 3300 XL 11 mm Proximitor Sensor.The 3300 XL 11 mm Proximity Transducer System consists of:l 3300 XL 11 mm probel 3300 XL 11 mm extension cablel 3300 XL 11 mm Proximitor Sensor1The 3300 XL 11 mm Proximity Transducer System has a 3.94V/mm (100 mV/mil) output for non-contacting vibration anddisplacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have alonger linear range compared to our standard 3300 XL 8 mmTransducer System.
|
