Manufacturer：
|
Bently Nevada
|
Product Package：
|
Original Package
|
|
Part Number：
|
3500/46-01-00
|
Shipping Term：
|
TNT DHL FEDEX EMS UPS
|
|
Product Description：
|
Hydro Monitor
|
LocalBus Power：
|
10 kΩ -3.5 MΩ（50 kΩ）
|
|
Product Series：
|
3500 System
|
Ambient Temperature：
|
-20˚C to +65˚C (-4˚F to +149˚F)
|
|
Features

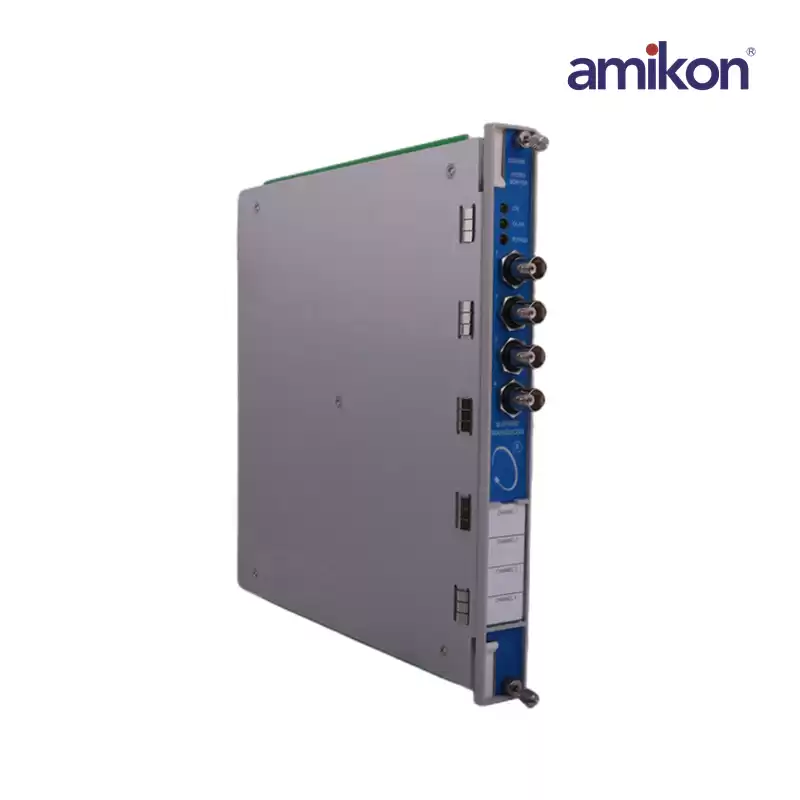

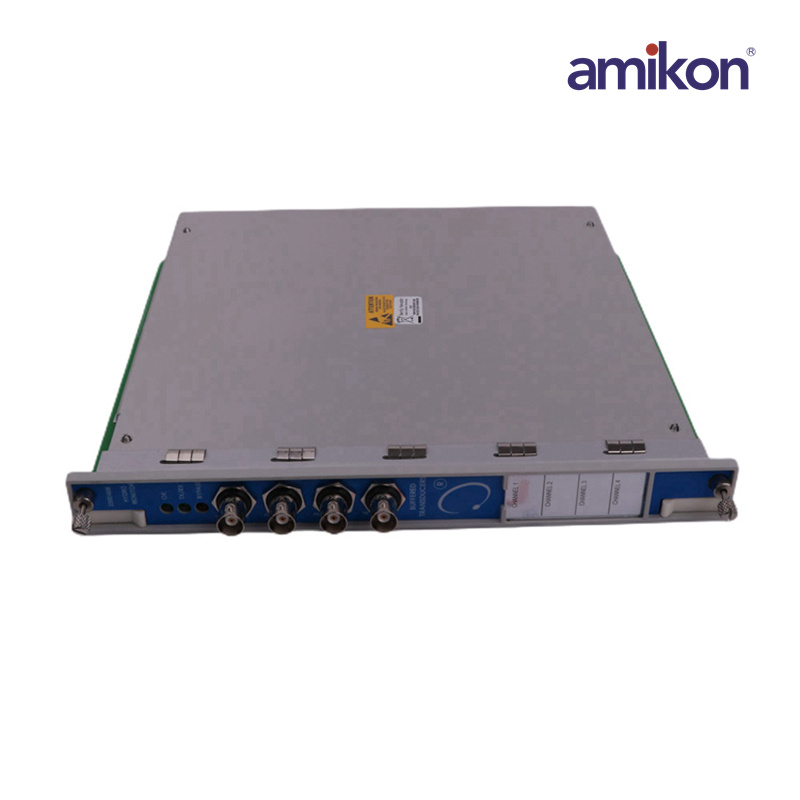

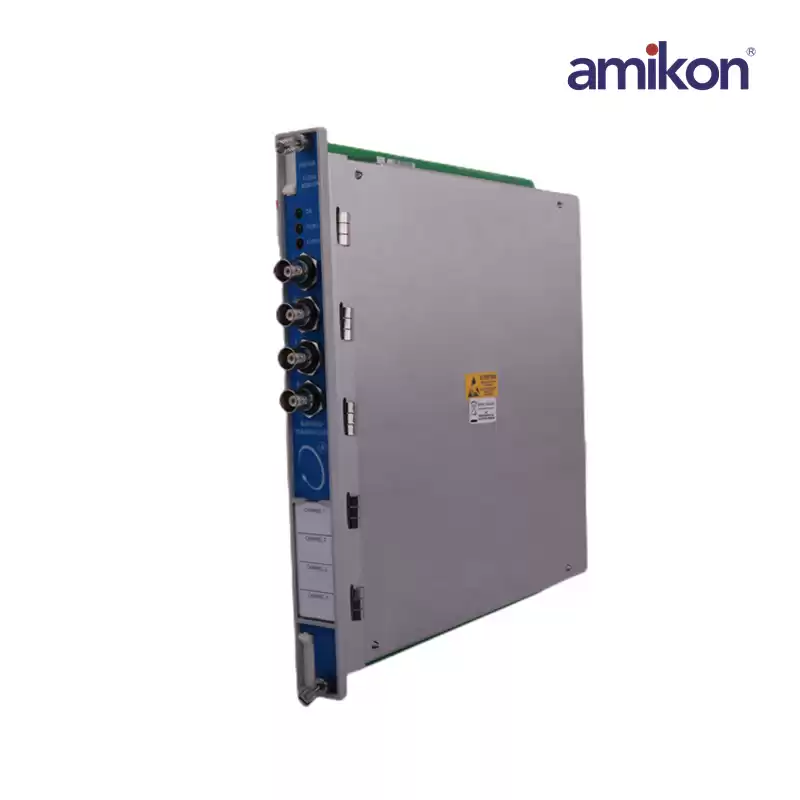

The Bently Nevada 3500/46M Hydro Monitor is a four-channel instrument that accepts input from proximity, seismic and air gap sensors. The monitor conditions the signal to provide vibration as well as position measurements and compares the conditioned signals with user-programmable alarms. Hydro Radial Vibration channels combine the shaft gap movement with the NX amplitude to provide a measurement to alarm on shear-pin failure.
Accepts 1 to 4 signals
Front panel LEDs: OK, TX/RX, Bypass
Power consumption: 7.7 watts, typical
Multimode positive input I/O 50 kΩ
Approvals available:CSA / NRTL / C (Class 1, Division 2)
ATEX / IECEx / CSA (Class 1, Zone 2
|
|
|
|
|
|
|
|
|
|
|
|
