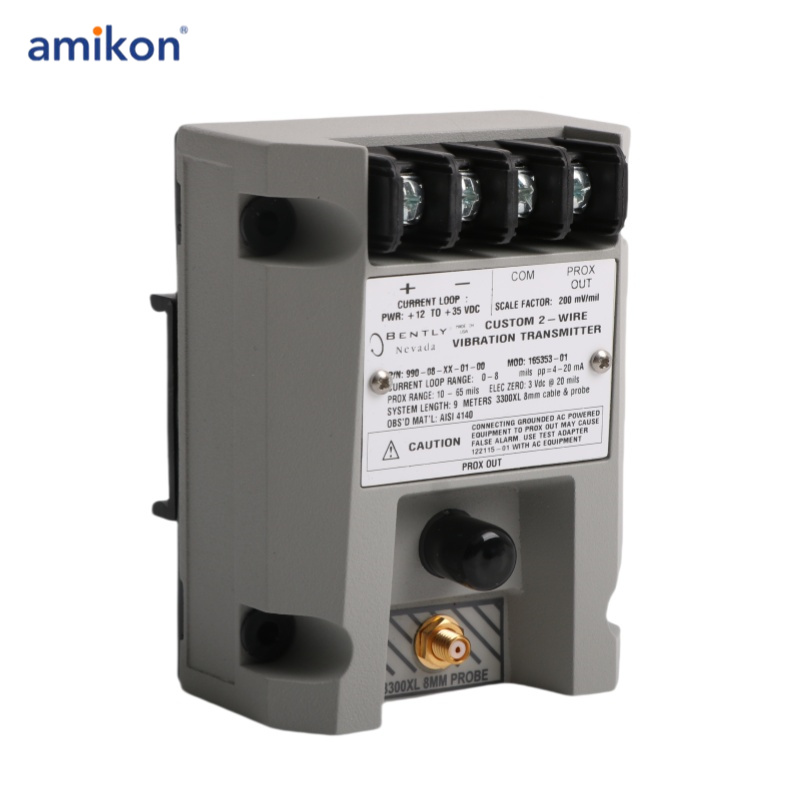

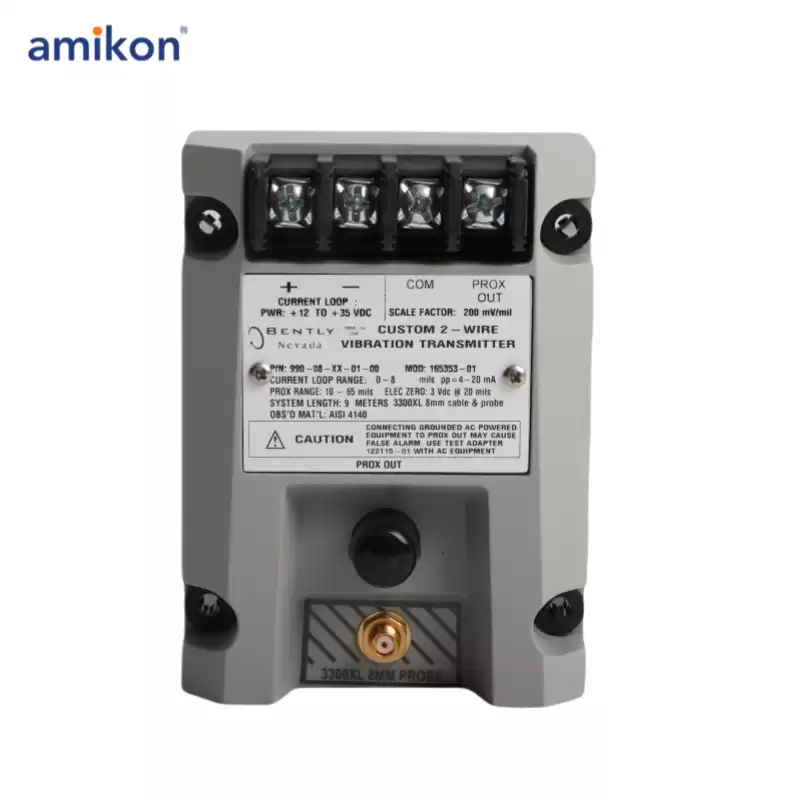

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.
The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs
The 990 transmitter provides the following notable features:
-Integrated Proximitor Sensor requires no external unit
-Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.
-Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
-Test Input pin for quick verification of loop signal output, using a function generator as the input.
-A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.

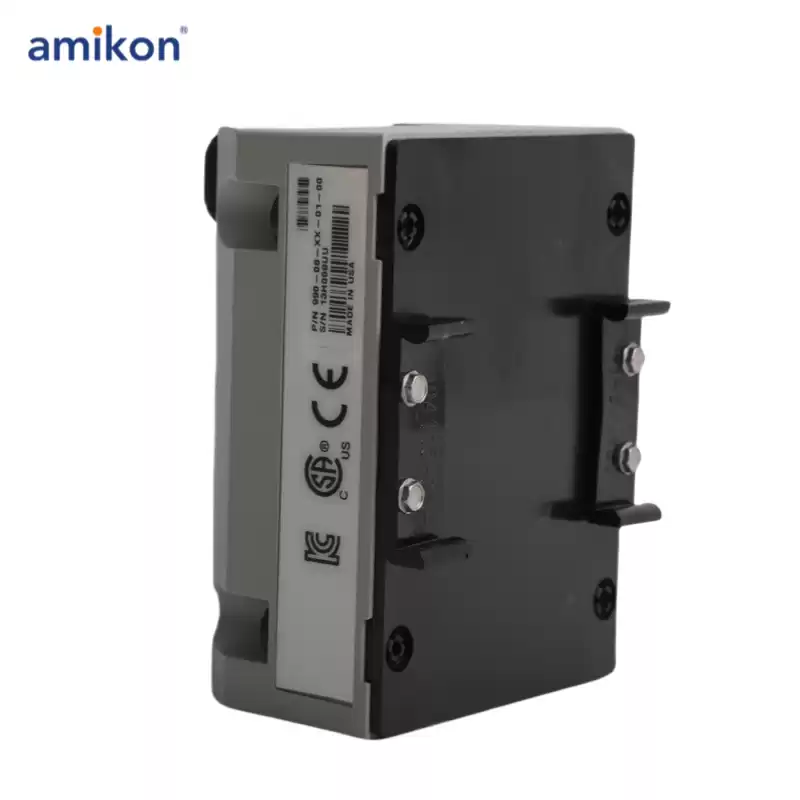

-Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting
Environmental Limits ：
|
Attribute
|
Details
|
|
Transmitter Operating Temperature
|
-35°C to +85°C (-31°F to +185°F)
|
|
Transmitter Storage Temperature
|
-52°C to +100°C (-62°F to +212°F)
|
|
Probe Operating Temperature
|
-52°C to +177°C (-62°F to +351°F)
|
|
Probe Storage Temperature
|
-52°C to +177°C (-62°F to +351°F)
|
|
Relative Humidity
|
100% condensing, non-submerged, with protection of coaxial connectors
|
Mechanical：
|
Attribute
|
Details
|
|
Transducer Tip Material
|
Polyphenylene Sulfide (PPS)
|
|
Transducer Case Material
|
AISI 303 or 304 Stainless Steel (SST)
|
|
Probe Cable
|
75Ω coaxial, fluoroethylene propylene (FEP) insulated
|
|
Cable Armor (Optional)
|
Flexible AISI 302 SST with optional FEP outer jacket
|
|
Tensile Strength
|
222 N (50 lbf) probe case to probe lead, maximum
|
|
Transmitter Weight
|
0.43 kg (0.9 lbm)
|
|
Total System Weight
|
0.82 kg (1.8 lbm) typical
|
