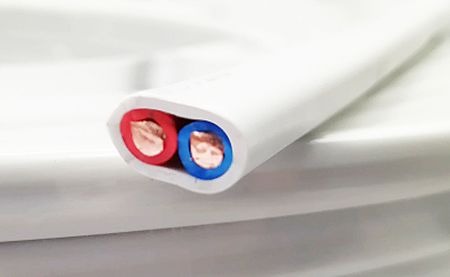

Best Price BVVB 2x1.0 mm2 Flat Twin Electric Cables Meet to IEC 60227

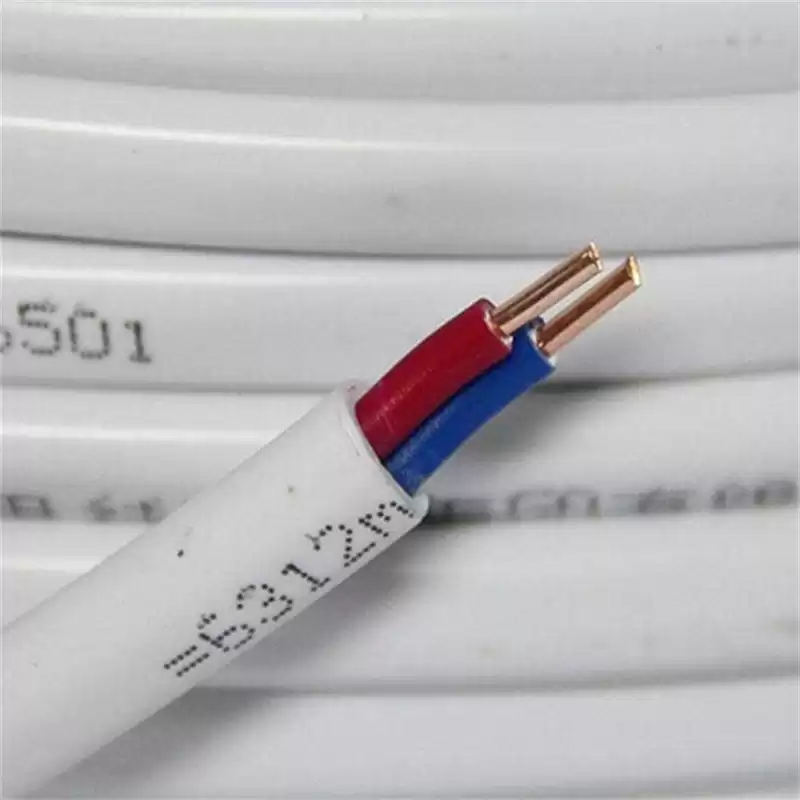

Best Price BVVB 2x1.0 mm2 Flat Twin Electric Cables Meet to IEC 60227. BVVB Cable is structured with copper core PVC insulation jointed flexible wires. the first B means general wiring, double V means PVC insulation and sheath, the second B means flat surface. BVVB Cable commonly consists of two flexible copper cores and PVC insulation as sheathing.



Best Price BVVB 2x1.0 mm2 Flat Twin Electric Cables Meet to IEC 60227



PRODUCTS NAME

Best Price BVVB 2x1.0 mm2 Flat Twin Electric Cables Meet to IEC 60227.

PRODUCTS KEYWORDS

BVVB, 2x1.0mm2, VAF, VAF-G, flat twin cable, flat twin and earth cable, best price, pvc insulated cable, electrical wire, electric cable, wire and cables.

PRODUCTS APPLICATION

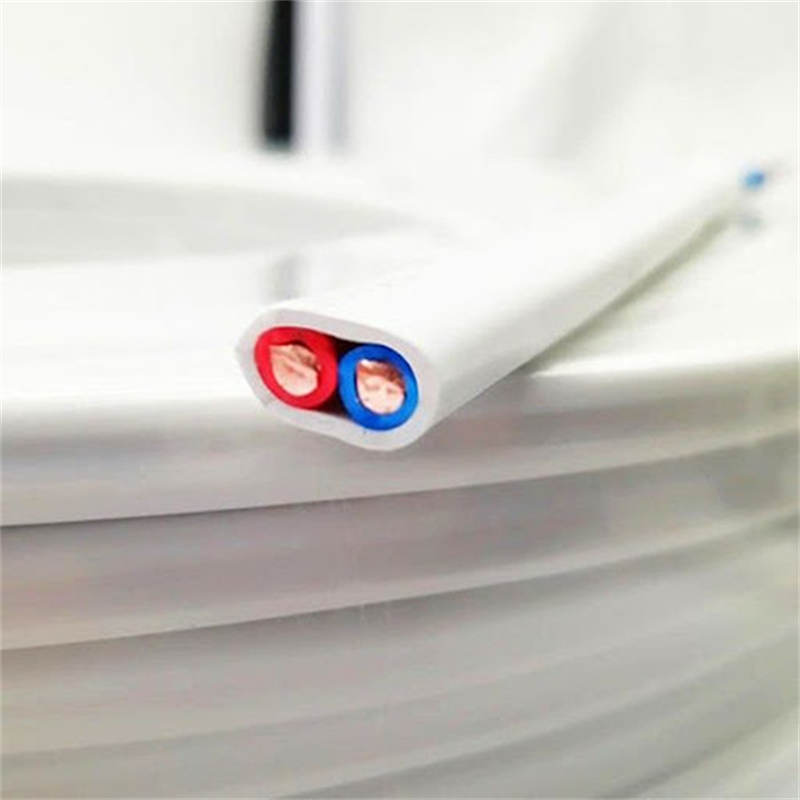

Best Price BVVB 2x1.0 mm2 Flat Twin Electric Cables Meet to IEC 60227, meet to IEC 60227 and JB/T 8734-2016, 300/500V. BVVB flat twin cable, maybe its earth wire is optional. The BVVB flat twin cable is used in building wiring, installation on insulator or cable conduit, and widely used in household appliances. But cables cannot be installed in conduit or buried underground. BVVB flat twin cable, it is simply understood that 2 or 3 pieces BV cables are placed in parallel, and a layer of sheath material is added outside, the cable’s surface and appearance is flat, is not round/circular.

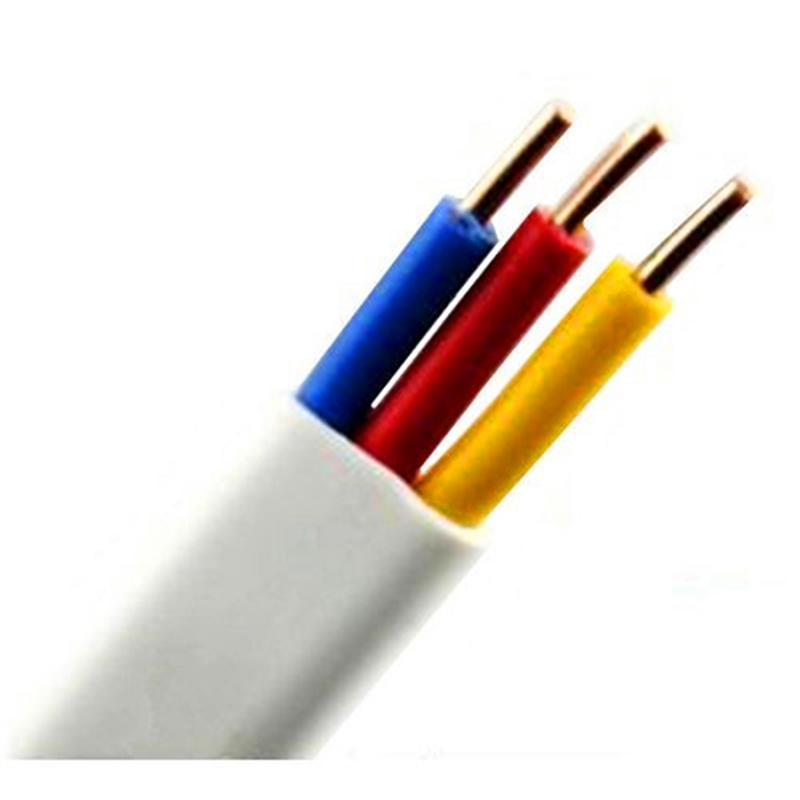

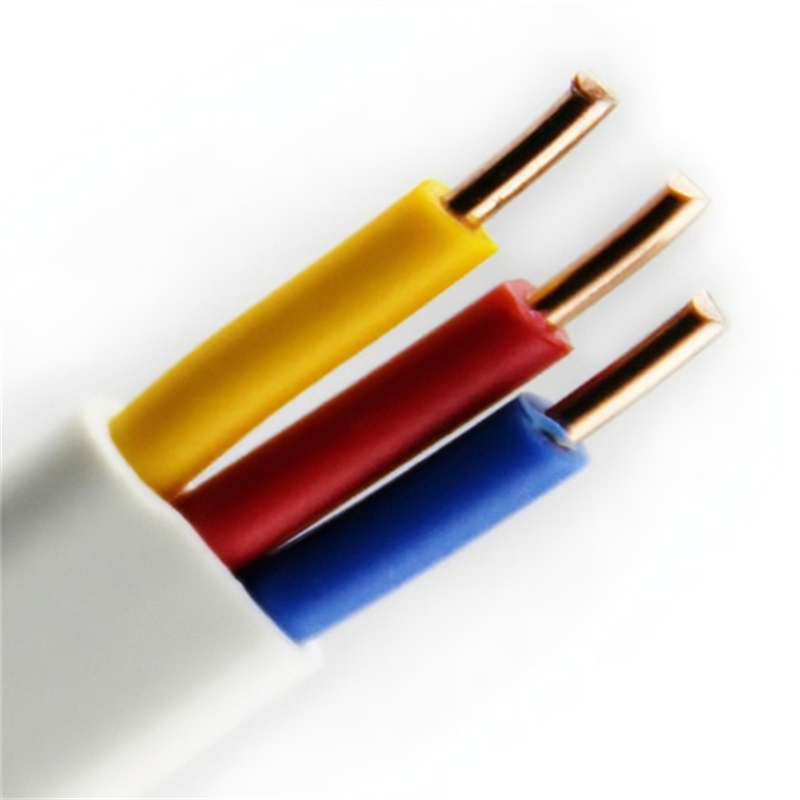

IEC 60227 BVVB electric cable

PRODUCTS STRUCTURE

Best Price BVVB 2x1.0 mm2 Flat Twin Electric Cables Meet to IEC 60227, the structure as below:

---Conductor Material

    Plain annealed copper wire, solid Class 1, or stranded Class 2.

---Insulation Material

    PVC (polyvinyl chloride).

---Sheath Material

   PVC (polyvinyl chloride).

---Core Number

   2 Cores, 3 Cores; 2C, 3C.

---Products Surface

   Flat, it is not groud and circular.

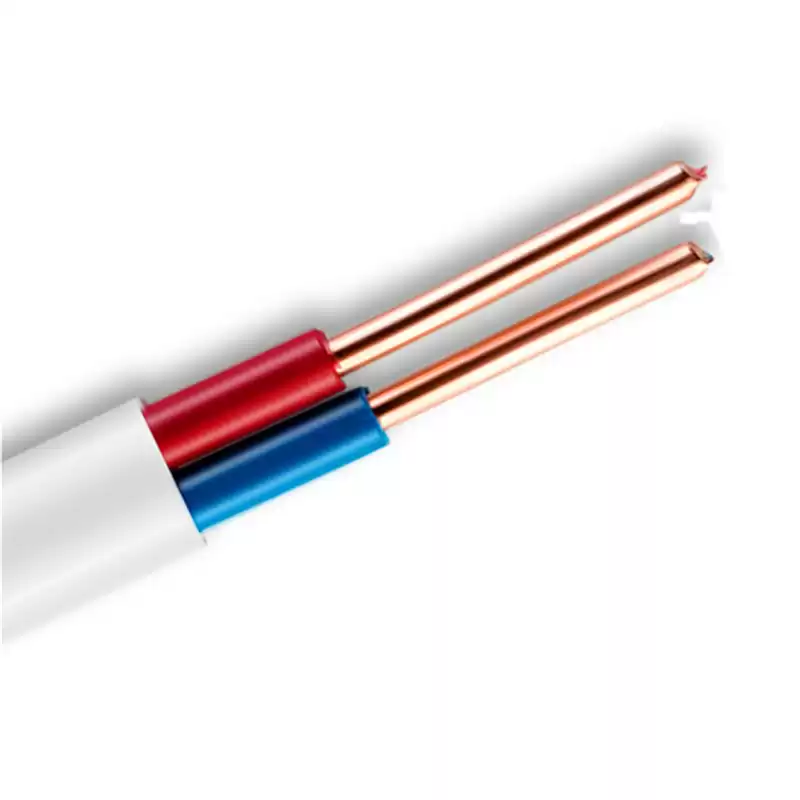

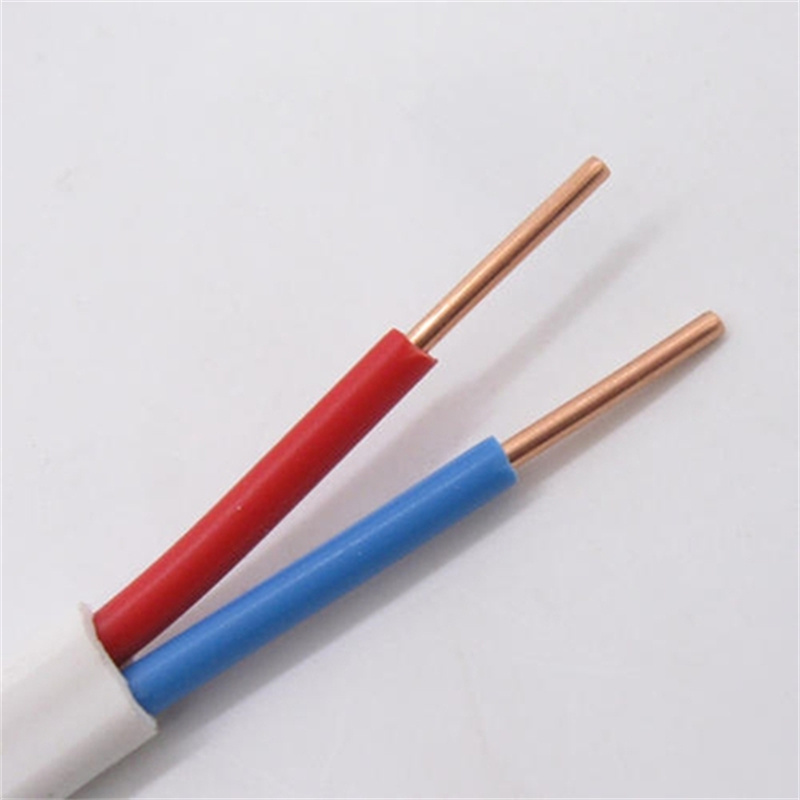

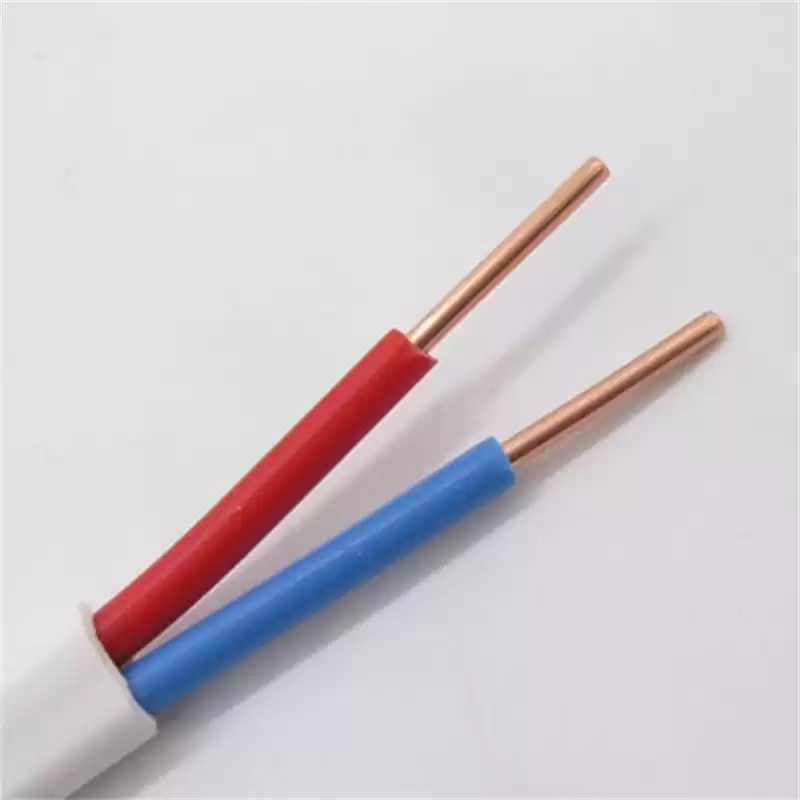

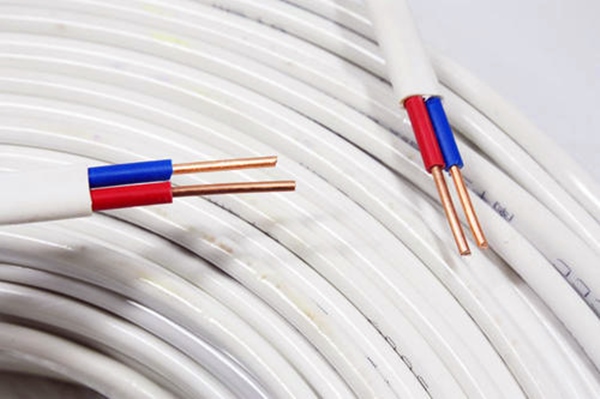

IEC 60227 flat twin cable



aPRODUCTS DIMENTIONS

 Description of Cable   Products Main Technical Sheet
 Products Name

 Best Price BVVB 2x1.0 mm2 Flat Twin Electric Cables

 Meet to IEC 60227.

 Conductor Material  Plain annealed copper wires, solid Class 1.
 Conductor Structure  2C x 1/1.14 mm.
 Insulation Material  PVC (Polyvinyl Chloride).
 Insulation Thickness  0.6 mm.
 Insulation Colour  Brown, blue; red, blue; or others.
 Sheath Material  PVC (Polyvinyl Chloride).
 Sheath Thickness   0.9 mm.
 Sheath Colour  White.
 Conductor Cross-section  2 x 1.0 mm2.
 Core Number  2 cores, 2C.
 Out Diameter  Max. 4.8 x 7.4 mm.
 Voltage Rate  300/500V (U0/U).
 About Net Weight  45 kg/km.
 Production Standard  JB/T 8734-2016, GB/T 5023-2008, IEC 60227.
 Packing Type

 100m/roll; 100 meters per plastic reel, or according to

  the customers requirements.

 Max. Conductor DC

 Resistance at

 20℃ in Air

 18.1 Ω/km.

 Min. Insulated

 Resistance at 70

 0.011 MΩ.km.

 Max. Ampacity

 at 40 ℃ in air

 16A.

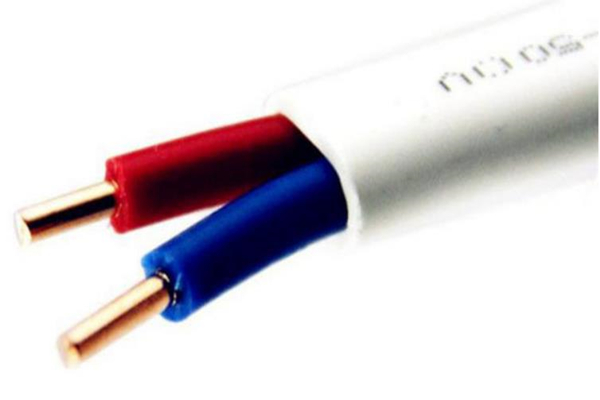

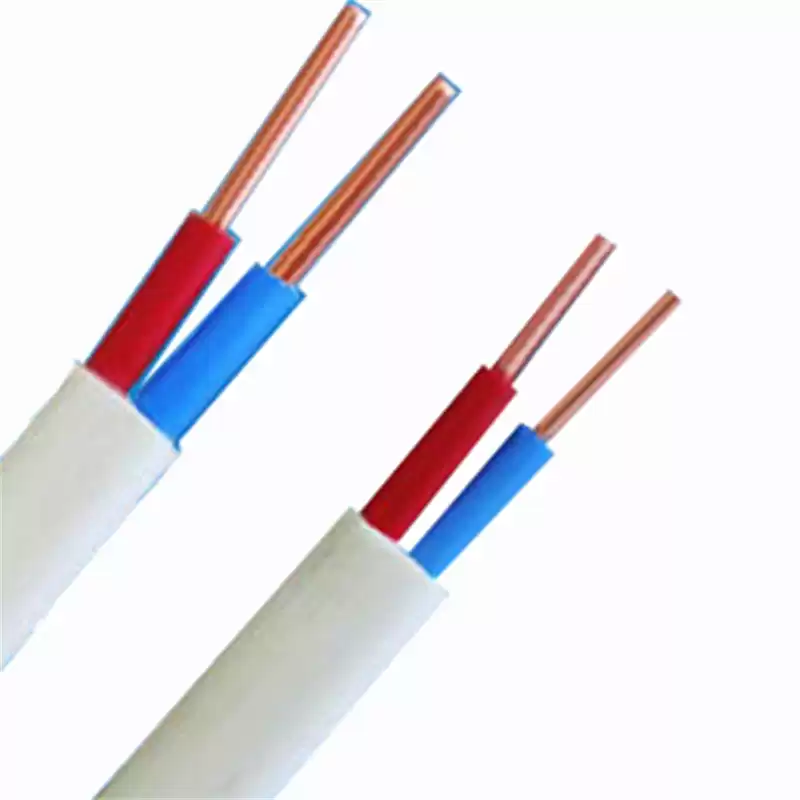

2x1.5mm2, flat twin cables
