Best Price For North Benz/ Beiben Tractors 6x4 NG80 Trailer Truck

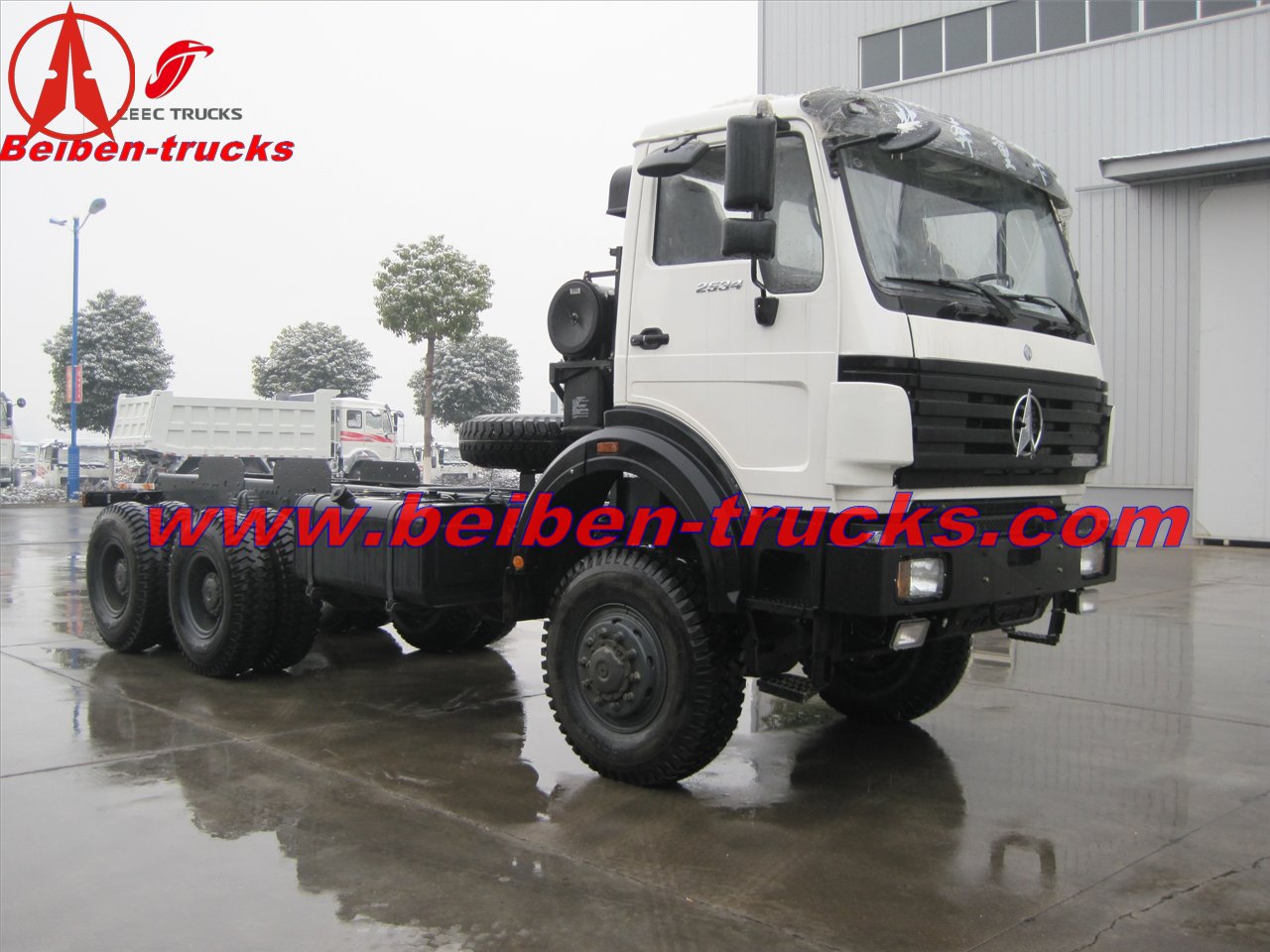

Mercedes Benz/ Beiben 6X4 V3 Tractor Truck/ Prime Mover
Tractor Trucks on Hot Sale –NORTH BENZ, SINOTRUK, SHACMAN, IVECO, FAW … …
Trucks on Hot Sale– Dump truck, tractor truck, concrete mixing truck, etc.
Advantages:
1. We own trucks with Euro 2/ Euro 3/Euro 4 emission standard, major in tractor truck, dump truck, oil tank, concrete mixer truck, special truck etc.
2. Engine Model: WEICHAI, CUMMINS; Power scope: 270HP-480HP; Drive model: 4x2, 6x2, 6x4, 8x4, etc.
3. According to different area and road situation, we will recommend the suitable product for you.
Engine:
Engine
|
Brand
|
WEICHAI
|
Model
|
WD10.375
|
Power (kw/HP)
|
275/ 375
|
Max. torque (N.m)/rpm
|
1460/1200-1600
|
Displacement (L)
|
9.726
|
Emission standard
|
Euro III
|
Axle:
Axles
|
Brand
|
NORTH BENZ
|
Front axle
|
7500kg
|
Rear axle
|
BENZ strengthened axle, (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)
|
Ratio
|
5.263
|
Specifications and main performance:
Model
|
North Benz Tractor Truck
ND4251B34J7-2538SZ
|
Driving type
|
6x4
|
Weight
|
Complete kerb mass (kg)
|
9700
|
Total mass (kg)
|
25000
|
Dimensions
|
LxWxH (mm)
|
7240x2500x3600
|
Front/rear overhang(chassis)
|
1410/825
|
Wheel base (mm)
|
3450+1450
|
Track width (mm)
|
1995/1800/1800
|
Performance
|
Max. speed ( km/h)
|
100
|
Max. Grad ability (%)
|
33
|
Approach/Departure angle(°)
|
26/ 60
|
Transmission
|
Brand
|
FULLER
|
Model
|
12JS200TA
|
Control type
|
Manual
|
Gear shift
|
12-forward and 2-reverse speeds
|
Optional
|
----
|
Clutch
|
Type
|
Spring plate, diaphragm spring
|
Diameter (mm)
|
D-430
|
Brakes
|
Type
|
Drum
|
Service brake
|
With dual-circuit compressed air brake
|
Park brake
|
Power spring brake acting on rear wheel
|
Auxiliary brake
|
WEVB
|
Optional
|
ABS
|
Steering
|
Type
|
TAS85,D50
|
Chassis
|
Type
|
Ladder structure with parallel straight
300x800x(8+7)
|
Suspension
|
Front suspension
|
Longitudinal leaf spring
|
Rear suspension
|
Inverted leaf spring stabilizator suspension
|
Tyres
|
Type(standard)
|
315/80R22.5
|
Optional
|
12.00R20/11.00R20/11.00-20/12R22.5
|
Fuel tank
|
Tank capacity (L)
|
400
|
Material
|
Metal/ Aluminum
|
Electrics
|
Type
|
24V
|
Starter
|
5.58kw (24V)
|
Generator
|
1.54kw (28V55A)
|
Battery
|
2x135Ah
|
Cab
|
Type
|
Mercedes Benz, two sleeper, long cabin, latest design, high roof
|
Equipments
|
hydraulic suspension, hydraulic seats cab, 2 sleeper bed, A/C
|
Optional
|
Electric windows, electricity heated, GPS/ CD,
|
Other
|
The fifth wheel
|
2 inch/ 3.5 inch
|
Why choosing us:
Price
|
Competitive price (we have established a good relationship with the domestic manufacturers such as Shacman/ SINOTRUK/ North Benz/ Iveco Genlyon etc.)
|
Quality
|
Quality insurance( Assembly line production, international standard and strict quality control system)
|
Delivery time
|
Short delivery time (we have 4 warehouses of more than 1000 square meters)
|
Customer Service
|
Always at your service whenever you need( Trade Manager/ mobile phone 24 hours on)
|
