constant current triac dimmable led driver dc12v

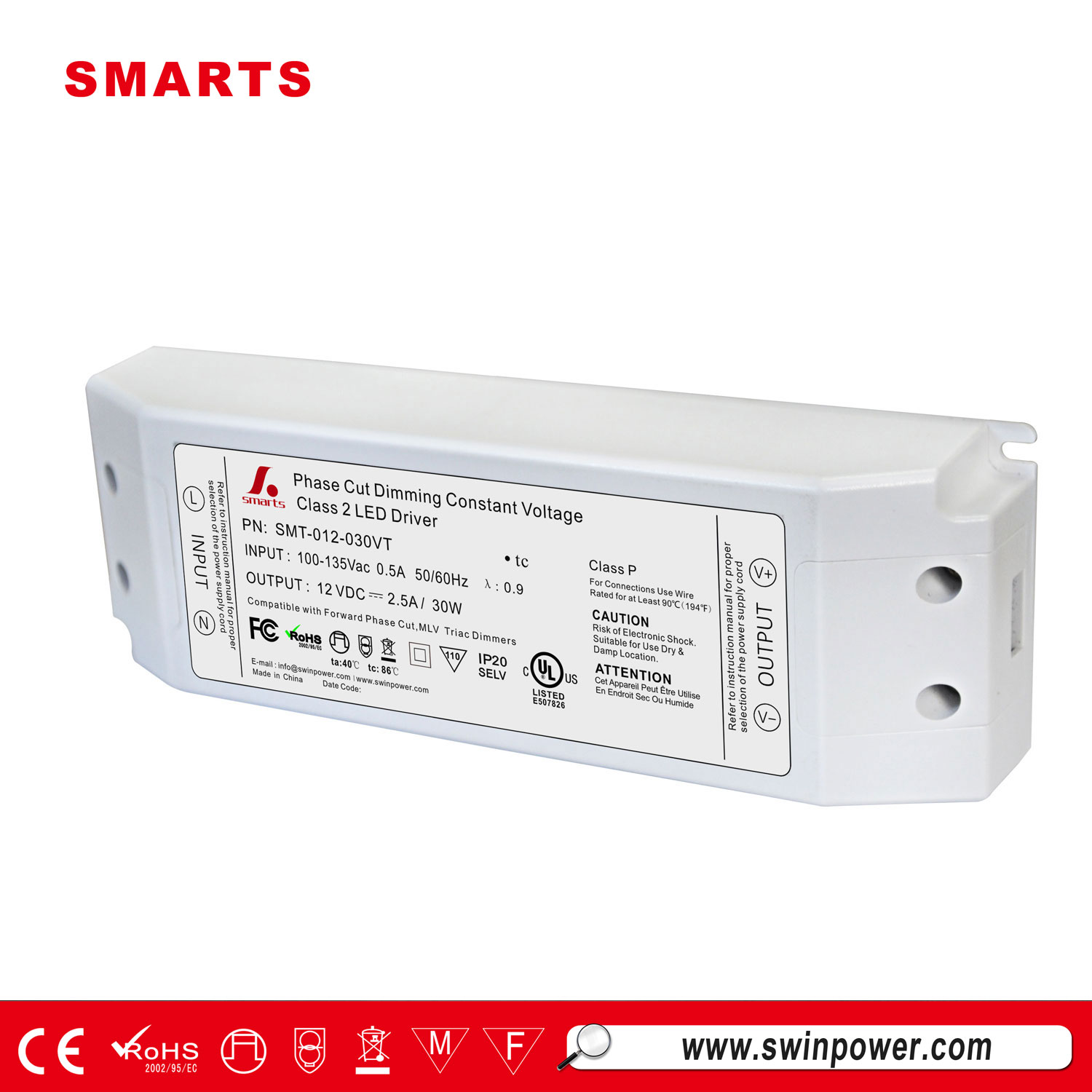

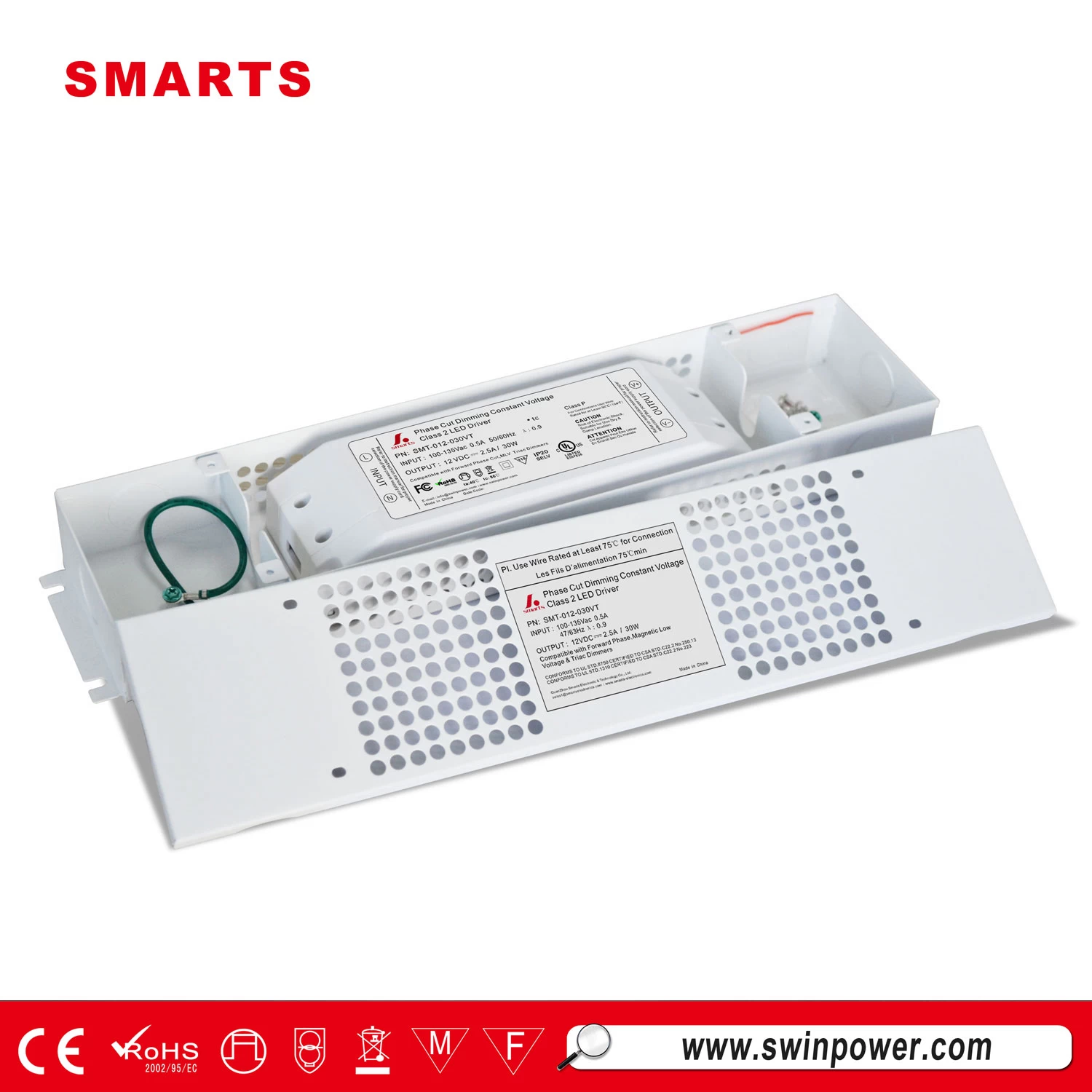

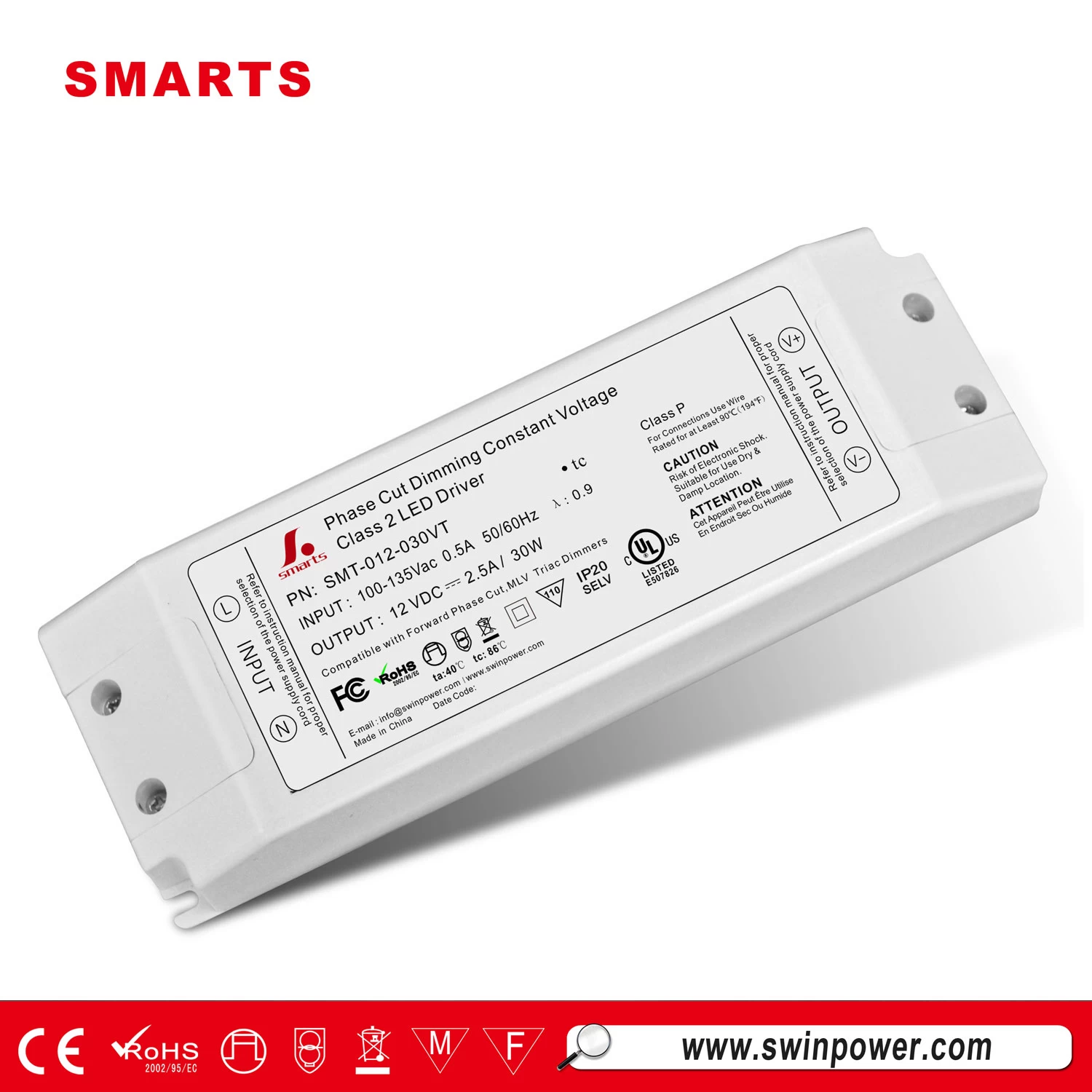

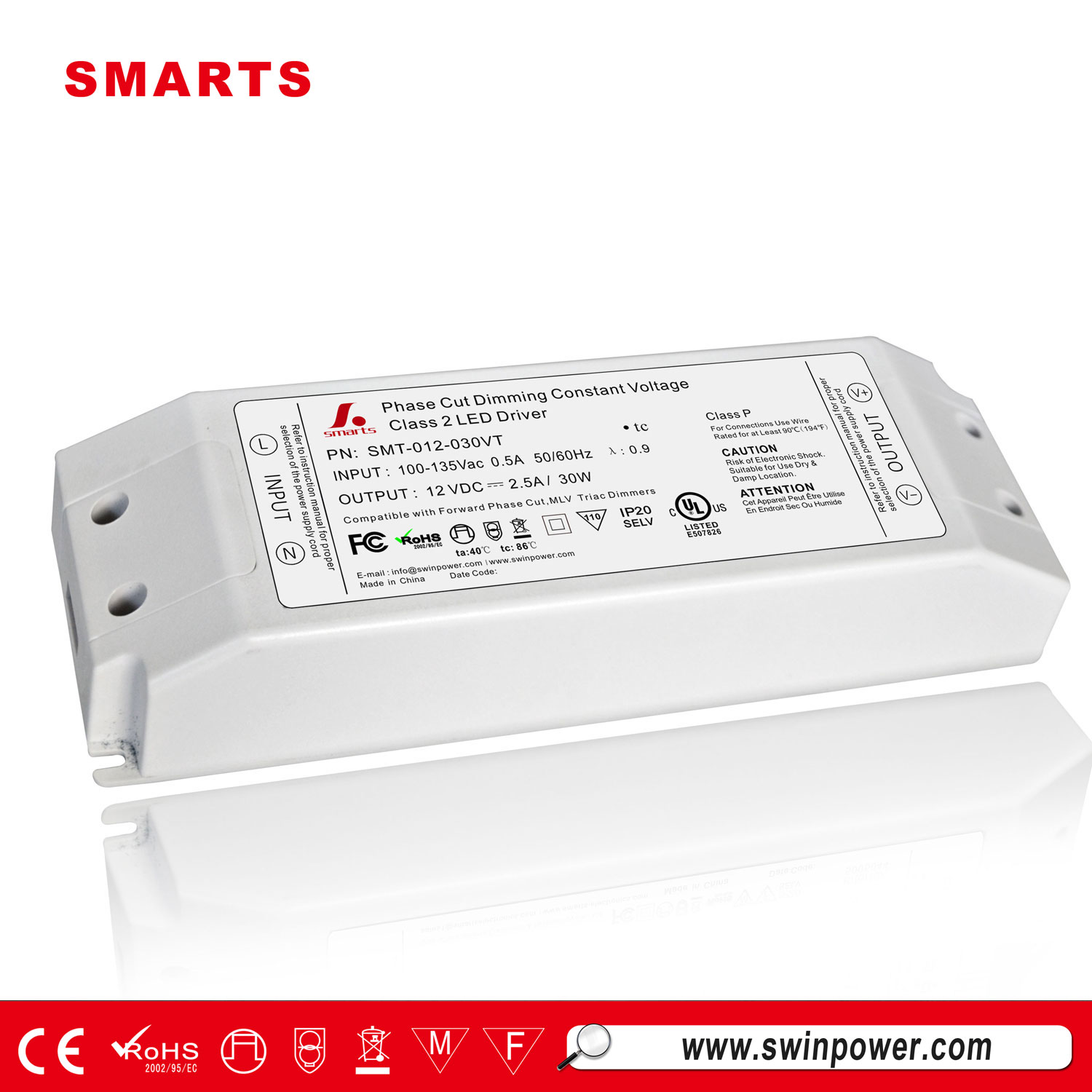

The SMT-012-030VT is 12vdc 2.5amp 30w triac dimmable constant voltage led driver with UL ,Class 2 listed .it's use for indoor with plastic case.Suitable for LED lighting and moving sign applications.Compliance to worldwide safety regulations for lighting.
Product Description
|
input Channel
|
leading edage and tailing eadge dimmers
|
|
|
SMT-012-030VT
|
SMT-024-030VT
|
|
Single Output features
|
Constantvoltage
|
12vDC
|
24vDC
|
|
output current
|
2.50Amp
|
1.25Amp
|
|
output power
|
30watt
|
30watt
|
|
Ripple & Noise
|
250mV
|
|
Current Regulation
|
±3%
|
|
Starting time
|
1000mS/230Vac, 3000mS/110Vac
|
|
Input
|
Voltage range
|
90Vac-135Vac, 170-265Vac
|
|
Frequency range
|
47Hz-63Hz
|
|
Power factor
|
PF>0.90/220Vac,PF>0.91/110Vac
|
|
Efficiency
|
87%/110Vac , 88%/230Vac
|
|
Inrush Current
|
20A/110Vac, 40A/220Vac
|
|
Leakage Current
|
<1mA/240Vac
|
|
Protection
|
short circuit
|
|
protection
|
|
|
|
Protection mode:Single Protection,Hiccup ,recovery after the fault removed.
|
|
|
Protection mode:Limit highest voltage, recovery after the fault removed.
|
|
physical size:
|
180*60*34mm
|
|
Over temperature
|
105oC±5 oC ( Internal radiator's temperature)
|
|
What is class 2 standard?
Answer: the requirements of class 2 are :1. less than or equal to 5A 2. less than 100w. And should satisfied with these two conditions at the same time.
|
-
Input range :100-130VAC
-
Built-in PFC function
-
Efficiency > 85%
-
Protections:Short circuit/over Voltage
-
Fully isolated plastic case
-
Easy installation
-
Cooling by free air convection
-
Work with leading edge and trailing edge TRIAC dimmers
-
Strong compatibility, flicker-free dimming
-
Suitable for LED lighting and moving sign applications
-
Compliance to worldwide safety regulations for lighting
-
5 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Environment:
-
Working Temperature : -25 ~ +50°C
-
Working Humidity : 20 ~ 90% RH non-condensing
-
Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
-
TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
-
ibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
-
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
-
Withstand Voltage : I/P-O/P: 3000KVAC
-
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Aplication:
-
indoor LED illuminating lights
-
LED Neon, LED urban Decoration
-
LED Lighting Advertising,LED Display
-
Safety Protection Apparatus
-
Telecommunications, Networks
-
Vehicle Lights, Controller Panels
