1. Features:
•Most standard and popular model with capacity 2500 – 3500kgs.
•With Copping Supporting NOG & strengthening ribbing under top triangle cover.
•Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
•210 steering arc, and small turning radius.
•Fork Lowering speed is controllable, operated by hand control and foot pedal.
•Entry/exit roller, more freely travel.
•Equipped with over-load valve, with long service time.
•3 position hand control – Raise, Lower, Neutral.
•12 lubrication grease nipples on all movable parts for easy maintenance.
•Adjustable pump cap ensures a long service life.
•Ergonomic large rubber handle with three control lever.
2. Options:
•Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
•Fork length: 800mm, 900mm, 1000mm.
•Foot pedal release.
•Pump color: black painting, silver painting, silver galvanized.
3. Specification:
|
Model
|
|
BF
|
|
Capacity
|
Q(kg)
|
2500/3000
|
2500/3000
|
|
Lowered fork height
|
h13(mm)
|
85
|
75
|
|
Steeling wheel
|
mm
|
Φ200
|
Φ180
|
|
Fork wheel single
|
mm
|
Φ80×93
|
Φ74×93
|
|
Fork wheel tandem
|
mm
|
Φ80×70
|
Φ74×70
|
|
Max.lift height
|
h3(mm)
|
200
|
190
|
|
Total height
|
h14(mm)
|
1224
|
1214
|
|
Overall length
|
I1(mm)
|
1483/1533/1603
|
1483/1533/1603
|
|
Fork length
|
I(mm)
|
1100/1150/1220
|
1100/1150/1220
|
|
Width overall forks
|
b5(mm)
|
520/550/685
|
520/550/685
|
|
Ground clearance,centre of wheelbase
|
m2(mm)
|
40
|
30
|
|
Aisle width for pallets 1000*1200 crossways
|
Ast(mm)
|
1683/1733/1803
|
1683/1733/1803
|
|
Aisle width for pallets 800*1200 lengthways
|
Ast(mm)
|
1783/1783/1803
|
1783/1783/1803
|
|
Turning radius
|
Wa(mm)
|
1216/1266/1336
|
1216/1266/1336
|
|
Service weight
|
kg
|
60-75
|
60-75
|

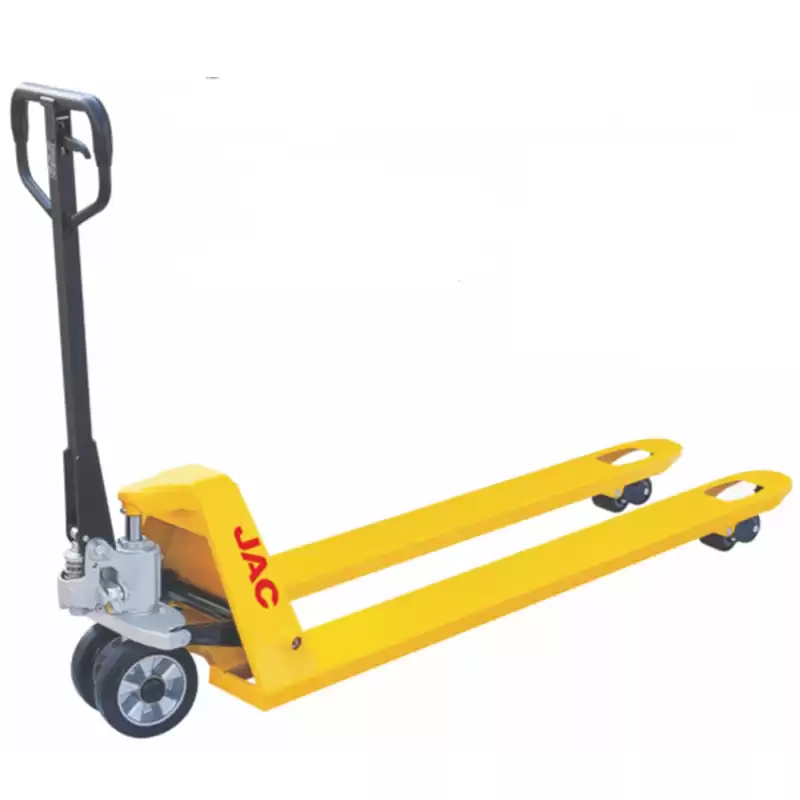

Pallet jacks consist
of wheels, forks and hydraulic jacks. When the hydraulic jack is
raised, the linkage forces the wheel down, raising the fork vertically
above the front wheel. This allows the load to be lifted off the floor
for easy movement. So pallet pump truck is also called pallet truck, jig
or pump truck.
