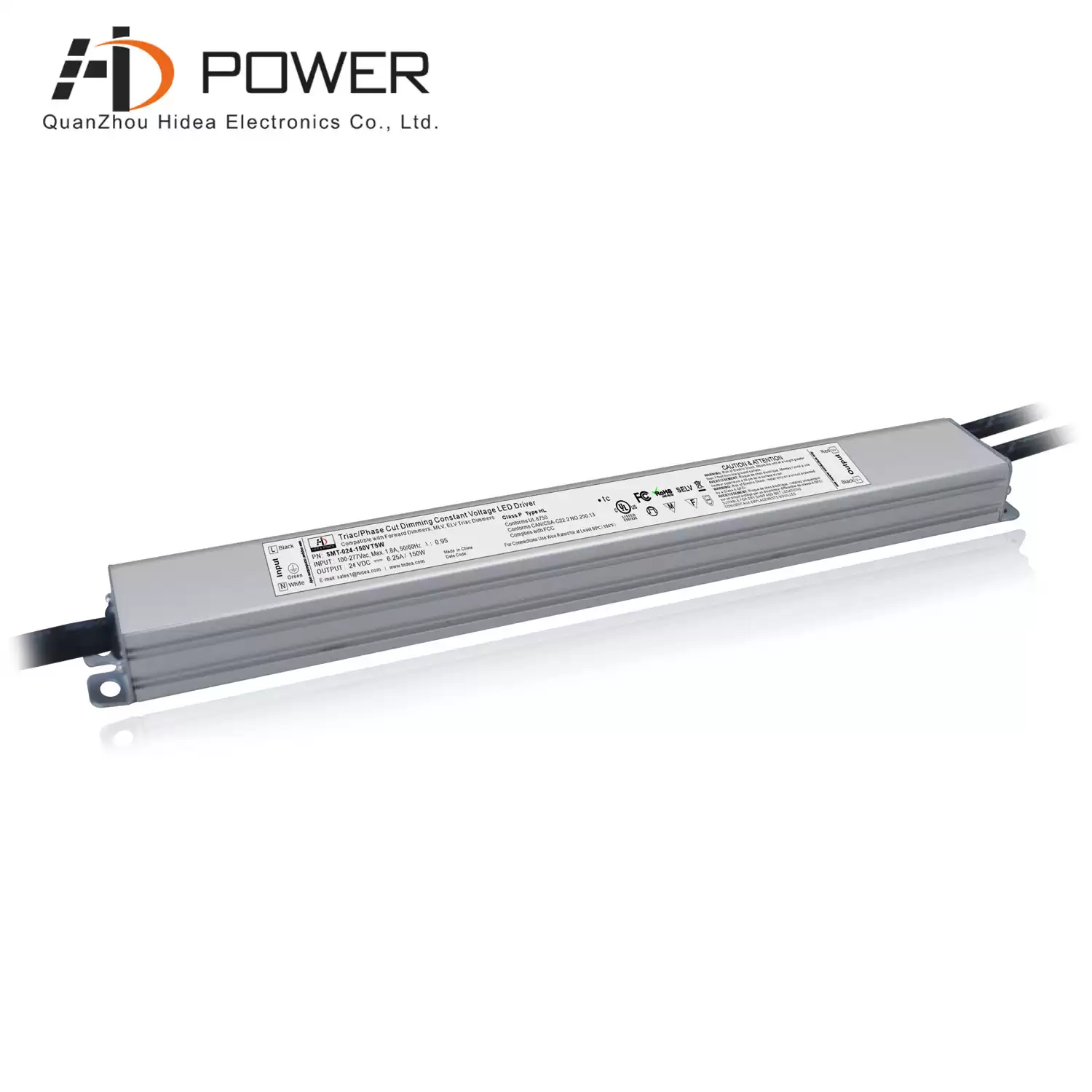

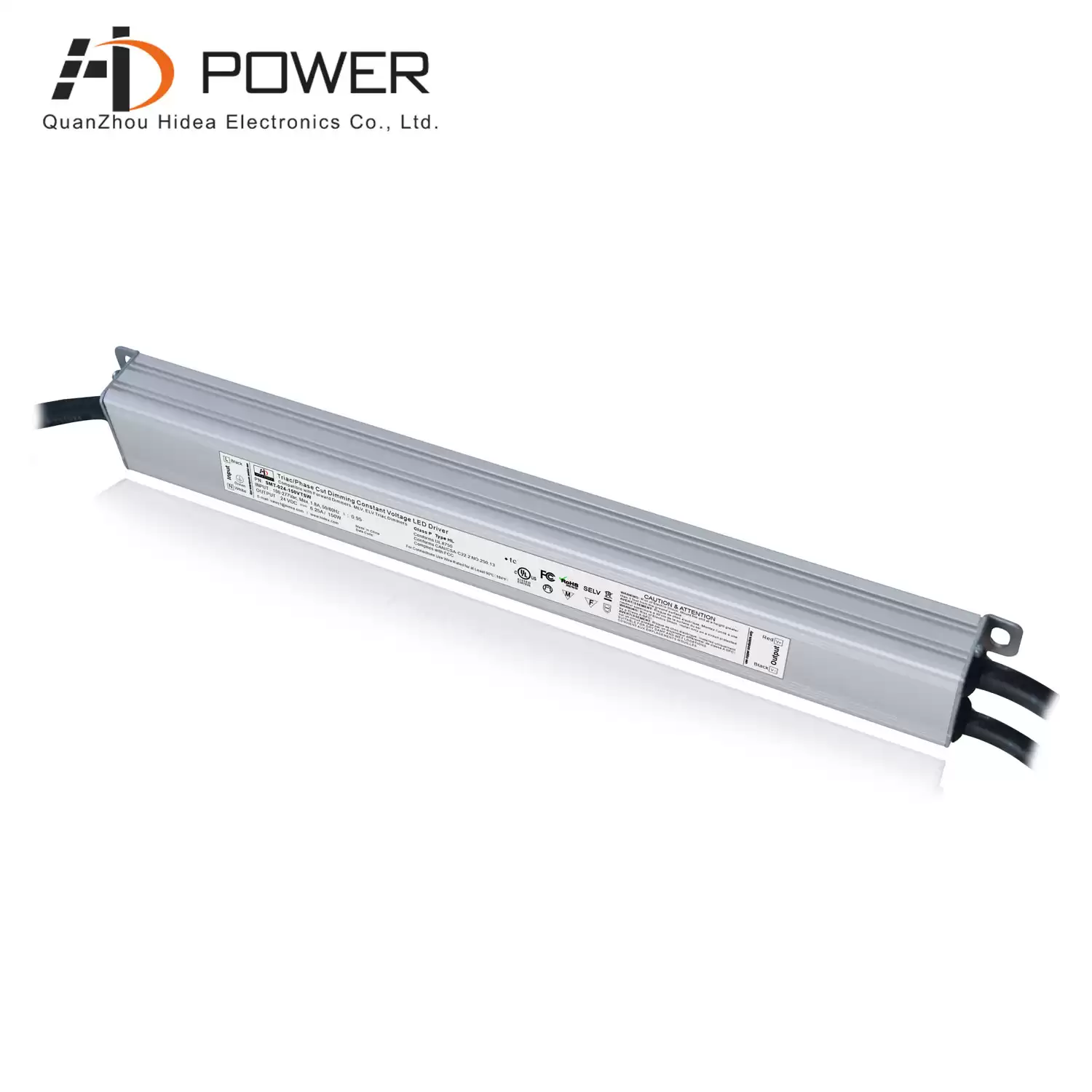

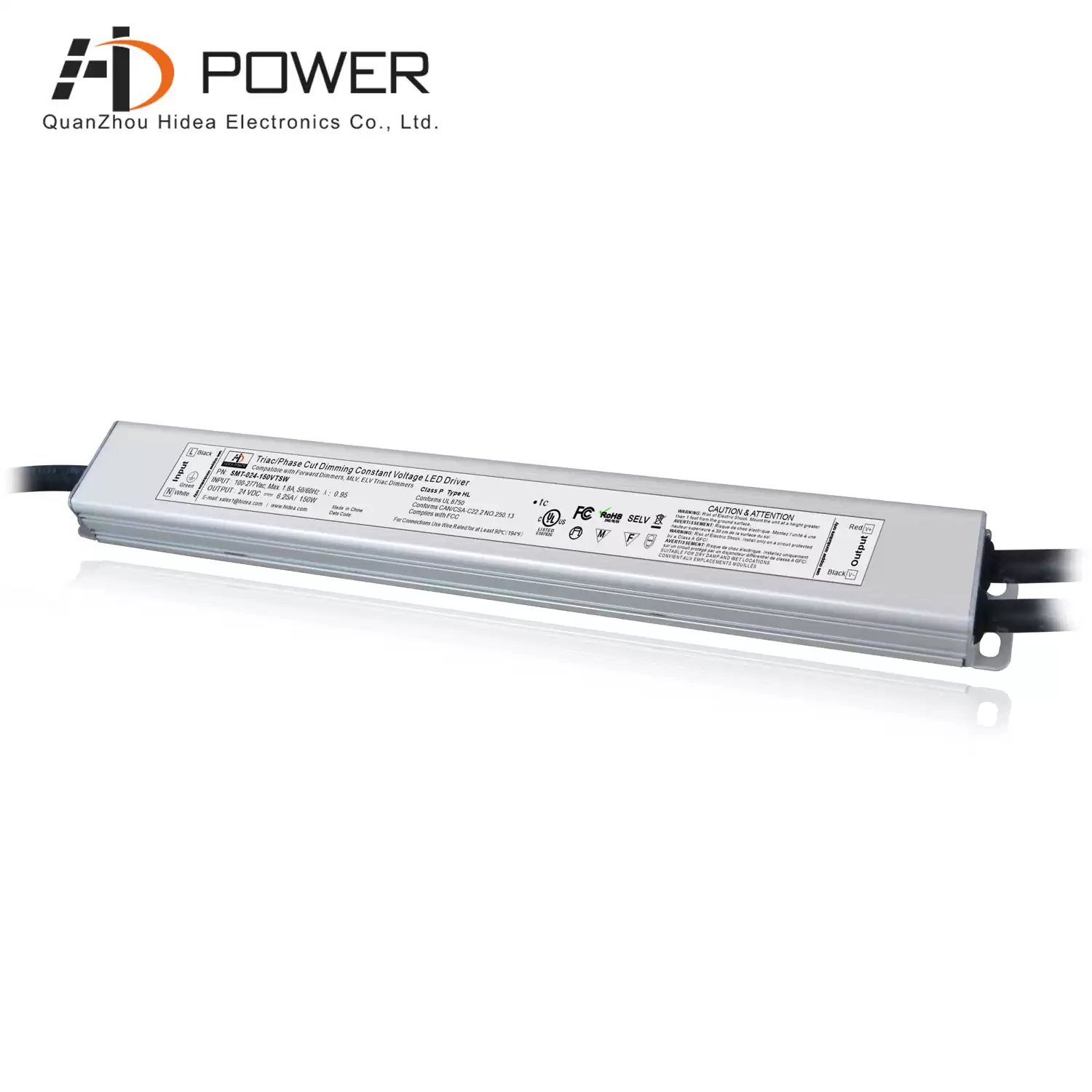

24v led strip light power supply 100W Triac dimming 0-100% range Compatible with most dimmers on the market, enabling smooth dimming
Specification
|
Model
|
SMT-012-150VTSW
|
SMT-024-150VTSW
|
SMT-048-150VTSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
48VDC
|
|
Voltage Accuracy
|
±5%
|
|
Rated current
|
12.5A
|
6.25A
|
3.125A
|
|
Rated power
|
150W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.95/110V ; PF≧0.97/277V
|
|
Full Load Efficiency(Typ.)
|
>89%
|
>90%
|
>91%
|
|
AC Current(Typ.)
|
1.90A/100VAC / 0.82A/277VAC
|
|
Inrush Current(Typ.)
|
59.2A/212us@50%Ipeak
|
|
Leakage current
|
<0.50mA/110VAC; ﹤0.13mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition
|
|
is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.75Kg
|
|
Size
|
368*32*23mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
c
|
Related Products
|

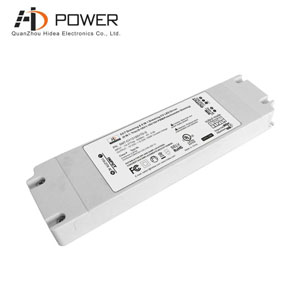

 CCT Triac & 0-10V 5 in 1 dimming led strip light power supply 100W plastic shell design, light weight and easy to install
