Best Water Drainage Plate Manufacturer from China

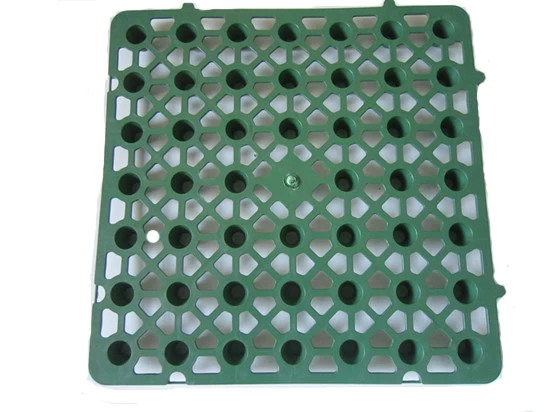

Water Drainage Plate from Leiyuan Company is better than traditional stone drainage and other materials. It is widely used in many greening solutions like rooftop, garden, road drainage, golf courses etc. We are the best water drainage plate supplier in China, welcome your inquiry!


  • MaterialHDPE
  • ColorDark Green
  • Size410x410x25mm
  • Total Volume0.06m3/bundle
  • Press Strength565KN

Best Water Drainage Plate Manufacturer from China Specifications:

 Item No.  LY-B25A  LY-B25B  LY-B25C
 Color  Light green  Dark green  Black
 Size(mm)  410x410x25  410x410x25  410x410x25
 Unit weight(g/m2)  1900g/m2  1900g/m2  1900g/m2
 Material  HDPE  HDPE  HDPE
 Pressure strength(Kpa)  695KN  565KN  325KN
 Hardness  86  86  84
 Water Drainage  85%  85%  85%
 Vertical Circulating  Capacity(cm3/s)  25cm3/S  25cm3/S  25cm3/S
 Water retention(L/m2)  2.6L/m2  2.6L/m2  2.6L/m2
 Loading Capacity

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 Package  30pcs/bundle,0.06m3/bundle  30pcs/bundle,0.06m3/bundle

 30pcs/bundle,0.06m3/bundle

 MOQ  1x20FT CONTAINER  1x20FT CONTAINER  1x20FT CONTAINER



LEIYUAN Water Drainage Plate is manufactured by HDPE which can bear high pressure and no distortion for a long time. Drainage plate replaces the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Drainage plate can bear heavy weight, high load of concrete board and unavoidable pressure outside in the construction such as concrete affusing, vehicle, worker trampling etc. Water Drainage Plate is usually widely used on buildings and rooftop. The main function of drainage cell is to act as a drainage layer to prevent excessive water from ponding. IT is usually used together with geotextiles, root barrier etc. as a green roof system.



Water Drainage Plate Application:

Roof greening

Bridge abutments

Underground

Road

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Fire lanes

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields



Water Drainage Plate Features and Benefits:

Lightweight

High compression strength

Seepage proof

Available in different sizes

Cost save

Water drainage and storage

Easy installation

No surface drains required

Reduces surface temperature around building

High load bearing 148.58t/m2 unconfined

Replenishes water supply to landscaped areas

Unique and easy to use interlocking system

Promotes fast and excellent plant growth

Strong structure can support heavy loads

Retains a minimum of approximately 76L/m2 of perched water above the cells



Water Drainage Plate Construction:





Water Drainage Plate Projects View:


Leiyuan Water Drainage Plate: Good water feature, Long life service!
