Big Power 640kw 700kva 800kva 800kw KTA38 Cummins Stamford Silent Power Generator

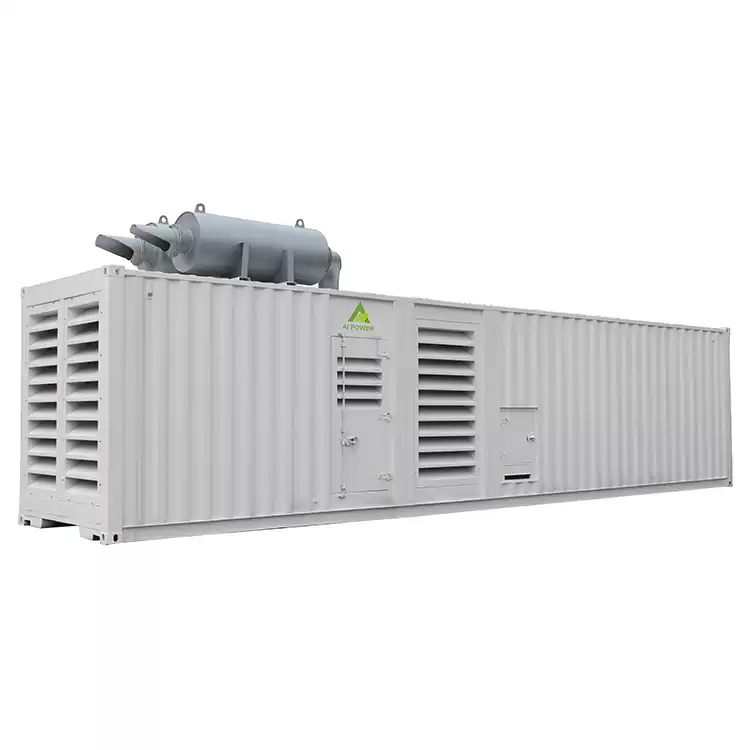

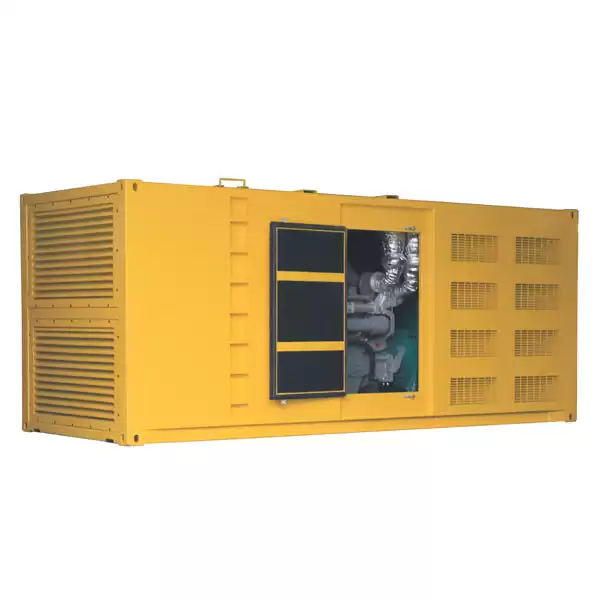

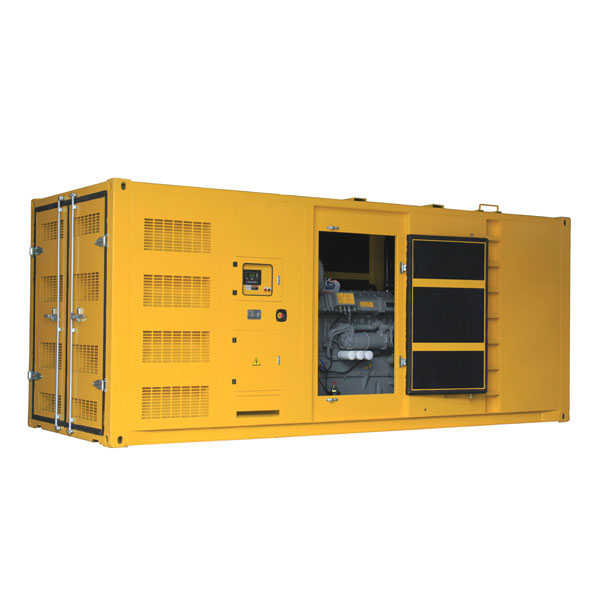

Cummins KTA38 engine is 12V cylinder diesel engine, it has very big power from 750kva to 1250kva, it is very strong, stable and durable. Its high quality has been approved by many years market use. we can also make the container type silent canopy for customer's choice.
Cummins 800kw/1000kva Diesel Generator Specification
|
Generator set model
|
Voltage
|
Hz
|
Phase
|
P.F.
|
Prime Power
|
Standby Power
|
|
(V)
|
|
|
|
KVA
|
KW
|
KVA
|
KW
|
|
AC1100
|
230/400
|
50
|
3
|
0.8
|
1000
|
800
|
1100
|
880
|
Cummins 800kw Diesel Engine Specification
|
Engine manufacturer
|
Chongqing Cummins Engine Co., Ltd.
|
|
Engine brand
|
Cummins
|
|
Engine model
|
KTA38-G5
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kW)
|
|
|
|
Standby power rating
|
970
|
|
|
Prime power rating
|
881
|
|
Type
|
4-Cycle, 12V Cylinder
|
|
Aspiration
|
Turbocharged and aftercooled
|
|
Borer * Stroke (mm)
|
159 * 159
|
|
Displacment (litre)
|
38
|
|
Compression Ratio
|
13.9:1
|
Alternator Specification
|
Alternator manufacturer
|
Cummins Generator Technologies(China) Co. Ltd
|
|
Alternator brand
|
Stamford
|
|
Alternator model
|
LVI634E
|
|
Control system
|
PMG
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
1000/800
|
|
----------------Standby-27°C
|
1050/840
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

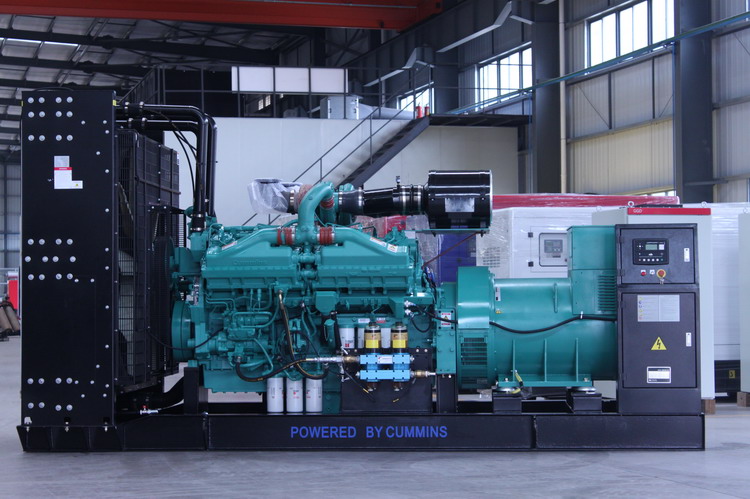

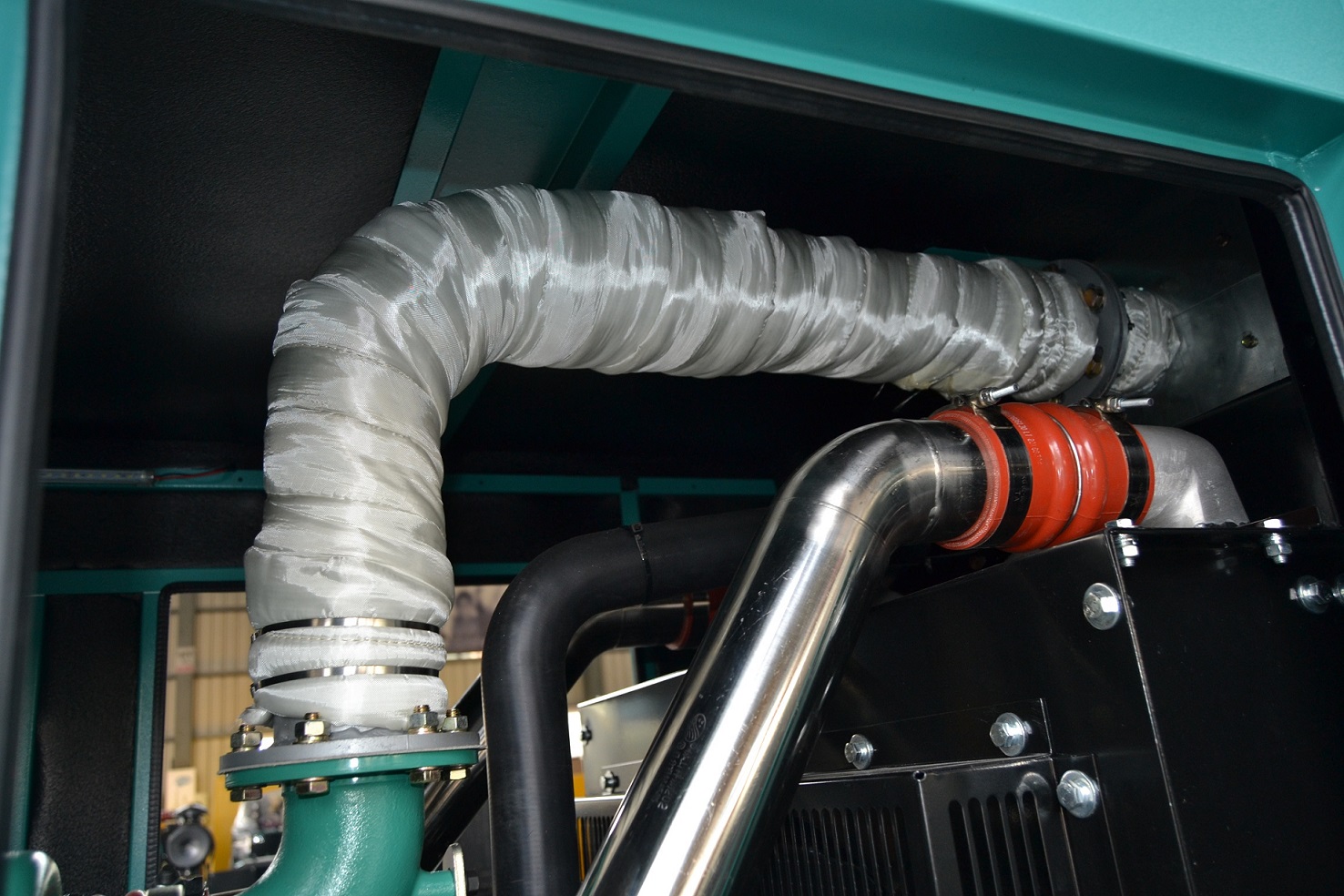

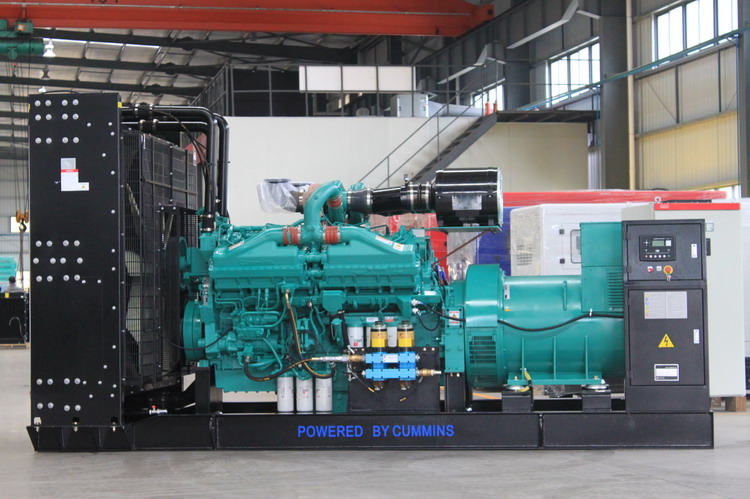

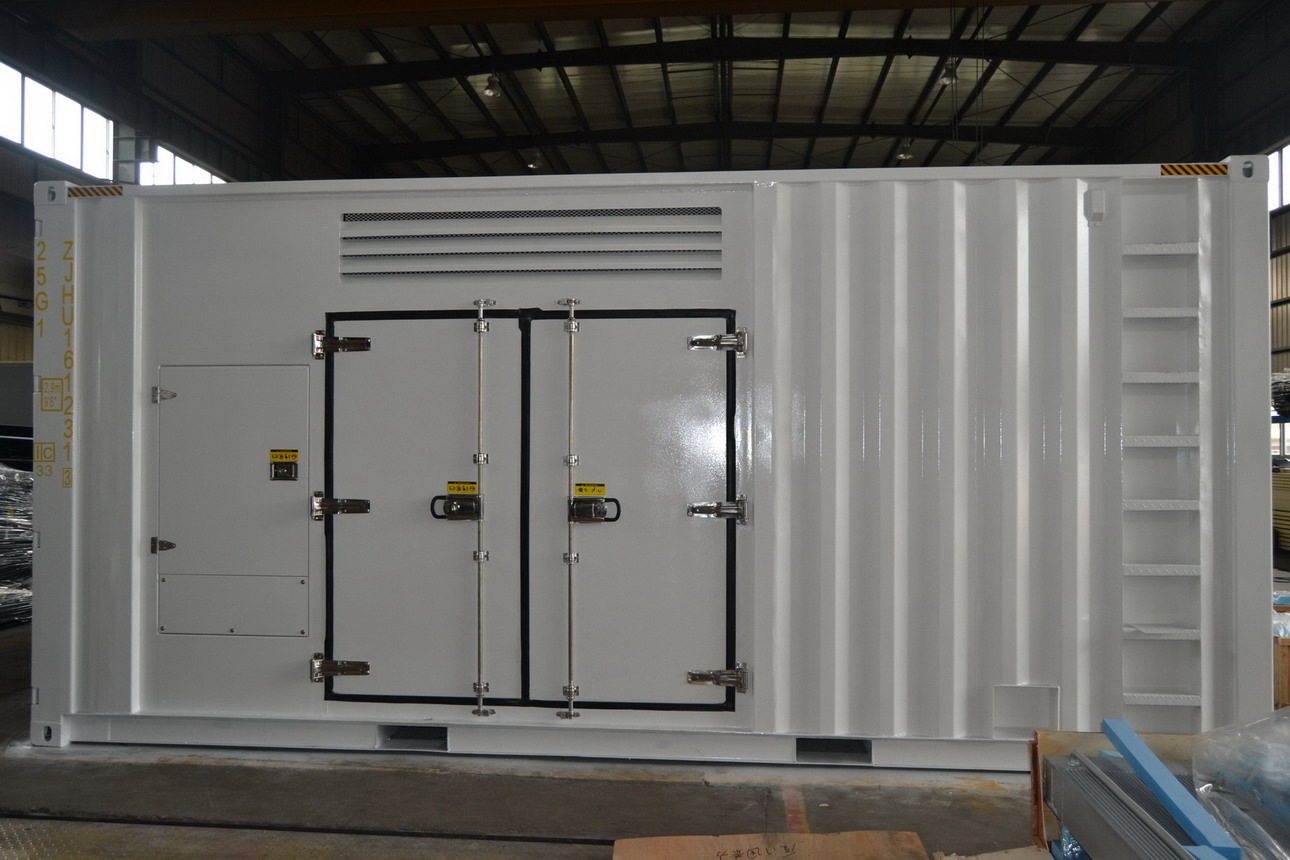

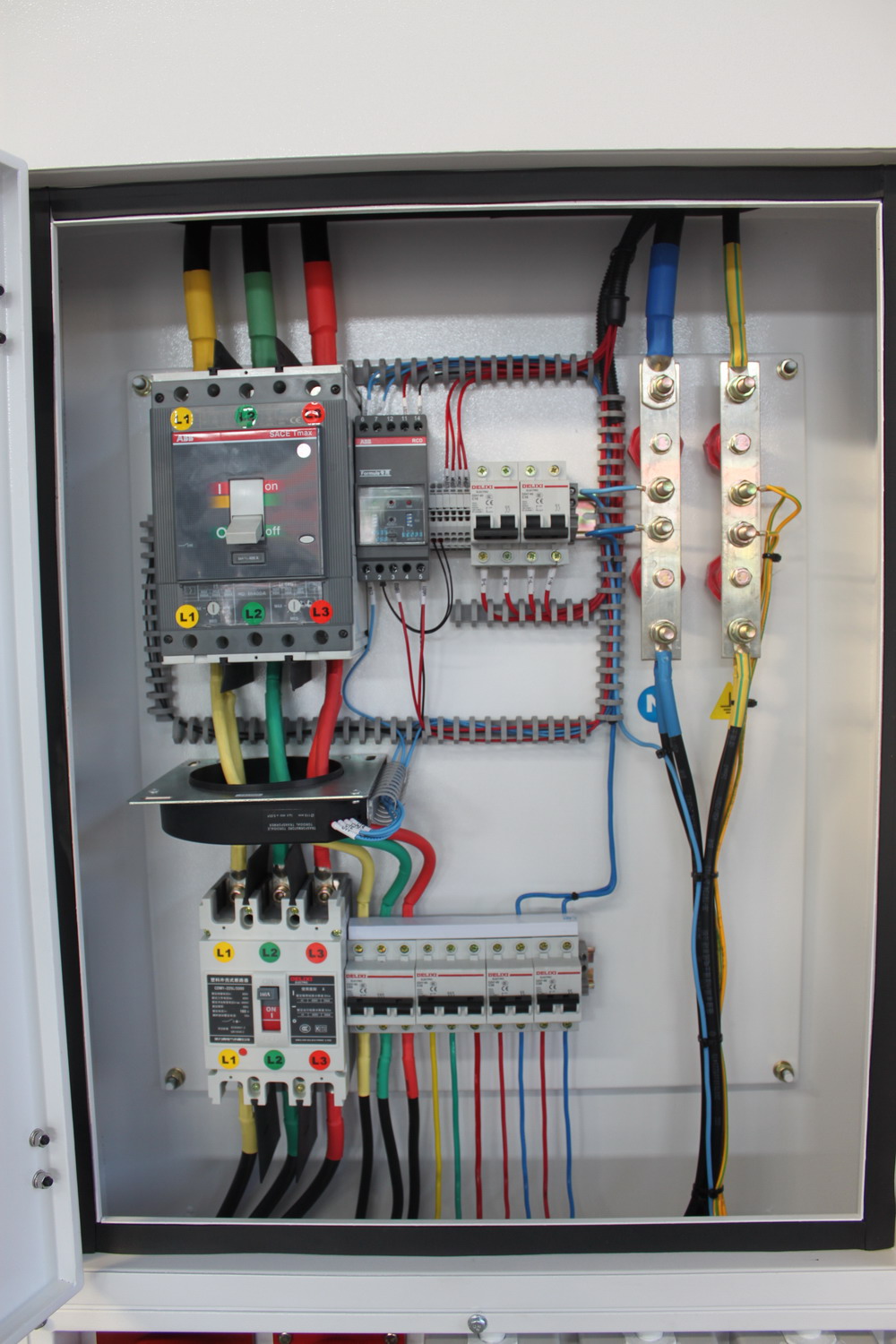

Cummins Power Generator Photos
AI POWER Company Introduction
Ai power is dedicated to becoming a comprehensive company
for intelligent power and green energy supply.
Ai
Power products adopts internationally and domestically reputed high-quality
engines and alternators including Cummins engine, UK Perkins engine, MTU from
Germany, Doosan from South Korea, Stamford, LeroySomer, and Marathon for our
industrial diesel generator sets, marine generator, movable generator,
lighting towers, generator spare parts and switchgear, power transformers.
Those products are featured by personalization, intelligence, environmental
protection and high quality. They are widely used in buildings, hospitals,
banks, mine, ports, construction, data center, power station and high voltage
projects.
We delivery our products to more than one hundred countries
and regions in Europe, North America, South America, Oceania, Asia and Africa.
Continuously deepen the reform and making arduous efforts on innovation,
Ai power promise to provide customers with better performance electrical
machines and services.
FAQ:
1. What is your warranty period?
A: It’s 1 year or 1000 running hours
whichever comes first. But based on some special project, we can extend our
warranty period.
2. Can you accept OEM?
A. Yes, we can accept OEM.
3. What’s your payment term?
A: We can accept T/T 30% in advance and the
balance 70% shall be paid before shipment or LC at sight.
