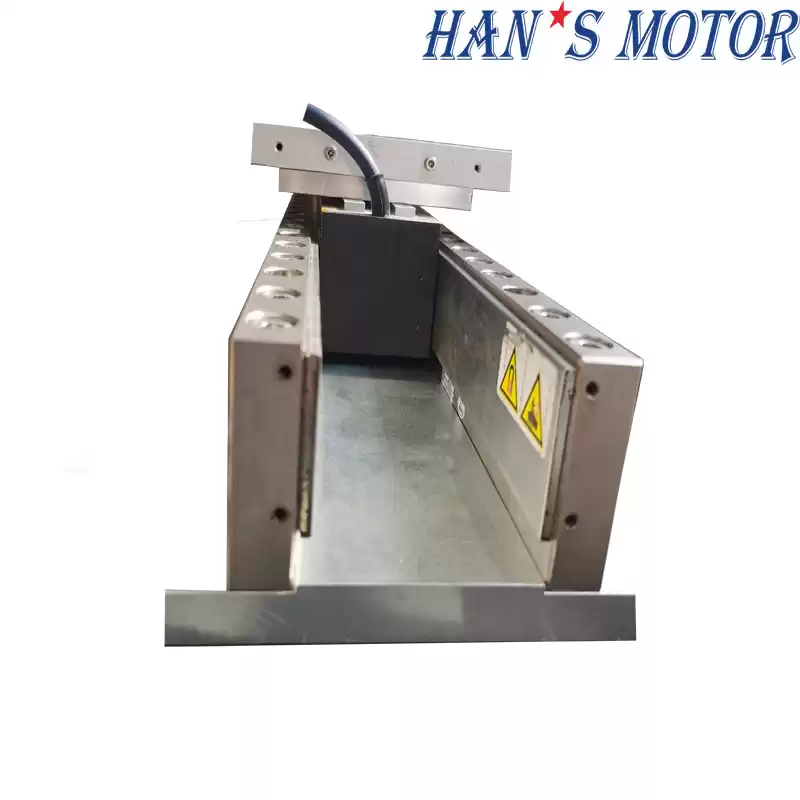

Product name: Bilateral Forcer Iron Core Linear Motor For High Speed SMT Machine
Specifications
Mover Spec.：LSMD110xxxxx-x-H-NC-N-C0.05
|
201A-P
|
301A-P
|
301B-P
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
P2
|
P1
|
P3
|
Continuous Force (Tmax）
|
Fc
|
N
|
590
|
880
|
880
|
Peak Force
|
Fp
|
N
|
1545
|
2600
|
2318
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
52.8
|
64.4
|
65.3
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
171
|
256
|
249
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
8.0
|
7.7
|
12.0
|
Peak Current (1S)
|
Ip
|
Arms
|
24.0
|
23.0
|
36.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
73.6
|
114.6
|
73.6
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
24.5
|
38.2
|
24.5
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
1.3
|
2.1
|
0.8
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
12.9
|
21.0
|
8.6
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
32.0
|
32.0
|
32.0
|
Magnetic Attraction
|
Fa
|
kN
|
0.0
|
0.0
|
0.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
4.4
|
2.7
|
4.4
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
2.8
|
1.6
|
2.8
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
5.1
|
3.2
|
5.1
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
7.2
|
4.5
|
7.1
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
4.6
|
2.8
|
4.7
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
8.0
|
5.1
|
8.0
|
Mover Mass
|
Mp
|
Kg
|
6.1
|
8.8
|
8.8
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
10.1
|
10.1
|
10.1
|

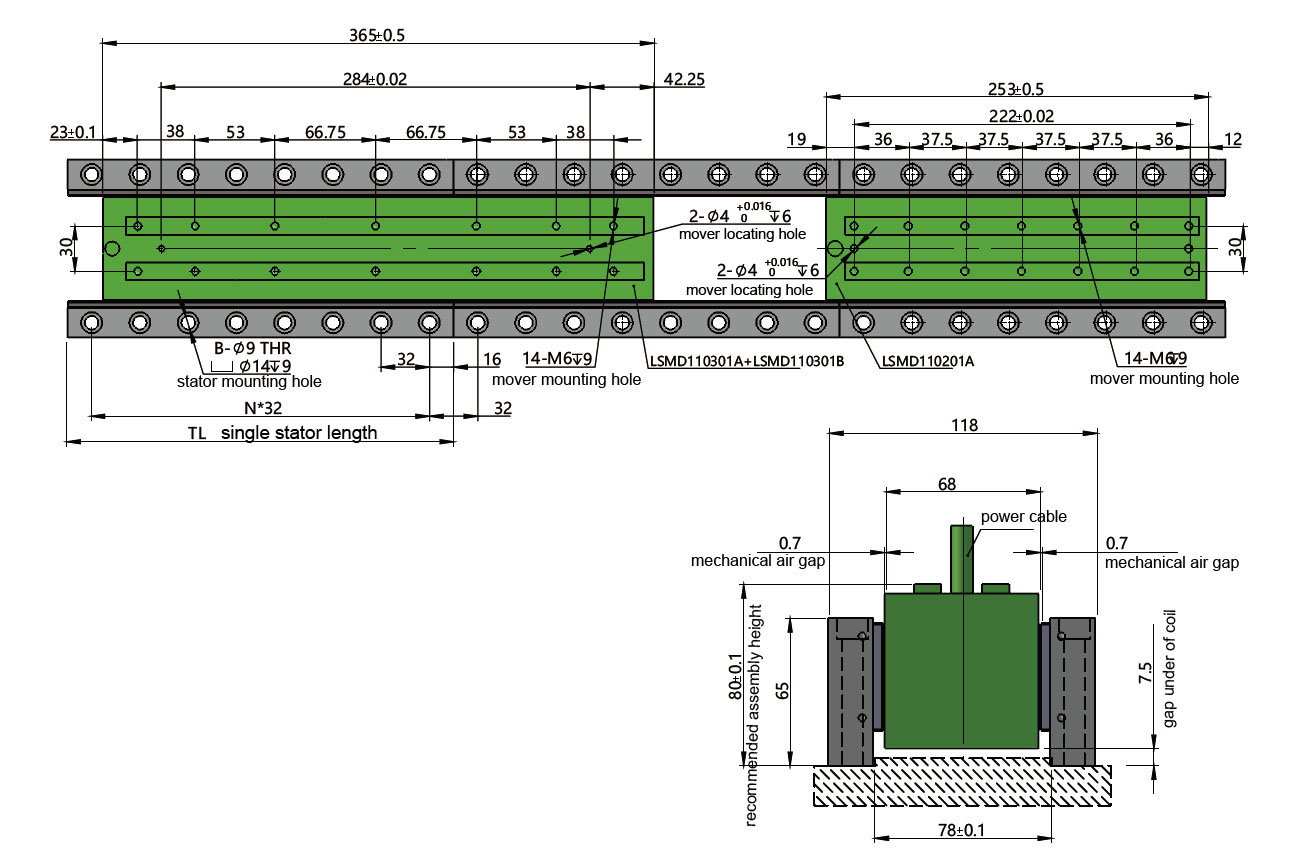

Dimension
Mover Length
|
Mover model
|
Mover length L
|
Mover mounting hole A
|
LSMD110201A-P-H-NC-N-C00.5
|
253
|
14
|
LSMD110301A-P-H-NC-N-C00.5
|
365
|
14
|
LSMD110301B-P-H-NC-N-C00.5
|
365
|
14
|
Remarks: 1. Standard cable length is 0.5m (with C-type aviation plug), Continuous Current Ic≤10A/ 10＜Ic≤12A /12＜Ic≤16A maximum outer diameter (d)of motor cable is 7.5mm/ 8.0mm/9.0mm, fixed minimum bending radius is 3*d, moving minimum bending radius within chain is 5*d; the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
LSMD1201A
|
64
|
1
|
2
|
LSMD1202A
|
128
|
3
|
4
|
LSMD1203A
|
256
|
7
|
8
|
LSMD1204A
|
512
|
15
|
16
|
Suitable for any mover of this series.
Industry Applications:

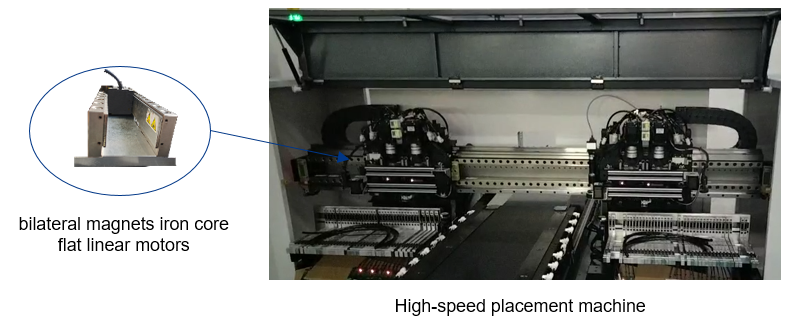

Application Case：
Requirements: high speed (3.5m/s), high acceleration (4.7G)
Advantages: Adopt bilateral magnets iron core falt linear motor, large thrust, acceleration performance, adopt cogging force suppression technology, bulit-in overheat protection, the electromagnetic attraction forces offsetting each other, reducing the wearing of guide rail.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
