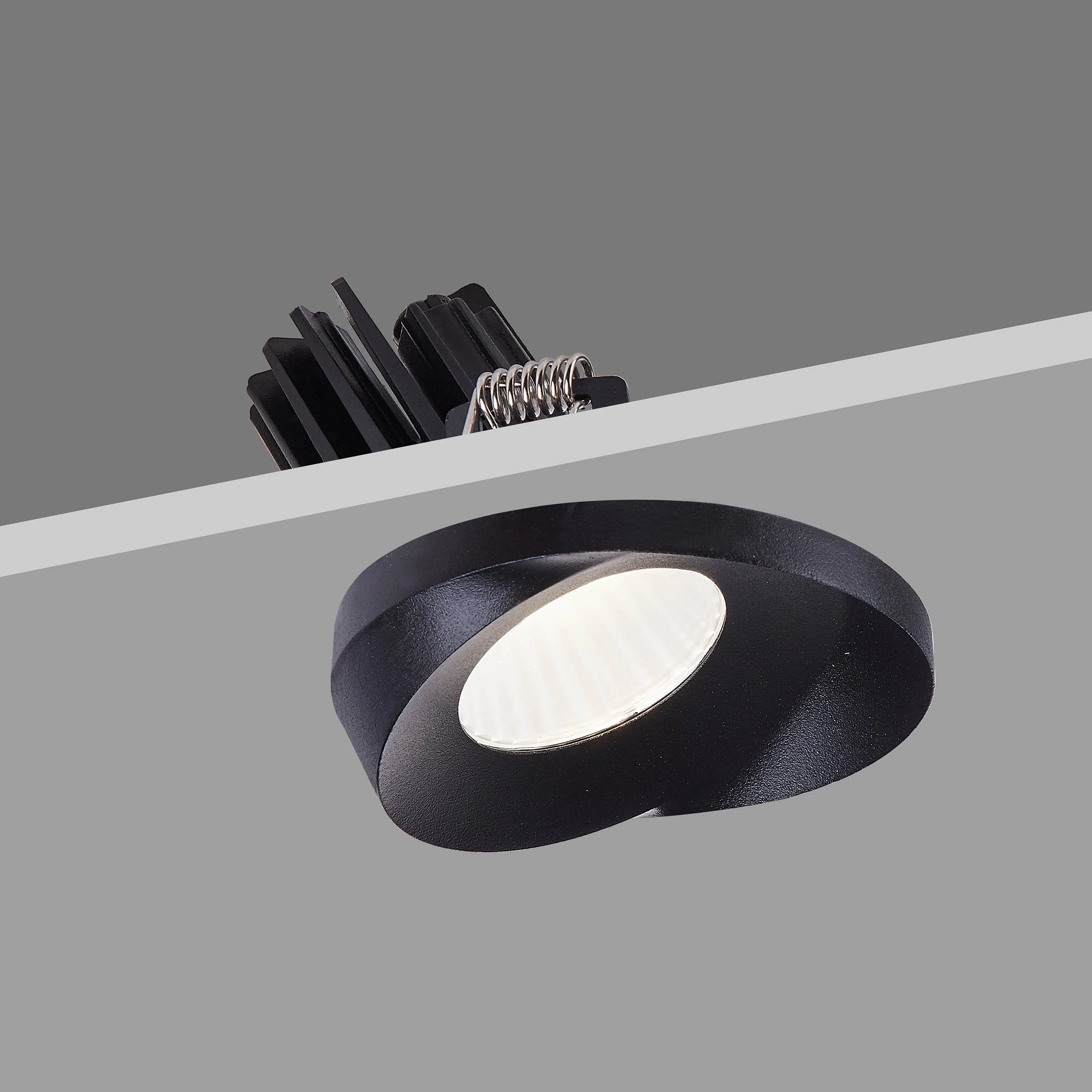

Black 10W IP56 Aluminum high CRI recessed led downlight

  • The led recessed lamp body is made of aluminum, radiator molded through die-casting, good layout design and heat dissipation effect.

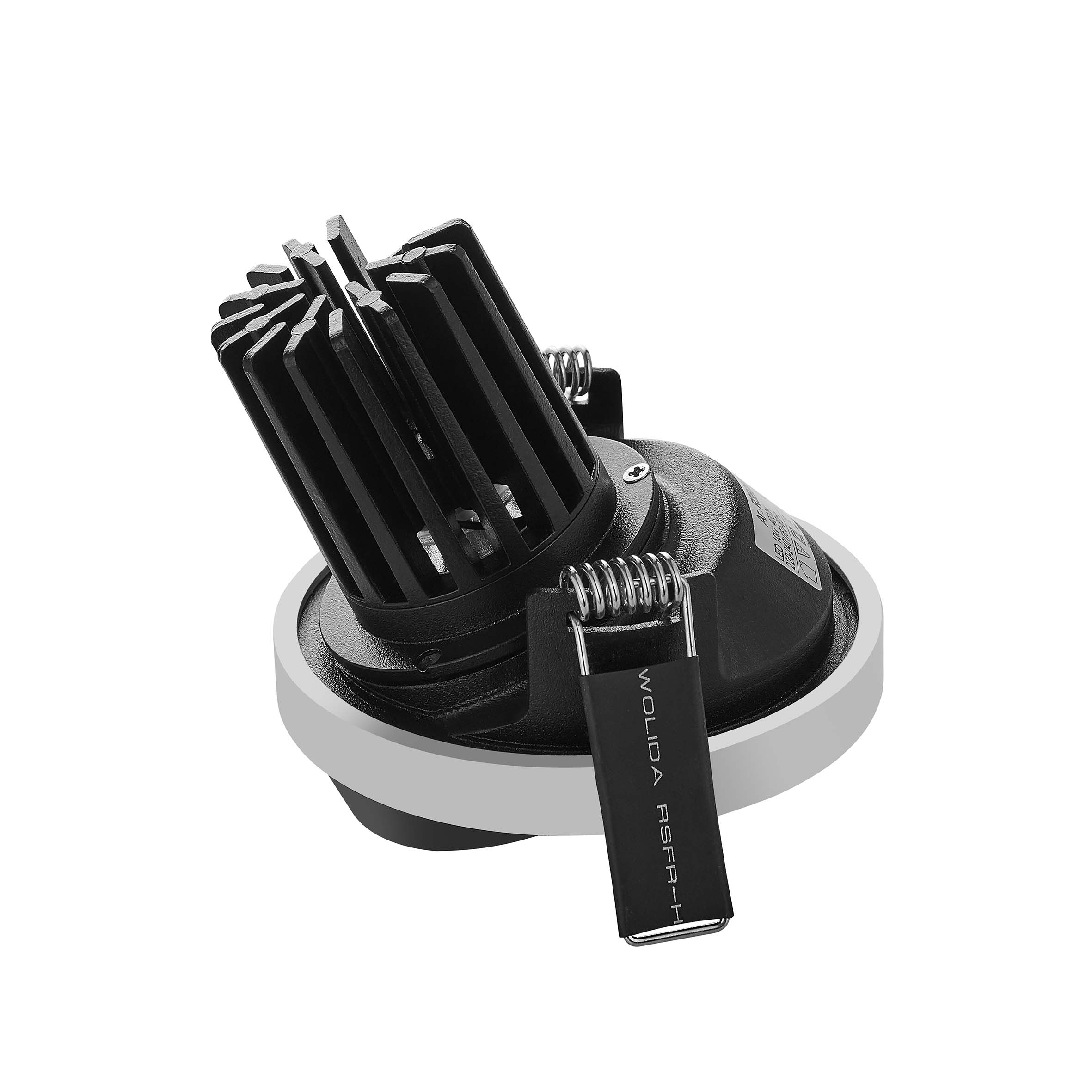

  • Using spring installation, simple and convenient; new CITIZEN chip and high CRI, this product creates extre low heat and offers an excellent lumen performance.
  • A range of PC reflectors are available with different bean angle, all completing with high reflective vacuum plated finishing.


  • IP RateIP 65
  • Beam angle15°
  • Beam angle25°
  • Beam angle36°
  • CCT3000K
  • CRI>90
  • Lumen923lm
  • Lamp Power10w
  • Light sourceCOB

Model number

 R3B0800

Installation

 Recessed light

Power

10W

Light source

 COB

Lumen

923lm

Material

Aluminum

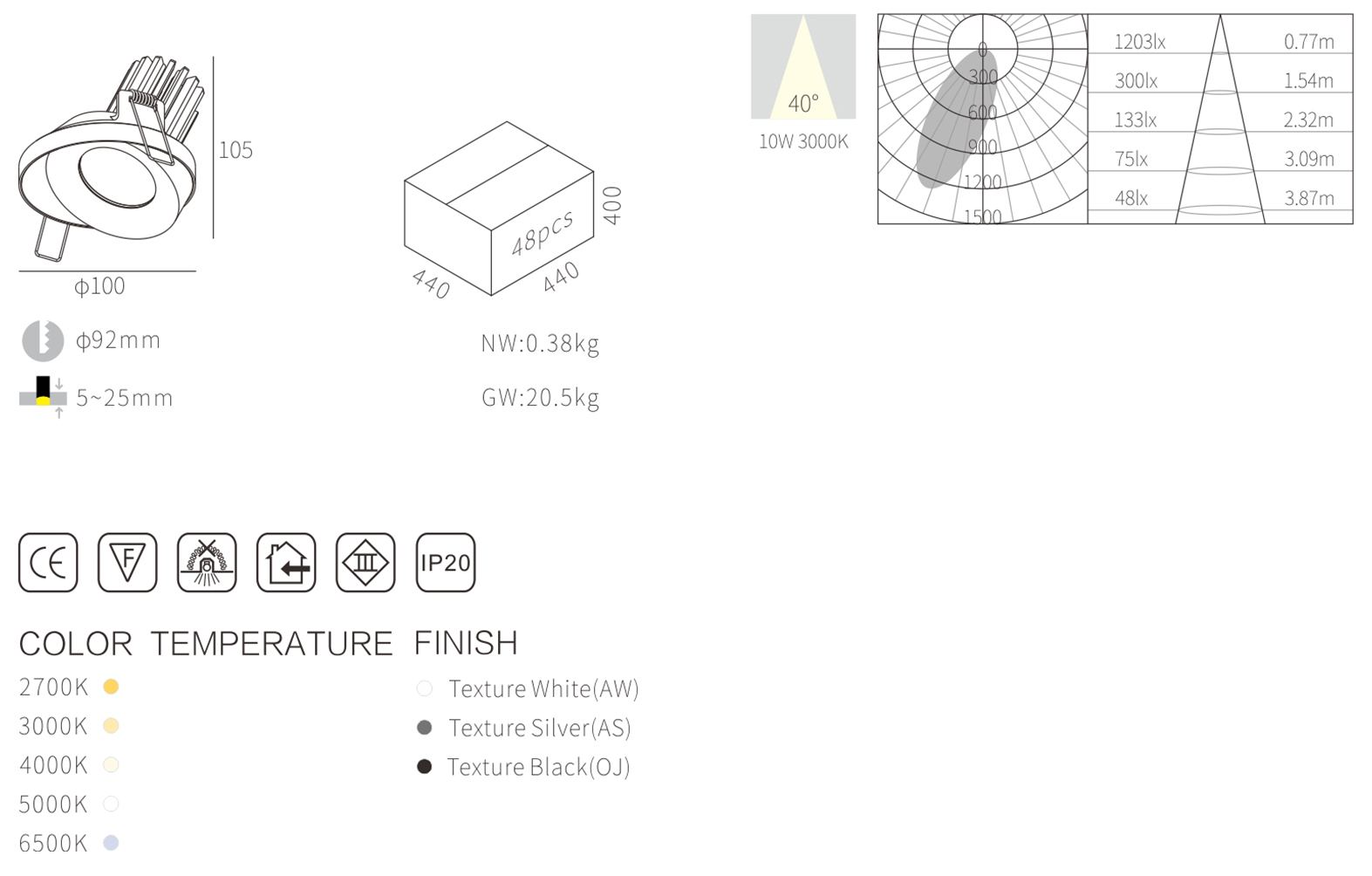

Beam Angle

15° 24° 36°

Electric Data

DC 37V  250mA

CCT

 3000K

Finish

Texture:White、Black、Silver

IP

IP20

Certification

 CE、STD、RoHS

CRIRa>)

>90

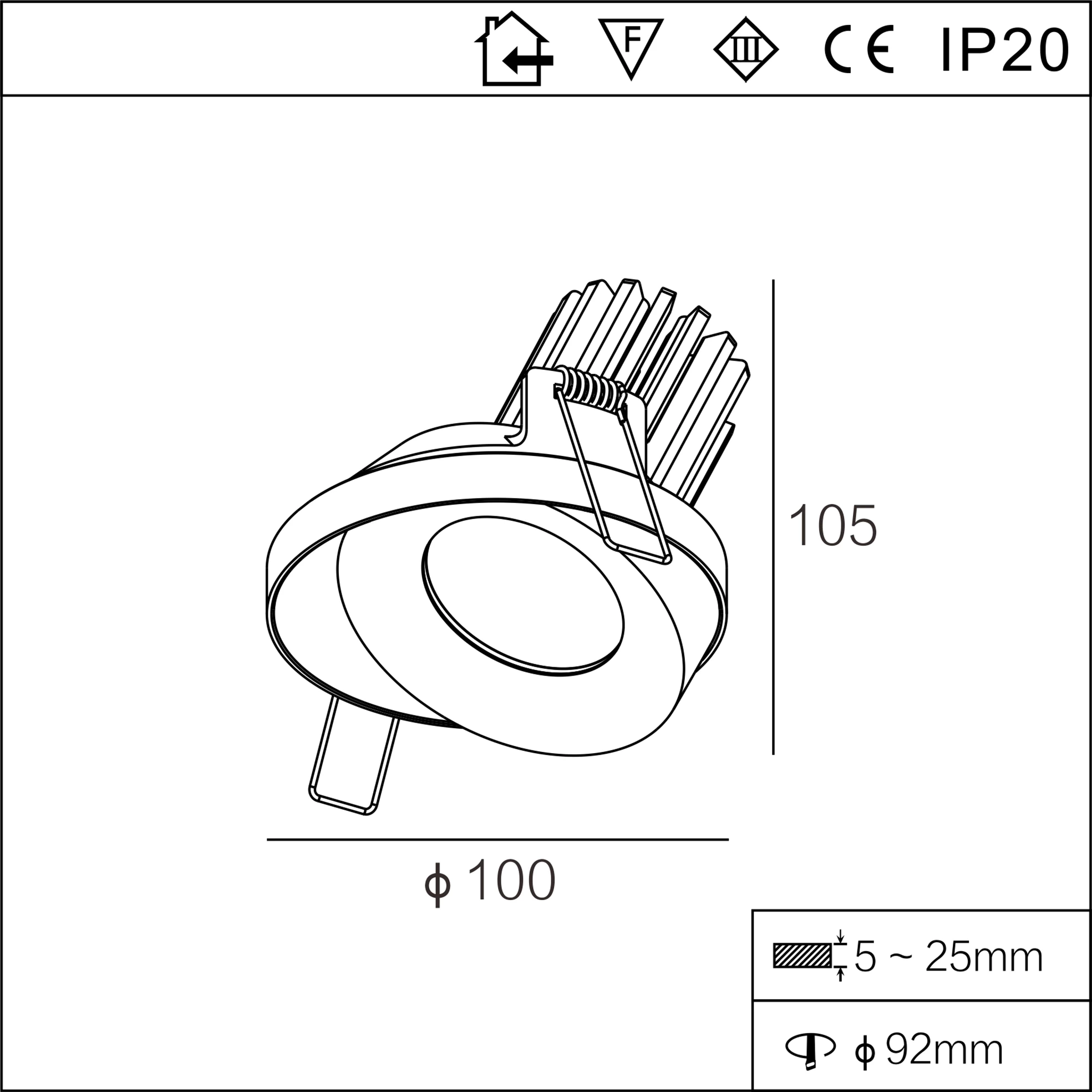

Cutout shape/size

  92mm

Class

Class III

Requirements

 1-10V/SCR/DALI


recessed lights downlight


  Application


lighting application cafe  lighting application club  lighting application hotel  lighting application office area  lighting application residence  lighting application restaurant  lighting application shopping mall  lighting application showroom  lighting application stroe  lighting application Villa
